Hatch Font Pack 1 in Real Life: Memo Script, Handy Script, and Eliza—How to Size Them So They Actually Stitch Clean

Script fonts are the "Ferrari" of the embroidery world—they look expensive and sleek, but if you don't know how to drive them, you will crash.

If you’ve ever watched a beautiful script preview on-screen and then stitched it out only to get chunky loops, closed counters (the holes in "e" or "a"), or unreadable "spaghetti," you’re not alone. The friction usually lies between the digital promise and the physical reality.

The good news: The three fonts in Hatch Font Pack 1 that Sue demonstrates—Memo Script, Handy Script, and Eliza—are pre-digitized. This means a human professional, not an algorithm, engineered the stitch angles and density. However, even the best engineering fails if you violate the laws of physics.

Below is the Master Class Workflow, calibrated with 20 years of production experience to ensure your machine yields professional results.

Calm the Panic: Pre-Digitized Hatch Font Pack 1 Script Fonts Usually Fail for One Reason—Size

When script lettering looks rough, most beginners blame the thread tension or the machine’s timing. While those factors matter, 90% of script failures are scaling errors.

In commercial embroidery, every font has a "Sweet Spot." When you shrink a pre-digitized font below its engineered limit, the satin columns become too narrow for the needle to penetrate without deflecting. A standard 40wt thread is roughly 0.4mm thick. If you scale a column down to 0.8mm, you are asking for two threads to occupy the same space simultaneously. The result? Bird nesting and thread breaks.

Sue’s key point is simple: Hatch provides specific Minimum and Maximum sizes. Respecting these isn't a suggestion; it's a safety requirement for your machine.

The “Hidden” Prep in Hatch Lettering: Set Yourself Up Before You Type a Single Letter

Sue starts by opening the Lettering tools. This is the "Digital Prep." But before you click that mouse, you must perform the "Physical Prep."

The Golden Rule of Lettering: You cannot fix bad hooping with good software settings.

Before you type a single letter, define your Physical Constraints:

1. The Substrate: Is it a stretchy dri-fit shirt (unstable) or a canvas tote (stable)?
2. The Stabilizer: For script, you almost always need a Cutaway stabilizer. Tearaway allows too much movement, causing the letters to drift and gap.
3. The Hooping Mechanism: Traditional hoops rely on friction, which can crush the pile of towels or leave "hoop burn" on delicate polyesters.

If you struggle with hoop marks or hand fatigue when doing batch names, many professionals switch to magnetic embroidery hoops. These hold the fabric with magnetic force rather than friction, allowing for a "floating" technique that eliminates hoop burn and ensures the fabric grain remains perfectly straight—crucial for script fonts.

Prep Checklist (Do this before touching the keyboard)

• Machine Check: Is your needle fresh? (Use a 75/11 Sharp for wovens, 75/11 Ballpoint for knits). A dull needle causes "flagging," ruining small text.
• Bobbin Check: Is the bobbin case clean? Remove the needle plate and brush out lint.
• Stabilizer Selection: Have you paired the fabric correctly? (e.g., Cutaway for knits, Tearaway for stiff caps).
• Hooping Strategy: Are you using a hoop that fits the design size closely? (Too much empty space in the hoop causes vibration).
• Consumables: Do you have temporary spray adhesive (like 505) or a sticky stabilizer to prevent fabric shifting?


Memo Script in Hatch: The Clean, Readable Script for Small-to-Medium Lettering

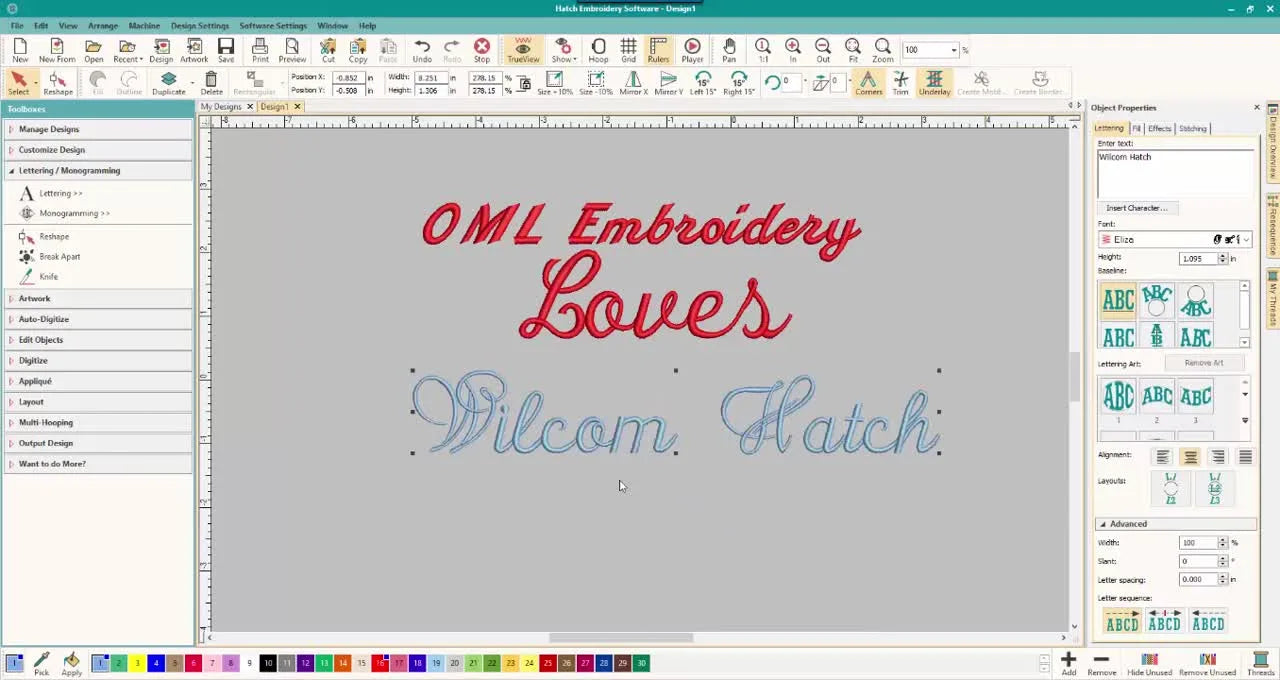

Sue’s first demo is Memo Script. She types “OML Embroidery” and resizes it.

Memo Script is your "Workhorse." It has open counters and relatively even column widths, making it the safest choice for beginners or challenging fabrics (like pique polo shirts).

What to do (The Workflow)

1. Open the Lettering toolbox.
2. Type "OML Embroidery" (or your text).
3. Select Memo Script.
4. The Expert Pause: Check the height immediately.
5. Resize strictly within the 10mm–50mm range.
6. Change color to high-contrast (Sue uses red) to check for "crossovers"—parts of letters that touch unintentionally.


Expected outcome

The text should look crisp. If you see jagged edges on screen, push Shift + 0 in Hatch to view it in "TrueView" (simulated stitches).

Expert “Why this works”

Memo Script has high "Pull Compensation" built-in. When a machine stitches a column, the thread pulls the fabric in, making the column narrower. Memo Script is digitized slightly wider to combat this. It is the forgiving font you should use when you are unsure about your stabilization.

Handy Script in Hatch: A Casual, Loopy Look When You Need a Narrow Baseline

Sue types “Loves,” demonstrates a correction, and selects Handy Script.

Handy Script is "Casual Modern." It mimics handwriting. However, the loops (ascenders and descenders) are physically vulnerable.

What to do (The Workflow)

1. Type "Loves".
2. Select Handy Script.
3. Visual Check: Zoom in on the loops of "l", "e", and "s".
4. Ensure the gap inside the loop is at least 1mm wide on screen. If it's smaller, the thread will fill it, creating a blob.

Expected outcome

The font gives a relaxed vibe.

Pro tip from real production

"Loopy" scripts are notorious for catching on the presser foot if the fabric flags (bounces up and down).

• Speed Limit: Slow your machine down. If your max speed is 1000 stitches per minute (SPM), drop it to 600 SPM for Handy Script. Precision > Speed.
• Hooping: Precision alignment is key here. On high-volume jobs, using a hooping station for embroidery ensures that "Loves" sits at the exact same angle on every shirt, reducing the visual distortion that makes casual scripts look messy.


Eliza in Hatch: Gorgeous Decorative Capitals—But Only If You Give It Room

Sue’s third demo is Eliza. She compares "Wilcom Hatch" in block font versus Eliza.

Eliza is the "Diva." It is dense, decorative, and unforgiving. It features intricate swirls on capitals that result in high stitch counts in small areas.

What to do (The Workflow)

1. Type mixed case text (Capitals and Lowercase).
2. Select Eliza.
3. Critical Decision: Look at the Capital letters.

Expected outcome

Beautiful, heirloom-quality swirls.

The expert reality check: "Bullet-Proofing"

Eliza creates a patch of thread that is stiffer than the fabric. This is called "bullet-proofing."

• Don't use Eliza on flimsy t-shirts; it will pucker the fabric around it.
• Do use Eliza on canvas, heavy fleece, or towels.
• The "Topper" trick: If stitching Eliza on a towel, you must use a water-soluble topping (Solvy) to prevent the intricate thin stitches from sinking into the terry loops and disappearing.

If your business scales to offering premium monograms like this, doing it on a single-needle machine is slow because of the density and potential color changes. Upgrading to a dedicated monogram machine (a multi-needle setup) allows you to preset colors and trim threads automatically, preventing the "jump stitch" mess that often ruins complex fonts like Eliza.

The Omega Button Most People Forget: Insert Character (Glyphs) for Accents and Fancy Alternates

Sue clicks the Insert Character button (the Omega symbol Ω).

This is not just for foreign languages. In professional typography, we use "Glyphs" for aesthetic balance.

What to do

1. Click the Omega (Ω) icon.
2. Look for "Swash" characters (letters with long decorative tails).
3. Insert them at the beginning or end of a name for a custom logo look.

Watch out

Ensure the "swash" doesn't overlap excessively with the previous letter. In embroidery, overlap = hard lumps.

The Size-Spec “Guardrails” from Hatch: Minimum and Maximum Lettering Sizes You Should Respect

Sue references the official spec sheet. Copy these numbers down. Tape them to your machine.

• Memo Script:
  • Green Zone: 15mm - 40mm (Safest range)
  • Absolute Min/Max: 10mm / 50mm
• Handy Script:
  • Green Zone: 18mm - 60mm
  • Absolute Min/Max: 13mm / 75mm
• Eliza:
  • Green Zone: 25mm - 80mm
  • Absolute Min/Max: 20mm / 100mm


Why the minimum matters more than the maximum

When you hit the minimum (e.g., 10mm for Memo), your satin column width might drop to 1mm.

• The 3mm Rule: Standard embroidery text usually looks best at 8mm-12mm tall. Scripts break this rule; they need to be larger (15mm+) to accommodate the loops.

Why the maximum still matters

If you go beyond the max (e.g., Eliza at 120mm), the satin stitches become too long. They will snag on buttons, zippers, or washing machines. The software might automatically convert them to "Tatami" (fill stitch), which changes the look entirely.

A Simple Decision Tree: Which Script Font + Stabilizer Strategy Should You Choose?

Don't guess. Follow this logic path to determine the right setup for your project.

Project Logic Flow:

• Scenario A: 6-month baby bodysuit (Interlock Knit)
  • Constraint: Tiny space, stretchy fabric.
  • Font: Memo Script (Size: 12-15mm).
  • Stabilizer: Fusible Poly-mesh (No-Show Mesh) + Tearaway on bottom.
  • Needle: 75/11 Ballpoint.
• Scenario B: Personalized Ladies' Cap
  • Constraint: Curved surface, rigid structure.
  • Font: Handy Script (Size: 25mm).
  • Stabilizer: Cap backing (Heavy Tearaway).
  • Key: Center-out stitching.
• Scenario C: Heavy Canvas Boat Tote
  • Constraint: Texture, rigid.
  • Font: Eliza (Size: 50mm+).
  • Stabilizer: Heavy Cutaway.
  • Tool: Magnetic Hooping is ideal here to grip the thick canvas handles without struggling with the screw.

If you are fighting with thick seams or items that won't fit in a standard hoop, using a repositionable embroidery hoop allows you to clamp difficult items without forcing the inner ring, which is a major cause of hoop burn on thick goods.

Setup Habits That Keep Script Lettering From Turning Into Thread Breaks

The video covers the software, but here is the Physical Pre-Flight Check that saves you from disaster.

1. The "H" Test: Before running the script, stitch a simple letter "H" or a test column. Flip the hoop over. You should see 1/3 white bobbin thread in the center and 2/3 colored top thread on the sides.
   • If you see top thread on the bottom: Tighten top tension.
   • If you see only bobbin thread: Loosen top tension.
   • Why? Script fonts have tight turns. Loose tension leads to "looping" on top of the letters.
2. Slow Down: For your first test, reduce speed to 400-500 SPM. Listen to the machine. A rhythmic "thump-thump" is good. A harsh "clack-clack" means you are hitting the hoop or the needle is struggling.

If you are stitching on sleeves or pant legs, the small diameter is a nightmare for flat hoops. Using a dedicated embroidery sleeve hoop creates the correct tension on a small cylinder, preventing the fabric from bunching under the needle plate—a common cause of bird nesting.

Warning: Safety First! When testing new fonts, always keep your hands clear of the moving hoop. If a needle breaks on a dense knot of thread (like inside an Eliza capital letter), the tip can fly at high velocity. Wear glasses and never put your fingers inside the hoop area while the machine is running.

Setup Checklist (Ready to Launch)

• Font size is within the "Green Zone" (not just the absolute min).
• "TrueView" (Shift+0) checked on screen to spot thin gaps.
• Machine speed reduced to 600 SPM or lower.
• New needle installed (appropriate for fabric).
• Test swatch prepared (Do NOT stitch directly on the final garment first).


Troubleshooting Script Lettering in Hatch: Symptoms → Likely Cause → Fix

Sue fixes a typo, but here is how to fix the stitch-out.

The Upgrade Path That Actually Saves Time: From Better Hooping to Real Production Speed

Mastering Hatch Font Pack 1 is step one. But as your skills grow, your bottlenecks will shift from "designing" to "producing."

Here is the natural progression of a successful embroidery journey:

1. The Stabilizer Upgrade: You stop using whatever scrap paper you have and buy a roll of professional Cutaway and Fusible Mesh. Result: 50% fewer puckering issues.
2. The Hooping Upgrade: You get tired of "hoop burn" and wrist pain. You invest in magnetic embroidery frames. Result: Hooping takes 10 seconds instead of 60 seconds, and the fabric stays pristine.
3. The Machine Upgrade: You start getting orders for 20+ shirts. Your single-needle machine requires you to change thread colors manually (which takes 2 minutes per shirt). Upgrading to a commercial-style SEWTECH multi-needle machine automates color changes and trimming. Result: You can press "Start" and walk away to invoice clients while the machine works.

Warning: Magnetic Hazard. Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely if they snap together. Keep them away from pacemakers, credit cards, and hard drives. Always slide them apart; do not try to pull them apart directly.

Operation Checklist (The Pro Workflow)

• Design: Chosen based on fabric constraints (Memo for knits, Eliza for canvas).
• Prep: Needle fresh, bobbin clean, stabilizer matched.
• Hooping: Fabric is taut like a drum skin (audible "thump" when tapped), but not stretched.
• Execution: Watch the first few stitches. If the tail doesn't catch, stop immediately.
• Finish: Trim jump stitches close to the knot for a clean look.

FAQ

• Q: Why do Hatch Font Pack 1 script fonts (Memo Script, Handy Script, Eliza) stitch out as unreadable “spaghetti” even when thread tension looks normal?
  A: In most cases, the script font was scaled below its engineered minimum size, so satin columns get too narrow and the needle deflects.
  • Check: Confirm the lettering height is inside the allowed range for the exact font (not “close enough”).
  • Resize: Stay in the “Green Zone” when possible (Memo Script 15–40mm, Handy Script 18–60mm, Eliza 25–80mm).
  • Preview: Use Hatch TrueView (Shift+0) to spot tiny gaps that will fill in and turn into blobs.
  • Success check: Letters remain open and readable (counters in “e/a” stay open) and the stitch-out does not form chunky loops.
  • If it still fails: Increase the size by ~20% and re-test on a swatch before changing machine tension.
• Q: What stabilizer should be used for Hatch Memo Script, Handy Script, or Eliza on stretchy knit shirts to prevent gaps, drift, and puckering?
  A: Use a cutaway-based setup because script lettering usually needs firm support to stop fabric movement.
  • Choose: Pair knits with Cutaway (the blog notes cutaway is almost always needed for script), and use fusible poly-mesh (No-Show Mesh) when you want support with less show-through.
  • Add: Use temporary spray adhesive (like 505) or sticky stabilizer to prevent shifting during stitching.
  • Hoop: Avoid stretching the knit while hooping; keep it supported, not distorted.
  • Success check: The script baseline stays aligned with no “registration gaps” between connected letters.
  • If it still fails: Move from tearaway to cutaway support (or add an extra layer) and re-test at a slower speed.
• Q: How can embroidery thread tension be checked before stitching Hatch script lettering using the “H test,” and what does a correct result look like?
  A: Stitch a simple “H” test column first and verify the 1/3–2/3 thread balance on the back before running the script design.
  • Stitch: Run a small “H” (or a simple column) on the same fabric + stabilizer combo.
  • Inspect: Flip the hoop and look for about 1/3 white bobbin thread in the center with 2/3 top thread showing on the sides.
  • Adjust: If top thread is showing on the underside, tighten top tension; if only bobbin thread shows, loosen top tension.
  • Success check: The underside shows the centered bobbin “railroad track” look (bobbin in the middle, top thread on the edges).
  • If it still fails: Re-thread the top path and ensure the thread is properly seated in the tension discs (floss it in), then repeat the test.
• Q: How can Hatch Handy Script loops (like “l/e/s”) be prevented from turning into blobs or catching due to fabric flagging during stitching?
  A: Keep the loop openings visibly large and slow the machine down to reduce flagging and presser-foot catches.
  • Zoom: Inspect the loop interiors on-screen and ensure the gap inside the loop is at least 1mm.
  • Slow: Reduce speed (a practical limit in the blog is around 600 SPM for Handy Script; for first tests, even 400–500 SPM).
  • Stabilize: Use firm stabilization so the fabric doesn’t bounce up (flag) into the needle area.
  • Success check: Loops remain open after stitching and the machine runs smoothly without a harsh “clack-clack.”
  • If it still fails: Increase the font size slightly and re-test; tiny loops are the first thing to close when sizing is too small.
• Q: What causes needle breaks on dense decorative capitals when stitching Hatch Eliza, and what is the safest first fix?
  A: Eliza capitals concentrate high stitch counts in small areas, so slowing down and giving the design enough size/room is the safest first move.
  • Slow: Reduce machine speed before the capitals stitch to lower impact and deflection risk.
  • Evaluate: Check the capital letters in the design—if they look cramped, increase the font size within Eliza’s safe ranges (Green Zone 25–80mm; Absolute 20–100mm).
  • Match fabric: Use Eliza on stable, heavier goods (canvas, heavy fleece, towels) rather than flimsy t-shirts to avoid “bullet-proofing” and puckering.
  • Success check: Capitals stitch without repeated punching in one spot and without needle strikes/breaks.
  • If it still fails: Adjust design settings by reducing/removing underlay or increase size again, then test on a swatch (settings options vary by setup—follow machine/software guidance).
• Q: What safety steps should be followed when test-stitching dense script fonts (especially Hatch Eliza) to avoid injury from needle breaks?
  A: Keep hands out of the hoop area during stitching and treat dense knots as a needle-break risk—test slowly and stay protected.
  • Wear: Use eye protection when testing new fonts or dense capitals.
  • Position: Keep fingers completely outside the moving hoop zone—do not reach into the hoop area while the machine runs.
  • Test: Start at reduced speed (400–500 SPM for first trials) and watch the first stitches to confirm the thread tail catches.
  • Success check: The machine runs without sudden snapping sounds, and the design starts cleanly without tangles.
  • If it still fails: Stop immediately, clear the knot/bird nest, re-thread, and restart the test on a swatch—do not “power through” density issues.
• Q: How can hoop burn, fabric shifting, and wrist fatigue be reduced when producing names in Hatch script fonts, and when is it time to upgrade from technique to tools?
  A: Start with stabilization and hooping technique, then move to magnetic hoops if friction hooping is marking fabric or slowing production; consider a multi-needle machine when volume and color changes become the bottleneck.
  • Level 1 (Technique): Use cutaway support for script, add spray adhesive/sticky stabilizer, and choose a hoop size that closely matches the design to reduce vibration.
  • Level 2 (Tool): Switch to magnetic hoops to hold fabric with magnetic force (less hoop burn, faster hooping, easier “floating” without stretching delicate goods).
  • Level 3 (Production): Upgrade to a multi-needle machine when repeated manual color changes and trimming are costing minutes per item on batch orders.
  • Success check: Hooping time drops, fabric surface stays unmarked, and script alignment stays consistent from piece to piece.
  • If it still fails: Re-check that fabric is taut but not stretched (“thump” when tapped) and run a controlled test swatch before committing to final garments.
