Hatch Font Pack 2 Monograms That Actually Stitch Clean: Microscan, Glory Applique, and the Henriksson “Blob-to-Beautiful” Fix

Monogram fonts are supposed to feel like magic—type three letters, hit start, and watch a personal brand appear. But if you have ever watched a gorgeous, expensive-looking medallion font turn into a tight, bullet-proof blob on your fabric, you know the frustration. It’s not just a waste of thread; it’s a waste of the emotional energy you put into the project.

In this deep dive based on Sue from OML Embroidery’s Wilcom Hatch lesson, we are going to dismantle Font Pack 2. We will analyze three distinct lettering styles—Microscan (the tiny specialist), Glory Applique (the structural outline), and Henriksson (the dramatic diva). But I’m not just going to tell you how to click the buttons. I’m going to teach you the physics of why these fonts fail when resized incorrectly, and how to build a production workflow that guarantees clean, crisp results every time.

Calm the Panic: When Hatch Monogram Fonts Look Wrong, It’s Usually Size—not “Bad Digitizing”

When a novice sees a messy stitch-out, they blame the digitizer. When a pro sees a messy stitch-out, they check the scale.

Pre-digitized fonts are not vectors. Unlike a PDF on your computer screen which can scale infinitely, an embroidery font is a collection of physical instructions: specific stitch angles, underlay densities, and compensation settings built for a specific physical dimension.

That is especially true for ornate medallion styles like Henriksson. If inserted at a default size that is too small, the software tries to jam 500 satin stitches into a 10mm space. The result is a "thread nest"—a hard, lumpy knot that can actually jam your machine. The fix isn't a hidden setting; it is giving the satin columns room to breathe.

Shift your mindset: Treat specific fonts like specific drill bits. You wouldn't use a massive auger bit to drill a pilot hole for a jewelry box. Similarly, you cannot force a medallion font into a cuff label. Respecting these operating limits is the first step to professional quality.

The “Hidden” Prep Before You Type Anything: Set Up Hatch Lettering Like a Pro

Sue starts in the Toolbox, but I want you to start at your machine. Before you even open the software, you need to verify your physical setup. A font is only as good as the needle delivering it.

For detailed lettering, standard 40wt thread is usually fine, but if you are pushing the lower size limits (like Microscan), consider switching to a 60wt thread and a smaller needle (size 65/9 or 70/10). This reduces the physical footprint of each needle penetration, keeping text crisp.

Hidden Consumables You Need:

• Fresh Needles: If you hear a "popping" sound as the needle penetrates, change it. A burred tip shreds satin stitches.
• Bobbin Check: Ensure your bobbin tension is calibrated. You want to see 1/3 white bobbin thread down the center of the back of a satin column. If you see only top thread on the back, your top tension is too loose or bobbin too tight—this causes "looping" on small text.

If you are planning to stitch these on finished garments, you must also consider your hooping strategy. Standard plastic hoops rely on friction and inner/outer ring pressure. This often leads to "hooping distortion"—where the fabric is stretched unevenly, warping the letters. This is why professionals often search for machine embroidery hoops that offer better stability without the "tug of war."

Prep Checklist (Do this BEFORE software)

• Needle Audit: Is the needle fresh? (Use 75/11 for standard, 65/9 for micro text).
• Bobbin Tension: Check a test stitch. Pull the bobbin thread; it should drag with resistance similar to pulling a spiderweb—light but constant.
• Software Ready: Open Hatch and confirm access to Toolbox → Lettering.
• Goal Definition: Micro text? Applique? Medallion? Choose the font based on function, not just vibe.
• Fabric Identification: Is it Stretchy (Knit), Unstable (Loop Terry), or Stable (Canvas)?


Microscan in Wilcom Hatch: Make Small Text Stay Crisp Instead of Turning to Mush

Sue selects Microscan, and this is a crucial teaching moment. "Micro" fonts are engineered differently. They use simpler underlay (often just a center run) and wider spacing to prevent thread buildup.

The official size range for Microscan is minimum 4 mm and maximum 40 mm.

The Danger Zone:

• Below 4mm: The needle holes are too close together. The fabric can perforate (cut out like a stamp), creating a hole instead of a letter.
• Above 40mm: Because this font is designed to be wiry and thin, scaling it up too high makes it look spindly and weak. It lacks the complex underlay needed for large letters.

Sensory Check: When stitching Microscan, listen to your machine. It should sound like a fast, light clicking. If it sounds like a heavy "thump," you are over-saturating the specific area.

Glory Applique in Hatch: Get Instant Applique-Style Letters (Even If You Don’t Applique)

Glory Applique is a powerhouse for production because it is low stitch-count but high impact. Sue types "Wilcom Hatch IS THE BEST" and switches the font.

The specs: Minimum 30 mm / Maximum 100 mm.

Why the Minimum Matters: Applique fonts create a "channel" for the fabric edge to be captured. If you shrink this below 30mm, that channel becomes so narrow that even 0.5mm of trimming error will result in raw edges showing, or the satin stitch falling off the fabric entirely.

Pro Tip: Even if you aren't using fabric applique, this font works beautifully as an "Open/Hollow" font. However, be careful with the tie-offs. Hollow fonts have more jumps. Ensure your trimming settings are dialed in so you aren't spending 20 minutes trimming jump threads by hand.

The Henriksson Monogram Moment: Turn the “Tiny Blob” into a Showpiece Medallion

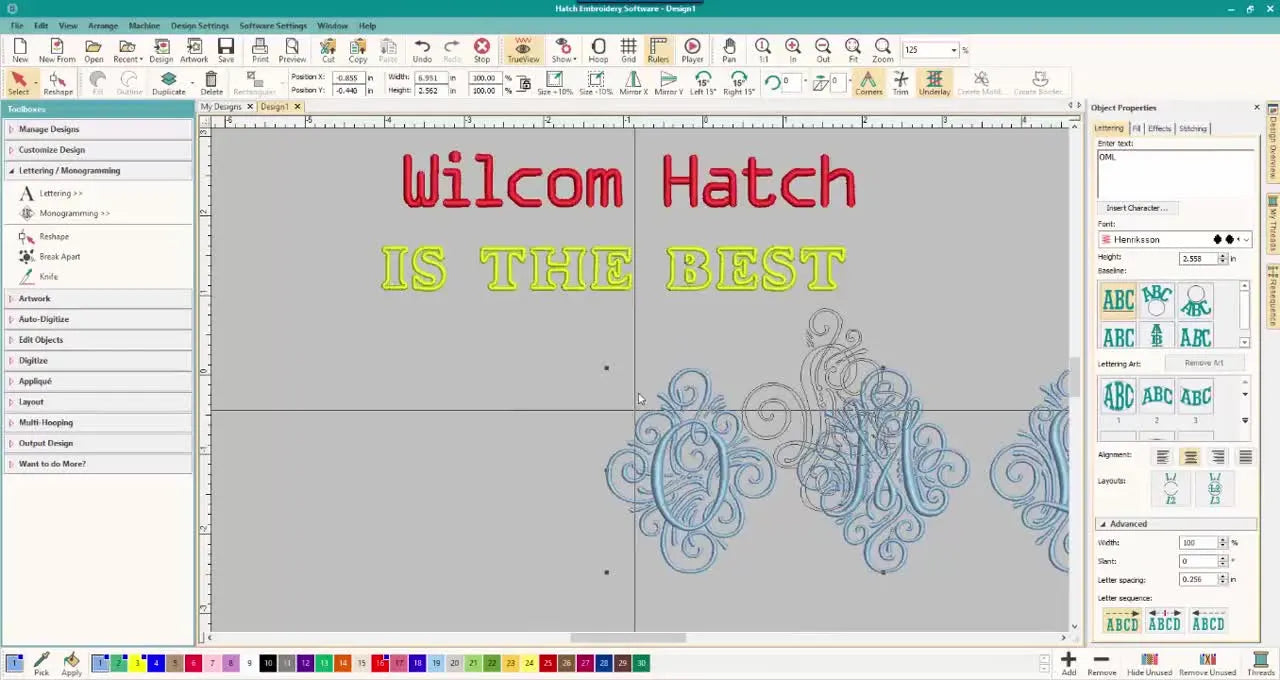

This is the main event. Sue types "OML", applies Henriksson, and it looks like a disaster. It is a dense, red speck.

This is where beginners panic and delete the font. Don't. Henriksson is a "High-Definition" font. It requires a massive canvas to render its scrollwork.

The specs: Minimum 50 mm / Maximum 120 mm. Note that the minimum is larger than the maximum of many other fonts!

When you scale this up, watch the "satin columns" (the thick bars of the letters).

• Too Small: The stitches overlap. The machine will hammer in one spot, potentially breaking the needle or shredding thread.
• Just Right: You see clear separation between the flourishes and the letter body.

Experience Validation: If you are stitching Henriksson on a single-needle machine, reduce your speed. This font has many direction changes. Running at 500-600 SPM (Stitches Per Minute) gives the pantograph time to move accurately, resulting in sharper curves than running at 800+ SPM.

True View in Hatch: The Fastest Way to Catch Satin Problems Before You Waste Thread

Sue toggles True View. This isn't just a "pretty mode"—it's a density diagnostic tool.

What an expert looks for in True View:

1. The "Black Hole" Effect: If parts of the letter look solid black or extremely dark compared to the rest, that indicates dangerous over-density.
2. The "Jagged Edge": If curves look like staircases, resizing has messed with the stitch calculation.
3. Spacing: Look at the white space inside the loops of letters like 'e' or 'a'. If True View shows them almost touching, actual thread (which has volume) will touch and close up the loop.


The Size-Spec Reality Check: Use the Hatch Website Table Like a Safety Rail

Sue references the Hatch website table. I recommend printing this chart and taping it to your monitor.

• Microscan: 4mm – 40mm
• Glory Applique: 30mm – 100mm
• Henriksson: 50mm – 120mm

The "Why" of Limits: Digitizing calculates "Pull Compensation"—the extra stitches added to combat fabric shrinking. This calculation is non-linear. The compensation needed for a 50mm letter is totally different from a 10mm letter. When you force a font outside its range, the compensation math breaks down.

Warning: NEVER text stitch a new font blindly on a garment. Satin-heavy fonts like Henriksson can create "bird nests" in the bobbin case if the tension is off, potentially sucking the garment down into the needle plate hole and ruining it. Always run a test on scrap fabric first.

The Layout Check in Hatch: Compare Fonts Side-by-Side Before You Commit to a Stitch-Out

Sue arranges the fonts side-by-side. This visual check is vital for "optical balancing."

Computer centering is mathematical; Human centering is optical. Often, a monogram will look mathematically centered but feel "heavy" on the left or right due to the shape of the letters (e.g., an 'L' vs. a 'W').

Use this stage to nudge the letters until they feel balanced. If you are combining these fonts (e.g., Henriksson for the Initial, Microscan for the full name below it), ensure the visual weight of the elaborate monogram doesn't crush the tiny text below it.

The “Why” Behind Font Pack 2: Stitch Physics, Density Illusions, and What Resizing Really Changes

Let's get technical. Embroidery is the art of distortion management.

Every stitch pulls the fabric in (shortening it) and pushes it out (widening it). This is the "Push-Pull" phenomenon.

• Physics of Resizing Down: As you shrink a column, the stitches get closer. Eventually, the needle penetrates the same thread it just laid down. This causes friction, heat, and thread breaks.
• Physics of Resizing Up: As you expand, the stitches get longer. If a satin stitch exceeds ~7-10mm (depending on the machine), it becomes a "snag hazard." It’s loose and floppy. Hatch will likely split it into a "Split Satin" (texture) to prevent this, which changes the look of the font entirely.

Understanding this helps you realize that stabilizer isn't just paper; it's the foundation that fights these physics.

Stabilizer Decision Tree for Monogram Lettering: Match Fabric to Support (So Satin Stays Sharp)

The software is perfect; reality is messy. Your stabilizer choice makes the difference between a boutique result and a puckered mess.

Decision Tree (Fabric → Stabilizer Strategy)

The Production Reality: If you are running 50 shirts, hooping each one with perfect tension using standard hoops is exhausting and prone to "Hoop Burn" (those shiny rings left on the fabric). This is a common pain point that leads shops to investigate magnetic embroidery hoops. These clamps use magnetic force to hold fabric flat without crushing the fibers into a ring, significantly reducing hoop burn and manual strain.

Setup That Prevents Rework: A Repeatable Hatch Workflow for Font Pack 2

Consistency is the key to profit. Follow this repeatable loop using Sue's method:

1. Selection: Open Toolbox > Lettering.
2. Input: Type text.
3. Filter: Choose font based on design intent (Microscan/Glory/Henriksson).
4. Security: Immediately resize to the "Safe Green Zone" (e.g., 50mm+ for Henriksson).
5. Verification: True View ON. Zoom to 100%.
6. Refinement: Adjust kerning (spacing between letters). Monograms often need manual spacing adjustment so letters flow into each other without crashing.

Setup Checklist:

• Font selected matches the physical size of the stitch area.
• Size is strictly within the Min/Max range shown in the video.
• True View is checked for density "Black Holes."
• Kerning (letter spacing) is visually balanced.
• Tie-in and Tie-off settings are active (essential for preventing unraveling after trimming).


Fix the Common “Henriksson Blob” Problem in Hatch: Symptoms, Causes, and the One Reliable Cure

Sue highlights the #1 rookie error. Let's troubleshoot it systematically.

Troubleshooting Table: The "Blob" Effect

When Your Monogram Stitches Fine on a Sample but Fails on a Garment: The Hooping Reality Nobody Mentions

You have perfected the design in Hatch. You stitched a beautiful sample on felt. Then you put it on a polo shirt, and it looks crooked and puckered. What happened?

The Variable is Hooping. Trying to force a finished sleeve or a pocket onto a standard hoop is a wrestling match. You have to stretch the fabric, which distorts the grain. When you unhoop, the fabric relaxes, and the monogram puckers.

For tight areas like cuffs or pant legs, professionals use a specialized sleeve hoop. These are narrower and fit inside tubular garments.

Furthermore, getting the placement exactly straight on the chest (e.g., 4 inches down from the collar, centered on the placket) is tough by eye. This is why a hooping station for machine embroidery is standard equipment in commercial shops. It acts as a jig, holding the hoop and garment in a fixed relationship so every shirt is identical.

Warning: Magnet Safety
If you decide to upgrade to Magnetic Hoops, exercise extreme caution. These magnets are industrial-strength. They can pinch fingers severely (blood blister hazard) and must be kept away from pacemakers and sensitive electronics. Never let two magnets snap together without a buffer layer.

The Upgrade Path That Actually Makes Sense: From Clean Digitizing to Faster, Cleaner Production

We have optimized your software workflow. Now, look at your hardware constraints. If you are serious about embroidery, you will eventually hit a ceiling with basic tools.

Here is the logical path for scaling up without breaking the bank:

1. Level 1: Stability Upgrade.
   Switch from basic tear-away to premium Cut-Away stabilizers and use temporary adhesive spray to prevent fabric shifting.
2. Level 2: Speed & Safety Upgrade.
   If you battle hoop burn or struggle with thick items (Carhartt jackets, canvas bags), magnetic embroidery frames are the solution. They snap on instantly, hold thick layers effortlessly, and protect the fabric.
3. Level 3: Placement Consistency.
   If you ruin 1 out of 10 shirts due to crooked alignment, a magnetic hooping station pays for itself by eliminating rejects.
4. Level 4: Production Capacity.
   If you are constantly depressed by the time it takes to change thread colors on a single-needle machine, it’s time to look at multi-needle machines. Brands like SEWTECH offer high-capacity solutions that let you set up 10-15 colors at once, press start, and walk away.

Operation Checklist (The Flight Plan)

• Test Stitch: Always stitch on a scrap of similar fabric first.
• Hooping Check: Is it drum-tight but not stretched? (Listen for the "thump").
• Placement: Measure twice. Mark center with a water-soluble pen or crosshairs.
• Watch the First Layer: Watch the underlay stitch. If it looks loose or misaligned, Stop immediately. It’s better to re-hoop now than pick out 5,000 stitches later.
• Save the File: Save the .EMB (editable) file, not just the machine file (.PES/.DST), so you can resize safely later.

FAQ

• Q: In Wilcom Hatch Font Pack 2, why does the Henriksson monogram font turn into a dense “tiny blob” when I type “OML”?
  A: The Henriksson font is being inserted too small—resize it into its safe range (minimum 50 mm) so the satin columns can breathe.
  • Resize: Select the lettering and drag the corner handles until the scrollwork separates; keep Henriksson between 50–120 mm.
  • Verify: Turn True View ON and zoom to 100% to spot over-dense areas before stitching.
  • Slow down: If stitching on a single-needle machine, run about 500–600 SPM for cleaner direction changes.
  • Success check: In True View, the flourishes look distinct (not a solid dark patch), and the stitch-out is not rock-hard or lumpy.
  • If it still fails: Re-check top/bobbin tension and run a scrap test before stitching the garment.
• Q: In Wilcom Hatch True View, what are the warning signs that satin lettering density is too high before stitching Font Pack 2 monograms?
  A: Use True View as a density diagnostic—dark “black hole” areas and nearly-closed loops mean the design will stitch too dense.
  • Toggle: Turn True View ON and inspect at 100% zoom.
  • Look for: “Black hole” dark patches, jagged/stair-step curves, and loops (e/a) that almost touch inside.
  • Correct: Resize back into the font’s published Min/Max range instead of forcing extreme scaling.
  • Success check: The lettering shows even shading, smooth curves, and clear white space inside counters/loops.
  • If it still fails: Stitch a small test on similar fabric/stabilizer to confirm real-world thread coverage.
• Q: What is the safe size range in Wilcom Hatch Font Pack 2 for Microscan, Glory Applique, and Henriksson fonts?
  A: Stay inside the published size limits to prevent density math and pull compensation from breaking down.
  • Use Microscan: 4–40 mm.
  • Use Glory Applique: 30–100 mm.
  • Use Henriksson: 50–120 mm.
  • Success check: On-screen, satin columns are clearly separated (not overlapping), and small interior spaces are still open in True View.
  • If it still fails: Change the font choice to match the available stitch area instead of resizing beyond the limit.
• Q: What needle and thread setup helps Wilcom Hatch Microscan micro lettering stay crisp instead of turning to mush?
  A: For tiny text, use finer thread and a smaller needle to reduce hole size and thread buildup.
  • Switch thread: Use 60wt thread when pushing small size limits; 40wt is usually fine for normal lettering.
  • Switch needle: Try size 65/9 or 70/10 for micro text (use 75/11 for standard work).
  • Replace: Change needles if you hear a “popping” sound—burrs can shred satin stitches.
  • Success check: The machine sounds like fast, light clicking (not heavy thumping), and letter edges look clean rather than puffy.
  • If it still fails: Increase stabilization (cut-away or better bonding to stabilizer) before changing design settings.
• Q: How do I check bobbin and top tension for clean satin lettering so Wilcom Hatch monograms do not loop or bird-nest?
  A: Do a quick test and aim for balanced tension—about 1/3 bobbin thread showing down the center on the back of a satin column.
  • Test: Stitch a small satin sample similar to the monogram density.
  • Inspect back: Look for a centered bobbin line; only top thread on the back suggests top tension too loose or bobbin too tight.
  • Calibrate: Adjust tension gradually and re-test on scrap until the back looks consistent.
  • Success check: Satin columns look smooth on top, and the back shows a stable, centered bobbin line rather than loops.
  • If it still fails: Re-hoop with better stabilization—fabric movement can mimic tension problems on small lettering.
• Q: Which stabilizer should I use for Wilcom Hatch satin monogram lettering on T-shirts, towels, denim, or sheer fabric to avoid puckering?
  A: Match stabilizer to fabric behavior—stretch needs cut-away support, pile needs topper, and sheer needs no-show mesh.
  • Choose base: T-shirt/performance knit → cut-away (2.5 oz+); stable canvas/denim → tear-away; sheer → no-show mesh (PolyMesh).
  • Add topper: Towel/fleece/high pile → add soluble topper (required) to prevent stitches sinking.
  • Test: Always run a scrap test with the same fabric type and stabilizer stack.
  • Success check: After unhooping, letters remain flat and open (no puckering, no buried details on pile fabrics).
  • If it still fails: Review hooping method—uneven stretching causes distortion even with correct stabilizer.
• Q: What are the safety rules for using magnetic embroidery hoops so fingers and electronics are not damaged?
  A: Treat magnetic hoops as industrial clamps—control the snap, protect fingers, and keep magnets away from medical devices and sensitive electronics.
  • Control: Never let two magnets snap together; guide them down with a buffer layer and keep fingertips out of the pinch zone.
  • Protect: Keep magnets away from pacemakers and avoid placing them near sensitive electronics.
  • Organize: Store magnets separated so they cannot slam together unexpectedly.
  • Success check: The hoop closes smoothly without sudden snapping, and fabric is held flat without crushing marks.
  • If it still fails: Use a slower, two-hand placement routine and consider non-magnetic hooping for anyone who cannot safely handle high-force magnets.
• Q: If Wilcom Hatch monograms stitch fine on a sample but pucker or go crooked on polo shirts, what is the fastest fix—standard hoops, sleeve hoops, magnetic hoops, or a multi-needle machine?
  A: This is usually a hooping and placement consistency problem—fix stability first, then upgrade tools only if rework continues.
  • Level 1 (technique): Re-hoop without stretching; bond fabric to stabilizer (often with temporary adhesive spray) and watch the first underlay layer.
  • Level 2 (tool): Use sleeve hoops for tight tubular areas; consider magnetic hoops if hoop burn and thick layers are the recurring pain point.
  • Level 3 (consistency): Use a hooping station when repeatable chest placement is causing rejects.
  • Level 4 (capacity): Move to a multi-needle machine (such as SEWTECH) if color changes and slow throughput are the real bottleneck.
  • Success check: Underlay lands exactly where expected, and after unhooping the monogram stays straight with minimal puckering.
  • If it still fails: Stop and run a garment-specific test stitch—garments behave differently than felt samples.
