Heat-Seal Embroidered Crests That Actually Stay Put: The Two-Pass Iron Method (and the Mistakes That Make Patches Peel)

The Master Class on Thermal Adhesive Patches: From "Peeling Hobbyist" to Production Pro

If you have ever delivered a set of custom patches that looked pristine on the table, only to have them return a week later curling up at the edges like a wilting leaf, you know the sinking feeling in your stomach. It’s not just a failed craft project; it’s a breach of trust with your client.

Heat-seal patches aren’t technically difficult, but they are chemically unforgiving.

In our analysis of the popular Embroidery Night in Canada demo, "Johnny" nails the core mechanic: a specific two-pass heat process where the second pass—applied from the back—is the difference between a temporary stick and a permanent bond.

However, after 20 years in the embroidery trenches, I know that watching a video isn't the same as running a production line. Variables like humidity, iron inconsistencies, and hooping distortion can ruin your batch before you even plug in the iron.

This guide rebuilds that video workflow into a "Shop-Ready Standard Operating Procedure" (SOP). We will add the safety margins, the sensory checks, and the scaling tools you need to do this professionally.

Thermal Adhesive 101: The Physics of "The Stick"

Before we cut anything, you need to understand what you are handling. Thermal adhesive (often called "heat seal") is not just glue; it is a heat-activated thermoplastic sheet.

In the video, Johnny notes that the adhesive adds body. This is a crucial sensory anchor.

• Without adhesive: An embroidered patch feels like a limp piece of fabric.
• With adhesive: It stiffens, gaining a "credit card-like" snap. This rigidity is what makes a patch look professional rather than homemade.

The Golden Rules of Expectation:

1. The Bond involves friction: The glue must physically flow into the fibers of the garment, not just sit on top.
2. The Limits of Chemistry: If you need "Industrial Laundry" durability (hot wash, bleach, tumble dry high), Johnny is blunt for a reason: Sew it on. Heat seal is for placement and standard wear; thread is for war.


The "Hidden" Prep: Geometry is Your First Defense

Most beginners fail here because they rush. They cut the adhesive square and slap it on.

Johnny demonstrates cutting the sheet slightly larger than the crest, trimming it to match, and—crucially—rounding the corners.

Why the "Radius" Matters

Sharp corners are "peel-starters." Mechanically, a 90-degree corner catches on backpacks, seatbelts, and laundry agitators. Forces concentrate at the tip, causing lift. By rounding the corner with scissors, you distribute that force. A curve deflects; a point catches.

This is also a heat transfer issue. Wrinkles, thick seams, or loose threads on the back of the patch create "cold spots" where the iron’s heat can't penetrate evenly.

Prep Checklist (The "Pre-Flight" Safety Check):

• Adhesive Inspection: Is the sheet smooth? (Creased adhesive can result in uneven bonding).
• Tool Check: Are your scissors sharp enough to cut a clean curve? (Jagged cuts create weak points).
• De-fuzzing: Have you trimmed all jump stitches on the back of the patch? (Lumps block heat).
• Surface: Is your ironing surface firm? (A squishy ironing board absorbs the pressure you need to drive the glue into the fabric).
• Hidden Consumable: Keep a lint roller nearby. Dust trapped between glue and patch weakens the bond by 20-30%.


Tools That Matter: The Iron, The Edge, and The Discipline

The video utilizes a standard household iron. This is acceptable for low volume, but only if you respect its limitations.

The "Steam" Trap

Turn your steam OFF. Moisture is the enemy of this chemical bond.

1. Steam lowers the actual surface temperature of the soleplate.
2. Moisture occupies the space in the fabric fibers that we want the glue to occupy.

Temperature Sweet Spot

While industrial heat presses reduce guesswork, if you are using a hand iron, you are the thermostat.

• Target Temp: 260°F - 300°F (approx. 130°C - 150°C).
• Dial Setting: Usually "Wool" or just below "Cotton."
• Symptom Check: If the glue smokes or turns yellow instantly, you are too hot. If it looks cloudy and won't stick, you are too cold.


Sizing the Adhesive: The "Halo" Effect

What the video shows:

1. Hold the white adhesive strip against the patch back.
2. Cut oversized initially.
3. Trim down to the exact outline.

The "No-Overhang" Rule: You must trim the adhesive so it is flush with—or largely, 1mm inside—the embroidery edge.

• The Risk: If adhesive extends past the patch edge, it melts onto the garment, creating a sticky, shiny "halo." This halo attracts dirt and lint, forming a dirty ring around your beautiful work within days.


First Heat Pass: Bonding Adhesive to Patch (Gaining "Body")

This is the "priming" step. You are fusing the glue to the embroidery first.

The Technique:

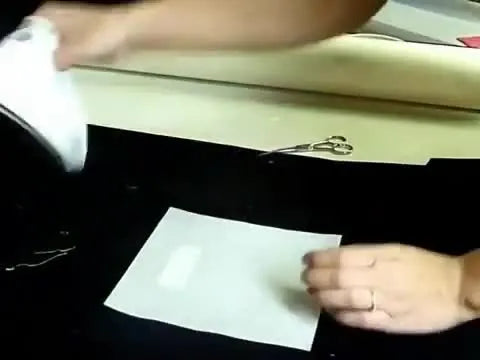

• Place adhesive (paper side up) on the back of the patch.
• Apply the iron directly to the release paper.
• Press, don’t rub. Rubbing the iron back and forth can shift the adhesive sheet before it grabs. Press down firmly for 8-10 seconds.

Sensory Check: When you lift the iron, the paper should be hot, and the patch should feel significantly stiffer as it cools. If the paper slides off easily immediately, the heat didn't penetrate.

Warning: Physical Safety
When working with small patches, your fingers are dangerously close to the 300°F iron soleplate.
* Use tweezers or a stiletto tool to hold small patches in place.
* Never try to "catch" a falling hot patch. Let it drop.
* Allow the patch to cool for 20 seconds before touching—hot thermal adhesive is like molten plastic and causes severe burns.

The Peel: The "Glossy Film" Moment

After the patch has cooled slightly, peel away the paper backer.

The Visual Pass/Fail:

• PASS: You see a smooth, shiny, continuous film of glue covering the entire back of the embroidery.
• FAIL: The glue looks patchy, powdery, or stays attached to the paper. This means you didn't apply enough heat or pressure in the first pass. Stop here. Re-apply heat. Do not try to stick a patchy crest to a shirt; it will fail.


Positioning: The Commercial Reality of Alignment

In the video, they place the patch face up on the substrate. This looks easy on a sample scrap, but on a finished shirt, this is where anxiety spikes.

Pro Tip: Heat seal is unforgiving. Once it fuses, you cannot "scoot" it over.

• Use a heat-erasable pen or chalk to mark your corners on the garment before placing the patch.
• Double-check orientation. It sounds silly, but I have seen upside-down flags fused permanently to jackets because the operator was rushed.


The "Make-or-Break" Move: The Back-Side Press

This is the single most important lesson from Johnny’s demo. You must iron from the BACK of the garment.

The Physics of the Back Press

If you iron on top of the patch:

1. The heat has to travel through the thick embroidery thread and backing to reach the glue.
2. You risk crushing the texture of your satin stitches (flattening the 3D effect).
3. You risk "shining" the thread (melting the polyester fibers).

By flipping the garment and ironing from the inside out:

1. The heat travels through the thinner t-shirt fabric directly to the glue.
2. The glue melts toward the heat source—wicking deep into the garment fibers.
3. Your embroidery face is pressed against the soft ironing surface, preserving its loft and texture.

Setup Checklist (The "Critical Path"):

• Orientation: Patch is face down, garment is wrong-side up.
• Protection: Is there a Teflon sheet or scrap cloth under the patch face to protect it from the ironing board cover?
• Stability: Ensure no seams or pockets are under the patch area (these create uneven pressure).
• Timer: Prepare for a 20-30 second count.


When "It Won't Stick": Diagnostics and "Sweet Spots"

In the video, the tech realizes the iron "was not hot enough" and adjusts. This is normal.

Troubleshooting Matrix:

The Quality Check: The "Fingernail Test"

Your inspection must be aggressive. Be the customer who tries to pick it off two weeks later.

The Test:

1. Let the garment cool completely. The bond is weakest when hot.
2. Flex the fabric. Does the patch move with it?
3. Use your fingernail to gently pick at the sharpest corners.
4. Look for gaps. It should look like the patch and shirt are one integrated piece.

Operation Checklist (Final QC):

• Cool Down: Has the item rested flat for at least 60 seconds?
• Tactile Check: Run fingers over edges—no sharp glue spikes?
• Adhesion: Corners passed the fingernail pick test?
• Visual: No scorch marks on the garment fabric surrounding the patch?


The "Why" Expanded: Heat Flow and Fiber Mechanics

Why does the back-press work so well? It utilizes Capillary Action.

When the adhesive liquefies, it seeks to move. If the heat comes from the back, the glue remains hot while the patch face (against the table) is cooler. The molten glue is drawn into the hot weave of the garment. It physically wraps around the cotton or polyester fibers. When it cools, it re-solidifies, locking those fibers inside the plastic matrix. This is a mechanical interlock, not just surface stickiness.

Decision Tree: Fabric vs. Stabilizer vs. Method

Not all fabrics can handle the heat, and not all need the same stabilizer.

Scenario A: The Stretchy Performance Tee

• Risk: Stretching the shirt while ironing creates ripples.
• Stabilizer: Use Cutaway stabilizer for the patch itself to maintain shape.
• Attachment: Heat seal + Zig-zag stitch perimeter (Glue is rigid; shirt is stretchy. They will fight, and the glue will lose).

Scenario B: The Heavy Denim Jacket

• Risk: Thickness blocks heat.
• Stabilizer: Tearaway is usually fine for the patch.
• Attachment: Heat seal is effective here. Increase iron time to 40 seconds to penetrate denim thickness.

Scenario C: The Nylon Windbreaker

• Risk: Melody point of Nylon is low (Iron will melt jacket).
• Attachment: Do not heat seal. Sew on only.


Scaling: From Hobby to Production Profit

Johnny’s method works for 1 to 5 patches. But what if you get an order for 50? Or 100?

The bottleneck isn't the ironing; it's the consistency of the patch creation itself. If your patches are slightly different shapes because your hooping was loose, you cannot batch-cut your adhesive. You cut into your profit margins with scissors.

The Upgrade Path (Solving the "Time" Pain Point):

1. Level 1: The Hooping Bottleneck
   If you look at your patches and see "wobble" in the outlines, your fabric shifted during stitching. Traditional screw hoops create friction burns on wrists and inconsistent tension.
   • The Fix: Pros switch to magnetic embroidery hoops. These use magnets to clamp fabric instantly without the "unscrew-push-pull-screw" dance.
   • The Gain: You save ~30 seconds per patch. On a 100-piece order, that is nearly an hour of labor saved.
2. Level 2: The Alignment Nightmare
   Are you spending minutes measuring chest placement for every single shirt?
   • The Fix: A magnetic hooping station ensures every patch is embroidered in the exact same spot on the fabric roll.
   • The Gain: Perfect repeatability. Your adhesive templates will fit every time because the embroidery hasn't morphed.
3. Level 3: The Single-Needle Trap
   If you are running a business on a single-needle machine, every thread change is a stop.
   • The Fix: Production demands multi-needle machines (like SEWTECH models).
   • The Gain: Walk-away reliability. The machine stitches the patch while you are ironing the adhesive on the previous batch.


Compatibility Reality Check: Why You Need Magnetic Hoops for Patches

It sounds counter-intuitive—why talk about hoops in an article about ironing?

Because a distorted patch never bonds well. If your fabric is stretched like a drum in a traditional hoop, it snaps back when you remove it. The patch curls before you even add glue. This curl fights the adhesive.

Using a magnetic embroidery hoop allows the fabric to lay naturally flat with even tension. The result is a patch that lies flat on the ironing board, ensuring 100% contact between the glue and the garment.

Warning: Magnetic Field Safety
When upgrading to magnetic tools, be aware:
* Strong Force: Industrial magnets snap together with immense force. Keep fingers clear to avoid blood blisters.
* Medical Devices: Keep magnetic embroidery hoops at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on laptops or computerized machine screens.

Secrets of the "Seasoned Operator"

Even without new gear, adopt these habits to reduce rejects:

• The "Cooling weight": After ironing the patch on, immediately place a heavy book or a flat wooden block on top while it cools. This pressure during the cooling phase sets the bond aggressively.
• The "Corner Rounder": Buy a cheap corner-rounding punch (from scrapbooking aisles) to trim your adhesive sheets consistently.
• Batch Processing: Iron adhesive onto all patches first. Peel all liners next. Then fuse to garments. Do not switch tasks 1-by-1; it kills your thermal rhythm.


Final Thoughts: The Adhesive is Only as Good as the Process

A heat-seal patch is a promise of quality. If it peels, your reputation peels with it.

By following the physics—cleaning your edges, rounding your corners, and pressing from the back—you move from "hoping it sticks" to "knowing it holds."

But remember, the finish line is defined at the starting line. If your embroidery is warped, your finishing will be a struggle. Evaluate your workflow. If you are fighting your equipment—whether it is a cheap iron or a difficult hoop—consider the tools that professionals use. Searching for a hooping station for embroidery or a specialized hoop master embroidery hooping station equivalent isn’t just about buying gear; it’s about buying back your time.

Even users of home specific models often search for a hooping station for brother embroidery machine once they realize that consistency is the key to profit.

Master the heat. Master the hoop. Deliver the patch that stays put.

FAQ

• Q: Why do heat-seal embroidered patches peel at the corners after one week on cotton T-shirts when using a household iron?
  A: Corner peel usually comes from peel-starter geometry and incomplete edge bonding, so round corners and press from the garment back with firm, even pressure.
  • Round: Trim the thermal adhesive to match the patch outline and round every corner (sharp 90° corners lift first).
  • Press: Fuse from the back side of the garment for 20–30 seconds using a firm surface (not a soft ironing board).
  • Cool: Let the item cool flat before handling; cooling sets the bond.
  • Success check: Corners pass a gentle “fingernail pick” without lifting after the garment is fully cool.
  • If it still fails: Re-check for lumps/jump stitches on the patch back that create cold spots, and confirm adhesive is trimmed flush (no overhang).
• Q: How can a hobbyist confirm thermal adhesive fully fused to an embroidered patch before attaching the patch to a garment?
  A: Do the first heat pass on the patch, then peel the liner and verify a continuous glossy glue film before committing to the garment.
  • Press: Fuse adhesive to the patch first (paper side up) by pressing—do not rub—for about 8–10 seconds.
  • Peel: Let the patch cool slightly, then remove the paper liner.
  • Inspect: Stop if glue looks patchy/powdery or stays on the paper; apply more heat/pressure and re-check.
  • Success check: The entire patch back shows a smooth, shiny, continuous glue layer and the patch feels noticeably stiffer as it cools.
• Q: What causes a sticky “halo” around heat-seal embroidered patches on garments, and how do you prevent the halo?
  A: A sticky halo happens when thermal adhesive overhangs past the patch edge, so trim adhesive flush with the embroidery edge or about 1 mm inside.
  • Cut: Rough-cut adhesive oversized, then trim precisely to the patch outline.
  • Avoid: Do not leave adhesive extending beyond the patch edge where it can melt onto the garment.
  • Clean: Use a lint roller to remove dust between adhesive and patch before pressing.
  • Success check: No shiny/sticky ring appears outside the patch border after pressing and cooling.
  • If it still fails: Reduce shifting by pressing (lift-and-press) instead of sliding the iron.
• Q: Why do heat-seal embroidered patches slide out of alignment during pressing with a household iron, and what is the fix?
  A: Patch sliding is usually caused by “wiggling” the iron and committing before alignment is marked, so mark placement first and use lift-and-press only.
  • Mark: Draw placement corners with chalk or a heat-erasable pen before setting the patch down.
  • Press: Lift and press straight down; do not rub side-to-side.
  • Flip: Do the final bonding press from the back of the garment to reduce movement and improve bonding.
  • Success check: Patch stays aligned through the full press cycle and edges remain evenly seated after cooling.
  • If it still fails: Increase stability by ensuring no seams/pockets are under the patch area creating uneven pressure.
• Q: Why does a heat-seal patch fall off immediately after pressing with a household iron set near “Wool/Cotton,” and how do you troubleshoot temperature and dwell time?
  A: Immediate failure is most often iron temperature too low or press time too short, so increase heat slightly and extend the press time without using steam.
  • Disable: Turn steam OFF to avoid cooling the soleplate and blocking fiber space with moisture.
  • Adjust: Increase temperature by a small step and add about 10 seconds more dwell time.
  • Surface: Move to a harder pressing surface (e.g., a wood table with a thin towel) to improve pressure transfer.
  • Success check: After full cooling, the patch flexes with the fabric and resists corner lifting in the fingernail test.
  • If it still fails: Consider fabric coatings (waterproof/stain-resistant finishes) that can prevent bonding—sewing may be required.
• Q: What are the burn and finger-safety best practices when applying thermal adhesive to small embroidered patches with a 260–300°F household iron?
  A: Burns are a common risk because fingers are close to the hot soleplate and molten adhesive, so use tools, allow cooling, and never grab falling pieces.
  • Hold: Use tweezers or a stiletto tool to position small patches instead of fingertips.
  • Wait: Let the patch cool around 20 seconds before touching after pressing.
  • Drop: Never try to “catch” a falling hot patch—let it fall.
  • Success check: Hands stay clear of the soleplate during placement and no adhesive contacts skin during handling.
• Q: What magnetic hoop safety rules should operators follow when using industrial magnetic embroidery hoops near pacemakers, insulin pumps, or electronics?
  A: Magnetic embroidery hoops can snap together with high force and create magnetic-field risks, so keep fingers clear and keep magnets away from medical devices and electronics.
  • Protect: Keep fingers out of the snap zone to prevent blood blisters when magnets close.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Avoid: Do not place magnetic hoops directly on laptops or computerized machine screens.
  • Success check: Hoops are handled with controlled placement (no uncontrolled snapping) and stored away from sensitive devices.
• Q: How can a patch shop scale from 5 to 100 heat-seal patches without inconsistent patch shapes and slow hooping, and when do magnetic hoops or multi-needle machines make sense?
  A: Fix consistency first (reduce outline wobble), then upgrade workflow tools—magnetic hoops for faster, even tension, hooping stations for repeat placement, and multi-needle machines for fewer stops.
  • Diagnose: Inspect patch outlines for “wobble” or distortion that makes adhesive templates mismatch.
  • Optimize (Level 1): Improve process discipline—batch fuse adhesive to all patches, then peel all liners, then attach to garments to maintain rhythm.
  • Upgrade tools (Level 2): Use magnetic hoops to clamp fabric evenly and quickly so patches stitch flatter and more consistently.
  • Upgrade production (Level 3): Use a multi-needle machine when thread-change downtime is the bottleneck and you need walk-away reliability.
  • Success check: Finished patches lie flat before bonding, adhesive templates fit consistently, and placement/bond rejects drop across the batch.
