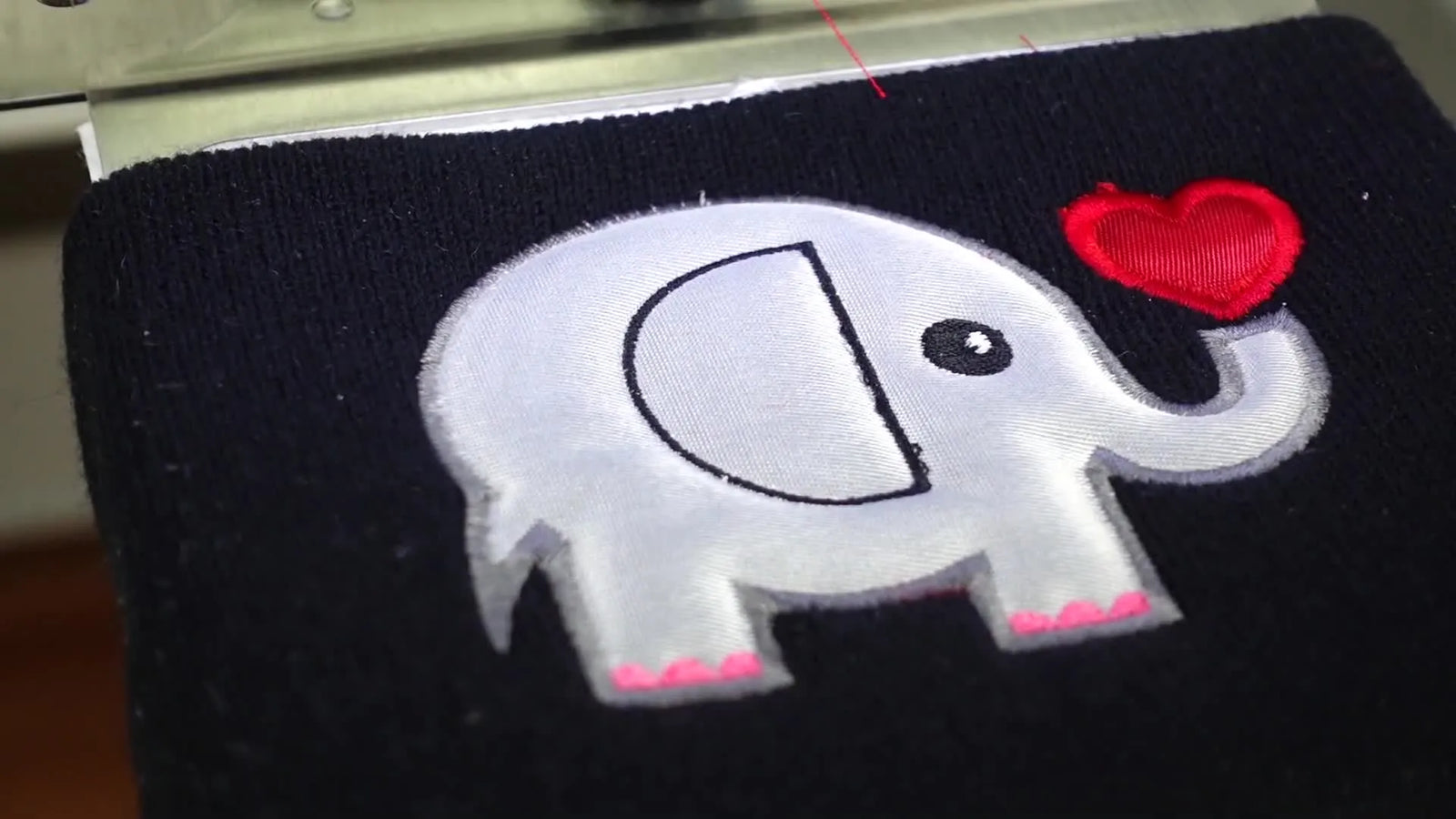

Hooping Knit Beanies Without Stretching Them: Gen 2 Cap Frame vs Mighty Hoop 5.5 vs Ricoma 8-in-1 (Plus a Clean Appliqué Workflow)

Beanies represent a deceptive paradox in the embroidery world. They look like the simplest item to stitch—small, soft, and ubiquitous—yet they are statistically the most common source of "machine spacing out" errors for beginners. You hoop one, hit start, and watch with horror as the knit stretches, the letters sink into the fabric abyss, or the design drifts off-center.

If you have felt that specific spike of cortisol right before the needle drops on a beanie, you are not alone. That fear comes from the variable nature of knitwear. Unlike stable denim, a beanie is a "living" surface that wants to move.

The good news is that the video you watched demonstrates that there isn't just one "right" way to tame this beast. There are three workable hooping paths—a mechanical cap frame, a magnetic hoop, and a multi-frame device—each with its own physics and best-use scenarios.

As a veteran standardizing these processes, I will walk you through the exact workflow shown, but I will layer on the shop-floor sensory details and safety parameters that keep you from destroying inventory.

The Calm-Down Primer: Why Knit Beanies Stretch, Sink, and Go Crooked on a Ricoma Embroidery Machine

To master beanie embroidery, you must first respect the material science. Acrylic or wool knits are constructed of interlocking loops. They are designed to expand to fit a head, which means they are fighting against stability.

Here is what is happening mechanically when things go wrong:

• Pre-Stretch Distortion: If you pull the beanie too tight during hooping (the "drum skin" fallacy), the knit structure opens up. You stitch your design on this stretched surface. When you unhoop, the fabric relaxes back to its natural state, compressing your beautiful logo into a puckered mess.
• Stitch Sinking (Loft Issues): Knits have "loft" (air and fuzz). Without a barrier, thin satin columns or running stitches will slip between the knit loops. The thread literally disappears.
• Tube Rotation: Because a beanie is a cylinder without rigid seams, "Center Front" is a theoretical concept until you lock it down. It is incredibly easy to hoop it 5 degrees off-axis, which looks glaringly crooked when worn.

The video leans on three stabilizing habits that we will treat as law: heavy cutaway backing (structural integrity), water-soluble topping (surface tension), and a repeatable orientation mark (navigation).

The “Hidden” Prep That Saves Beanies: Cutaway, Topping, and Appliqué Adhesive Before You Hoop

The host starts with materials first—and that is exactly how a production-minded embroiderer thinks. You cannot fix bad prep with machine settings.

Materials shown in the video:

• Substrate: Basic knit beanies (black).
• Stabilizer (Backing): Black cutaway stabilizer.
  • Expert Note: Do not use Tearaway on beanies. Tearaway provides zero long-term support for the stretchy knit. Use a 2.5oz to 3.0oz Cutaway. It stays with the hat forever, preventing the design from warping in the wash.
• Topping: Water-soluble film (Solvy). This acts as a "snowshoe" for your stitches, keeping them on top of the fuzz.
• Adhesion: Sticky backing (for the 8-in-1 method) and Heat n Bond (for appliqué).
• Fabrics: Appliqué fabrics (initially silky, switched to tackle twill).

The "Hidden" Consumables: In a professional shop, we also keep temporary spray adhesive (like KK100) and masking tape on hand. Spray adhesive helps fuse the backing to the beanie before hooping, reducing the "fabric creep" that happens when the hoop closes.

The Golden Rule of Text: If you are trying to get clean lettering on knit caps, remember this: if you are strictly following guides on hooping for embroidery machine, you must accept that topping is mandatory, not optional. It is the only barrier keeping your 4mm text from becoming illegible braille.

Prep Checklist (Do this BEFORE any hooping method)

• Select Backing: Cut a piece of black 2.5oz or 3.0oz cutaway. It must be at least 1 inch larger than the hoop on all sides.
• Prepare Topping: Cut a square of water-soluble topping. Tip: dampen the corners slightly with your tongue or a sponge to stick it to the beanie so it doesn't flutter away when the machine executes the first jump stitch.
• Appliqué Prep: If doing appliqué, apply Heat n Bond / adhesive backing to the raw fabric. This prevents fraying during the cut and keeps the fabric stiff.
• Verify Design Dimensions: The design shown is 3 inches tall by 4 inches wide.
  • Safety Check: Ensure this size fits your specific beanie cuff height. Many cuffed beanies only offer 2.5 inches of safe vertical space before hitting the fold. Measure twice.

Method 1 — Lock It In with a Gen 2 Cap Frame (Hoop Tech) When You Want Repeatable Centering

This method uses the Gen 2 Cap Frame and a mechanical clamp system. Ideally suited for industrial environments where you might run 50 caps in a row.

The Workflow:

1. Backing Placement: Place cutaway stabilizer strictly behind the beanie inner face.
2. Mounting: Slide the beanie onto the Gen 2 frame cylinder.
3. Alignment: Align the center seam (or knit rib line) of the beanie with the red center mark on the frame.
4. The Clamp: Secure the beanie using the mechanical clamp.


Checkpoints (Sensory Anchors)

• Visual: The beanie seam is bisected perfectly by the frame’s center mark.
• Tactile: The beanie is held firmly, but the knit ribs are not distorted. If the ribs look like they are screaming (pulled wide apart), you have over-stretched. Release and re-clamp.
• Structural: The backing is flat behind the stitch field. Run your finger inside; if you feel a wrinkle, that wrinkle will become a permanent crease in the final product.

From a shop perspective: Mechanical cap frames offer repeatability. The physical latch ensures the holding pressure is identical on Hat #1 and Hat #100.

The Appliqué Sequence That Doesn’t Drift: Placement → Fabric → Tack Down → Satin Stitch

The video uses a standard appliqué formula. To ensure success on a knit, we need to adjust our machine speed expectations.

1. Placement Stitch: Machine stitches the outline.
   • Speed: Run at standard speed (e.g., 700 SPM).
2. STOP: Place the appliqué fabric covering the outline.
3. Tack Down Stitch: Holds the fabric in place.
   • Speed Check: Slow down! Drop your machine to 450-500 SPM. If you run this fast, the foot can push the fabric wave ahead of it, creating a bubble.
4. Satin Stitch: Covers the edge.
   • Speed: Return to 600-700 SPM. (Avoid running 1000 SPM on knits; the vibration kills registration).

The host adds water-soluble topping over the appliqué fabric before the final text stitching—a pro move for crisp letters.

Expected Outcomes (Success Metrics)

• Placement: A clean run-stitch outline visible on the beanie.
• Tack Down: Fabric is locked. No bubbles.
• Satin: Edges are dense. You should not see any raw fabric fibers poking through the satin column.

Expert Insight: The video shows a mid-process switch from silky fabric to tackle twill. This is the hallmark of experience. Silky/stretchy fabrics on top of stretchy beanies create a "double instability" problem. Stiffer fabrics like twill or felt stabilize the beanie, acting as a shield.

Method 2 — The Fast “Snap” Workflow: Mighty Hoop 5.5x5.5 for Thick Beanies and Less Hand Strain

This is the magnetic method shown using a 5.5 x 5.5 Mighty Hoop. This is often the preferred method for home professionals and boutique shops.

The Workflow:

1. Insertion: Put the cutaway backing inside the beanie.
2. Base Layer: Place the bottom magnetic ring inside the beanie, under the backing.
3. Orientation: Use a piece of masking tape marked “F” (Front) to prevent stitching the design upside down.
4. The Snap: Drop the top magnetic ring onto the bottom ring, sandwiching the beanie.




Why this works: The magnetic force clamps directly down (vertical force) rather than pulling outward (lateral force). This drastically reduces the "Pre-Stretch Distortion" mentioned earlier.

If you are researching the mighty hoop 5.5 specifically for beanies, understand that its value proposition is ergonomics. Traditional hooping requires significant wrist torque. Magnetic hooping is nearly effortless, which matters if you plan to embroider for 4 hours straight.

Warning: Magnetic Pinch Hazard
Do not underestimate these magnets. They are industrial-strength neodymium.
* The Risk: Getting skin caught between the rings results in a painful blood blister instantly.
The Rule: Hold the top hoop by the edges*, never with fingers underneath.
* Medical: If you have a pacemaker, consult your doctor and the manufacturer specs; these generate strong fields.

Pro Tip from the Comments (Shop Habit)

A viewer asked for the "Go-To" method. The creator chose the Mighty Hoop. In a high-volume shop, minimizing wrist strain is not a luxury; it is an occupational health necessity.

The “No-Fingers” Fabric Control Move: 6-Inch Bent Tweezers for Appliqué on Small Knit Areas

The video demonstrates using 6-inch bent metal tweezers to hold the small apple appliqué piece in place while the needle creates the tack-down stitch.

Expert Reality Check: On knits, fabric pieces like to "walk." The presser foot comes down like a hammer. If the fabric relies only on friction, it will shift.

The Safety Protocol: Never, ever put your fingers inside the hoop while the machine is armed (green light).

• Tool: Bent-nose tweezers allow you to apply pressure under the needle bar safely.
• Integration: If you are building a beanie workflow around magnetic embroidery hoops, buy a pair of long tweezers immediately. It is the cheapest insurance policy against a needle-through-finger injury.

Method 3 — Ricoma 8-in-1 Device with Sticky Backing When You Need Flexibility

The third method uses the Ricoma 8-in-1 device (a master bracket with interchangeable window frames) and sticky backing.

The Workflow:

1. Adhesive Prep: Hoop sticky backing (adhesive tearaway/cutaway) in the frame. Score the paper with a pin and peel it to reveal the sticky surface.
2. Float: Position the beanie onto the sticky area. "Floating" means the beanie is stuck to the stabilizer, not clamped by the frame.
3. Lock: Insert the frame into the master bracket arm.




Critical Equipment Check: The Clearance Collision

A commenter noted issues with the frame hitting the bobbin housing knobs on an MT1501 machine. This is a vital physical constraint.

The Fix:

• Invert: Make sure the hoop is flipped upwards (ears up) to avoid hitting the needle plate.
• The "Knuckle Check": Before running the machine, turn the handwheel (or use the slow frame trace function) to ensure the frame does not slam into the machine throat or needle case.

If you are researching the ricoma 8 in 1 device, treat your initial setup like a bomb disposal operation. Go slow. Verify your bracket slot. Confirm nothing collides.

The Clean Trim Moment: Take the Hoop Off the Machine Before You Cut Appliqué Fabric

The video removes the hoop from the machine to get better leverage, then trims the excess fabric close to the tack-down line using curved embroidery scissors.

This is a non-negotiable safety and quality step.

Warning: Mechanical Safety
Never trim applique while the hoop is attached to the machine.
1. Risk to Garment: You cannot see the back. It is easy to accidentally snip the beanie fabric folded underneath.
2. Risk to Machine: Snipped threads and lint fall directly into the bobbin race/hook assembly, causing jams.
3. Risk to You: One accidental foot pedal press (if equipped) or button bump while your hands are in the needle zone equals a hospital trip.
Always unhoop to trim.

The Stabilizer Decision Tree for Knit Beanies: Cutaway vs Sticky Backing vs Topping

Stop guessing. Use this logic flow to determine your stack.

Decision Tree (Beanie + Design → Stabilizer Stack)

1. Is the substrate a knit beanie?
   • Yes: It requires Cutaway support. Tearaway is banned.
2. Does the design include small text (< 5mm) or fine detail?
   • Yes: You MUST add water-soluble topping.
   • No: Topping is still recommended for a "retail finish."
3. Method: Are you clamping (Cap Frame/Mighty Hoop)?
   • Yes: Use a sheet of 2.5oz/3.0oz Cutaway inside/behind the beanie.
4. Method: Are you Floating (8-in-1 / Fast Frames)?
   • Yes: Use Adhesive Sticky Backing to hold the beanie, BUT pin a piece of cutaway floating underneath for the actual stitching support. Sticky backing alone is rarely enough for heavy satin stitches on knits.

A viewer asked about the transparent plastic. The creator confirmed it is Solvy (water-soluble topping). Even if you buy a sophisticated hoop master embroidery hooping station, you still need these basic consumables. The station gives you placement; the topping gives you clarity.

Setup Checklist (Right before you Press Start)

• Orientation Mark: Is the "F" tape or chalk mark pointing to the machine body (top)?
• Stabilizer Stack: Cutaway Inside + Beanie + Topping on top.
• Bobbin Check: Do you have enough bobbin thread? (Running out mid-cap is a nightmare to re-align).
• Needle Check: Are you using a 75/11 Ballpoint needle? (Ballpoints slide between knit fibers; Sharps cut them, leading to holes later).
• Trace: Run the design trace function. Does the presser foot clear the hoop edges?

Why These Three Methods Feel So Different: Hooping Physics, Knit Recovery, and Repeatability

Even though all three methods produce a stitched beanie, the tactile experience varies wildly.

• Mechanical Hubs (Cap Frame): You feel a "Lock." High repeatability. Good for rigid production norms.
• Magnetic Hoops: You feel a "Snap." Even vertical pressure. This minimizes "hoop burn" (the shiny ring left on fabric) because the magnets hold texture without crushing fibers.
• Adhesive Floating: You feel "Stick." Lowest stress on the fabric, but highest risk of the hat falling off if the glue isn't strong enough.

If you are comparing magnetic hoop options, judge them by Ring Grip. A high-quality magnetic hoop has enough Gauss (magnetic strength) to hold a thick winter beanie and cutaway backing without sliding during a 750 SPM stitch run.

Troubleshooting Beanie Embroidery: Symptoms → Likely Cause → Fix

The Upgrade Path That Actually Makes Sense: When to Stick with What You Have vs Move to Magnetic Hoops or Multi-Needle Production

Once you master the technique, your next bottleneck will be efficiency. If you are doing one beanie a week, a standard hoop is fine. If you are doing 50 for a local sports team, the "friction" of manual hooping will hurt your profitability (and your wrists).

Here is the logical hierarchy of upgrading your toolset:

1. Level 1: Stability Upgrade (Consumables)
   • If your results are inconsistent, upgrade your Embroidery Thread to high-tensile poly and ensure you are using premium Stabilizer/Backing. Cheap backing varies in density, causing random puckering.
2. Level 2: Workflow Upgrade (Hooping)
   • If your pain point is hooping speed or hoop burn, this is the trigger to invest in Magnetic Hoops/Frames. They are compatible with both home single-needle and industrial machines (like the ricoma mt 1501 embroidery machine). They turn a 2-minute struggle into a 10-second snap.
3. Level 3: Capacity Upgrade (Machinery)
   • If your pain is throughput (turning away orders), you need more needles. A SEWTECH Multi-Needle Machine allows you to stage the next cap while one is sewing, and eliminates the time wasted changing thread colors manually.




Operation Checklist (The Final "Don't Ruin It" List)

• Sequence: Placement → Stop → Fabric → Tack Down → Stop → Trim → Satin.
• Tweezers: Use 6-inch tweezers to hold fabric. Keep fingers out.
• Trimming: Remove hoop -> Trim fabric -> Re-attach -> Check alignment.
• Finishing: Tear away topping gently. Use a damp cloth or steam to dissolve the remaining bits.
• Inspection: Check the inside. Trim any long jump threads that might tickle the customer's forehead.

By following this physics-based approach, you move from "hoping it works" to "knowing it will work."

FAQ

• Q: On a Ricoma embroidery machine, what stabilizer stack should be used for knit beanie embroidery with small text?
  A: Use 2.5–3.0 oz cutaway backing plus water-soluble topping; tearaway alone is not suitable for knit beanies.
  • Cut: Prepare cutaway at least 1 inch larger than the hoop on all sides.
  • Place: Put cutaway inside/behind the beanie stitch field, then add water-soluble topping on top of the knit.
  • Secure: Lightly tack the topping corners so it doesn’t flutter during the first jump stitches.
  • Success check: Letters sit on top of the knit (not “sinking” into the loops) and remain readable at ~4–5 mm height.
  • If it still fails: Reduce speed on detail steps and confirm the beanie was not over-stretched during hooping.
• Q: How can a Mighty Hoop 5.5x5.5 magnetic hoop prevent pre-stretch distortion when hooping thick knit beanies?
  A: Let the magnets clamp straight down and avoid pulling the beanie “drum-tight” during hooping.
  • Insert: Place cutaway backing inside the beanie first.
  • Position: Put the bottom magnetic ring inside the beanie under the backing.
  • Snap: Lower the top ring by holding the edges only, letting the hoop clamp vertically.
  • Success check: Knit ribs look relaxed (not pulled wide open) and the hoop hold feels firm without visible distortion.
  • If it still fails: Re-hoop with less handling and rely on cutaway for stability rather than hand tension.
• Q: What is the safest way to trim appliqué fabric on a beanie after the tack-down stitch on a Ricoma embroidery machine?
  A: Remove the hoop from the machine before trimming; never cut appliqué while the hoop is mounted.
  • Stop: After tack-down, remove the hoop/frame completely from the machine.
  • Trim: Use curved embroidery scissors and trim close to the tack-down line.
  • Re-mount: Reattach the hoop/frame and recheck alignment before the satin stitch.
  • Success check: No accidental nicks in the beanie knit, and the satin stitch fully covers the fabric edge with no fibers poking out.
  • If it still fails: Switch to a stiffer appliqué fabric (often twill/felt) to reduce shifting on knit.
• Q: How do you prevent a beanie embroidery design from stitching upside down when using a magnetic hoop or cap frame?
  A: Mark a repeatable “Front” reference and verify it points to the machine’s top before pressing Start.
  • Mark: Add masking tape labeled “F” (Front) to the hoop/frame orientation.
  • Align: Match the beanie seam/rib line to the frame’s center mark (or your chosen center reference).
  • Trace: Run the machine’s trace function to confirm the design is oriented correctly in the stitch field.
  • Success check: The “F” mark consistently faces the same direction every hooping, and the traced outline matches the intended front area.
  • If it still fails: Stop and re-hoop; do not “rotate in software” as a shortcut if physical orientation is inconsistent.
• Q: What causes letters to look sunk or fragmented on knit beanies, and what is the fastest fix on a Ricoma embroidery machine?
  A: Missing water-soluble topping is the most common cause; add topping to keep stitches on the surface.
  • Add: Place water-soluble topping over the beanie before stitching fine detail or small text.
  • Re-run: Stitch the sample again with the same design size to verify improvement.
  • Keep: Leave cutaway backing in place for long-term support on the knit.
  • Success check: Satin columns and small text look continuous and “sit up” instead of disappearing into fuzz/loft.
  • If it still fails: Slow down detail passes (tack-down around 450–500 SPM is a safe starting point) and confirm the knit was not over-stretched in the hoop.
• Q: What safety rules should be followed to avoid injuries when using industrial-strength magnetic embroidery hoops for beanies?
  A: Treat magnetic hoops as a pinch hazard and keep fingers out of the closing zone; use tools for close work.
  • Hold: Grip the top ring by the edges only—never place fingers underneath when snapping the rings together.
  • Tool: Use long bent tweezers to control small appliqué pieces near the needle area instead of fingertips.
  • Pause: Only manipulate fabric when the machine is stopped and safe to handle.
  • Success check: No pinched skin during hoop closing, and hands stay outside the needle zone during stitching.
  • If it still fails: Slow the process down and reorganize the station so hooping and fabric placement can be done without rushing.
• Q: When should a beanie embroidery workflow upgrade move from consumables tuning to magnetic hoops or a SEWTECH multi-needle machine?
  A: Upgrade in layers: fix stability first, then speed/ergonomics, then capacity if orders outgrow single-machine throughput.
  • Level 1 (Consumables): Improve consistency with quality thread and proper cutaway + topping stacks.
  • Level 2 (Hooping): Choose magnetic hoops/frames when hooping time, wrist strain, or hoop burn becomes the bottleneck.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when the limiting factor is production volume and color-change downtime.
  • Success check: The identified bottleneck (quality, hooping time/strain, or throughput) measurably improves after the upgrade.
  • If it still fails: Reconfirm the root cause by tracking where time/loss happens (prep, hooping, stitching, or rework) before buying new equipment.
