Mastering the Hoop: The Veteran’s Guide to Precision Placement & Magnetic Systems

If you’ve ever stared at a finished polo shirt and thought, “I swear I centered that… why is the logo drifting toward the armpit?”—you are not alone. In my 20 years on the production floor, I’ve learned that embroidery is 90% preparation and 10% stitching. Hooping is where the battle is won or lost.

Improper hooping creates "Hoop Burn" (permanent ring marks on delicate fabric), puckering, and the dreaded crooked design. This guide rebuilds the workflow for the HoopMaster system and magnetic Mighty Hoops, transforming it from a mechanical manual into a veteran’s survival guide.

We will cover three real-world scenarios: a vest, a polo, and a jacket back. We will move beyond "how to assemble it" and focus on the tactile cues—the clicks, the friction, and the resistance—that tell you your setup is safe for production.

Know What You Bought: Anatomy of a Production Station

The video demonstrates a 5x5 magnetic Mighty Hoop used on a HoopMaster system. If you are new to this ecosystem, the terminology can be overwhelming. Let’s simplify the "Why."

Traditional plastic hoops require you to muscle the outer ring over the inner ring, often distorting the fabric. Magnetic hoops clamp directly down. This distinction matters because it eliminates the friction that causes hoop burn.

Here is the operational logic:

• The Portable Base + Freestyle Arm: Think of this as your "surgical table." It’s for small items, bags, or awkward garments (like vests) where you need open space underneath.
• The Shirt Board: This is your "volume tool." It forces the garment to sit straight (using shoulders and plackets as anchors) so you don’t have to measure every single shirt.
• The Magnetic Hoop: This is your "speed lever." It clamps thick jackets without the wrist strain of tightening screws.

If you are currently debating equipment, understand that the hoopmaster station kit isn't just an accessory; it is a standardization engine. It ensures Shirt #1 and Shirt #50 look exactly the same.

Lock the Freestyle Arm: The "One-Piece" Shake Test

The first step is assembling the Freestyle arm onto the portable base. It seems trivial, but loose equipment is the silent killer of alignment.

The Veteran’s Protocol:

1. Place the Base: Set the portable mounting base on a table that doesn’t wobble.
2. Slide and Seat: Slide the Freestyle arm onto the metal post. You should feel it bottom out solidly.
3. The Torque Check: Tighten the black knob. Do not just turn it until it stops; give it that extra quarter-turn to lock it.

The Sensory Check: Grab the end of the freestyle arm and try to shake it.

• Fail: If you hear a rattle or feel a "clunk," your design will shift.
• Pass: The arm and base should move as a single solid unit.


Set the Fixture & T-Square: Zeroing Your Instrument

Next, we install the hoop fixture and the T-square. This turns generic "eyeballing" into a hard physical stop.

The Setup Steps:

1. Alignment: Align the fixture’s posts with the holes on the Freestyle arm.
2. The "Click": Press the fixture down. You want to hear a distinct plastic "snap" or feel it seat fully into the "eye." If it’s floating, your Z-axis is wrong.
3. Loose Assembly: Attach the T-square with screws, but keep them loose. It needs to slide like a trombone slide—smooth, with some resistance.

The "Why" (Expert Reality): We leave the T-square loose initially so we can calibrate it to the garment. Once tightened, this T-square allows you to hoop 100 vests without picking up a ruler once. This is the difference between a hobbyist workflow and a production workflow.

Hooping a Vest: Using the "Target & Stop" Method

Vests are notorious for "fabric creep"—the slippery shell slides away from the needle. The video uses a target sticker for the center and the T-square as a vertical stop.

The Workflow:

1. Bottom Ring Protocol: Place the bottom magnetic ring into the fixture. Crucial: Ensure the white side faces down (white-to-white) and the rough, dark magnet side faces up.
2. Stabilizer Trap: Lift the magnetic flaps on the fixture and slide your backing underneath. It should be held firmly.
3. The Slide: Bring the vest over the arm. Align your pre-placed target sticker with the molded center line on the fixture.
4. The Hard Stop: Slide the vest up until the collar hits the T-square.
5. Lock Strategy: Now, tighten the T-square screws. You have now created a mechanical mold for every subsequent vest in this size.

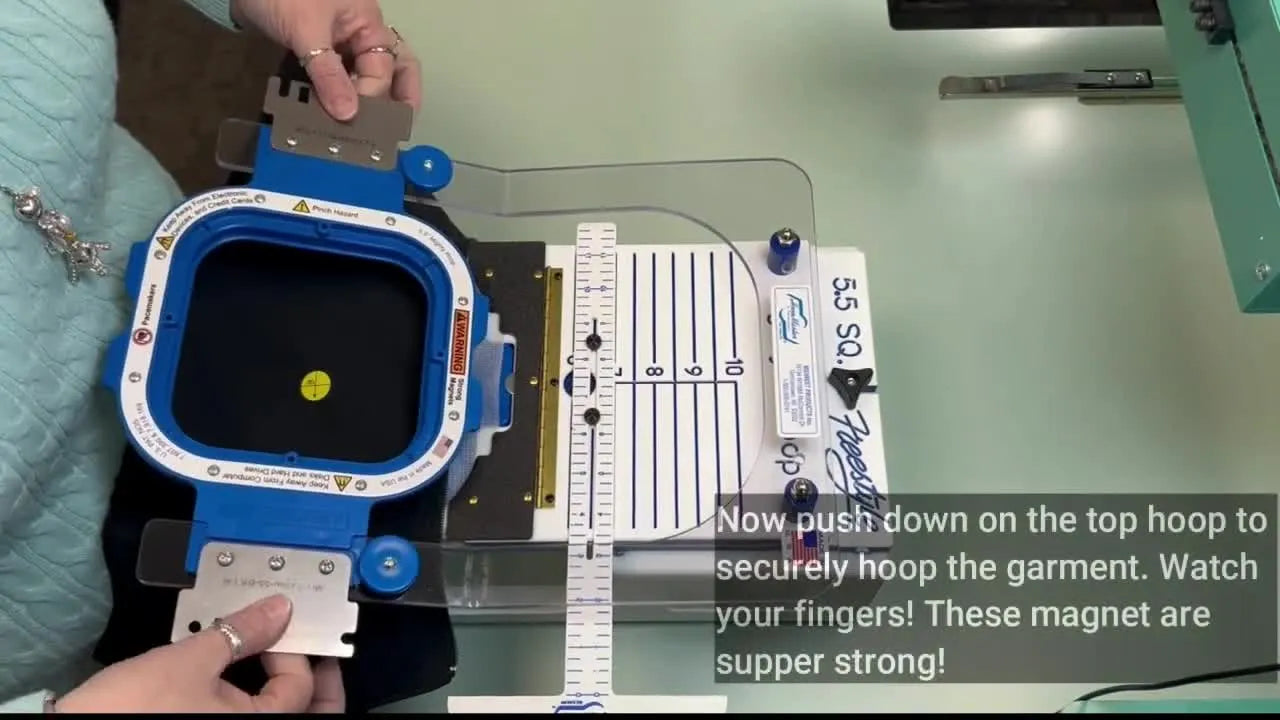

The "Top Hoop" Technique: When you apply the top hoop, do not just drop it. Align the screws into the grooves and let the magnets pull it down.

Commercial Pivot Point: If you find that your current plastic hoops leave "shiny rings" (hoop burn) on polyester vests, no amount of technique will fix that physics problem. This is the specific scenario where upgrading to a magnetic mighty hoop becomes a necessity, not a luxury. It clamps without the friction burn.

Warning: Power Pinch Hazard
Magnetic hoops generate massive clamping force instantly.
* Never place your fingers between the rings.
* Hold the top hoop by the outer "ears" or rim.
* Do not let the hoop "jump" from your hands; control the descent until it snaps shut.

The Physics of "Rough Side Up"

Why does the video emphasize the rough side of the magnet facing up? This is about friction coefficient. Slip-prone fabrics (nylon vests, performance wear) slide against smooth metal. The texture on the magnet acts like a cat’s tongue—it grips the backing and fabric, preventing the dreaded "flagging" (fabric bouncing up and down) that causes bird nesting.

PREP CHECKLIST: The "Pre-Flight" Inspection

• Base Stability: The mounting base does not rock or slide on the table.
• Arm Rigidity: The Freestyle arm knob is torque-tight; the arm feels solid.
• Magnet Orientation: Bottom hoop is Rough Side UP.
• Flap Engagement: Stabilizer is trapped under the fixture flaps, not floating loose.
• Consumable Check: You have your target stickers and a water-soluble marking pen nearby.
• Physical Stop: T-square is tightened and confirmed against the first garment’s collar.


The Shirt Board Strategy: Recording Your Recipe

We now switch to the full shirt board. The specific number mentioned in the video (Size 10 or 18) allows you to "save your game."

In a production environment, we don't guess. We record.

• The Action: Place the fixture arm into the grid.
• The Record: Write down "Port Authority Polo / Size L / Grid Position 10."

When a re-order comes in six months later, you don’t re-measure. You simply plug the fixture into slot 10. If you are building a workflow around hooping station setups, buy a notebook. That notebook is your production schedule.

Hooping a Polo: Shoulders and Plackets Never Lie

Polos are unforgiving. If the design is 3mm off-center, the stripes or texture of the fabric make it obvious.

The Sensory Workflow:

1. Dress the Board: Slide the shirt over the board. It should feel like you are dressing a mannequin—snug but not stretched.
2. The Shoulder Check: Run your hands over the shoulder seams. They must sit evenly on the board edges.
3. The Placket Line: The button placket must align perfectly with the laser-etched center line of the board.
4. Stabilizer Injection: Place the bottom hoop (Rough Side Up) and trap your cutaway stabilizer under the flaps.
5. The Tension Check (Critical): Smooth the fabric down. Do not stretch it.
   • Correct Feel: Relaxed, flat, resting on the board.
   • Incorrect Feel: Taut, pulled tight like a drum. (This causes puckering later).
6. The Clamp: Snap the top hoop down.


Calibration: Moving to Circle 18

The video shows a common scenario: The hoop is perfectly centered on the board, but the logo needs to be higher or lower on the chest.

The Fix: Instead of guessing, we move the machine.

1. Diagnose: You hoop a test run. The center point is too high.
2. Adjust: Unlock the fixture. Slide it down the grid.
3. Verify: The video demonstrates moving to Circle 18.
4. Confirm: Re-hoop and check the target.

This adjustability is why professional shops use these boards. You adjust the tool, so the garment loading remains consistent.

SETUP CHECKLIST: The Polo Protocol

• Grid Lock: Fixture is clicked into the specific grid number (e.g., #10 or #18).
• Shoulder Equator: Shirt seams are symmetrical on the board shoulders.
• Placket Axis: Buttons track the center line perfectly.
• Tension Sense: Fabric is smooth but not stretched (prevents "hour-glassing").
• Stabilizer Type: You are using Cutaway stabilizer for knits (never tearaway for polos).
• Obstruction Check: No shirt fabric is bunched up under the hoop area.


The Jacket Back Setup: Using the Hoop as a Spacer

For large 8x9 hoop jobs (jacket backs), we swap fixtures. The video demonstrates a clever trick: using the hoop itself to calibrate the fixture width.

The Quick-Set Method:

1. Install Plates: Screw in the bottom adjustable plate. Keep the top plate loose.
2. The Spacer: Place the actual 8x9 Mighty Hoop between the plates.
3. The Squeeze: Push the plates against the hoop until snug, then tighten the screws.

This ensures you don't over-tighten (which makes the hoop stuck) or leave it too loose (which causes alignment drift). Many users search for the adjustable mighty hoop fixture specifically to solve the problem of hooping odd-sized bags and jackets that standard fixtures can’t hold.

Hooping the Jacket: The "Hinge" Motion

Canvas jackets and Carhartts are the enemies of standard hoops. They are too thick for screws. Magnetic hoops shine here, but technique is vital.

The Maneuver:

1. Load: Pull the jacket onto the board. Align shoulder seams.
2. Tension: Here, unlike the polo, you do need to pull the jacket taut. Thick canvas doesn't stretch like knit, so you need to remove the wrinkles aggressively.
3. The Hinge: Engage the top hoop’s metal tabs into the fixture slots first (at an angle).
4. The Snap: Lever the hoop down like closing a door. Thwack.

Market Context: If your shop is moving into heavy workwear, the mighty hoop 8x9 is the industry standard for jacket backs. Trying to do this with a plastic hoop will result in broken hoops and sore wrists.

Warning: Medical & Electronic Safety
These magnets are industrial strength.
* Pacemakers: Keep at least 12 inches distance.
* Electronics: Keep phones, credit cards, and USB drives away from the magnet stack.
* Machine Safety: Ensure the hoop arms on your machine are wide enough before attaching this heavy frame.

Hidden Consumables & The Decision Tree

The video uses AllStitch backing, but let’s break down the "Invisible Components" you need for success.

• Spray Adhesive (505/KK100): For jackets, a light mist helps hold the backing to the fabric during that aggressive "pull tight" phase.
• Hidden Consumable: Needles. If you are switching from a soft polo to a canvas jacket, switch from a 75/11 Ballpoint to a 80/12 or 90/14 Sharp.

Decision Tree: Fabric -> Stabilizer -> Hoop Strategy

When you pick up a garment, run this mental algorithm:

1. Is it Stretchy? (Polo/Tee)
   • Stabilizer: Cutaway (2.5oz or 3.0oz).
   • Hooping: Gentle smoothing. No stretching.
   • Hoop: 5.5" Magnetic is ideal to prevent hoop burn.
2. Is it Slippery? (Nylon Vest)
   • Stabilizer: Sticky Backing or Cutaway with Spray.
   • Hooping: Use the T-square stop.
   • Hoop: Magnetic (essential for grip).
3. Is it Armor? (Carhartt/Denim)
   • Stabilizer: Heavy Cutaway or Tearaway (if fabric is very stable).
   • Hooping: Pull tight to remove slack.
   • Hoop: 8x9 or larger Magnetic.

The Scaling Logic: When to Upgrade Your Tools

We have discussed leveling up your technique, but sometimes the bottleneck is the tool.

Level 1: The Pain of production. If you are doing 5-10 shirts, a single-needle machine and standard hoops are fine. But if you hit an order of 50 jackets, the physical strain of turning hoop screws 50 times will slow you down. This is the Trigger Point for magnetic hoops.

Level 2: The Need for Speed. Magnetic hoops are faster, but they don't make your machine sew faster. If you find yourself waiting 10 minutes for a sew-out while orders pile up, or dreading thread changes on colorful logos, the bottleneck has moved. This is where professionals look at Multi-Needle Machines (like the SEWTECH series). A multi-needle machine allows you to hoop the next garment while the machine is sewing the current one. That overlaps your labor and doubles your output.

Level 3: The "Burn" Solution. If you deal with performance wear (Nike/Under Armour) and constantly fight hoop burn, the mighty hoop 5.5 or similar magnetic systems are the only reliable prevention. The cost of replacing one ruined Nike polo often equals the cost of the hoop upgrade.

The Mistakes I See Weekly (Troubleshooting)

Symptom: "The design is straight on the screen, but crooked on the chest."

• Likely Cause: You relied on the shirt label, which is often sewn off-center.
• Quick Fix: Trust the weave. Align the shirt placket (the folded fabric strip with buttons) to the board center line.

Symptom: "The fabric is puckering around the letters."

• Likely Cause: You stretched the polo while hooping ("Drum skin" effect). When you unhoop, it snaps back.
• Quick Fix: Hoop on a Shirt Board. Smooth the fabric gently—do not pull.

Symptom: "My hands hurt after an order."

• Likely Cause: Repetitive strain from screw-hoops.
• Prevention: Upgrade to magnetic frames. Your wrists are your livelihood; protect them.

OPERATION CHECKLIST: The Final Countdown

Before you press "Start" on the machine:

• Clearance: The garment is draped properly; no sleeves are tucked under the hoop where the needle will sew them shut.
• Security: Top hoop is fully snapped down; no gap between magnets.
• Orientation: The top of the design matches the neck of the garment (don't sew upside down!).
• Slack Check: Gently pinch the fabric in the hoop. It should be firm but not distorted.
• Stabilizer: You can see the stabilizer covering the entire hoop area underneath.
• Safety: No loose magnetic objects (pins, scissors) are stuck to the hoop frame.

By standardizing your workflow with the HoopMaster station and understanding the tactile feedback of your equipment, you move from "hoping it works" to "knowing it will." Record your grid numbers, respect the magnets, and let the tools do the heavy lifting.

FAQ

• Q: How do I confirm the HoopMaster Freestyle Arm is locked tight enough to prevent placement drift on vests?
  A: Tighten the Freestyle arm knob until snug, then add a firm extra quarter-turn and confirm the arm and base behave like one piece.
  • Place the portable base on a table that does not wobble.
  • Slide the Freestyle arm fully down until it bottoms out solidly on the post.
  • Tighten the black knob, then apply a controlled extra quarter-turn to lock it.
  • Success check: Grab the end of the arm and shake—there should be no rattle, clunk, or independent movement between arm and base.
  • If it still fails… re-seat the arm (it may be “floating” on the post) and repeat the shake test before hooping any garment.
• Q: How do I verify the bottom magnetic ring orientation (rough side up) on a Mighty Hoop setup to reduce fabric slip and bird nesting?
  A: Install the bottom ring with the rough, dark magnet side facing up so the fabric and backing grip instead of sliding.
  • Identify the bottom ring faces: rough/dark magnet surface vs. the smoother/white-facing side.
  • Load the bottom ring into the fixture with the rough/dark magnet surface UP (and the white side DOWN where applicable).
  • Trap the stabilizer under the fixture flaps so it cannot float.
  • Success check: The fabric/backing should resist sliding when you smooth it—no “skating” feel on the ring surface.
  • If it still fails… focus on stabilizer control (trap it under flaps and consider a light spray adhesive for tough jacket setups), then re-hoop.
• Q: How do I prevent puckering on a polo when hooping on a HoopMaster shirt board with a magnetic hoop?
  A: Smooth the polo flat on the board without stretching, and use cutaway stabilizer for knits.
  • Dress the shirt onto the board snugly but do not pull it tight like a drum.
  • Align shoulder seams evenly on both board edges and track the button placket to the board’s center line.
  • Inject cutaway stabilizer under the flaps, then clamp the magnetic hoop straight down.
  • Success check: The fabric inside the hoop feels firm and flat but not over-tensioned; it should look relaxed rather than “hour-glassed.”
  • If it still fails… re-hoop and reduce tension (most puckering comes from stretching during hooping), and confirm cutaway (not tearaway) is being used for polos.
• Q: Why is an embroidery logo crooked on a polo chest even when the design looks straight in the machine preview on a HoopMaster shirt board?
  A: Ignore the neck label and use the polo’s placket and shoulder seams as the true alignment references.
  • Center the button placket on the board’s laser-etched center line.
  • Confirm both shoulder seams sit symmetrically on the board shoulders before clamping the hoop.
  • Re-hoop after correcting alignment anchors rather than “nudging” the design file.
  • Success check: The placket tracks the center line top-to-bottom, and both shoulder seams feel even under your hands.
  • If it still fails… run a quick test hooping and adjust position using the board grid (move the fixture to a different marked position rather than guessing).
• Q: How do I move an embroidery logo higher or lower on a polo chest using HoopMaster grid positions like Circle 10 or Circle 18?
  A: Keep garment loading consistent and adjust placement by sliding and locking the fixture to a different grid position.
  • Hoop a test run and note whether the center point is too high or too low on the chest.
  • Unlock the fixture and slide it to a new grid position (the example adjustment shown is moving to Circle 18).
  • Record the “shirt model / size / grid position” so reorders repeat without re-measuring.
  • Success check: The re-hooped target/center aligns to the intended chest height while the shirt still loads the same way on the board.
  • If it still fails… stop “eyeballing” and standardize: always load using shoulders + placket, then only change the grid position.
• Q: What is the safest way to close a magnetic Mighty Hoop to avoid finger pinch injuries during production hooping?
  A: Never place fingers between the rings—hold the top hoop by the outer ears/rim and control the descent until it snaps shut.
  • Position the garment and stabilizer first so there is no last-second hand repositioning near the magnet gap.
  • Hold the top hoop at the outer rim/ears and align it over the bottom ring.
  • Lower it under control—do not let the hoop “jump” from your hands.
  • Success check: The hoop closes with a clean snap and there is no visible gap between magnetic faces.
  • If it still fails… pause and reset hand placement; rushing is what causes pinches with high-clamp-force frames.
• Q: What magnetic safety rules should be followed when using industrial-strength magnetic embroidery hoops near pacemakers and electronics?
  A: Treat magnetic hoops like industrial magnets: keep them away from pacemakers, phones, credit cards, and data drives, and verify machine clearance before mounting.
  • Keep magnetic hoops at least 12 inches away from pacemakers.
  • Store and handle hoops away from phones, credit cards, USB drives, and other sensitive electronics.
  • Check that embroidery machine hoop arms have enough width/clearance before attaching heavier magnetic frames.
  • Success check: The hoop mounts without interference and no electronics are placed close enough to be pulled or affected by the magnet stack.
  • If it still fails… stop and reassess the work area layout (dedicate a “magnet-safe” zone) before resuming production.
• Q: When should an embroidery shop upgrade from standard screw hoops to magnetic hoops or a multi-needle machine for jacket backs and performance wear?
  A: Upgrade in levels: fix hooping technique first, move to magnetic hoops when hoop burn/wrist strain becomes the bottleneck, and move to a multi-needle machine when sewing time and thread changes limit output.
  • Level 1 (Technique): Standardize loading with physical stops (T-square, shirt board) and record grid positions for repeatability.
  • Level 2 (Tool): Choose magnetic hoops when screw-hoop tightening causes hand pain, when thick jackets fight screws, or when hoop burn ruins performance fabrics.
  • Level 3 (Capacity): Choose a multi-needle machine when you are waiting on stitch time and frequent color changes, and need to hoop the next item while the current one sews.
  • Success check: Throughput increases without increasing rejects (fewer crooked placements, fewer hoop-burn returns, less re-hooping).
  • If it still fails… identify the real bottleneck (placement consistency vs. hooping speed vs. sew time) and upgrade only the step that is limiting production.
