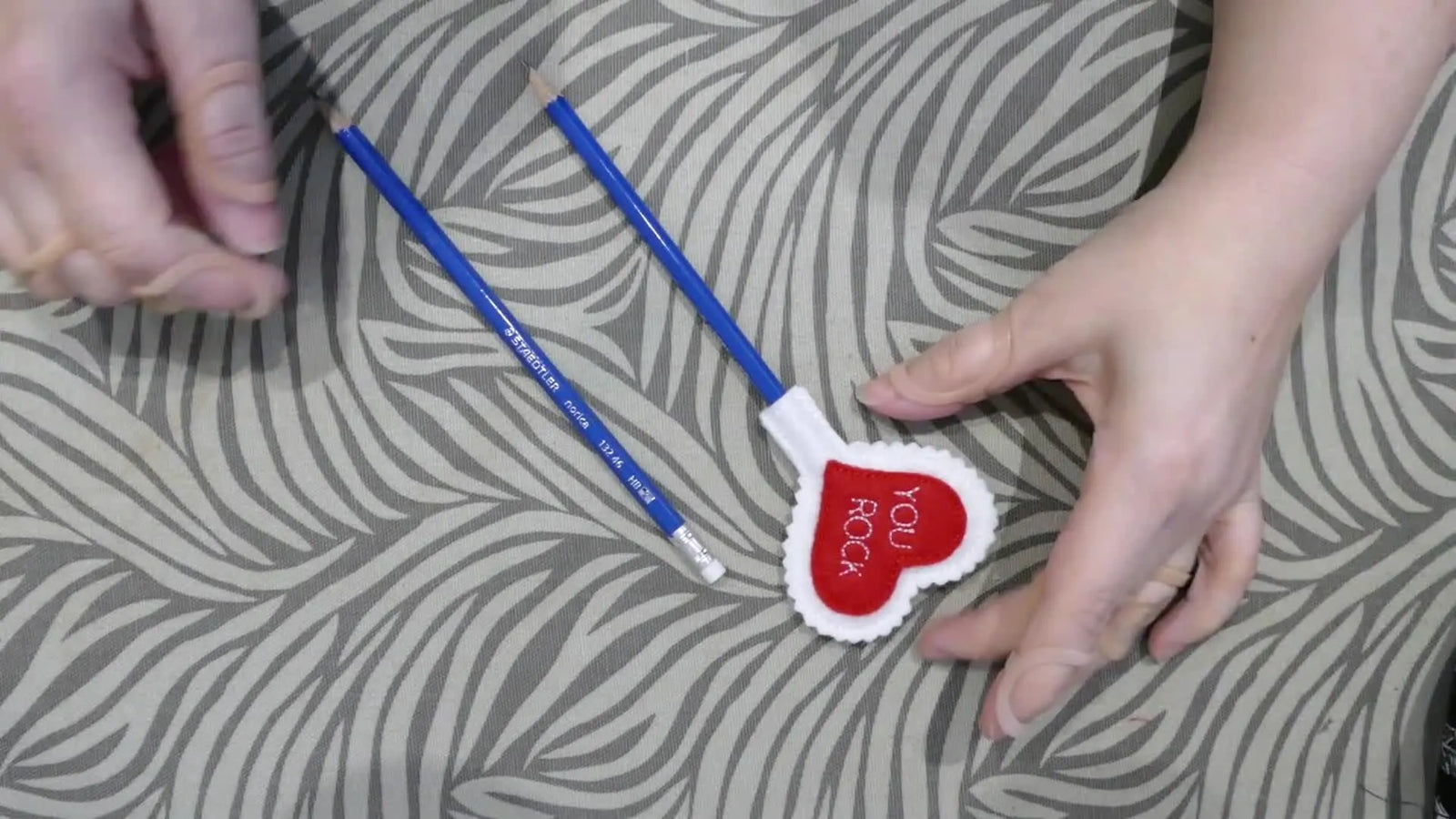

ITH Chalkboard Heart Pencil Topper on a Husqvarna Viking: Clean Layers, Crisp Trims, and a Backing That Actually Lines Up

Master Class: The Engineering of the ITH Heart Pencil Topper

In-the-hoop (ITH) projects often promise instant gratification, but they operate on a strict "fail-fast" logic. You are effectively using your embroidery machine as a construction site—layering cement (stabilizer), bricks (felt), and rebar (stitches). If your foundation is off by 2mm, the roof won't fit.

This heart pencil topper is the perfect "lab exam" for beginners. It forces you to master the three pillars of commercial embroidery: Stabilization Physics, Layer Management, and Blind Alignment.

Get this right, and you don’t just get a cute pencil accessory with a chalkboard back; you gain the muscle memory required for professional patch-making and complex appliqués.

The Blueprint: Anatomy of a Dual-Sided Build

Before we touch the machine, understand the engineering. This isn't a flat design; it's a sandwich with an open pocket.

1. The Chassis (Stabilizer): Holds the tension.
2. The Substrate (White Felt + SF101): The front face.
3. The Applique (Red Felt): The decorative layer.
4. The Utility Layer (Chalkboard Fabric): The interactive surface.
5. The Backing: Closes the assembly but leaves the bottom open for the pencil.

The "Invisible" Variable: The underside of your hoop is the "presentation side" for the chalkboard. In standard embroidery, the bobbin is hidden. Here, the bobbin thread is the top stitch for the back. This reverses your thread logic: Your bobbin thread color is now a design element.

Phase 1: Material Physics & The "Pre-Flight" Prep

Professional results come from controlling material behavior before the needle drops. Felt is non-woven, meaning it doesn't fray, but it does stretch under the impact of a needle (deflection).

The Stabilizer Strategy: Oly-Fun vs. Cutaway

The project uses Oly-Fun (a polypropylene non-woven).

• Why it works: It’s moisture-resistant and cuts cleanly without leaving "hairy" edges like standard cutaway.
• The Pro Alternative: If you don't have Oly-Fun, use a medium-weight (2.5oz) Cutaway stabilizer. Never use Tear-away for ITH builds like this; the perforation will cause the pencil slot to tear open with use.

The Secret Weapon: SF101 (Shape-Flex)

Fusing Pellon SF101 to the back of your wool/acrylic blends is mandatory for quality.

• The "Why": Standard craft felt is unstable. SF101 adds a woven cotton grid to the back which prevents the felt from rippling under satin stitches.

Hidden Consumables (The "Oh Shoot" List)

• Curved Tip (Duckbill) Scissors: Essential for trimming applique without slashing the base.
• Temporary Spray Adhesive (e.g., Odif 505): For floating layers if you hate tape.
• Black Bobbin Thread: Crucial for the chalkboard backing.

Prep Checklist (Pre-Flight Protocol):

• Needle Check: Install a fresh 75/11 Ballpoint needle (felt is dense; sharp needles can pierce the fibers rather than spread them).
• Material Prep: Fuse SF101 to your base felt. Cut chalkboard vinyl 1 inch larger than the design area.
• Bobbin: Load a pre-wound black bobbin (if using black chalkboard material).
• Machine Speed: Lower your max speed. ITH work requires precision, not racing. Set your machine to 600-700 SPM (Stitches Per Minute) to prevent inertia from shifting your small felt layers.


The "Drum Skin" Standard: Hooping Oly-Fun

The first tactile skill is hooping. Oly-Fun is slippery.

The Sensory Check:

1. Tactile: Tighten the hoop screw until you feel significant resistance.
2. Auditory: Tap the hooped stabilizer. It should sound like a dull drum—"Thump, thump." If it sounds like paper rattling, it's too loose.
3. Visual: The grid/fibers should not look warped or pulled into an oval.

Pro Insight: If you struggle with hand strength or getting wrinkles out, this is often where users start looking at a husqvarna viking embroidery machine or similar setups that support spring-loaded hoops. However, the ultimate cure for "hooper's wrist" and slippage is a magnetic system (discussed later).

Floating Mechanics: Why We Don't Hoop the Felt

We are "floating" the white base felt. This means the felt sits on top of the hoop, secured only by the machine's basting/tack-down stitch.

Why float?

1. Economy: You use less felt.
2. No Hoop Burn: Felt crushes easily in hoop frames. Floating creates a zero-crush zone.

The Friction Test: Place your felt over the placement line. Press it down with your hand. The texture of the Oly-Fun combined with the felt should create friction. If it slides too easily, a light mist of temporary spray adhesive is your safety net.

The "Sandwich" Maneuver (Layering)

Here is the efficiency hack: The design allows you to place the Red Felt (Applique) AND the Chalkboard Vinyl (Utility) in one pass.

1. Placement: Lay Red Felt over the White Base.
2. Overlay: Lay Chalkboard Vinyl over Red Felt.
3. Action: Run the "Tack-down" stitch.

Crucial "Blind" Check: Ensure your chalkboard vinyl covers the placement stitches by at least 1/2 inch on all sides. You cannot see the line once you place the vinyl, so "measure twice, place once."

Warning: Physical Hazard
When trimming applique in the hoop, your fingers are dangerously close to the needle bar. Always stop the machine completely. Do not just pause; ensure the foot is up. Use "Duckbill" scissors to separate the layers—the "bill" holds the fabric down while the blade cuts, preventing you from snipping the base felt by mistake.

Surgical Trimming: The Order of Operations

If you trim in the wrong order, you ruin the project.

The Golden Rule: Trim Top-Down.

1. First: Trim the Chalkboard material. Cut very close (1-2mm) to the stitching. Vinyl doesn't fray, so a close cut looks professional.
2. Second: Trim the Red Felt. Leave a slightly wider margin (2-3mm) if desired, or cut close.
3. NEVER: Do not cut the White Base Felt yet. That is your foundation.

Tactile Check: Run your finger over the trimmed edge of the chalkboard vinyl. If you feel sharp points, trim them now. Once the final satin stitch runs, those sharp points will poke through and look terrible.

Text Registration: Why You Don't Unhoop

The video stitches "YOU ROCK." Critical Rule: Do not remove the hoop from the machine arm between trimming and stitching text unless absolutely necessary. Every time you re-attach a hoop, there is a micro-variance in alignment (0.5mm - 1mm). On a small pencil topper, a 1mm shift makes the text look off-center.

The "Ghost" Legs: The Pencil Slot Stitch

There is a specific stitch sequence that outlines the bottom legs of the heart but leaves a gap. Do not skip this. Novices often think this is a mistake or a jump stitch and skip it. This stitch defines the "stop point" for the pencil so you don't shove the pencil all the way through the top of the heart later.

The Blind Flip: Perfecting Backing Alignment

This is the highest failure point in ITH projects. You must tape the backing felt to the underside of the hoop, aligning it blindly with the front.

The "Pin-Prick" Trick (Optional Expert Move): If you don't trust your eyes using the stabilizer transparency:

1. Poke a pin through the four corners of the placement stitch from the top.
2. Flip the hoop.
3. Use the pin points perfectly visible on the bottom to align your backing felt.

Tape Engineering: Use Painter's Tape or Embroidery Tape.

• Secure: Tape all four corners.
• Clearance: Ensure tape is NOT where the needle will travel. If the needle strikes the tape, it gums up the eye, leading to thread shredding immediately.


Setup Phase 2: Bobbin & Tension Management

Before the final run, check your "Under-carriage."

• Bobbin Color: Switch to Black Bobbin thread now if you haven't already. This ensures the stitching on the black chalkboard back looks invisible/blended.
• Tension Check: Since you just added a thick layer of felt to the bottom, the total thickness has doubled.
  • Symptom: If you hear a loud "thudding" sound, the foot height is too low.
  • Fix: Raise your presser foot height (if your machine allows) by 1-2mm to accommodate the "sandwich."

If you are researching a floating embroidery hoop technique for bulky items, note that the tape method used here is the precursor to that skill. You are essentially floating the backing.

Setup Checklist (The "Do Not Ruin It Now" Check):

• Tape Check: Is tape clear of the stitch path?
• Orientation: Is the backing felt covering the entire design area on the bottom?
• Thread: Is the bobbin color correct for the backing material?
• Path: Is the hoop attached securely after the flip?


The Final Seal: Inspecting the Bean Stitch

The machine will run a "Bean Stitch" (Triple Stitch) or Satin Stitch to seal the sandwich.

Success Metrics:

• evenness: The stitch length looks consistent (no tiny stitches caused by drag).
• Capture: The backing felt is caught in the stitch 100% of the way around.
• The Gap: There is a distinct open section at the bottom point of the heart for the pencil.


Extraction & Pinking

Remove the project.

1. Rough Cut: Cut the Oly-Fun stabilizer about 1 inch from the design.
2. Precision Cut (Straight): Use sharp scissors for the "legs" near the pencil opening.
3. Style Cut (Pinking): Use Pinking Shears (zigzag scissors) for the outer curve of the heart.
   • Why? It looks decorative, but technically, it disrupts the straight grain of the felt, making it less likely to look fuzzy over time.


Visual Decision Tree: Troubleshooting Your Stack

Embroidery is about variables. Use this logic flow to solve problems before they happen.

Scenario A: The Outline is Misaligned (The "Gap" Issue)

• Cause: The stabilizer slipped in the hoop.
• Fix: Use a tighter hooping method or switch from Oly-Fun to a Medium Cutaway (2.5oz). Check your hoop screw tension.

Scenario B: The Text Sinks into the Felt

• Cause: The felt nap is too deep/fluffy.
• Fix for next time: Use a Water Soluble Topping (Solvy) over the red felt before stitching the text. This keeps the stitches on top like a raft.

Scenario C: White Bobbin Thread Shows on Top (aka "Pokies")

• Cause: Top tension is too tight relative to the bobbin.
• Fix: Lower top tension by 1-2 points.

Scenario D: Needle Breaks on Tape

• Cause: Taped too close to the design.
• Fix: Use temporary spray adhesive on the backing instead of tape for complex shapes.


Ergonomics: The Hands Behind the Hoop

The creator uses ring splints for hypermobility. This highlights a commercial reality: Hooping and trimming break bodies.

Repetitive Strain Injury (RSI) Prevention:

• Hooping: Requires significant wrist torque.
• Trimming: Requires pinch force.

If you plan to sell these, you aren't making one; you are making 50. At that volume, manual hooping of thick felt sandwiches becomes a health hazard.

Warning: Magnet Safety
If you upgrade to magnetic embroidery hoops, treat them as industrial tools. The magnets are powerful enough to pinch skin severely (blood blister risk) or damage mechanical watches/credit cards. Never slide your fingers between the magnets.

Scaling Up: The "Commercial Pivot"

We've covered how to make one perfect topper. But what if a school orders 100?

1. The Bottleneck: Hooping Standard screw hoops struggle with thick layers (Stabilizer + Felt). You end up wrestling the screw, or worse, getting "Hoop Burn" (permanent crushed marks) on the felt.

• Solution Level 1: Use a magnetic hoop for husqvarna viking (or your specific brand). The magnets self-adjust to the thickness of the felt without you needing to torque a screw. This eliminates hoop burn instantly.
• Solution Level 2: Implement hooping stations. These fixtures hold the outer hoop steady while you align the inner hoop/magnets, ensuring every heart is perfectly straight.

2. The Bottleneck: Production Speed On a single-needle machine, changing from Red thread (outline) to Black thread (text) to White thread (tack-down) for 100 units takes hours of downtime.

• The Upgrade: This is where a SEWTECH Multi-Needle Machine becomes a valid ROI (Return on Investment). You set the 4 colors once, load a large hoop with 8 hearts, and hit "Start." The machine handles the color swaps.

Operation Checklist (Final Quality Control):

• The Insertion Test: Does a standard #2 pencil slide in with slight resistance (good) or does it fall out (too loose)?
• The Shake Test: Shake the pencil. The topper should stay on.
• Backside Aesthetics: Is the chalkboard clean? No bird nesting of threads?
• Edge Integrity: Are the pinked edges crisp, or did the felt mush apart?

By mastering this small heart, you are learning the physics of stabilization and alignment that applies to jackets, caps, and patches. Start with the technique, but keep your eyes on the tools (like magnetic embroidery hoops and magnetic hooping station) that will let you scale without burning out.

FAQ

• Q: How do I hoop Oly-Fun stabilizer for an ITH Heart Pencil Topper so the outline does not shift during stitching?
  A: Hoop the Oly-Fun stabilizer to a true “drum-skin” tightness so the stabilizer cannot creep under needle impact.
  • Tighten: Turn the hoop screw until you feel significant resistance (not just “snug”).
  • Tap-test: Tap the hooped stabilizer and listen for a dull “thump, thump,” not a papery rattle.
  • Inspect: Check the fibers/grid look flat (not warped into an oval).
  • Success check: The stabilizer sounds drum-like and looks evenly tensioned with no ripples.
  • If it still fails: Switch from Oly-Fun to a medium-weight (2.5oz) cutaway stabilizer and re-check hoop screw tension.
• Q: What needle and speed settings should a single-needle embroidery machine use for dense felt ITH projects like an ITH Heart Pencil Topper?
  A: Use a fresh 75/11 ballpoint needle and slow the machine down for accuracy over speed.
  • Install: Put in a new 75/11 ballpoint needle before starting (felt is dense and deflects).
  • Reduce: Set maximum speed to about 600–700 SPM to prevent small layers from shifting.
  • Prep: Fuse SF101 to the base felt before stitching to reduce rippling under satin stitches.
  • Success check: Stitches land cleanly on placement lines without the felt “walking” out of position.
  • If it still fails: Re-check hoop tightness and add a light mist of temporary spray adhesive to increase friction when floating layers.
• Q: Why should an ITH Heart Pencil Topper avoid tear-away stabilizer, and what stabilizer should be used instead?
  A: Avoid tear-away stabilizer because perforations can weaken the pencil slot; use Oly-Fun or a medium (2.5oz) cutaway instead.
  • Choose: Use Oly-Fun for clean cutting and moisture resistance, or use 2.5oz cutaway if Oly-Fun is not available.
  • Avoid: Do not use tear-away for this type of ITH “pocket” build.
  • Cut: Trim stabilizer after stitching, leaving enough margin until final extraction.
  • Success check: The pencil opening remains strong and does not start tearing open with handling.
  • If it still fails: Increase stabilizer support (medium cutaway) and verify the hoop is tightened to drum-skin tension.
• Q: How do I prevent hoop burn on felt when making an ITH Heart Pencil Topper on a home embroidery machine?
  A: Float the felt on top of hooped stabilizer instead of hooping the felt directly to avoid crushing marks.
  • Hoop: Hoop only the stabilizer (Oly-Fun or cutaway) tightly.
  • Place: Lay the white base felt on top and let the machine’s tack-down stitch hold it.
  • Add grip: Use a light mist of temporary spray adhesive if the felt slides too easily.
  • Success check: The felt surface stays smooth with no permanent hoop marks after stitching.
  • If it still fails: Use a magnetic hoop system to clamp thick felt stacks without screw pressure (a common upgrade when hoop burn is frequent).
• Q: How do I safely trim chalkboard vinyl and felt during an ITH Heart Pencil Topper without cutting the base layer or injuring fingers near the needle bar?
  A: Fully stop the embroidery machine and trim top-down with curved-tip duckbill scissors to control layers.
  • Stop: Do not trim on “pause”—stop the machine completely and confirm the presser foot is up.
  • Trim order: Cut chalkboard material first (very close, ~1–2 mm), then trim red felt (about 2–3 mm or close), and do not cut the white base felt yet.
  • Control: Use duckbill scissors so the “bill” holds fabric down while the blade trims.
  • Success check: The base felt remains uncut and the trimmed edges feel smooth with no sharp vinyl points.
  • If it still fails: Slow down, re-position the layers, and trim small sections at a time rather than trying to cut the full curve in one pass.
• Q: Why does white bobbin thread show on the front (“pokies”) during an ITH Heart Pencil Topper, and how do I fix the tension?
  A: White bobbin thread showing on top usually means the top tension is too tight; lower the top tension slightly.
  • Adjust: Reduce top tension by 1–2 points and test again.
  • Verify: Confirm the bobbin thread color matches the project plan, especially if the bobbin will be visible on the chalkboard back.
  • Re-run: Stitch a small test area if possible before committing to the final seal.
  • Success check: The top stitching looks clean with no bobbin thread popping to the front surface.
  • If it still fails: Re-check threading path and confirm the project thickness did not require a presser foot height increase.
• Q: How do I align backing felt on the underside for an ITH Heart Pencil Topper “blind flip” without misregistration or needle strikes on tape?
  A: Tape the backing felt securely to the underside with the tape kept out of the stitch path, and use a pin-prick corner guide if needed.
  • Align: Ensure backing felt covers the entire design area on the bottom before stitching.
  • Secure: Tape all four corners with painter’s tape/embroidery tape, keeping tape well clear of where the needle will travel.
  • Guide (optional): Poke a pin through the four placement corners from the top, flip the hoop, and align to the visible pin points underneath.
  • Success check: The final bean/satin stitch captures the backing felt 100% around the perimeter while leaving the pencil gap open.
  • If it still fails: Replace tape with temporary spray adhesive on the backing (especially for complex shapes) to avoid gum-up and needle break risk.
