ITH Santa Sleigh Tic Tac Toe Board on a Baby Lock Visionary: Clean Layers, a Strong Felt Pocket, and a Wavy Edge That Actually Cuts

Master Class: The 'No-Fail' ITH Tic Tac Toe Board (From Setup to Perfect Trim)

If you’ve ever pulled an In-the-Hoop (ITH) project out of the machine only to find the back looks like a crime scene—or worse, the border missed the fabric entirely—you aren’t alone. ITH projects rely on precise layering, not just luck.

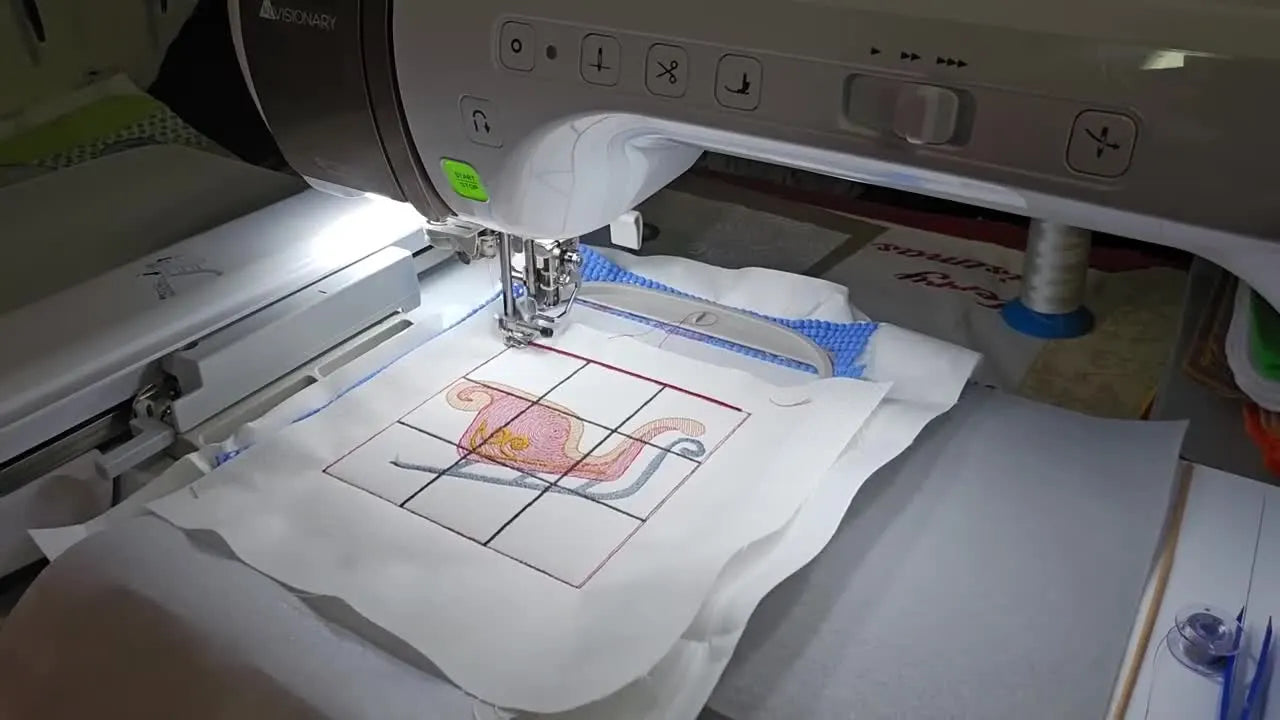

This Santa Sleigh Tic Tac Toe board is a classic ITH build. You are stacking stabilizer, stiffener, fabric, and finally flipping the hoop to tape on backing felt. It effectively creates a "sandwich" that the final satin stitch must bind together.

The Pro Challenge: Thick layers love to shift. When layers shift, satin borders ripple and pockets get crooked.

Below is your "Industry Standard" guide to executing this project on a 5x7 hoop (demonstrated on a Baby Lock Visionary), refined with the friction-reducing protocols we teach in professional embroidery workshops.

1. The Physics of the Stitch-Out: Speed & Density Control

On the screen, this design shows 13,415 stitches with dimensions around 5.08" x 5.09". The estimated time is ~23 minutes, but time is the enemy of quality here.

Expert Calibration:

• Speed (SPM): Do not run this at max speed (800+ SPM). Because you are penetrating stiffener and multiple layers, slow your machine to the 500–600 SPM "sweet spot."
  • Why? High speed causes needle deflection (bending) on thick layers, which leads to broken needles or misaligned borders.
• The Sound Check: Listen to your machine. A rhythmic thump-thump is normal for thick layers. A sharp, metallic clack-clack means the needle is hitting the plate or hook—stop immediately.


2. The Foundation: Stabilizer & Stiffener Engineering

Regina uses medium tearaway or cutaway stabilizer (never light) and Pellon Craft-Fuse as the stiffener. She folds the Craft-Fuse to create a double layer.

The Engineering Logic: An ITH board is essentially a rigid panel.

• Too Soft: The satin border creates a "drawstring effect," puckering the edges.
• Too Stiff + Loose: The needle "walks," causing the design to rotate.

If you are setting up for a holiday production run, this is where "Hoop Burn" (the friction marks left by standard hoops) becomes a nightmare. This is often the point where intermediates graduate to using hooping for embroidery machine tools that rely on magnetic clamping rather than friction screws to hold thick stacks without crushing the material.

The "Hidden" Consumables List

Beginners often miss these essentials. Have them within arm's reach:

• Curved Tip Scissors: For trimming jump threads flush without snipping the fabric.
• Temporary Spray Adhesive (e.g., Odif 505): A light mist is safer than pins for this thickness.
• New Needle: Size 75/11 or 80/12 Sharp/Topstitch (Ballpoint will struggle to pierce the stiffener cleanly).

Phase 1: Prep Checklist (Do this *before* touching the screen)

• Stabilizer: Drum-tight medium tearaway/cutaway in the hoop. Tap it; it should sound taut.
• Stiffener: Cut large enough to overlap the placement lines by 1 inch.
• Bobbin: Full bobbin loaded (you don't want to change bobbins in the middle of the satin border).
• Clearance: Ensure the hoop path is clear—this project is wide.

Warning (Safety): Rotary cutters are razor blades on wheels. When trimming thick stiffener, apply pressure downward, not forward. Keep your non-cutting hand squarely in the center of the ruler, never hanging off the edge where a slip could slice a finger.

3. Operations: Locking the Layers (Stops #1–#3)

Regina’s workflow follows the "Placement -> Tack Down" logic:

1. Placement Stitch: Shows you where the stiffener goes.
2. Stiffener Tack Down: Secures the folded (double) Craft-Fuse.
3. Fabric Tack Down: Secures the top clean white cotton.

The "Margin of Safety" Rule: Regina trims the finished board about 1/2" to 3/4" outside the final stitch line later.

• Beginner Trap: Cutting your fabric too close to the tack-down line.
• Pro Fix: Leave at least 1 inch of excess fabric around the border. You can always trim it later, but you cannot add fabric back if the hoop shifts 1mm.


4. Design & Trim: The "Clean Face" Protocol

The sleigh stitches in Silver, Red, and Gold. Regina trims jump threads immediately.

Why Instant Trimming Matters: On ITH projects, a long jump thread often gets stitched over by the next color. This creates a "trapped tail" that is impossible to remove without damaging the design.

Tactile feedback: When pulling a thread to trim, it should feel secure at the base. If the thread loops or pulls out, your tension is too loose.

The Workflow Bottleneck

If you are making 20 of these for a craft fair, stopping to screw and unscrew thick fabric layers is punishing on your wrists. This is the specific pain point where a magnetic embroidery hoop pays for itself. The magnets snap the thick sandwich into place instantly, ensuring even tension without the "unscrew-adjust-screw-repeat" cycle of traditional hoops.

5. The Grid Pass: Monitoring Thickness

The grid stitches as a narrow satin stitch. By now, your sandwich is thick.

Sensory Check: Place your hand lightly on the table (not the machine arm) while it stitches.

• Good: Mild vibration consistent with the motor.
• Bad: The table shaking or the hoop "bouncing."
• Fix: If bouncing, slow speed to 400 SPM.


6. The "Pocket Move": The Critical Flip

After the design is done, the machine stitches a placement line for the backing (which creates the pocket).

1. Remove Hoop: Do NOT un-hoop the fabric. Just remove the hoop from the machine arm.
2. Flip: Turn it over.
3. Attach Felt: Cover the placement area with felt.
4. Secure: Regina tapes it on two sides.

Expert Tip: Tape often peels off felt. Use Painter's Tape or Medical Tape (high tack) and press it firmly. Even better, a light mist of 505 spray on the felt helps it grip the stabilizer before taping.

Warning (Magnet Safety): If you upgrade to magnetic systems (hoops or stations), be aware they use Neodymium magnets. They are powerful enough to pinch skin severely and can interfere with pacemakers. Keep them at least 6 inches away from sensitive electronics and medical devices.

If you struggle to keep the felt flat while re-attaching the hoop to the machine, this is another scenario where embroidery hoops magnetic systems shine—they often allow you to slide the backing under the hoop without lifting the entire frame, keeping the "sandwich" intact.

Phase 2: Setup Checklist (Pre-Final Boarder)

• Under-Check: Is the felt covering the entire design area on the back?
• Tape Check: Is the tape outside the stitch path? (Stitching through tape gums up needles).
• Bobbin Match: Did you switch to a bobbin thread that matches the top thread? The back of this project will be visible!
• Clearance: When sliding the hoop back on, ensure the felt didn't peel back or fold over.


7. The Finish Line: Trimming Like an Engineer

The final satin border acts as the binding. Once finished, un-hoop everything.

Regina’s Precision Trimming Method:

1. Tool: Clear quilting ruler (e.g., Omnigrid) + Rotary Cutter with Wavy Blade.
2. Measurement: Align the 1/4" mark of the ruler exactly on the outside edge of the satin stitch.
3. Technique: Press the ruler down hard (lock your elbow). Use a sawing motion (back and forth) rather than one long slice.


8. Troubleshooting: When the Cut Fails

Thick layers (Faux leather + Stiffener + Stabilizer + Felt) often defeat rotary cutters on the first pass.

The "Scallop Lock" Technique: Regina doesn't just hack at it. She feels for the groove.

• Action: If the first cut didn't go through, do NOT move the fabric.
• Sensory Anchor: Place the blade back into the cut. You will feel a mechanical "click" or "lock" when the wavy blade aligns with the waves you just cut.
• Execute: Apply more pressure and saw again. This prevents "double vision" cuts where the waves don't match.


Decision Tree: Material & Stabilizer Logic

Stop guessing. Use this logic flow to ensure your board is flat, not floppy.

• Scenario A: Standard Cotton Top
  • Recipe: Medium Cutaway + Double Stiffener + Cotton + Felt Backing.
  • Result: Rigid, professional board.
• Scenario B: Felt Top
  • Recipe: Medium Cutaway + (Optional Single Stiffener) + Felt Top + Felt Backing.
  • Result: Softer, flexible board. Good for toddlers.
• Scenario C: Vinyl / Faux Leather Top
  • Recipe: Medium Cutaway + (No Stiffener) + Vinyl + Felt Backing.
  • Result: The vinyl provides its own stiffness. Adding stiffener here may make it too thick to stitch.

If you find your fabric slipping despite using the right recipe, look into magnetic hoops for embroidery machines. The consistent vertical pressure of magnets grabs vinyl and felt more securely than likely-to-slip inner rings of standard hoops.

Troubleshooting Center: Symptom, Cause, Cure

The Efficiency Pivot: From "Hobby" to "Production"

Making one board is fun. Making 50 for a holiday market is a manufacturing challenge.

When you hit the "volume wall"—wrist pain from hooping, frustration with trimming, or simply running out of time—it is time to audit your tools:

1. Level 1 (Technique): Use spray adhesive and pre-cut your stabilizers to speed up prep.
2. Level 2 (Tooling): Switch to babylock magnetic hoop sizes that fit your 5x7 projects. The ability to "Clap and Go" without adjusting screws saves roughly 2 minutes per hoop. Over 50 items, that is nearly 2 hours of saved labor.
3. Level 3 (Scaling): If you are consistently battling the limitations of a single needle machine (like constant thread changes for the sleigh), this is the trigger point to look at Multi-Needle Machines (like SEWTECH solutions). They allow you to set all colors at once and move to the next task while the machine works.

Workflow Enhancement: Serious pros often use a magnetic hooping station or the hoop master embroidery hooping station to align these ITH layers perfectly every single time, eliminating the "crooked pocket" error rate entirely.

Phase 3: Final QA Checklist

• Jump threads are trimmed flush (no "haircuts" needed).
• The felt on the back covers all stitches.
• The scallop edge is clean (no double-cut lines).
• The pocket opens freely (wasn't stitched shut by accident).


The Result

You now have a crisp, flat Game Board with a secure pocket and a decorative edge that looks die-cut rather than hand-trimmed.

By respecting the physics of the layers, slowing your machine speed, and utilizing the right clamping tools, you transform a tricky ITH project into a repeatable bestseller.

FAQ

• Q: How do I set embroidery machine speed for a thick ITH tic tac toe board on a 5x7 hoop to avoid needle deflection and misaligned borders?
  A: Run the stitch-out at 500–600 SPM as the safe sweet spot for thick, layered ITH work.
  • Slow the machine before starting the design; avoid 800+ SPM on stiffener-heavy stacks.
  • Listen during stitching and stop if the sound changes sharply.
  • Success check: a steady rhythmic “thump-thump” is normal; a sharp metallic “clack-clack” means stop immediately because the needle may be striking the plate or hook.
  • If it still fails, reduce to 400 SPM if the hoop/table is bouncing and re-check that the layer stack is not shifting.
• Q: What stabilizer, stiffener, and needle setup should be used for an ITH Tic Tac Toe board to prevent puckering, rotation, and stitch distortion?
  A: Use medium tearaway or medium cutaway stabilizer (not light), double-layer Craft-Fuse stiffener, and a fresh 75/11 or 80/12 Sharp/Topstitch needle.
  • Hoop medium stabilizer drum-tight before touching the screen; tap-test for tautness.
  • Cut stiffener large enough to overlap placement lines by about 1 inch; fold Craft-Fuse to make a double layer.
  • Install a new 75/11 or 80/12 Sharp/Topstitch needle (ballpoint often struggles to pierce stiffener cleanly).
  • Success check: fabric and stiffener stay flat with no “drawstring” puckering at the satin border, and the design does not rotate as stitching builds.
  • If it still fails, switch from tearaway to cutaway and lightly mist temporary spray adhesive to bond layers.
• Q: How can embroidery machine tension be checked during an ITH design when jump threads keep pulling out or looping during trimming?
  A: Trim jump threads immediately, and use the “tactile pull test” to spot tension that is too loose.
  • Stop after each color change and trim jump threads flush (top and bottom) before the next color stitches over them.
  • Gently pull the thread tail before cutting to feel whether the stitch is anchored.
  • Success check: the thread tail feels secure at the base and does not loop or pull out when tugged lightly.
  • If it still fails, re-check upper tension and bobbin setup (often a quick re-thread fixes unexplained looping); follow the machine manual for exact tension procedure.
• Q: How do I prevent wavy or rippled satin stitch borders on a thick ITH board when fabric shifts during the final binding pass?
  A: Increase stabilization and lock layers together so the satin border is not trying to “drawstring” the edge.
  • Choose cutaway (not tearaway) when borders ripple and the stack is heavy.
  • Lightly mist temporary spray adhesive between layers instead of relying on pins in thick stacks.
  • Leave generous excess material: keep at least 1 inch beyond the tack-down line, then trim to the final 1/2"–3/4" margin after stitching.
  • Success check: the satin border lies flat with a smooth edge and the pocket/grid lines look square, not skewed.
  • If it still fails, consider switching from screw-tension hoops to a magnetic hoop to clamp thick “sandwich” layers evenly without crushing or slipping.
• Q: How do I attach felt backing for an ITH pocket without shifting when flipping the hoop after the placement line?
  A: Remove the hoop from the machine without un-hooping, flip it, then secure felt with high-tack tape (and optionally a light mist of spray adhesive).
  • Keep the project hooped; only remove the hoop from the machine arm, then turn it over.
  • Cover the entire placement area with felt and tape two sides using Painter’s Tape or Medical Tape; press firmly.
  • Optionally mist a light coat of temporary spray adhesive on felt so it grips stabilizer before taping.
  • Success check: felt stays fully flat and fully covers the pocket area when sliding the hoop back onto the machine, with tape kept outside the stitch path.
  • If it still fails, re-check that the tape is not peeling from felt and that the felt did not fold or creep while re-attaching the hoop.
• Q: What are the key safety steps for rotary cutting thick stiffener stacks when trimming an ITH board with a clear quilting ruler and wavy blade?
  A: Cut with downward pressure and controlled “sawing” passes—never push forward aggressively on thick stacks.
  • Press the ruler down hard (lock the elbow) and keep the non-cutting hand centered on the ruler, not hanging off the edge.
  • Use a back-and-forth sawing motion rather than one long slice through faux leather/stiffener/felt stacks.
  • If the cut does not go through, do not move the fabric; re-seat the blade into the existing grooves until it “locks,” then cut again.
  • Success check: the scallop edge is clean with no double-cut “shadow waves,” and the stack separates evenly along the same groove.
  • If it still fails, replace the blade with a sharp new one or switch to heavy-duty shears for the final pass.
• Q: What are the safety precautions for neodymium magnetic embroidery hoops and magnetic hooping stations during ITH hooping and re-hooping?
  A: Treat neodymium magnets as pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear when magnets snap closed; clamp slowly and deliberately to avoid skin pinches.
  • Keep magnetic systems at least 6 inches away from sensitive electronics and medical devices; do not use around pacemakers.
  • Store magnetic parts so they cannot slam together unexpectedly on a metal surface.
  • Success check: the magnetic frame closes evenly without sudden slamming, and the fabric stack stays clamped without screw adjustments or crushing marks.
  • If it still fails, reduce the layer thickness (stabilizer/stiffener recipe) or switch to a hooping method that better matches the material stack.
