ITH Tic Tac Toe Board in the Hoop: Nail the Color-Stop Order, Trim Clean, and Build a Pocket That Won’t Peel Off

Mastering the ITH Tic Tac Toe Board: A Shop-Floor Guide to Precision & Profit

You are not alone if an "In-The-Hoop" (ITH) file triggers anxiety—especially one involving applique and functional pockets. The difference between a project that ends in the scrap bin and one that sells for $25 at a craft fair often comes down to two things: respecting the physics of the hoop and managing your machine’s speed.

This guide rebuilds the standard walkthrough into a professional "Shop-Floor Standard Operating Procedure." We will move beyond basic instructions to cover the tactile signals (what it should feel like), the data (speed and tension settings), and the tooling upgrades that turn a hobby into a production line.

1. decoding the DNA: The File Structure

Regina’s walkthrough acts as a map, but we need to read it like an engineer. In ITH projects, color stops rarely represent actual color changes; they are functional commands.

Here is the operational sequence translated from "Machine Speak" to "Human Action":

1. Placement Line (Structure): A stitch on the stabilizer only. It tells you exactly where to put your reinforcement.
2. Reinforcement Tackdown (Stability): Anchors the stiffener (Craft Fuse/Decor Bond). Critical for board rigidity.
3. Main Fabric Tackdown (Canvas): Secures the visible cotton layer.
4. Diamond Placement (Map): Shows where the contrast fabric goes.
5. The "Open Zigzag" (Trim Guide): A low-density stitch that acts as a cutting template. Do not skip this.
6. Satin Bases (Finish): The high-density cover stitch.
7. Grid Lines (Detail): The functional game board lines.
8. Pocket Architecture (Structure): The stitches that form the top header.
9. Pocket Backing (The Flip): Turning the hoop over to add the felt pouch.
10. Final Satin Border (Assembly): The heavy stitch that locks all layers together.

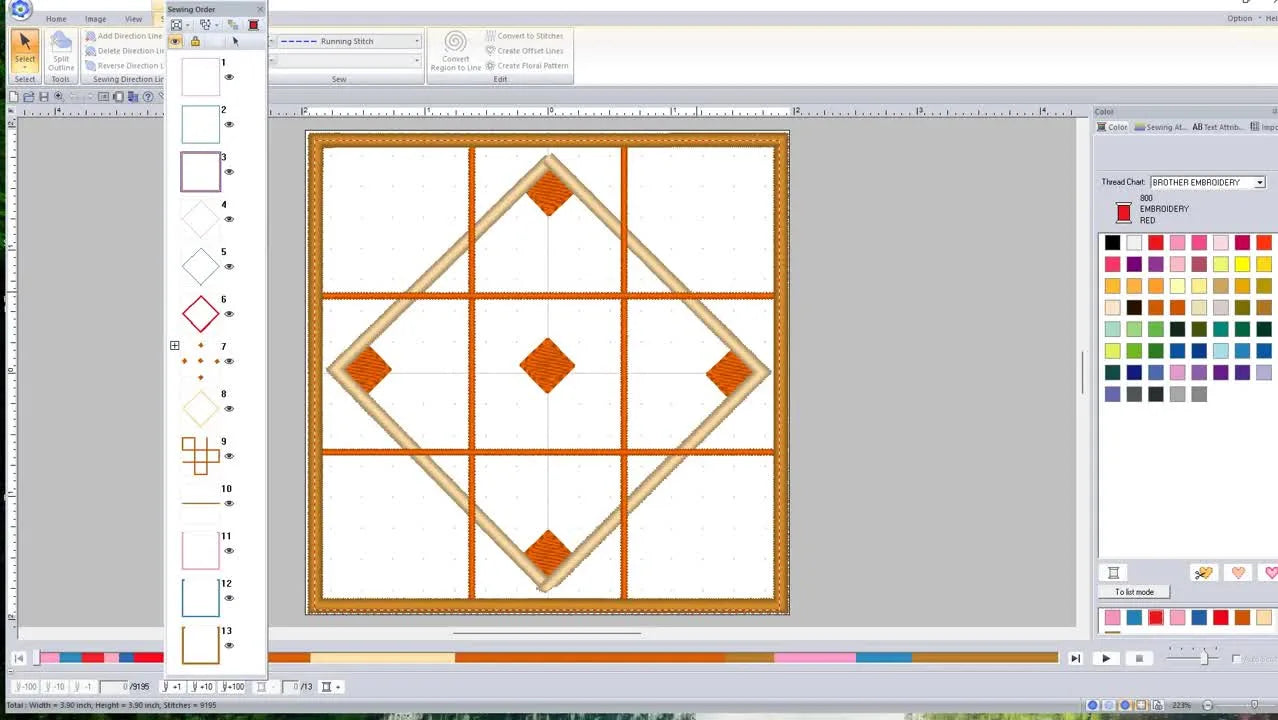

Pro Tip: If you have embroidery software (like Hatch or Embrilliance), run the simulator before threading. Seeing the sequence in motion prevents the "Wait, was I supposed to cut that?" panic.

2. Pre-Flight: Stabilizer Physics & Hidden Consumables

Before we touch the machine, we must address the "Hidden Prep." A Tic Tac Toe board undergoes mechanical stress—it gets folded, stuffed in bags, and played with. Standard tear-away alone is insufficient; the board will warp, and the satin stitches will gap.

The "Sandwich" Formula:

1. Base: Medium-weight Tear-Away (Hooped).
2. Reinforcement: Fusible Woven Interfacing (e.g., Shape-Flex, Decor Bond) or a floating layer of Cutaway.
3. Top: 100% Cotton Woven fabric (pre-washed/shrunk).

Why Cotton? Synthetic leathers (vinyl) are tricky for this specific file because the satin density is high. Cotton compresses easily under the satin, creating a clean, flat edge. Vinyl often fights back, creating "pillowing."

If you are struggling to get consistent tension on your base layer, an embroidery hooping station can be a massive quality of life upgrade. It holds the outer ring static while you apply leverage, ensuring the stabilizer is "drum-tight" without distorting the weave.

Prep Checklist (The "No-Go" List)

• Needle: Installed a fresh 75/11 Sharp or Topstitch needle (Ballpoints are for knits; we need precision penetration here).
• Bobbin: Wound with 60wt or 90wt bobbin thread (white), filled to 80% (overfilled bobbins cause drag).
• Hidden Consumables:
  • Applique Scissors: Double-curved or "Duckbill" style are mandatory for close trimming.
  • Temporary Spray Adhesive: (e.g., Odif 505) for floating fabrics.
  • Medical Tape/Painters Tape: To secure the felt on the back.
• Machine Speed: Set your max speed limit to 600 SPM (Stitches Per Minute). ITH projects require precision, not speed.

Warning (Safety): When trimming fabric inside the hoop, keep your fingers clear of the needle bar. Always engage the "Lock" mode on your machine screen if available, so accidental pedal pressure doesn't drive a needle through your thumb.

3. The Foundation: Hooping & Reinforcement (Stops 1–2)

Hooping is where 90% of failures occur.

1. Hoop the Tear-Away: Tighten the screw. You should be able to tap the stabilizer and hear a distinct, low-pitched thump (like a drum). If it sounds like paper rustling, it is too loose. Re-hoop.
2. Run Stop 1 (Placement): This outlines your work area.
3. Apply Reinforcement: Place your Decor Bond/Fusible backing over the outline.
4. Run Stop 2 (Tackdown): Anchors the reinforcement.

Sensory Check: Run your finger over the reinforcement. It should feel flat and immovable. If it bubbles, your stabilizer was loose.

4. The Canvas: Main Fabric & Tension Control (Stop 3)

Lay your main cotton fabric over the reinforcement. Smooth it from the center out. Run Stop 3.

The Danger Zone: If you see "puckering" or ripples appearing inside the square after this stitch, your fabric was floating too loosely.

• Fix: Use a light mist of temporary spray adhesive on the back of the cotton before placing it. This chemical bond acts as a "third hand" to hold the fabric flat while the needle travels.

For shops moving from hobby to production, consistency here is key. A hooping station for machine embroidery ensures that every single board helps you land the fabric in the exact same coordinate, reducing material waste.

Setup Phase Checklist

• Stabilizer is taut (drum sound).
• Reinforcement layer is fused or taped securely.
• Main fabric is smooth, with no ripples trapped inside the tackdown line.
• Speed Check: Machine is set to roughly 600 SPM.


5. The Applique: Center Diamonds (Stop 4)

Place your contrast fabric (or high-quality wool felt) over the diamond placement lines. Ensure you have at least 0.5 inches of excess material on all sides. Run Stop 4 (Tackdown).

Material Note: Avoid cheap craft felt. It is too thick and creates "lint explosions" in your bobbin case. Use stiffened felt or quality cotton for the cleanest results.

6. The "Open Zigzag" Secret (Stop 5)

Regina correctly identifies this as the make-or-break moment. The machine will stitch a low-density, open zigzag. This is not a decorative stitch. It is a structural guide for your scissors.

The Trimming Protocol:

1. Remove the hoop from the embroidery arm (Keep the fabric in the hoop).
2. Place the hoop on a flat table.
3. Using your curved applique scissors, trim the excess diamond fabric.
4. Technique: Lay the scissors flat against the stabilizer. Cut right up to the zigzag stitches. Do not cut the stitches, but get as close as physically possible (1mm or less).

The "Why": If you leave 3mm of fabric tag, the final satin stitch (which is usually only 4mm wide) will not cover it. You will have ugly "whiskers" poking out.

7. Locking the Diamonds: Satin & Grid (Stops 6–7)

Re-attach the hoop. Run Stop 6 (Satin) and Stop 7 (Grid).

Troubleshooting at the Machine:

• White bobbin thread showing on top? Your top tension is too high, or the bobbin tension is too low.
• Looping on top? Your top tension is too low.
• Satin looking "sparse"? You likely stretched the precise cotton fabric during hooping, or the stabilizer gave way.

Expert Speed Rule: For Satin stitches, slower is glossier. Drop speed to 500 SPM for this step to ensure the thread lays down smoothly like a ribbon.

8. The Pocket Flip: Gravity & Adhesion (Stops 8–9)

This step terrifies beginners because it involves "The Blind Side."

1. Remove the hoop from the machine.
2. Flip it over.
3. Place your pocket felt over the marked area on the back of the hoop.
4. Secure it: Use painter's tape on all four corners. Gravity is your enemy here; if the felt sags while you slide the hoop back on, it will get caught in the feed dogs or stitch crookedly.

If you are graduating to a multi-needle machine or doing batch work, this is where a magnetic frame shines. A repositionable embroidery hoop utilizing magnets allows for instant flipping and securing without the "unscrew and pray" method of traditional hoops. However, for standard single-needle machines, tape is your best friend.

Warning (Magnetic Safety): If upgrading to commercial magnetic hoops (like Sewtech's frames), be aware they carry immense clamping force. They can pinch fingers severely and may interfere with pacemakers. Handle with deliberate care.

9. Redundancy is Key: Securing the Pocket

Regina notes the file has multiple "passes" for the pocket.

• Pass 1: Placement/Light Tack.
• Pass 2: Structural Tack.
• Pass 3: Final Satin Border.

Do not skip steps. Stitching perfectly over the first tack line adds tensile strength. A pocket held by a single line of stitching will eventually peel away after a child opens it 50 times. The triple-pass serves as a "lock washer" for your thread.

10. Simulation & Verification

Before running the final border, pause. Look at the screen. Does the needle position match the border? Use the simulator feature in your software (or the preview on your screen) to confirm the final satin stitch covers everything.

Decision Tree: Optimization Strategy

Use this logic flow to determine your consumable stack based on your material.

START: What is your main board material?

• 1. Quilting Cotton (Recommended)
  • Goal: Crisp, retail look.
  • Stabilizer: Medium Tear-Away.
  • Reinforcement: Iron-on Fusible Woven (Shape-Flex).
  • Needle: 75/11 Sharp.
• 2. Craft Felt / Acrylic Felt
  • Goal: Soft, kid-friendly.
  • Stabilizer: Medium Tear-Away.
  • Reinforcement: Floating layer of Cutaway (Felt stretches; cutaway stops it).
  • Needle: 80/12 Universal/Ballpoint.
• 3. Marine Vinyl
  • Goal: Wipe-clean surface.
  • Stabilizer: Heavy Weight Tear-Away.
  • Reinforcement: None usually needed (Vinyl follows its own rules).
  • Warning: High risk of perforation cuts. Increase stitch length if digitizing yourself.


Troubleshooting: The "Why Did This Fail?" Matrix

Pro Tip: If the pocket backing felt ripples, stroke it outwards (away from the needle) while the machine is stitching the first tack-down. (Keep fingers far away from the needle!).

The Commercial Upgrade Path: From Hobby to Production

Making one board is fun. Making 50 for a holiday market is a logistical challenge. Here is how specialized tools solve the physical pain points of volume:

1. The Wrist Saver: If you are fighting to tighten screws on thick sandwich layers, investing in a tool like a hoop master embroidery hooping station (or compatible aids) standardizes the tension, saving your wrists and ensuring every board is identical.
2. The Time Saver: Magnetic Hoops are the single biggest efficiency jump for flat-work ITH projects. They eliminate the "unscrew-adjust-screw" cycle. You simply lay the stabilizer, snap the magnets, and go. This also solves "Hoop Burn" on delicate cottons.
3. The Profit Multiplier: If you find yourself waiting on color changes (waiting for the machine to stop so you can change thread), you have outgrown a single-needle machine. A multi-needle platform (like the SEWTECH commercial series) allows you to set the entire 10-step sequence and walk away until the manual trim stop, doubling your daily output.


Finishing: The Retail Standard

Once the final satin border (Stop 10) is complete:

1. Remove from hoop.
2. Tear Away: Grip the stabilizer near the stitches and pull away horizontally. Do not pull up, or you stress the stitches.
3. Sealing: If you used heat-sensitive pens for marking, iron them off now.
4. Trim Threads: Snip all jump stitches flush with the surface.

You now have a durable, distinct, and high-quality product.

Final Operation Checklist (The "Quality Control" Pass)

• No "whiskers" of applique fabric visible past the satin border.
• Satin stitches are dense and smooth (no bobbin thread showing on top).
• The pocket on the back is secure (test by tugging lightly).
• No stabilizer remains visible on the outside edges.
• The board lies flat on a table (no warping/cupping).

Mastering this workflow does more than just make a game board; it teaches the fundamental discipline of layer management—a skill that applies to every patch, bag, and logo you will stitch in the future.

FAQ

• Q: For an ITH Tic Tac Toe board embroidery file, what needle and bobbin thread setup prevents puckering and thread issues?
  A: Use a fresh 75/11 Sharp (or Topstitch) needle and a 60wt or 90wt bobbin thread wound to about 80% to keep stitching clean and stable.
  • Install: Replace the needle before starting (don’t “push one more project”).
  • Wind: Use white 60wt/90wt bobbin thread and avoid overfilling the bobbin (overfilled bobbins can drag).
  • Verify: Thread the machine carefully and seat the bobbin correctly before the first placement stitch.
  • Success check: Satin stitches look smooth with no looping on top and no excessive bobbin thread pulling to the surface.
  • If it still fails: Reduce machine speed to ~600 SPM and re-check top tension vs. bobbin tension balance.
• Q: For an ITH Tic Tac Toe board, how tight should the tear-away stabilizer be when hooping to prevent tunneling and gaps in satin?
  A: Hoop the medium-weight tear-away “drum-tight” so it gives a low-pitched thump when tapped, not a paper-rustle sound.
  • Tap-test: Tighten the hoop screw, then tap the hooped stabilizer and listen for a drum-like thump.
  • Re-hoop: If it rustles or feels slack, re-hoop before running Stop 1 (placement).
  • Anchor: After Stop 2 (reinforcement tackdown), make sure the reinforcement layer is flat and immovable.
  • Success check: The reinforcement feels smooth with no bubbles, and later satin stitches don’t show stabilizer through “gaps.”
  • If it still fails: Add a reinforcement layer (fusible woven interfacing or a floating cutaway) and consider using a hooping station for consistent tension.
• Q: For the ITH Tic Tac Toe board “Open Zigzag” step (trim guide), how close should applique fabric be trimmed so satin stitches fully cover the edges?
  A: Trim applique fabric to within about 1 mm of the open zigzag stitches without cutting the stitches, or the satin border may not cover the “whiskers.”
  • Remove: Take the hoop off the machine but keep the fabric hooped.
  • Trim: Use curved/duckbill applique scissors and keep the scissor blade flat against the stabilizer.
  • Cut: Trim right up to the zigzag guide—very close, but do not snip the zigzag thread.
  • Success check: After the satin pass, no fabric “whiskers” peek out beyond the satin edge.
  • If it still fails: Slow down and improve lighting; if trimming control is difficult, switch to proper applique scissors (double-curved/duckbill).
• Q: On an ITH Tic Tac Toe board, what top tension symptoms indicate “top tension too high” vs “top tension too low” during satin stitches?
  A: Use stitch appearance as the guide: bobbin thread on top usually means top tension is too high (or bobbin tension too low), while looping on top usually means top tension is too low.
  • Inspect: Stop after the satin step and look closely at the top surface.
  • Adjust: If white bobbin thread shows on top, reduce top tension (or verify bobbin tension isn’t too loose).
  • Adjust: If loops form on top, increase top tension.
  • Success check: Satin looks dense and ribbon-smooth with no white bobbin thread “grinning” through.
  • If it still fails: Reduce speed to about 500 SPM for satin stitches and re-check that hooping was drum-tight (loose hooping can mimic tension problems).
• Q: For the ITH Tic Tac Toe board pocket flip step, how can the back felt pocket be secured so it does not shift or stitch crookedly?
  A: Flip the hoop and tape the felt pocket on all four corners so gravity cannot pull it out of position while re-mounting the hoop.
  • Remove: Take the hoop off the machine and flip it to the back side.
  • Place: Align the pocket felt over the marked pocket area on the back.
  • Secure: Use painter’s tape (or similar) on all four corners before sliding the hoop back onto the machine.
  • Success check: The first pocket tack-down line stitches evenly with no ripples or skew, and the felt doesn’t sag.
  • If it still fails: Re-tape with more support and keep the felt stroked outward (away from the needle path) during the first tack-down—hands well clear of the needle.
• Q: What machine-needle safety steps should be followed when trimming fabric inside the hoop during an ITH embroidery project like the ITH Tic Tac Toe board?
  A: Lock the machine (if available) and keep hands clear of the needle bar before trimming in-hoop to prevent accidental needle strikes.
  • Engage: Use the machine’s “Lock” mode or equivalent before placing fingers near the hoop opening.
  • Remove: Whenever possible, remove the hoop from the embroidery arm and trim on a flat table.
  • Control: Cut slowly with applique scissors; do not reach under the needle bar area.
  • Success check: Trimming is completed with the hoop stable on a table and zero hand exposure near the needle path.
  • If it still fails: Stop and change the workflow—trim only when the hoop is off the machine and the machine is locked out from pedal activation.
• Q: For batch-producing ITH Tic Tac Toe boards, when should a shop upgrade from technique fixes to magnetic hoops or to a multi-needle SEWTECH embroidery machine?
  A: Use a tiered approach: first standardize hooping/speed and adhesion, then consider magnetic hoops for faster, flatter clamping, and move to a multi-needle SEWTECH machine when thread-change downtime limits output.
  • Level 1 (Technique): Cap speed around 600 SPM (and ~500 SPM for satin), use temporary spray adhesive for flat lay, and follow every pocket pass (placement/lock/satin).
  • Level 2 (Tooling): Upgrade to magnetic hoops when hoop burn, slow screw-tightening, or frequent re-hooping is causing waste and inconsistent results.
  • Level 3 (Capacity): Upgrade to a multi-needle SEWTECH machine when manual color changes and stops prevent running the full sequence efficiently in volume.
  • Success check: Output becomes repeatable—boards lie flat, satin coverage is consistent, and cycle time per board drops without increasing rejects.
  • If it still fails: Track exactly where rejects happen (hooping, trimming, pocket flip, satin) and upgrade the tool that removes that specific bottleneck rather than changing multiple variables at once.
