This post rebuilds the exact workflow shown in the video—Create Original AcuFil Designs—and then adds the “old hand” habits. These are the sensory checks and safety protocols that keep your quilt layouts clean, continuous, and export-ready the first time.

Calm the Chaos: What “Create Original AcuFil Designs” Really Controls in Janome AcuFil Tool

This module is a layout playground, but it has one hard boundary: your hoop size. The video calls out a common mental trap—AcuFil Tool may look like it gives you a huge canvas, yet your stitchable reality is strictly limited to the hoop frame you will physically snap onto the machine.

When you are planning a project for a janome embroidery machine, treat the software like a drafting table: it’s where you plan, but the physical hoop is the ruler that limits what is possible. If the software says it fits, but your actual quilt sandwich is too thick to clamp in a standard plastic hoop without popping out, the software design is useless.

The “Hidden” Prep Pros Do First: Hoop Size, Units (mm), and a Layout Mindset That Prevents Rework

Before you import anything, you must strictly align the digital workspace with physical reality. In the video, the target is the ASQ22 hoop, which is 220mm square.

Two pro habits to adopt right here:

1. Work in mm for hoop-based quilting. The video explicitly switches the metric system back to mm “for accuracy.” Do not use inches here. 220mm is precise; 8.66 inches is a rounding error waiting to happen.
2. Establish your "Center." The workspace will show crosshairs after you set the hoop size. These crosshairs are your anchor.

Sensory Check: When you set the size, visually confirm the grid changes. It should look like a clean, defined box, not an infinite grey space.

Prep Checklist (Do this BEFORE dragging files)

• Square the Reality: Confirm the physical hoop you own matches the setting (Video: ASQ22 220×220mm).
• Metric Shift: Switch units to mm.
• Consumables Check: Do you have the right needle? (Recommend Purple Tip or Red Tip needles for quilting through batting).
• Layout Strategy: Decide now—are you making a continuous border or a single block?
• File Logic: Commit to .AFL format for connecting parts (avoids knots) vs .JEF for standalones.


Lock the Editing Size to the ASQ22 Hoop (220×220mm) So Your Layout Matches Reality

In the video, the workflow is:

1. Open Create Original AcuFil Designs.
2. Change the editing size down to the hoop size.
3. Set the metric system to mm.
4. Enter 220 for the editing size.
5. Click OK.

Expected Outcome: The workspace updates to show a 220×220mm hoop boundary and center crosshairs.

The Trap: The speaker notes the program defaults to “the last thing you did.” Never assume. Always verify the numbers. If you design a 220mm block but your machine defaults to a smaller hoop limit, you will get a "Hoop Mismatch" error later.

Warning: Mechanical Safety. When you eventually stitch this file, keep your fingers clear of the needle bar area. Large quilt sandwiches can obscure your view of the presser foot. If the fabric bunches, it can deflect the needle, causing it to shatter. Always create a "safety zone" with your hands outside the hoop perimeter.

Find the Built-In Collections Fast: AcuFil Designs → Quilting Designs → Stippling Designs → Stippling Parts

Once the editing size is set, the video moves to the Design tab and opens Design Collection. You’ll see four folders included in the program:

• AcuFil Designs: Stipple fill patterns (Standard density).
• Quilting Designs: Decorative motifs (Feathers, leaves).
• Stippling Designs: Built-in matches for the Janome 15000.
• Stippling Parts: Connectors for borders.

Expert Insight: The video shows combining a regular embroidery design from Horizon Link Suite with quilting motifs. This is advanced layering.

The Physical Bottleneck: Aligning these designs digitally is easy. Aligning them physically on a heavy quilt is hard. If you are struggling to keep a heavy quilt square while tightening screws, this is where a dedicated embroidery hooping station becomes a workflow savior. It holds the outer hoop static so you can use both hands to smooth the quilt sandwich, ensuring the fabric grain matches the software's crosshairs.

The Tie-Off Trap: Choosing .AFL vs .JEF in Stippling Parts (and Why It Changes Your Quilt Surface)

The video highlights a critical distinction between two file types that look identical on screen:

• 1. .JEF: Standard embroidery file. It commands the machine to tie a knot and trim the thread at the end of the object.
• 2. .AFL: AcuFil file. It creates a continuous path without tie-ins and tie-offs.

Why this matters: Run your fingers over a vintage quilt. It’s smooth. Now imagine a quilt with hard little thread knots every 3 inches. That is what happens if you use .JEF files for a continuous border. The machine will stop, knot, and trim repeatedly.

The Fix: As the video advises, use AFL when connecting motifs. This forces the machine to treat the border as one fluid line. This is also safer for hooping for embroidery machine applications because fewer stops mean fewer chances for the heavy quilt to shift while the machine is paused.

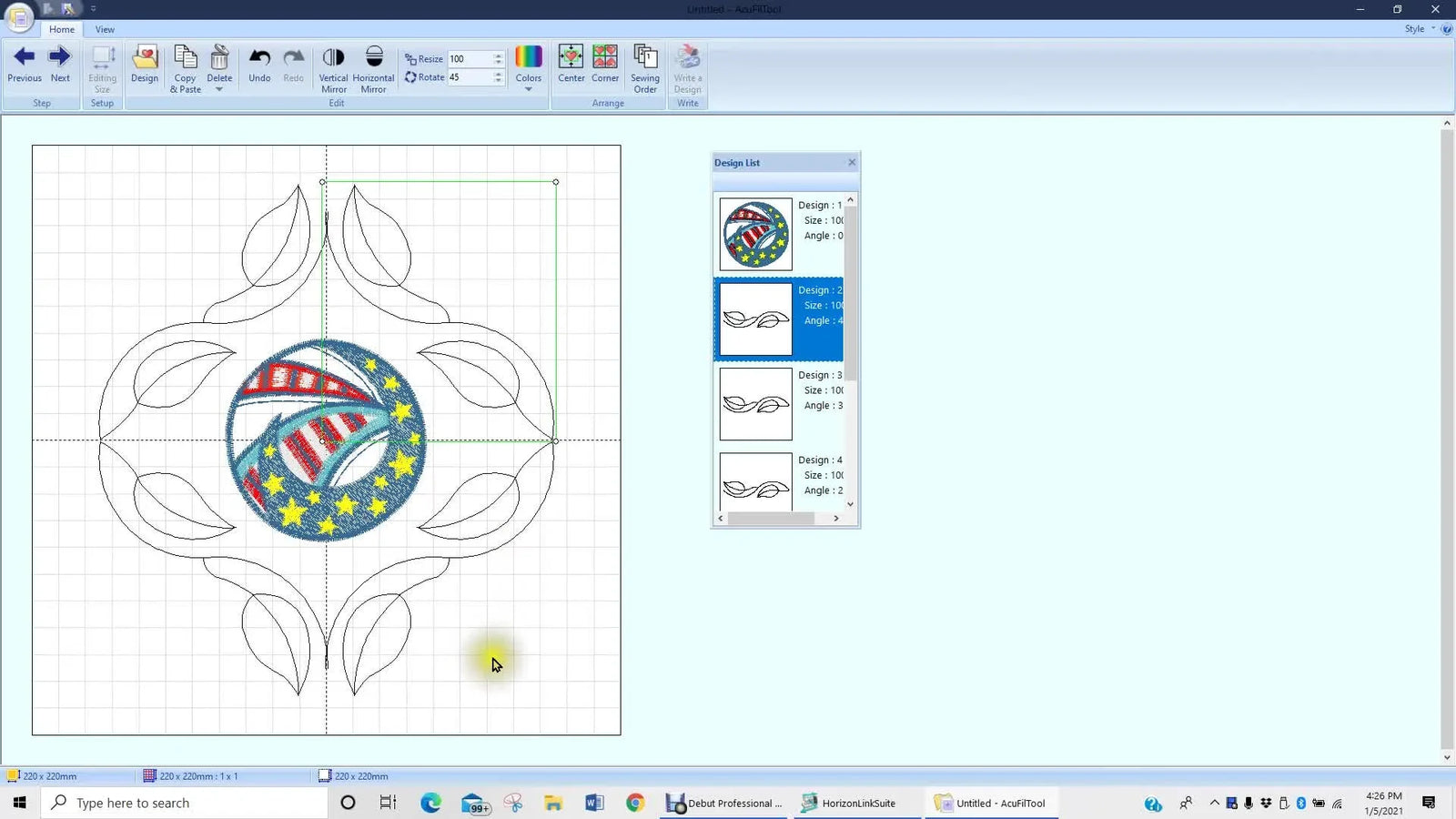

Build the Layout Like a Pro: Center Motif First, Then Add a Quilting Leaf and Rotate with Right-Click Drag

The video’s layout sequence is synonymous with efficiency:

1. Anchor: Import the center motif (the video uses a circle).
2. Accent: Go back to Quilting Designs and import a leaf.
3. Action: Rotate the leaf by holding the RIGHT mouse button and dragging the handle (45 degrees).

Sensory Cue: Watch the rotation number spin. Stop exactly on the angle. This right-click drag is faster than opening a properties menu.

Setup Checklist (Before Cornering)

• Centering: Is the main design dead-center on the crosshairs?
• Selection: Is the leaf motif currently selected (green box)?
• Angle: Is the rotation (e.g., 45°) logically pointing towards the corner?
• Clearance: Is there at least 10mm of space between the design and the hoop edge? (Crucial for avoiding needle strikes on the frame).

The Cornering Tool “Magic”: Create a 4-Corner Border Around Your Center Design in One Click

In the video, once the leaf is positioned, the speaker clicks the Cornering Tool.

The Payoff: The leaf instantly duplicates into a symmetrical four-corner border.

The Reality Check: The software creates a perfect square. Can you hoop a perfect square? If you are using standard plastic hoops on a thick quilt, the fabric often pulls in at the sides (the "hourglass" effect), distorting your perfect square. This is why many professionals switch to janome embroidery machine hoops that use magnetic clamping. The magnets hold thick layers purely by vertical force, eliminating the distortion caused by jamming an inner ring into an outer ring.

The Reality Check: No Stitch Simulation Here, So Use the Design List and Visual Logic

The video notes a limitation: under the View tab in this specific module, stitch simulation is absent.

How to verify without simulation:

1. Check the Object List: Look at the sequence on the right side of the screen.
2. Logical Flow: It should read Center Design -> Leaf 1 -> Leaf 2, etc.
3. Color Stops: If you changed colors in editing, the machine will stop there. Ensure you want that stop.

Visual Anchor: Trust the symmetry. If the layout looks balanced against the grid lines, it is mathematically balanced.

When “Write a Design” Is Grayed Out: The Next Button Is the Exit Door From Edit Mode

The Panic Moment: You are done, but the save button is dead (gray). The Cause: You are still in "Edit Mode." The Fix: Click the big arrow button (Next).

Think of this like closing a document before emailing it. You must "close" the editing session for the software to package everything into a machine-readable file.

Export to USB the Clean Way: Rename the File and Save It for the Machine

After clicking Next, the video uses Write a Design to save to a USB stick, renaming the file to “Number 2”.

commercial Tip: Use a high-quality, low-capacity USB stick (4GB-8GB). Embroidery machines often struggle to read massive 64GB+ drives.

Naming Convention: Don’t use "Test1." Use "ASQ22_FeatherBorder_v2." Be descriptive. When you are staring at the machine's small LCD screen, you will thank yourself.

Reset Without Losing Your Hoop Size: Clear Design Keeps the Editing Dimension

The video demonstrates Clear Design. The Benefit: It wipes the slate clean but remembers your 220mm hoop setting.

This is huge for batch production. If you are designing 12 different blocks for a single quilt, you don't want to reset the hoop size 12 times. Just clear, import next, clear, import next.

Operation Checklist (The Final "Go" Check)

• Hoop Match: valid editing size (220mm) = Physical Hoop.
• Format: .AFL for flow, .JEF for standalones.
• Sequence: Design list is in the correct order.
• Mode: Clicked "Next" to exit editing.
• Storage: File saved to USB with a unique name.
• Physical Prep: Stabilizer check. For quilting, you may not need stabilizer if the batting is stable, but for embroidery on quilt blocks, use a medium-weight cutaway or tearaway depending on stitch density.

Decision Tree: Quilt Sandwich + Hoop Choice (Solving the "Hoop Burn" and Speed Issues)

You have the design. Now, how do you stitch it without ruining the quilt?

START: Assessment of Fabric & Volume

• Pathway A: Thick/Delicate Quilt (Velvet, Minky, High Loft Batting)
  • Problem: Standard hoops leave "hoop burn" (crushed pile) or pop open.
  • Solution: Magnetic Hoops.
  • Why: They clamp top-down. No friction burn. No "pop out."
  • Search Term: magnetic embroidery hoops for janome.
• Pathway B: High Volume (50+ Blocks)
  • Problem: Hooping takes longer than stitching. Wrist fatigue.
  • Solution: Hooping Station + Magnetic Frame.
  • Why: Repeatable accuracy. Snap and go.
• Pathway C: The "Profit" Shift (Running a Business)
  • Problem: Single-needle machine requires constant thread changes; can't do other prep while stitching.
  • Solution: SEWTECH Multi-Needle Machine.
  • Why: Queue up 10+ colors. Higher speeds (1000 SPM). Tubular arm for finished goods.

The "Why" Behind Better Results: Hooping Physics + Continuous Paths

1. The Physics of "Drum Tight" (A Mortgage Myth)

In standard embroidery, we are taught "tight as a drum." In quilting, this is dangerous. If you stretch a quilt sandwich drum-tight, the batting compresses. When you unhoop, the batting expands, and your beautiful flat block puckers. The Goal: Neutral tension. The fabric should be flat and taut, but not stretched. This is why magnetic hoops are superior for quilting—they hold without stretching.

Warning: Magnet Safety. If you upgrade to magnetic embroidery hoops, treat them with respect. They are industrial-strength. Do not let them snap together without a barrier layer. Keep them away from pacemakers. Watch your fingertips—pinch hazards are real.

2. The Logic of .AFL

Use .AFL files to ensure the machine doesn't trim threads in the middle of a vine or feather. Every trim is a potential weak point in a quilt that will be washed and used.
