Janome & Baby Lock Bobbin Cases: Read the Arrows, Dots, and Paint Seals Before You Touch Tension

If you have ever pulled a project off the machine, flipped it over, and felt that sinking sensation in your stomach because the back looks like a bird’s nest, you are not alone. That tangled mess usually triggers a panic response: checking the top thread, changing the needle, or aggressively twisting the tension dial like a volume knob.

But often, the culprit isn't what you are doing—it’s what you installed. Bobbin tension is an "invisible variable," and using the wrong bobbin case for the job is the silent killer of project quality.

Drawing from the expert "Minute Clinic" by Gina from Kingdom Sewing/Sewing Machines Plus, combined with twenty years of production floor experience, this guide will decode the visual language of Janome and Baby Lock bobbin cases. We will move beyond "guessing" and establish a professional, zero-friction workflow.

The 10-Second Table Test: Spotting Janome & Baby Lock bobbin case markings before you sew

Before you even power on your machine, we need to establish a "Mise-en-place" (everything in its place) habit. Professional embroiderers do not dig through a drawer of mixed parts; they lay their tools out on a high-contrast surface.

The Setup: Place a clean white towel or use a light table. Lay your bobbin cases in a row. The Goal: Identify the case functioning visually in under 10 seconds.

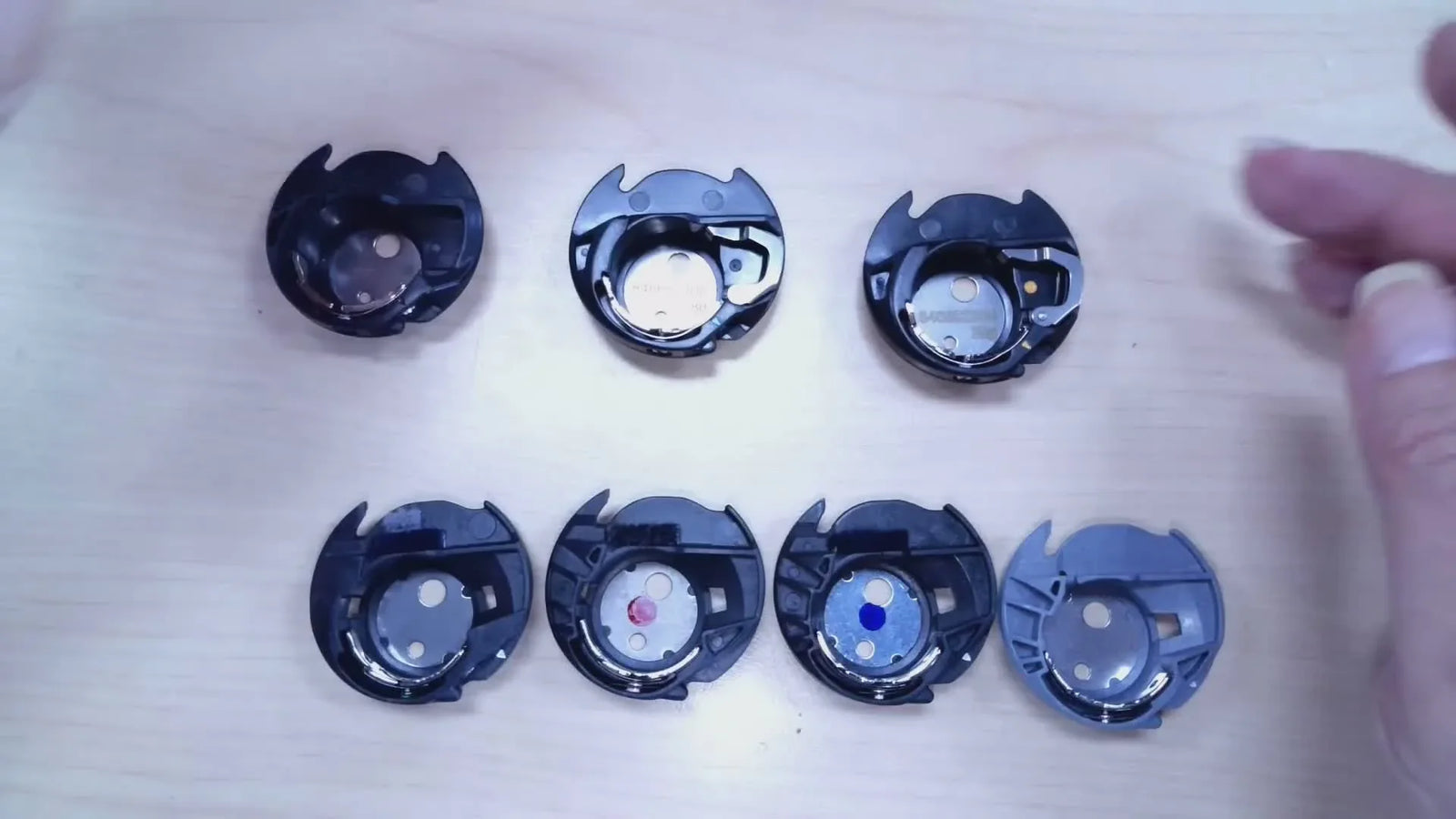

Gina’s clinic separates these into two distinct families:

• Janome Ecosystem (Top Row): Distinguishable by colored arrows (Red, Blue, Yellow).
• Baby Lock Ecosystem (Bottom Row): Distinguishable by colored dots and paint seals on screws.

These are not backup copies. They are precision-tuned instruments. A standard case is factory-set to release thread at roughly 20-25 grams of drag. An embroidery case might be set closer to 35-40 grams. If you swap them, your machine isn't "broken," but your physics are wrong.

Pro-Tip: If you are running a production schedule, never re-tune a calibrated case. It is cheaper to buy a dedicated case for a specific technique than to spend 30 minutes trying to recalibrate a screw by fractions of a millimeter.

Janome standard bobbin case (Red Arrow): the alignment cue that keeps you from fighting the hook

For Janome users, the Red Arrow is your "True North." This is the standard bobbin case for general construction sewing—straight stitching, zig-zags, and garment assembly.

The Visual Check: Look for a small red triangle or arrow on the plastic rim. When installing, this arrow aligns with the dot on the hook race cover.

The Sensory Check (The 'Yo-Yo' Test): Novices rely on hope; exports rely on gravity. To verify this case is set correctly for standard sewing:

1. Insert a full bobbin.
2. Hold the thread tail and let the case hang like a yo-yo.
3. Action: Flick your wrist gently.
4. Result: The case should drop 1 to 2 inches and stop.
   • If it drops to the floor: Tension is too loose.
   • If it doesn't move: Tension is too tight.

Expert Note on Part Numbers: Gina correctly notes that you must verify the numbers inside the case. Janome machines have high-shank and low-shank variations. A case that "fits" physically might sit 0.5mm too high, causing skipped stitches. Always match the internal code to your manual.

Janome free-motion quilting bobbin case (Blue Arrow): the anti-eyelashing fix when the back looks fuzzy

The Blue Arrow case is engineered specifically for Free-Motion Quilting (FMQ).

The Physics of Failure (Eyelashing): When you sew normally, feed dogs pull fabric at a constant speed. In FMQ, you move the fabric. When you push the fabric quickly, you create drag. If your bobbin tension is standard (Red Arrow), the top thread gets yanked to the bottom, creating ugly loops called "eyelashes."

The Solution: The Blue Arrow case has lower factory tension (looser). This reduced drag allows the bobbin thread to flow freely, compensating for your erratic hand movements.

The Tactile Difference: If you perform the "Yo-Yo Test" on a Blue Arrow case, it will drop much faster than the Red Arrow case. This is intentional. Do not tighten it.

Prep Checklist (before you swap any bobbin case)

Every successful project starts with a clean slate. Perform these checks before clicking a new case into place.

• Clean the Race: Use a small brush or compressed air (held upright) to blow out lint from the hook area. Even a tiny lint bunny can generate 10g of false tension.
• Replenish Hidden Consumables: Ensure you have spare Microtex or Topstitch needles and a fresh bobbin. Old, scuffed bobbins cause drag.
• Verify Brand Family: Never force a Baby Lock case into a Janome. They look 90% similar but will destroy your hook timing.
• Visual ID: Identify the marking (Arrow vs. Dot) before installation.
• The "Click" Listen: When inserting the bobbin case, press down on the center until you hear a distinct snapping sound. No click = not seated.

Janome embroidery bobbin case (Yellow Arrow + Yellow Dot): tighter tension plus the sensor arm that matters

The Yellow Arrow/Dot case is the workhorse for janome embroidery machines. Embroidery requires the top thread to wrap slightly around the bobbin thread to create crisp defined edges (satin stitches).

Why it’s different:

1. Higher Tension: It holds the bottom thread tighter, forcing the top thread to pull underneath, hiding the "knots" on the back.
2. The Sensor Arm: Gina highlights a mechanical lever on the side. This arm physically interrupts a sensor beam when the bobbin is low.

The Risk: If you use a Red Arrow (Standard) case for embroidery, you will likely see white bobbin thread poking up on the top of your design. If you use a case without the sensor arm on a sensor-equipped machine, the machine will not warn you when the bobbin is empty. You will return to find the machine has been "air sewing"—punching holes without thread—for 20 minutes.

Warning: Mechanical Safety
ALWAYS turn the machine power OFF before swapping bobbin cases. The rotary hook spins at high speed. If your foot hits the pedal while your fingers are in the race area, the hook can trap your finger or drive a needle through your nail. Respect the machine.

Baby Lock standard bobbin case (White Arrow + Green Paint Seal): the “do not touch” screw for everyday sewing

Moving to the Baby Lock family, we see the Standard Case characterized by a Green Paint Seal on the tension screw.

The "Green Seal" Rule: That green paint is there to tell you: "Stop. Do not touch." This screw is torqued at the factory to balance with standard polyester sewing thread (40-50wt).

The Typical Mistake: A user experiences a loop on the back. They assume tension is off. They grab a screwdriver and break the green seal. Now, the reference point is lost forever. Correct Action: If you have stitching issues with the Green Seal case, checking the threading path, the needle, and the top tension first. Leave the bobbin case as the "constant" in your equation.

Baby Lock embroidery bobbin cases (Blue Dot vs Red Dot): choose the right tension system for your bobbin thread

In the world of embroidery, thread weight (thickness) dictates tension. Baby Lock simplifies this with a colored dot system.

The Blue Dot Case:

• Use: Standard Embroidery.
• Thread: Standard 60wt bobbin thread.
• Adjustability: No paint seal. You can adjust this screw if your satin stitches define the "1/3 rule" (see below).

The Red Dot Case:

• Use: High-definition embroidery on explicit "Embroidery Only" machines.
• Thread: 90-weight bobbin thread.
• The Physics: 90wt thread is incredibly thin. Heavy tension would snap it; standard tension would let it pool. This case is calibrated specifically for this filament-like thread.

The "1/3 Rule" (Visual Success Metric): Flip your embroidery over. You should see:

• 1/3 Top Thread Color (Left)
• 1/3 White Bobbin Thread (Center)
• 1/3 Top Thread Color (Right)

If you use a Red Dot case with thick 60wt thread, the tension will be too tight, snapping the thread. If you use a Blue Dot case with thin 90wt thread, it will be too loose, looking like a bird’s nest. Matches matter.

Setup Checklist (so you don’t mix cases mid-project)

Confusion is the enemy of quality. Use this checklist to secure your workflow.

• Isolation Protocol: Only have one bobbin case on your workspace at a time. Put others in a drawer.
• Thread Match: Verify the bobbin thread weight matches the case (e.g., Red Dot = 90wt).
• Sensor Check: If using Janome, does the case satisfy the machine's sensor requirement?
• Physical Labeling: We highly recommend using a "Pill Organizer" box to store cases, labeling each slot (e.g., "Janome - FMQ").
• The "Tig-a-Tig" Test: Pull a few inches of thread from the installed bobbin. It should unspool smoothly with a quiet zzzzt sound, not hook or snag (which indicates a burr on the case).

The gray bobbin work case: when heavy cord won’t fit the needle and you must sew upside down

The Light Gray Case is for Bobbin Work (also known as Couching).

This technique flips sewing mechanics on its head. You want to use thick floss, ribbon, or pearl cotton that is too thick to pass through a needle's eye.

The Technique:

1. Wind the thick cord onto the bobbin by hand (to avoid stretching).
2. Use the Gray Case (which has near-zero tension).
3. Flip the fabric upside down.
4. Sew from the "wrong" side. The bobbin thread (thick cord) becomes the decorative top stitch on the right side.

This requires excellent stabilization and hooping because you are essentially sewing "blind" regarding the decorative output.

A practical decision tree: which bobbin case should you install right now?

Do not guess. Follow this logic path.

START: What is your primary goal today?

• A) Standard Garment Construction (Seams/Hems)
  • Janome: Red Arrow.
  • Baby Lock: Green Paint Seal (Standard).
• B) Free-Motion Quilting (Stippling)
  • Janome: Blue Arrow (Prevents eyelashing).
  • Baby Lock: Standard case usually works, or specialized low-tension case if available.
• C) Machine Embroidery (Logos/Designs)
  • Janome: Yellow Arrow + Yellow Dot.
  • Baby Lock (Standard 60wt thread): Blue Dot.
  • Baby Lock (Fine 90wt thread): Red Dot.
• D) Thick Decorative Cord (Bobbin Work)
  • All Brands: Gray Specialty Case (Sew upside down).

The “Why” behind the markings: tension is a system, not a screw you keep turning

Gina’s clinic teaches a vital lesson: Manufacturers created these coded cases so you can change the entire tension environment instantly without tools.

Tension is a tug-of-war.

• Top Tension: pulls thread up.
• Bobbin Tension: pulls thread down.

When you switch from sewing to embroidery, you need the "rope" to move towards the bottom. Instead of turning the screw 45 degrees (and forgetting where you started), you simply swap the component.

This approach creates Process Safety. If a project fails, you know the bobbin tension is correct because it is a factory-calibrated component. You can then look for the real culprit: usually the needle, the thread path, or the hoop.

Troubleshooting the three problems Gina actually names (symptom → cause → fix)

Diagnose issues by sound, feel, and sight.

1) The "Fuzzy Back" (Eyelashing)

• Symptom: The back of your quilt looks like loops of top thread.
• Likely Cause: Free-motion drag is pulling top thread down; bobbin tension is too high (Standard Case).
• Quick Fix: Install Janome Blue Arrow case.
• Prevention: Slow down your hand movement speed relative to needle speed.

2) The "Silent Run-Out"

• Symptom: The machine keeps stitching, but no thread is coming out. No warning appeared.
• Likely Cause: You installed a standard case without the sensor arm into a sensor-equipped machine.
• Quick Fix: Sway to Janome Yellow Arrow case.

3) The "Thread Jam" (Cord Work)

• Symptom: Thick decorative thread shreds or jams in the needle eye.
• Likely Cause: Thread is too thick for the needle path.
• Quick Fix: Use the Gray Bobbin Work Case and sew upside down using the "Bobbin Work" technique.

The upgrade path that actually saves time: stop re-hooping and start controlling the variables

While bobbin cases control vertical tension, the Hoop controls horizontal stability. Even with perfect tension, if your fabric shifts 1mm, the design is ruined.

If you are scaling up from hobby sewing to small business production, you will hit a wall where manual hooping hurts your wrists and wastes time. This is where "Tool Fatigue" sets in.

The Production Bottleneck: Traditional screw-tightened hoops leave "hoop burn" (white rings) on sensitive fabrics like velvet or performance wear. Trying to scrub these marks out costs money.

Triggers for Upgrade:

1. Hoop Burn: If you spend time steaming out ring marks.
2. Wrist Pain: If tightening screws is causing repetitive strain.
3. Batching: If you need to hoop 20 shirts in an hour.

The Solution: Magnetic Technology Many operators upgrading their workflow search for magnetic hoops for babylock embroidery machines. Unlike traditional hoops that drag and distort fabric, magnetic hoops clamp straight down. This prevents the fabric "wave" that causes puckering.

For domestic users, babylock magnetic embroidery hoops offer a safer grip on thick items like towels because the magnets self-adjust to the thickness. You don't have to guess the screw tension.

Warning: Magnetic Field Safety
Magnetic Hoops contain high-power Neodymium magnets.
* Pacemakers: Keep at least 6 inches away from implanted medical devices.
* Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the contact zone.
* Electronics: Do not place phones or credit cards directly on the magnets.

If you are running a multi-needle machine for profit, speed is your currency. A dedicated hooping station for embroidery machine allows you to prep the next garment while the machine is running the current one.

By pairing a station with a hoop master embroidery hooping station system, you ensure that every logo is placed in the exact same spot on every shirt, regardless of size. This consistency—combined with the correct bobbin case—is what separates "Homemade" from "Professional."

And naturally, for those heavily invested in the Janome ecosystem, upgrading to higher-end baby lock embroidery machines or similar multi-needle platforms often opens the door to using these advanced magnetic systems more effectively.

Operation Checklist (the “don’t create a second problem” routine)

Before you press "Start" on your next masterpiece, run this final flight check:

• Case Match: Did you confirm the visual marking (Standard/Embroidery/FMQ)?
• Click Sound: Did the case click firmly into the race?
• Tail Length: Is the bobbin tail cut to 2-3 inches? (Too long = potential birds nest; Too short = won't pick up).
• Hoop Check: Is the fabric "drum tight" (for wovens) or stabilized properly (for knits)?
• Safety Zone: Are scissors/tweezers clear of the embroidery arm path?

When to switch bobbin cases instead of adjusting tension: the calm, repeatable rule

Here is the Golden Rule of Machine Maintenance: Hardware First, Software Last.

If your stitching looks wrong, do not touch the tension dials immediately.

1. Check the Needle (Is it straight? Is it sharp?).
2. Check the Path (Is the machine threaded correctly?).
3. Check the Bobbin Case (Is it the right color code for the job?).

Only when you have verified that you are using the correct Blue Dot, Yellow Arrow, or Red Arrow case for your specific project should you consider fine-tuning the tension screws. By trusting the manufacturer's visual coding system, you protect your sanity and ensure your embroidery is beautiful, front and back.

FAQ

• Q: How can Janome and Baby Lock users identify the correct bobbin case marking in under 10 seconds before sewing or embroidery?
  A: Use a quick visual sort on a white towel so the marking system (Janome arrows vs Baby Lock dots/paint seals) is obvious before the bobbin case ever goes into the machine.
  • Lay out all bobbin cases on a clean white towel/light table and line them up.
  • Identify the “family” first: Janome cases use colored arrows; Baby Lock cases use colored dots and/or paint seals on screws.
  • Remove all non-needed cases from the workspace so only one bobbin case is present during setup.
  • Success check: You can point to the correct bobbin case by its marking (arrow/dot/paint seal) without flipping or “test fitting” parts.
  • If it still fails: Verify the internal code/part number inside the bobbin case against the machine manual, because a case can “fit” but still sit incorrectly and cause skipped stitches.
• Q: How should Janome users perform the “Yo-Yo Test” on a Janome Red Arrow standard bobbin case to confirm bobbin tension is in range?
  A: Hang the loaded Janome Red Arrow bobbin case by the thread tail and use a gentle wrist flick; the case should drop about 1–2 inches and stop.
  • Insert a full bobbin into the Janome Red Arrow standard bobbin case.
  • Hold the thread tail so the case hangs freely like a yo-yo.
  • Flick the wrist gently and watch the drop behavior.
  • Success check: The bobbin case drops 1–2 inches and stops (not falling to the floor and not “stuck”).
  • If it still fails: Recheck correct threading through the bobbin case tension slot and confirm the bobbin is not scuffed or dragging.
• Q: What should Janome users change when free-motion quilting causes “eyelashing” loops and a fuzzy back with a Janome Red Arrow bobbin case?
  A: Swap to the Janome Blue Arrow free-motion quilting bobbin case instead of tightening screws, because the Blue Arrow case is intentionally lower tension for FMQ drag.
  • Power off the machine and remove the Janome Red Arrow standard bobbin case.
  • Install the Janome Blue Arrow FMQ bobbin case and avoid tightening it just because it drops faster on a gravity test.
  • Slow down hand movement relative to needle speed to reduce sudden drag spikes.
  • Success check: The quilt back shows fewer/none of the “eyelash” loops of top thread and looks cleaner and flatter.
  • If it still fails: Clean lint from the hook/race area, because even small lint can add false tension and mimic a tension problem.
• Q: Why does a Janome embroidery machine keep stitching with no bobbin warning (“silent run-out”) after changing the bobbin case, and what is the quick fix?
  A: Install the Janome Yellow Arrow + Yellow Dot embroidery bobbin case with the sensor arm if the machine uses a bobbin sensor, because a case without the sensor arm may not trigger the low-bobbin warning.
  • Turn the machine power OFF before touching the hook/race area.
  • Confirm the embroidery bobbin case has the sensor arm/lever on the side and install that case.
  • Listen for the firm “click” when seating the bobbin case; no click usually means it is not seated.
  • Success check: The machine provides low-bobbin behavior/warnings as expected and does not “air sew” without thread.
  • If it still fails: Reconfirm the bobbin case marking and machine requirement in the manual, because not every model uses the same sensor setup.
• Q: What is the “Green Paint Seal” rule on a Baby Lock standard bobbin case, and what should Baby Lock users adjust first when loops appear on the back?
  A: Do not turn the Baby Lock standard bobbin case tension screw if it has a Green Paint Seal; treat it as a factory constant and troubleshoot threading/needle/top tension first.
  • Stop and avoid breaking the green paint seal on the bobbin tension screw.
  • Rethread the upper thread path carefully and verify the needle is correct and not damaged.
  • Swap to a fresh bobbin if the current bobbin is old or rough and causing drag.
  • Success check: Stitching balances without disturbing the green-sealed screw, and the back no longer shows persistent looping.
  • If it still fails: Switch to the correct Baby Lock embroidery bobbin case (Blue Dot or Red Dot) if the task is embroidery, because the standard case is not tuned for every embroidery setup.
• Q: How do Baby Lock users choose between the Baby Lock Blue Dot and Baby Lock Red Dot embroidery bobbin cases, and what is the “1/3 rule” success check?
  A: Match the bobbin case to the bobbin thread weight—Baby Lock Blue Dot for standard 60wt bobbin thread, Baby Lock Red Dot for fine 90wt bobbin thread—and verify the back with the 1/3 rule.
  • Confirm the bobbin thread weight you are actually using (60wt vs 90wt) before installing a case.
  • Install Blue Dot for standard embroidery with 60wt; install Red Dot for 90wt fine bobbin thread on embroidery-only setups.
  • Inspect the embroidery back and use the visual “1/3 rule.”
  • Success check: On the back, you see roughly 1/3 top thread color, 1/3 white bobbin thread, 1/3 top thread color across satin areas.
  • If it still fails: If 60wt keeps snapping in a Red Dot case or 90wt keeps nesting in a Blue Dot case, swap to the matching case rather than forcing tension adjustments.
• Q: What safety steps should Janome and Baby Lock users follow before swapping any bobbin case, and what “seated correctly” check prevents jams?
  A: Power the machine OFF before touching the hook area, then seat the bobbin case until a distinct “click” confirms it is locked in place.
  • Turn the machine power OFF before hands go near the rotary hook/race area.
  • Clean lint from the hook/race with a brush or upright compressed air before installing the new case.
  • Press down on the center of the bobbin case during installation until the click is heard/felt.
  • Success check: The bobbin case audibly/physically clicks into place and pulls thread smoothly with a quiet, steady unspooling sound (no snagging).
  • If it still fails: Stop and do not force parts—recheck brand family (Janome vs Baby Lock) and confirm the bobbin case is the correct marked type for the technique.
• Q: When should embroidery users upgrade from technique tweaks to magnetic hoops or even a multi-needle embroidery machine to reduce hoop burn and re-hooping time?
  A: Upgrade in levels: first stabilize and verify setup, then consider magnetic hoops when hoop burn/wrist fatigue/batching becomes a bottleneck, and consider a multi-needle machine when production speed is the limiting factor.
  • Level 1 (technique): Clean the hook area, use fresh needles/bobbins, confirm correct bobbin case marking, and stabilize/hoop correctly to prevent fabric shift.
  • Level 2 (tool): Use magnetic hoops when hoop burn rings, wrist pain from tightening screws, or fast batching makes traditional hoops too slow or inconsistent.
  • Level 3 (capacity): Move to a multi-needle platform when the shop needs higher throughput and fewer thread-change interruptions for paid work.
  • Success check: Hoop marks reduce, hooping time per garment drops, and design registration stays consistent without re-hooping.
  • If it still fails: Add a hooping station for repeatable placement, because consistent positioning plus correct bobbin case selection is often the difference between “okay” and “production reliable.”
