Janome Digitizer MBX V5 Workspace Tour: The Toolbox Workflow, Auto Fabric, and Multi-Hooping Without the Headaches

If you’ve ever opened a new digitizing suite like Janome Digitizer MBX V5 and felt that specific spike of panic—“Where are my tools? Why does this look like the cockpit of a 747?”—take a breath. You are experiencing Cognitive Overload. It happens to the novice and the 20-year veteran alike when the interface shifts.

This guide isn't just a tour; it’s a recalibration of your workflow. We are going beyond the "how-to" and into the "why-to," focusing on the sensory details and safety margins that prevent broken needles, ruined garments, and wasted Saturday afternoons.

The Janome V5 interface is actually designed to mimic a production workflow: Import → Edit → Layout → Output. I’m going to walk you through this path, adding the "shop floor" secrets that keep your machine humming and your profit margins healthy.

Make Janome Digitizer MBX V5 Feel “Findable” Again: The Welcome Screen + Toolbox Workflow That Stops the Clicking Spiral

The video opens on the V5 welcome screen, establishing the golden rule of this software: The Left Side is Your Map.

In older software, icons were scattered like confetti. In V5, everything is grouped into Toolboxes on the left. This is critical for reducing "mouse miles." You aren't hunting; you are following a logical sequence.

The Action Plan:

1. Anchor your eyes left: Ignore the top bars for a moment. The "Toolbox" hierarchy is your step-by-step guide.
2. Locate "Manage Designs": This is your digital warehouse.
3. Mental Check: Before you click, ask, "Am I importing, editing, or exporting?" Then find the matching header.

Why this matters: In a professional shop, searching for a file for 5 minutes costs money. In a home studio, it costs you your "creative flow."

Prep Checklist (The "Clean Cockpit" Protocol)

Before you even click "New Design," verify these physical and digital conditions. Skipping this leads to the "mystery failures" everyone hates.

• File Hygiene: Is your design in a central folder? (Stop saving to "Downloads" or "Desktop").
• The Canvas Rule: Have you measured your actual hoop? Don't trust the screen default. If you have a 200x200mm hoop, select that template.
• Hidden Consumable Check: Do you have the right transfer medium? (A formatting-clean USB stick under 8GB is often safer for older machine OS).
• Machine State: Is your machine clean? Pop the bobbin plate. If you see "grey fuzz" (lint), clean it. A dirty machine creates thread breaks that you'll blame on the software.

Stop Losing Files in Janome Digitizer MBX V5: Manage Designs Thumbnails, Design Info, and Fast Open

The Manage Designs toolbox is your visual database. The software displays accurate thumbnails of embroidery files—not just generic file icons.

The Workflow:

1. Click Manage Designs.
2. Visual Scan: Look at the stitch density in the preview. Use the thumbnail to verify: "Is this the version with the text correction?"
3. Data Check: Click once to see the Design Info pane (stitch count, colors, size). Verify the size matches your hoop limits here.
4. Double-click to open.


Pro Tip: If you see a file with a stitch count of 0 or a size of 0mm, the file header is corrupted. Do not try to force-open it; it can crash the software.

Fix Color Regrets Before You Stitch: Cycle Used Colors + Color Wheel + Garment Background Preview

Monitors emit light (RGB); thread reflects light (CMYK/Physical). They never match perfectly. However, V5’s color tools are your first line of defense against low-contrast disasters.

The Cycle & Preview Technique:

1. Cycle Used Colors: This tool shuffles your existing palette. Use it when you feel stuck. It often reveals a better contrast option you hadn't considered.
2. Color Wheel: Use this to adjust hue/saturation.
3. Crucial Step - Background Preview: Place the design on a virtual garment (e.g., a black t-shirt).




The "Invisible Thread" Trap: The most common mistake is digitizing dark blue text and stitching it on a black shirt. On screen, the white background makes it look fine.

• The Fix: Always set the background color in V5 to match your fabric color. If the design disappears on screen, it will be invisible on the final product.

Let Auto Fabric Do the Boring Math: Janome Digitizer MBX V5 Auto Fabric Settings + Stabilizer Suggestions

This is the "Brain" of the software. When you select a fabric type in Auto Fabric, the software quietly adjusts Pull Compensation and Density.

• Theory: When a needle penetrates fabric, the thread pulls the fabric in. A circle becomes an oval. Pull Compensation adds width to the stitches to counteract this.
• Action: Select "Terry Toweling" for towels. The software will automatically increase pull comp (making stitches wider) and reduce density (preventing the fabric from becoming bulletproof).

The Workflow:

1. Open Auto Fabric.
2. Select your target substrate (e.g., Fleece, Jersey, Leather).
3. Listen to the Recommendation: The software will suggest stabilizers.


Expert Reality Check: The software suggests the ideal scenario. Reality requires backup. Here is a decision tree based on 20 years of shop experience.

Decision Tree: Fabric Type → Stabilizer Strategy

Do not guess. Mismatched stabilizer is the #1 cause of puckering.

• Scenario A: Stretchy Knits (T-Shirts, Performance Wear)
  • Risk: Fabric stretches while stitching; design distorts.
  • Stabilizer: Cutaway (Mesh or 2.5oz). Never use Tearaway on knits.
  • Hooping: Use a magnetic embroidery hoop to prevent "hoop burn" (shiny rings) and over-stretching the fabric during framing.
• Scenario B: High Pile (Towels, Fleece, Velvet)
  • Risk: Stitches sink into the fluff and disappear.
  • Stabilizer: Tearaway or Cutaway on bottom + Water Soluble Topping (Solvy) on top.
  • Note: The topping holds the stitches up like snowshoes on snow.
• Scenario C: Stable Woven (Denim, Canvas)
  • Risk: Needle deflection on thick seams.
  • Stabilizer: Tearaway is usually sufficient.
  • Needle: Switch to a Sharp/Jeans Needle (90/14).
• Scenario D: Slippery/Delicate (Silk, Satin)
  • Risk: Hoop marks and fabric shifting.
  • Stabilizer: Fusible Mesh (ironed on) to stiffen the fabric temporarily.
  • Hooping: This is another scenario where magnetic embroidery hoops are superior, as they hold without the friction-burn of inner rings.

Make Lettering Look Expensive: Janome Digitizer MBX V5 Lettering Toolbox + Monogramming Borders

Bad lettering screams "amateur." The Lettering Toolbox gives you control, but you must respect the physical limits of thread.

The Setup:

1. Type text.
2. Select font (e.g., Block2).
3. The 6mm Rule: Avoid satin stitch letters smaller than 5-6mm tall.
   • Why: A standard 40wt thread is roughly 0.4mm thick. If a column is too narrow, the needle holes will touch, cutting the fabric like a perforated stamp.




Sensory Check: When stitching small text, listen to your machine. If it sounds like it's hammering in one spot (a loud thud-thud-thud), your density is too high or the letter is too small. Stop immediately to prevent a "bird's nest" in the bobbin case.

Control Texture Like a Digitizer, Not a Button-Pusher: Object Properties Ripple/Motif Fill + Florentine + 3D Warp

Standard "Tatami" fills are boring. V5 allows you to change fill types to Ripple or Motif and warp them with Florentine effects.

The Workflow:

1. Select object.
2. Object Properties > Fill Type.
3. Effects Tab > 3D Warp.






The Danger Zone: Applying complex curves adds stitch angles.

• Watch Out: If the stitch angle aligns with the fabric grain (warp/weft), the potential for puckering increases.
• Mitigation: If using complex fills on thin fabric, increase your stabilizer support (use two layers of cutaway).

Use Cutwork and Stumpwork Without Breaking Needles: Janome Digitizer MBX V5 Specialty Toolboxes + Wire Concepts

V5 offers Cutwork (cutting holes) and Stumpwork (3D wire inserts). These are advanced techniques that require hardware synchronization.

• Cutwork: Requires designated Cutting Needles (chisel-tipped).
• Stumpwork: Involves stitching over a wire to create bendable petals/wings.

Warning: Mechanical Safety Hazard
When using Cutwork or Specialty needles, reduce machine speed to 400-600 SPM. High speeds can cause chisel needles to flex and shatter upon impact with the needle plate. Always wear eye protection when testing new specialty techniques.

Expert Note: If you plan to do heavy stumpwork or cutwork regularly, a standard domestic single-needle machine may struggle with the clearance. This is often the trigger point where users upgrade to commercial-grade equipment like SEWTECH multi-needle machines, which offer higher presser foot clearance and robust needle bars.

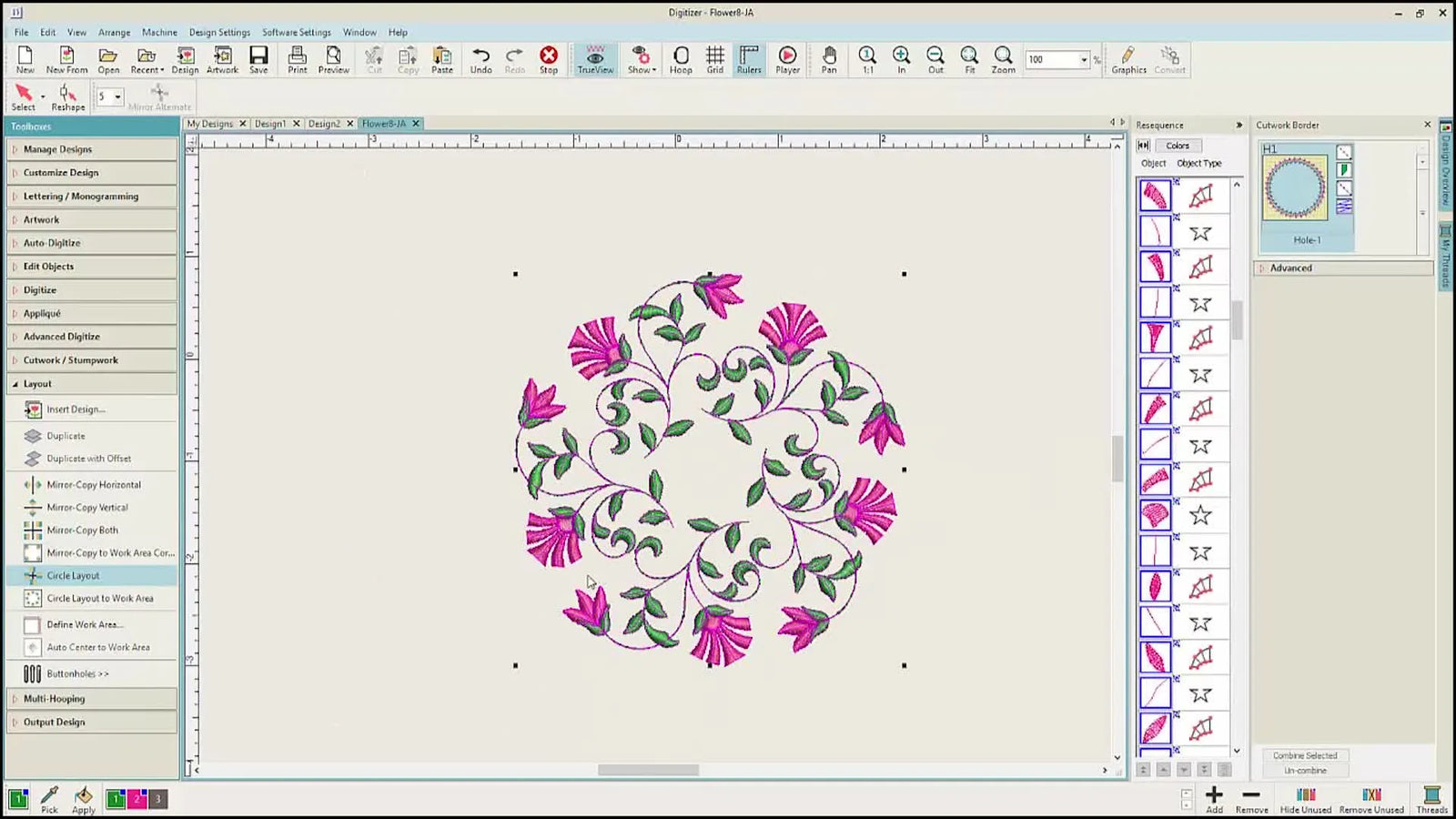

Build Perfect Repeats Fast: Janome Digitizer MBX V5 Layout Toolbox Circular Layout + Mirror-Merge

Don't manually copy-paste. The Layout Toolbox calculates the math for perfect wreaths and borders.

The Workflow:

1. Select your element (e.g., a flower).
2. Select Circular Layout.
3. Input the number of repeats. The software aligns them equidistant from the center.


Setup Checklist (Layout & Positioning)

• Hoop Check: Does the final wreath fit inside your safety margin? (Leave 10mm buffer from the hoop edge).
• Start/Stop Points: Check the "Travel Runs" between the repeated elements. Are they jumping across the center?
  • Fix: Adjust entry/exit points to minimize long jump stitches that you'll have to trim later.
• Visual Center: Is the design visually centered, or mathematically centered? Sometimes "heavy" designs (dense on one side) need to be nudged manually to look right to the eye.

Add Buttonholes Without Bulky Mess: Buttonhole Tool + Remove Overlaps for Clean Stitch Stacks

New digitizers often stack stitches: A fill background, then a buttonhole on top. Result: The machine tries to punch through 3 layers of thread, jamming the needle.

The Solution:

1. Place the Buttonhole.
2. Apply "Remove Overlaps": This command deletes the background stitches under the buttonhole.
3. Result: You are stitching the buttonhole directly onto fabric/stabilizer, not onto a lump of thread.


Split Oversized Designs Without Guessing: Janome Digitizer MBX V5 Multi-Hooping Toolbox + Add Hoop + Splitting Guide + Registration Marks

This is the most intimidating skill for beginners: splitting a design that is larger than your physical hoop.

The Logic:

1. Add Hoop: The software overlays your hoop frames on the design.
2. Splitting Guide: You draw the line where the design gets cut.
3. Registration Marks: The software adds temporary "crosshairs" that you stitch out. You match the needle to these crosshairs for the second hoop.


The "Hooping Station" Solution: Software splitting is easy; physical alignment is hard. If you are off by 1mm on the second hoop, the design is ruined.

• Upgrade Path: If you do large backs (Jacket Backs), sticking with standard hoops is frustrating. A hooping station for machine embroidery ensures your placement is identical every time.
• Alignment Tip: When re-hooping for the second half, use the "Trace" function on your machine to verify the registration marks align before you push start.

Make Satin Look Like Pen Strokes: Janome Digitizer MBX V5 Calligraphy Satin Option + 3D Satin Samples

Calligraphy Satin varies the stitch width dynamically, mimicking a fountain pen.

Sensory Output: Because the width changes, the tension demand changes.

• Observation: Watch the back of the embroidery. If the wide parts look loose (loops), tighten your top tension slightly.
• Feel: The column should feel smooth and slightly raised (lofty), not flat and tight.

Export Without Surprises: Output Design Toolbox, Write to USB, and Format Compatibility

The final mile. Output Design is where you translate your artwork into machine language (JEF, DST, PES).

The Workflow:

1. Export Design: Choose your machine format.
   • Note: JEF for Janome. DST is the universal industrial language (but it loses color info).
2. Write to USB: Ensure your stick is formatted.


Hidden Consumable: Always have a backup USB drive. They fail when you are on a deadline.

The “My Interface Is in French” Panic: What to Check Before You Reinstall Everything

Language settings are usually found in File > Options > General. Occasionally, the software defaults to the Operating System's region. If your Windows is set to "Canada (French)," V5 might try to be helpful and switch languages. Check your PC settings first.

“Where Did the Centering Tool Go?” and Other Version-to-Version Whiplash

V5 follows modern UI rules: Content is Contextual.

• If you can't find alignment tools (Center, Align Left), it's likely because you don't have multiple objects selected.
• Select the items first, and the Align toolbar usually lights up or appears at the top.

Installing Janome Digitizer MBX V5 on a New Computer: Avoid the “Old Version” Trap

When moving to a new PC, do not try to drag-and-drop program files. You must run the installer.

• Dongle vs. Login: Determine how your version authenticates.
• Compatibility: If installing on Windows 11, check the Janome site for a patch. Older V5 builds may need a compatibility update to run smoothly on newer OS architecture.

The Upgrade Path When Multi-Hooping Becomes Your New Normal: Faster Hooping, Less Distortion, Better Repeatability

If you find yourself constantly battling the limitations of a single-needle machine and small hoops, you have likely outgrown your "Hobby" phase.

Recognize the Symptoms of scaling:

1. The "50 Shirt" Nightmare: You took an order for 50 logos, and the single-needle color changes are taking 20 minutes per shirt.
2. Hoop Burn Fatigue: You are spending more time steaming out hoop marks than stitching.
3. Wrist Pain: The physical force required to hoop thick items (Carhartt jackets) is hurting you.

The Solution Hierarchy:

• Level 1: Fix the Pain (Ergonomics):
  Invest in janome embroidery machine compatible magnetic hoops. A magnetic embroidery frame snaps together. No screwing, no wrist strain, and most importantly—zero hoop burn. The magnets hold the fabric firmly without crushing the fibers.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade magnets. They are powerful enough to pinch fingers severely. Do not use if you have a pacemaker. Keep them at least 12 inches away from embroidery machine screens, credit cards, and hard drives to prevent data corruption.

• Level 2: Fix the Speed (Throughput):
  If you are splitting designs daily just to fit them, or spending hours changing thread colors manually, look at the SEWTECH multi-needle ecosystem.
  • Benefit: 6+ needles mean the machine handles color changes automatically.
  • Hooping: Larger tubular hoops (and compatible hoop master embroidery hooping station systems) allow you to stitch massive jacket backs in one run—no splitting required.

Operation Checklist (The Final "Go" Flight Check)

Before you press the green button on the real garment:

• Needle Status: Is the needle fresh? (Change every 8 hours of stitching or after a needle strike).
• Bobbin: Do you have enough bobbin thread to finish the run? (Nothing is worse than running out mid-satin column).
• Clearance: Rotate the handwheel or do a "Trace" to ensure the hoop won't hit the presser foot or the machine arm.
• Stabilizer Marriage: Is your magnetic embroidery hoop holding the sandwich (Fabric + Stabilizer) tight? It should sound like a drum when tapped lightly.
• Safety Zone: Verify no loose straps or sleeves are hanging under the hoop where they could get sewn to the back of the design.

By treating your software routine as a structured production process rather than a guessing game, you remove the fear. The tools are there—labeled, organized, and ready. Now, go load that design and stitch with confidence.

FAQ

• Q: In Janome Digitizer MBX V5, how can users stop the “Where are my tools?” clicking spiral on the welcome screen?
  A: Use the left-side Toolboxes as the workflow map (Import → Edit → Layout → Output) and ignore the top bars until the task is clear.
  • Anchor: Look left first and identify the Toolbox header that matches the job (Manage Designs / Edit / Layout / Output).
  • Ask: “Am I importing, editing, or exporting?” then click only within that Toolbox group.
  • Standardize: Keep designs in one central folder so “Manage Designs” acts like a consistent warehouse.
  • Success check: The next click feels “obvious” because the needed tools are grouped under one left Toolbox, not hunted across menus.
  • If it still fails: Reset the workflow by returning to the welcome screen and re-entering through the correct Toolbox instead of searching via random menus.
• Q: In Janome Digitizer MBX V5 Manage Designs, how can users quickly verify the correct file version and avoid opening a corrupted embroidery file?
  A: Use the thumbnail + Design Info pane to confirm stitch count/size before opening, and never force-open files showing 0 stitches or 0mm size.
  • Scan: Compare thumbnails to confirm details like density and whether you’re looking at the corrected text version.
  • Check: Single-click the design to read Design Info (stitch count, colors, size) and confirm the size fits the actual hoop limits.
  • Reject: Do not open any file that shows stitch count = 0 or size = 0mm (often indicates a corrupted header).
  • Success check: Design Info displays a normal stitch count and a real physical size that matches the expected hoop template.
  • If it still fails: Re-export or re-save a known-good copy instead of troubleshooting by repeated force-open attempts.
• Q: In Janome Digitizer MBX V5, how can users prevent “invisible thread” results when choosing colors for dark garments?
  A: Always preview the design on a virtual garment background that matches the real fabric color before committing to thread changes.
  • Cycle: Use “Cycle Used Colors” to explore contrast options without rebuilding the palette.
  • Adjust: Use the Color Wheel to tweak hue/saturation after you confirm contrast on the correct background.
  • Preview: Set the background to the garment color (example: black tee) before deciding the final thread colors.
  • Success check: The text and fine details remain clearly readable on-screen against the simulated garment background.
  • If it still fails: Increase contrast intentionally (lighter thread on dark fabric), then re-check the preview before exporting.
• Q: In Janome Digitizer MBX V5 Auto Fabric, how can users reduce puckering by matching fabric type to stabilizer strategy (knits, towels, denim, satin)?
  A: Start with Auto Fabric for pull compensation/density, then follow fabric-specific stabilizer rules instead of guessing.
  • Select: Choose the closest fabric in Auto Fabric (example: Terry Toweling for towels) and follow the stabilizer suggestion as the baseline.
  • Apply: Use cutaway (mesh/2.5oz) for stretchy knits; add water-soluble topping for high pile; use tearaway for stable woven; use fusible mesh for slippery/delicate fabrics.
  • Support: Add more stabilizer (often two layers of cutaway) when using complex fills on thin fabric.
  • Success check: The fabric lies flat after stitching with no ripples around the design edges, and circles stay round instead of pulling into ovals.
  • If it still fails: Re-check hoop selection vs. actual hoop size and reduce density via the fabric setting before re-stitching.
• Q: In Janome Digitizer MBX V5 Lettering Toolbox, how can users stop small satin text from causing bird’s nests or fabric perforation?
  A: Keep satin lettering at or above ~5–6 mm tall and stop immediately if the machine “hammers” in one spot.
  • Size: Increase letter height to respect the 6mm rule for satin columns.
  • Listen: If stitching sounds like loud repeated thuds in one area, pause and reduce density or enlarge the text.
  • Verify: Re-check the design before stitching so narrow columns are not forcing needle holes to touch.
  • Success check: The machine sound stays smooth (not a repetitive hammering), and the fabric under the letters is not being cut like a perforation.
  • If it still fails: Test the lettering on scrap with the same stabilizer/fabric combination before running the real garment.
• Q: When using Janome Digitizer MBX V5 Cutwork tools and specialty needles, what machine-speed safety steps prevent needle shatter?
  A: Treat cutwork as a mechanical hazard: slow down to 400–600 SPM, test carefully, and use eye protection.
  • Reduce: Set machine speed to 400–600 SPM for cutwork/specialty needles.
  • Confirm: Use the correct designated cutting needles (chisel-tipped) for cutwork.
  • Protect: Wear eye protection during first tests and avoid high-speed runs until the setup is proven.
  • Success check: The needle path runs cleanly without impact noises, and the needle does not flex or strike the needle plate during test stitches.
  • If it still fails: Stop and re-check clearance by tracing/handwheel rotation before restarting at any speed.
• Q: What are the key safety rules for using magnetic embroidery hoops to reduce hoop burn and wrist strain in production?
  A: Magnetic hoops can prevent hoop burn and reduce physical force, but the magnets can pinch fingers and must not be used with pacemakers.
  • Handle: Keep fingers clear when closing the hoop—magnets can pinch severely.
  • Avoid: Do not use magnetic hoops if the operator has a pacemaker.
  • Separate: Keep magnetic hoops at least 12 inches away from embroidery machine screens, credit cards, and hard drives.
  • Success check: Fabric is held firmly without crushing fibers (no shiny hoop rings), and the hooped area feels drum-tight when tapped lightly.
  • If it still fails: Reduce fabric stretch during hooping and confirm the stabilizer + fabric “sandwich” is captured evenly before starting the stitch-out.
• Q: When multi-hooping becomes frequent for oversized designs in Janome Digitizer MBX V5, what is the staged upgrade path from technique fixes to higher-throughput equipment?
  A: Start by improving alignment discipline, then add repeatability tools, and only then consider higher-throughput machines when volume makes manual steps the bottleneck.
  • Level 1: Use Add Hoop + Splitting Guide + Registration Marks, then use the machine Trace function to verify alignment before pressing start.
  • Level 2: Add a hooping station to make re-hooping placement repeatable when 1 mm misalignment keeps ruining multi-hoop jobs.
  • Level 3: If daily work involves constant splitting or long manual color changes, consider a multi-needle system for automatic color changes and larger hooping capability.
  • Success check: Registration marks align on the second hoop before stitching, and the final join line is not visibly offset.
  • If it still fails: Slow the process down—verify hoop template selection, leave a safety margin from hoop edge, and re-check start/stop points to reduce risky travel runs.
