Janome Horizon MC12000 Name Appliqué in Real Time: Clean Satin Borders, Smart SQ23 Hooping, and Fewer “Why Is This Shifting?” Moments

The Field Guide to Mastering Large Appliqué: From "Panic Mode" to Precision

When you are stitching a large, bold name on dark fabric, your embroidery machine becomes a ruthless truth-teller. It exposes every weak link in your setup—your hooping tension, your stabilizer choice, and how cleanly you trimmed your appliqué edge.

The stitch-out featured here, performed on a Janome Horizon Memory Craft 12000, serves as a perfect "real life" benchmark. Ideally, we are looking at large appliqué initials (“D” and “L”) with a patterned fabric insert, finished with a dense red satin border, followed by smaller lowercase letters. The telemetry on the screen is your flight plan: a working speed of 600 stitches per minute (SPM), a total count of 20,993 stitches, an estimated runtime of 34 minutes, and 6 color changes, all contained within the SQ23 (9.1" x 9.1") hoop.

If you are transitioning from a different machine, or even a Janome 15000, the physics remain universal: stable hooping, controlled fabric tension, and interpreting the machine's sensory feedback.

The “Don’t Panic” Primer for Janome Horizon MC12000 Appliqué Lettering (Yes, It Looks Hard—It’s Mostly Setup)

Large satin borders around appliqué are notoriously unforgiving. They act as "stress tests" for your fabric. If the material shifts even a millimeter, you end up with the "gap of doom"—raw fabric exposed between the satin column and the appliqué insert—or a wavy border that looks amateurish.

Here is the calming truth from the production floor: 90% of appliqué failures are not caused by "bad digitizing" or the "wrong machine." They are caused by Hooping Mechanics and Friction control.

In this scenario, the stitch quality looks consistent because three critical factors are aligned:

1. Hoop Real Estate: The SQ23 hoop is large enough to handle the design without cramping the edges.
2. Stabilization Strategy: The fabric is held flat, preventing the push-pull distortion that occurs when a needle penetrates the same area thousands of times.
3. Density Management: The satin border is wide and dense enough to trap the raw edges of the appliqué fabric securely.

If you are researching a janome embroidery machine effectively, look past the computerized features and focus on how the physical machine handles fabric transport. The fundamentals of grip and stability are what separate a ruined shirt from a professional product.

The “Hidden” Prep Pros Do Before the First Stitch on an SQ23 Hoop (Stabilizer, Grain, and a Quick Sanity Check)

The visuals show a black fabric panel. While the specific project uses tear-away stabilizer, we need to calibrate this for your safety. Stabilizer is the foundation of your house; do not build on sand.

What I’d Prep (The "Zero-Fail" Protocol)

1. Square the Fabric Grain This is a step beginners often skip. If your fabric's grain runs diagonally across the hoop, the tension of the stitches will pull the fabric into a bias stretch. The result? Lettering that looks slanted or pinched.

• The Action: Align the weave of the fabric parallel to the hoop's grid.

2. The Stabilizer "Sandwich" Rule The video utilizes tear-away stabilizer.

• Expert Calibration: Tear-away is acceptable only for stable, non-stretch wovens (like canvas totes or denim).
• Safety Net: If you are stitching on a T-shirt, sweatshirt, or anything with elastane, you must use Cut-Away stabilizer. Tear-away will disintegrate under a dense satin column on a knit fabric, causing the design to separate from the shirt.

3. Hidden Consumables Check Success often relies on tools the manual didn't tell you to buy:

• Spray Adhesive (e.g., 505 Spray): A light mist prevents the fabric from floating above the stabilizer.
• Fresh Needle: Use a 75/11 needle (Ballpoint for knits, Sharp for wovens). A dull needle pushes fabric into the bobbin case.
• Curved Appliqué Scissors: Essential for trimming the insert fabric close to the tack-down stitch without snipping the base fabric.

4. The "Hand Sweep" Clearance Check Before pressing start, physically move your hand around the perimeter of the hoop's future path. Ensure no extra fabric is bunched up in the back where it could get sewn into the design.

Warning: Mechanical Safety
Never place your fingers inside the hoop area while the machine is active. A 600 SPM machine drives the needle down 10 times per second. If you need to trim a thread or adjust the appliqué, Stop the machine completely and wait for the "green light" button to turn red/off before reaching in.

Prep Checklist (Do NOT Proceed Until All Checked)

• Needle Check: Is the needle fresh and the correct type (75/11 or 90/14)?
• Bobbin Check: Is the bobbin full (or at least 50%)? Running out mid-satin stitch leaves a visible seam.
• Path Clearance: Is the space behind the machine clear of walls or cables?
• Grain Alignment: Is the fabric weave straight in the hoop?
• Tool Safety: Are scissors and seam rippers removed from the sewing deck?


Dialing In Janome MC12000 Hoop Choice: Why the SQ23 (9.1" x 9.1") Makes This Name Design Behave

The screen confirms the SQ23 hoop for a design that is 5.8" high and 8.3" wide. This is a massive design. Using a hoop that barely fits the design is a recipe for distortion because the fabric tension is tightest at the edges of the frame and loosest in the center.

When looking at janome 12000 hoop sizes, the rule of thumb is: Use the smallest hoop that fits the design, BUT leave at least 1 inch of "safety margin" on all sides. The SQ23 offers just enough clearance here.

The Physics That Matter: The "Drum Skin" Myth

Beginners are often told to hoop fabric "tight as a drum." This is dangerous advice.

• The Problem: If you stretch fabric tight like a drum before stitching, it will spring back to its original size after you unhoop it. Your beautifully stitched circle will turn into an oval.
• The Sweet Spot: The fabric should be taut and flat, but neutral. You should not be able to pull up a "tent" of fabric, but you shouldn't be stretching the fibers apart either.

When a Hooping Station Actually Helps

If you find yourself struggling to keep the fabric straight while tightening the screw, consider using a machine embroidery hooping station. These tools act as a "third hand," holding the outer ring and stabilizer in place so you can press the inner ring down firmly and evenly.

The Appliqué Border on the “D”: Getting a Satin Stitch Edge That Fully Covers the Fabric Insert

The machine begins the dense red satin border. This is the "make or break" moment.

Visual & Auditory Checks

• Sound: Listen for a rhythmic thump-thump-thump. A sharp click-click sticking sound usually means the needle is hitting an adhesive buildup or the needle is blunt.
• Sight: Watch the edge of the satin column. It should "roll" slightly over the edge of the fabric insert.

Why does satin look rough?

1. The "Railroad Track" Effect: If the bobbin tension is too loose, you will see white loops (bobbin thread) on the top. If the top tension is too tight, the satin column will tunnel, pulling the fabric in.
2. Bulk Management: If the appliqué fabric wasn't trimmed close enough (within 1-2mm) of the tack-down stitch, the satin stitch has to "climb over" the excess fabric, creating a jagged, bumpy finish.

If you are practicing hooping for embroidery machine technique, remember that the goal is shear resistance—preventing the top layer from sliding over the stabilizer.

The Lowercase Letters on Janome Horizon MC12000: How to Keep Small Text Crisp Next to Big Appliqué

After the massive "D," the machine transitions to delicate lowercase letters ("alary"). This contrast is dangerous. The heavy stitches of the "D" have likely pushed the fabric slightly; now the machine must execute fine detail on that potentially shifted surface.

Operation Speed: The Beginner's Sweet Spot

The screen shows 600 SPM.

• Expert Advice: While modern machines can go up to 1000 SPM, 600-700 SPM is the "Safety Zone" for satin appliqué.
• Why? Slower speeds reduce the vibration of the hoop arm. Less vibration means the needle lands exactly where it should, keeping small letters crisp. High speed increases the chance of "looping" or erratic edges on small text.

Pull Compensation (The "Fabric Tug-of-War")

Embroidery stitches inherently pull fabric inward. Professional digitizers add "pull compensation" (making the column slightly wider) to account for this. If your letters look skinny or have gaps, do not just tighten the thread tension—increase your stabilization to fight the pull.

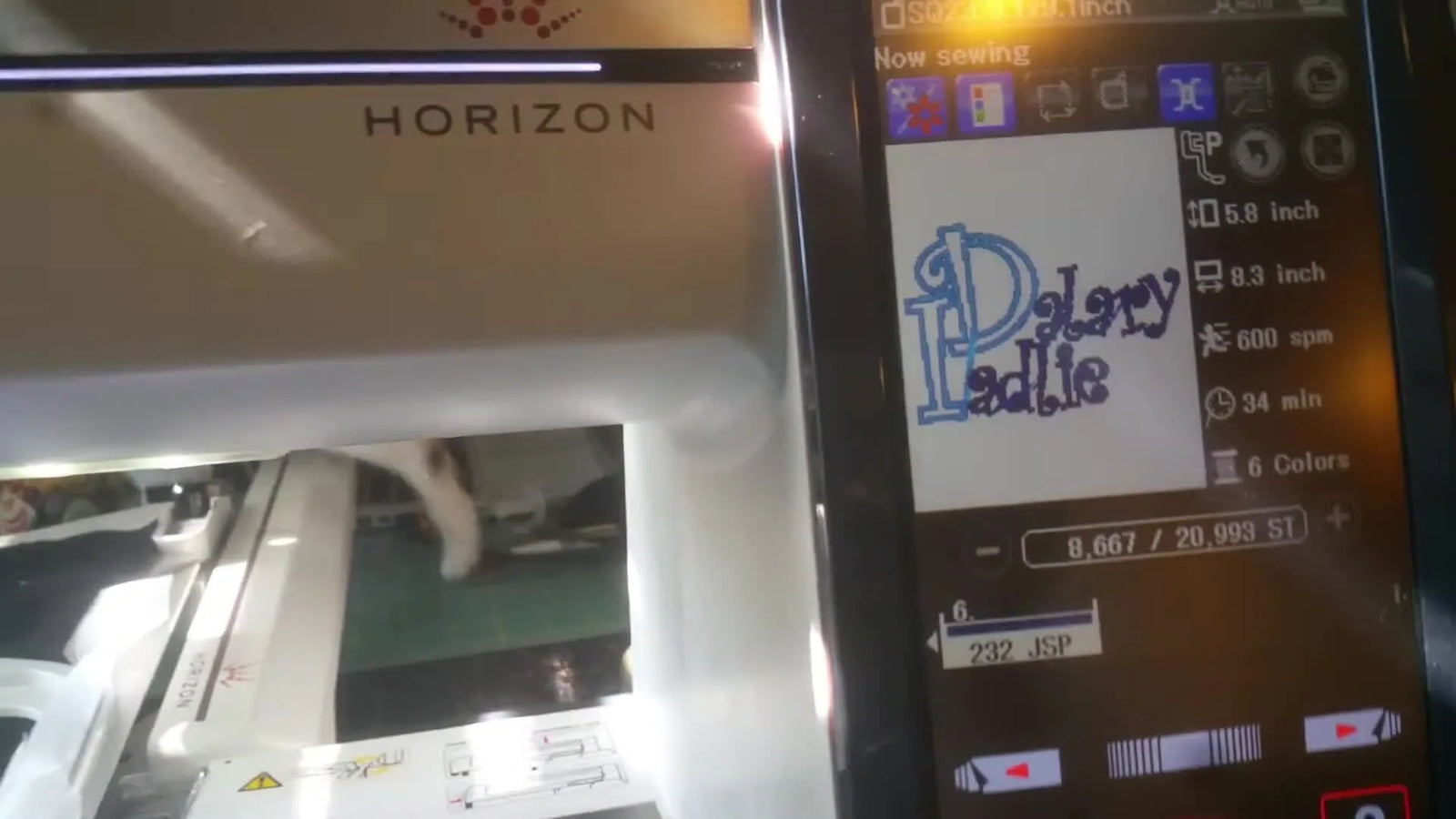

The Janome LCD “Truth Panel”: Reading 600 SPM, 20,993 Stitches, and Hoop SQ23 Before You Commit

The LCD screen is your pre-flight instrument panel. Do not just hit "Start." Interpret the data:

• 20,993 Stitches: This is a "Heavy" design. It requires a fully wound bobbin. Do not start this with a partial bobbin.
• 34 Minutes: This is the stitching time, not the project time. Add 10 minutes for thread changes and appliqué trimming. This is a 45-minute commitment.

Setup Checklist (The Last 60 Seconds)

• Hoop Security: Is the hoop locked firmly into the machine arm? Give it a gentle wiggle; it should not move.
• Presser Foot Height: Is the foot set correctly? (Too high = skipped stitches; Too low = dragging fabric).
• Thread Path: Is the thread caught on the spool pin? (Common cause of sudden snaps).
• Design Orientation: Is the design right-side up? (Double-check visually on screen).

If you are comparing different machine embroidery hoops, this is the stage where ergonomic frustration usually sets in with standard hoops—struggling to get the screw tight enough without hurting your wrist.

The Long Run (04:00–17:59): Managing Hoop Travel, Vibration, and Fabric Drag While “Ladlie” Stitches Out

As the machine moves to the second line of text, specifically the "L," the hoop arm is extending further out. This increases the leverage on the mechanism.

The "Fabric Drag" Phenomenon

• The Risk: If the excess fabric of the shirt/item hangs off the table, its weight drags on the hoop. This can cause the hoop to "lag," resulting in registration errors (where the outline doesn't match the fill).
• The Fix: Support the weight of the item. Hold the excess fabric gently in your lap or use a machine extension table. Do not let it hang freely.

Sensory Monitoring

• Touch: Touch the motor housing occasionally. Warm is fine; hot implies struggle.
• Sight: Monitor the Color Change sequence. Ensure you have the correct red thread staged for the next swap.


The Appliqué “L” Satin Border: Where Most People Get Hoop Burn or Edge Gaps (and How to Avoid Both)

By the time you reach the "L" border, the fabric has been under tension for 20 minutes. This is where "Hoop Burn"—shiny, crushed rings on the fabric—becomes set in.

The Solution: Magnetic Force

Traditional hoops rely on friction and brute force screwing. This crushes the fabric fibers (velvet and corduroy are especially vulnerable).

• The Upgrade: This is where magnetic embroidery hoops drastically change the game. Instead of crushing the fabric between two rings, they use magnetic force to sandwich the fabric.
• Benefits:
  1. Zero Hoop Burn: No friction rings to iron out later.
  2. Speed: You can hoop a thick towel or a tricky bag in seconds, not minutes.
  3. Tension Control: The magnets adjust automatically to the thickness of the fabric, eliminating the guesswork of "how tight is too tight?"

Warning: Magnetic Field Safety
Magnetic hoops use high-powered Neodymium magnets.
* Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a safe distance (usually 6 inches+) if you have a pacemaker or ICD.
* Electronics: Keep phones, credit cards, and USB sticks away from the magnet zones.

Stabilizer Decision Tree for Name Appliqué on Black Fabric (Tear-Away Worked Here—But Don’t Copy Blindly)

The video shows tear-away, but blind copying leads to ruined garments. Use this Decision Tree to choose your "infrastructure":

START HERE: What is your base fabric?

1. Is it a Knit/Stretchy? (T-shirt, Polo, Hoodie, Jersey)
   • Yes $\rightarrow$ CUT-AWAY Stabilizer. (Mandatory. No exceptions).
   • No $\rightarrow$ Go to Step 2.
2. Is it a Stable Woven? (Denim, Canvas, Twill, Non-stretch Cotton)
   • Yes $\rightarrow$ TEAR-AWAY is acceptable. (Use Medium Weight, 2.5oz).
3. Does it have a Nap/Pile? (Towel, Velvet, Fleece)
   • Yes $\rightarrow$ Add WATER SOLUBLE TOPPING on top to prevent stitches from sinking.
   • No $\rightarrow$ Stabilizer on bottom is sufficient.

Is the design extremely dense (over 20k stitches)?

• Yes $\rightarrow$ Add a second layer of stabilizer (floated underneath) or use a heavier weight backing.


Troubleshooting the Three Scariest Outcomes: Shifting, Puckering, and Satin That Won’t Cover the Appliqué Edge

Even with good prep, things go wrong. Here is how to diagnose the crime scene:

1. Symptom: The "Gap of Doom" (Appliqué edge peeks out)

• Likely Cause: The fabric shrank inward as stitches were added (Pull Effect), OR the insert was trimmed too loosely.
• Immediate Fix: If caught early, stop. Use a matching marker to color the exposed fabric.
• Prevention: Use a Fusible (Heat n Bond) on the back of the generic appliqué fabric to stick it continuously to the stabilizer.

2. Symptom: Puckering (Ripples around the letters)

• Likely Cause: Insufficient stabilization. The fabric is buckling under the stress of the thread.
• Immediate Fix: Slide ("Float") a piece of tear-away stabilizer under the hoop while it is still attached to the machine to add rigidity.
• Prevention: Use Cut-Away stabilizer and Spray Adhesive.

3. Symptom: Birdnests (Tangle of thread under the plate)

• Likely Cause: Upper threading error (thread slipped out of the tension disks).
• Immediate Fix: Don't pull! Cut the nest carefully. Re-thread with the presser foot UP (this opens the tension disks to accept the thread).


The Upgrade Path That Actually Saves Time: From Better Hooping Workflow to Magnetic Frames (and When Multi-Needle Starts Making Sense)

If you are stitching names for hobby gifts, your bottleneck is patience. If you are doing this for profit, your bottleneck is Setup Time and Color Changes.

The "Pain Point" Upgrade Logic

• Pain Point: "My hands hurt / I can't hoop thick items."
  • Diagnosis: Physical fatigue is the enemy of consistency.
  • Tool Upgrade: magnetic embroidery hoops. They eliminate the physical strain of tightening screws and dragging fabric. For single-needle machines, this is the highest ROI accessory you can buy.
• Pain Point: "I spend more time changing threads than stitching."
  • Diagnosis: This designs has 6 color changes. On a single needle, that is 6 stops where you must cut, re-thread, and restart.
  • Tool Upgrade: A Multi-Needle Machine (like SEWTECH models).
    • The Shift: You set up 6 (or 10 or 15) colors at once. The machine handles the swaps automatically. You press start and walk away.
    • The Value: You gain back the "babysitting time." While the machine runs 45 minutes of appliqué, you are hooping the next three shirts.
• Pain Point: "My embroidery machine hoops leave permanent marks."
  • Diagnosis: Hoop Burn ruining delicate inventory.
  • Tool Upgrade: MaggieFrame or similar Magnetic Hoops. The flat magnetic clamping force distributes pressure evenly, virtually eliminating burn marks.


The Finished Look in the Hoop: What “Good” Should Look Like Before You Tear Away the Backing

The final overhead shot shows the full name completed. Do not unhoop yet! This is your final Quality Control checkpoint.

Operation Checklist (Post-Flight)

• Coverage Check: Inspect all satin borders. Are any raw edges showing?
• Registration Check: Are the outlines aligned with the fills?
• Bobbin Thread: Look at the back. You should see 1/3 white bobbin thread in the center of the satin columns. If you see only top thread on the back, your tension is too loose.
• Trim Check: Are there any jump threads (connecting lines) that need snipping?

Pro Tip: If you see a mistake, it is often easier to fix it while still in the hoop (by backing up stitches) than trying to align it manually later.

A Final Word for Janome 15000/12000 Owners: Make This Repeatable, Not Just Possible

The video demonstrates that a calibrated setup—correct hoop size, appropriate speed, and patience—yields professional results.

To move from "Hobbyist" to "Pro," stop relying on luck.

1. Standardize your stabilizers.
2. Upgrade your hooping method (consider magnetic frames to remove the variable of hand-strength).
3. Listen to your machine.

Embroidery is 20% art and 80% engineering. Once you master the engineering of the setup, the art takes care of itself.

FAQ

• Q: What is the safest stabilizer choice for large satin appliqué lettering on a Janome Horizon Memory Craft 12000 when the fabric is a T-shirt or hoodie?
  A: Use cut-away stabilizer as the default for any knit/stretch fabric, because tear-away can break down under dense satin stitches.
  • Choose: Switch to cut-away for T-shirt, polo, hoodie, jersey, or anything with elastane.
  • Add: Use spray adhesive to keep fabric from “floating” over the stabilizer.
  • Add: If the design is very dense (around 20k stitches), float a second layer underneath for extra rigidity.
  • Success check: After stitching, the fabric around the letters stays flat with minimal ripples and the satin edges stay registered.
  • If it still fails: Reduce speed to the 600–700 SPM safety zone and re-check hooping neutrality (flat, taut, not stretched).
• Q: How should fabric feel when hooping a large name design in a Janome SQ23 (9.1" x 9.1") hoop to avoid distortion after unhooping?
  A: Hoop the fabric flat and neutral—taut without stretching—because “drum tight” hooping can distort the design after release.
  • Align: Square the fabric grain parallel to the hoop grid before tightening.
  • Press: Seat the inner ring evenly; avoid pulling the fabric on bias while tightening the screw.
  • Leave: Keep a safety margin around the design (about 1 inch on all sides when possible) to reduce edge tension issues.
  • Success check: The fabric surface is smooth with no “tenting,” and the weave is straight rather than skewed.
  • If it still fails: Use a hooping station as a third hand to keep alignment consistent while tightening.
• Q: What needle, trimming tools, and “hidden consumables” are most important before starting dense appliqué satin borders on a Janome Horizon Memory Craft 12000?
  A: Start with a fresh 75/11 needle (ballpoint for knits, sharp for wovens), use light spray adhesive, and trim with curved appliqué scissors for clean satin coverage.
  • Replace: Install a fresh needle before the run to reduce fabric push-down and thread issues.
  • Spray: Apply a light mist of temporary adhesive to bond fabric to stabilizer and reduce shifting.
  • Trim: Cut appliqué insert fabric close to the tack-down line (about 1–2 mm) using curved appliqué scissors.
  • Success check: The satin column looks smooth and can “roll” slightly over the appliqué edge without bumps.
  • If it still fails: Re-trim the insert closer (carefully) and confirm stabilizer matches fabric type (cut-away for knits).
• Q: How can Janome Horizon Memory Craft 12000 owners prevent birdnesting (thread nests under the needle plate) during a heavy appliqué name stitch-out?
  A: Re-thread the upper thread with the presser foot UP and do not yank the nest, because most birdnests start from the thread missing the tension disks.
  • Stop: Halt the machine immediately when nesting starts.
  • Cut: Trim the tangled thread mass carefully; avoid pulling fabric or thread forcefully.
  • Re-thread: Lift the presser foot fully, then re-thread the entire upper path so the thread seats into the tension disks.
  • Success check: The next few stitches form cleanly with no underside loops and the thread feeds smoothly.
  • If it still fails: Confirm the needle is fresh and the thread is not snagging on the spool pin/thread path.
• Q: What causes “gap of doom” edge exposure on satin-bordered appliqué initials, and what can be done mid-run on a Janome Horizon Memory Craft 12000?
  A: Edge gaps usually come from fabric pull/shrink or trimming too far from the tack-down, so stop early and camouflage or stabilize before continuing.
  • Stop: Pause as soon as exposed appliqué edge appears.
  • Mask: Use a matching fabric marker to color the exposed edge if the gap is small and early enough to save the piece.
  • Prevent: Use fusible on the back of the appliqué insert fabric to keep the insert continuously bonded during stitching.
  • Success check: After continuing, the satin border fully covers the appliqué edge with no raw fabric peeking through.
  • If it still fails: Increase stabilization (heavier or double-layer) rather than over-tightening thread tension.
• Q: What is the safest way to trim threads or adjust appliqué during stitching on a Janome Horizon Memory Craft 12000 running around 600 SPM?
  A: Never put fingers inside the hoop area while the machine is moving—stop the machine completely and wait for the safe/idle state before reaching in.
  • Stop: Press stop and wait until motion fully ceases and the machine indicates it is no longer running.
  • Clear: Remove scissors/seam rippers from the sewing deck before restarting to avoid accidental strikes.
  • Check: Do a quick “hand sweep” around the hoop travel path before resuming.
  • Success check: The hoop can travel its full path without catching fabric, tools, or hands near the needle area.
  • If it still fails: Reposition excess garment fabric so it cannot drift into the hoop travel zone.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops to reduce hoop burn on delicate fabrics?
  A: Treat magnetic hoops as pinch hazards and keep magnets away from medical devices and sensitive electronics.
  • Keep clear: Hold magnets by the edges and keep fingers away from mating surfaces when they snap together.
  • Separate: Maintain a safe distance (commonly 6 inches+) from pacemakers/ICDs and follow the device guidance.
  • Protect: Keep phones, credit cards, and USB devices out of the magnet zone.
  • Success check: The fabric is held securely with minimal or no hoop burn rings after unhooping.
  • If it still fails: Re-seat the magnetic frame evenly and verify the fabric is supported so its weight is not dragging on the hoop.
