Mastering the Janome Memory Craft 500E: The Ultimate Production Guide for Beginners

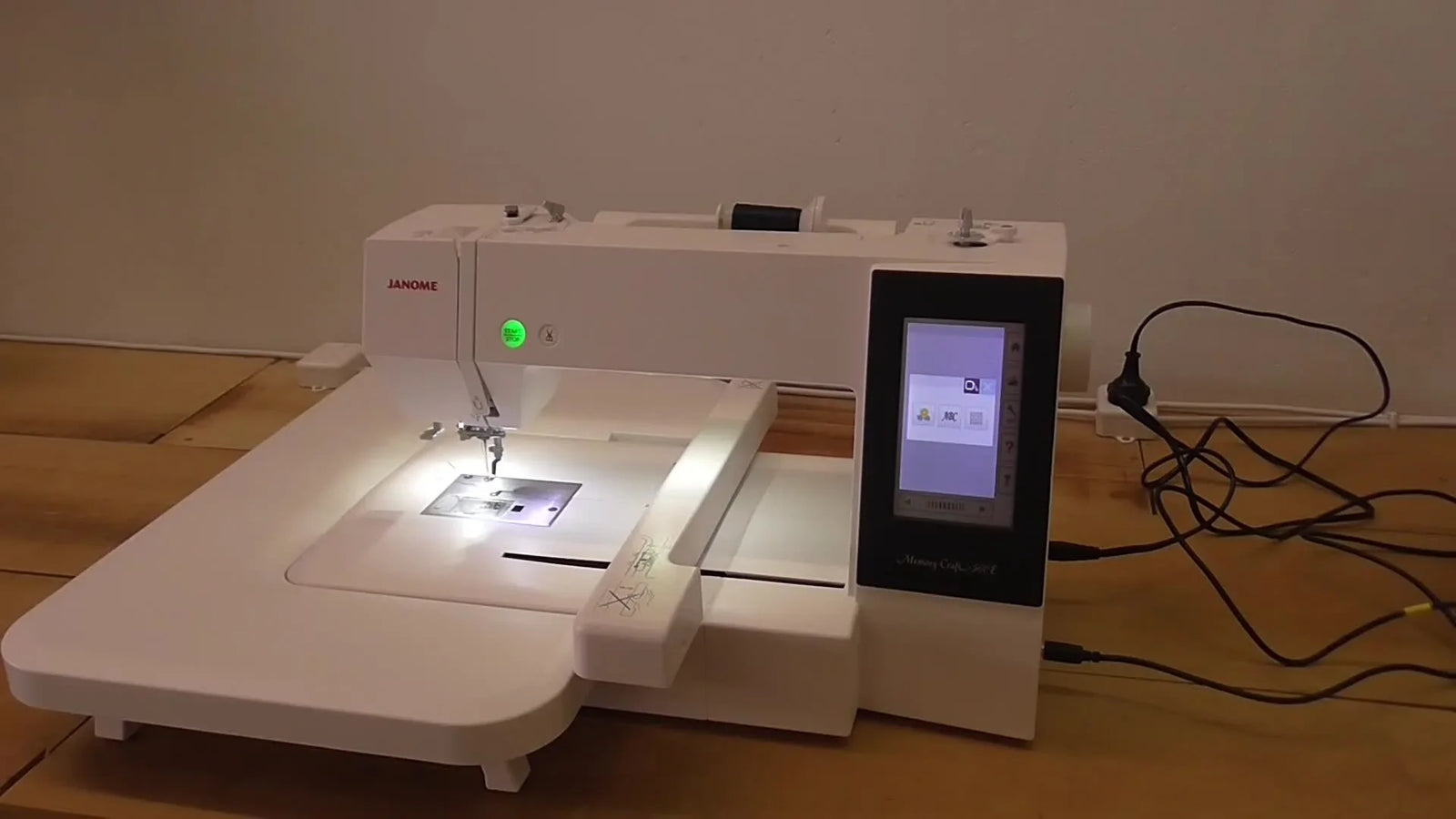

If you just unboxed a Janome Memory Craft 500E and your brain is already spinning—icons, hoops, folders, “Ready to Sew” numbers, and that auto-threader that feels like it has a mind of its own—take a breath. The anxiety you feel is normal; it’s the gap between "buying a machine" and "learning a trade."

This machine is a workhorse, but embroidery is a constant battle against physics. Fabric wants to pucker, thread wants to snap, and hoops want to slip. Your job is to create a repeatable, calm workflow that neutralizes these variables.

What follows is not just a manual rewrite. It is a "field-tested" operational standard procedure (SOP). We will cover the physical setup, the sensory checks you need to perform (what a good machine sounds like), and how to troubleshoot like a technician. We will also discuss when to rely on skill, and when to upgrade your tools to solve valid production bottlenecks.

1. Physical Foundation: Choosing the Right Hoop

The demo starts with the two hoops that typically come standard (depending on your region):

• RE28b rectangular hoop: 200 mm x 280 mm (approx. 7.9" x 11")
• SQ20b square hoop: 200 mm x 200 mm (approx. 7.9" x 7.9")

These aren't just plastic frames; they are your tension management systems. The RE28b is massive—great for jacket backs—but requires more rigorous stabilization to prevent the center from "flagging" (bouncing up and down). The SQ20b offers tighter control for square designs like quilt blocks.

The "Hoop Burn" Reality Check

Scenario: You start embroidering delicate items or dark fabrics. You notice a shiny, crushed ring where the plastic hoop clamped down. This is called "hoop burn," and it is often permanent. The Fix:

• Level 1 (Skill): Use a layer of water-soluble topping or felt between the hoop ring and the good side of the fabric.
• Level 2 (Tool): If you are doing frequent production, this is why professionals search for janome memory craft 500e hoops specifically made with magnetic retention. Magnetic hoops hold fabric flat without the mechanical crushing force of a thumbscrew, eliminating burn marks on sensitive textiles.

2. The "Hidden" Prep: Fabric, Stabilizer, and Hooping Discipline

In the stitch-out portion, we use white woven test fabric with tear-away stabilizer, hooped in the SQ20b.

This works for a test, but let's talk physics. Woven cotton is stable (it doesn't stretch). If you were using a T-shirt (knit), you must use Cutaway stabilizer. Using tear-away on a T-shirt is the #1 cause of design distortion.

The "Drum Skin" Myth

There is a common misconception that hooped fabric should be tight as a drum.

• Wrong: If you hammer it tight and stretch the fabric, once you unhoop it, the fabric snaps back, and your embroidery wrinkles.
• Right: It should be "taut like a trampoline." Firm, flat, but the weave of the fabric should remain square and undistorted.

Prep Checklist: The "Zero-Friction" Start

• Consumables Check: Do you have the right needle? (Ballpoint for knits, Sharp for wovens).
• Stabilizer Match: Woven = Tear-away; Knit = Cutaway or Poly-mesh.
• Size Buffer: Cut your stabilizer 1 inch larger than the hoop on all sides.
• Tactile Check: Run your hand over the hooped area. If you feel a "bubble" or looseness in the corners, re-hoop. Do not hope the machine will fix it. Use a temporary spray adhesive (like 505 spray) to bond the fabric to the stabilizer for extra security.

Warning: Needle Safety. Keep fingers clear of the needle area during operation. Never reach under the presser foot while the machine is running. If you drop a small scissor or looking-glass near the needle bar, stop the machine completely before retrieving it.

3. Navigation: The Janome 500E Cockpit

On the start screen, the interface is divided into three logical entry points:

• Flower icon: Built-in designs (your playground for testing).
• ABC icon: On-board lettering (great for names, dates).
• Grid icon: The editing suite (combining, resizing).

On the right side, there is a crucial button: The Lock Key.

Expert Insight: The Lock Key is not just for safety; it engages the machine's electronic brakes and aligns the embroidery arm for threading. If your auto-threader is malfunctioning, it is likely because you didn't press Lock first.

If you are documenting your setup for a workshop, categorize this under hooping for embroidery machine setup, because screen setup is useless if the hoop isn't secure.

4. The "Ready to Sew" Data Audit

Once a design is selected, the Ready to Sew screen appears. Do not blindly press start. This is your "Pre-Flight Check."

Required data points to scan:

• Design Size vs. Hoop Size: Does it fit with margin?
• Stitch Count: 16,794 stitches (shown). Estimation rule: A machine running at 600 SPM averages 10,000 stitches per 20 minutes with trims/stops.
• Speed: The demo shows 860 SPM (Stitches Per Minute).
  • Pro Tip: For your first 10 hours, lower this to 600 SPM. Speed causes vibration; vibration causes thread breaks. Learn slow, earn fast.
• Tension: 2.6 (Auto). Start here, but trust your eyes (more on this later).




5. The Insurance Policy: Trace & Baste

Why do beginners ruin expensive garments? Placement errors. The machine offers two distinct insurance policies:

1. Trace: The machine moves the hoop to show the boundaries of the design. Watch the needle (without stitching) to ensure it doesn't hit the plastic hoop frame.
2. Baste: This is vital. It stitches a long, loose box around your design area.
   • Physics: This locks the fabric to the stabilizer one last time before the heavy stitching begins.
   • Commercial workflow: If you are using a hooping station for machine embroidery, your placement should be accurate, but Basting is your final verification. If the basting box looks crooked, you can rip it out in 10 seconds and fix it. If you embroider the design crooked, the garment is trash.

6. The Editing Lab: Design Manipulation

The demo shows a real-world scenario: Combining a UFO and Spaceship.

The Workflow:

1. Delete the default logic.
2. Import UFO (Home -> Flower -> UFO).
3. Resize (The 20% Rule): The demo shrinks it to 80%.
   • Note: Do not resize more than 20% up or down on the machine. The machine calculates stitches, but extreme resizing can make stitches too dense (breaking needles) or too sparse (showing fabric).
4. Drag to Top-Left.
5. Import Spaceship.
6. Rotate 45°.




7. Lettering: Typography Tactics

Adding "Space Jam" text.

• Font: Gothic / Horizontal / Medium.
• Manipulation: Rotate to fit between icons.






Hidden Consumable: If you are stitching lettering on a fluffy towel or fleece, the loops of the fabric will poke through the skinny letters. You must use a "Water Soluble Topping" (like Solvy) on top. This keeps the stitches floating above the fabric nap.

8. Threading: The Industrial Path

Threading is the #1 source of troubleshooting tickets. The 500E uses a specific path that mimics industrial machines to regulate flow.

The Critical Sensory Check: When you pull the thread up through the tension discs and the take-up lever, you should feel resistance. It should feel like flossing your teeth—a slight drag.

• If the thread pulls through effortlessly with zero drag, it has missed the tension discs. Result: Massive birdnesting on the back of the fabric.


Making the Auto-Threader Work

The auto-threader is a precision mechanism, not a brute-force tool.

1. LOCK the machine.
2. Cut the thread cleanly (no spit, no fuzz).
3. Hook under the guide -> across the cutter -> Release gently.


Troubleshooting: If the hook misses the eye, your needle might be slightly bent. Even a microscopic bend (invisible to the eye) can misalign the threader. Change the needle.

9. The Stitch-Out: Operation SOP

The Launch Sequence:

1. Green Light: Press Start/Stop.
2. The "Tail Check": Let it stitch 5-6 times. STOP.
3. Trim: Snip the starting thread tail close to the fabric. If you don't, the machine will stitch over it, leaving an ugly line under your beautiful embroidery.
4. Resume: Press Start.

Operation Checklist: Listen to your Machine

• The Sound: A happy embroidery machine makes a rhythmic "thump-thump-thump."
• The Bad Sound: A dry "clack-clack" (needle needs changing) or a grinding "chunk-chunk" (birdnest forming). Even if the machine doesn't stop, PAUSE and investigate strange noises immediately.

10. Structured Troubleshooting: From Panic to Fix

Do not guess. Follow this "Low Cost -> High Cost" diagnosis path.

11. Decision Tree: Do You Need to Upgrade?

A common question in the comments: "Should I buy this or a multi-needle?" or "Why can't I hoop straight?"

Use this Commercial Logic to decide your next move.

Scenario A: The Hobbyist

• Volume: 1-5 items a week.
• Primary Goal: Fun, gifts, learning.
• Verdict: Stick with the Janome 500E and standard hoops. Master the manual skills.

Scenario B: The "Side Hustle" (The Fatigue Zone)

• Volume: 20+ items a week.
• Pain Point: Hand/Wrist pain from tightening screws; "Hoop Burn" on expensive shirts.
• Verdict (Tool Upgrade): Keep the machine, but upgrade your hoops. Look for magnetic embroidery hoops for janome 500e. These allow you to hoop thick items (towels, jackets) instantly without mechanical screws. This solves the physical pain and quality issues without buying a new machine.

Warning: Magnetic Hazard. High-quality magnetic hoops use industrial-strength magnets (Neodymium). They can snap together with crushing force. Keep fingers clear of pinch points and keep them away from pacemakers or sensitive electronics.

Scenario C: The Production Shop

• Volume: 50+ items, multi-color logos.
• Pain Point: Constant thread changes are killing your profit margin. Standard single-needle machines require you to stop and swap thread for every color.
• Verdict (Platform Upgrade): It is time for a Multi-Needle Machine (like SEWTECH). A multi-needle allows you to load 10-15 colors at once. You press "Start" and walk away while it finishes the entire logo. This is the only way to scale a profitable business.

Summary & Upgrade Path

The Janome Memory Craft 500E is a fantastic entry point into the world of embroidery. It is capable, but it is unforgiving of sloppy preparation.

• If your issue is technique (threading, digitizing), no new machine will fix it. Practice the SOPs above.
• If your issue is physical workflow (hooping consistnecy, hoop burn), look for re28b hoop upgrades or magnetic frames.
• If your issue is speed (changing colors), look at multi-needle solutions.

Start with the [FIG-02] basics, trace your design, baste your fabric, and listen to the rhythm of the machine. Happy stitching.

FAQ

• Q: How do I prevent Janome Memory Craft 500E hoop burn marks on delicate or dark fabrics when using the RE28b or SQ20b hoop?
  A: Reduce clamp pressure marks by adding a protective layer and avoiding over-tight hooping; this is common and often preventable.
  • Add: Place water-soluble topping or a thin felt layer between the hoop ring and the fabric right side before tightening.
  • Hoop: Keep fabric taut and flat, not “drum tight,” to avoid crushing and shine.
  • Choose: Use the smallest hoop that comfortably fits the design to reduce needed clamping force.
  • Success check: After unhooping, no shiny ring or crushed nap is visible around the hooped area.
  • If it still fails: Consider switching to a magnetic hoop system to hold fabric flat without a thumbscrew-style crushing force (follow all magnetic safety rules).
• Q: What is the correct Janome Memory Craft 500E hooping tightness standard to prevent puckering and crooked designs?
  A: Hoop the fabric “taut like a trampoline,” not stretched like a drum, so the fabric weave stays square.
  • Align: Smooth fabric and stabilizer together before tightening so corners do not bubble.
  • Feel: Run a hand across the hooped area and re-hoop immediately if any looseness or “bubble” is felt.
  • Secure: Use temporary spray adhesive to bond fabric to stabilizer for extra security when needed.
  • Success check: Fabric is flat and firm, and the weave/knit is not visibly distorted inside the hoop.
  • If it still fails: Use the machine Baste function as a final placement/grip check; if the basting box looks crooked, stop and re-hoop.
• Q: How do I choose stabilizer correctly on a Janome Memory Craft 500E to stop T-shirt knit distortion and design warping?
  A: Use cutaway (or poly-mesh) for knits and tear-away for stable wovens; using tear-away on a T-shirt is a common distortion cause.
  • Match: Select tear-away for woven cotton tests; select cutaway or poly-mesh for T-shirts/knits.
  • Cut: Trim stabilizer at least 1 inch larger than the hoop on all sides.
  • Bond: Use temporary spray adhesive to keep fabric and stabilizer moving as one.
  • Success check: After stitching and unhooping, the design shape stays true and the surrounding fabric does not ripple or skew.
  • If it still fails: Re-check hooping tightness and use Baste to lock layers before the dense stitching begins.
• Q: How do I stop Janome Memory Craft 500E birdnesting (thread clumps under the hoop) right after pressing Start?
  A: Re-thread the upper thread completely, because missing the tension discs or take-up lever is the most common cause.
  • Re-thread: Raise/route the thread through the full path, ensuring it seats into the tension discs and take-up lever.
  • Do: Perform the “resistance test” by pulling the thread—there should be slight drag, not zero resistance.
  • Reset: Stop early, clear the nest, and restart with a clean thread path.
  • Success check: The machine forms clean stitches without a growing thread wad under the fabric, and the stitch sound stays rhythmic instead of grinding.
  • If it still fails: Inspect the bobbin area for deep lint buildup or burrs in/around the bobbin case.
• Q: How do I fix Janome Memory Craft 500E upper thread shredding or breaking during embroidery?
  A: Change the needle first, because a dull or contaminated needle commonly shreds thread.
  • Replace: Install a fresh needle (and avoid needles that may be sticky from spray adhesive).
  • Slow: Reduce speed to 600 SPM during early learning or when troubleshooting to reduce vibration-related breaks.
  • Inspect: Check the thread path for any rough spot that could be cutting thread.
  • Success check: Thread runs smoothly with consistent stitch formation and no repeated snapping in the same area.
  • If it still fails: Re-check threading (missed guides can create drag in the wrong place) and inspect for burrs along the path.
• Q: What is the safest way to use the Janome Memory Craft 500E auto-threader when the hook keeps missing the needle eye?
  A: Lock the Janome Memory Craft 500E before threading and switch to a new needle if alignment is off; even a tiny bend can defeat the threader.
  • Lock: Press the Lock Key to engage the electronic brake and align the embroidery arm for threading.
  • Cut: Trim thread cleanly so the end is sharp and not fuzzy.
  • Guide: Follow the intended auto-threader steps gently—do not force the mechanism.
  • Success check: The threader reliably pulls a loop through the needle eye without repeated attempts.
  • If it still fails: Replace the needle immediately and try again; a microscopic needle bend is a common cause.
• Q: What safety rules should beginners follow on a Janome Memory Craft 500E to avoid needle injuries and magnetic hoop pinch hazards?
  A: Keep hands clear of the needle area at all times, stop the machine before reaching in, and treat magnetic hoops as crush hazards.
  • Avoid: Never reach under the presser foot while the Janome Memory Craft 500E is running.
  • Stop: Fully stop the machine before retrieving scissors or any dropped tool near the needle bar.
  • Handle: Keep fingers away from magnetic hoop pinch points; magnets can snap together with crushing force.
  • Success check: Hands stay outside the needle/hoop movement zone during operation, and magnetic hoop parts are controlled during placement/removal.
  • If it still fails: Slow down the workflow—use Trace and Baste to reduce rushed hands-on corrections while the machine is moving.
• Q: When should a Janome Memory Craft 500E user upgrade to magnetic hoops or to a SEWTECH multi-needle embroidery machine for production work?
  A: Upgrade based on the bottleneck: technique issues need SOP fixes, hooping pain/marks point to magnetic hoops, and color-change time at high volume points to multi-needle.
  • Diagnose: If problems are threading/hooping basics, fix the workflow first (re-thread, correct stabilizer, use Trace/Baste).
  • Upgrade tool: If weekly volume is rising and screw-tightening causes hand fatigue or hoop burn on premium garments, move to magnetic hoops for faster, gentler hooping.
  • Upgrade platform: If output is limited by constant thread changes on multi-color logos at higher volumes, consider a SEWTECH multi-needle machine to load many colors at once.
  • Success check: The chosen upgrade removes the specific bottleneck (less hoop burn/faster hooping, or fewer stops for thread changes) without creating new quality issues.
  • If it still fails: Re-audit the “Ready to Sew” screen (design size vs hoop, speed, tension) and stabilize/hoop again before blaming the machine.
