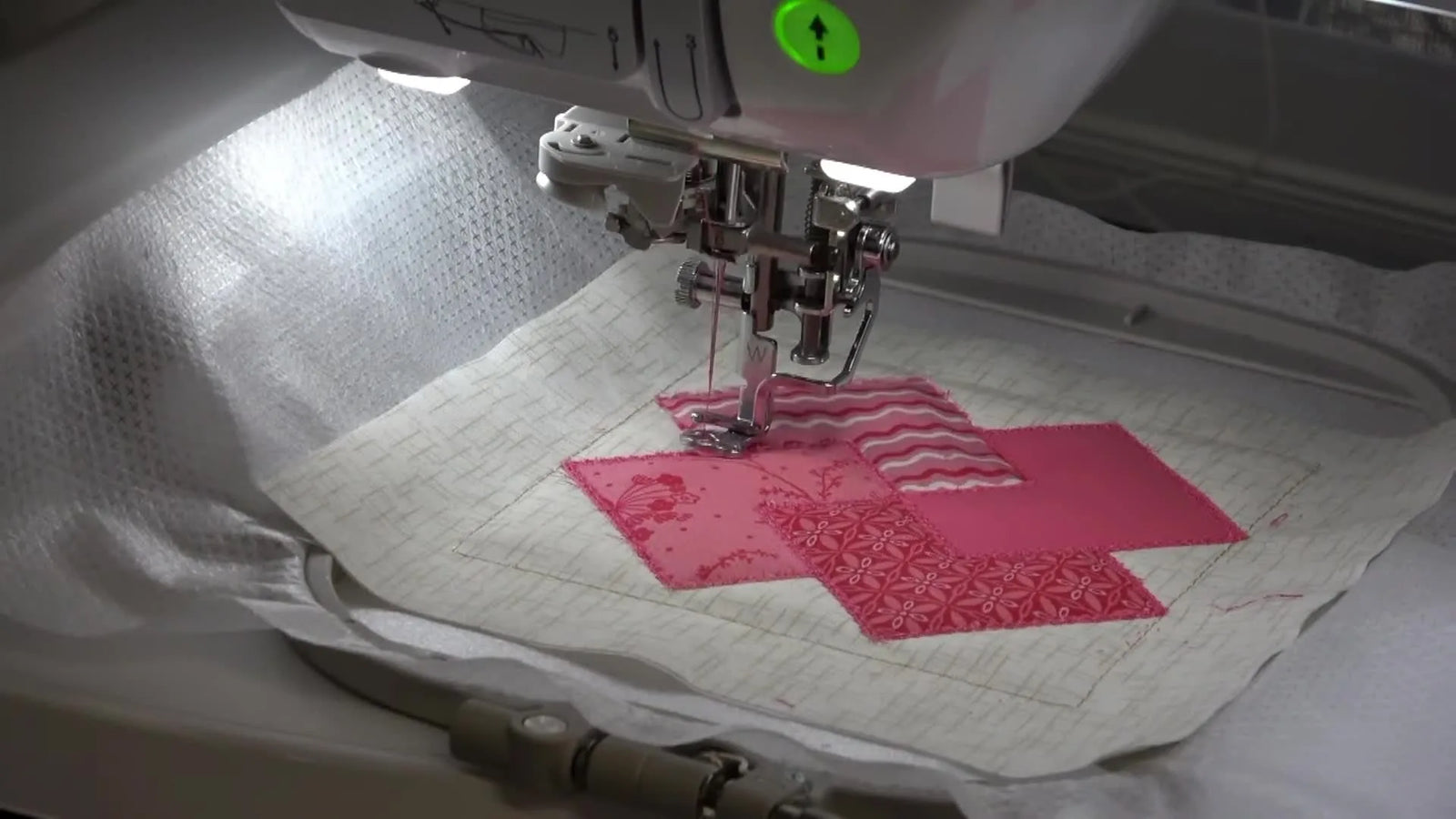

Kimberbell Cuties February “Card Trick” Block: Clean ITH Appliqué, Smarter Stitch Order, and a No-Panic Fix for Fabric Gaps

If you have ever stared at an in-the-hoop (ITH) appliqué block and thought, “One wrong fabric placement and I’m going to be picking stitches for three hours,” take a breath—you are not alone. Machine embroidery is an experience-based science, and ITH projects are where the variables of physics, fabric drag, and hoop tension collide.

The February Kimberbell Cuties “Card Trick” block is a perfect case study in why ITH feels high-stakes: batting goes in first, fabrics get placed and trimmed multiple times, and then a heavy background quilting design stitches over everything. If your foundation isn't solid, the final result will pucker.

However, the workflow demonstrated in this video is solid. More importantly, the “boo-boo fix” (patching a gap without ripping) is a technique that saves real production hours.

Below, I have rebuilt the full process into a clean, repeatable routine—software first, then hoop work, then trimming—recalibrated with the safety checkpoints and sensory cues that professional operators rely on.

The Calm-Down Primer for the Brother Luminaire + Kimberbell Cuties: Yes, This Block Is Forgiving

The presenter is working on a Brother Luminaire Embroidery Machine with a 5x7 hoop, stitching the February block. The thread plan is straightforward:

• Tan thread: Background quilting.
• Pink thread: February appliqué elements.

Novice embroiderers often panic when the machine sounds "angry" during dense fill stitches. In the video, the host notes that heavy stitching areas sound louder.

The Sensory Reality Check:

• The Sound: A rhythmic laboring or a slightly louder "thump-thump" is normal when the needle penetrates batting, stabilizer, and multiple fabric layers. It is the sound of density.
• The Warning Sign: A sharp, metallic "clack," a grinding noise, or a sudden loss of rhythm is not normal. That is your cue to stop immediately.

Start Slow: While machines like the Luminaire can run at high speeds, for ITH appliqué layers, I recommend capping your speed at 600–700 SPM (Stitches Per Minute). This gives you reaction time if a corner of fabric lifts, and it reduces the chance of needle deflection on thick seams.

Make Embrilliance Essentials Do the Thinking: Merge the Background Quilting + Appliqué and Reorder the Stitch Steps

The video’s first big win is handling the stitch order in Embrilliance Essentials so you are not fighting the machine's logic later. We want to avoid "menu diving" on the small screen.

Here is the cognitive chunking for the software phase:

1. Open the Foundation: Load the background quilting design in Embrilliance Essentials.
2. Visualize the Sequence: In the Objects panel, expand the list. You will see: Batting Placement $\rightarrow$ Batting Tack Down $\rightarrow$ Fabric Placement $\rightarrow$ Fabric Tack Down $\rightarrow$ Background Quilting.
3. Merge the Art: Open the appliqué design in a tab, right-click Copy, return to the quilting file, and Paste.
4. Re-Engineer the Order: In the Objects panel, click the background quilting finish step (usually the last step of the first file) and drag it to the very bottom.

Why this works: You are forcing the machine to perform the decorative quilting last, ensuring it stitches "over the top" of the cards and batting, creating that puffed, quilted texture.

If you are setting up professional hooping stations for batch production, this software prep is non-negotiable. It ensures your physical movement at the station is continuous, without pausing to check PDF manuals.

Load the Combined Design on the Brother Luminaire (Wireless/USB) Without Losing Center

On the Luminaire interface:

1. Tap Embroidery.
2. Select Memory $\rightarrow$ Wireless icon (or USB).
3. Load the modified background file $\rightarrow$ Set $\rightarrow$ Add.
4. Load the appliqué file if not already merged $\rightarrow$ Set.

The Center-Point Rule: The machine will automatically center the designs. Do not move them manually. The moment you manually jog the design off-center, you lose the ability to use the crosshairs on your hoop grid template for placement. Trust the digital center; focus your energy on physical coverage.

The “Hidden” Prep That Prevents 80% of ITH Headaches: Needle, Bobbin, Batting, and a Trimming Surface

Before the first stitch, we must control the variables. ITH projects fail because of Dull Needles or "Hoop Drag."

The Hidden Consumables List:

• Needle: 75/11 Organ or Schmetz Sharp/Microtex. (Ballpoint needles are not ideal here; they can push the batting down rather than piercing it cleanly).
• Bobbin: 60wt or 70wt pre-wound (The host uses Dime 70wt).
• Adhesive: A light mist of temporary spray adhesive (like Odif 505) is crucial for holding batting flat, though tape can work for small areas.

Prep Checklist (The "Pre-Flight" Safety Check):

• Fresh Needle Install: Verify the flat side of the needle shank faces the back. Push it up until it hits the stop bar. Tighten the screw.
• Bobbin Check: Ensure the bobbin unspools counter-clockwise (thread often forms a "P" shape).
• Thread Path: Thread the machine with Tan. Pull the thread near the needle; it should feel smooth with slight resistance (like flossing teeth), not loose and not snagging.
• workspace: Clear a flat area to the right of your machine for the June Tailor Cut ’n Press or similar firm mat.
• Scraps: Keep small appliqué scraps within reach for emergency patching.


Batting Placement in the 5x7 Hoop: “Bumpy Side Down,” Tack It, Then Trim Like You Mean It

The host stitches the placement line, then places the batting.

Methodology:

• Orientation: Batting often has a "scrim" (stabilizer) side and a lofty side. Place the bumpy/lofty side down toward the stabilizer. This prevents the "pimple effect" where texture pokes through your fabric.
• The Cut: After the tack-down stitch, remove the hoop. Place it on your hard surface.

Trimming Technique: Do not float the hoop in the air. Press the hoop firmly onto the table. angle your curved scissors slightly up so the bottom blade glides along the stabilizer without slicing it.

Warning: Physical Safety
Curved embroidery scissors and rotary cutters are surgical-grade tools. They are fast enough to injure you and sharp enough to slice through a stitch path in milliseconds.
* Never trim while the hoop is attached to the machine.
* Always keep your non-cutting hand behind the direction of the blade.

Fabric Placement + Tack Down: Cover the Line First, Then Worry About Pretty

After trimming the batting, the machine runs the fabric placement line.

The "Cover Protocol":

1. Fold your background fabric in half to crease a center line.
2. Align that crease with the hoop's center marks.
3. Visual Check: Look at the placement stitches. Does the fabric extend at least 1/2 inch beyond the stitches on all sides?
4. Tape it: Use embroidery tape on the corners. Fabric naturally wants to "shrink" toward the center as the foot drags across it; tape prevents this.


The Brother Luminaire “Needle +/-” Panel: Skip the Background Quilting Now, Come Back Later

This is the most confusing step for beginners. The machine is ready to stitch the background quilting, but we must skip it to do the appliqué first.

Action Steps:

1. Locate the Needle +/- icon (usually near the bottom of the screen).
2. Use the +100 or +10 buttons to advance through the stitch count.
3. Visual Confirmation: Watch the screen preview. You are looking for the needle position to jump past the dense fill pattern and land at the start of the first appliqué card placement line.

If you find yourself fatigued by the constant "remove hoop, trim, re-insert" cycle of ITH projects, this is a prime scenario where upgrading to a brother 5x7 magnetic hoop can save your wrists. Magnetic hoops allow you to pop the frame off and on without fighting a thumbscrew, maintaining precision while reducing physical strain.

The Knot Method Thread Change: Fast Color Swaps Without Re-Threading the Whole Path

To change from tan to pink, use the "Pull-Through" method to save time.

1. Cut the tan thread near the spool (not near the needle).
2. Tie the pink thread to the tan end using a tight overhand knot.
3. Release Tension: Raise the presser foot (this opens the tension discs).
4. Pull: Pull the tan thread from the needle side until the knot comes through.

Crucial Safety Note: Do not pull the knot through the needle's eye. Cut the thread just above the knot when it reaches the needle bar, then thread the eye manually. Pulling a knot through a 75/11 needle can bend the needle or damage the eye.

The ITH Appliqué Rhythm (Cards 1–4): Placement Line → Fabric Down → Tack Down → Trim Close

We now enter the repetitive cycle. The quality of your final block depends on your trimming discipline here.

The Sequence:

1. Placement Stitch: Machine shows you where to put the fabric.
2. Place & Tape: Fabric Right Side Up. Match the grain if using directional prints (like the squiggly lines in the video).
3. Tack Down Stitch: Machine secures the fabric.
4. Trim: Remove hoop to table. Trim close.

Refining the Trim (The 1mm Rule): The decorative satin stitch that follows is often narrow (3mm–4mm). If you leave 2mm of fabric tail, it will poke out (the "Fray Halo"). You must trim within 1mm of the stitch line.

The “Fray Halo” Problem: Stop, Lift Fibers, Trim Again, Then Restart

In the video, the host notices she didn't cut close enough. This is a critical learning moment.

The Fix:

1. Stop/Remove: Do not guess. Take the hoop off.
2. Tactile Check: Run your fingernail over the edge of the fabric.
3. The Lift: Use the tip of your scissors to "fluff" or lift the raw edge fibers up, away from the stabilizer.
4. The Snip: Lay the scissors flat and trim those lifted fibers. This gets you flush with the stitches.


The “Boo-Boo” Save: Fix an Appliqué Gap by Layering a Scrap and Backing Up One Step

Failure scenario: The fabric shifted, and the tack down stitch missed the edge, leaving a hole.

The "Patch and Pray" Protocol:

1. Do NOT rip stitches. Ripping distorts the stabilizer and ruins tension.
2. Overlay: Place a scrap of the same fabric over the hole (and the surrounding area).
3. Backtrack: Use the Needle - button to go back to the start of that specific Tack Down color stop.
4. Re-Stitch: Run the tack down again. It will stitch over the original (failed) fabric and your patch.
5. Double Trim: Remove hoop and carefully trim the excess patch away.

The result is virtually invisible because the satin stitch covers the layered edge.

When the Machine Sounds “Unhappy” on Dense Spots: What to Watch

The video host notes the machine gets loud in the center.

Troubleshooting: Noise vs. Danger

If you struggle with "Needle Drag" or slipping fabric, a dime snap hoop or similar magnetic system provides consistent pressure around the entire perimeter, unlike standard hoops that only pinch the edges.

Go Back and Run the Background Quilting in Tan: Find the Right Step Before You Hit Start

Appliqué is done. Now we quilt.

1. Thread Change: Switch back to Tan.
2. Navigation: Use Needle - (Minus) to scroll backwards through the design.
3. Visual Confirmation: Watch the screen until you see the background quilting pattern highlighted in the preview.
4. Verification: Before pressing start, ensure the presser foot is not trapped on a raw edge of the appliqué you just finished.


Square the Block to a True 5.5" Using the Center-Out Method (2.75" Each Direction)

We do not cut based on the outer edge of the fabric; we cut based on the math of the center.

1. Release: Pop the block out of the hoop. Remove the stabilizer (tear-away) or trim it (cut-away).
2. Locate Center: Find the center embroidery mark.
3. The Math: For a 5.5" block, you need 2.75" from the center to each edge.
4. The Cut: Align your ruler's 2.75" mark on the center embroidery point. Trim the right side. Rotate 90 degrees. Align 2.75" on center and align your previous cut with the 5.5" line. Trim.


Stabilizer + Hooping Decision Tree for ITH Appliqué Quilting

Using the right support system prevents puckering.

Decision Tree: Stabilizer & Hoop Selection

• Scenario A: Single Block, woven cotton fabric.
  • Solution: Medium-weight Tear-away stabilizer + Spray Adhesive. Standard Hoop.
• Scenario B: Knit/Stretchy fabric (T-shirt quilt).
  • Solution: Fusible No-Show Mesh (Cut-away). Do not stretch while hooping.
• Scenario C: High-Volume Production (50+ blocks).
  • Solution: Medium Tear-away. Magnetic Hoop to reduce operator fatigue.
• Scenario D: Fabric keeps slipping/Instruction calls for "Floating".
  • Solution: hooping station for embroidery to hold stabilizer taut while you position fabric, coupled with a magnetic frame to snap it in place without distortion.

Warning: Magnetic Hoop Safety
If you choose to upgrade to magnetic hoops (like the 5.5 mighty hoop or similar):
* Pinch Hazard: These magnets are industrial strength. Keep fingers clear of the snapping zone.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Storage: Store with the provided plastic shield between magnets to prevent locking.

The Upgrade Path That Actually Makes Sense for ITH

ITH appliqué is a "high-touch" workflow: hoop, stitch, remove, trim, repeat. This cycle exposes the limitations of standard tools.

• Level 1: The Essential Consumables. Before upgrading machines, upgrade your interface. Sharp, double-curved scissors (like Gingher 4-inch) and a dedicated spinning trim mat are mandatory for clean appliqué.
• Level 2: The Workflow Upgrade. If you are doing this for business and experiencing "Hoop Burn" (shiny ring marks on fabric) or wrist pain, standard hoops are the bottleneck. A machine-specific magnetic hoop (search for dime magnetic hoop for brother) eliminates the thumbscrew fight and protects delicate fabrics.
• Level 3: The Scale Upgrade. If you find yourself waiting on thread changes or re-threading for every single block, you have outgrown the single-needle machine. A SEWTECH Multi-Needle Embroidery Machine allows you to preset the Tan and Pink threads on separate needles, cutting production time by 30-40% per block. This is the shift from "hobbyist" to "manufacturer."

The “Do This, Not That” Rules

• DO use the "Needle +/-" function to verify your start point. DO NOT just guess based on stitch count.
• DO use a scrap patch to save a gap. DO NOT use a permanent marker to color in the gap (it bleeds when washed).
• DO trim your jump stitches before running the background quilting. DO NOT let the foot catch a loop and drag your appliqué.

Run the Block Like a Pro: The Repeatable Operation Rhythm

Final Operation Checklist:

• 1. Setup: Design Merged. Order customized. Thread Tan.
• 2. Foundation: Batting placement $\rightarrow$ Place "Bumpy Down" $\rightarrow$ Tack $\rightarrow$ Trim.
• 3. Anchor: Fabric placement $\rightarrow$ Cover line $\rightarrow$ Tape $\rightarrow$ Tack.
• 4. The Skip: Jump forward past quilting steps.
• 5. Appliqué Cycle: Thread Pink. Place Card 1 $\rightarrow$ Stitch $\rightarrow$ Trim $\rightarrow$ Repeat for all cards.
• 6. The Quilt: Thread Tan. Jump back to quilting step. Verify. Stitch.
• 7. Finish: Remove. Tear stabilizer. Center-out trim to 5.5".

FAQ

• Q: What needle, bobbin thread, and adhesive are a safe starting point for Brother Luminaire ITH appliqué quilting with batting and multiple fabric layers?
  A: Use a fresh 75/11 Sharp/Microtex needle, a 60wt–70wt pre-wound bobbin, and a light mist of temporary spray adhesive to keep batting flat.
  • Install: Insert the needle with the flat side to the back, push fully up to the stop bar, and tighten firmly.
  • Load: Confirm the bobbin unwinds counter-clockwise (often looks like a “P” when held).
  • Apply: Mist adhesive lightly (or tape small areas) so batting does not ripple during tack-down stitches.
  • Success check: The machine runs with steady, even stitches and the batting stays smooth with no bubbles or shifting.
  • If it still fails… Replace the needle again and re-check threading feel near the needle (smooth with slight resistance, not snaggy or loose).
• Q: How do Brother Luminaire operators skip the background quilting step using the Brother Luminaire “Needle +/-” panel during Kimberbell Cuties “Card Trick” ITH appliqué?
  A: Advance the stitch position with the Brother Luminaire Needle “+” controls until the preview lands on the first appliqué placement line, not the quilting fill.
  • Find: Tap the Needle +/- icon and use +100 or +10 to move forward quickly.
  • Watch: Confirm on-screen that the needle position jumps past the dense background quilting and into the appliqué card placement sequence.
  • Pause: Stop as soon as the preview shows the first appliqué placement line start point.
  • Success check: The next stitches are a clean placement outline for fabric, not dense quilting.
  • If it still fails… Slow down and advance in smaller increments while watching the preview rather than relying on stitch counts.
• Q: How can Brother Luminaire users prevent puckering when hooping batting for a 5x7 ITH appliqué block (batting placement, tack-down, and trimming technique)?
  A: Place batting with the bumpy/lofty side down toward the stabilizer, tack it, then trim on a hard flat surface without cutting the stabilizer.
  • Place: Stitch the placement line, then lay batting bumpy side down and keep it flat (adhesive helps).
  • Trim: Remove the hoop and press it firmly on a table/mat; angle curved scissors slightly up so the lower blade glides along stabilizer.
  • Avoid: Do not trim while the hoop is attached to the machine.
  • Success check: Batting edges are cleanly trimmed at the tack-down line, and the fabric later lays smooth without ripples.
  • If it still fails… Re-hoop with better stabilizer tension and reduce handling “drag” by keeping the hoop supported on the table during trimming.
• Q: How do Brother Luminaire users stop fabric from shrinking toward the center during ITH fabric placement and tack-down stitches on Kimberbell Cuties blocks?
  A: Cover the placement line by at least 1/2 inch on all sides and tape corners so fabric cannot creep under foot drag.
  • Crease: Fold the background fabric to make a center crease, then align the crease to the hoop center marks.
  • Verify: Confirm fabric extends at least 1/2 inch beyond the placement stitches on every side before stitching.
  • Secure: Tape the corners to prevent fabric pull-in during stitching.
  • Success check: After tack-down, the fabric edge still fully covers the placement outline with no exposed gaps.
  • If it still fails… Re-check hoop tension (stabilizer too loose can increase shifting) and consider using light adhesive to reduce fabric movement.
• Q: How do Brother Luminaire users fix a “fray halo” when appliqué fabric was not trimmed close enough before the satin stitch?
  A: Stop, remove the hoop, lift the raw fibers, and trim again within about 1 mm of the stitch line.
  • Inspect: Run a fingernail along the appliqué edge to feel for fabric tails that will peek out.
  • Lift: Use the tip of scissors to gently lift fibers up away from the stabilizer.
  • Snip: Lay scissors flatter and trim the lifted fibers closer to the stitch line.
  • Success check: The edge feels smooth to the touch, and the satin stitch covers the edge with no fabric shadow showing.
  • If it still fails… Repeat the lift-and-snip step before continuing—guessing usually makes the halo worse.
• Q: How do Brother Luminaire users repair an ITH appliqué gap (tack-down missed the fabric edge) without ripping stitches using the Brother Luminaire Needle “-” button?
  A: Patch the hole with a matching scrap, back up to the tack-down color stop using Needle “-”, re-stitch, then trim the patch clean.
  • Overlay: Place the same fabric scrap over the gap, covering the hole and surrounding area.
  • Backtrack: Use Needle “-” to return to the start of the specific tack-down step for that piece.
  • Re-stitch: Run the tack-down again over the original fabric and the patch, then remove hoop and double-trim.
  • Success check: After the satin stitch finishes, the repair becomes visually hard to detect because the edge is covered.
  • If it still fails… Confirm the scrap fully covers the placement area before re-stitching; do not rip the original stitches because distortion often worsens alignment.
• Q: What sounds are normal on a Brother Luminaire during dense ITH quilting, and what sounds mean Brother Luminaire operators should stop immediately to prevent birdnesting or needle drag?
  A: A louder rhythmic “thud-thud” is often normal density, but a sharp metallic clack, grinding, or a sudden rhythm change is a stop-now warning.
  • Listen: Expect louder laboring when stitching through batting, stabilizer, and layered fabrics.
  • Stop: If grinding/crunching starts, stop and check for thread bunching under the throat plate (birdnesting).
  • Check: If a slapping/flagging sound happens, improve hooping tension and consider light adhesive to reduce fabric lifting (needle drag).
  • Success check: Stitching returns to a steady rhythm with clean underside thread formation and no thread wad under the plate.
  • If it still fails… Reduce speed to a calmer range like 600–700 SPM for more reaction time and re-check hoop tightness before restarting.
• Q: What are the key safety rules for using magnetic embroidery hoops and magnetic frames during high-touch ITH appliqué workflows?
  A: Treat magnetic hoops like industrial clamps: keep fingers clear when snapping, keep magnets away from pacemakers, and store with the protective shield to prevent locking.
  • Protect: Keep fingers out of the snap zone; magnets can pinch fast and hard.
  • Separate: Maintain at least 6 inches distance from pacemakers and similar medical devices.
  • Store: Use the provided plastic shield/spacer between magnets so the frames do not lock together.
  • Success check: The hoop closes cleanly without finger pinch events and re-opens without magnets binding unexpectedly.
  • If it still fails… Slow down the closing motion and reposition hands—most pinches happen when rushing the snap.
