Left Chest Logo Placement on Polo Shirts: The “4 Down, 4 Over” Method That Keeps Your Embroidery Level (Even Without a HoopMaster)

Left-chest logos look “simple”… until you deliver one that’s a few degrees crooked and the customer can’t unsee it. That 3-degree tilt transforms a $25 polo into a rag.

If you’re hooping polos and tees for a home embroidery business, the real struggle isn’t the digitizing or the color choice—it’s the physical engineering of placement. You need a workflow that makes the logo repeatable, level relative to the wearer’s body (not the table), and fast enough to actually turn a profit.

As someone who has ruined their fair share of shirts in the early days, I can tell you: frustration usually comes from guessing. This post rebuilds the exact workflow from the video: the classic “4 inches down, 4 inches over” placement, followed by a critical leveling trick using an acrylic jig.

We will move beyond just "how-to" and look at the "why"—the physics of fabric shifting—and explore how upgrading tools like magnetic frames for embroidery machine can save your wrists and your sanity.

The calm-before-you-hoop: tools that keep left chest placement consistent on polo shirts

You don’t need a $600 commercial placement station to start getting professional results. However, you do need a toolkit that removes variables. In embroidery, variables are the enemy of consistency.

The video demonstrates a low-tech, high-accuracy setup. Here is the breakdown of what is shown, plus the "Hidden Consumables" professionals keep nearby that beginners often forget.

The Negotiable vs. Non-Negotiable Kit:

• The Ruler: A clear acrylic ruler is preferred because you see the fabric grain through it.
• Acrylic Placement Jig: The specific tool in the video features pre-calculated scales for left/right chest and shoulder slope.
• Marking Tool: White chalk or a soapstone marker. Pro Tip: Avoid wax-based tailor's chalk on performance polyester; it melts into the fibers under heat.
• Stabilizer (Backing): This is the foundation. For polos, you generally need a Cutaway stabilizer.
• Hoop Option A (The Standard): The green hoop in the video. Reliable, but prone to "hoop burn" (friction marks).
• Hoop Option B (The Upgrade): The blue magnetic frame. This allows for hooping without forcing rings together, reducing fabric shine.
• Steam Iron: Your "Undo Button" for stubborn chalk marks.

Hidden Consumables (Don't start without these):

• Temporary Spray Adhesive (e.g., KK100 or 505): Essential if you are "floating" backing or need the shirt to stick to the stabilizer without shifting.
• Double-Sided Basting Tape: A lifesaver for holding slick performance fabrics in place on the underside of the hoop.

If you’re currently fighting slow hooping, hoop burn (those shiny rings ensuring the fabric is crushed), or inconsistent tension, this is where a tool upgrade makes logical sense. Searching for solutions like magnetic frames for embroidery machine is usually the first step embroiderers take when they realize standard hoops are the bottleneck in their production line.

Prep Checklist (Do this BEFORE you mark anything)

• Surface Check: Ensure your work table is waist-height to prevent back fatigue. Lay the polo flat and smooth, ensuring the placket (button area) isn't twisting underneath.
• Reference Point ID: Locate the bottom of the neck seam. Do not use the top edge of the collar; collars are stretchy and unreliable. The seam where the collar meets the shirt body is your "North Star."
• Residue Test: Mark a small line on the inside hem or armpit of the shirt with your chalk. Wipe it. If it smears or stays, switch markers.
• Stabilizer Prep: Cut your stabilizer (backing) about 1 inch larger than your hoop on all sides.
• Hoop Selection: Decide now—Standard or Magnetic? This changes how you align your crosshairs.

Warning: Mechanical & Pinch Hazards
Embroidery involves sharp objects and strong forces.
1. Needles: Ensure your machine has a fresh needle (Ballpoint 75/11 is the "Sweet Spot" for most knit polos).
2. Hoops: Keep fingers clear when handling hoops. Standard hoops can pinch skin between rings. Magnetic frames snap shut instantly—never hover your fingertips between the magnets while aligning.

The “4 inches down, 4 inches over” left chest embroidery placement rule (and where people measure wrong)

The video establishes a baseline placement for adult shirts that acts as the industry standard "Sweet Spot":

1. Vertical: 4 inches down from the bottom of the neck seam.
2. Horizontal: 4 inches over from the exact center line of the button placket.

That intersection is your Target Center Point. If you command your machine to trace the design, the center of your needle should drop exactly on this crosshair.

The Sensory Check: The host notes that on many adult polos, this point naturally lands between the bottom two buttons. This isn't a rule, but it's a great visual anchor. If your mark is level with the top button, you are too high (design will choke the wearer). If it's below the pocket area, it will look like a belly stain.

The Critical Error: Do not measure from the top of the collar. Collars fold, roll, and stretch. The neck seam is the structural anchor of the garment.

A comment-driven reality check: does “4 and 4” work for Small through 5XL?

One viewer inevitably asks: "Does this work for a Ladies' Small and a Men's 5XL?"

The Expert Answer: No, "4 and 4" is not a universal law; it is a starting coordinate for Adult Medium through 2XL.

Here is an Empirical Safe Zone for different sizes so you don't have to guess:

• Youth / Ladies Small: Scale down to 3.5 inches down / 3.5 inches over.
• Adult M - XL: Stick to the 4 inches / 4 inches standard.
• Barbaric Sizes (3XL - 5XL): You may need to move to 4.5 or 5 inches over to prevent the logo from falling into the armpit, but keep the vertical drop similar.

Commercial Strategy: If you are doing a mixed run (e.g., 50 shirts of various sizes), measure and mark your "Master Shirt" (a Large) first. Then, as you mark the Smalls and 3XLs, hold them up against your body to visually confirm the logo sits on the pectoral muscle, not the clavicle or the gut.

The leveling trick that stops crooked logos: using an acrylic jig against shoulder seams

This is the "Secret Sauce." Beginners align their ruler to the bottom hem of the shirt. This is a trap. Shirt hems are often cut crookedly or twist after washing.

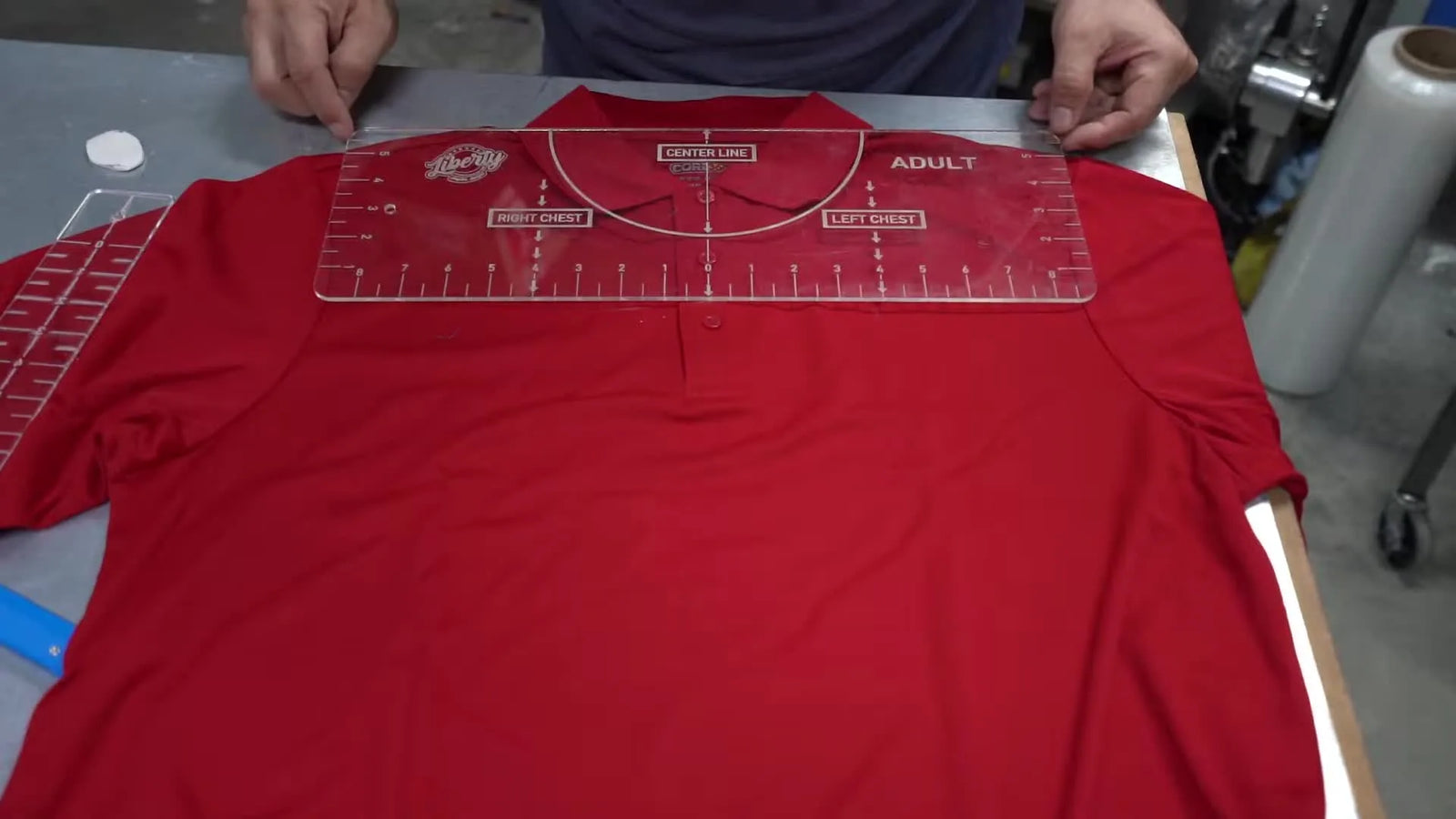

The video uses an acrylic jig to make the placement level relative to the shoulder seams. This ensures that when the human wears the shirt, the logo hangs straight, even if the shirt is cheap.

The Step-by-Step Jig Method:

1. Place the jig’s center notch directly on your 4-inch-down vertical mark.
2. Rotate the jig until the measurement numbers on the left and right shoulder scales match.
   • Visual Anchor: If the left shoulder reads "5.5" on the scale, rotate the jig until the right shoulder also reads "5.5".
3. You have now triangulated the center based on the shirt's construction. This visual line is your "True Horizontal."




Why this works (The Physics of Draping)

Polos are knits. They are fluid. When you lay them on a table, you introduce "shear"—the fabric distorts into a parallelogram.

By referencing the shoulder seams, you are aligning to the skeleton of the garment, which sits on the skeleton of the customer. The hem doesn't matter; the shoulders do. This is the difference between "technically straight" and "optically straight."

Marking a clean crosshair: chalk vs soap markers, and how to avoid “ghost lines” after hooping

Once the jig is locked in a level position, the video shows marking a large, bold crosshair:

1. Draw a long horizontal line along the bottom edge of the leveled jig.
2. Draw the vertical line at the 4-inch "over" mark.

The "Ghost Line" Fear: The video host highlights a massive pain point: Stubborn Chalk. There is nothing worse than finishing a perfect embroidery job only to find the white chalk line refuses to leave the navy blue shirt.

Material Science:

• Wax Chalk: Great visibility, terrible removability. Avoid on polyester.
• Soapstone / Ceramic Chalk: A powdery mark that brushes off easily.
• Air/Water Soluble Pens: Great for light shirts (purple ink), but invisible on black shirts.

If you are looking to professionalize your setup, researching efficient marking and hooping for embroidery machine workflows is critical. It shifts your mindset from "crafting" to "production."

Pro Tip: If using a soap-based marker, keep the edge sharp. A thick, dull line introduces a 2-3mm margin of error, which is visible to the naked eye as a tilt.

Standard hoop alignment on a polo shirt: make your hoop center marks impossible to miss

The video demonstrates the standard hoop method (green hoop). This is the "Foundation Skill" every embroiderer must master before upgrading.

The Enhanced Visibility Hack: The host does something brilliant: He uses a marker to darken and extend the molded center lines on the inner hoop ring.

• Why? Factory marks are often subtle ridges only visible in perfect light. By tracing them with a black sharpie, you create a high-contrast target.

The Hooping Sequence:

1. Unbutton: Open the top buttons to allow the collar to spread flat (but measure first!).
2. Insert: Place the outer hoop (with the screw) inside the shirt.
3. Sandwich: Slide your Cutaway Stabilizer between the outer hoop and the shirt bottom.
4. Align: Place the inner hoop on top. Match the Sharpie marks on the hoop exactly to your chalk crosshair.
5. Press: Push straight down.






Sensory Check (The "Drum Skin" Test): After hooping, run your fingers over the fabric. It should feel taut within the ring, but not stretched to the point of distorting the weave. If the vertical ribbing of the polo looks like waves, you pulled too tight.

Setup Checklist (Standard Hoop Method)

• Coordinate Check: Verified 4" down (neck seam) x 4" over (placket).
• Leveling: Jig reads identical numbers on both shoulders.
• Crosshair: Lines are thin, crisp, and meet at 90 degrees.
• Hoop Prep: Center marks on the hoop are clearly visible/darkened.
• Integration: Stabilizer is smooth underneath; no wrinkles capable of breaking a needle.

Magnetic hooping on polos: faster, cleaner, but you must control the snap

This is where the video pivots to the modern solution: Magnetic Frames.

Using standard hoops all day causes repetitive strain injuries (RSI) in wrists and often leaves "hoop burn" (crushed velvet/fabric circles) that are hard to remove.

The Magnetic Workflow:

1. Base: Slide the metal bottom frame inside the shirt.
2. Float: Place your top magnetic frame gently over the fabric. Do not snap yet.
3. Adjust: Slide the frame until the notches align with your chalk crosshair.
4. Confirm: Check alignment one last time.
5. Commit: Let the magnets snap together.




The Learning Curve: The host shows a real-world issue: As the magnets get close (about 1 inch away), they want to jump. This "jump" can shift the fabric by 5mm, ruining your centering.

• Technique: You must develop a "Controlled Descent." Hold the top frame firmly, aligning it visually, and lower it straight down. Do not slide it sideways.

Warning: Magnetic Field Safety
Magnetic frames for embroidery machine use powerful Neodymium magnets.
Pacemaker Alert: Keep these frames at least 6 inches away from pacemakers or insulin pumps.
Pinch Risk: These magnets do not "close gently." They slam shut. Keep loose skin and other metal tools away from the closing zone.

When a magnetic frame is the right upgrade (and when it’s not)

If you have a customized single-needle machine at home, standard hoops work. But if you have a business plan, time is money.

The "Tool Ladder" for Business Growth:

1. Level 1 (Skill): Mastering the jig & standard hoop. (Cost: $0).
2. Level 2 (Efficiency): Upgrading to magnetic embroidery hoops. This solves hoop burn and speeds up hooping by 30-50%.
3. Level 3 (Scale): Upgrading to a generic or branded multi-needle machine (like SEWTECH). This allows you to set up the next shirt while the current one is stitching.

The query for magnetic hoop style frames usually coincides with a business owner realizing they cannot physically hoop 50 shirts in a day with screw-tightened hoops without hurting their hands.

The “steam erases everything” finish: removing chalk marks without damaging the shirt

The video conducts a "Stress Test" on mark removal.

• Attempt 1: Water/Alcohol spray. Result: Smearing, ghost lines remain.
• Attempt 2: Direct Steam. Result: Instant disappearance.




This is a vital "Pre-Delivery" step. Never hand a customer a shirt with faint grid lines.

The Physics: Steam relaxes the fibers and dissolves the binding agent in soapstone/ceramic chalk.

• Action: Hover your iron about 1 inch above the fabric and blast it with steam. Do not press the iron plate directly onto the embroidery, or you will flatten your beautiful satin stitches.

A simple decision tree: stabilizer/backing choice for polos and tees

The video establishes placement, but placement fails if the shirt warps during stitching. You must choose the right foundation.

Decision Tree: Consumable Selection

• Question 1: Does the fabric stretch? (e.g., Pique Polo, T-Shirt, Performance Wear)
  • YES: MUST use Cutaway Stabilizer.
    • Why? The stabilizer stays forever to support the stitches. Tearaway will eventually disintegrate, leaving the heavy logo to sag on the stretchy shirt.
  • NO (e.g., Denim, Canvas, Woven Shirt): You can use Tearaway Stabilizer.
• Question 2: Is the shirt slippery? (e.g., Dri-Fit, Silk)
  • YES: Use Fusible Cutaway or spray your stabilizer with temporary adhesive to lock the fabric grain to the backing.
• Question 3: Is the design very dense (high stitch count)?
  • YES: Use a heavier weight Cutaway (e.g., 2.5oz or 3.0oz). If you see puckering, your stabilizer is too weak for the stitch force.

Troubleshooting left chest placement: symptoms, causes, and fixes you can do today

If things go wrong, do not blame the machine immediately. In 90% of cases, it is physically induced.

The upgrade that actually pays you back: repeatable placement, faster hooping, and fewer remakes

If you are stitching for paying customers, profit is lost in rework. Every ruined shirt costs you the garment price + shipping + your time.

This workflow minimizes risk:

1. 4-down, 4-over creates a standard.
2. Jig leveling adapts to the shirt's imperfections.
3. Steam finishing ensures professional presentation.

If you find yourself bottlenecked by the physical act of hooping, looking into hoop master embroidery hooping station systems or simply upgrading to magnetic frames for your current machine is the logical next step.

And if your backlog of orders is growing faster than your single-needle machine can stitch, consider the leap to a multi-needle platform like SEWTECH. The combination of a production machine and consistent hooping tools like magnetic frames is the secret to scaling from a "hobbyist" to a "commercial shop."

Operation Checklist (The "No-Regrets" Run)

• [ ] Coordinate Verified: Crosshair is at the intersection of 4" down (neck seam) and 4" over (center).
• [ ] Level Verified: Jig shoulder numbers match perfectly (e.g., 5.5 / 5.5).
• [ ] Sandwich Check: Cutaway stabilizer is present and smooth under the hoop area.
• [ ] Alignment: Hoop center marks (darkened) align perfectly with chalk crosshair.
• [ ] Clearance: After loading onto the machine, verify the back of the shirt isn't bunched under the needle (The "Stitch-to-Self" disaster).
• [ ] Finish: Steam away all marks before packaging.

FAQ

• Q: Which marking tools prevent permanent chalk “ghost lines” on polyester polo shirts during left chest embroidery placement?
  A: Use soapstone/ceramic chalk (or a removable marker tested first) and remove marks with steam, not rubbing.
  • Test: Mark a small line inside the hem/armpit area, then wipe to confirm it releases cleanly.
  • Avoid: Skip wax-based tailor’s chalk on performance polyester because it can set into fibers under heat.
  • Remove: Hover a steam iron about 1 inch above the fabric and blast steam; do not press the iron onto the embroidery.
  • Success check: The crosshair disappears with steam and no faint white grid remains under room light.
  • If it still fails: Try steam again, then very gently use a Magic Eraser-style sponge on the mark area (test first).
• Q: What stabilizer/backing should be used for knit polo shirts and T-shirts to stop puckering on left chest logos?
  A: Cutaway stabilizer is the non-negotiable starting point for stretchy knits like polos and tees.
  • Choose: Use cutaway for pique polos, T-shirts, and performance wear; tearaway is better reserved for stable wovens like denim/canvas.
  • Upgrade: If fabric is slippery (Dri-Fit/slick knits), use fusible cutaway or add temporary spray adhesive to lock fabric to backing.
  • Match: If the design is very dense, move to a heavier cutaway option if puckering shows up.
  • Success check: The fabric stays flat around the stitched edge with no ripples forming during or after stitching.
  • If it still fails: Re-hoop with smoother backing and confirm the fabric was not stretched drum-tight in the hoop.
• Q: How can standard screw hoops be aligned to a left chest crosshair so the embroidery design traces dead-center every time?
  A: Darken and extend the hoop’s molded center marks, then match them exactly to a thin, crisp crosshair before pressing down.
  • Prep: Use a marker to trace the factory center lines on the inner ring so they are high-contrast and easy to see.
  • Align: Insert the outer hoop inside the shirt, sandwich the cutaway stabilizer, then place the inner hoop on top and match marks to the crosshair.
  • Press: Push straight down instead of “rolling” the hoop in, which can drag fabric off-center.
  • Success check: The fabric feels taut but not stretched (no wavy ribbing), and the needle drop/trace hits the crosshair intersection.
  • If it still fails: Re-check that measurements were taken from the neck seam (not the collar) and that the shirt is not twisted under the hoop.
• Q: What is the correct “drum skin” tension standard for hooping knit polos so the fabric is secure without distortion?
  A: The fabric should feel taut inside the hoop but not stretched enough to distort the knit structure.
  • Feel: Run fingers across the hooped area and confirm even tension without hard ridges or over-compression.
  • Look: Watch the polo’s vertical ribbing—if it turns wavy, the hooping is too tight or the fabric was pulled.
  • Adjust: Re-hoop by smoothing fabric flat rather than pulling it; let the hoop hold it, not your hands.
  • Success check: The knit grain stays straight and flat, and the surface tension feels even across the ring.
  • If it still fails: Switch to a magnetic frame to reduce over-tightening pressure and help prevent hoop burn on delicate knits.
• Q: What causes a crooked (tilted) left chest logo on polo shirts even when the ruler measurement is correct, and how is it fixed?
  A: The logo tilts when placement is leveled to the shirt hem instead of the shoulder seams; level using a shoulder-referenced jig.
  • Measure: Mark the target point using the bottom of the neck seam as the vertical reference (not the top of the collar).
  • Level: Rotate the acrylic jig until left and right shoulder readings match, then draw the horizontal line from that true level.
  • Mark: Draw a clean 90-degree crosshair with thin lines to reduce placement error.
  • Success check: The crosshair horizontal line visually matches the shoulder line, and the finished logo hangs straight when worn.
  • If it still fails: Hold the marked shirt up against the body to confirm optical straightness before hooping, then re-mark if needed.
• Q: What is the safest way to handle embroidery needles and hoops to prevent punctures and finger pinches during polo shirt hooping?
  A: Treat hooping as a pinch-and-puncture zone: use a fresh needle, keep fingers out of the closing path, and press straight down with palms.
  • Replace: Install a fresh needle before a run; a 75/11 ballpoint is a common sweet spot for knit polos (confirm with the machine manual).
  • Clear: Keep fingertips away from the hoop rim while seating the inner ring; standard hoops can pinch skin between rings.
  • Control: Press straight down rather than forcing at an angle, which can slip and jab fingers.
  • Success check: The hoop seats cleanly with no sudden slips, and the fabric is secured without excessive force.
  • If it still fails: Stop and reset the setup height/position so the press is stable and controlled, not done “in the air.”
• Q: What magnetic frame safety rules prevent pinch injuries and pacemaker risks during left chest embroidery hooping?
  A: Keep magnets away from medical implants and control the snap—never let fingers hover between magnets as the frame closes.
  • Distance: Keep magnetic frames at least 6 inches away from pacemakers or insulin pumps.
  • Hands: Remove rings/tools from the closing area and keep loose skin clear of the magnet path.
  • Close: Use a controlled descent—align first, then lower straight down; do not slide sideways as magnets pull together.
  • Success check: The frame closes without shifting the crosshair by several millimeters, and no “jump” occurs in the last inch.
  • If it still fails: Re-hoop and lower the top frame more deliberately; do not “nudge” the needle position to compensate for a shifted hoop.
• Q: How should a home embroidery business decide between skill fixes, upgrading to magnetic frames, or upgrading to a multi-needle embroidery machine for left chest logo production?
  A: Use a three-level ladder: fix placement skill first, upgrade hooping efficiency second, and upgrade machine throughput only when hooping and single-needle time become the bottleneck.
  • Level 1: Standardize placement (4" down from neck seam + 4" over from placket center as a baseline) and level with a shoulder-referenced jig.
  • Level 2: Move to magnetic frames when hoop burn, slow hooping, or wrist strain limits daily output and causes reworks.
  • Level 3: Move to a multi-needle platform when order volume requires stitching one garment while prepping the next to maintain profit.
  • Success check: Remakes drop, hooping time becomes predictable, and daily capacity increases without operator pain.
  • If it still fails: Track where time is lost (marking, hooping, or stitch time) and upgrade only the step that is truly limiting production.
