Lemon Lane ITH Glasses Case on a Brother Embroidery Machine: The Clean-Lining Trick, the “Shy Quarter” Trim, and How to Avoid Ruining the Last Seam

If you’ve ever reached the final seam of an In-The-Hoop (ITH) project and felt your stomach drop—because one wrong trim can cut stitches, one weak stabilizer can shred, and one misplaced lining can ruin the opening—you’re not alone. ITH projects are essentially engineering puzzles made of fabric.

This Lemon Lane glasses/phone case is an intermediate build that demands rigorous "layer management": two layers of tear-away in the hoop, batting floated and trimmed tight, lining taped to the underside, and a final triple-stitch construction seam. Done right, it looks boutique. Done sloppy, it looks homemade.

Below, I have rebuilt the process from the video into a "White Paper" standard operation procedure. I have added the sensory checkpoints and safety margins that experienced digitizers use but rarely write down.

The Calm-Down Primer for a Brother Embroidery Machine ITH Project: Nothing Is “Wrong,” It’s Just Layer Control

ITH projects feel stressful because you are building a physical object blind. You are constructing a "fabric sandwich" while the machine is running, meaning every variable—stabilizer density, tape adhesion, and hoop tension—compounds.

The video demonstrates this on a Brother embroidery machine with a standard 6x10 hoop and a Sweet Pea ITH file. The engineering logic here is simple:

1. Batting is floated: It is never hooped, only stitched down and trimmed. This reduces bulk in the hoop frame.
2. Lining is underslung: Placing it on the bottom of the hoop creates a finished edge automatically when the project is turned.
3. Triple Stitch Construction: The final seam uses a high-strength triple stitch to secure the thick stack.

If you are searching for a reliable baseline for a brother embroidery machine ITH workflow, this project is the perfect training ground for understanding "Blind Layering."

The “Hidden” Prep That Saves the Project: Stabilizer Strength, Batting Behavior, and Scissor Control

Before you press "Start," you must stabilize the physics of your hoop. An ITH project generates significant "pull" towards the center.

The Physics of the Stack

The video uses two layers of tear-away stabilizer. Why two? A single layer of standard tear-away (usually 1.5oz to 1.8oz) often cannot withstand the perforation of the final triple-stitch border without disintegrating. Two layers create a rigid "drywall" effect that keeps the project square.

Sensory Anchor (Touch): When you hoop your stabilizer, tap it. It should sound like a tight drum skin (thump-thump). If it sounds loose or dull, re-hoop. Loose stabilizer leads to registration errors where the outline doesn't match the filling.

Required "Hidden" Consumables

• Curved Embroidery Scissors (Double-Curve preferred): Essential for trimming inside the hoop without your knuckles hitting the needle bar.
• Non-Residue Tape: Using standard scotch tape is risky; it leaves gum on the needle. Use embroidery-specific tape or high-quality painter's tape.
• New 75/11 or 90/14 Needle: ITH projects involve thick layers. A dull needle will create a loud "thudding" sound and may bend.

Prep Checklist (Do this BEFORE attaching the hoop)

• Hooping: Hoop two layers of medium-weight tear-away. Verify "Drum Skin" tension.
• Batting Prep: Pre-cut batting 1-inch larger than the design area to ensure easy placement.
• Bobbin Check: Ensure you have a full bobbin (preferable 60wt or 90wt). Running out mid-seam on an ITH project is a nightmare.
• Placement: Pre-cut lining and outer fabrics. Iron them flat; wrinkles will be permanent once stitched.
• Tool Safety: Place your curved scissors on the right side (or dominant side) of the machine, clear of the carriage arm.

Warning: Mechanical Safety. Never trim fabric while the machine is running or paused if your fingers are near the needle zone. Always keep your trimming hand braced against the hoop frame, not the machine bed, to prevent accidental slips into the needle bar area.

Batting Placement on a Standard 6x10 Embroidery Hoop: Trim 1–2 mm Like You Mean It

Video action: Stitch the batting placement line, float batting, stitch tack-down, trim back 1–2 mm.

Expert Nuance: The goal here is bulk reduction. The batting must sit inside the final satin border, not under it. If batting sits under the satin stitch, the edge will look lumpy and amateurish.

The Micro-Steps

1. Run Placement: The machine stitches a single outline on the stabilizer.
2. Float: Spray a light mist of temporary adhesive (like Odif 505) on the back of the batting and float it over the outline. Do not hoop the batting.
3. Tack-Down: The machine secures the batting.
4. The Trim: Remove the hoop from the machine (keep the project in the hoop!). Use sharp curved scissors to trim the batting 1-2mm away from the stitch line.

Sensory Anchor (Visual): You should see a clear "channel" of stabilizer between the trimmed batting and the stitching. If the batting is touching the thread, you didn't trim close enough.

Pro-Tip: This constant removal of the hoop for trimming is where productivity dies. Professionals handling volume often look for a hooping station for machine embroidery to ensure that when they re-hoop or set up the next run, alignment is mathematically perfect, reducing manual adjustments.

The Clean-Lining Trick: Taping Lining Under the Hoop with a 0.25" Offset So the Optional Looks Store-Bought

Video action: Place lining fabric right side down on the underside, tape it, and place top fabric on top.

This is the "Mental Gymnast" move. You are working upside down.

The Gravity Problem

Gravity wants to pull your underside lining down, causing it to sag. If it sags, it will get caught in the feed dogs or the shuttle hook.

The "Tape Bridge" Technique

1. Invert: Flip the hoop over.
2. Placement: Place lining Right Side Down. Align the raw edge 0.25 inch (6mm) below the placement stitch line. This offset reduces bulk at the opening.
3. Secure: Use aggressive taping at the corners.
4. Verification: Flip the hoop right-side up. Run your hand under the hop to ensure the lining feels taut, not baggy.

Troubleshooting: If your machine makes a grinding noise or jams immediately after this step, the underside lining likely drooped and caught onto the needle plate. Stop immediately.

Triple Stitch Details on the Lemon Lane Panel: Why This Stitch Choice Helps Thick ITH Stacks

Video action: The machine runs a triple stitch (bean stitch) for details and construction.

Why Triple Stitch?

A standard run stitch (single pass) is too weak for a functional item like a glasses case. A triple stitch (forward-back-forward) creates a bold visual line and significantly stronger structural integrity.

However, triple stitches put 3x the thread into the same hole.

• Risk: If your stabilizer is loose, the repeated needle penetration will "chew" a hole through it.
• Mitigation: This is why we use two layers of stabilizer.

Also, if you are using standard machine embroidery hoops that rely on a simple thumb-screw, the vibration of a triple stitch usually loosens the fabric tension over time. Check your hoop screw tightness every 5000 stitches.

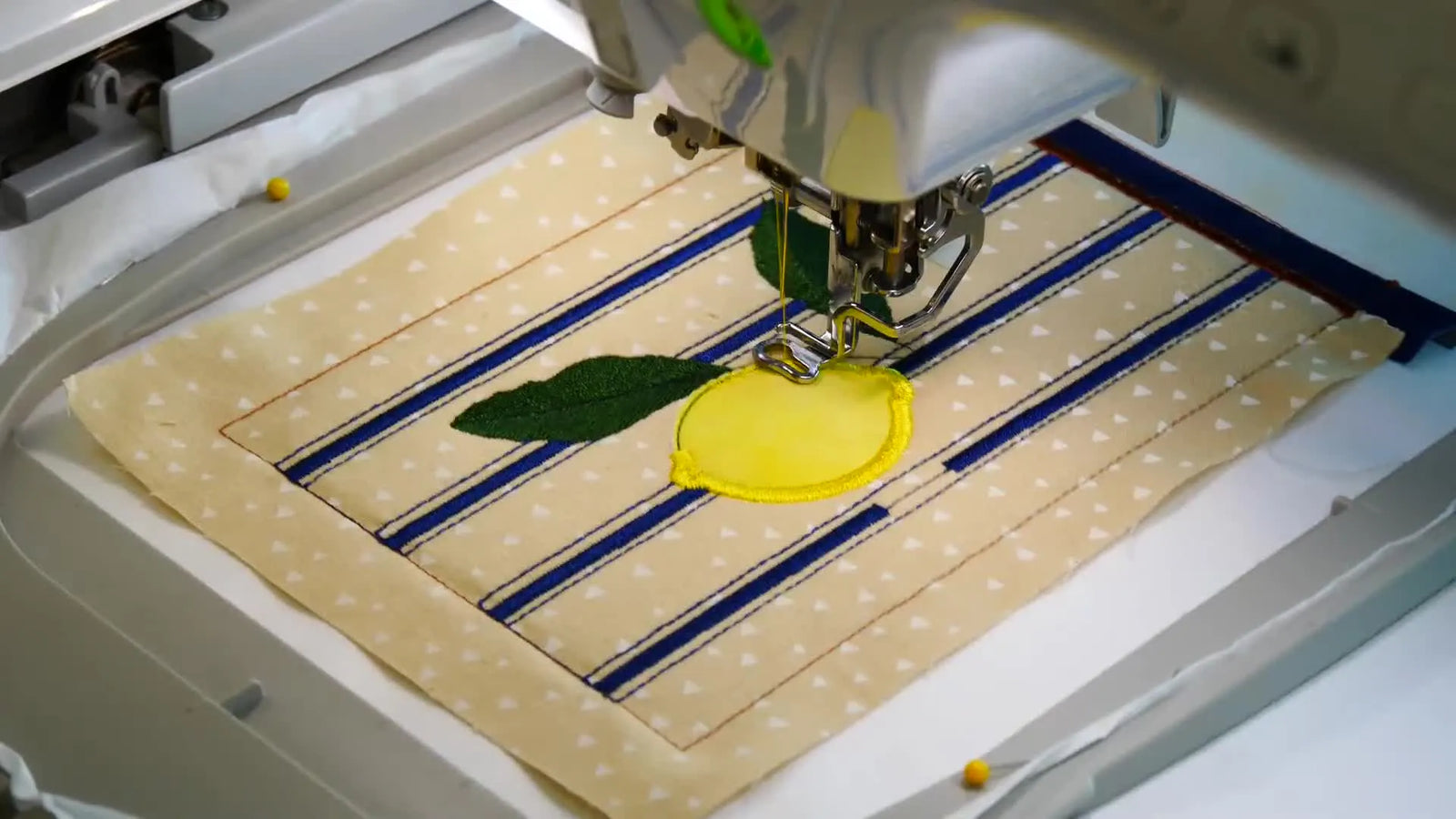

Lemon Appliqué Without Show-Through: Back the Yellow Fabric, Then Satin Stitch the Border

Video action: Place yellow fabric with a layer of cutaway stabilizer underneath it to block the background stripes from showing through the yellow lemon.

The Translucency Fix

Yellow fabric is notoriously translucent. Placing it directly over valid stripes would make the lemon look "dirty."

The "Blocker" Method

1. Sandwich: Hold a piece of white Cutaway stabilizer against the back of your yellow appliqué fabric. treatment.
2. Place: Lay this combo down together.
3. Stitch: The machine tacks both down simultaneously.

Hardware Note: When you add appliqué layers + blocker layers + batting, the hoop "sandwich" becomes very thick (3mm+). Standard hoops may leave "hoop burn" (shiny crushed fabric rings) because you have to over-tighten them to hold this bulk. Advanced users often switch to magnetic embroidery hoops for brother machines. The magnets exert vertical force (clamping) rather than lateral friction, eliminating hoop burn and holding thick stacks securely without distortion.

The Final In-The-Hoop Assembly Seam: Folding Lining Down, Adding Backing + Batting + Stiffening, Then Triple Stitching the Perimeter

Video action: The final assembly. Lining is folded down (back), backing fabric added (front), batting added, stiffening added.

The Danger Zone

This is the thickest the project will ever be. The machine has to penetrate:

• Stabilizer (x2)
• Lining (x2)
• Batting (x2)
• Outer Fabric (x2)
• Stiffener (x1)

Speed Control: Reduce your machine speed. If you normally run at 800 SPM (Stitches Per Minute), drop to 400-500 SPM. High speed on this thick stack causes needle deflection, leading to broken needles or skipped stitches.

Setup Checklist (The "Pre-Flight" Check)

• Under-Lining: Ensure the back lining is folded down and taped securely.
• Tape Check: Ensure no tape is in the path of the final needle run (listen for the "sticky" sound of needle hitting tape).
• Gap Logic: Locate the turning gap (usually bottom centered). Do not stitch over this.
• Clearance: Ensure the presser foot is set high enough (if adjustable) to glide over the bumps.

Warning: Hoop Hazard. If you upgrade to magnetic hoops, be aware of Pinch Hazards. Commercial-grade magnets snap together with force capable of bruising fingers. Keep credit cards and pacemakers at a safe distance (usually 6+ inches), and never leave the magnets "open" where metal tools can fly into them.

The “Shy Quarter” Trim Rule: 1/2" First, Then ~0.25" on Curves So You Don’t Need Notches

Video action: Trim bulk to 1/2 inch first, then grade the curves to a shy 0.25 inch (~4mm).

The Grading Technique

We do not make one single cut. We "grade" the seam to prevent bulk.

• Step 1: Rough trim everything to 1/2 inch.
• Step 2: trim the Stiffener/Batting layers as close to the stitch as possible without cutting thread (1-2mm).
• Step 3: Trim the fabric layers at the curves to 1/4 inch.

Why? By cutting layers at different lengths, you feather the edge. When turned, the curve will be smooth and round, not polygonal and chunky.

Turning Through a Small Gap “With Gusto”: How to Get Crisp Corners Without Tearing the Seam

Video action: Turn right side out through the gap. Use a point turner.

This is the stress test for your stitching.

1. The Poke: Push the corners out gently. Do not use sharp scissors; use a chopstick or a dedicated bamboo point turner.
2. Sensory Check (Sound): If you hear a "pop," you have broken a stitch. Stop and hand-sew it immediately.
3. The Roll: Roll the seam between your thumb and index finger to push the seam allowance to the very edge.


Stabilizer “Beard” in the Seam: Remove Residue with Water (and Be Careful with Flame)

Video troubleshooting: Tear-away leaves white "fur" (pulp) in the seam.

The Removal Protocol

• Mechanical: Use tweezers to pull large chunks.
• Hydraulic: Wet a Q-tip or your finger and run it along the seam. The water dissolves the paper bond, making it clump up for easy removal.
• Thermal (High Risk): The video suggests burning it. I advise against this for beginners. Synthetic fabrics (polyester/nylon) melt instantly. One second of error ruins the project. Stick to water.


“My Stabilizer Tore Mid-Stitch”—The Fix Is Boring: Two Layers of Tear-Away and Better Quality

Video troubleshooting: Stabilizer failure.

The Root Cause: Stabilizer tears when the needle perforations are too close (high density) or the hoop tension ("Drum Skin") is loose, causing the stabilizer to bounce.

The Solution:

1. Increase Stability: Use Bi-Mesh (fusible) or verify you are using Long-Fiber tear-away, not the cheap "paper-towel" style short-fiber stabilizer.
2. Improve Hardware: If your outer hoop ring pops off during thick projects, the hoop mechanism is failing. magnetic embroidery hoops are the industrial solution here because they self-adjust to the thickness of the fabric without losing grip strength.


Decision Tree: Choose Stabilizer + Hoop Strategy for ITH Glasses/Phone Cases

Use this logic flow to determine your setup before you start.

Input: What is your Fabric + Usage Goal?

• Scenario A: Thin Cotton, One-Off Gift.
  • Stabilizer: 2 Layers Medium Tear-away.
  • Hoop: Standard included hoop.
  • Risk: Low.
• Scenario B: Thick Canvas/Vinyl, Selling on Etsy.
  • Stabilizer: 1 Layer Cutaway (mesh) + 1 Layer Tear-away (for stiffness).
  • Hoop: Magnetic Hoop (to prevent hoop burn on vinyl).
  • Risk: Medium (Vinyl shows needle holes forever).
• Scenario C: Batting + Stiffener + Lining (The "Lemon Lane" Stack).
  • Stabilizer: 2 Layers Heavy Tear-away.
  • Action: Slow machine down to 500 SPM.
  • Risk: High (Needle deflection).
• Scenario D: Mass Production (50+ units).
  • Stabilizer: Pre-cut sheets.
  • Hoop: Consider a magnetic hoop for brother to reduce wrist strain from repetitive screwing/unscrewing.


The Upgrade Path I’d Recommend After You Nail One Perfect Case: Speed, Consistency, and Less Wrist Strain

Once you master the technique, the bottleneck becomes your tools. Here is the natural evolution of an embroiderer's studio:

1. Level 1 (Technique): You master floating batting and tension control using standard tools.
2. Level 2 (Workflow Efficiency): You introduce a Hooping Station. Using a hoop master embroidery hooping station ensures that every glasses case has the design perfectly centered, reducing "rejects."
3. Level 3 (Ergonomics & Quality): You switch to Magnetic Hoops. This eliminates hoop burn on delicate fabrics and speeds up the "sandwiching" process of ITH projects.
4. Level 4 (Scale): You move to a Multi-Needle Machine. If you are doing color-heavy ITH (like the lemon applique), a single-needle machine requires 5-10 manual thread changes. A SEWTECH multi-needle setup automates this, allowing you to prep the next hoop while the machine works.


Operation Checklist: The Last 3 Minutes That Decide Whether It Looks Professional

Before you hand this glasses case to a customer or friend, verify these final details.

• Seam Grade: Did you trim the batting closer than the fabric? (Feel the edge; it should not feel "boxy").
• Corner Poke: Are the bottom corners pushed out fully? Use a pin to gently pull the very tip if needed.
• Closure Snap: If adding a KAM snap, ensure the receiving side (female part) is on the body and the stud (male part) is on the flap.
• Stabilizer Residue: No white fuzzy bits visible in the seam.
• Turning Gap: The gap is closed with a ladder stitch (invisible stitch) or a very tidy machine edge stitch.

By respecting the "physics" of the layers and using the correct speed and stabilizer settings, you turn a frustrating struggle into a repeatable manufacturing process.

FAQ

• Q: For a Brother embroidery machine ITH glasses/phone case with a triple-stitch construction seam, what stabilizer setup prevents the tear-away from tearing mid-stitch?
  A: Use two layers of medium-to-heavy tear-away stabilizer hooped drum-tight before starting, because the triple stitch can perforate weak or loose stabilizer.
  • Hoop: Clamp two layers of tear-away and re-hoop until the stabilizer feels like a tight drum.
  • Upgrade: Switch to better-quality long-fiber tear-away, or use Bi-Mesh (fusible) when extra stability is needed.
  • Slow down: Reduce speed on the thick final seam (a safe starting point is 400–500 SPM as shown for the thick stack).
  • Success check: Tap the hooped stabilizer—it should sound like a firm “thump-thump,” not dull or loose.
  • If it still fails… Check for overly dense stitching in the border area and confirm the hoop is not relaxing/loosening during the run.
• Q: On a Brother embroidery machine using a standard 6x10 hoop for ITH, how close should batting be trimmed after tack-down to avoid a lumpy satin border?
  A: Trim the floated batting back 1–2 mm from the stitch line so batting never sits under the final satin border.
  • Stitch: Run the batting placement line, float batting, then stitch the tack-down.
  • Remove: Take the hoop off the machine (keep the project in the hoop) before trimming.
  • Trim: Use sharp curved scissors and cut batting 1–2 mm away from the tack-down stitches.
  • Success check: Visually confirm a clean “channel” of stabilizer between the trimmed batting edge and the stitching.
  • If it still fails… Re-trim closer (without cutting stitches) and confirm batting was floated (not hooped), because hooped batting often adds bulk and distortion.
• Q: For a Brother embroidery machine ITH project, how does taping the lining fabric under the hoop prevent underside jams and “grinding” noise?
  A: Tape the lining right-side down to the underside with a 0.25 in (6 mm) offset and make it taut so it cannot droop into the needle plate area.
  • Flip: Invert the hoop and place lining right side down underneath.
  • Offset: Align the lining raw edge about 0.25 in (6 mm) below the placement stitch line to reduce bulk at the opening.
  • Secure: Tape corners firmly using non-residue embroidery tape or quality painter’s tape.
  • Success check: Run a hand under the hoop—lining should feel taut and flat, not baggy or sagging.
  • If it still fails… Stop immediately at any grinding/jam; re-tape tighter and verify no fabric is hanging where it can catch on the needle plate/shuttle area.
• Q: For a Brother embroidery machine ITH thick stack (lining + batting + stiffener), what machine speed reduces needle deflection, broken needles, and skipped stitches on the final seam?
  A: Slow the Brother embroidery machine down for the final thick perimeter seam; a safe starting point in this workflow is 400–500 SPM.
  • Reduce: Drop speed before the final triple-stitch construction seam on the thickest stack.
  • Verify: Confirm the presser foot clearance is high enough (if adjustable) to ride over bumps.
  • Check: Keep tape out of the needle path to avoid “sticky” strikes and extra drag.
  • Success check: Listen during stitching—penetration should sound consistent, not loud “thudding” (often a dull needle or too much resistance).
  • If it still fails… Replace with a new 75/11 or 90/14 needle and re-check stack thickness placement (batting/stiffener not creeping into the seam path).
• Q: What safety rule should be followed when trimming batting or fabric inside the hoop on a Brother embroidery machine ITH project?
  A: Never trim while the Brother embroidery machine is running or when fingers are near the needle zone; remove the hoop from the machine and brace your hand on the hoop frame.
  • Stop: Fully stop the machine before any trimming step.
  • Remove: Take the hoop off the machine but keep the project hooped to preserve registration.
  • Brace: Keep the trimming hand braced on the hoop frame (not the machine bed) to prevent slips toward the needle bar.
  • Success check: Trimming feels controlled with clear tool clearance—no knuckles contacting the needle bar area.
  • If it still fails… Switch to double-curve embroidery scissors to improve clearance and control in tight areas.
• Q: What magnetic embroidery hoop safety precautions apply during ITH projects on Brother embroidery machines when magnets can snap and pinch?
  A: Treat magnetic embroidery hoops as pinch-hazard tools: keep fingers clear during closure, keep magnets away from credit cards and pacemakers, and never leave magnets “open” near metal tools.
  • Position: Set the hoop halves down flat and guide them together slowly—do not “let them jump.”
  • Protect: Keep fingertips out of the closing path where the magnets meet.
  • Separate: Store magnets closed/secured so metal tools cannot fly into the magnetic field.
  • Success check: Hoop closes without a sudden snap near fingers, and fabric is clamped evenly without over-tightening.
  • If it still fails… If handling feels unsafe, revert to a standard hoop for practice and reintroduce magnets only after a controlled setup routine is established.
• Q: For Brother embroidery machine ITH production work, what is the step-by-step upgrade path when trimming and rehooping slow the workflow and hoop burn appears on thick stacks?
  A: Start with technique fixes, then upgrade workflow tools, then upgrade clamping, and only then consider machine capacity—each level removes a different bottleneck.
  • Level 1 (Technique): Float batting (don’t hoop it), keep stabilizer drum-tight, and trim batting 1–2 mm off the stitch line.
  • Level 2 (Tooling): Add a hooping station to keep centering consistent and reduce manual alignment time.
  • Level 3 (Clamping): Switch to magnetic hoops when thick stacks or delicate fabrics force over-tightening and cause hoop burn.
  • Level 4 (Capacity): Move to a multi-needle machine when frequent color changes in ITH designs slow output (a safe indicator is repeated manual thread changes per item).
  • Success check: You can repeat the project with consistent alignment and clean borders, with less rework and less time spent re-tightening/rehooping.
  • If it still fails… Identify the dominant failure mode first (registration drift, hoop burn, stabilizer tearing, or time lost to thread changes) and address that specific layer/tool before upgrading anything else.
