Mastering 9 Machine Embroidery Zigzag Stitch Patterns for Stunning Borders

Video reference: “9 line Zigzag stitc_ Machine embroidery” by Membroidery515

If you love decorative borders, zigzag embroidery is a fast, low-stress way to add striking edges and frames. This guide distills nine distinct zigzag lines into a single, followable playbook—so you can stitch confidently without guesswork.

What you’ll learn

• How to set up an industrial zigzag machine for decorative borders

• Nine repeatable line patterns: circles, drops, fish teeth, leaves (rice stitch), rope, proboscis curves, diamond cut, figure-eight waves, and brick blocks

• How to maintain consistent density, spacing, and corners

• Quick checks to catch issues early—and the exact fixes that work

Primer (What & When) Zigzag embroidery uses side-to-side needle motion to draw continuous motifs that read as borders. In practice, you’re shaping a flowing line by guiding the fabric under a zigzag stitch, building circles, diamonds, waves, or brick-like steps.

Where it shines

• Borders on garments, linens, and textile art

• Edge emphasis on plackets, hems, napkins, placemats, and panels

• Framing monograms or central motifs

Pre-requisites and constraints

• You should be comfortable threading, tensioning, and safely operating a sewing/embroidery machine.

• An industrial zigzag machine was used in the reference (Singer 20u). Community notes confirm other industrial zigzag machines capable of embroidery can also achieve these results.

• Each design is executed as a continuous line—control and rhythm matter as much as settings.

Pro tip: If you’re practicing on multiple fabric swatches, a simple labeling system (pattern name, thread color, date) helps you track improvements and preferred densities. hoop master embroidery hooping station

Prep Tools and materials

• Machine: Industrial zigzag (used model: Singer 20u; see From the comments for details)

• Hoop: Embroidery hoop to keep fabric taut

• Needles: Compatible with your machine

• Fabric: White test fabric shown; medium-weight stable fabrics are easiest for practice

• Threads: Multiple colors for clarity (yellow, orange, reddish-orange, teal, dark green demonstrated)

• Files: Digitized line prompts, if you prefer guides; freehand guidance also works

Pre-checks (before each run)

• Fabric is properly hooped and taut

• Machine is threaded correctly

• If using digital prompts, confirm the design is loaded

About thread and needles

• A viewer asked thread size; the response indicated 120D/2 thread was used. This gives crisp definition with a visible line.

If-then: fabric stability

• If your fabric is light or stretchy, use an appropriate stabilizer to avoid waviness and distortion.

• Else, a stable fabric alone can suffice for clean results.

Watch out: Loose hooping shows instantly as wobble on geometric patterns like diamonds and bricks. Re-hoop before stitching if you see slack.

Quick check: After a 2–3 cm test run, inspect density and shape. If curves are jagged, your movement is too abrupt—slow down and smooth the feed.

Checklist — Prep

• Fabric hooped evenly and taut

• Correct thread color installed, bobbin set

• Test scrap ready for a short trial

• Lighting and visibility set for detail work

For optional convenience, some embroiderers prefer magnetic hoop systems to speed re-hooping between lines. embroidery magnetic hoops

Setup Machine selection and capabilities

• The showcased work was stitched on an industrial zigzag machine (Singer 20u). Other industrial zigzag machines that can embroider are viable alternatives; consult a local embroidery machine shop.

Controls and rationale

• Zigzag width/length and tension shape the look. Community insights emphasize that the operator’s guidance draws the pattern while the machine provides the zigzag motion.

• Smooth, consistent fabric movement is the most important factor for clean, repeatable motifs.

If-then: speed vs. control

• If your points look rounded or curves kink, reduce sewing speed and shorten your hand movements.

• If the line looks “flat,” increase width slightly or slow your feed to build more texture.

Pro tip: Practice the motion dry (machine off) to map your hands’ path for the first 10–15 cm of each pattern. Muscle memory reduces overcorrection when stitching begins. magnetic hoops for embroidery machines

Watch out: Starting and stopping frequently can create visible jogs. Plan continuous segments and commit to a steady rhythm.

Checklist — Setup

• Speed set for control

• Test strip confirms tension and density

• Pathway for first 10–15 cm mentally rehearsed

Operation: 9 Zigzag Borders, Step by Step Your aim with each pattern is consistent repetition and spacing. Every sequence below summarizes actions, what “good” looks like, pitfalls to avoid, and quick fixes.

1) Circle line (yellow) Goal: Interconnected circles forming a continuous border.

• Actions: Position at the start; begin zigzag; guide fabric in smooth, rounded loops so each circle touches the previous.

- Good looks like: Circles are equal in size and evenly connected.

• Pitfalls: Distorted circles from uneven speed; thread break from poor tension.

• Fix: Match hand speed to machine; rethread and adjust tension if breaks occur.

Quick check: After 4–5 circles, measure spacing—if it drifts, slow down to re-establish the loop height.

2) Drop of water (orange) Goal: Repeating teardrops with tapered points.

• Actions: Reposition; stitch the drop shape by easing into a point and swelling into a rounded belly.

- Good looks like: Each drop is distinct, even, and oriented consistently.

• Pitfalls: Uneven shapes; skipped stitches.

• Fix: Smooth your approach into the point; clean, check needle, and rethread if you see skips.

From the comments: One viewer asked whether this line uses zigzag or straight stitch. The reference demonstrates zigzag-based decorative work; the exact setting wasn’t specified in replies.

3) Fish teeth (reddish-orange) Goal: A sharp, pointed zigzag resembling serrated “teeth.”

• Actions: Align and stitch with pronounced, even peaks.

- Good looks like: Crisp points and consistent spacing.

• Pitfalls: Rounded points; variable length.

• Fix: Reduce movement amplitude at the tip; verify stitch length consistency.

Pro tip: For extra-crisp “teeth,” make a micro pause at each turn—just enough to pivot, not enough to stack stitches. dime snap hoop

4) Leaves / Rice stitch (teal) Goal: Overlapping, organic leaf shapes.

• Actions: Stitch a repeating ovalish loop with slight overlaps to create a vine feel.

- Good looks like: Consistent leaf size and tidy overlaps forming a continuous border.

• Pitfalls: Sparse or overly dense clusters; irregular shapes.

• Fix: Adjust your feed amplitude to control density; keep hand pressure even.

Watch out: Over-tight tension can thin the leaf centers. Ease tension until the leaf body fills smoothly.

5) Rope (dark green) Goal: A braided, dimensional rope line.

• Actions: Build broader arcs that “interlock” visually; keep width steady.

- Good looks like: Thick, braided continuity without gaps.

• Pitfalls: Flat appearance; loose stitches.

• Fix: Adjust zigzag width/length to add texture; verify bobbin tension for uniform lock-in.

Quick check: Compare the last two interlocks—if one looks slimmer, your hand drifted. Re-center your path before continuing.

6) Proboscis (dark green) Goal: Flowing S-curves and gentle loops.

• Actions: Keep curves fluid and symmetrical; avoid abrupt direction changes.

- Good looks like: Even, elegant swirls with smooth entries/exits.

• Pitfalls: Jagged curves; inconsistent rhythm.

• Fix: Slow the machine slightly and focus on a metronomic hand motion.

Pro tip: Count your rhythm—e.g., “one-two, one-two”—so each S maintains the same amplitude and length. magnetic hoop for brother

7) Diamond cut (yellow) Goal: Interconnected diamonds with a centered accent stitch.

• Actions: Form straight segments that meet at crisp corners; place a small central stitch within each diamond.

- Good looks like: Symmetrical diamonds; centered inner stitch.

• Pitfalls: Rounded corners; off-center accents.

• Fix: Commit to decisive pivots at corners; adjust spacing before dropping the accent.

Watch out: Any wobble is obvious on geometrics—keep fabric taut and hands steady.

8) “Similar to eight” figure-eight waves (orange) Goal: Interlocking wave line reminiscent of figure-eights.

• Actions: Stitch even, continuous loops, maintaining identical amplitude.

• Good looks like: Smooth transitions; consistent loop height and width.

• Pitfalls: Uneven amplitude; abrupt curve flips.

• Fix: Maintain a steady hand rhythm; adjust speed for control.

9) Brick blocks (reddish-orange) Goal: Stepped rectangles with clean right angles.

• Actions: Move fabric in perpendicular/parallel lines to form stacked “bricks.”

• Good looks like: Uniform blocks, straight horizontals, sharp verticals.

• Pitfalls: Slanted blocks; misalignment between steps.

• Fix: Visualize a grid; pause slightly at each corner for precise turns.

Pro tip: For brick-like clarity, lightly mark a faint guide grid on test fabric; once your muscle memory sets, the grid won’t be necessary. magnetic hoops

Checklist — Operation

• Start each line with a 2–3 cm test to confirm density/shape

• Commit to a steady pace—avoid frequent stops

• Inspect after every 10–15 cm and correct drift early

Quality Checks Use these mid-run checks to stay on track:

• Shape consistency: Compare the last 3–4 repeats; sizes should match.

• Edge crispness: Points and corners should look deliberate, not rounded.

• Density balance: Leaves and rope should appear full without thread stacking or gaps.

• Line alignment: Geometrics (diamonds/bricks) should track straight—no tilt.

Quick check: If your line quality degrades suddenly, stop, re-thread, and retest a short segment before resuming. brother embroidery machine

Results & Handoff Expected outputs

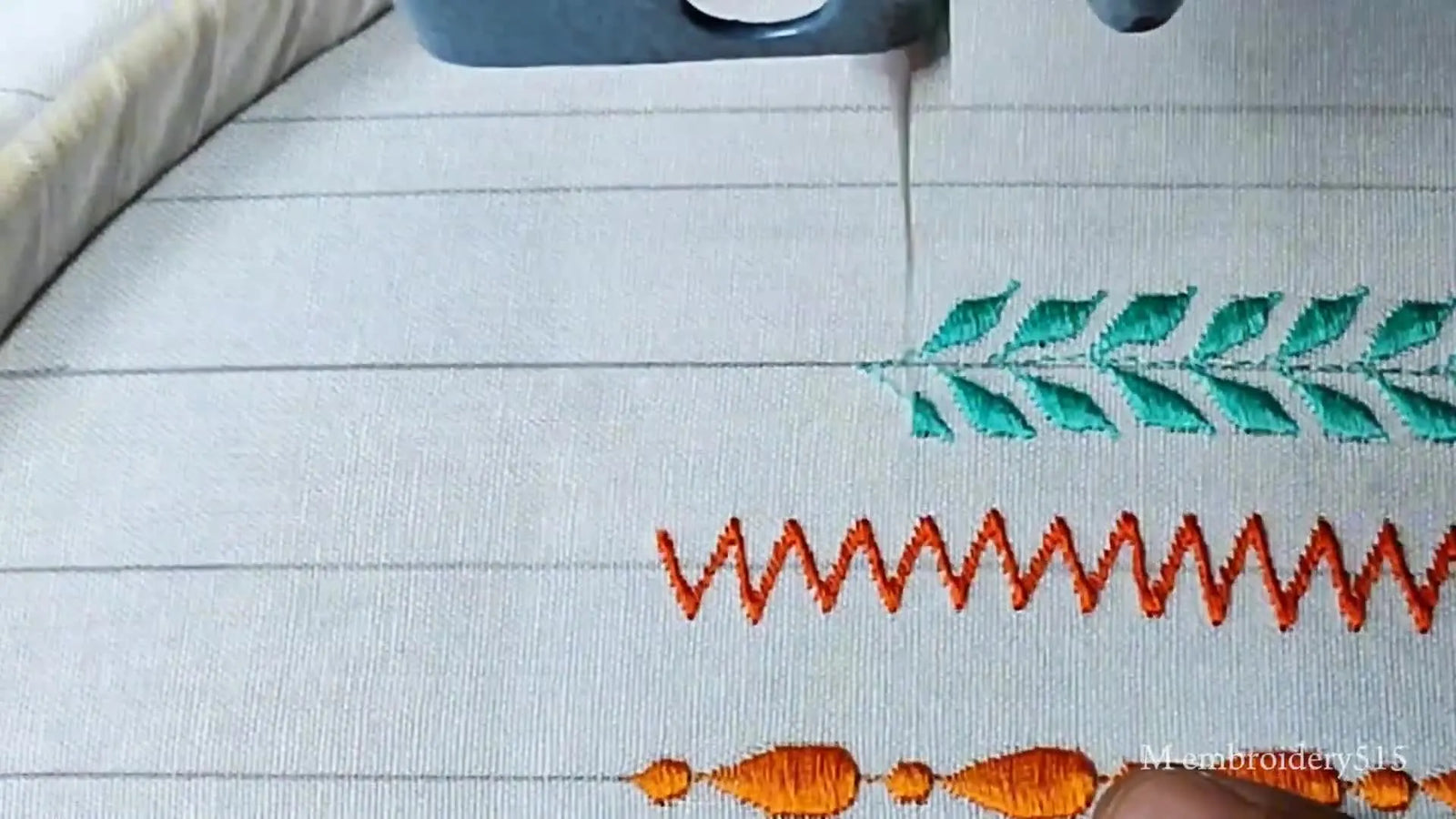

• Nine neat border lines in distinct colors: circles, drops, fish teeth, leaves/rice stitch, rope, proboscis, diamond cut, figure-eight, and brick blocks.

Handoff tips

• Label each sample strip with pattern name and settings you controlled (e.g., speed tendency: slow/medium; loop amplitude cues).

• Photograph your best segments to build a personal reference library.

If-then: applying to projects

• If framing a monogram: Diamonds or bricks provide strong visual structure.

• If trimming a hem: Figure-eight or drops add soft movement.

• If accenting a placket: Rope or fish teeth deliver bold texture.

Pro tip: Keep a dedicated sampler cloth in your studio; add new variations over time and revisit when selecting borders for future projects. hooping station for embroidery

Troubleshooting & Recovery Symptom → likely cause → fix

• Circles warped → uneven hand speed → slow down and reduce loop height until size stabilizes.

• Points rounded (fish teeth/diamonds) → turning too wide or too fast → shorten approach, micro-pause at tips.

• Rope looks flat → width too narrow or feed too fast → increase width slightly or slow hand movement.

• Proboscis curves jagged → abrupt direction changes → lower speed; aim for continuous S-curves.

• Drops inconsistent → missing the taper → ease gradually into/out of the point.

• Skipped stitches → needle/thread path issues → clean, check needle, re-thread.

• Misaligned bricks → drifting path → visualize a grid; ensure movement is strictly perpendicular/parallel.

Recovery plan

• Stop at the first sign of persistent drift.

• Re-hoop if fabric loosened.

• Re-thread and test a short strip before returning to your project.

Watch out: Don’t “power through” a mistake line; it compounds. Correct early and your final border will look intentional and precise. brother magnetic embroidery frame

From the comments

• Machine used: The creator confirms an industrial zigzag Singer 20u.

• Alternatives: They note other industrial zigzag machines capable of embroidery can achieve similar results; check with a local embroidery machine shop.

• Thread: A viewer asked about thread thickness; the reply indicates 120D/2 was used.

• Historical price context: A reply mentions the Singer 20u was about 750 USD roughly 10 years ago (prices vary by region and time).

• Operator control: Community members explain that the zigzag action is the machine’s; the pattern comes from how you guide fabric. Some industrial zigzag models allow width adjustment via a knee lever, enabling expressive shaping.

• Open question: One viewer asked if the water-drop line used zigzag or straight stitch; a definitive setting was not provided in replies. Practice both to see which meets your control and aesthetic needs.

Pro tip: If you practice frequently or make multiples, re-hooping between passes is faster with a stable support—consider solutions that speed clamp-and-go re-hoops. mighty hoops for brother
