Make a “100 Days Brighter” ITH Headband Slider on a Single-Needle Embroidery Machine (Without Shifty Appliqué Drama)

Mastering the ITH Headband Slider: A Professional’s Guide to Speed & Precision

If you’ve ever watched an in-the-hoop (ITH) project stitch out and thought, “This is adorable… but one wrong trim and I’m done,” you’re not alone. I have spent over 20 years in embroidery production, and I still feel that brief moment of tension when the needle approaches a raw edge of vinyl.

The good news: an ITH headband slider is one of the most forgiving ways to build confidence with appliqué. Why? Because the final outline stitch acts as a "locking mechanism," securing your layers and hiding tiny imperfections in your cutting.

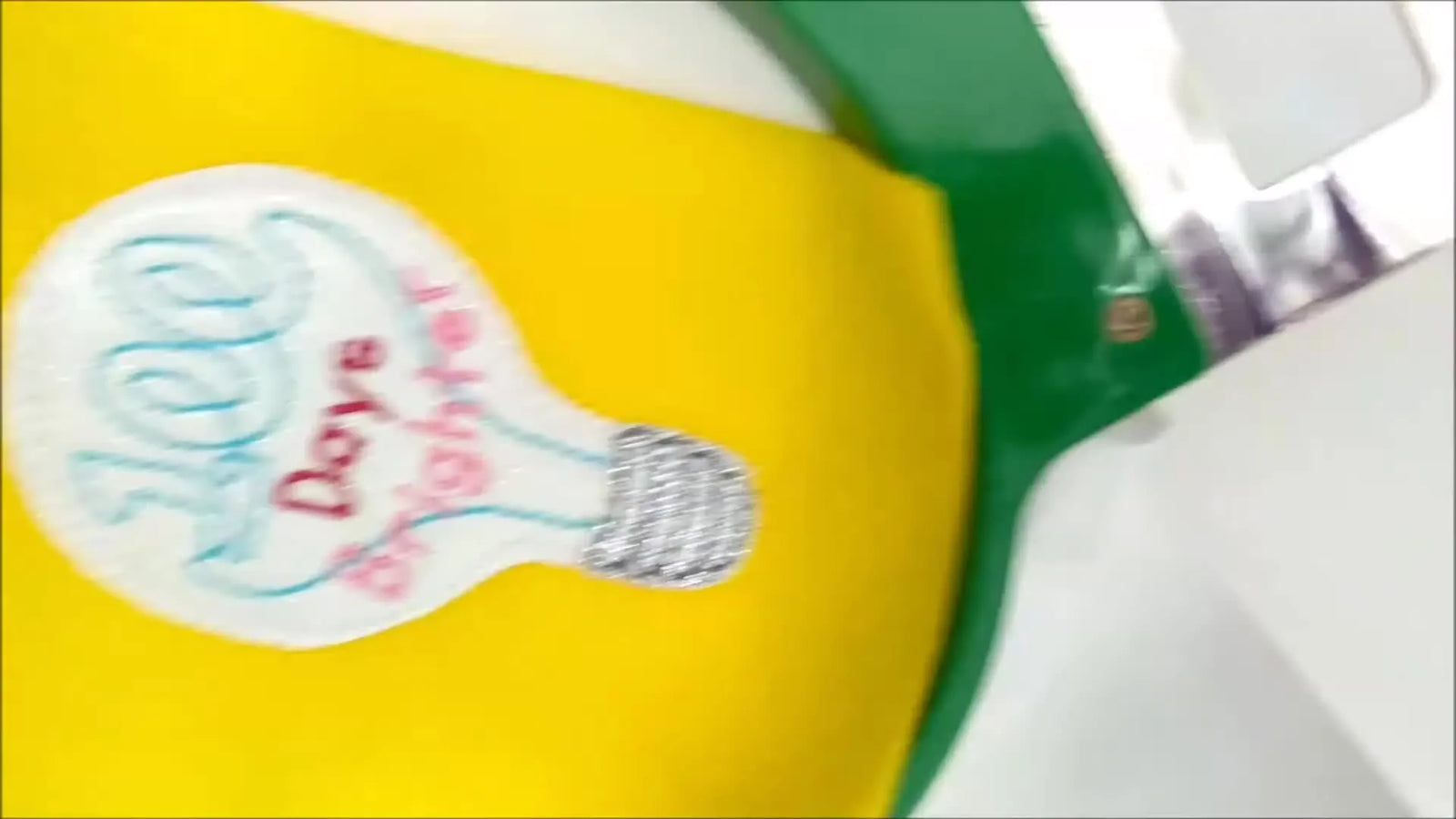

This guide focuses on a “100 Days Brighter” lightbulb slider design (often used for school milestones). We will cover the mechanics of floating felt and glitter canvas on a single-needle machine. More importantly, we will discuss the physics of why these materials shift and how to stop it.

What Is a Headband Slider? (And Why Use It Instead of Glue?)

A slider is a detachable accessory with two vertical stitched slots on the back. You thread a plastic headband or elastic through these slots, allowing the piece to "slide" into position.

From an engineering and sales perspective, this is superior to gluing a bow for three reasons:

1. Modularity: You can swap designs without buying new headbands.
2. Fit Tolerance: The slots accommodate different headband widths (within reason).
3. Clean Finish: No messy glue residue or risk of the focal point snapping off.

For small business owners, sliders are a "high-velocity" item: low material cost, under 10 minutes of stitch time, and high perceived value.

The Supplies: Beyond the Basic List

The video demonstrates a standard single-needle setup with a 4x4 or 5x7 plastic hoop. However, to get professional results, we need to talk about the quality of your consumables.

The "Must-Haves":

• Stabilizer: Medium-weight Tear-Away. Sensory check: It should feel like heavy cardstock, not tissue paper.
• Base Fabric: Yellow craft felt (acrylic or wool blend).
• Appliqué Material: White/silver glitter canvas or vinyl (for the bulb) and a dark glitter scrap (for the socket).
• Adhesion: Embroidery tape OR a temporary spray adhesive (e.g., 505 Spray).
• Tools: Curved appliqué scissors (non-negotiable for ITH), and a "stiletto" safety tool (often called "That Purple Thang").

The "Hidden" Consumables Beginners Forget:

• Needle: A 75/11 Sharp or Topstitch needle is preferred here. Universal needles can struggle to punch through glitter canvas without deflection.
• Bobbin Thread: White 60wt or 90wt. Since we are covering the back with felt, standard white bobbin is fine.


The Prep: Pro-Level Hooping & Floating Logic

This project uses the Floating Method. This means we only hoop the stabilizer, and we "float" the fabric layers on top.

Why float? Felt is thick. Hooping it in a standard plastic ring often causes localized crushing, known as "hoop burn," which is nearly impossible to steam out of synthetic felt. Floating prevents this damage.

The Physics of Stability

Since the fabric isn't clamped by the hoop, your stabilizer tension is the only thing preventing the design from warping.

1. Hoop the Tear-Away: Tighten the screw.
2. Sensory Check: Tap the stabilizer. It should sound like a drum (thump-thump). If it sounds like paper rattling, it is too loose. Tighten and re-hoop.
3. Upgrade Option: If you struggle to get this tension without wrist pain, or if you do decide to hoop the felt for stability, a magnetic embroidery hoop is often the professional solution. It clamps flat without the "burn" marks of plastic rings, reducing the need to float everything.

Warning (Physical Safety): Never hold small appliqué pieces down with your bare fingers while the machine is running. If the needle hits hard vinyl, it can deflect and shatter. Always use a stiletto tool or the eraser end of a pencil to hold fabric in place.

Prep Checklist (Pre-Flight)

• Needle Condition: Is the needle fresh? (Burrs will snag felt).
• Stabilizer Tension: Drum-tight test passed?
• Pre-Cuts: Appliqué pieces cut 0.5" larger than the target area?
• Bobbin: Is the bobbin area clear of lint? (Lint causes bird-nesting on the back).
• Tools: Curved scissors placed within arm's reach.


Machine Setup: Speed & Tension

The default settings on many home machines are too aggressive for small, stiff ITH projects.

• Speed: Reduce your machine speed. If your max is 800 SPM (Stitches Per Minute), drop it to 400-600 SPM for the tack-down steps.
  • Why? Vinyl has friction. High speed pushes the vinyl specifically during the first 3 stitches, causing it to slide.
• Hoop Selection: Ensure you aren't forcing a fit. Many beginners try to squeeze this into a brother 4x4 embroidery hoop, but remember you need clearance for the presser foot to move around the appliqué edges without hitting the frame.

Setup Checklist (Cockpit Check)

• Speed Limit: Reduced to ~600 SPM.
• Thrd Path: Upper thread seated deep in tension disks? (Pull thread; should feel like flossing teeth).
• Clearance: Carriage arm has room to move freely?
• Sequence: Design file loaded and orientation confirmed?


The Stitch-Out Sequence: A Step-by-Step Guide

Do not deviate from ITH sequencing. It is programmed logic, not just art.

1) The Placement Stitch (The Map)

Run the first color stop directly onto the stabilizer. This shows you exactly where the headband slider will live.

• Action: Lay your yellow base felt over this outline. Use a dot of spray adhesive or tape edges to ensure it stays flat.


2) The Bulb Appliqué (The Critical Moment)

The machine stitches the bulb placement line. Place your white glitter vinyl over it.

• The Risk: Vinyl is slippery. The presser foot will try to push it.
• The Fix: Use your stiletto tool to hold the center of the vinyl down. Watch the first 3-5 stitches lock it in.
• Action: Run the Tack-Down stitch.




3) The "100" Detail

The machine embroiders the "100" on the bulb.

• Observation: If you see loops here, your top tension might be too low, or the needle is struggling to penetrate the glitter.


4) The Socket (Layering)

Run placement for the socket. Place the dark glitter scrap. Run Tack-Down.

• Note: This creates a layer overlap (Socket over Bulb). Ensure your speed is low so the needle doesn't deflect on the sudden thickness change.


5) The Trimming (The Make-or-Break Step)

Remove the hoop from the machine, but NEVER remove the fabric from the hoop.

• Technique: Lift the excess vinyl/glitter slightly. Slie your curved scissors flat against the felt.
• Goal: Trim as close to the stitching as possible (1-2mm) without cutting the thread. The cleaner this cut, the more professional the result.


6) Text & Slot Channels

The machine stitches "Days Brighter" and the vertical slot lines.

• Check: Ensure these slot lines are stitched cleanly. They are structural—they hold the headband.


7) The Backing (Hiding the Mechanics)

Remove the hoop. Flip it over to the backside.

• Action: Place your second piece of felt over the stitched area.
• Secure It: This is where things go wrong. Tape all four corners securely. If this felt folds under during stitching, the project is ruined.
• Pro Tip: Painter's tape or dedicated embroidery tape is safer than duct tape (which leaves residue).

8) The Final Outline (The Sandwich)

Return the hoop. Run the final stitch.

• Result: This stitch goes through Front Felt + Stabilizer + Back Felt, sealing the sandwich.


The Finish: Release & Assemble

1. Unhoop: Release the screw.
2. Tear: Genlty tear away the stabilizer. If stitches pull, use tweezers to support them while tearing.
3. Cut: Using sharp scissors, cut around the final outline. Leave a uniform 1/8 inch (3mm) margin of felt. Do not cut flush to the thread—felt needs that margin for structure.
4. Insert: Thread the headband.






Operation Checklist (Quality Control)

• Backing: Is the back felt smooth (no tucks/wrinkles)?
• Trimming: Is the vinyl edge clean, or are there "hairy" bits of glitter canvas showing?
• Slots: Did the slot stitches penetrate the back layer correctly?
• Margin: Is the outer felt margin even?

The "Why" Behind The Struggle: Floating vs. Precision

Floating is fast, but it is unstable. As you layer heavy vinyl and dense stitching, the stabilizer pulls inward.

If you are a hobbyist making 5 sliders a year, the standard method works. However, clamping felt in a plastic hoop is physically difficult and risks "hoop burn." This is where the tool discussion matters.

• Plastic Hoops: Great for cotton, bad for thick felt/vinyl.
• Adhesives: Spray helps, but it gums up needles over time.
• Pressure: The "Purple Thang" is a manual fix for a mechanical problem (fabric shifting).

Warning (Magnetic Safety): embroidery magnetic hoops use powerful neodymium magnets. They can pinch fingers severely. Keep them at least 6 inches away from pacemakers, credit cards, and computerized machine screens.

Decision Tree: Troubleshooting Your Sliders

Use this logic flow to fix common issues.

Pro Tips: The Difference Between "Homemade" and "Handmade"

1. Control the "Jump"

When your machine jumps from the text to the outline, trim that jump thread before the outline stitches over it. Once the outline is stitched, that stray thread is trapped forever.

2. The Floating Terminology

You might hear people refer to a floating embroidery hoop technique. This isn't a special product; it is exactly what we did here—hooping the stabilizer and floating the material. It is the #1 skill for ITH projects.

3. Sharpness Matters

If your felt edges look fuzzy after cutting, your scissors are dull. Felt fibers are abrasive. Dedicate one pair of scissors only for cutting out the final felt shapes.

Scaling Up: When to Upgrade Your Gear

If you start selling these sliders, your wrists will tell you when it is time to upgrade. The repetitive motion of screwing/unscrewing plastic hoops and taping backing layers is the bottleneck.

The Upgrade Path:

1. The "Wrist Saver":
   Moving to a brother 5x7 magnetic hoop (or compatible size for your brand) eliminates the screw-tightening battle. You slap the magnets on, and the felt is clamped. This also makes the "flip and add backing" step 50% faster because you don't need tape—the magnets hold the backing.
2. The "Consistency King":
   If your logos are crooked, look into a hooping station for embroidery. Device systems like the hoop master embroidery hooping station (industry standard known as hoopmaster) allow you to place the stabilizer and fabric in the exact same spot every time, essentially automating the alignment process.
3. The "Volume Monster":
   If you have orders for 50+ sliders, a single-needle machine requires a thread change 4 times per slider. That is 200 interruptions. A multi-needle machine (like the SEWTECH models) handles those colors automatically, allowing you to walk away while it stitches the entire batch.

Final Thoughts

A perfect ITH slider feels substantial. The layers are fused, the edges are crisp, and the back is as neat as the front. By mastering the float, controlling your machine speed, and choosing the right stabilizer, you transform a craft project into a professional product. Happy stitching!

FAQ

• Q: On a Brother single-needle embroidery machine, how do I choose the correct needle for an ITH headband slider using glitter canvas or vinyl?
  A: Use a fresh 75/11 Sharp or Topstitch needle to reduce deflection and skipped penetration on glitter canvas/vinyl.
  • Install: Replace the needle before starting the slider (old burrs snag felt and stress the thread).
  • Reduce: Slow the machine during tack-down steps to limit needle push/deflection on slippery vinyl.
  • Watch: If the needle “walks” on the first few stitches, stop and re-seat the vinyl with a stiletto tool.
  • Success check: The tack-down stitches land cleanly without popping sounds, bending, or needle breaks.
  • If it still fails: Switch to a stronger needle option you trust for tough synthetics and re-check thickness changes at overlap areas (like the socket layer).
• Q: On a Brother 4x4 or 5x7 plastic embroidery hoop, how do I pass the “drum-tight” stabilizer tension test for floating an ITH headband slider?
  A: Hoop only medium-weight tear-away and tighten until it sounds like a drum when tapped.
  • Hoop: Clamp the tear-away stabilizer only (do not hoop thick felt if hoop burn is a concern).
  • Tighten: Turn the hoop screw and re-seat the stabilizer until it stops “rattling.”
  • Tap: Perform the sound test before stitching any placement lines.
  • Success check: Tapping the hooped stabilizer gives a firm “thump-thump,” not a papery flutter.
  • If it still fails: Re-hoop completely (don’t just keep tightening) or consider a magnetic hoop if screw-tightening is physically difficult.
• Q: On a Brother home embroidery machine, what stitch speed should I use to stop glitter vinyl from sliding during the first tack-down stitches of an ITH slider?
  A: Lower the speed to about 400–600 SPM for tack-down steps so the presser foot doesn’t push vinyl during the first stitches.
  • Set: Reduce machine speed before the bulb tack-down begins.
  • Hold: Use a stiletto tool (not fingers) to stabilize the center for the first 3–5 stitches.
  • Secure: Use embroidery tape or temporary spray adhesive to keep layers flat before the tack-down runs.
  • Success check: The placement line stays centered under the vinyl and the tack-down stitch does not drift.
  • If it still fails: Check stabilizer tension (drum-tight) and confirm the hoop provides enough clearance so the presser foot is not bumping the frame.
• Q: On an ITH headband slider, how do I prevent the backing felt from wrinkling or folding under during the final outline stitch?
  A: Tape the backing felt securely on all four corners (or use spray plus tape) before running the final outline.
  • Flip: Remove the hoop from the machine and place the backing felt on the back side over the stitched area.
  • Tape: Secure all four corners so the felt cannot shift or tuck under as the hoop moves.
  • Return: Re-mount the hoop carefully and stitch the final outline without increasing speed.
  • Success check: After stitching, the back felt is smooth with no puckers, tucks, or trapped folds.
  • If it still fails: Use temporary spray adhesive in addition to tape, and double-check that the hoop is not too small and causing fabric to buckle.
• Q: During ITH trimming for a headband slider, how close should I cut vinyl/glitter canvas and why does trimming quality affect the final outline?
  A: Trim to about 1–2 mm from the tack-down stitches using curved appliqué scissors, without cutting the thread.
  • Remove: Take the hoop off the machine but keep the project hooped.
  • Slide: Keep curved scissors flat to the felt and trim slowly around the stitched edge.
  • Avoid: Do not snip the tack-down thread—one cut can open the edge and ruin the finish.
  • Success check: The final outline later covers the trimmed edge cleanly with no “hairy” glitter bits showing.
  • If it still fails: Dedicate sharper scissors for felt (felt dulls blades fast) and re-check lighting/angle so the tack-down line is always visible while trimming.
• Q: What are the safety rules for holding small vinyl appliqué pieces during ITH embroidery on a Brother single-needle machine?
  A: Never hold appliqué pieces with bare fingers while the machine runs—use a stiletto tool or a pencil eraser to avoid needle-deflection injuries.
  • Pause: Stop the machine if hands are too close to the needle area.
  • Use: Press vinyl down with a stiletto tool during the first stitches only, then let the tack-down secure it.
  • Slow: Reduce speed for tack-down steps to minimize sudden shifts and deflection risk.
  • Success check: Hands stay outside the needle strike zone while the vinyl remains stable through the first few stitches.
  • If it still fails: Add tape or temporary spray adhesive so you don’t need to “hand-hold” the material at all.
• Q: What are the magnetic hoop safety precautions when using embroidery magnetic hoops for floating or hooping felt on home embroidery machines?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive items because the magnets are very strong.
  • Keep: Maintain at least 6 inches of distance from pacemakers, credit cards, and computerized machine screens.
  • Place: Set magnets down deliberately—do not let them snap together near fingers.
  • Store: Keep magnets controlled and separated when not in use.
  • Success check: Magnets seat without finger pinches and the hoop closes smoothly with controlled hand placement.
  • If it still fails: Stop using the magnetic hoop until a safer handling routine is in place, and revert to floating stabilizer in a plastic hoop with tape/spray for the project.
• Q: If an ITH headband slider keeps getting hoop burn on felt, backing wrinkles, or unstable outlines on a Brother home embroidery machine, what is a step-by-step upgrade path?
  A: Start with technique fixes, then upgrade to a magnetic hoop for clamping consistency, and only then consider a multi-needle machine for volume.
  • Level 1 (Technique): Float felt (hoop only stabilizer), reduce speed to 400–600 SPM for tack-down, and tape backing on all four corners.
  • Level 2 (Tool): Use a magnetic hoop to clamp felt flatter with less hoop burn risk and to hold backing more consistently during the flip step.
  • Level 3 (Production): Move to a multi-needle machine when frequent color changes become the bottleneck for batch orders.
  • Success check: Outlines stitch without ridges, backing stays smooth, and repeat pieces match without constant re-taping/re-hooping.
  • If it still fails: Re-check stabilizer “drum-tight” tension and confirm the hoop size provides proper presser-foot clearance around the appliqué edges.
