Make Appliqué Behave on the Brother PR1055X: Program “Hand” Stops, Float Vinyl Cleanly, and Cut a Perfect 6.5" Block

Mastering Multi-Needle Appliqué: The Brother PR1055X "Hand Stop" Protocol

Multi-needle appliqué is a paradox: the very features that make the machine powerful—speed and automation—are the same ones that can ruin a delicate appliqué project. A machine like the brother pr1055x is designed to sprint from color to color without pausing. However, appliqué is a "stop-and-go" art form. It requires you to place fabric, trim edges, and lay vinyl without the machine racing ahead and stitching over your hands or materials.

If you have ever felt your heart rate spike because the machine started stitching before you were ready, this guide is for you. We are going to rebuild the workflow to eliminate that fear, using the "Hand" stop icon as your safety brake.

The "Runaway Train" Reality Check: Single vs. Multi-Needle Logic

On a single-needle machine, the machine stops automatically when it sees a color change command in the file. It waits for you to change the thread.

On a multi-needle, a color change is not a stop command; it is simply a command to rotate the head to the next needle and keep firing. To do appliqué safely, you must manually intervene in the digital programming.

The Golden Rule: You must tell the machine explicitly where to pause. If you don't, it will treat your appliqué placement stitch and your tack-down stitch as one continuous race, ruining your fabric placement.

Phase 1: The "Hidden" Prep (Material Science & Hooping)

Before you even touch the screen, your physical setup dictates your success rate.

Stabilizer & Fabric Strategy

For a standard appliqué block like the "Life is Sweet" lemonade pitcher:

1. Stabilizer: Use a Medium Weight Cutaway (2.5 oz). Avoid tearaway for dense appliqué; it punches out and leaves the satin stitching unsupported.
2. Fabric: Pre-cut your background fabric to 9" x 9".
3. Tape: Use embroidery-specific tape (like disjointed types) or painter's tape to secure the fabric corners.

The Hooping Ritual: Standard vs. Magnetic

In the video, the standard Brother 5x7 hoop is used. Here is the sensory standard for a "good hoop":

• The Sound: Tap the hooped fabric. It should not sound like a dull thud (too loose) nor a high-pitched snare drum (too tight, causes distortion). It should sound like a firm cardboard box.
• The Mark: Always write "TOP" or "FRONT" on your stabilizer. Multi-needle hoops are symmetrical but the attachment arms are not; mounting it upside down produces a crashed needle or an inverted design.

The Pain Point: Standard hoops require repetitive screw tightening. This causes "hoop burn" (shiny rings on fabric) and wrist fatigue. The Pro Solution: If you are running production batches (10+ items), professionals upgrade to magnetic embroidery hoops. These clamp fabric instantly without screwing mechanisms, eliminating hoop burn and reducing wrist strain significantly.

Prep Checklist

• Stabilizer cut 2 inches larger than the hoop on all sides.
• "TOP" marked clearly on the stabilizer.
• Bobbin case cleaned (blow out lint).
• Fresh Needle Check: Use a 75/11 Sharp (or Titanium) needle. Ballpoint needles can struggle to pierce vinyl cleanly.


Phase 2: Hooping Mechanics & Safety

If using the standard screw-hoop, do not over-crank. Over-tightening distorts the fabric grain. When you un-hoop later, the fabric relaxes, and your perfect circle turns into an oval.

Warning: Physical Safety
When using standard hoops, keep fingers clear of the inner/outer ring gap to avoid pinching.
If upgrading to a Magnetic Hoop, be aware these magnets are industrial strength. Do not place them near pacemakers, and keep fingers clear of the snapping zone. They can pinch with over 30lbs of force.

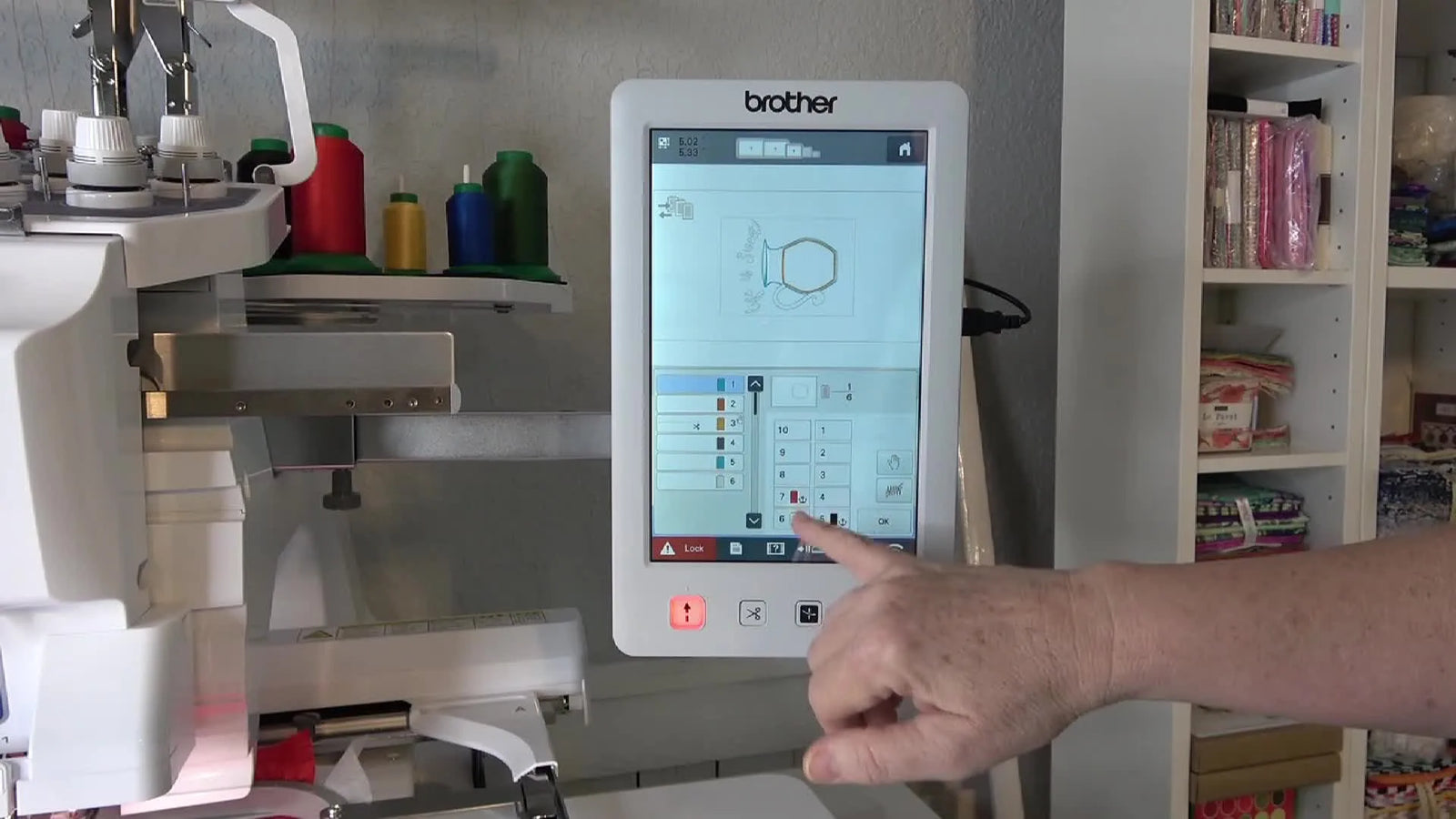

Phase 3: The "Hand Icon" Programming (The Core Skill)

This is the single most critical step on the Brother PR interface. You are programming "Required Pauses."

1. Load & Orientation: Load design via USB. Rotate 90° if necessary to match your hoop (usually vertical for 5x7).
2. Color Assignment: Assign your spool numbers. (e.g., Yellow on Needle 3, White on Needle 6).
3. The "Hand" Stop Sequence:
   • Navigate to the color sequence screen.
   • Locate the "Appliqué Steps" (Placement Line -> Tack Down Line).
   • Action: Press the specific color step, then toggle the HAND icon (usually blue/teal).
   • Visual Check: A small hand symbol will appear next to that color bar.

When to Add Stops:

• STOP 1: After the placement stitch (so you can lay down your fabric).
• STOP 2: After the tack-down stitch (so you can trim the fabric).
• STOP 3: Before any vinyl placement.

Pro Insight: Using hooping stations in conjunction with programmed stops ensures that your fabric placement is perfectly centered every time, reducing the fiddle-factor when the machine pauses.

Phase 4: Machine Setup - The "Click" & The "Speed"

Arm Indexing

Brother PR machines have expandable arms.

• Action: Loosen the two thumbscrews on the arm carrier.
• Sensory Anchor: Slide the arms in until you hear and feel a sharp "Click."
• Verification: Wiggle the arm. If it slides, it's not locked. It must be seated in the 5x7 detent.

Speed Constraints (The Sweet Spot)

The PR1055X can hit 1000 stitches per minute (SPM). Do not do this for appliqué.

• Standard Appliqué: 600 - 800 SPM.
• Vinyl/Metallic Thread: 500 - 600 SPM.
• Why? High friction heats the needle. Hot needles melt vinyl and snap metallic threads. Slow down to speed up (fewer thread breaks).


Hardware Protection

Using a USB extender saves your machine's main port. A $5 cable is cheaper to replace than a $500 mainboard port repair.

The Daily 'One Drop' Habit

Before you press start:

• Oil: ONE drop on the hook race.
• Sound Check: A happy hook makes a consistent "whir." A dry hook makes a metallic "chatter." If you hear chattering, stop and oil.
• Bobbin Tension: Pull the bobbin thread. It should feel like pulling slightly resistant dental floss (approx. 18-22g of tension if measuring).


Phase 5: The Operational Dance (Stitch, Stop, Trim)

When the machine hits your programmed "Hand" stop:

1. Removal: Slide the hoop off the arms. Do not un-hoop the fabric!
2. The Trim: Use curved appliqué scissors (double-curved are best).
   • Technique: Rest the blade flat on the stabilizer. Gliding is better than chopping.
   • Goal: Trim 1-2mm from the stitching.
3. Re-Insertion: Slide hoop back on. Ensure it clicks into the driver.
   • Troubleshooting: If your design alignment drifts after re-insertion, your hoop screws are loose or your stabilizer is too thin. This is a common issue with standard hoops. brother pr1055x hoops must be checked for screw tightness frequently.


Phase 6: Working with Clear Vinyl (The "Float" Technique)

The "Life is Sweet" project uses clear vinyl for a jar effect.

• Placement: Lay the vinyl over the design (do not hoop it).
• Debris Check: Critical. Blow away any loose threads or lint. Once the vinyl is stitched down, that piece of lint is framed forever.
• The Vinyl Feel: When trimming vinyl, it feels "gummy." Unlike fabric, it doesn't fray, but if you nick the satin stitch, the vinyl can tear away later. Leave a slightly wider margin (2mm) than with fabric.


Trimming Vinyl

Use sharp, small scissors. Cut smoothly. Ragged vinyl edges look messy and scratch skin.

Step 7: Finishing & Squaring Up

Once the embroidery is done, use the Kimberbell Orange Pop Rulers (or a standard quilting ruler) to square the block to 6.5" x 6.5".

• Pressure: Apply heavy pressure to the ruler before moving the rotary cutter.
• Safety: Always cut away from your body.

Warning: Rotary Cutter Safety
A rotary blade is a razor. Never cross your arms while cutting. Retract the blade immediately after the cut.

Decision Tree: Troubleshooting & Upgrades

The Strategic Upgrade Path

Understanding when to upgrade your tools is key to profitability.

1. Level 1: Skill Optimization. Master the "Hand" stop, tension settings (top thread showing 1/3 on bottom), and stabilizer combos.
2. Level 2: Tool Upgrade (Efficiency). If you are spending more time hooping than stitching, or if you struggle with thick items (towels/bags), upgrade to a brother 5x7 magnetic hoop. This moves you from "Hobbyist" to "Prosumer" by cutting prep time by 40%.
3. Level 3: Capacity Upgrade (Scale). If your single PR1055X is running 6+ hours a day and you are turning away orders, you have hit a hardware ceiling. This is when adding a high-value workhorse like a SEWTECH multi-needle machine alongside your Brother makes financial sense to double output without doubling cost.


Troubleshooting High-Frequency Issues

1. "The Hand Icon didn't stop the machine!"

• Cause: You likely pressed the Hand icon on the wrong color step (e.g., the step after the appliqué).
• Fix: The Hand icon is a "Stop Before Sewing This Color" command. Verify it is active on the color block you anticipate.

2. "My needle broke on the vinyl."

• Cause: Needle deflection. Vinyl is tough; if the needle is dull or the vinyl is too thick, it bends and hits the throat plate.
• Fix: NEW needle every 8 hours of stitching. Slow speed down.


Final "In the Trenches" Tips

• Scissors: The creator recommends Gingher curved scissors. The investment prevents hand cramping.
• Quilting: If quilting the block in the hoop, do this after the appliqué but before the satin border for the cleanest look.
• Digital Logic: Remember, the machine doesn't "see" the lemon or the jar. It only sees X/Y coordinates. You are the brain. The Hand stop is how you transmit your brain's intent to the machine's motor.


Setup Checklist (Pre-Flight)

• Arms physically clicked into 5x7 index.
• Design rotated 90°.
• Hand Stops verified on screen (count them: Placement, Tack-down, Vinyl).
• Bobbin thread supply checked (don't start a dense block with 10% bobbin).
• Oil applied.

Appliqué on a multi-needle machine transforms from a stressful race into a rhythmic, profitable process once you master the Hand stop. Control the stops, control the quality.

FAQ

• Q: How do I make a Brother PR1055X stop automatically for appliqué steps using the Hand stop icon?
  A: Add the Hand icon to the exact color blocks where a pause is required (placement, tack-down, and vinyl steps).
  • Open the color sequence screen and select the specific appliqué step (Placement Line → Tack Down Line).
  • Toggle the Hand icon on the step you need the machine to pause for.
  • Count the pauses you need: after placement stitch, after tack-down stitch, and before vinyl placement.
  • Success check: A small hand symbol appears next to the correct color bar on the screen.
  • If it still fails… assume the Hand icon was set on the wrong color step and re-check each appliqué-related block one by one.
• Q: What stabilizer and needle setup is a safe starting point for Brother PR1055X multi-needle appliqué (including vinyl)?
  A: Use medium weight cutaway stabilizer and a fresh 75/11 sharp needle as the baseline for clean appliqué control.
  • Hoop a Medium Weight Cutaway (2.5 oz) and avoid tearaway for dense appliqué that needs satin support.
  • Install a fresh 75/11 Sharp (or Titanium) needle; avoid ballpoint when piercing vinyl.
  • Pre-cut background fabric to 9" x 9" and secure corners with embroidery tape or painter’s tape.
  • Success check: The fabric feels stable in the hoop and vinyl is pierced cleanly without skipped stitches.
  • If it still fails… replace the needle (dull needles deflect) and reduce stitching speed before changing materials.
• Q: How tight should fabric be hooped on a Brother PR1055X 5x7 hoop to avoid distortion and hoop burn?
  A: Hoop to “firm-flat” tension—tight enough to hold, not tight enough to crush or stretch the grain.
  • Tap the hooped fabric and adjust tension until it sounds like a firm cardboard box (not a dull thud, not a high snare drum).
  • Avoid over-cranking the screw; too much torque distorts the grain and relaxes into mis-shapes after unhooping.
  • Mark “TOP” or “FRONT” on the stabilizer to prevent mounting orientation mistakes on symmetrical hoops.
  • Success check: The surface is smooth and stable, with no visible rippling or over-stretched shine rings.
  • If it still fails… reduce screw pressure and consider a magnetic hoop if repetitive tightening is causing hoop burn or wrist fatigue.
• Q: How do I safely handle magnetic embroidery hoops to prevent finger injuries and pacemaker risk during production hooping?
  A: Treat magnetic embroidery hoops like industrial clamps—keep fingers out of the snap zone and keep magnets away from pacemakers.
  • Keep fingertips clear when the magnets close; the clamp force can exceed 30 lbs and pinch hard.
  • Do not place magnetic hoops near pacemakers (safety first in shared workspaces).
  • Position fabric and stabilizer first, then lower magnets in a controlled motion rather than “letting them snap.”
  • Success check: The fabric is clamped evenly with no sudden snap-on impact or trapped fingers.
  • If it still fails… slow the motion down and re-train the hand placement sequence before scaling up to batch hooping.
• Q: What Brother PR1055X speed settings help prevent vinyl melting and metallic thread breaks during appliqué?
  A: Reduce speed for appliqué materials—high speed creates heat and friction that damages vinyl and stresses metallic thread.
  • Run standard appliqué at 600–800 SPM.
  • Run vinyl or metallic thread work at 500–600 SPM.
  • Pause and reset if the needle feels hot during longer satin sections.
  • Success check: Vinyl edges stay clean (not wavy/melted) and metallic thread runs with fewer snaps.
  • If it still fails… drop speed further within the safe range and swap to a fresh 75/11 needle to reduce friction and deflection.
• Q: Why does a Brother PR1055X appliqué design misalign after trimming and re-inserting the hoop, and how do I fix it?
  A: Misalignment usually comes from hoop shifting during removal/re-insertion or from an unstable hoop/stabilizer setup.
  • Remove the hoop from the arms for trimming, but do not un-hoop the fabric.
  • Re-insert the hoop and confirm it seats correctly on the driver before restarting.
  • Check standard hoop screw tightness frequently if the hoop is used for stop-and-trim workflows.
  • Success check: The next stitching line lands exactly on the previous outline without a visible “shadow shift.”
  • If it still fails… verify arm indexing is locked (listen/feel for the arm “Click”) and consider a hooping station for repeatable centering.
• Q: What should Brother PR1055X hook and bobbin feel/sound like before starting dense appliqué to prevent looping and rough running?
  A: Do a quick oil-and-feel check—one drop of oil plus a bobbin pull test prevents most “rough sound/looping” starts.
  • Add ONE drop of oil on the hook race before stitching.
  • Listen for a consistent “whir”; stop if there is metallic “chatter” and oil/clean again.
  • Pull the bobbin thread; it should feel like slightly resistant dental floss (about 18–22g if measured).
  • Success check: The machine runs smoothly without chatter and the underside shows controlled tension rather than messy loops.
  • If it still fails… clean lint from the bobbin case and re-check bobbin tension before restarting the design.
