Make Hatch Look Like the Real World: Backgrounds, Brother PR Hoops, and TrueView Previews That Save You From Costly Stitch-Outs

The "Screen-to-Real" Gap: Why Expert Digitizers Obsess Over Background Settings in Hatch

By the Chief Embroidery Education Officer

There is a specific, sinking feeling every embroidery operator knows well. It happens when you load a file that looked flawless on your sleek 4K computer monitor, hit "Start," and watch in horror as the design stitches out awkwardly small on a large jacket back, or worse—disappears entirely into the texture of a corduroy cap.

This isn’t just a "rookie mistake." It is a cognitive gap between the digital perfection of software and the messy, tactile reality of thread and fabric.

In this deep-dive guide, based on the foundational teachings of Sue from OML Embroidery and reinforced with industrial production standards, we are going to transform Hatch from a simple "design tool" into a production simulator. We will calibrate your workspace to mimic reality so closely that you solve problems before you even thread a needle.

1. The Psychology of the "Blank White Screen" and Why You Must Kill It

When you open Hatch, you are greeted with a vast, pristine white void. In terms of cognitive psychology, this is a low-context environment. It tells you nothing about scale, contrast, or texture.

If you digitize on white, you are guessing. And in embroidery, guessing costs money.

Sue’s methodology forces a shift: Context First, Stitches Second. By customizing your background, you aren't just making the screen "look pretty"; you are imposing the physical constraints of the real world onto your digital canvas. You are simulating the friction of the fabric and the limits of the frame.

2. The Physical Constraint: Defining Your "Sandbox" Before You Play

Before you move a single node or resize a logo, you must define the physical boundaries. In production, we call this the "Safe Zone Protocol."

Step A: Match the Background to the Substrate

If you are stitching on a navy blue polo, your workspace must be navy blue. Why? Because colors interact. A medium-grey thread might look sophisticated on a white screen but look like a dirty stain on a navy shirt. You need to see that contrast failure now, not after trimming 50 shirts.

Step B: Lock in the Hardware Reality

Many beginners skip hoop selection, preferring to design in "free space." This is dangerous. You must select the hoop you physically own and plan to use.

Sue demonstrates selecting a Brother PR-series 100 x 100 mm (4x4) hoop. This brings a crucial visual boudary onto your screen.

Expert Rule of Thumb: Never stitch edge-to-edge. If your hoop is 100mm, your design should ideally be no larger than 90mm. Leaving a 5mm buffer on all sides accounts for the "push and pull" of fabric distortion.

3. The "Manual Centering" Discipline: Stop Fighting the Auto-Correction

One of the most frustrating features for intermediate users is software that tries to "help" too much. By default, many programs snap designs to the mathematical center of the hoop.

Sue navigates to the background settings and deliberately switches centering to Manual.

Why is this critical for production?

• Asymmetrical Placement: If you are doing a "heart placement" on a shirt, you don't want the logo in the dead center of the hoop; you often want it high and slightly offset depending on how you hooped the garment.
• Nesting: If you are squeezing multiple small logos into one large hoop to save fabric, Auto-Center makes this impossible.

If you are using specific hardware, like brother pr600 hoops, manual positioning is essential. These machines are precise, but they are blind. They go exactly where the file tells them. If the file is auto-centered but your hooping is slightly off, the result is a rejected garment.

The Sensory Check: "Click and Drag"

When Manual mode is active, you should feel a sense of direct ownership. When you click and drag a design, it stays exactly where you dropped it. It shouldn't "snap" back. This lack of "snap" is your confirmation that you are in control.

4. Visualizing the "Wearable" Reality: Clothing Templates

Sue switches the background type to Clothing, specifically selecting a long-sleeve shirt, and uses the color palette to match the intended garment.

This solves the Proportion Problem. A 3-inch logo sounds big. But when you place that 3-inch logo on a template of a Large Men’s Jacket, you might realize it looks like a postage stamp.

The Small Hoop Challenge

For those operating with limited fields, such as the standard brother 4x4 embroidery hoop, clothing templates are a reality check. They show you exactly how much "negative space" will surround your design. If the template shows the design crowding the neck or falling into the armpit area, you have saved yourself a garment without stitching a single stitch.

Warning: Mechanical Safety
When moving designs near the edge of your hoop on-screen, always double-check your machine's Trace function before stitching. The screen may show the design fits, but if your physical hoop has a slightly loose screw or the fabric minimizes the inner dimension, the needle bar could strike the plastic frame. A needle strike at 800 SPM (Stitches Per Minute) can shatter the needle and send metal shrapnel flying. Always wear eye protection.

5. The "Grouping" Habit: Protecting Your Design Integrity

Sue demonstrates a classic error: dragging a design to a new position, only to realize she left the unselected parts behind. In embroidery files, a "design" is often 5,000 separate objects. Moving the top layer without the underlay is catastrophic.

The Protocol:

1. Zoom Out: See the whole field.
2. Select All / Shift-Select: Capture every object.
3. Group (Ctrl+G): Lock them together.

Only then do you move the design onto the clothing template.

Why this matters for stability

If you accidentally shift the satin top-stitching just 0.5mm away from its underlay, you will get "gapping"—where the fabric shows through the design. On screen, it looks like a glitch. On the final product, it looks like poor quality control.

6. The Cap Conundrum: Contrast and Curvature

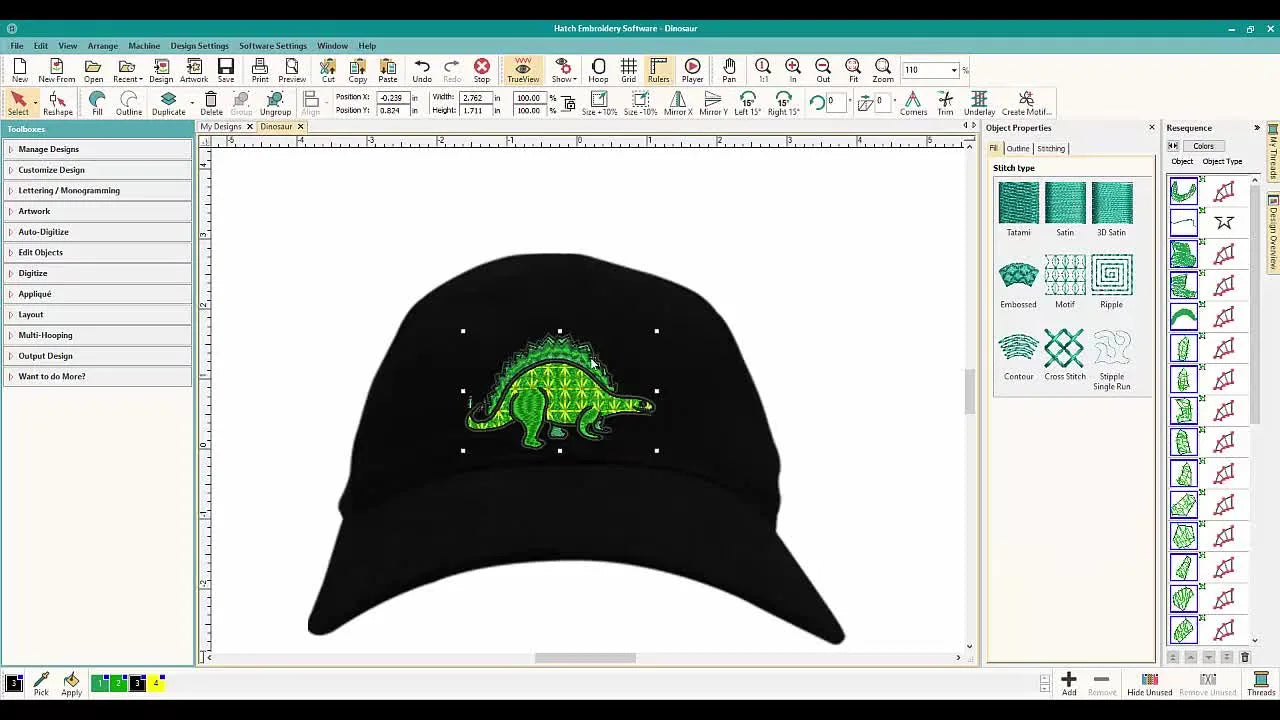

Caps are notoriously difficult. They are curved, structured, and often distinct in color. Sue switches the product view to Caps and—crucially—edits the colors. She changes the cap body to black and the details to white.

This is not just for looks. A design digitized for a white background often lacks the density or underlay needed to stand out on black fabric. Dark fabrics "absorb" light stitches. Seeing this on screen triggers the expert instinct: "I probably need to bump up my pull compensation or double my underlay density."

The "Hardware Gap" in Cap Embroidery

Software can simulate the look of a cap, but it cannot simulate the difficulty of hooping one.

If you are struggling to get the design straight on the physical cap, despite perfect software placement, the issue is likely your physical tools.

• The Symptom: You line it up on screen, but on the machine, the sweatband pushes the cap out of the hoop, or the bill hits the machine arm.
• The Adjustment: Standardization. Many shops struggling with brother pr600 hat hoop alignment eventually upgrade their workflow.
• The Solution Level 1: Use adhesive backing (cap stabilizer) to "stick" the cap in place before clamping.
• The Solution Level 2: Integrate a hoopmaster hooping station. This hardware ensures that every cap is hooped at the exact same depth and angle, matching the rigid template you see in Hatch.
• The Solution Level 3: For flat placement (like beanies), using magnetic embroidery hoops can prevent the "hoop burn" (shiny crush marks) that traditional clamps effectively leave on delicate fabrics.

7. TrueView: The Client's Perspective vs. The Digitizer's Data

Sue toggles TrueView on. This renders the flat, wireframe stitches as "3D" thread simulations.

• Wireframe Mode: Shows you the data (connectors, trims, stop codes). Essential for editing.
• TrueView Mode: Shows you the product. Essential for approval.


Critical Distinction: Simulation is not Stabilization

TrueView is dangerous if you trust it blindly. It shows you perfect coverage. It does not show you the fabric puckering because you forgot stabilizer.

Expert Decision Tree: Fabric $\to$ Stabilizer Selection Use this logic to support what you see on screen.

Note: Software effectively simulates the look, but your stabilizer choice dictates the structure.

8. Texture Simulation: The "Factory Fabric" Tool

Sue switches the background to Factory Fabric and selects Corduroy in pink.

This is the ultimate stress test for a design. Corduroy has "wales" (vertical ridges). If you are stitching small text on corduroy, the ridges will swallow the letters. By turning on this background, you visually confirm: "Oh, my 4mm tall letters are unreadable here. I need to increase them to 6mm and add a knockdown stitch."

This tool allows you to import your own photos. Pro Tip: Take a photo of your actual client’s garment with your phone, email it to your PC, and use that as your background. There is no higher level of accuracy than reality.

9. Ergonomics and Eye Strain: The Hidden Productivity Killer

Finally, Sue adjusts the display colors for grid lines, needle points, and guidelines.

Why is this a "Pro" tip? Because digitizing is visually exhausting. Staring at a bright white screen with neon grid lines for 8 hours causes eye fatigue. Fatigue leads to missed details—like forgetting to trim a jump stitch or missing a color change.

Sue prefers darker grey grid lines and clear, contrasting needle points.

Visual Anchors for Quality

• Needle Points (White Dots): Enable these to see exactly where the needle penetrates. If you see dots too close together (under 0.3mm), you risk a "bird's nest" or thread break.
• Connectors: Ensure you can see the dashed lines representing jump stitches. If you see a jump stitch traveling across a clean area of the shirt, you need to ensure your machine is set to trim, or you digitize a lock-stitch and trim command there.

10. The Reality Check: When Software Isn't Enough

We have optimized the software side: the background matches the shirt, the hoop matches the machine, and the centering is manual. But what if production is still slow?

At a certain point, the bottleneck moves from the computer to the workbench.

• The Pain: "My design is perfect in Hatch, but hooping takes 5 minutes per shirt, and my wrists hurt."
• The Diagnosis: Traditional screw-tightened hoops are slow and ergonomically poor for high-volume runs.
• The Upgrade: This is where professionals integrate an embroidery hooping system.
  • Many shops transition to magnetic embroidery hoops. These imply a "snap and go" workflow. They hold fabric firmly without the need for constant screw adjustments, automatically adjusting to different fabric thicknesses (like switching from a T-shirt to a Hoodie) without recalibration.
  • If you find yourself limited by the single-needle speed (changing threads manually), consider that most users depicted in these tutorials eventually scale up to SEWTECH multi-needle embroidery machines. These machines accept the file you just perfected in Hatch and execute it with 10+ needles ready to fire, removing the "color change" bottleneck.

Warning: Magnet Safety
If you upgrade to Magnetic Hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise or break fingers.
* Medical Device: Keep them at least 12 inches away from pacemakers or insulin pumps.
* Electronics: Keep them away from credit cards and mechanical hard drives.

Summary Checklists: Your Flight Plan

Before you export that DST or PES file, run through these gates.

Prep Checklist (Software Environment)

• Background Match: Does the screen background color match the physical garment?
• Hoop Match: Is the specific machine hoop (e.g., Brother 4x4) selected?
• Safe Zone: Is there at least a 10mm gap between the design and the hoop edge?
• Centering: Is "Auto-Center" OFF (Manual ON) for precise placement?

Setup Checklist (Physical Environment)

• Visual Check: Hold the physical hoop up to the screen. Does the proportion look the same?
• Stabilizer: Have you selected the correct backing (Cutaway/Tearaway) based on the Decision Tree above?
• Needle: Is a fresh needle installed? (Use Ballpoint 75/11 for knits/polos; Sharp 75/11 for wovens/caps).

Operation Checklist (The Final "Go")

• Trace: Run the trace function on the machine to confirm the needle won't hit the frame.
• Bobbin: Check that you have enough bobbin thread for the run.
• Listen: Listen for the first 100 stitches. A rhythmic thump-thump is good. A sharp clack-clack or grinding noise means stop immediately—check your thread path and hoop clearance.

By treating Hatch not just as a canvas, but as a flight simulator for your embroidery machine, you bridge the gap between digital hope and physical reality. Set your background, trust your grid, but verify with your hands. Happy stitching.

FAQ

• Q: In Hatch Embroidery Software, how do operators stop a design from looking perfect on a white screen but stitching out too small or disappearing on textured fabric like corduroy caps?
  A: Replace the blank white workspace with a realistic background (garment color + texture) before editing stitches.
  • Set the background color to match the actual garment (for example, navy for a navy polo) so contrast problems show up early.
  • Switch the background type to a clothing template or Factory Fabric (for example, corduroy) to preview proportion and readability.
  • Import a real photo of the customer garment as the background for the closest “screen-to-real” check.
  • Success check: Small text and light thread colors should remain clearly visible against the simulated fabric, not “blend in.”
  • If it still fails: Revisit the design choice (for example, increase small lettering size and consider adding a knockdown stitch when texture swallows detail).
• Q: In Hatch, how do operators correctly set hoop size and a safe zone (buffer) to prevent edge distortion and reduce needle strike risk on the hoop frame?
  A: Select the exact hoop you physically own and keep a safety buffer so the design never runs edge-to-edge.
  • Choose the real hoop size in software first (example shown: 100 × 100 mm / 4×4 hoop), not “free space.”
  • Leave a buffer: if the hoop is 100 mm, keep the design around 90 mm to allow for push/pull distortion.
  • Run the machine’s Trace function before stitching when designs are near the edge.
  • Success check: Trace shows the needle path clears the hoop/frame with no contact and no “near miss.”
  • If it still fails: Re-hoop to regain margin (fabric thickness and hoop condition can reduce the usable inner area).
• Q: In Hatch, how do operators stop Auto-Center from changing placement when doing left-chest logos or nesting multiple small logos in one hoop?
  A: Turn centering to Manual so the design stays exactly where it is dropped.
  • Open background/hoop settings and switch centering from Auto to Manual.
  • Click-and-drag the design to the intended position for asymmetrical placements (like left chest) or for nesting.
  • Keep placement consistent with how the garment is actually hooped (software is precise, but the machine only follows file coordinates).
  • Success check: After dragging, the design does not “snap back” to the hoop center.
  • If it still fails: Verify the hoop selected matches the real hoop and re-check that Manual mode is still enabled (some workflows revert settings).
• Q: In Hatch, how do operators prevent partial design movement that causes underlay/top stitching misalignment and visible gapping after repositioning?
  A: Select everything and Group before moving, because embroidery designs contain thousands of separate objects.
  • Zoom out so the entire design is visible.
  • Use Select All (or Shift-select) to capture every object layer.
  • Group (Ctrl+G) before dragging the design onto a clothing template or new position.
  • Success check: After moving, outlines and satin edges stay registered with the underlay with no offset or “halo” gaps.
  • If it still fails: Undo and re-select carefully—moving only top stitching even 0.5 mm away from underlay can create gapping on fabric.
• Q: When TrueView in Hatch shows perfect coverage, how do operators choose stabilizer so the real stitchout does not pucker or sink into fleece and towels?
  A: Use TrueView for appearance only, then select stabilizer based on fabric type and design density.
  • Choose Cutaway (2.5 oz) + spray adhesive for stretchy knits (T-shirts/polos) with dense logos; avoid Tearaway for knits.
  • Use Tearaway for stable wovens (denim/twill) when designs are medium/light.
  • Add water-soluble topper for textured/lofty fabrics (fleece/towel) to prevent stitches from sinking.
  • Pick No-Show Mesh (poly-mesh) for slippery performance wear to stabilize while keeping softness.
  • Success check: The fabric stays flat after stitching (no ripples) and details sit on top of texture instead of disappearing.
  • If it still fails: Re-check that the fabric type matches the stabilizer choice and reduce unrealistic expectations from TrueView (it cannot simulate puckering).
• Q: What mechanical safety steps should embroidery operators follow when placing a design near the hoop edge to avoid needle strikes at high speed (around 800 SPM)?
  A: Always Trace the design and confirm real-world clearance—screen fit is not the same as physical fit.
  • Run Trace before the first stitch, especially when placement is close to the hoop boundary.
  • Inspect the physical hoop condition (for example, loose screws or reduced inner opening from fabric bulk) before starting.
  • Wear eye protection because a needle strike can shatter the needle and eject fragments.
  • Success check: Trace completes smoothly with clear clearance and no contact sounds or frame tapping.
  • If it still fails: Stop immediately and reposition the design inward or re-hoop to restore margin—do not “try again” at speed.
• Q: What magnet safety rules should operators follow when upgrading to magnetic embroidery hoops to speed up hooping and reduce hoop burn on delicate fabrics?
  A: Treat magnetic hoops as powerful tools—handle slowly, protect fingers, and keep them away from medical devices and sensitive items.
  • Keep hands clear of pinch points and let magnets close under control to avoid finger injury.
  • Maintain at least 12 inches of distance from pacemakers or insulin pumps.
  • Store magnets away from credit cards and mechanical hard drives.
  • Success check: The hoop closes without snapping onto fingers, and the fabric is held firmly without aggressive clamp marks.
  • If it still fails: Slow down the handling technique and reassess whether magnetic hoops fit the operator environment and safety needs before standardizing them.
