Make Husqvarna Viking 4D Feel “Bigger”: Sketch, Split, Digitize, and Actually Finish Projects Without Hoop Drama

If you’ve ever sat in front of your machine, watched a software overview, and thought, “Okay… but how do I actually get this onto a garment without it puckering, shifting, or breaking needles?”—you are in good company.

Embroidery is an unforgiving blend of digital precision and physical chaos. The software (Husqvarna Viking 4D Professional) is the precise part. The fabric, the hoop, and the tension are the chaos.

This guide rebuilds the popular Soni Grint 4D Professional tour into a production-grade workflow. We are moving beyond "what the buttons do" to "how to use them to get a salable result." We will tackle the real-world friction points the video glosses over: hoop burns, re-hooping misalignment, fabric distortion, and the fear of ruining expensive garments.

The Calm-Down Moment: Husqvarna Viking 4D Professional System Isn’t “Too Much”—It’s Just Modular

The 4D Professional system is not one giant, confusing application. It is a workshop with distinct stations. The anxiety beginners feel usually comes from trying to do everything in one window.

To master this, you must categorize your intent before you open a program. Here is the mental model used by professional digitizers:

• 4D Sketch: The Illustrator. Use this to add thread texture to an image that is already printed or visible. You aren't covering the fabric; you are accenting it.
• Stitch Editor: The Surgeon. Use this to cut apart existing designs, remove hidden stitches, or adjust density.
• Design Aligner: The Engineer. Use this when your ambition is bigger than your physical hoop. It calculates the math for splitting a design.
• Design Creator: The Architect. Use this creating a design from scratch (digitizing).
• Picture Stitch: The Translator. Use this to turn photo pixels into thread blocks.
• Fabric Decorator: The Textile Mill. Use this to create yardage before you even touch a sewing pattern.

Once you treat these as separate rooms in a factory, the interface becomes logical rather than overwhelming.

The “Hidden” Prep Before You Open 4D Sketch: Fabric Physics and Stabilization

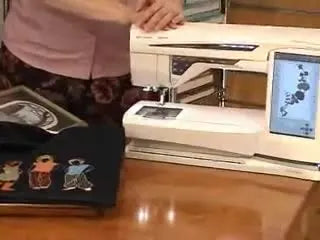

The video showcases stunning samples: T-shirts, heavy denim skirts, and delicate framed art. However, it doesn't explain why those samples worked. They worked because the hooping matched the physics of the fabric.

When a user complains, "My design outline shifted 2mm to the left," it is rarely a software glitch. It is Fabric Flagging—the fabric bouncing up and down with the needle—or Hoop Creep, where the fabric loosens slightly under the vibration of 800 stitches per minute (SPM).

If you are working with a husqvarna embroidery machine, your software precision means nothing if your physical setup is loose.

The Golden Rule of Stabilization:

• If the fabric stretches (Knits/T-shirts): You need a Cutaway stabilizer. No exceptions. Tearaway will eventually distort.
• If the fabric is stable (Denim/Canvas): You can use Tearaway.
• If the fabric has pile (Towels/Velvet): You need a Water Soluble Topping (Solvy) to keep stitches from sinking.

Warning: Embroidery needles are sharp and move at high velocity. Never attempt to trim jump stitches or adjust the fabric while the machine is running. If a needle breaks, it can shatter; always wear glasses and keep your face away from the operation area.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Inspect the needle: Is it fresh? Run your fingernail down the tip. If you feel a "catch" or burr, replace it. A burred needle creates birdnests.
• Select the Stabilizer: Does your stabilizer match the elasticity of your fabric? (Stretchy = Cutaway).
• Check the Bobbin: Do you have a full bobbin? There is nothing worse than running out of bobbin thread in the middle of a complex split design.
• Safety Zone: Ensure the machine arm has clearance to move. Remove coffee cups, scissors, or adventurous cats from the table area.
• Hoop Tension Check: When you tap the hooped fabric, does it sound like a drum? (Use the "Thump" test).


4D Sketch + Printer Fabric: Enhancing Without Overwhelming

Soni demonstrates "sketching" over a printed image. The goal here is mixed media art. You want the printed image to provide the color data, and the thread to provide the tactile data.

The Rookie Mistake: Beginners often set the stitch density too high. If you cover 100% of the print with thread, you wasted the expensive printer fabric.

The Workflow:

1. Print: Print your image on high-quality printable fabric sheets. Let the ink dry completely (peel backing after printing).
2. Digitize: In 4D Sketch, set your stitch type to "Running Stitch" or "Triple Bean Stitch" for outlines. Avoid complex Tatami fills.
3. Density Check: Keep spacing open. You want to see the print through the thread.
4. Action: Stitch at a moderate speed (500-600 SPM). High speeds can cause friction that melts the coating on some printable fabrics.

Success Metric: You can run your hand over the piece and feel the texture, but the printed details (like gradients in a flower petal) remain clearly visible.

Iron-On Transfers on T-Shirts: The Battle Against the Stretch

The video shows a T-shirt with an iron-on transfer being enhanced. This is a high-risk scenario. T-shirt jersey knit wants to stretch. The hoop wants to stretch it. If you stretch the shirt while hooping, you will stitch it in that stretched state. When you un-hoop it, the fabric snaps back, and your beautiful flower becomes a puckered mess.

The Solution: Floating or Magnetic Hooping Instead of forcing the T-shirt into limits of the inner and outer rings, consider "floating" the shirt on top of hoop-framed sticky stabilizer.

However, if you do hoop standardly, do not pull the fabric after tightening the screw. If you find yourself constantly tugging fabric to get it tight, your hoop mechanism might be slippery. This is where users start looking for embroidery hoops for husqvarna viking that offer better grip or magnetic locking to prevent that "tug of war."

Sensory Anchor: The fabric should feel neutral—neither loose nor stretched tight like a trampoline. It should lay naturally.

Stitch Editor on Denim: Customizing Stock Designs

Real-world embroidery is rarely "load and go." You might find a perfect floral design, but it has extra leaves that will run right over the thick side seam of your denim skirt.

Soni's example of removing leaves in Stitch Editor is a critical skill. Stitch Editor allows you to select and delete object blocks.

The Denim Density Danger: Denim is thick. If you overlay a dense stock design on a thick denim hem, you risk breaking needles.

• Action: In Stitch Editor, check the distinct blocks. If you see layers upon layers of thread in one spot, use the "Remove Overlap" function if available, or manually delete hidden underlay layers.
• Sound Check: Listen to your machine. A rhythmic thump-thump-thump is normal. A loud CLACK-CLACK means the needle is struggling to penetrate density. Stop immediately and check if you are hitting a seam.


Design Aligner: Conquering the "Too Big" Design

This is the feature that sells the software: splitting a 10-inch design to fit a 5-inch hoop. But it is also where the most tears are shed.

The Physics of Splitting: When you split a design, the software creates a "seam" between two files. In the real world, if your fabric shifts even 1mm between Hooping A and Hooping B, you will have a visible gap or an ugly overlap.

To succeed with multi hooping machine embroidery, you cannot rely on luck. You need:

1. Sticky Stabilizer: To prevent the fabric from sliding during the re-hooping process.
2. Alignment Grids: Use the plastic template grid that came with your hoop.
3. Precise Marking: Use a water-soluble pen or chalk to mark your center lines on the fabric.

Decision Tree: To Split or Not to Split?

• Scenario A: Design is 10% larger than hoop.
  • Decision: Shrink the design in software by 10%. (Much safer than splitting).
• Scenario B: Design is 50% larger than hoop (e.g., Jacket Back).
  • Decision: Use Design Aligner. Use a heavy-duty stabilizer.
• Scenario C: You are doing production runs of large designs (50+ items).
  • Decision: Do not split. The labor time of re-hooping destroys your profit margin. Upgrade to a machine with a larger field or a multi-needle setup.


Design Creator: Creating Texture That Looks Expensive

Flat embroidery looks cheap. Expensive embroidery plays with light. Thread is reflective—it shines differently depending on the angle of the stitch.

Soni demonstrates this with the "Ground" texture under the crane. By changing the stitch angle to 45 degrees or 90 degrees, you separate the ground from the subject without changing thread colors.

Pro Tip for embroidery digitizing**:

• Fur/Feathers: vary angles slightly to create chaotic, organic light reflection.
• Water/Sky: Use horizontal, long satin stitches for sheen.
• Ground/Dirt: Use tight multi-directional Tatami fills for a matte, solid look.


Contour Fill: The Secret to Organic Shapes

Standard fills go left-right-left. Nature doesn't work that way. A flower petal grows outward from the center.

Contour Fill forces the stitches to follow the curvature of the object shape.

• Visual Check: Look at your screen simulation. Do the stitch lines curve with the petal?
• Why it matters: On the finished garment, Contour Fill prevents the "stiff board" effect. The fabric remains slightly more pliable because the stitches are cooperating with the shape rather than fighting it.


Motif Fills on Denim Bags: The Production Hack

Soni fills large areas with "Motif Fills" (repeating stars/circles) rather than solid thread.

Why this is genius for thick bags:

1. Less Thread: Saves money.
2. Less Pull: Solid fills pull the fabric inward (puckering). Motif fills leave gaps, reducing distortion.
3. Speed: It stitches 3x faster.

The Physical Struggle: Hooping a finished denim tote is a nightmare. The seams are thick, and standard plastic hoops often pop off or break under the strain. If you are fighting to hoop a bag handle or thick seam, you are in the "Danger Zone" for hoop burn (permanent shiny crush marks on the fabric).

• Solution: This is the classic trigger for magnetic embroidery hoops. Magnetic frames clamp straight down with vertical force, avoiding the friction burn of standard inner/outer rings. They handle the uneven thickness of tote bag seams effortlessly.


Picture Stitch: Managing Expectations

Turning a photo of the Mona Lisa into stitches is mathematically impressive, but often artistically messy.

The Density Trap: Photo stitch algorithms often generate massive amounts of stitch data to replicate shadow.

• Risk: If you stitch a photo onto a T-shirt, the density will create a "bulletproof vest" effect. The shirt will hang awkwardly.
• Fix: Only use Picture Stitch on stable, heavy substrates like canvas, denim, or felt. Never on light knits.
• Thread Selection: Use 40wt thread. If the result is too dark, switch to a thinner 60wt thread to let more light (and fabric background) show through.


Fabric Decorator: Create the Fabric First

This module reverses the workflow. Instead of sewing a shirt and then trying to embroider a starburst on the pocket, you embroider a yard of fabric with 50 starbursts then cut out your pattern pieces.

Benefit: You never have to worry about centering the design perfectly on the hoop. You just fill the fabric. Hidden Consumable: You will need a large roll of stabilizer for this. Don't use pre-cut sheets; they verify alignment is too difficult. Use a roll to float the yardage.

4D Vision & Organizer: The Digital "Fitting Room"

Before you commit thread to fabric, use 4D Vision to preview the design on a background image of your garment.

Why do this? Scaling. A design might look huge on your monitor but tiny on a Size XL jacket back.

• Action: Take a photo of your actual garment with a ruler next to it. Import it into Vision. This sets the scale usage. Now when you place the design, you see the true proportion.


Setup That Prevents "Hooping Regret"

Setup is boring, but it is where you make your money. If you are running a small business, time spent wrestling with hoops is lost revenue. Soni’s tour implies a smooth workflow, but in reality, getting the fabric straight in the hoop takes practice.

The hooping station for machine embroidery Advantage: If you find that your designs are consistently crooked (even by 2 degrees), the issue is likely your hands. A hooping station holds the outer hoop fixed and aligns the inner hoop, ensuring the grain line is perfectly straight every time.

Setup Checklist: The "Go/No-Go" Decision

• Template Check: Did you print the paper template? Lay it on the fabric. Does it look right?
• Clearance Check: Is the fabric bunched up behind the machine? (This will sew the shirt to itself—a classic disaster).
• Thread Path: Is the thread properly seated in the tension discs? Floss it in like you are flossing teeth. You should feel resistance. No resistance = No tension.
• Hoop Lock: Is the hoop snapped firmly into the carriage? Listen for the "Click."

Warning: Magnetic Force Hazard. If you upgrade to magnetic hoops, be aware they use powerful neodymium magnets. They can pinch fingers severely (blood blister risk) and should be kept at least 6 inches away from pacemakers or sensitive electronics.

Troubleshooting: The "Symptom-Cause-Cure" Protocol

When things go wrong, do not panic. Use this logic tree.

Symptom 1: Birdnesting (Giant wad of thread under the fabric)

• Likely Cause: The upper thread has no tension (it didn't seat in the discs) or you forgot to lower the presser foot. Ironically, a mess on the bottom is usually an issue with the top thread.
• Quick Fix: Re-thread the machine entirely. Ensure the presser foot is UP when threading (opens discs) and DOWN when stitching (closes discs).

Symptom 2: Design Gap (The outline doesn't match the fill)

• Likely Cause: Fabric shifted in the hoop.
• Quick Fix: For the next run, use a stronger stabilizer (Cutaway) or adhesive spray.
• Prevention: Use a magnetic hoop to maintain tighter, more even grip on the fabric perimeter.

Symptom 3: Needle Breaks constantly

• Likely Cause: Needle is bent, dull, or hitting a previous super-dense knot of thread.
• Quick Fix: Change the needle and check the design density. If you are stitching 4 layers of thread on top of each other, the design is the problem.


The Efficiency Upgrade: When Tools Limit Your Talent

The software is powerful, but your physical tools have limits. Identifying when to upgrade prevents frustration.

The "Pain Point" Upgrade Map

• Pain Point: You dread hooping thick items like Carhartt jackets, canvas bags, or layered hems purely because the screws hurt your hands and the rings pop off.
  • The Upgrade: magnetic hoop for husqvarna viking.
  • Why: Magnets self-adjust to thickness. You save 2 minutes per hoop and zero physical strain.
• Pain Point: You are producing 50+ polos for a local business, and the single-needle color changes take forever.
  • The Upgrade: A Multi-Needle Machine (like SEWTECH multi-needle embroidery machines).
  • Why: You set up 10 colors at once. The machine stitches the whole design without you stopping to re-thread.
• Pain Point: Your alignment is hit-or-miss despite using templates.
  • The Upgrade: hooping stations.
  • Why: It removes the variable of "shaky hands" from the equation.

Operation Checklist: Post-Stitch Discipline

• Trim Jump Stitches: Trim them closely. Long tails can get caught in the wash.
• Remove Stabilizer: If Tearaway, support the stitches with your finger while tearing to prevent distorting changes. If Cutaway, trim leaving about 1/4 inch border.
• The Press: Press the finished embroidery from the back side, using a pressing cloth. This fluffs up the thread and relaxes the fabric.
• File Hygiene: Save your working file (.CAN or .EDG) separately from your stitch file (.HUS or .VIP). You may need to edit it later.


4D Professional is a powerhouse, but it is just a tool. The magic happens when you combine that digital power with a respect for the physical reality of thread, fabric, and tension. Respect the prep, stabilize securely, and don't be afraid to upgrade your physical tools when they become the bottleneck to your creativity.

FAQ

• Q: What is the safest pre-flight checklist before stitching on a Husqvarna Viking embroidery machine to prevent birdnesting and mid-design stops?
  A: Use a 60-second pre-flight routine: fresh needle, correct stabilizer, full bobbin, clear workspace, and a quick hoop tension check.
  • Inspect: Replace the needle if the tip feels rough or catches on a fingernail.
  • Confirm: Match stabilizer to fabric (knits = cutaway; stable wovens = tearaway; pile fabrics = water-soluble topping).
  • Check: Load a full bobbin and verify the machine arm clearance (remove tools, cups, pets from the travel area).
  • Success check: Hooped fabric passes the “thump test” and sounds like a drum, not a dull slap.
  • If it still fails… Re-thread the top path carefully and verify the thread is seated in the tension discs per the machine manual.
• Q: How do I judge correct hooping tension on a Husqvarna Viking hoop to reduce fabric flagging and hoop creep during embroidery?
  A: Hoop the fabric so it is firm and neutral—tight enough to resist bounce, but not stretched like a trampoline.
  • Hoop: Align fabric grain straight and avoid pulling after tightening the hoop screw.
  • Test: Tap the hooped area and adjust until it feels evenly firm across the field.
  • Stabilize: Use the correct stabilizer so the fabric does not pump up and down under the needle.
  • Success check: The fabric surface stays flat while stitching, with outlines not drifting by 1–2 mm.
  • If it still fails… Switch to stronger stabilization (often cutaway) or consider a magnetic hoop to maintain more even perimeter grip.
• Q: How do I prevent puckering when embroidering over an iron-on transfer on a T-shirt using a Husqvarna Viking embroidery machine?
  A: Do not stretch the knit while hooping; use floating on sticky stabilizer or a magnetic hooping method to avoid distortion.
  • Float: Hoop sticky stabilizer, then place the T-shirt on top rather than forcing the knit into a tight ring.
  • Avoid: Stop tugging the shirt after tightening the hoop—stitching “in a stretched state” causes puckers after unhooping.
  • Slow down: Stitch at a moderate speed when needed for control.
  • Success check: The shirt feels neutral in the hoop (not stretched), and the design lays flat after unhooping.
  • If it still fails… Upgrade from tearaway to cutaway stabilizer for knits and re-run a small test on a scrap shirt.
• Q: How do I fix birdnesting (giant thread wad under the fabric) on a Husqvarna Viking embroidery machine during a 4D Professional stitch-out?
  A: Re-thread the upper thread correctly—bottom mess is often caused by the top thread not seated in the tension discs or stitching with the presser foot up.
  • Stop: Halt the machine and cut away the tangled thread before restarting.
  • Re-thread: Thread the machine completely with the presser foot UP while threading (to open tension discs), then stitch with the presser foot DOWN.
  • Verify: Ensure the thread path is fully seated; “floss” it into the discs so you feel resistance.
  • Success check: The underside shows normal bobbin lines, not loops or a growing nest.
  • If it still fails… Replace a burred needle and confirm the bobbin is inserted and wound correctly per the Husqvarna Viking manual.
• Q: Why do Husqvarna Viking embroidery designs show gaps between outline and fill after re-hooping with multi-hooping in 4D Professional Design Aligner?
  A: A visible gap usually comes from fabric shifting between Hoop A and Hoop B; treat alignment as a physical setup problem, not a software glitch.
  • Use: Sticky stabilizer to keep the garment from sliding during re-hooping.
  • Mark: Draw precise center lines with a water-soluble pen or chalk before hooping.
  • Align: Use the hoop’s plastic template grid and take time to match the marks exactly.
  • Success check: The seam between the two stitch files is visually “invisible” with no gap or overlap line.
  • If it still fails… Shrink the design in software if it is only slightly oversized, or move to heavier stabilization for large splits.
• Q: How do I reduce needle breaks on thick denim when editing stock designs in Husqvarna Viking 4D Professional Stitch Editor?
  A: Reduce excessive density where layers stack, and stop immediately if the machine sounds like it is punching through a wall.
  • Inspect: In Stitch Editor, look for areas where multiple blocks overlap in the same spot.
  • Remove: Delete hidden/overlapping sections or use overlap-removal tools when available.
  • Listen: Stop if you hear loud “CLACK-CLACK” impacts—this often means the needle is fighting density or hitting a seam.
  • Success check: The machine runs with a steady, normal “thump-thump” and needles stop snapping in the same area.
  • If it still fails… Change the needle and redesign that high-density area before attempting another run on denim.
• Q: What safety rules should be followed when using neodymium magnetic embroidery hoops and when trimming jump stitches on a Husqvarna Viking embroidery setup?
  A: Stop the machine before touching thread or fabric, and handle magnetic hoops as pinch-hazard tools that must be kept away from pacemakers and sensitive electronics.
  • Stop: Never trim jump stitches or adjust fabric while the machine is running; broken needles can shatter—wear glasses and keep your face back.
  • Handle: Lower magnetic frames straight down; keep fingers out of the clamp zone to avoid blood-blister pinches.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers and sensitive electronics.
  • Success check: Hands stay clear during operation, and hoop handling never requires forcing or “snapping” near fingertips.
  • If it still fails… Slow the process down and reorganize the work area so tools and fabric are not in the machine’s moving clearance zone.
