Make One Letter Pop: Changing Individual Font Colors in Embrilliance Essentials (Without Breaking Your Brother SE1900 Workflow)

If you’ve ever stared at Embrilliance Essentials thinking, “Why is everything one color—and why can’t I even see my hoop?”, take a breath. You are experiencing the classic "Blank Canvas Anxiety." This is one of those skills that feels mysterious and frustrating for exactly five minutes, then suddenly clicks and becomes your daily workhorse for profitable projects like kids’ names, team bags, and quick personalization orders.

In this post, I’m not just summarizing a video; I am rebuilding the workflow with the "production safety" protocols used in professional shops. We will cover how to set the hoop, fix the view, type a name, select a single letter using the tiny green handles, and change specific thread colors. But more importantly, I will add the "Old Hand" sensory checks—the sounds, feelings, and visual cues that prevent wasted thread, ugly registration, and the classic beginner trap: a beautiful screen preview that stitches out like a disaster.

Calm the Panic: When Embrilliance Essentials “Loses” Your 5x7 Hoop Boundary

The moment you don’t see the hoop outline on your screen, it’s easy to assume the software is broken. Most of the time, it’s not broken—you simply haven’t initialized the workspace the way Embrilliance expects.

The video shows a real-world hiccup (and I’m glad it was left in): hoop settings can look like they didn’t apply if you skip the first “New Project” action.

Here’s the stabilizing mindset specific to Brother SE1900 or similar single-needle users:

• The Screen is Not the Reality: Just because the hoop is gone doesn't mean your settings are lost.
• Order of Operations Matters: Think of this software like starting a car. You must turn the ignition (New Page) before you can put it in gear (Set Hoop).
• Don't Panic-Click: If the hoop isn't visible, don't keep clicking random menus. Reset the canvas first.
  This is also where beginners often get frustrated: they’re learning software logic and machine physics at the same time. One clean ritual at the start of every file saves you hours of troubleshooting later.


The “New Page First” Ritual: Fixing the Blank/Invisible Hoop Problem in Embrilliance

In the video, the host clicks the New Page icon (the white sheet of paper) before doing anything else. That single click forces Embrilliance to properly load the page/canvas context.

Do this every time you launch Embrilliance Essentials (The "Ignition" Step):

1. Action: Click the New Page icon (top-left toolbar).
2. Sensory Check: Look for the grid. You should see a blank white workspace with faint grid lines. If it's grey, it's not ready.
3. Then go set hoop preferences.

Expected Outcome: Your workspace behaves normally—hoop boundaries and view controls respond the way you expect.

Watch out (from the video’s “error left in” moment): If you set hoop preferences first and nothing seems to change, it’s usually because the page wasn’t initialized yet. It is a "silent failure"—the software accepts the command but has nowhere to display it.

Lock Your Workspace to 130×180 mm: Setting the 5x7 Hoop in Embrilliance Preferences

Once the page is initialized, set the hoop size exactly as shown. For Brother SE1900 users, this is your "Safe Zone."

1. Go to Embrilliance > Preferences > Hoops.
2. Scroll and select 130×180 mm (5×7).
3. Click Apply, then OK.

Expected Outcome: A hoop boundary line appears on the canvas.

Production Insight: If you’re building files specifically for a Brother machine, this is where you start thinking like a production embroiderer. You’re not “designing in a vacuum,” you’re designing inside a physical limit.

• Safety Margin: Ideally, keep your design at least 5mm away from these edges to avoid the "Presser Foot Collision" sound—a loud, metal-on-plastic crunch that often ends with a broken needle.


The Compass Tool Saves Your Sanity: Re-Centering the View When the Canvas Goes “Funky”

The video calls it out perfectly—sometimes the view gets “kind of funky.” That’s normal when you zoom/pan aggressively to look at details.

To re-center:

1. Look at the Compass / North-South-East-West navigation area in the top right.
2. Click the center crosshair (blue dot) inside the compass to jump back to center.

Expected Outcome: The hoop returns to the absolute middle of your screen.

This matters more than people think. When you’re doing detail work (like selecting one letter), a slightly off view leads to mis-clicks, accidental selections, and the feeling that the software is “glitchy.” It’s usually just the camera perspective.

The Hidden Prep Pros Do Before Typing: Fonts, Thread Palettes, and a Reality Check on Stitching

Before you type a name, do a quick "Pre-Flight Check." This is where beginners avoid the most expensive mistake: spending time perfecting a screen preview that later forces a redesign because the physics of the fabric won't cooperate.

Expert Truths (The Physics of Embroidery):

• Density vs. Size: Lettering that looks clean on-screen can stitch out as a bulletproof lump if scaled down too much. For standard fonts, avoid going smaller than 10-12mm height unless using a specific "Micro" font.
• Stop Fatigue: Multi-color lettering increases "stops" (color changes). Every stop is a chance for the machine to misalign if the hoop bumps the table.
• Workflow Bottlenecks: If you are personalizing 20 team shirts, the software part is fast (2 minutes). The physical hooping is slow (5-8 minutes per shirt).

If you’re already thinking about production speed, this is where physical workflow starts to matter. Professional hooping stations can cut your “prep per shirt” dramatically when you’re doing names in batches, ensuring every name is straight without measuring each shirt individually.

Prep Checklist (Complete BEFORE typing):

• Canvas: Confirm you clicked New Page and see the grid.
• Hoop: Confirm hoop is set to 130×180 mm (5×7).
• Needle Check: Are you using a 75/11 embroidery needle? (Standard sharp needles can slice knit fabrics).
• Thread Plan: Decide your thread brand palette ahead of time (the video uses Brother Embroidery and mentions Simthread).
• Design Strategy: Decide: Do you want alternating colors (more stops/time) or one accent letter (fewer stops/faster)?


Type the Name the Clean Way: Using the “A” Create Letters Tool Without Fighting the Properties Panel

Now you’re ready to create the text object:

1. Click the “A” icon (Create Letters tool).
2. In the text box on the right properties panel, highlight the default “ABC”.
3. Type the name you want (the video uses “Jeanette”).
4. Press Enter.

Expected Outcome: The canvas updates from “ABC” to your custom name.

Common Question: "Which Embrilliance do I need?" The comment thread answers it plainly: start with Embrilliance Essentials. It is the industry standard for "everyday editing." Other modules are add-ons you can purchase later when you need to digitize from scratch.

BX vs PES Without the Confusion: Buy BX Fonts, Save PES for Brother SE1900

The video gets into file formats, which can be confusing. Let's simplify it with a cooking analogy:

• BX Files = The Ingredients: These are fonts you install into the software. They remain edible text that you can type, spell-check, and resize.
• PES Files = The Casserole: This is the final, baked dish you feed to your Brother SE1900. You cannot easily pull the "ingredients" back out to change the spelling.

The Golden Rule: When purchasing fonts, always look for the BX format so you can map it to your keyboard. Even though your machine uses PES, you only convert to PES at the very last second when saving to your USB drive.

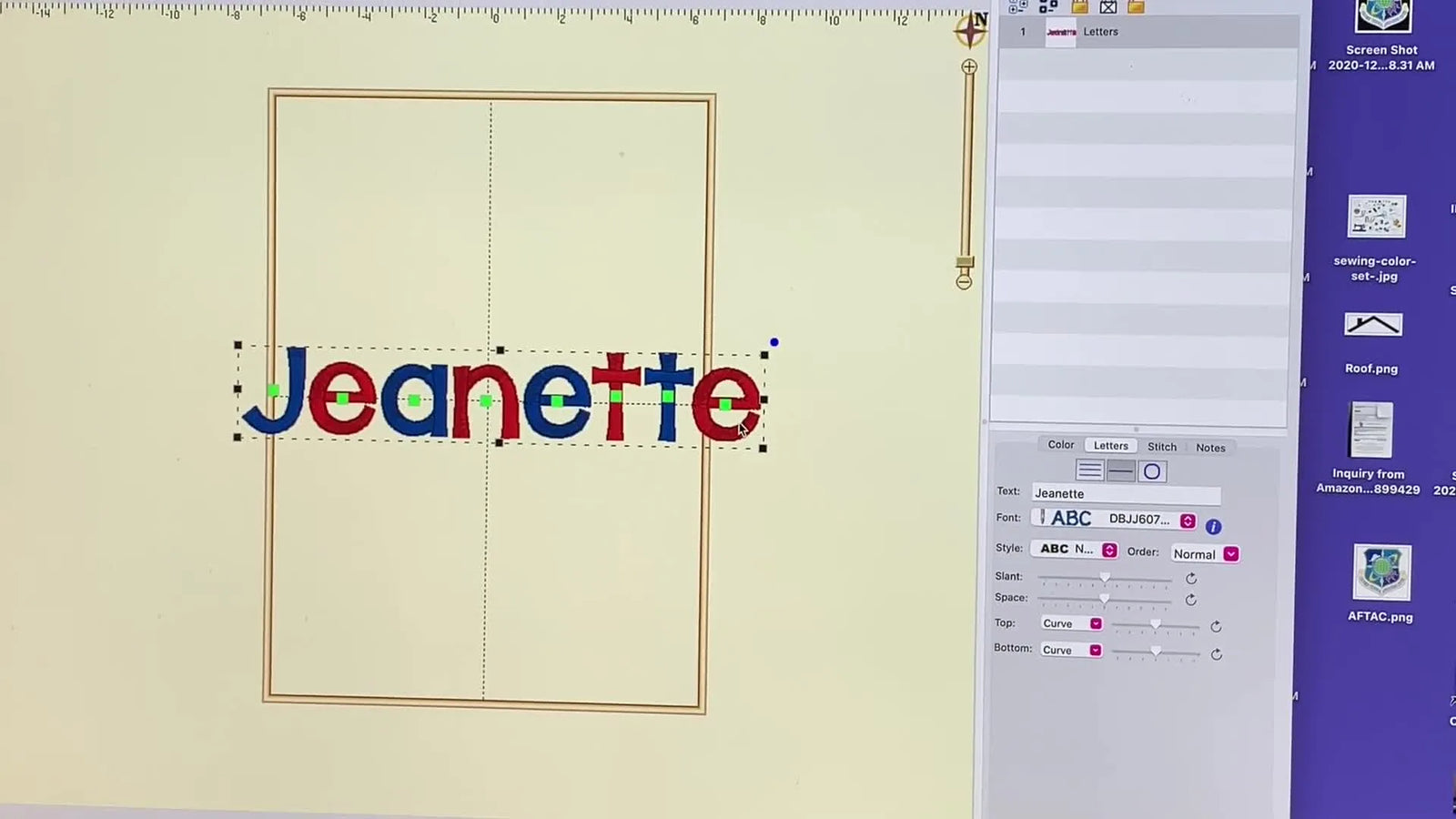

The Green-Box Secret: Selecting One Letter Inside a Single Text Object (No Splitting Needed)

Here’s the core technique that separates novices from intermediates. You do not need to break the text apart to change colors.

When your text object is on the canvas, look closely. You’ll see small green square nodes/handles above the center of each letter. Those green boxes are your precision controls.

The Micro-Step:

1. Zoom in slightly if needed.
2. Locate the green square directly above the letter you want to change.
3. Click only that specific green square.

In the video, the host clicks the green box for the letter “e”.

Expected Outcome: That specific letter is highlighted or boxed, while the rest of the word remains selected but inactive.

This is the moment most beginners miss—because they click the body of the letter, not the handle. Once you “see” the green boxes, you’ll never unsee them.

Change Only That Letter’s Thread Color: Brother Embroidery Palette, Search “Red,” Confirm the Preview

With a single letter selected via the Green Box:

1. Go to the right panel and click the Color tab.
2. In the thread dialog, verify the palette is set to Brother Embroidery (or your specific thread brand like Simthread/Madeira).
3. Type "Red" in the search bar.
4. Double-click the red swatch (or select it and hit OK).

Sensory Check: The selected letter should instantly change color on the canvas. The rest of the name must remain the original color. If the whole name turned red, you clicked the word, not the green box. Undo (Ctrl+Z) and try again.

Repeat the Color Trick Fast (Without Mis-Clicks): A Setup That Feels Like Production, Not Hobby

The video continues by selecting other letters (like the “n”) and repeating the same color change process.

Here’s how experienced operators keep it clean to avoid "Click Fatigue":

• Zoom is your friend: Don't squint. Zoom in until the green box is the size of a pea, not a grain of sand.
• Center your work: Use the compass tool if the text drifts off-screen.
• Batch your brain: Select letter -> Change Color -> Select next letter -> Change Color. Rhythm matters.

The Hidden Struggle: If you’re doing names for kids’ shirts, you’re not just designing—you’re manufacturing. This is where hooping for embroidery machine tasks become the real exhaustion point. The software part gets fast, but hooping, aligning, and re-hooping soft knit fabrics 20 times can hurt your wrists and eat your day.

Setup Checklist (Mid-Process):

• Selection: Confirm only one letter highlights at a time.
• Palette: Ensure you are pulling colors from the same palette for consistency.
• Visuals: Zoom out. Does the color balance look right? (e.g., Is the light green visible against a white background?)


Rotate 90° and Shrink to Fit: Using the Circle Handle and Corner Handles for a 5x7 Layout

Once your colors look right, you must fit the design into the hoop boundary.

1. Select Everything: Click the name so the whole object is selected.
2. Rotate: Click the small blue circle handle (usually top right of the selection). Drag it to rotate 90°.
3. Resize: Use the corner handles (never the side handles, which stretch the font) to scale the design down until it fits inside the hoop guidelines.

Expected Outcome: The name sits comfortably inside the 5x7 boundary with space on all sides.

Warning: Mechanical Safety. Ensure your design is centered. If you place a design too close to the edge of the physical hoop, the needle bar clamp can hit the plastic frame. This can knock your machine out of timing or break parts. Always leave a "thumbs-width" buffer if possible.

Why Your “Perfect” Multi-Color Name Can Still Stitch Ugly: Registration, Stops, and Fabric Behavior

Now the expert layer—the stuff the software can’t warn you about. Multi-color lettering is deceptively simple: it’s still one word, but it behaves like multiple stitch blocks because each color change is a machine stop.

The Risk of "Push/Pull":

• Fabric relaxes when the machine stops to trim.
• Slight movements happen when you change threads.
• Result: Tiny gaps appear between the letters, or the outline doesn't match the fill.

This is where physical hooping technique becomes the quality gate. If you’re using standard brother embroidery hoops, you must ensure the fabric is "drum tight" but not stretched. If you pull a knit shirt too tight, it snaps back when removed, distorting the letters. Many shops move to magnetic options when the fabric is delicate or when speed matters, as they hold fabric flat without "forcing" it.

A Practical Stabilizer Decision Tree for Kids’ Shirts (So Your Letters Don’t Ripple)

The video’s project is a classic use case: names on kids’ shirts. The software steps are only half the job; the other half is controlling stretch.

Use this decision tree for your next project. (Note: These are starting points; always test on scraps).

Decision Tree: Fabric → Stabilizer Strategy

• Hidden Consumable: Don't forget temporary spray adhesive (Odif 505) if you are floating your fabric, or a water-soluble marking pen to mark your center point.


Troubleshooting the Two Most Common “I’m Stuck” Moments in Embrilliance Essentials

Here are the exact issues shown in the video, rebuilt into a rapid-response table.

The Upgrade Path That Actually Saves Time: From Standard Hoops to Magnetic Hoops

Once you can create multi-color names quickly, the bottleneck shifts. It is almost never the software—it’s hooping, alignment, and repeatability.

If you’re doing one shirt for fun, standard hoops are fine. If you’re doing 20 shirts for a birthday party, standard hoops will make you hate the project.

The Diagnostic: Do You Need an Upgrade?

• Scenario: You are stitching on soft t-shirts or thick towels.
• Pain Point: You struggle to close the standard hoop (the thumbscrew fight), or you see "hoop burn" (shiny rings) on the fabric.
• The Criteria: If hooping takes longer than stitching, or if you are rejecting garments because of hoop marks.

The Solution Hierarchy:

1. Level 1 (Technique): Use "floating" (hoop stabilizer only, pin shirt on top). Cheap, but risks alignment errors.
2. Level 2 (Tool Upgrade): Consider a magnetic hoop for brother se1900. These clamp fabric automatically using magnetic force. They save wrists, prevent hoop burn, and are significantly faster for batching.
3. Level 3 (Machine Upgrade): Move to a multi-needle machine for auto-color changes.

Warning: Magnetic Hazard. Magnetic hoops use strong industrial neodymium magnets. Keep them away from pacemakers, credit cards, and hard drives. Watch for pinch hazards—do not let the two frames snap onto your finger; it will cause injury.

For Brother owners specifically, many advanced hobbyists eventually search for a brother 5x7 magnetic hoop to maintain the joy of the hobby without the physical struggle of the plastic frames.

Your Final On-Screen Check Before You Save and Stitch: What “Ready” Looks Like

The video ends with the finished name centered vertically in the 5x7 hoop boundary, with alternating colors.

Before you save to USB and walk to the machine, do one last Pilot's Check. This saves the "Walk of Shame" back to the computer.

Operation Checklist (Pre-Stitch):

• Hoop Check: Is the design fully inside the boundary lines?
• Color Logic: Are the intended letters the only ones that changed color?
• Orientation: Is the design rotated 90°? Does that match how you are hooping the shirt? (Don't stitch a sideways name by accident).
• Bobbin Check: Do you have enough bobbin thread? (Rule of thumb: A full bobbin lasts roughly 25,000-30,000 stitches depending on tension).
• Speed: For text, slow your machine down. If your max is 800 SPM (Stitches Per Minute), lower it to 600 SPM for cleaner satin columns on the lettering.

When you can confidently change one letter’s color and control the result, you’ve unlocked a profitable personalization skill. The software is just the map; your hands, hoop, and machine are the vehicle. Drive carefully.

FAQ

• Q: How do I make the 130×180 mm (5×7) hoop boundary visible in Embrilliance Essentials for a Brother SE1900 project?
  A: Click New Page first, then re-apply the 130×180 mm (5×7) hoop in Preferences—this usually fixes the “invisible hoop” instantly.
  • Click the New Page icon (white sheet) to initialize the canvas.
  • Go to Embrilliance > Preferences > Hoops, select 130×180 mm (5×7), click Apply, then OK.
  • Success check: A hoop boundary line appears, and the workspace shows a white canvas with a faint grid (not a grey, “not-ready” page).
  • If it still fails: Close/reopen Embrilliance Essentials and repeat the same order—New Page first, hoop settings second.
• Q: How do I re-center a “funky” off-screen view in Embrilliance Essentials when the hoop and design drift away from the middle?
  A: Use the Compass navigation tool and click the blue center dot/crosshair to snap the view back to center.
  • Find the Compass (N/S/E/W) area at the top right.
  • Click the center crosshair/blue dot to jump back to the origin.
  • Success check: The hoop boundary returns to the absolute middle of the screen, and selecting objects feels “normal” again.
  • If it still fails: Reduce extreme zoom/pan, then click the compass center again to reset your working view.
• Q: How do I change the thread color of only one letter in Embrilliance Essentials without splitting the text object?
  A: Select the letter using the green square handle above that letter, then change color in the Color tab—do not click the letter body.
  • Zoom in until the green handle is easy to target (often 200%+).
  • Click the green square node above the specific letter you want to edit.
  • Open the Color tab, choose the correct palette (for example Brother Embroidery), then pick the new color.
  • Success check: Only the chosen letter changes color immediately; the rest of the name stays the original color.
  • If it still fails: Press Ctrl+Z, then reselect the green handle (if the whole word changes color, the word—not the handle—was selected).
• Q: What is the correct workflow for using BX fonts and saving PES for a Brother SE1900 in Embrilliance Essentials?
  A: Use BX for editable typing inside Embrilliance Essentials, then export PES only at the final “save to USB” step for the Brother machine.
  • Install/use the font in BX so text stays editable (spelling, sizing, retyping).
  • Finish layout, color changes, rotation, and sizing while the text is still editable.
  • Save/export as PES for the Brother SE1900 only when the design is final.
  • Success check: You can still click into the text tool and edit wording before export; after saving as PES, editing is no longer “ingredient-level” simple.
  • If it still fails: Re-open the working file version (not the exported PES) and make edits there, then re-export PES.
• Q: What pre-flight checks should be done before stitching multi-color names on kids’ shirts with a Brother SE1900 to avoid ugly lettering?
  A: Do a quick pre-flight on needle choice, stabilizer plan, and color-stop risk before pressing stitch—this prevents most “looks perfect on screen, stitches ugly” outcomes.
  • Install a 75/11 embroidery needle (a safe starting point; always follow the machine manual for needle guidance).
  • Choose stabilizer by fabric: mesh cutaway for stretchy t-shirt knit, tearaway for woven cotton, cutaway + water-soluble topper for fleece/towel.
  • Plan color strategy: fewer color changes usually means fewer stop-related alignment risks.
  • Success check: The fabric handling plan is decided before typing, and the design is sized/placed with a margin inside the 5×7 boundary.
  • If it still fails: Test on scrap of the same fabric type, then adjust stabilizer choice (especially for knits and high-pile fabrics).
• Q: How do I avoid presser foot or needle bar clamp collisions when fitting and rotating a name in a 130×180 mm (5×7) hoop in Embrilliance Essentials?
  A: Keep the design centered with a safety margin and do not crowd the hoop edge—collisions can sound like a loud crunch and can break needles or damage parts.
  • Select the whole text object, rotate using the blue circle handle (for example rotate 90° if needed for layout).
  • Resize using corner handles only to keep lettering proportional.
  • Leave a buffer from the hoop boundary (a safe starting point is at least 5 mm from edges, and more margin is often safer).
  • Success check: The design sits comfortably inside the hoop boundary with clear space on all sides before exporting.
  • If it still fails: Re-center the design and reduce size slightly; do not “cheat” toward the hoop edge to force a fit.
• Q: When should a Brother SE1900 user upgrade from standard Brother hoops to a magnetic embroidery hoop for faster hooping and less hoop burn?
  A: Upgrade when hooping time or hoop marks become the real bottleneck—start with technique changes, then consider a magnetic hoop if the problem is repeatable.
  • Trigger: Hooping takes longer than stitching, the thumbscrew fight is constant, or hoop burn/shiny rings cause rejected garments.
  • Level 1 (Technique): Try floating (hoop stabilizer only, attach garment on top) to reduce hoop stress, but watch alignment carefully.
  • Level 2 (Tool): Use a magnetic hoop to clamp fabric faster and reduce hoop burn, especially on soft knits or thick towels.
  • Success check: Hooping becomes faster and more repeatable, and hoop marks reduce on finished garments.
  • If it still fails: Consider whether production volume and frequent color changes justify moving to a multi-needle setup for workflow speed.
• Q: What magnetic hoop safety rules should be followed when using strong neodymium magnetic embroidery hoops on home or industrial machines?
  A: Treat magnetic hoops as pinch-and-magnet hazards—keep them away from sensitive medical devices and never let frames snap together on fingers.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Control the closing motion: lower the top frame carefully to avoid a sudden snap.
  • Keep fingers clear of the mating edges to prevent pinch injuries.
  • Success check: The hoop closes smoothly without “slamming,” and hands stay clear throughout clamping.
  • If it still fails: Stop and reposition—do not force alignment; separate the frames safely and re-clamp with deliberate control.
