Manual Digitizing a 1-Inch Serif “A” in Floriani: The Overlap-and-Feather Method That Stops Gaps Before They Start

There is a specific kind of heartbreak that every embroiderer knows. You spend hours digitizing a name or a monogram, the on-screen preview looks crisp, perfect, and professional. But when the machine finally stops and you trim the jump stitches, the reality is a disaster: the crossbar of the "A" is detached, floating in a sea of fabric gap; the serif looks like a tangled knot; and the sharp apex of the letter is bloated and round.

When lettering goes wrong, it rarely fails in the “big obvious” places—it fails at the joints. The crossbar-to-leg connection, the apex overlap, the tiny serif transitions… that’s where customers notice wobble, gaps, and fabric peeking through.

This post rebuilds the exact workflow from the video: manually digitizing a 1-inch serif letter “A” using Floriani Digitizing Software, relying mainly on Running Stitch and the Classic Column tool. However, we are going to layer this with 20 years of shop-floor experience. We won't just tell you what to click; we will explain how the thread interacts with the physics of your fabric. The goal is a clean, continuous sew-out that travels left-to-right like real text—without unnecessary trims—while using overlap and feathering to beat the inevitable push/pull distortion.

Don’t Panic: A “Gappy” Letter A Usually Isn’t Your Machine—It’s the Stitch Plan

If you’ve ever stitched a letter and thought, “My tension must be off,” take a breath. In small lettering (under 1 inch or 25mm), the design itself often creates the problem: columns that butt together, stitch angles that fight each other, and joints that don’t anticipate pull.

Beginners often try to compensate for gaps by tightening their thread tension knobs until the poor machine sounds like it’s grinding gears. Stop. Listen to your machine. If you hear a sharp, rhythmic thump-thump-thump, your mechanics are likely fine. If you see gaps, it is almost certainly a digitizing issue regarding "compensation."

The video’s approach is refreshingly practical: assume the “A” is part of a word, enter from the previous letter, and exit into the next—so your pathing behaves like real lettering, not a standalone patch.

A lot of viewers asked what software this is; it’s Floriani, but the technique translates to most full digitizing programs (you’ll just map the tools to your software’s equivalents). Whether you use Wilcom, Hatch, or PE-Design, the physics of thread remain the same.

The “Hidden” Prep Pros Do Before Digitizing Lettering in Floriani (So the Sew-Out Matches the Screen)

The video starts with a key constraint: the letter is digitized as if it will stitch at 1 inch tall. That size assumption drives everything—underlay choices, overlap depth, and how aggressive you need to be at joints.

Before you place a single node, set yourself up for a realistic test sew-out. This is where many intermediate digitizers lose time: they digitize in a vacuum, then blame the machine when fabric behaves like fabric. You must understand that thread takes up physical space, and fabric is fluid, moving material.

If your end goal is consistent lettering across many garments, treat your test like production: same fabric type, same stabilizer style, same hooping method, same thread.

One practical note from the shop floor: Hooping is the variable that ruins good digitizing. If your fabric isn't "drum-tight" (but not stretched/distorted), even a perfectly digitized file will pucker. If you’re seeing registration drift where the outline doesn't match the fill, your hooping method matters as much as your digitizing. When you’re repeatedly testing small lettering, a stable, repeatable hooping routine is worth more than another hour of node tweaking. This is why many growing shops invest in a hooping station for machine embroidery—not just for speed, but to ensure that Sample A stitches exactly like Sample B by mechanically standardizing the tension and placement.

Prep Checklist (do this before you digitize)

• Dimensional Check: Confirm the target height is exactly 1 inch (25.4mm). This is the "danger zone" where small errors become visible.
• Pathing Strategy: Decide your stitch path goal: enter bottom-left, exit bottom-right. This mimics the natural flow of handwriting and prepares for connected text.
• Tool Selection: Pick your two primary tools (as shown): Running Stitch (for the skeleton/underlay) + Classic Column (for the satin body).
• Joint Strategy: Plan where joints will need overlap/feathering (crossbar into legs, apex overlap). Visualize the threat of the fabric pulling apart.
• Material Prep: Select your Hidden Consumables: A fresh 75/11 sharp needle (ballpoint for knits), 40wt thread, and the correct stabilizer (see Decision Tree below).
• Hooping Validation: Hoop a test scrap. Tap it. It should sound taut, not dull.


Path Like Real Text: Running Stitch Underlay That Sets Up a No-Trim Lettering Flow

The instructor begins at the lower-left corner and ends at the lower-right corner, explicitly assuming the letter connects to neighbors so you can avoid trims. Trims are the enemy of small lettering; they increase run time and leave messy "bird nests" on the back that can pull through to the front.

He then lays down manual underlay using the Running Stitch tool:

• Up the left leg
• Down the right leg
• Across the crossbar
• Back down to where the underlay started

The Sensory Check: When you run this on the machine, you should see this underlay stitch out first. It acts as a foundation, tacking the fabric down to the stabilizer before the heavy satin stitches arrive.

The nuance that matters: he adds extra rows in the wider section for stability, and fewer in the skinny leg. That’s not “decoration”—it’s controlling how the fabric supports the satin/column stitches that come next.

This is also where experienced digitizers quietly win: underlay isn’t just “something under the stitches.” It’s a structural decision. For a 1-inch letter, a Center Run underlay is usually sufficient. An Edge Run (contour) might be too bulky and poke out of the sides of thin serifs. The manual approach gives you total control to keep the underlay inside the lines.

Classic Column Tool Control: The 4-Point Habit That Keeps Stitch Angles Predictable

In the video, the Classic Column is explained in a way that’s easy to replicate:

• Points 1 & 2 establish the start angle/direction.
• Points 3 & 4 establish the end of the column.

That’s the core mechanic you’re leveraging: you’re not letting the software guess stitch direction—you’re telling it.

This matters most on serif lettering because the eye reads angle changes as “clean” or “messy.” A serif that’s technically filled but angled wrong looks cheap. The stitches should flow perpendicular to the column width.

Pro Tip: If you are using a mouse, develop a rhythm. Click-Click (Start), Drag, Click-Click (End). If your software allows, visualize the "rungs of a ladder." Your points define the side rails of the ladder, and the thread becomes the rungs. If the rails are twisted, the rungs will be crooked.

The Left Serif “Foot” on a 1-Inch Letter A: Stop the Column Early So You Have Somewhere to Go

The instructor digitizes the bottom-left serif first with the Classic Column tool, but he intentionally stops the column at the vertical leg junction.

Why? Imagine building a bridge. You don't build the finishing ramp before you build the main span. If you finish the serif in a way that strands you on the wrong side (the far left), you’ll be forced into a trim or an awkward jump stitch to get back to the main leg of the "A."

This is one of those “old-fashioned” habits that still pays: you digitize with the machine’s next move in mind. You are essentially drawing a map for the needle.

Expected outcome: after you right-click to generate stitches, the serif is filled and your endpoint is positioned exactly at the base of the vertical leg, allowing you to travel up the leg cleanly without cutting the thread.

The Crossbar Joint That Makes or Breaks Serif Lettering: Overlap Deep and Feather the Angles

Here’s the heart of the tutorial. This is where 90% of failures happen.

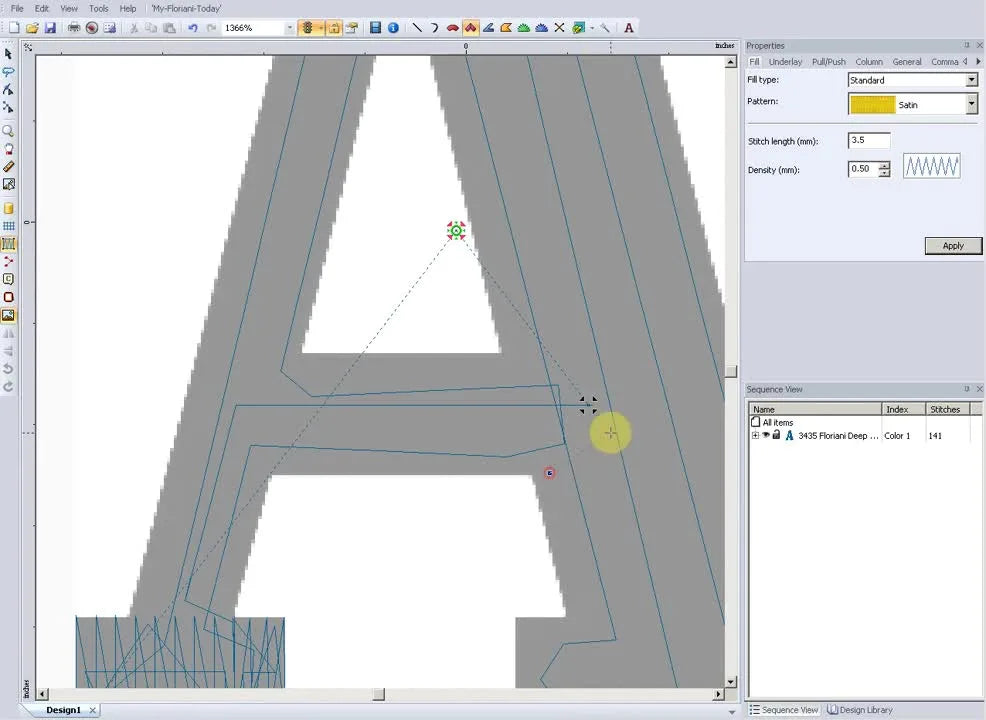

From the left serif endpoint, the instructor uses Running Stitch to travel up the center of the left leg to crossbar height, then switches back to Classic Column for the crossbar.

The critical warning from the video is simple: don’t butt stitches together.

If you rely on the screen, "touching" looks like "connected." In reality, as the satin stitches form, they pull the fabric inward (Pull Compensation). If the crossbar just touches the leg, the pull will rip them apart, leaving a visible gap of fabric.

Instead, he plots the crossbar points deep inside both vertical legs so the crossbar stitches overlap into the leg columns.

• How deep? For a 1-inch letter, aim for an overlap of at least 0.5mm to 0.8mm. It feels wrong on screen, but it looks right on fabric.

Then he adjusts stitch angles so the two stitch fields merge/feather rather than collide. If both layers run horizontally, you get a hard lump. By angling them slightly, they blend.

This is push/pull compensation in practice: you’re not just changing a numeric setting—you’re designing the joint so that when the fabric pulls inward, you still have coverage.

If you’re trying to improve lettering quality, this is where specialized machine embroidery hoops and hooping consistency quietly affect your results: even a perfect overlap can show gaps if the fabric is under-hooped, over-stretched, or shifting during sew-out. If the fabric slips even 1mm, your 0.5mm overlap is gone.

Warning: Keep your hands clear when test stitching dense lettering—needle strikes happen fast (even at 600 stitches per minute), and a small snag on a loose thread or loop can pull fabric (and fingers) toward the needle before you can react.

The Apex Overlap Trick: Drop the Top Point to Counter Embroidery Push (So the A Doesn’t Grow)

At the top of the “A,” the instructor avoids a simple cap and uses overlapping stitches to tie the legs together.

He starts the right-leg column high up on the left leg (overlapping), but then he does the move that separates “it stitched” from “it stitched clean”:

He drops the top plotting point (Point 4) slightly down to compensate for embroidery push at the overlap.

The Physics of Push: When you cram a lot of thread into a small point (the apex), the thread has nowhere to go but out. This pushes the fabric upward. If you digitize the point exactly at the 1-inch line, the final sew-out may measure 1.1 inches and look like a distorted steeple.

By lowering that point in the digitizing stage—effectively digitizing a flat top or a shorter point—you leave room for the push to happen. The thread pushes into the empty space you left, reforming the perfect point.

Expected outcome: the apex looks sharp but not stretched, and the overlap area doesn’t create a tall spike or a bulletproof knot.

Finish the Right Leg Like a Pro: Merge the Bottom Serif So Fabric Can’t Peek Through

The instructor continues down the right leg with the Classic Column tool, and he repeats the same philosophy used at the crossbar: where stitch fields meet, you don’t want a hard seam.

At the bottom, he creates a subtle change in direction so the stitches tie together better. The reason is practical: if you run a straight column into a perpendicular element without feathering, pull can open a visible gap.

He ends the design in the lower-right corner, again assuming you’ll step into the next letter.

This is also where production digitizers think ahead: if you’re building an alphabet or a font set, consistent entry/exit points (usually Bottom-Left Entry, Bottom-Right Exit) make multi-letter words stitch smoother with fewer trims.

The Global Density Move: Set 0.38 for a More Realistic Stitch Count (Then Trust the 3D Preview)

After the manual digitizing is complete, the instructor selects the entire object and applies a global density adjustment to 0.38.

Note on Density: Standard density is often 0.40mm or 0.42mm. Lowering the number to 0.38mm brings the stitch lines closer together.

• Why tighter? Small lettering has shorter stitches. Short satin stitches don't "bloom" or spread as much as long ones. To ensure you don't see the fabric through the thread, you need slightly more density.

Then he toggles the 3D view to preview how the overlaps behave—especially at the crossbar and apex.

Two important realities from the shop floor:

1. Density is not “one number forever.” It varies by thread (rayon is thinner than polyester) and fabric (pique needs more density than twill).
2. 3D preview is helpful for checking logic, but the sew-out is the truth. Do not trust the screen for density on textured fabrics like towels or fleece; they will swallow stitches if you don't use topping.


Setup Checklist (before you run your first test sew-out)

• Scale Verification: Confirm the design is still sized to 1 inch height.
• Travel Logic: Verify your travel stitches follow the plan: bottom-left entry → bottom-right exit with NO trims inside the letter.
• Overlap Audit: Inspect crossbar nodes: do they extend into both legs (not just touching)? Look for at least 0.5mm visual overlap.
• Push Comp Audit: Inspect apex nodes: is the top point dropped slightly to allow for push?
• Density Setting: Apply the global density change to 0.38 (as shown in the video) or your software's equivalent for "tighter" density.
• Visual Check: Toggle 3D preview and zoom in on the joints. If you see white gaps on the screen, they will be massive chasms on the fabric.


The “Why” Behind Overlap and Feathering: Push/Pull Physics You Can Actually Use

Most digitizers learn “push and pull” as a phrase, but the video demonstrates it as geometry. To master this, you must understand the forces at play:

• Pull Compression: As a stitch forms, the tension pulls the fabric inward along the direction of the stitch. A vertical column gets narrower. If two elements only meet edge-to-edge, this pull draws them away from each other, opening a gap.
• Push Expansion: As more thread is packed into an area, it pushes the fabric outward perpendicular to the stitch. A vertical column gets taller. This distorts peaks and dense intersections.

The overlap-and-feather method works because it creates a coverage buffer. When pull happens, you still have stitches sitting under/into the neighboring element. When push happens, you’ve already allowed room by dropping a point.

Generally, the smaller the lettering, the less forgiveness you have. At 1 inch, you can still build robust overlaps; as letters get smaller (down to 0.5 inch), you often need to simplify structure, reduce stitch count, and be even more intentional about underlay and angles.

If you’re running repeated tests and noticing inconsistent gaps from sample to sample—Sample 1 is perfect, Sample 2 has a gap—don't ignore hooping variables. Many shops improve lettering consistency simply by standardizing hooping pressure and placement. Standard hoops rely on manual screw tightening, which varies day to day. This is why some professional studios switch to magnetic hooping station workflows; the magnets provide uniform holding force every single time, removing the "human error" variable from the physics equation.

Troubleshooting Floriani Lettering Joints: Symptoms → Likely Cause → Fix You Can Apply Today

When your test sew-out fails (and it will), use this logic tree to fix it efficiently without guessing.

Watch out: If you “fix” gaps by only increasing density (adding stitches), you may hide the gap but create a stiff, bulletproof-looking letter that puckers the fabric. Structure first, density second.

Problem 4: The design looks fine in 3D, but stitches separate on fabric

• Symptom: Screen preview looks perfect; sew-out shows separation.
• Likely cause: Hooping distortion or fabric movement during stitching.
• Fix: Re-check hooping consistency and stabilization. If "hoop burn" (the shiny ring left by the frame) or slippage are a recurring headache, learning how to use magnetic embroidery hoop methods can help reduce over-stretching and speed up repeatable sampling.

Warning: Magnetic frames are powerful industrial tools. Keep magnets away from pacemakers/implanted medical devices. Watch for pinch hazards—fingers can get caught between the frame and the magnet if you rush. Treat them with respect.

A Practical Stabilizer Decision Tree for Testing Small Lettering (So You Don’t “Digitize Around” Bad Hooping)

Even though the video focuses on digitizing, your test sew-out is where you validate the overlap strategy. Use this simple decision tree to choose a starting stabilizer approach. NEVER test small lettering on a scrap of fabric without stabilizer—it creates false failures.

Decision Tree (Fabric → Stabilizer starting point):

1. Is the fabric stable woven (canvas, denim, non-stretch twill)?
   • Action: Start with one layer of medium-weight Cutaway (2.5oz). Or, if the fabric is very stiff, a firm Tearaway may suffice, but Cutaway is safer for crisp text.
2. Is the fabric knit or stretchy (tees, polos, performance wear)?
   • Action: MUST use Cutaway (2.5oz or 3.0oz). Tearaway will leave the letters distorted after the first wash. Secure with temporary spray adhesive.
3. Is the fabric lofty or textured (fleece, towels, heavy pique)?
   • Action: Start with Cutaway (Back) + Water Soluble Topping (Front). The topping prevents the small stitches from sinking into the pile and disappearing.
4. Are you seeing hoop burn, distortion, or inconsistent registration across samples?
   • Action: You are likely over-tightening the inner ring. Standardize hooping pressure; many operators move to magnetic embroidery hoops to eliminate the need for the inner ring to be forced into the outer ring, thus reducing hoop burn and speeding up repeatability.


The Upgrade Path: When Better Hooping and Production Tools Beat “One More Edit”

Manual digitizing like this is exactly how you build lettering that sells—clean joints, predictable stitch direction, and fewer trims. But once you’re doing this for real orders, the bottleneck often shifts from creating the file to producing the goods.

You can be the best digitizer in the world, but if your production workflow is painful, you won't be profitable. Here’s a practical way to diagnose your studio's needs:

• Level 1: The Skill Issue. If joints are gapping on stable fabric, Keep Practicing. Use the overlap techniques above. Adjust your pull compensation settings.
• Level 2: The Consistency Issue. If your pain is slow hooping, sore wrists, or inconsistent samples where one shirt looks good and the next looks bad, consider the mechanical variable. A workflow involving a hooping station for embroidery ensures placement is identical across size runs. If hoop marks are ruining delicate garments, the magnetic embroidery hoop is the industry standard solution to hold fabric firmly without crushing the fibers.
• Level 3: The Scale Issue. If your pain is that you have 50 shirts to do and your single-needle machine takes 15 minutes per logo (and requires a manual thread change for every color), you have outgrown your hardware. This is the moment to look at multi-needle productivity. In many studios, moving to a high-value multi-needle platform (like SEWTECH systems) allows you to set up the next run while the current one stitches, turning "hobby time" into "profit time."

The point isn’t to buy more gadgets indiscriminately—it’s to remove the step that’s currently stealing your joy and your profit: re-hooping, re-testing, and re-running jobs because the joint opened up or the fabric shifted.

Operation Checklist (after your first sew-out, before you call the file “done”)

• Context Check: Stitch the letter on the exact fabric type you expect to sell (not just felt).
• Corner Audit: Inspect the crossbar corners: no base fabric should be visible. If there is, increase overlap (don't just increase density).
• Underbelly Check: Check the underside/bobbin view. You should see a white strip of bobbin thread occupying the center 1/3 of the satin column. If the white bobbin thread is pulling to the top, your top tension is too tight.
• Feel Test: Run your finger over the letter. Is it stiff and bulletproof? If so, reduce density or change underlay. A good letter moves with the shirt.
• Save Version: Save a “tested” version of the file (e.g., LetterA_1inch_Knit_v2.dst) so you don’t overwrite your baseline work.

FAQ

• Q: In Floriani Digitizing Software, how do you stop gaps at the crossbar joint when stitching a 1-inch serif letter “A” with the Classic Column tool?
  A: Overlap the crossbar stitches deep into both legs and feather the stitch angles instead of butting edges together.
  • Extend the crossbar column nodes into each vertical leg by about 0.5–0.8 mm (it will look “too much” on screen).
  • Slightly adjust stitch angles at the joint so the two stitch fields blend rather than collide into a hard seam.
  • Re-run a test sew-out before changing tension or adding density.
  • Success check: No base fabric shows at the crossbar-to-leg connection after trimming jump stitches.
  • If it still fails: Re-check hooping stability and stabilizer choice, because a 1 mm fabric shift can erase a 0.5 mm overlap.
• Q: In Floriani Digitizing Software, how do you prevent a bloated or rounded apex on a 1-inch serif letter “A” caused by embroidery push?
  A: Drop the top plotting point slightly lower so the inevitable push “fills into” the space you left.
  • Start the right-leg column high enough to overlap into the left leg at the apex area.
  • Lower the top point (the peak) a bit instead of digitizing the apex exactly at the 1-inch height line.
  • Keep the apex overlap intentional rather than stacking multiple hard intersections.
  • Success check: The stitched apex looks sharp (not tall, round, or “spiky”) and the letter height does not “grow.”
  • If it still fails: Sew a second sample with the same fabric and stabilizer; inconsistent results usually point to hooping movement, not the apex geometry.
• Q: In Floriani Digitizing Software, how do you create a no-trim stitch path for a 1-inch serif letter “A” using Running Stitch underlay and Classic Column?
  A: Plan the lettering like real text: enter bottom-left, travel with running stitch inside the columns, and exit bottom-right without trims inside the letter.
  • Begin at the lower-left and use Running Stitch to build a controlled underlay path (up left leg, down right leg, across crossbar, return).
  • Use Running Stitch to travel up the center of the leg to the crossbar height before switching back to Classic Column.
  • Stop the left bottom serif column at the leg junction so the needle “has somewhere to go” next without jumping.
  • Success check: The machine stitches the entire letter with no trims inside the “A,” and the travel lines are hidden inside the satin.
  • If it still fails: Re-center travel stitches (they may be too close to the edge) and confirm the travel color/thread isn’t exaggerating visibility.
• Q: For a 1-inch serif letter “A,” how can you confirm correct top tension using the bobbin-thread “white strip” check on satin columns?
  A: Use the underside view: the bobbin thread should sit in the center portion of the satin, not pull up to the top.
  • Stitch a test on the same fabric and stabilizer you intend to use for production.
  • Inspect the underside/bobbin view of the satin columns.
  • Adjust only if needed: if bobbin thread is pulling to the top, reduce top tension (top tension is too tight).
  • Success check: A consistent bobbin-thread strip is visible roughly through the center 1/3 of the satin column, and the top looks clean.
  • If it still fails: Stop adjusting tension and check digitizing structure (overlap/underlay) and hooping stability first—small lettering often “looks like tension” when it’s actually compensation.
• Q: When testing 1-inch small lettering, what stabilizer setup should be used for knit shirts versus towels or fleece to prevent distorted or sinking stitches?
  A: Use cutaway as the safe baseline for knits, and add water-soluble topping for lofty/textured fabrics so the stitches don’t sink.
  • For knits/stretch fabric: Start with 2.5 oz or 3.0 oz cutaway and secure it well (temporary spray adhesive may help).
  • For towels/fleece/heavy pique: Use cutaway on the back plus water-soluble topping on the front.
  • Avoid “no stabilizer” tests; they create false failures that look like bad digitizing.
  • Success check: Letter edges stay crisp after the hoop is removed, and small details remain visible instead of disappearing into the pile.
  • If it still fails: Re-evaluate hooping method—fabric movement or over-stretching can mimic stabilizer problems.
• Q: What needle and consumables are a safe starting point for testing a 1-inch serif letter “A” in Floriani Digitizing Software, and how do you validate hooping before sew-out?
  A: Start with a fresh 75/11 sharp needle (ballpoint for knits), 40 wt thread, and validate a taut, undistorted hoop before blaming the file.
  • Install a new needle (75/11 sharp for wovens; switch to ballpoint for knits).
  • Use consistent 40 wt thread and keep the same stabilizer/fabric combo for all tests.
  • Hoop the test scrap firmly without stretching the fabric out of shape.
  • Success check: Tap the hooped fabric— it should sound taut (not dull) and the design stays registered (outline/fill alignment holds).
  • If it still fails: Standardize the hooping routine (a hooping station often improves repeatability) before spending more time moving nodes.
• Q: What safety precautions should be followed when test stitching dense 1-inch lettering at high speed (around 600 stitches per minute) to avoid needle-strike injuries?
  A: Keep hands clear and remove loose threads before running, because dense lettering can grab loops fast and pull material toward the needle.
  • Keep fingers away from the needle area while the machine is stitching, especially at joints (apex/crossbar) where density increases.
  • Trim or control loose thread tails and avoid guiding fabric by hand during high-speed tests.
  • Pause the machine before reaching in to adjust fabric, topping, or stabilizer.
  • Success check: The test completes without thread snagging, sudden fabric jerks, or audible impacts that suggest a strike risk.
  • If it still fails: Slow the machine for testing and reassess travel stitches and density at the joints—overly dense tips can increase snag risk.
• Q: If 1-inch Floriani small lettering keeps showing inconsistent gaps between samples, what is the practical upgrade path from technique fixes to magnetic hoops to a multi-needle SEWTECH embroidery machine?
  A: Treat it as a three-level problem: fix structure first, standardize hooping second, and upgrade production capacity only when volume demands it.
  • Level 1 (Technique): Increase overlap at joints and feather angles; do not “solve” gaps by density alone if the letter becomes stiff.
  • Level 2 (Consistency): If sample-to-sample results change, standardize hooping pressure/placement; magnetic hoops may help reduce slippage and hoop burn.
  • Level 3 (Scale): If order volume and color changes are the bottleneck, a multi-needle platform like SEWTECH may be the next step for throughput.
  • Success check: Sample A and Sample B stitch the same on the same material setup without re-hooping drama or repeated re-tests.
  • If it still fails: Document the exact fabric/stabilizer/hooping method used and troubleshoot one variable at a time; inconsistent testing conditions can hide the real cause.
