The "Ghost Gap" Eliminator: A Master Class in Pull Compensation & Fabric Physics

By the Chief Embroidery Education Officer

You know the feeling. You load a crisp, professional logo onto your machine. On your screen, the registration looks pixel-perfect—the text nestles gently against the graphic, the borders are tight. You hit "Start."

Twenty minutes later, you pull the hoop off, and your heart sinks.

There it is: a thin, jagged line of garment fabric showing through right between the outline and the fill. We call this "The Ghost Gap." It makes a $50 polo shirt look like a $5 discount bin rejec.

Why does this happen? Is it the machine? The stabilizer? The software?

Here is the hard truth from 20 years on the production floor: Embroidery is a battle against physics. When you drive thousands of stitches into fabric, you are distorting the material. Stitches pull in (shortening the fabric) and push out (widening the fabric). If your software doesn’t account for this movement—or if your hooping technique allows the fabric to "breathe" too much—gaps are inevitable.

In this guide, we will deconstruct Brad’s excellent MasterWorks 3 demonstration to solve this problem using Pull Compensation. But we will go further. We will look at the physical side of the equation—stabilization, hoop tension, and tool selection—to ensure that when you fix the file, the machine actually delivers the result.

The Physics of the Gap: Why "Perfect" on Screen is "Wrong" in Thread

In the video, Brad highlights a critical concept: the difference between a digital vector and a physical sew-out. On a computer screen, pixels don't move. On a machine, fabric is fluid.

When a needle penetrates fabric to create a column stitch or a fill, the thread tension tightens around the fabric threads. This creates a "cinching" effect.

• The Pull: Stitches run in a specific direction. As they tighten, they pull the fabric edges inward, effectively shrinking the object slightly along the stitch angle.
• The Result: Two objects that were touching on screen are now 1mm apart on the shirt because they both shrank away from the center seam.

This is the number one "production killer" for left-chest logos. You cannot digitize 1:1. You must digitize with intent.

The Solution? Pull Compensation. Think of Pull Compensation like building a bridge slightly longer than the gap, knowing the heat will make it contract. We intentionally over-digitize the edges of the shape so that when the fabric inevitably shrinks, the stitches land exactly where we want them—kissing the adjacent color, not leaving a gap.

Phase 1: The "Hidden" Preparation (Do Not Skip This)

Before you touch a single setting in MasterWorks 3, you must stabilize your environment. I have seen master digitizers fail because they were trying to fix a hooping problem with software.

If your fabric is moving in the hoop, no amount of pull compensation will save you.

The "Drum Skin" Sensory Check

Before any test sew, perform this tactile check on your hooped garment:

1. Touch: Run your finger across the fabric inside the hoop. It should feel taut, but not stretched to the point of distorting the weave.
2. Sound: Tap the fabric lightly. You want a dull, rhythmic "thump"—like a heavy drum. If it sounds loose or flabby, re-hoop.
3. Sight: Look at the grain of the fabric. Is it straight? If the grain is bowed, you have over-stretched it, and it will snap back (pucker) the moment you un-hoop it.

The Tooling Reality Check

If you are struggling to get consistent tension—especially on slippery performance knits or thick hoodies—your hoop might be the variable. Traditional screw hoops rely on friction and hand strength. If you tighten the screw too much, you get "hoop burn" (permanent crush marks). If too loose, the fabric shifts, creating gaps.

Scenario: You are doing a run of 50 polo shirts. By shirt #20, your wrists are tired, and you aren't tightening the screw as hard. Suddenly, gaps appear. The Fix: This is where professionals switch to a magnetic hooping station. By using magnets to clamp the fabric instantly and evenly, you remove the "operator fatigue" variable. The fabric is held with consistent pressure from edge to edge, reducing the internal movement that causes gaps.

Phase 1: Prep Checklist

• Fabric Selection: Identify if you are sewing on Stable (Denim/Twill) or Unstable (Pique/Jersey styling).
• Stabilizer Pairing:
  • Stretchy/Knits: Must use Cutaway. Tearaway will eventually disintegrate and allow gaps to form.
  • Stable/Woven: Can use Tearaway or Cutaway.
• Needle Check: A burred needle creates drag, pushing fabric around. Run your fingernail down the needle tip. If it catches, replace it.
• Hoop Integrity: Ensure the hoop is tight. If using a magnetic embroidery hoop, ensure the magnets are fully seated and not trapping wrinkles.


Phase 2: The Software Fix in MasterWorks 3 (Step-by-Step)

Now that we trust the physical setup, let's fix the digital file. Brad’s method is controlled and scientific. We are going to establish a "Safe Baseline" for 90% of your work.

Step 1: Isolate the Problem (The Lab Test)

Do not try to troubleshoot pull compensation on a complex 15,000-stitch logo. You have too many variables.

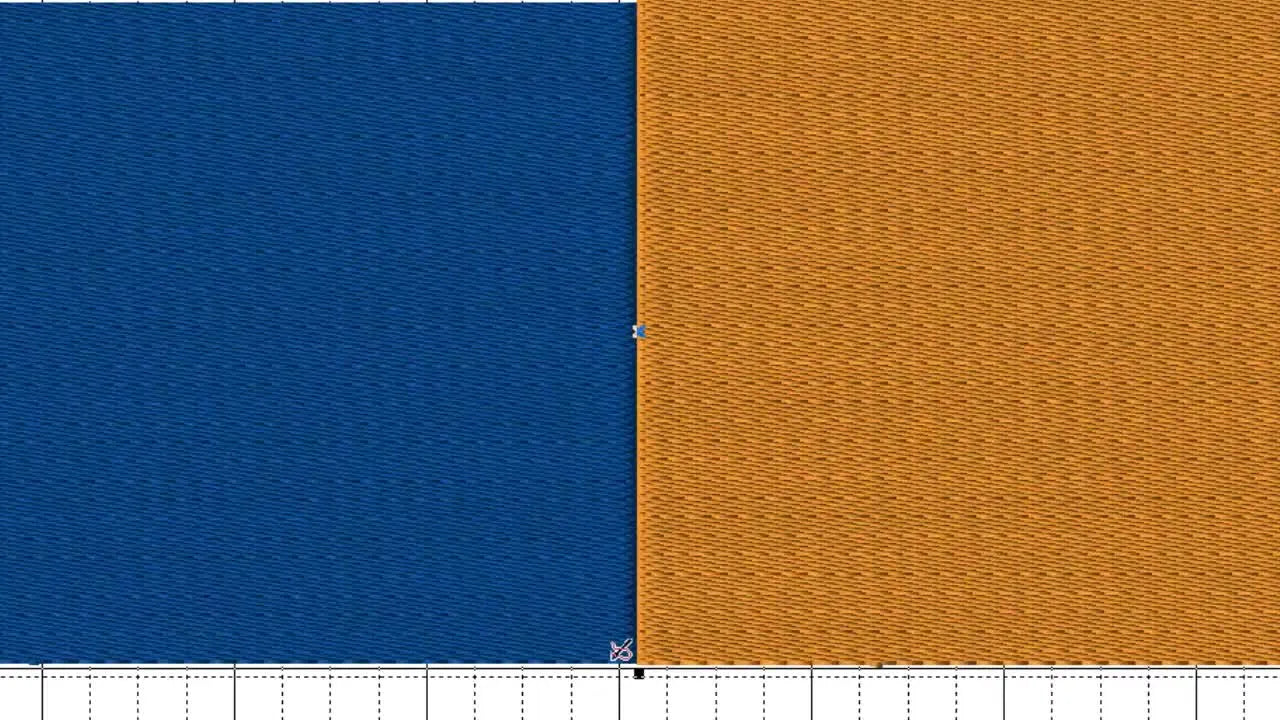

1. Create a Test: Draw two simple rectangles side-by-side using the Standard Fill tool.
2. Colorize: Make them different colors so the seam is obvious.
3. Zoom: Zoom in until you can see the individual stitch penetrations.


Step 2: Strategic Selection

You only need to apply pull compensation to the objects that are pulling away from something else.

• Action: Select the specific object (the rectangle) that needs to extend.
• Pro Tip: Use the Sequence View (Ctrl+Click) to select specific layers. Applying "Global Pull Comp" to an entire design can make fine text look chubby and unreadable. Be surgical.


Step 3: The "Absolute" Rule (The Secret Sauce)

Navigate to the Properties Panel -> 4th Tab (Pull Comp).

Here is the most critical advice in this entire guide: Change the logic from Percentage to Absolute.

• Why Percentage Fails: If you set pull comp to 10%, a narrow column gets a tiny increase, and a wide column gets a huge increase. This is inconsistent.
• Why Absolute Wins: Absolute adds a specific physical amount (e.g., 0.4mm) to the edge, regardless of the shape's size. Stick to Absolute for predictable results.




Step 4: The Magic Number (0.4mm)

In the Absolute value (mm) field, enter 0.4.

• The Industry "Sweet Spot": For 90% of knit garments (T-shirts, Polos, Hoodies), 0.4mm is the gold standard.
• Why? It provides just enough overlap (about 2-3 thread widths) to cover the retraction of the fabric without creating a bulky, hard ridge.
• For Rigid Fabrics (Denim/Caps): You can often get away with 0.2mm - 0.3mm because the fabric resists pulling.

Warning: Do not simply type "0.4" and walk away. Click Apply. You must see the change happen on screen.

Warning: The "Bulletproof" Vest Effect
Do not aggressively increase Pull Comp beyond 0.6mm unless absolutely necessary. Excessive overlap creates "bulletproof" embroidery—stiff patches of thread where layers pile up. This leads to broken needles, shredded thread, and uncomfortable garments. If you need more than 0.6mm, your problem is likely stabilization, not digitizing.

Step 5: The Visual Confirmation

After clicking Apply, zoom in heavily on the seam between the two rectangles.

• What to look for: You should see the stitches of the selected object physically crossing over the edge of the adjacent object.
• The Goal: A "controlled collision." You want the stitches to invade the neighbor's territory just enough that when they shrink back, they land on the border line.




Phase 3: Advanced "Recipe" Management

Brad demonstrates a brilliant shortcut using the Chef Hat (Recipe) Icon. This tool applies presets based on fabric type.

• Select Jeans -> The software sets Pull Comp to 0.2mm.
• Select T-Shirt -> The software sets Pull Comp to 0.4mm.

My advice: Use Recipes as a starting point, not a law. Every machine is different. A commercial SEWTECH multi-needle machine runs at higher speeds and tensions than a home single-needle machine, which might affect how much pull occurs. Start with the recipe, then run a test sew.

The Decision Matrix: Fabric vs. Strategy

Embroidery is not "one size fits all." Use this decision tree to determine your Pull Comp strategy.

Hidden Consumables List (What You Forgot to Buy)

To effectively fight gaps, you need more than just software. Check your drawer for these:

1. Water Soluble Topper (Solvy): Prevents stitches from sinking into the fabric pile, which can look like a gap even if it isn't.
2. Temporary Spray Adhesive (505): Essential for adhering backing to the garment so they move as one unit.
3. 75/11 Ballpoint Needles: Sharp needles can cut knit fibers, causing holes. Ballpoints slide between fibers, maintaining fabric structure.
4. Scrap Fabric: Never run a new MasterWorks file on the final garment first. Keep a bin of "sacrificial" thrift store t-shirts for testing.

Troubleshooting Logic: Symptom -> Solution

Don't guess. Follow this flow when you see a defect.

Phase 1: The Low-Cost Fixes (Physical)

1. Symptom: Gaps appear randomly (some shirts are fine, some aren't).
   • Cause: Inconsistent Hooping.
   • Fix: Slow down. Ensure the fabric is "drum tight." Consider a hooping station for embroidery to standardize alignment and tension.
2. Symptom: Gaps appear on everything, consistently.
   • Cause: Digitizing (Pull Comp) is too low.
   • Fix: Increase Absolute Pull Comp by 0.1mm increments.

Phase 2: The Medium-Cost Fixes (Consumables)

1. Symptom: Outline aligns on the left but has a huge gap on the right.
   • Cause: "Push" distortion. The fabric is being plowed like snow.
   • Fix: Increase stabilization. Use a heavier Cutaway. Use spray adhesive to bond fabric to stabilizer.

Phase 3: The High-Level Fixes (Equipment)

1. Symptom: You are fighting hoop burn on delicate fabrics constantly, forcing you to hoop loosely, which causes gaps.
   • Cause: The wrong tool for the job.
   • Fix: Traditional hoops rely on friction. If you tighten them enough to stop movement, you crush the fiber. A magnetic embroidery hoop uses vertical magnetic force to hold without crushing. This allows you to hold delicate fabrics firmly without damage, solving the gap issue at the source.

Safety Warning: Magnetic Hoops
If you decide to upgrade to magnetic hoops, be aware they are industrial tools.
* Pinch Hazard: The magnets are powerful. Keep fingers clear of the snapping zone.
* Medical Devices: Maintain a safe distance (usually 6+ inches) from pacemakers.
* Electronics: Do not place credit cards or phones directly on the magnets.

Conclusion: The Path from Volunteer to Pro

Fixing the "Ghost Gap" is a rite of passage. It marks the moment you stop hoping for good results and start engineering them.

By mastering the Absolute Pull Compensation setting in MasterWorks 3 (0.4mm is your new best friend) and respecting the physical needs of your fabric (stabilizer and proper tension), you can achieve that retail-quality look.

But remember, software is only 50% of the battle. If you find yourself spending hours fighting fabric slippage or nursing sore wrists from manual screws, it might be time to look at your hardware. Whether it’s upgrading to smart accessories like a how to use magnetic embroidery hoop guide or stepping up to the productivity of a SEWTECH multi-needle machine, the right tools magnify your skills.

Final Operation Checklist

1. Prep: Fabric adhered to Cutaway stabilizer? New needle installed?
2. Setup: MasterWorks Pull Comp set to Absolute? Value set to 0.4mm (for knits)?
3. Verify: Did you visually confirm the overlap on screen?
4. Test: Run a scrap test. Look for gaps. Listen for smooth operation.
5. Refine: If a gap remains, increase by 0.1mm or check hoop tension.

Now, go run that test file. You’ve got this.

FAQ

• Q: In MasterWorks 3, how do I stop a “Ghost Gap” between an outline and a fill on knit polos by using Absolute Pull Compensation?
  A: Switch Pull Compensation to Absolute and start at 0.4 mm for most knits.
  • Select only the object that is pulling away (use Sequence View/Ctrl+Click to be surgical).
  • Open Properties Panel → Pull Comp tab → change Percentage to Absolute.
  • Enter 0.4 (mm) and click Apply (don’t skip Apply).
  • Success check: Zoom in and confirm a small, intentional overlap—stitches visibly cross the neighbor’s edge (“controlled collision”).
  • If it still fails: Increase by 0.1 mm steps or re-check hooping/stabilizer before exceeding 0.6 mm.
• Q: In MasterWorks 3, why does Percentage Pull Compensation make small text look chubby while still leaving gaps on wider fills?
  A: Percentage Pull Compensation scales unevenly, so narrow columns get too little and wide columns get too much; Absolute is more predictable.
  • Change Pull Comp logic from Percentage to Absolute for consistent physical overlap.
  • Apply Pull Comp only to the specific layers that need to extend (avoid global changes on the whole design).
  • Success check: After Apply, both narrow and wide elements show a similar-looking edge overlap when zoomed in.
  • If it still fails: Reduce how broadly Pull Comp is applied (fine text first), then re-test on scrap fabric.
• Q: How do I do the “drum skin” hooping test to prevent random Ghost Gaps caused by fabric shifting in the hoop?
  A: Use the Touch–Sound–Sight check and re-hoop until the fabric is taut without distortion.
  • Touch: Run a finger across hooped fabric; feel taut, not stretched.
  • Sound: Tap lightly; aim for a dull, rhythmic “thump,” not a loose flap.
  • Sight: Inspect fabric grain; if the grain is bowed, loosen and re-hoop (over-stretching will snap back and pucker).
  • Success check: Fabric stays flat and stable during stitching and does not relax noticeably when removed from the hoop.
  • If it still fails: Standardize hooping pressure and consider a magnetic hooping method to remove operator fatigue as a variable.
• Q: What stabilizer should I use to reduce Ghost Gaps when embroidering on T-shirts, polos, and other knits?
  A: For stretchy knits, use Cutaway; Tearaway can break down and allow movement that turns into gaps.
  • Pair knits with Cutaway (mesh or heavy) so the fabric and backing act like one unit.
  • Add temporary spray adhesive to bond backing to the garment before hooping.
  • For textured knits (pique/waffle), add a water-soluble topper to prevent stitches sinking and “fake gaps.”
  • Success check: The seam between fill and border stays covered after unhooping, not just while it’s still in the hoop.
  • If it still fails: Increase stabilization first before pushing Pull Comp beyond 0.6 mm.
• Q: How do I know if a damaged embroidery needle is causing fabric drag that leads to gaps and distortion on knit garments?
  A: Do a quick burr check and replace the needle if it snags—this is common and easy to miss.
  • Run a fingernail down the needle tip; replace immediately if the nail catches.
  • Use a 75/11 ballpoint needle on knits to avoid cutting fibers and destabilizing the fabric.
  • Test sew on scrap fabric before running the final garment.
  • Success check: Stitching sounds smooth and the fabric is not being pushed/plowed; edges stay registered without widening gaps.
  • If it still fails: Re-check hoop tension and stabilizer bonding (spray adhesive) before changing digitizing settings.
• Q: When should I choose a magnetic embroidery hoop instead of a traditional screw hoop to prevent hoop burn and Ghost Gaps on delicate knits?
  A: Use a magnetic hoop when stopping fabric movement requires screw-hoop tightness that causes hoop burn—magnetic clamping holds firmly without crushing.
  • If hoop burn forces you to hoop loosely, treat the hoop as the root cause (loose hooping allows internal movement → gaps).
  • Clamp fabric evenly edge-to-edge (consistent pressure reduces shifting between shirts and reduces “operator fatigue” variation).
  • Confirm magnets are fully seated and not trapping wrinkles before stitching.
  • Success check: Fabric is held consistently without crush marks, and gaps do not appear “randomly” across a production run.
  • If it still fails: Re-evaluate stabilizer weight and Pull Comp (Absolute, then adjust in 0.1 mm steps).
• Q: What magnetic hoop safety rules should embroidery operators follow to prevent pinch injuries and device/electronics issues?
  A: Treat magnetic hoops as industrial tools: prevent finger pinch and keep magnets away from medical devices and sensitive items.
  • Keep fingers out of the snapping zone when seating the magnetic ring (pinch hazard).
  • Maintain a safe distance (commonly 6+ inches) from pacemakers and similar medical devices.
  • Do not place phones, credit cards, or other electronics directly on the magnets.
  • Success check: Operators can mount/unmount hoops without near-miss finger pinches and without storing magnets against electronics.
  • If it still fails: Slow the handling process and assign a consistent hooping routine (same hand positions, same placement steps) for every garment.
