Merge Appliqué + Name in Embrilliance Essentials (Without Bulky Overlaps): A 9x9 Frame Workflow for Birthday Shirts

The "No-Fear" Guide to Merging Embroidery Designs (Embrilliance Essentials Workflow)

You are standing in front of your machine, holding a blank shirt that cost you money, about to press "Start" on a design you cobbled together yourself. Your heart rate spikes. You think, “If I mess this up, I’m eating the cost of this shirt.”

You are not alone. This "fear of the merge" is the #1 reason beginners stall. But here is the truth from 20 years on the production floor: Machine embroidery is 80% preparation and 20% stitching.

The good news? Embrilliance Essentials makes merging approachable. With a few veteran habits—layout discipline, stabilization physics, and safety checks—you can produce professional birthday shirts consistently. In this white paper, we will rebuild the exact workflow for a 3rd Birthday design (Number 3 + Cupcake + Name) inside a 9x9 frame, optimized for safety and quality.

Calm the Panic: Embrilliance Essentials Merging Is Mostly “Arrange + Verify,” Not Magic

If you are stressing because you can’t find the perfect ready-made design, you are already thinking like a pro. Relying on pre-made designs limits your creativity. The professional method is digital collaging: buying separate high-quality assets and combining them.

A lot of beginners assume "merge" requires a complex engineering feat. It does not. It is simply: Import → Position → Anchor.

The "Paper Cutout" Visualization

Don't look at the screen as a computer program. Imagine you have physical paper cutouts on a table.

1. You place the big number down first (The Anchor).
2. You place the cupcake next to it (The Accent).
3. You place the name underneath (The Label).

This mental shift will help you calm the initial anxiety of "breaking" the machine.

One more reassurance that matters: when elements overlap, Embrilliance Essentials can automatically remove hidden/duplicated stitches underneath top layers. This reduces "Stitch Lump", the bullet-proof vest feel that ruins soft shirts.

The “Hidden” Prep Pros Do First: Files, Formats, and a Clean Workspace in Windows File Explorer

Before you drag a single design onto the canvas, let's talk about digital hygiene. A cluttered desktop is the silent killer of productivity.

Start with a folder habit you can actually maintain

In the field, chaos is expensive. Kelly mentions she tries to name things so they’re easy to find, but admits it’s not always perfect. That is relatable, but here is the professional mandate:

The Scale-Thinking Folder Structure:

Customer Projects > Year > Project Name > Assets Used

This matters because customers will come back: “Can you do the exact same shirt for my other kid?” If you can't find the assets in 30 seconds, you are losing money.

Comment-based watch out: “Why can’t I drag-and-drop?”

One viewer couldn’t drag designs in and had to use “Open Design Files.” The fix is almost always compression. You cannot drag directly from a zipped folder. Unzip EVERYTHING first.

Warning: Mechanical Safety Protocol. Before we touch the software, power down your machine while changing needles or cleaning the bobbin area. Embroidery machines exert hundreds of pounds of force. Keep fingers clear of the needle bar and moving arms.

Prep Checklist (Do this before you open Embrilliance)

• Unzip Check: Confirm all design files are fully extracted.
• Format Validation: Ensure you are using the correct machine format (e.g., .PES for Brother, .JEF for Janome).
• Asset Gathering: Place your three assets in one folder (Number, Cupcake, Font).
• Hoop Check: Know your physical hoop limit (e.g., 9x9).
• Consumables Audit: Do you have sharp 75/11 needles and the correct stabilizer on hand?

Lock in the 9x9 Hoop Boundary: Durkee 9x9 Frame Setup That Prevents “Oops, It Doesn’t Fit”

Kelly’s workflow is anchored to a physical frame size: she does her shirts on a Durkee 9x9 frame, and she sets Embrilliance to match so she knows the design will fit.

That single habit prevents the "Hoop Crash" nightmare: building a layout that is slightly outside the stitch field, causing the machine to emit that terrifying "beep-beep-beep" or worse, the foot striking the plastic frame.

If you are shopping or comparing options in this size category, you will see terms like durkee magnetic hoops and durkee ez frames used interchangeably in casual conversation. Operationally, what matters is that your software hoop boundary matches the physical frame you’ll stitch in.

Expert Insight: The Psychology of "Hoop Burn" and Magnetic Solutions

Even though this is a software tutorial, the real-world failure mode is physical. Traditional hoop rings leave permanent "Hoop Burn" marks on delicate fabrics because you have to screw them tight.

If you find yourself dreading the hooping process because your wrists hurt or you are ruining shirts with ring marks, this is a Tool Upgrade Signal. Many professionals switch to magnetic frames because they clamp fabric without the friction-burn of inner rings.

If you are doing a lot of shirts, consider a workflow upgrade: a consistent hooping method (and, for some shops, hooping station for embroidery setups) can typically reduce placement variability by 50% and speed up production.

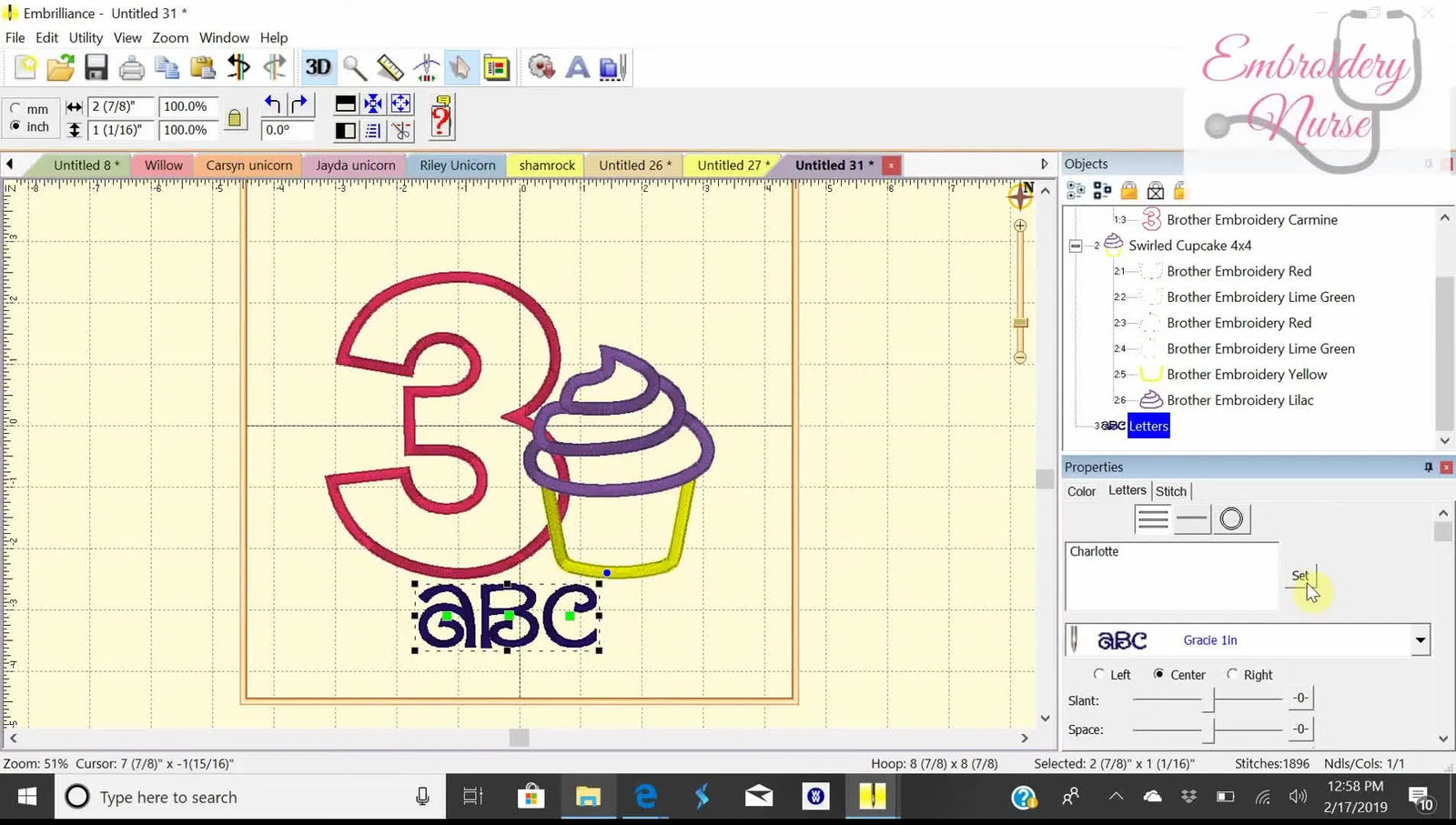

Import the Main Element First: Drag the Satin “3” (4–5 Inch) into Embrilliance Essentials

In design hierarchy, the Number is the "King". It anchors the eye.

Kelly navigates to her appliqué numbers folder, chooses the satin style, and selects a 4 or 5 inch number “3.” Then she drags it into the Embrilliance workspace.

What to copy exactly from the video

• The Size: 4–5 inches is the sweet spot for toddler shirts. Anything larger overwhelms the small chest area; anything smaller gets lost.
• The Action: Drag-and-drop directly into the blank grid workspace.

Troubleshooting: "How do you get the pics to show up so you can drag?"

If you don't see thumbnails:

1. Check View Settings: In Windows Explorer, set view to "Extra Large Icons".
2. Check Software: Ensure you have thumbnail software installed (like Embrilliance Thumbnailer) if Windows doesn't natively preview embroidery files.

Add the Cupcake Without Letting It Take Over: Merge the 4x4 Appliqué Cupcake

Next, Kelly adds the cupcake and makes a critical decision: she selects the 4x4 size so it won’t overpower the number.

Why “secondary element sizing” prevents design clutter

Customers don’t usually complain that a cupcake is 10% too big. They complain that the shirt looks “messy” or “unbalanced.”

• Rule of Thumb: Secondary elements should be roughly 60-70% the visual weight of the primary element.
• Production Benefit: Smaller secondary elements mean fewer stitches, faster run times, and less risk of bullet-proof stiffness.

Compose Like a Pro: Use Grid Lines to Align the Cupcake and Create Clean Separation

Kelly clicks and drags the cupcake to the right of the number, then aligns the bottoms using the grid lines.

The “Grid Line Rule” for Visual Peace

When two elements are meant to feel like a set, align them to a shared baseline. Your brain interprets alignment as "pro quality".

Expert Insight: "Push and Pull" Physics

Fabric moves. It is alive under the needle.

• Knit Fabrics (T-shirts): Threads pull the fabric in, causing designs to shrink slightly.
• The Buffer Zone: Leave a small gap (2-3mm) between elements unless they are designed to overlap. If you butt them right up against each other on screen, "pull compensation" might cause a visible gap on the shirt.

If you are hooping stretchy tees often, your stabilization choices matter as much as your software layout. Many embroiderers find that consistent hoop tension and stable backing reduce distortion during stitching. This is where magnetic embroidery hoops shine—they hold knits firm without over-stretching the fibers.

Add the Name with the “A” Text Tool: Choose Legibility First, Then Style

Now Kelly uses the “A” text tool. She makes a practical point: for young kids, block letters are often better than cursive.

She types the name “Charlotte”.

The "Squint Test" for Text

Look at your screen and squint your eyes until the image is blurry. Can you still read the name?

• Yes: Good choice.
• No: The font is too thin or cursive is too complex.

Comment-based Watch Out: "My machine only shows one letter at a time"

Some older machines or specific file formats break text into individual objects on the machine screen. Don't panic. As long as the spatial position is correct in the software, the machine will stitch them in the correct place relative to the hoop center.

Center Everything in the Hoop: Group Select + “Center in Hoop,” Then Preview Before You Stitch

Kelly selects all items (number, cupcake, name) and uses “Center in Hoop.” She also switches to a specific font (“Gracie”) with swirls and shows the print preview.

Setup Checklist (Before you touch the machine)

• Hoop Validation: Is the software hoop set to 9x9?
• The "Zoom" Check: Zoom in to 200%. Are any satin stitches touching the red boundary line? If so, shrink the design by 5%.
• Sequence Logic: Check the object pane. Does it stitch Number -> Cupcake -> Name? This order usually minimizes thread jumps.
• Center Command: Have you clicked the "Center Design in Hoop" button?
• Print Preview: Print a paper template if you are unsure about sizing.

Overlap Without the Bulk: How Embrilliance Handles Hidden Stitches When Designs Stack

A common beginner fear: "The 3 is under the cupcake—will that stitch a huge lump?"

Kelly addresses this: Embrilliance Essentials is "smart" about overlaps.

Functional Benefit: "Remove Hidden Stitches"

The software detects that the cupcake is on top. It will often delete the underlying stitches of the "3" in that specific intersection.

• Result: A flexible design, not a stiff patch.
• Note: Always check "Remove Hidden Stitches" in preferences if it is not automatic for your version.

Expert Caution

Don't rely 100% on software. If you stack three dense layers (like Tatami fill on top of Satin on top of Appliqué), even the software can't save you from a needle break. Keep overlaps reasonable (2 layers max).

Decision Tree: Shirt Fabric → Stabilizer Strategy (So Your Layout Stitches Like It Looks on Screen)

The video ends with "pick out nice fabrics." But in reality, Stabilizer is the foundation of embroidery. Without the right backing, your perfect software layout will pucker and warp.

Use this decision tree for birthday shirts:

1) What represents the project base?

• T-Shirt / Basic Knit (Stretchy):
  • Action: Use No-Show Mesh Cutaway (Polymesh).
  • Why: Tearaway will disintegrate under the satin stitches, causing the design to separate from the shirt after one wash.
• Woven Cotton / Denim (Stable):
  • Action: Medium-weight Tearaway is usually sufficient.
• Performance Wear (Slippery):
  • Action: Cutaway + fusible backing to stop shifting.

2) Is the design dense (over 10,000 stitches)?

• Action: Use two layers of Mesh Cutaway, "floated" or hooped together.

3) Is Hooping a Nightmare?

• Action: If you struggle to hoop straight, this is a hardware problem. Tools like magnetic hooping station systems use magnets to hold the hoop while you adjust the shirt, acting like a "third hand."

Warning: Magnet Safety Protocol. If you upgrade to magnetic hoops, treat them with extreme respect. These are industrial neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and hard drives.

The Upgrade Path: Faster Hooping, Cleaner Results, and a More Scalable Shirt Business

Once you master software merging, the bottleneck moves to physical production. Here is the logical upgrade path for a growing embroidery business:

1. Level 1: Stability (The Magnetic Hoop Upgrade)
   If you are constantly fighting hoop burn or fabric slippage, learning how to use magnetic embroidery hoop correctly can save your garments. The "snap" secures the fabric without the "screw and pull" distortion of traditional hoops.
2. Level 2: Speed (The Multi-Needle Leap)
   If you are doing 10+ shirts a week, changing threads manually for every color stop (Cupcake frosting, Cupcake wrapper, Candle, Flame...) is a massive time sink. Machines like the SEWTECH multi-needle series allow you to set up all 10 colors at once and walk away. This converts "stitching time" into "free time."
3. Level 3: Consistency (The Workspace)
   Dedicated stations minimize ergonomic strain. A tidy workspace with designated spots for hoops, scissors, and sprays prevents mistakes.

Operation Checklist (The "Don't Waste a Shirt" Final Pass)

Run this quick check right before you commit to stitching:

• Visual Hierarchy: Number is dominant (4–5 inch), Cupcake is secondary (4x4).
• Alignment: Bottom edges align on the grid; spacing is even.
• Legibility: Name is clear; distinct from background (use block fonts for toddlers).
• Hoop Safety: Design is centered and within the 9x9 boundary.
• Stabilizer Match: Correct backing chosen (Cutaway for Knits!).
• Needle Check: Is the needle fresh? (A dull needle causes 50% of thread breaks).
• Bobbin Check: Do you have enough bobbin thread to finish the job?

When you follow this sequence—Import → Anchor → Set Hierarchy → Stabilize → Verify—you aren't just hoping for the best. You are engineering a perfect result.

FAQ

• Q: Why can’t Windows drag-and-drop embroidery files into Embrilliance Essentials when the design files are in a .ZIP folder?
  A: Unzip the embroidery design files first—Embrilliance Essentials typically can’t drag directly from compressed folders.
  • Action: Right-click the downloaded .ZIP file and choose “Extract All,” then open the extracted folder.
  • Action: Keep the Number, Cupcake, and Font files together in one working folder before importing.
  • Success check: Dragging a file from the extracted folder into Embrilliance Essentials places the design on the blank grid immediately.
  • If it still fails… Use “Open Design Files” inside Embrilliance Essentials and confirm the files are not still inside a nested .ZIP.
• Q: How do I confirm the embroidery file format is correct for my machine before exporting from Embrilliance Essentials (PES for Brother, JEF for Janome)?
  A: Match the export format to the machine brand format (for example, PES for Brother and JEF for Janome) before saving the stitch file.
  • Action: Identify the machine’s required format in the machine manual or the machine’s display menu.
  • Action: Export/save from Embrilliance Essentials using that exact format (do not assume one format works across brands).
  • Success check: The machine recognizes the design file and displays the full design in the selected hoop size instead of showing an “unsupported/invalid design” message.
  • If it still fails… Re-check that the file you transferred is the exported stitch file (not the original artwork asset) and re-export in the correct format.
• Q: How do I prevent an embroidery hoop crash when setting a Durkee 9x9 frame size in Embrilliance Essentials?
  A: Set the software hoop boundary to the same 9x9 physical frame and keep all stitches inside the red boundary line.
  • Action: Select the 9x9 hoop/frame size in Embrilliance Essentials before arranging the Number, Cupcake, and Name.
  • Action: Zoom in to 200% and verify no satin stitches touch or cross the red boundary line; shrink the design slightly if needed.
  • Success check: The full merged design sits comfortably inside the 9x9 boundary with a visible margin, and the machine runs without frame-strike beeping.
  • If it still fails… Re-center the grouped design using “Center in Hoop,” then re-check the outermost stitches near the boundary.
• Q: How do I reduce “stitch lump” bulk when embroidery design elements overlap using Embrilliance Essentials “Remove Hidden Stitches”?
  A: Enable and verify “Remove Hidden Stitches” so overlapped areas don’t stitch unnecessary layers under the top design.
  • Action: Stack the elements in the intended order (for example, cupcake above the number) before removing hidden stitches.
  • Action: Check that “Remove Hidden Stitches” is enabled in preferences (wording can vary by version).
  • Success check: The overlap area feels more flexible (less bullet-proof stiffness) compared to a full double-layer stitch-out.
  • If it still fails… Reduce how much the designs overlap and avoid stacking more than two dense layers in the same area to lower needle-break risk.
• Q: What stabilizer should be used for birthday shirt embroidery on knit T-shirts versus woven cotton to prevent puckering and distortion?
  A: Use No-Show Mesh Cutaway (Polymesh) for stretchy knit T-shirts, and use medium-weight tearaway for stable woven cotton/denim in many cases.
  • Action: For knit tees, choose mesh cutaway (tearaway often won’t hold up under satin stitching after washing).
  • Action: If the design is dense (over 10,000 stitches), use two layers of mesh cutaway, floated or hooped together.
  • Success check: After stitching, the design lies flat without rippling, and the shirt fabric is not pulled into waves around satin edges.
  • If it still fails… Re-check hooping stability and consider upgrading the hooping method (many users find magnetic hoops help hold knits firm without over-stretching).
• Q: What is the safest way to avoid needle injuries when changing needles or cleaning the bobbin area on an embroidery machine?
  A: Power down the embroidery machine before changing needles or cleaning the bobbin area, and keep fingers clear of the needle bar and moving arms.
  • Action: Turn the machine off before any hands-on work near the needle or hook/bobbin area.
  • Action: Remove lint and check the area with tools, not fingertips near moving parts.
  • Success check: The machine is fully stopped and cannot start unexpectedly while hands are near the needle path.
  • If it still fails… Stop and follow the specific safety steps in the machine manual for maintenance and needle changes.
• Q: What magnetic hoop safety rules should be followed when using industrial neodymium magnetic embroidery hoops for shirts?
  A: Treat magnetic embroidery hoops as industrial pinch hazards and keep them away from pacemakers and sensitive items.
  • Action: Keep fingers out of the closing path; let the magnets “snap” together under control, not free-fall.
  • Action: Keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Success check: The hoop closes without finger pinches, and fabric is clamped securely without needing extreme tension.
  • If it still fails… Use a magnetic hooping station approach (a “third hand” setup) to control alignment and reduce risky hand positions.
• Q: When merging multi-element birthday shirt embroidery designs (Number + Cupcake + Name), when should a shop upgrade from technique fixes to magnetic hoops or a SEWTECH multi-needle machine?
  A: Upgrade in layers: fix layout/stabilizer first, move to magnetic hoops when hooping causes burn/slip, and consider a SEWTECH multi-needle machine when thread changes become the weekly bottleneck.
  • Action: Level 1 (Technique): Align with grid lines, leave a small buffer gap, set the hoop boundary correctly, and match stabilizer to fabric.
  • Action: Level 2 (Tool): Choose magnetic hoops if hoop burn, wrist strain, or knit slippage keeps ruining shirts.
  • Action: Level 3 (Production): Move to a multi-needle setup when doing 10+ shirts a week and manual thread changes for each color stop consume too much time.
  • Success check: Fewer ruined garments, faster hooping, and predictable stitch-outs that match the on-screen layout.
  • If it still fails… Print a template, re-check stitch sequence/order, and simplify density/overlaps before scaling production.
