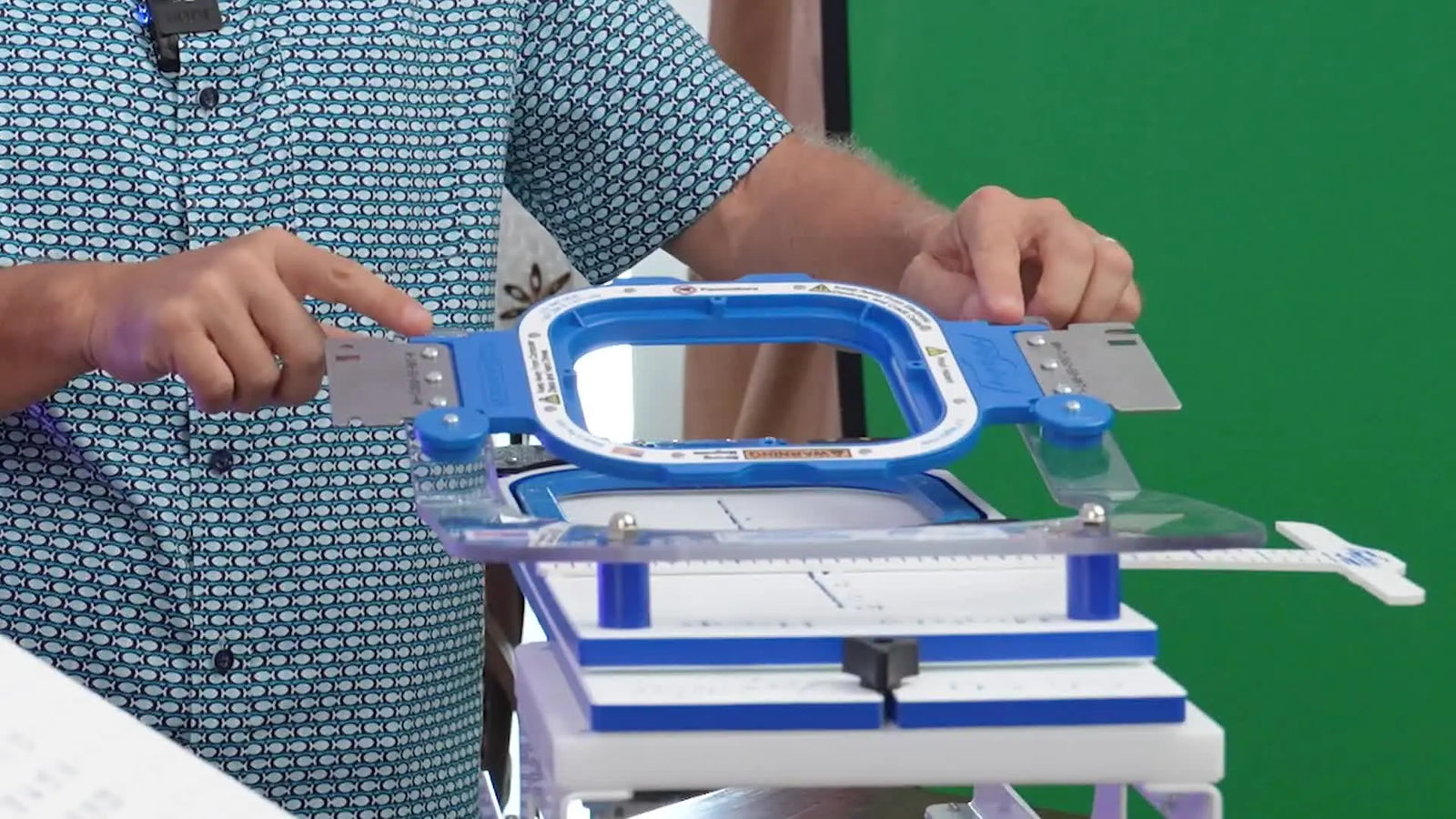

Mighty Hoops + Hoop Master Station: The Fast, Repeatable Hooping System (and the Safety Traps to Avoid)

If you run a commercial shop—or you are making the terrifying transition from "hobbyist" to "paid professional"—you already know the dark secret of this industry. The bottleneck isn’t the stitching speed. It isn’t the thread breaks. It is hooping.

It is the physical act of battling a slippery poly-performance sweatshirt into a plastic frame, praying it’s straight, and doing it fast enough to keep your 15-needle beast fed.

John Deer and Ken’s review of Mighty Hoops and the Hoop Master station touches on this critical nerve. But as an educator who has watched hundreds of students cry over crooked logos, I’m going to take their review and restructure it into a survival guide. We aren't just talking about "new hoops"; we are talking about a repeatable mechanical system that eliminates the "human error" variable from your production line.

The Calm-Down Moment: What Mighty Hoops Magnetic Frames and the Hoop Master Station Actually Solve

Let’s name the panic points I see in real shops. I call this the "3 PM Crash":

• The Drift: You hoop one sweatshirt perfectly. The next five drift 3mm to the left because your thumbs are tired.
• The "Lazy" Side: Your standard plastic rectangular hoop is tight in the corners (where the screws are) but loose in the middle straightaways. This causes the fabric to "flag" (bounce up and down), leading to bird nesting.
• The Burn: You are spending hours steaming "hoop burn" (crushed velvet or shininess on polyester) like it’s a second job.
• The Physical Toll: Your operator’s wrists and carpals are inflamed from torqueing screws 50 times a day.

In the video, John frames the big idea: Mighty Hoops (magnetic frames) plus the Hoop Master station work as a pair.

The Reality Check: A seasoned veteran with 10 years of experience can hoop on a flat table with their eyes closed. But if you are training new staff, or if you are the staff and you’re tired, you need a fixture. The station converts "artistic guessing" into "mechanical certainty."

The “Hidden” Prep Pros Do First (So the Magnetic Hoop Doesn’t Boss You Around)

Before you touch the station, you must perform the "boring checks." 90% of hooping failures happen before the hoop even touches the table. This is where we secure your safety parameters.

The Invisible Consumables: You likely have hoops and thread. But do you have Temporary Spray Adhesive (like KK100) or a basting stitch file? Magnetic hoops hold firmly, but they don't "grip" inside the frame like a screw-tightened inner ring. For slippery performance wear, a light mist of adhesive on your stabilizer is non-negotiable.

Fabric & Stabilizer Decision Matrix (The "Don't Fail" pairings)

• Stretchy Knits (Polos, Tees): MUST use Cutaway stabilizer (2.5 - 3.0 oz). No exceptions. If you use Tearaway, the stitches will distort.
• Stable Wovens (Towels, Canvas): Tearaway stabilizer is acceptable.
• High Pile (Fleece, Towels): Requires a Water Soluble Topping (Solvy) to keep stitches from sinking.

Prep Checklist (Do this BEFORE the hoop touches the station)

• Select the backing: Match stabilizer to fabric elasticity (see Matrix above).
• Pre-flight the garment: Turn it inside out to check for thick seams that could obstruct the hoop path.
• Hardware Check: Ensure the brackets attached to the magnetic hoop match your specific machine (SEWTECH, Tajima, Brother, etc.).
• The "Metal Sweep": Clear your work surface. These magnets are aggressive. They will grab seam rippers, snips, and spare needles from 3 inches away.

Warning: Projectiles & Punctures. clear the "Kill Zone." Keep needles, snips, seam rippers, and loose metal parts at least 12 inches away from the hooping area. A strong magnetic frame can yank sharp tools unexpectedly, which is a fast way to stab a hand or chip a needle / scratch the hoop coating.

The T-Square Trick on the Hoop Master Board: Centering an 18" Towel Without Doing Math in Your Head

Your eyes are liars. After looking at 20 shirts, your brain will start "correcting" asymmetry, and you will center things crookedly. Ken demonstrates a method using the clear plastic T-Square that removes the "eyeball" factor.

Here is the cognitive chunking for this process:

1. Measure the Total Width: Lay the towel flat. In the video, it is 18 inches.
2. The Half-Split: Set the T-Square center marker to exactly half that width—9 inches.
3. The Lock-in: Use the T-Square scale (shown as 0–10 inches) to verify the design center relative to the towel's edge.

This matters because machines don't care about "close enough." If you are running a 100-piece order of tote bags, and the logo "floats" around by 1/2 an inch, you look amateur.

Pro Tip: If you are building a workflow, use a water-soluble pen to mark the physical center on the first three garments to verify your station setup is actually true. Once confirmed, trust the station.

If you are researching a station specifically to solve this alignment fatigue, hoop master embroidery hooping station is the industry terminology for this fixture category. It is an investment in your sanity.

The Fixture Setup That Makes or Breaks You: Seating the Bottom Ring and Setting the Stop Piece

This is the step where laziness kills precision. Ken shows the station prep that people skip.

1. The Seat: Place the bottom magnetic ring into the Hoop Master station’s recessed slot.
   • Sensory Check: It should sit dead flat. If it rocks or clicks when you push on a corner, it is not seated. Debris is likely underneath.
2. The Stop: Adjust the optional stop piece. It prevents the hoop from sliding out towards your belly, yet allows vertical lift.
3. The Bolt Check: Confirm the fixture fits the specific nuts/bolts on the back of the hoop.


Why physics dictates this: Repeatability comes from removing "Degrees of Freedom" (directions of movement). If the bottom ring can slide 1mm, your design moves 1mm.

If you are comparing options online, you are really looking at hooping station for machine embroidery solutions. The goal is a device that locks the hoop's X and Y axis completely before the garment even arrives.

The “Magical Clack” Moment: Hooping a Sweatshirt with Mighty Hoops FreeStyle Arms (Without Pinching Yourself)

The video’s sweatshirt demo is the "Aha!" moment. Drape, smooth, align, snap.

Here is the motion broken down into a safe procedure:

1. The Drape: Pull the grey sweatshirt over the station. Ensure the shoulders are even.
2. The Smooth: Run your hands from the center outward to remove wrinkles. Do not stretch the fabric; just relax it.
   • Tactile Check: The fabric should feel "neutral," not pulled tight like a drum yet.
3. The Hover: Hold the top magnetic frame by the side tabs/handles (FreeStyle arms). Hover it 1 inch above the station.
4. The Align: visually align the brackets with the station’s guide pillars.
5. The Snap: Lower it controllably.


The Sensory Anchor: You will hear a loud, sharp "CLACK." This is the sound of success. The Tactile Confirmation: Run your finger along the inside edge. The fabric should feel taut but not strangled.

Warning: Magnetic Pinch Hazard. These rare-earth magnets deliver 40+ lbs of closing force instantly. Never place your fingers between the rings. Hold the hoop ONLY by the designated handles or FreeStyle arms. If you get pinched, it will cause a blood blister or worse.

Comment-based watch out: One viewer noted that sometimes the machine brackets might not engage if the hoop is crooked. Always "Trace" (use the machine's laser or needle check function) before stitching to ensure the hoop is recognized and centered.

If you are new to this gear, looking up how to use mighty hoop tutorial videos is essential to learn the safe handling techniques before you unbox them.

The Tension Truth: Why Rectangular Plastic Hoops Cause Registration Drift (and Why Magnets Behave More Like a Round Hoop)

John explains a phenomenon that drives digitizers crazy: Push/Pull distortion.

• The Flaw of Rectangles: Traditional plastic hoops rely on screws. The corners are tightest, while the long straight sides bow out slightly under tension.
• The Result: Fabric in the middle is looser. As the needle penetrates, the fabric "flags" (bounces), causing the outlines to misalign with the fill stitches.


The Magnetic Physics: Magnetic square hoops clamp with continuous force along the entire perimeter. John describes it as mimicking the physics of a round hoop.

The Expert Layer: By equalizing the fabric restraint, you reduce the need for aggressive "Pull Compensation" in your digitizing software. The fabric stays where you put it.

If you are shopping broadly, this is the real technical promise behind magnetic frames for embroidery machine—it isn't just about speed; it's about stabilizing the substrate physics.

Safety Isn’t Optional: Pacemakers, Electronics, and the “Where Do I Put This Hoop?” Problem

Magnetic hoops are essentially industrial equipment.

• Pacemakers: If you or your staff have a pacemaker, consult a doctor. The magnetic field is significant.
• Electronics: Do not lay these hoops on your laptop, your phone, or the computerized screen of your embroidery machine.


The "Magnet Parking Zone" Policy: In my shop, we have a rule: Magnets live on the machine or on a non-metal hook on the wall. They never touch the desk where the computer is.

If you are considering this category for a Brother multi-needle setup, searching for magnetic embroidery hoops for brother is vital to ensure you get the shielded or compatible versions that won't interfere with the machine's specific sensors.

The Repeat-Order Hack: Record the Hoop Master Grid Number (So Nike Golf Shirts Don’t Cost You 10 Minutes Each)

This is the difference between a "craftsman" and a "manufacturer."

John points out the numbered grid on the Hoop Master board. He suggests using number 10 for a specific size and writing it down.

Operationalizing the Data: Create a simple "Recipe Card" for every repeat client:

• Client: Golf Club X
• Garment: Nike Dri-Fit Polo (Mens L)
• Backing: 2.5oz Cutaway + Spray
• Grid Position: E-10
• Needle: 75/11 Ballpoint

Next time they order, you don't measure. You set to "E-10" and run.

Setup Checklist (Before hooping the first production piece)

• Bottom Ring: Seated flat in the slot.
• Stop Piece: Locked at the correct vertical height.
• T-Square: Set to the exact half-width (e.g., 9 inches).
• Grid Number: Recorded in your job sheet.
• Stabilizer: Pre-cut and staged.

If you run Tajima equipment, looking for magnetic hoops for tajima embroidery machines keeps this same logic valid—the bracket changes, but the grid system methodology remains universal.

Production Reality Check: Stitch Count Targets, Color Count, and Keeping Up with Multi-Head Output

John shares a crucial metric: he favors designs in the 5,000 to 11,000 stitch range.

The Math of Profit:

• Hooping Time: 30 seconds (with practice & magnets).
• Run Time (10k stitches @ 800 SPM): ~12 minutes.

If you can hoop a shirt in 30 seconds, but your machine takes 12 minutes to sew, the machine is now the bottleneck. This is a good problem to have. It means you have time to trim threads, prep the next shirt, or answer emails while it sews.

However, if you are struggling with a single-needle machine, no hoop will make the sewing faster. This is where you calculate: "Am I losing money waiting for thread changes?"

If you are evaluating the category, mighty hoops magnetic embroidery hoops are best judged by this metric: "Does this tool allow me to feed the machine faster than the machine can eat?"

Decision Tree: Should You Stay with Standard Hoops, Add Magnetic Hoops, or Jump to a Multi-Needle Upgrade?

Use this logic flow to determine where to invest your next dollar.

Start Here: What is your primary pain point?

• Pain: "I can't get the logo straight / My hands hurt."
  • Solution: Level 1 Upgrade. Get the Hoop Master Station and Magnetic Frames. This fixes the human variable.
• Pain: "Hoop burn is ruining my velvet/polyester shirts."
  • Solution: Level 2 Upgrade. Switch to Magnetic Hoops. The flat clamping mechanism reduces the "crush" effect of traditional rings.
• Pain: "I am changing thread colors constantly and hooping is faster than sewing."
  • Solution: Level 3 Upgrade. You have outgrown your single-needle. The magnetic hoop helps, but you need a multi-needle machine (like a SEWTECH 15-needle) to automate color changes and increase SPM (Stitches Per Minute).
• Pain: "My huge design won't fit."
  • Solution: Check your machine's max field. If the machine supports it, buy the larger hoop. If not, you need a larger machine.

The Tool Path:

1. Consumables: Better Backing/Spray (Fixes puckering).
2. Fixtures: Magnetic Hoops/Station (Fixes placement & pain).
3. iron: Multi-Needle Machine (Fixes speed & capacity).

Compatibility and “Big Hoop” Expectations: What the Comments Reveal (and How to Avoid Buying the Wrong Thing)

The comments section is a graveyard of compatibility errors.

• "Will this fit my PE800?"
• "Does the bracket work on a Ricoma?"

The Rule: Mighty Hoops and similar magnetic systems use machine-specific brackets. The hoop itself is often universal, but the metal arm that attaches it to your pantograph is NOT.

Field Size Reality: Do not buy the biggest hoop just because it exists. A 13x11 hoop on a squirts or pocket logo causes excess vibration.

• Guideline: Use the smallest hoop that fits the design comfortably.
• Sweet Spot: The 5.5" x 5.5" magnetic hoop causes the least vibration and fits 80% of left-chest logos.

If you are tempted by the massive size, mighty hoop 11x13 is a powerful tool for jacket backs, but ensure your machine's pantograph can handle the weight and momentum of a large magnetic frame.

The Upgrade Result: Faster Hooping, Less Hoop Burn, and a Cleaner Path to Scaling Orders

The video shows the finished sweatshirt. It is crisp. No ring marks. Perfect alignment.

This comes down to removing friction. Friction in the setup, friction on the fabric fibers (hoop burn), and friction in your workflow.

Magnetic hoops coupled with a station transform embroidery from a "craft" where you hope for the best, into a "manufacturing process" where you expect the best.

Final Wisdom: If you strictly follow the "Checklist Lifestyle," your scrap rate will drop to near zero. Tools like magnetic hoops and multi-needle machines are force multipliers, but you are the system.

Operation Checklist (The Final "Go/No-Go")

• The Clearance Check: Use the machine's "Trace" button. Does the foot hit the magnetic rim? (If yes, stop immediately).
• The Float Check: Is the stabilizer fully caught by the magnets on all sides?
• The Under-Path: Reach under the hoop. Are sleeves or tails bunching up under the needle plate? Pull them clear.
• The Sound: Listen to the machine. A rhythmic "thump-thump" is good. A harsh "clack-grind" means you hit a hoop.

If you are ready to stop fighting with plastic screws and start running production, the hooping station for machine embroidery combined with a robust set of magnetic frames is the most logical step toward professional consistency.

FAQ

• Q: Do Mighty Hoops magnetic frames need temporary spray adhesive or a basting stitch file on slippery performance poly sweatshirts?
  A: Yes—on slippery performance wear, use a light mist of temporary spray adhesive on the stabilizer (or run a basting stitch) so the fabric doesn’t shift inside the magnetic clamp.
  • Spray: Mist adhesive onto the stabilizer (not the garment), then smooth the garment onto it before snapping the top ring down.
  • Add: Use a basting stitch file when you want extra hold at the perimeter.
  • Success check: The fabric feels “neutral” and controlled (taut but not stretched), and the stabilizer is caught evenly on all sides.
  • If it still fails… Switch to the correct stabilizer type for the fabric (especially cutaway for knits) and re-check that the bottom ring is fully seated flat in the station.
• Q: What stabilizer pairing should be used for stretchy knit polos/tees when hooping with a Mighty Hoops magnetic frame to prevent distortion?
  A: Use cutaway stabilizer (2.5–3.0 oz) for stretchy knits—tearaway is a common cause of distortion on polos and tees.
  • Match: Choose cutaway for stretch, tearaway only for stable wovens, and add water-soluble topping for high pile.
  • Stage: Pre-cut backing pieces so the hooping step stays consistent.
  • Success check: After hooping, the knit is held flat without ripples and does not “bounce” when tapped lightly.
  • If it still fails… Reduce handling stretch during smoothing (relax fabric—do not pull tight) and confirm the stabilizer is fully captured by the magnets.
• Q: How do you confirm the bottom magnetic ring is correctly seated in a Hoop Master embroidery hooping station before hooping production items?
  A: Seat the bottom ring in the recessed slot so it sits dead flat—any rocking means debris or mis-seating that will cause placement drift.
  • Press: Push gently on each corner and edge to detect rocking or clicking.
  • Clean: Remove lint/debris from the recess and ring underside before reseating.
  • Set: Adjust the stop piece so the hoop cannot slide toward the operator but can lift vertically.
  • Success check: The bottom ring does not rock or click anywhere, and it returns to the exact same position repeatedly.
  • If it still fails… Verify the fixture hardware matches the hoop’s bolt/nut layout and correct bracket set for the machine.
• Q: What is the safest way to snap a Mighty Hoops magnetic frame using FreeStyle Arms without pinching fingers?
  A: Hold the top ring only by the handles/FreeStyle Arms and keep fingers completely out of the ring gap—rare-earth magnets close with very high force.
  • Clear: Remove tools and loose metal from the work area before handling the hoop.
  • Hover: Hold the top frame about 1 inch above, align to the station guides, then lower in a controlled motion.
  • Never: Do not place fingers between the rings at any point.
  • Success check: You hear a sharp, loud “clack,” and a finger sweep along the inside edge confirms fabric is held evenly.
  • If it still fails… Re-align the brackets and station guides and re-snap—do not force it if anything looks crooked.
• Q: What safety rules should be followed for magnetic embroidery hoops around metal tools, electronics, and pacemakers in a commercial embroidery shop?
  A: Treat magnetic hoops like industrial equipment—keep sharp metal tools and electronics away, and use extra caution if anyone has a pacemaker.
  • Enforce: Keep needles, snips, seam rippers, and loose metal parts at least 12 inches away from the hooping area to prevent sudden “grab” injuries.
  • Park: Store magnetic hoops on the machine or on a non-metal wall hook—do not set them on desks near computers/phones.
  • Caution: If an operator has a pacemaker, consult a doctor before working around strong magnets.
  • Success check: The hooping zone stays clear—no tools “jump” toward the hoop during setup.
  • If it still fails… Create a dedicated “magnet parking zone” policy and remove all metal clutter from the station area.
• Q: How do you verify a Mighty Hoops magnetic frame is recognized and will not strike the embroidery machine during stitching?
  A: Always use the machine’s “Trace” (laser or needle check) before stitching to confirm recognition, centering, and clearance.
  • Trace: Run the full trace path with the hoop installed before starting the design.
  • Watch: Look for any contact risk between presser foot/needle area and the magnetic rim.
  • Clear: Reach under the hoop to pull sleeves/tails away from the needle plate path.
  • Success check: The trace completes smoothly with no contact, and nothing rubs or “clacks” against the hoop.
  • If it still fails… Stop immediately and re-hoop or switch hoop size; do not run a job if the machine is hitting or nearly hitting the magnetic frame.
• Q: When should an embroidery shop use Level 1 technique changes, Level 2 magnetic hoops/hooping station, or Level 3 upgrade to a SEWTECH 15-needle multi-needle embroidery machine?
  A: Choose the upgrade level based on the bottleneck: fix materials/handling first, add magnetic fixturing for repeatable placement and reduced hoop burn, and move to multi-needle when thread-change time becomes the profit killer.
  • Level 1 (Technique/Consumables): Improve stabilizer choice and add spray/basting when puckering or shifting starts before stitching.
  • Level 2 (Fixtures): Add magnetic hoops + a hooping station when alignment drifts, hoop burn shows up, or hands/wrists are taking a beating from screw hoops.
  • Level 3 (Capacity): Upgrade to a multi-needle (e.g., SEWTECH 15-needle) when hooping becomes faster than sewing and constant color changes slow production.
  • Success check: The bottleneck moves away from hooping—placement becomes repeatable, scrap drops, and production flow feels predictable.
  • If it still fails… Track timing (hooping time vs run time) and document repeat “recipe cards” (grid position/backing/needle) to identify exactly where time is being lost.
