Mastering Quilted Vests: A Safety-First Guide for the Brother PR670E

Quilted vests are deceptive. They look like a "simple" flat canvas, but for an embroiderer, they are a minefield of bulky seams, slippery linings, and "loft"—that puffy texture that loves to swallow stitches and deflect needles. If you are staring at a client's vest and feeling a knot of anxiety in your stomach, good. That means you are respecting the variable nature of this craft.

In this "White Paper" style guide, we are breaking down a real-world setup on a Brother Entrepreneur 6-Plus (PR670E). We will use a standard 4x4 hoop, tearaway stabilizer, binder clips (to tame the bulk), and the built-in laser alignment.

Our goal is not just to get it done, but to create a "zero-collision" workflow that protects your machine and produces a monogram that sits proudly on top of the fabric, not buried inside it.

The Physics of the Problem: Why Vests Fight Back

Before we touch the machine, you must understand the two physical forces fighting against you:

1. Compression Resistance (The Hoop Fight): Quilted fabric is thick. Forcing it into a standard inner/outer ring hoop requires physical strength. If you tighten it too much, you get "hoop burn" (permanent crushing of the fibers). If you leave it too loose, the fabric slips, and your design registration fails.
2. Loft (The Textural Trap): The "puffiness" of the quilt creates valleys. Without the right support, stitches will sink into these valleys, making the font look broken or thin.

The solution requires a combination of mechanical control (hooping/clipping) and chemical support (stabilizers/topping).

Part 1: Strategic Preparation

The input video demonstrates a classic method: Floating the bulk. Instead of trying to smash the entire vest including zippers and thick seams into the hoop, we are using the hoop to hold the stabilizer and the specific embroidery area, while managing the rest of the weight with clips.

The Hidden Consumables List

Beginners often focus on thread and fabric, but for a vest, you need these specific tools on your table:

• Fresh Needle: Size 75/11 Sharp or Ballpoint (depending on the weave). A dull needle stuggles to penetrate the batting/fill.
• Binder Clips (Large): To hold the excess fabric back.
• Water-Soluble Topping (Solvy): The "snowshoe" for your stitches.
• Masking Tape/Painter’s Tape: For securing loose straps or drawstrings that might whip around.
• Tearaway Stabilizer: Medium weight (2.0 - 2.5 oz).


The "Center Truth" Method

Accurate placement on outerwear cannot be "eyeballed." The video uses a physical pin to mark the center. This pin is your "Truth Point."

Why a physical pin? Because quilted fabric distorts visuals. A chalk mark might rub off, and an air-erase pen might sink into the batting. A pin gives you a 3D reference point that you can see from any angle to verify your brother pr670e embroidery machine is aligned correctly.

Phase 1: Prep Checklist (The "Pre-Flight" Safety Check)

• Stabilizer Check: Tearaway stabilizer is drum-tight in the hoop (tap it; it should sound like a drum).
• Review the Bulk: You have identified where the zipper, collar, and side seams are.
• Center Mark: The pin is inserted exactly where the center of the monogram should be.
• Hoop Screw: The hoop screw is loosened enough to accommodate the thickness without crushing the batting (if you are hooping the garment itself).
• Design Size: You have confirmed on-screen that the design fits (Input example: 3.12" x 3.15" fits easily in a 4x4 hoop).

Part 2: Laser Alignment & Hooping Physics

Once the vest is mounted to the machine arm, we enter the most critical phase for accuracy: Alignment.

The Brother PR670E features a built-in laser crosshair. Your goal is to move the frame using the touchscreen arrows until that red laser crosshair sits exactly on the head of your pin.

Sensory Anchor (Visual): Crouch down. Look at the needle bar from the side. Ensure the laser isn't just hitting the pin, but that the fabric underneath is relatively flat and not "tenting" up.

The Binder Clip Strategy (And Why It Matters)

Standard hoops create a struggle with thick garments. You have to push the inner ring into the outer ring with significant force. This is often where "hoop burn" happens—shiny, crushed circles left on the fabric.

If you struggle with wrist pain or find yourself unable to hoop thick items securely, this is a trigger point to consider a magnetic embroidery hoop. Magnetic frames use powerful magnets to clamp the fabric down rather than forcing it into a ring. This creates zero friction on the fabric edges and eliminates hoop burn. However, if you are using the standard hoop as shown in the video, the solution for the excess fabric is Binder Clips.

Use the clips to fold the "rest" of the vest back and away from the embroidery field. This reduces the weight pulling on the hoop (drag), which improves registration accuracy.

Part 3: The Trace (Your "Collision Insurance")

Never press "Start" without Tracing.

On a bulky vest with binder clips attached, the Trace function is not just for placement—it is a safety clearance check.

The Action: Press the Trace icon. The Sensory Check:

1. Watch: Does the presser foot come dangerously close to the plastic hard parts of the hoop?
2. Listen: Do you hear the motors straining? (A low groan indicates the fabric is dragging).
3. Check Clearance: Does the needle bar move comfortably past your binder clips?

Warning: METAL ON METAL DANGER.
If your needle bar or presser foot strikes a binder clip during high-speed stitching, the needle will shatter. Metal shards can fly into the machine's hook assembly (expensive repair) or toward your face (safety hazard). Always leave at least 1-inch of clearance between the clips and the maximum trace area.

Phase 2: Setup Checklist (Before You Stitch)

• Clip Audit: All binder clips are secured and positioned well outside the trace line.
• Fabric Trap Check: No sleeves or lining are folded under the hoop where they could be stitched to the back of the vest.
• Laser Confirmation: After adding clips, the laser is still centered on your pin/mark.
• Topping Applied: Use a dab of water or tape to keep the water-soluble topping flat over the stitch area.

Part 4: Topping, Needles, and Speed

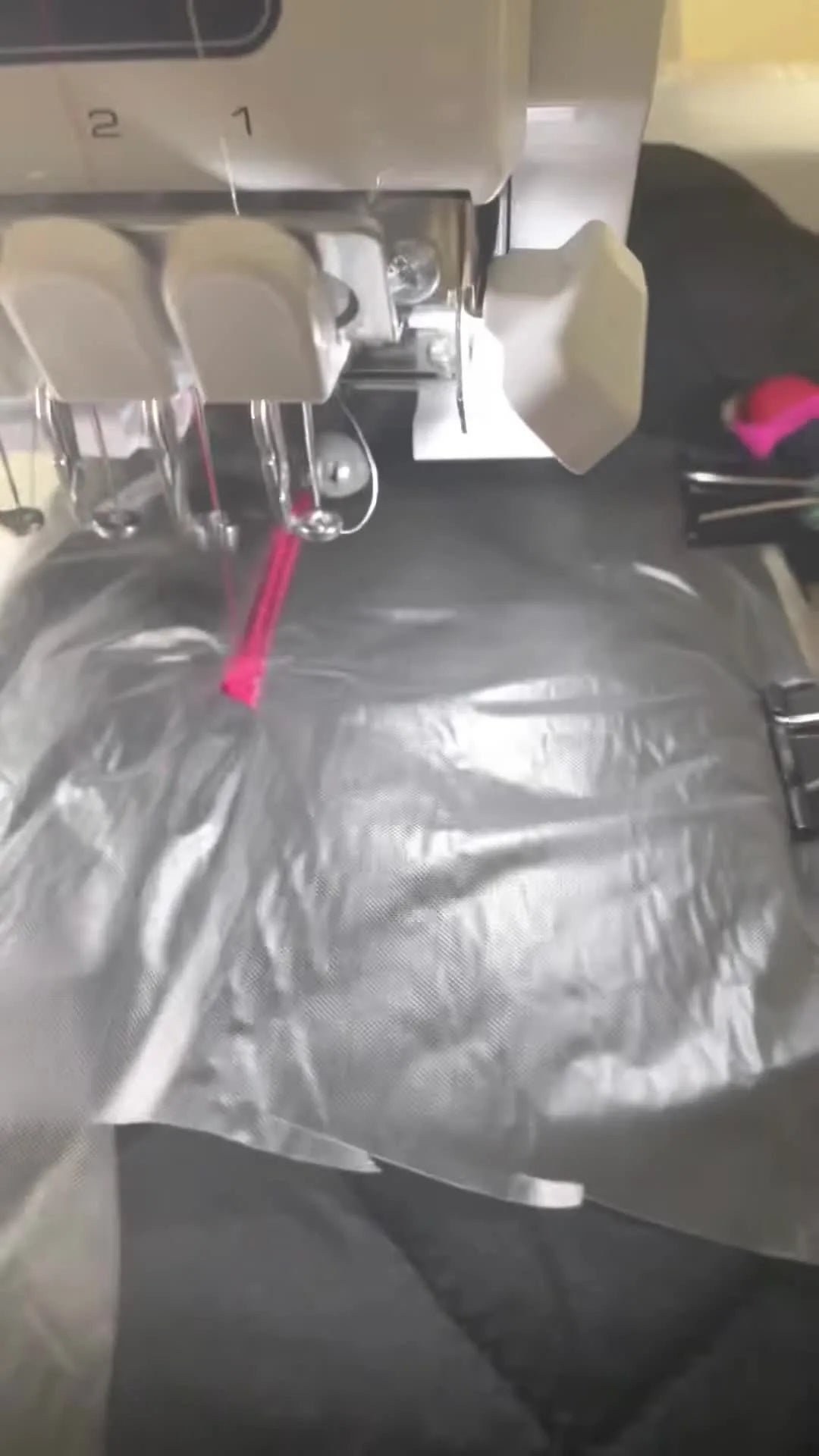

The video introduces Water-Soluble Topping. Think of this film as a "suspension bridge" for your thread. It sits on top of the puffy quilt and ensures the stitches form on the film, not deep in the fabric valleys.

Needle and Color Assignment

Do not trust the screen colors implicitly. The screen is a digital representation; reality is what you threaded.

• Action: Manually select the needle bar that corresponds to your thread color. In this case, Needle #2 (Pink).
• Verification: Pull on the thread tail of Needle #2. Feel the tension—it should feel like pulling dental floss through teeth. If it's loose, re-thread.




Speed Management: The "Sweet Spot"

The video suggests 500 SPM (Stitches Per Minute). This is wise. While the PR670E can go faster, quilted fabric is "bouncy." High speeds cause the fabric to flag (bounce up and down) which leads to looped stitches or thread breaks.

• Beginner Sweet Spot: 600 SPM or lower.
• Pro Speed: 800+ SPM (requires perfect stabilization and often magnetic hoops).


Part 5: The Stitch-Out and Finishing

Once you press the flashing green button, do not walk away.

The First 60 Seconds: Watch the topping. The presser foot will jump around; ensure it doesn't lift the topping film off the fabric. If the film starts to peel up, pause the machine and tape it down.

Removal and Clean Up

Once finished, remove the hoop.

1. Tear the Topping: Pull the large chunks of water-soluble film off. Use tweezers for the tiny islands inside letters (like the center of an 'O' or 'A').
2. Tear the Backing: Tear away the stabilizer from the inside. Support the stitches with your thumb while tearing to avoid distorting the embroidery.








Decision Tree: Fabric vs. Stabilizer Choice

Use this logic flow to ensure you are setting up correctly every time.

Is the Fabric Stretchy?

• YES (e.g., Performance Fleece Vest): Use Cutaway Stabilizer. Tearaway will eventually break down and the embroidery will distort.
• NO (e.g., Woven Quilted Vest): Proceed to texture check.

Is the Texture "Puffy" or "High Loft"?

• YES: Use Tearaway (floated) + Water Soluble Topping on top.
• NO: Use Tearaway alone.

Is the Fabric Slippery (Nylon/Polyester Shell)?

• YES: Use Binder Clips or Double-Sided Tape to prevent movement in the hoop.

Troubleshooting: Why Things Go Wrong

Even with a good guide, variables happen. Here is how to diagnose the two most common failures on quilted vests.

Phase 3: Operation Checklist (Post-Stitch Quality Control)

• Outline Check: Are the outlines registered perfectly with the fill? (If not, fabric shifted).
• Topping Check: Is all topping removed? (Use a damp Q-tip to dissolve stubborn bits).
• Burn Check: Are there hoop marks on the fabric? (Steam them gently to remove).

Commercial Insight: Upgrading Your Workflow

The method using a standard hoop and binder clips is cost-effective and functionally sound for hobbyists or low-volume orders. However, if you begin to take orders for 20, 50, or 100 corporate vests, this method will hurt you. The physical strain of clamping thick vests and the time spent clipping bulk leads to fatigue and slower turnaround.

When to Upgrade:

1. The Wrist Pain Trigger: If your wrists hurt after hooping 5 shirts, you need a magnetic hoop for brother. The magnetic force handles the clamping, saving your joints.
2. The "Ghost Mark" Problem: If you are rejecting garments because of hoop burn, magnetic frames are the industry standard solution because they do not force the fabric into a ring.
3. The Placement Bottleneck: If you are spending 5 minutes measuring each vest, look into hooping stations or the hoop master embroidery hooping station. These systems allow you to preset the placement so every vest is hooped in the exact same spot in seconds.

Warning: MAGNETIC SAFETY.
Magnetic hoops are incredibly strong tools.
* Pinch Hazard: Keep fingers clear of the snapping zone. They can pinch blood blisters instantly.
* Medical Devices: Do not use if you have a pacemaker; the magnetic field can disrupt medical electronics.
* Electronics: Keep away from credit cards and phone screens.

By mastering the "Float, Clip, and Trace" method today, you build the skills necessary to handle any bulky garment. And when your volume grows, you'll know exactly which tools to upgrade to turn your craft into a production powerhouse.

FAQ

• Q: What prep consumables should be on the table before embroidering a quilted vest on a Brother PR670E with a 4x4 hoop?
  A: Use a fresh 75/11 needle, medium tearaway stabilizer, water-soluble topping, and binder clips before you even mount the hoop.
  • Replace: Install a fresh 75/11 Sharp or Ballpoint needle (choose based on fabric weave); dull needles struggle in batting.
  • Hoop: Put 2.0–2.5 oz medium tearaway stabilizer in the hoop drum-tight.
  • Stage: Keep large binder clips, masking/painter’s tape, and water-soluble topping ready to control bulk and loft.
  • Success check: Tap the hooped stabilizer— it should sound/feel drum-tight with no slack.
  • If it still fails: If hooping pressure is crushing the quilt (hoop burn) or the garment won’t seat well, consider switching to a magnetic hoop for thick outerwear.
• Q: How do I verify correct hooping tension on a Brother PR670E when floating a quilted vest with tearaway stabilizer?
  A: Hoop only the stabilizer drum-tight, then float and clip the vest bulk so the embroidery field stays flat and stable.
  • Hoop: Tighten the stabilizer in the 4x4 hoop until it is firm and even.
  • Float: Position the vest embroidery area over the hooped stabilizer instead of forcing zippers/seams into the ring.
  • Clip: Use binder clips to fold excess vest weight away from the stitch field to reduce drag.
  • Success check: The embroidery area stays flat (no “tenting”) and does not shift when the machine moves the frame.
  • If it still fails: If the fabric slips or registration drifts, re-clip to reduce weight pull and re-check alignment before stitching.
• Q: How do I use the Brother PR670E laser crosshair and Trace function to prevent hoop and binder clip collisions on a quilted vest?
  A: Align the laser exactly to the physical center mark, then run Trace every time as a clearance test before pressing Start.
  • Mark: Insert a physical pin at the true center point for placement (more reliable on puffy quilts than marks).
  • Align: Move the frame with the touchscreen arrows until the laser crosshair sits exactly on the pin head.
  • Trace: Press Trace and watch the full boundary path to confirm safe clearance from hoop edges and binder clips.
  • Success check: The needle bar/presser foot passes the entire trace path without coming close to any clip and without motor “groaning.”
  • If it still fails: Reposition clips at least 1 inch outside the maximum trace area and re-run Trace until fully clear.
• Q: What causes “sunk” satin stitches and gaps when embroidering quilted vests on a Brother PR670E, and how do I fix it?
  A: Add water-soluble topping and prevent it from shifting; if needed, increase satin density slightly from 0.40 mm to 0.38 mm.
  • Apply: Lay water-soluble topping over the embroidery area like a support layer for stitches on high-loft quilts.
  • Secure: Use a dab of water or tape so the topping stays flat during the first stitches.
  • Adjust: If coverage is still weak, increase density slightly (example: 0.40 mm to 0.38 mm).
  • Success check: Satin columns look full on the surface, not buried into quilt “valleys,” with no visible gaps.
  • If it still fails: Pause and inspect whether the topping lifted or shifted; re-secure topping and stitch again at a slower speed.
• Q: Why does a standard hoop “pop” or lose registration on thick quilted vests on a Brother PR670E, and what should I do immediately?
  A: Stop immediately—this is a hooping failure caused by thickness; re-hoop or switch to a magnetic hoop designed to clamp thick garments.
  • Stop: Halt the stitch-out as soon as the hoop pops or the design shifts.
  • Re-hoop: Reduce bulk in the ring (float more of the vest) and secure excess weight with stronger clipping strategy.
  • Upgrade: Consider a magnetic hoop to eliminate ring “fight” and improve holding power on bulky outerwear.
  • Success check: After re-hooping, the fabric/stabilizer remains stable during Trace and the design outline stays registered.
  • If it still fails: Do not force the standard hoop tighter (risk hoop burn); move to a magnetic clamping method for repeatability.
• Q: How do I reduce thread shredding on quilted fabric when running a Brother PR670E, especially at higher speeds?
  A: Use a fresh 75/11 needle and slow down to around 500 SPM; check thread path and tension if shredding continues.
  • Replace: Change to a fresh #75/11 needle—batting dulls needles quickly and increases shredding.
  • Slow: Run a safer speed (the guide recommends 500 SPM for quilted, bouncy fabric).
  • Verify: Manually select the correct needle bar for the actual thread color and confirm tension feels firm/consistent when pulling the tail.
  • Success check: The thread runs smoothly without fraying at the needle eye, and stitches form cleanly without repeated breaks.
  • If it still fails: Re-thread and review tension (settings vary by thread and material); consult the Brother PR670E manual for tension baselines.
• Q: What safety rules prevent needle shatter and machine damage when using binder clips or magnetic hoops on a Brother PR670E for quilted vests?
  A: Treat clearance and pinch hazards as non-negotiable: keep binder clips outside the trace boundary and handle magnetic hoops as high-force tools.
  • Clear: Keep binder clips at least 1 inch away from the maximum Trace area to avoid needle bar/presser foot collisions.
  • Trace: Run Trace every time after adding or moving clips—Trace is collision insurance on bulky setups.
  • Protect: Keep fingers out of the “snap zone” when closing magnetic hoops; magnets can pinch instantly.
  • Success check: Trace completes with zero contact risk, and magnetic frames close without fingers near the clamp path.
  • If it still fails: If safe clearance cannot be achieved, remove clips and re-stage the garment bulk (or change hooping method) before stitching.
