Mylar Birdhouse Towels That Actually Look Clean: Stop Gingham Show-Through and Frayed Edges Before They Ruin the Sparkle

If you have ever finished a “sparkly” Mylar towel design, looked at the final result, and thought, “Why can I still see the gingham check underneath… and what is that fuzzy mess around the edges?”—you are facing the specific physics of Mylar embroidery.

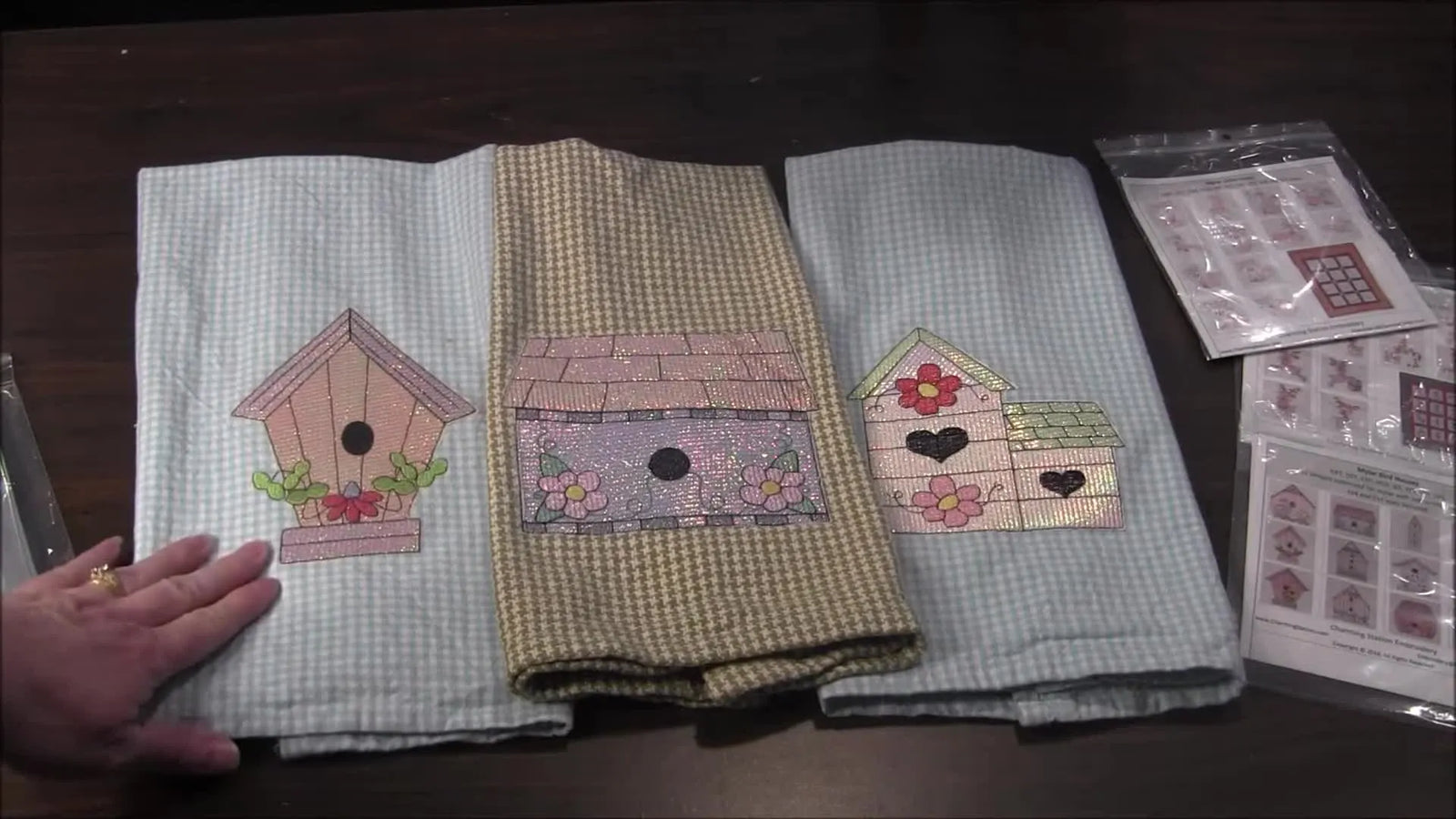

Chris from Needlepointers demonstrates a classic production reality: the very thing that makes Mylar embroidery beautiful (low-density, open stitching) makes it brutally honest. Any high-contrast background—especially gingham checks—will telegraph right through the Mylar. Furthermore, if you choose the wrong "blocker" fabric, it will announce itself around the edges like a halo of lint.

This guide rebuilds the video’s lessons into a "shop-ready" workflow. We will cover the optics of Mylar, how to choose a blocker that doesn't fray, and how to set up your machine so you can repeat the result on ten towels without losing your mind (or your hoop alignment).

The Sparkle Trick in Mylar Machine Embroidery—And Why It Exposes Every Mistake

Mylar birdhouse towels “shine” because the design is digitized differently than standard embroidery. A normal satin stitch might have a density of 0.4mm (very tight); a Mylar design often opens that up to 1.0mm or 1.2mm. This gap allows the opalescent Mylar sheet underneath to catch the light.

However, this "Open Architecture" creates a vulnerability. Because the stitches are sparse, they provide zero coverage.

The Sensory Reality Check:

• Visual: Hold your Mylar sheet up to a window. You can see through it, right? That is exactly how your machine sees it.
• The Pro Rule: Treat Mylar not as a fabric, but as a tinted window. If the wall behind the window (the towel) is messy or patterned, the window won't hide it.

Where beginners get burned is assuming the Mylar acts like a solid applique. It does not. If your hooping is even slightly loose, the Mylar will shift, the open stitches won't trap it, and the design will look "slushy." This is where the foundation—your hoop and stabilizer—matters more than the design itself.

The “Hidden” Prep That Makes Mylar Towels Look Expensive (Not Crafty)

Chris’s video highlights the blocker choice (cotton vs. interfacing), but in 20 years of embroidery, I have found that the battle is usually won or lost before you press "Start."

Here is the "Production Prep" protocol I insist on for towels:

Prep Checklist: The Zero-Fail Launch

• Fabric Inspection: Rub the towel nap. If it's a deep waffle or plush terry, you must use a water-soluble topper (Solvy) even over Mylar to prevent stitches from sinking.
• Hoop Selection: Ensure your design fits. Do not force a 5x7 design into a maxed-out 5x7 field; give yourself breathing room.
• Hidden Consumables:
  • New Needle: Replace your needle. Use a 75/11 Sharp/Topitch. (Ballpoint needles can push Mylar down rather than piercing it cleanly, causing puckering).
  • Applique Scissors (Duckbill): Essential for trimming the blocker close.
  • Tape/Spray: Painter's tape or temporary spray adhesive to hold the blocker in place.
• Blocker Decision: Choose your blocker layer (see the Decision Tree below) before you hoop.
• Thread Check: Use high-sheen polyester. Rayon is beautiful but weaker on towels that get washed often.

Warning: Mechanical Safety. Trimming around a tack-down line puts your fingers dangerously close to the needle bar. Always execute a "STOP" command or power down the motor before putting your hands inside the hoop area. Accidental foot-pedal presses (or 'Start' button bumps) while trimming can result in severe finger injuries or shattered needles.

A note on efficiency: Towels are bulky, heavy, and slippery. They love to "creep" out of standard friction hoops, leading to distortions where the outline doesn't match the fill. If you find yourself re-hooping three times to get it straight, the industry standard solution is a hooping station for machine embroidery. It creates a physical jig to ensure your placement is identical on every single towel. If you are struggling with "Hoop Burn" (those crushed rings left on the towel nap), this is the friction hoop's fault. A magnetic embroidery hoop solves this by clamping locally without crushing the surrounding fibers.

Buying the Right Mylar Birdhouse Design Pack: Formats, Sizes, and the “Not Printable” Confusion

Chris reviews the Mylar Bird Houses pack and clarifies a massive point of confusion for newcomers: "Not Printable."

Let’s decode the digital assets.

• PDFs/JPGs: These are for your eyes (color charts), not the machine.
• Stitch Files (.PES, .DST, .JEF, etc.): These are XY coordinate maps for the machine motors.

Expert Setup Strategy:

1. Format: If you have a Brother machine, look for .PES. If you are running a commercial multi-needle (Tajiuma, Barudan, or our SEWTECH commercial lines), .DST is the universal standard.
2. Size vs. Hoop:
   • If you own a standard machine, you are likely looking for a brother embroidery hoop 4x4 compatible design (approx 100mm x 100mm).
   • However, towels usually look better with more presence. Stepping up to a brother 5x7 hoop size design allows the visual weight of the embroidery to match the bulk of the towel.

The "Safe Zone" Rule: Never maximize your hoop field to the millimeter. If your hoop is 4x4 inches (100x100mm), choose a design that is 3.5 inches (90mm) max. Mylar adds stiffness; you need that margin for the presser foot to move freely without hitting the plastic hoop frame.

Mylar Sheets Up Close: Thin, Opalescent, and Easy to Mis-handle

Chris demonstrates the Mylar ("Blue Opal Large Sheets"). Notice how it behaves: it's stiff enough to hold a shape but thin enough to tear.

Mylar Physics for Stitchers:

• The Sound: When you handle it, listen for a crisp "crinkle." If it sounds dull or soft, it might be vinyl, which is too thick for these designs.
• The Tear Factor: Mylar is designed to be perforated. If your stitch density is too high (standard satin), you will essentially perform a "postage stamp" effect, cutting the Mylar out entirely.
• Refraction: The "Sparkle" comes from light hitting the crumpled surface under the thread. Do not try to smooth it perfectly flat; a little texture adds to the glint.

Pro Workflow Tip: Pre-cut your Mylar squares. If your design is 4x4, cut your Mylar to 5x5. Do not try to manage a giant sheet while the machine is running; the excess weight can drag the hoop and shift your registration.

The Real Enemy: Gingham Show-Through on Kitchen Towels (And Why It Happens)

Here is the core optical failure mode Chris identifies: Gingham checks. High-contrast patterns (Black/White, Red/White) have a "Visual Loudness" that overpowers the "Visual Silence" of the Mylar.

Because the embroidery designs have low density (spaces between threads), the eye focuses through the Mylar to the strongest contrast point behind it—the checks.

The Solution? An Opacity Layer. You must insert a "Blocker" layer. This acts like primer on a wall before you paint. It hides the underlying pattern so the Mylar can reflect pure light, not the towel's pattern. Chris tests two options in the video:

1. Cotton Fabric (The "Applique" approach).
2. Interfacing (The "Stabilizer" approach).


Cotton Scrap as a Blocker: Why It Looked Fuzzy Even When the Stitching Was Fine

In the first test, Chris uses white cotton fabric as the blocker. She places it down, runs the tack-down stitch, and trims.

The Result: Failure (Aesthetically). Why? Biology and mechanics. Cotton is a woven fiber. When you cut woven fabric:

1. You sever the warp and weft threads.
2. Those severed threads have no structural integrity.
3. The moment the needle penetrates near the edge (during the final satin stitch), the friction agitates those loose ends, causing them to "bloom" or fray outward.

The "Fuzz Halo": Even if your trimming technique is surgical, a woven cotton blocker will almost always result in a fine, fuzzy halo peeking out from under the satin stitch. On a crisp Mylar design, this looks like a mistake.

Interfacing as a Blocker: The Clean Edge Fix That Doesn’t Fray

Chris switches to Interfacing (specifically, a non-woven, likely fusible or cutaway type).

The Result: Success. Why? Engineering. Interfacing is a non-woven material (fibers are bonded/pressed, not weaved).

1. Omnidirectional Strength: It doesn't have a grain.
2. Clean Fracture: When you cut it with scissors, the edge stays sharp. It does not unravel.
3. Opacity: It provides the white background needed to block the gingham without adding the bulk/fray of cotton.

Expert Recommendation: Use a lightweight Fusible Interfacing. Iron it onto the back of your Mylar piece (if possible) or simply float it under the Mylar. The fusibility adds a slight chemical bond that helps keep the edges crisp during trimming.

Setup Checklist: The "Flight Check"

• Machine Speed (SPM): Lower your speed! Mylar generates heat when pierced. High friction can melt the film or snap thread. Set to 500-600 SPM.
• Bobbin Check: Ensure you have enough bobbin thread to finish. Changing a bobbin mid-Mylar design is risky because the hoop might shift.
• Layer Strategy: Towel (Hooped) $\to$ Blocker (Interfacing) $\to$ Mylar $\to$ [Start Machine].
• Hooping: A hoop master embroidery hooping station is recommended for consistent placement if you are doing a set of 4+ towels.


Decision Tree: Choosing a Blocker Layer for Mylar Applique on Patterned Towels

Stop guessing. Use this logic flow to determine your material stack.

START: Is your towel solid or patterned?

• A. Solid / Light Color Towel:
  • Risk: Low.
  • Blocker: Optional. You can stitch Mylar directly on the towel (use a water-soluble topper!).
  • Result: Subtle pattern texture from the towel may show, but it's usually acceptable.
• B. Patterned (Gingham/Stripes) or Dark Color Towel:
  • Risk: High (Show-through).
  • Blocker: MANDATORY.
  • Material Choice:
    • Standard Woven Cotton? NO. (Risk of fraying/fuzzy edges).
    • Non-Woven Interfacing? YES. (Clean edges, blocks background).
    • Heat Transfer Vinyl (White)? Advanced Option: Some pros use white HTV as a base for extreme opacity, but Interfacing is safer for beginners.

Consumable Upgrade: If your towels are heavy/plush, standard tearaway stabilizer on the back is insufficient. It will tear during the heavy satin border, causing hydration alignment issues. Upgrade to a No-Show Mesh (Cutaway) stabilizer for the back of the towel. It provides permanent support.

The Trim-Close Habit: Checkpoints and Expected Outcomes (So You Don’t Overcut)

Trimming is the "Make or Break" moment. You must cut the blocker and Mylar close to the tack-down line, but if you cut the stitch itself, the whole design unravels.

The Tactile Technique:

1. Lift & Snip: Lift the Mylar/Blocker excess upward with your non-dominant hand.
2. Slide: Slide the broad blade of your duckbill scissors underneath.
3. Glide: Do not chop. Glide the scissors. You should feel the "shoulder" of the scissors resting against the thread line. A rhythmic snip-slide-snip is better than hacking.

What is "Close Enough"?

• Goal: 1mm to 2mm from the stitching.
• Reality: If you use interfacing, 2mm is fine because it won't fray. If you use cotton, you try to get to 0.5mm, which is dangerous. This is why Interfacing wins—it increases your Safety Margin.


The “Why” Behind the Fix: Hooping Tension, Layer Control, and Repeatability

Why do some towels pucker while others lay flat? It is rarely the machine; it is usually the Hooping Mechanics.

Towels are "fluid." They compress. A standard screw-tight hoop relies on friction. To hold a towel tight, you have to crank that screw effectively crushing the towel fibers (Hoop Burn). Furthermore, pushing the inner ring into a thick towel requires significant wrist force.

The Production Solution: If you are struggling to get the hoop closed, or if you are getting "pop-outs" mid-stitch:

1. The Diagnosis: The inner and outer rings cannot accommodate the towel thickness + stabilizer.
2. The Prescription: Magnetic Hoops.
   Terms like magnetic hoops for embroidery machines refer to hoops that use high-power magnets rather than friction.
   • Benefit 1: No "cranking" or wrist strain.
   • Benefit 2: Self-adjusting height. The magnets snap down to exactly the thickness of the towel, holding it firm without crushing the fibers.
   • Benefit 3: Speed. You can hoop a towel in 5 seconds vs. 30 seconds.

If you are planning to sell these towels, the time saved by using magnetic hoops and a hooping station for machine embroidery directly increases your profit margin.

Quick Troubleshooting: Symptom → Likely Cause → Fix (Based on What Chris Shows)

Pattern Variety and Project Ideas: Birdhouses, Foxes, Reindeer, and Beyond Towels

Chris notes that once you master the "Blocker Technique," this opens up a world beyond towels. Mylar packs (Foxes, Reindeer) are sold for many applications.

Expanded Applications:

• Quilt Blocks: Use the same interfacing blocker to prevent low-loft batting from poking through the Mylar.
• T-Shirts: Use a "No-Show Mesh" fusible stabilizer as your blocker to keep the shirt soft (drape) while hiding the shirt color under the Mylar.


Washability Reality Check: What the Video Actually Claims (and What I’d Add as a Pro)

Chris mentions wash durability. Mylar is surprisingly tough, but it has an enemy: Heat.

The Care Label Rule: If you give these as gifts, include a small card: “Machine Wash Cold / Tumble Dry Low or Hang Dry / DO NOT IRON directly on design.” If an iron touches the Mylar directly, it will shrink and melt instantly, ruining the project.

Production Tip: Test wash your specific brand of Mylar. Not all "gift wrap" films survive the agitation. Stick to embroidery-specific Mylar (like "Blue Opal") which is chemically formulated to withstand warm water.

The Upgrade Path That Actually Makes Sense: When Better Hooping and Better Consumables Beat More “Tricks”

Beginners rely on hacks (like using tape to fix a loose hoop). Pros rely on tools. If you find yourself enjoying Mylar embroidery but hating the setup time, here is your logical upgrade path:

1. Level 1: Consumables. Stop using scrap cotton. Buy a bolt of Fusible Interfacing and Duckbill Scissors.
2. Level 2: The Hoop. If you dread hooping thick towels because of wrist pain or hoop burn, a magnetic embroidery hoop is the industry standard solution. It turns a physical struggle into a simple "Click."
3. Level 3: The Machine. If you are receiving orders for 50 towels, a single-needle machine will require 500 thread changes (10 colors x 50 towels). A SEWTECH Multi-Needle Machine automates those changes, allowing you to press "Start" and walk away while the Mylar design runs.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware that commercial-grade magnets are incredibly powerful. They pose a Pinch Hazard. Keep fingers clear of the mating surfaces. Pacemaker Warning: Keep strong magnetic hoops at least 6 inches away from implanted medical devices.

Operation Checklist: The Clean, Repeatable Mylar Towel Run

Do not rely on memory. Print this out.

• Design: Loaded. Size checked against hoop (Safe Zone confirmed).
• Fabric: Towel marked for center.
• Backing: Cutaway or strong Tearaway secured on the back.
• Hooping: Towel is drum-tight (listen for the thump). Magnetic Hoop recommended for thickness.
• Speed: Machine set to ~600 SPM.
• Stack: Place Blocker (Interfacing) $\to$ Place Mylar $\to$ Smooth down.
• Step 1: Run Tack-down stitch. STOP.
• Step 2: Trim Mylar and Blocker simultaneously. (Use Duck-bill scissors; glide, don't chop).
• Step 3: Complete the design.
• Finish: Remove hoop. Tear away excess stabilizer. Remove Solvy topper (if used).

By swapping woven cotton for interfacing and respecting the physics of the hoop, you turn a "Hit or Miss" craft project into a repeatable, professional product.

FAQ

• Q: Why can a Mylar birdhouse embroidery design on a gingham kitchen towel still show the checks underneath?
  A: Mylar is translucent and Mylar designs use low-density “open” stitching, so high-contrast gingham will telegraph through unless an opacity blocker is added.
  • Add a non-woven interfacing blocker under the Mylar before stitching.
  • Avoid using woven cotton as the blocker on gingham because it can fray and show at the edges.
  • Slow the machine down to about 500–600 SPM to keep the Mylar stable while it’s being perforated.
  • Success check: The finished birdhouse area reads as a clean, solid background with no visible check pattern behind the sparkle.
  • If it still fails: Switch to a more opaque interfacing (still non-woven) and re-check that the blocker fully covers the entire design area.
• Q: Why does a woven cotton scrap used as a Mylar embroidery blocker create fuzzy edges around the satin border?
  A: Woven cotton frays when trimmed, and the satin border agitation pulls loose fibers into a visible “fuzz halo.”
  • Replace the cotton scrap with non-woven interfacing to get a clean, non-fraying cut edge.
  • Trim after the tack-down stitch using duckbill appliqué scissors, gliding close rather than chopping.
  • Keep a safer trim margin (about 1–2 mm) when using interfacing since it won’t unravel.
  • Success check: The satin border edge looks crisp with no “hairy” fibers peeking out.
  • If it still fails: Re-trim carefully closer to the tack-down line and confirm the blocker is truly non-woven (not a woven lining).
• Q: What is the correct layer order for stitching Mylar on a plush terry towel to prevent stitches from sinking and registration shifting?
  A: Use a controlled stack: hooped towel with strong backing support, then blocker, then Mylar—plus a water-soluble topper when the towel nap is deep.
  • Hoop the towel with a cutaway-type backing when towels are heavy/plush (tearaway can fail during heavy satin borders).
  • Place non-woven interfacing as the blocker, then place the Mylar on top before starting.
  • Add a water-soluble topper over the surface if the towel nap is deep waffle or plush to stop stitches from sinking.
  • Success check: Stitches sit on top of the towel loops (not buried), and the outline matches the fill without “slushy” misalignment.
  • If it still fails: Re-check hoop firmness (towel creep is common) and avoid maxing out the hoop field—leave margin for Mylar stiffness.
• Q: What Mylar towel embroidery prep items should be checked before pressing Start to avoid tearing, thread breaks, or mid-design stops?
  A: Treat Mylar towels like a production run: start with a fresh sharp needle, adequate bobbin, and trimming tools ready before the tack-down.
  • Install a new 75/11 Sharp/Topstitch needle before the run (dull needles can contribute to tearing and poor penetration).
  • Verify the bobbin has enough thread to finish the full Mylar sequence to avoid risky mid-design changes.
  • Stage duckbill appliqué scissors and painter’s tape or temporary spray adhesive to control the blocker/Mylar placement.
  • Success check: The tack-down runs cleanly, the Mylar trims without lifting, and stitching continues without “pop” tearing sounds.
  • If it still fails: Reduce speed to the 500–600 SPM range and confirm the design is a Mylar-style low-density file (not a dense satin meant for full coverage).
• Q: What machine speed should be used for Mylar embroidery to reduce heat, melting, and Mylar tearing during perforation?
  A: A safe starting point is slowing to about 500–600 SPM because Mylar can heat up from friction when pierced at high speed.
  • Set the machine to 500–600 SPM for the Mylar portions of the design.
  • Use a fresh 75/11 Sharp needle so the film is cleanly pierced rather than dragged.
  • Pre-cut Mylar to a manageable square so excess sheet weight does not drag and shift the hoop.
  • Success check: The Mylar stays intact under the satin border with no flaking, “postage stamp” perforation, or melted-looking edges.
  • If it still fails: Stop and confirm stitch density is appropriate for Mylar (overly dense stitching can perforate it into a tear-away cutout).
• Q: What mechanical safety steps should be followed when trimming Mylar and interfacing around the tack-down line on an embroidery machine?
  A: Always stop the machine (or power down) before putting hands inside the hoop area—trimming near the needle bar is a real finger-injury risk.
  • Execute a STOP command and wait for all motion to fully halt before trimming.
  • Keep hands outside the needle path and use duckbill scissors to control the blade position under the material.
  • Trim by glide motions (snip-slide-snip) rather than forcing the scissors near active mechanisms.
  • Success check: Trimming is done with the needle completely stationary and the tack-down stitches remain uncut.
  • If it still fails: Re-start only after double-checking the presser foot area is clear and no loose Mylar pieces can snag the needle.
• Q: When thick towels keep slipping in a standard screw embroidery hoop, how should the upgrade path move from technique changes to magnetic hoops and then to a multi-needle machine?
  A: Start with better consumables and support, then upgrade hooping hardware for control, and only then consider multi-needle capacity if volume makes thread changes the bottleneck.
  • Level 1 (Technique/consumables): Switch woven cotton blockers to non-woven interfacing, use cutaway backing on plush towels, add water-soluble topper as needed.
  • Level 2 (Tool upgrade): Use a magnetic embroidery hoop when towels “creep,” pop out, cause registration loss, or create hoop burn from over-tightening.
  • Level 3 (Capacity upgrade): Move to a multi-needle machine when towel orders are large enough that constant thread changes on single-needle production become the limiting factor.
  • Success check: Hooping becomes repeatable (minimal re-hooping), outlines stay aligned, and setup time per towel drops noticeably.
  • If it still fails: Verify the design size is not maxed to the hoop edge (leave a safe margin) and consider a hooping station when placement consistency across multiple towels is required.
