No More Itchy T-Shirts: Batch-Make Soft Felt Patches on a Smartstitch 15-Needle Machine, Then Tack Them Down Cleanly

If you have ever handed a customer a freshly embroidered T-shirt, only to watch them rub the inside and grimace at the texture, you know the "scratch factor" is a business killer. The problem isn’t your design; it’s the physics of stabilizer against sensitive skin.

In this industry-level breakdown of the Smartstitch method, we are moving beyond basic stitching. We are implementing a "patch-and-attach" workflow favored by high-volume production houses. This method isolates the scratchy backing from the skin, ensures perfect repeatability, and leverages tools like magnetic hoops to turn a frustrating chore into a profitable assembly line.

The Real Reason T-Shirt Embroidery Feels “Prickly” (Cut-Away Stabilizer + Skin Don’t Get Along)

The complaint is universal: direct embroidery on lightweight knits (like T-shirts) requires heavy cut-away stabilizer to prevent puckering. However, that stabilizer, combined with thousands of bobbin knots, creates a sandpaper-like surface inside the garment.

Maria’s solution fundamentally changes the architecture of the garment. By stitching the design on felt first, you create a self-contained "badge." This badge carries its own stability, meaning when you attach it to the shirt, you don't need heavy, scratchy backing against the body.

Why this is a Commercial Upgrade:

• Comfort: The wearer feels only the soft shirt fabric, not the embroidery knot.
• Inventory Safety: If a patch fails during stitching, you lose a scrap of felt. If direct embroidery fails, you lose a wholesale T-shirt.
• Batching: You can stitch 50 patches while watching Netflix, then attach them to shirts in a focused heat-press or sewing session.


The “Hidden” Prep Pros Do First: Sash Frame Layering, Flatness Checks, and Consumables That Prevent Rework

Success is determined before you press "Start." In a production environment, prep is about controlling tension variables.

Maria uses a Sash Frame (common on SEWTECH and similar multi-needle machines) to hold a large field of fabric. The layering order here is non-negotiable for structural integrity:

1. Bottom Layer: Medium-weight Cut-Away Stabilizer (provides the "skeleton").
2. Top Layer: Polyester Felt (provides the "body").
3. Bond: A light mist of temporary spray adhesive (like 505 spray) to prevent shifting.

The "Drum Skin" Sensory Check: When you press the aluminum locking bars into the sash frame grooves, you are looking for a specific tension. Run your hand across the felt.

• Visual: Is there any rippling near the corners?
• Tactile: It should feel taut and springy, like a drum skin. If you push down, it should bounce back instantly.
• Auditory: When you tap it, you should hear a dull thump, not a hollow rustle.

Hidden Consumables You Need:

• Temporary Spray Adhesive: Crucial for keeping the felt married to the stabilizer.
• Fresh Needles: 75/11 Sharp points are recommended for felt to cut cleanly through the dense fiber.

Prep Checklist (Pre-Flight Safety):

• Stabilizer is on the bottom, Felt is on the top.
• Layers are "Drum Skin" tight; no ripples are visible when looking at eye-level.
• Aluminum clamping bars are seated deeply in the frame grooves.
• Clearance Check: Ensure the excess felt edges won't snag on the machine arm.
• Needle Check: Install a fresh needle (Size 75/11 recommended for felt).

Warning: Mechanical Safety
When pressing the aluminum sash frame bars into the track, keep your fingers vertically above the bar, never underneath or to the side where they can be pinched. verify the frame is locked securely before hitting "Start"—a loose frame at 800 SPM is a projectile risk.

Batch Mode on the Smartstitch Control Panel: Dialing a 3×3 Array So You Get 9 Patches per Hoop

Production efficiency is about maximizing "Needle-Down Time." Stops are expensive. Setup is expensive.

Instead of loading a pre-digitized giant file, Maria uses the machine’s onboard operating system to generate an Array.

• X Axis Repeats: 3
• Y Axis Repeats: 3
• Spacing: Ensure at least 15mm-20mm between designs to allow for easier cutting later.


The Mathematics of Profit: Running 1 patch takes, say, 5 minutes. Stopping, un-hooping, re-hooping, and reloading takes 3 minutes.

• Single mode: 8 minutes per unit.
• Batch mode (9 units): 45 minutes run time + 3 minutes prep = ~5.3 minutes per unit.
• Result: You just gained nearly 35% efficiency without buying new gear.

Expert Note on Digitizing: If you are creating your own files, ensure the border is a Satin Stitch with a density of at least 0.4mm. You need a solid "wall" of thread to prevent the felt from fraying after you cut it.

The Run Itself: Stitching 9 Patches While Watching Thread Feed and Tension Like a Hawk

Maria sets her machine to 800 SPM (Stitches Per Minute).

Speed Calibration for Beginners: While 800-1000 SPM is standard for pros, I recommend the "Beginner Sweet Spot" of 600-700 SPM for your first few batches. Felt is dense; running too fast can cause thread friction and shredding until your tension is perfectly dialed.

The "H-Test" for Tension (Visual Anchor): As the machine runs, pause after the first patch and flip the frame over. Look at the white bobbin thread on the back of the satin column.

• Too Loose: You see no white bobbin thread (top thread is looping underneath).
• Too Tight: The white bobbin thread is pulled to the top surface.
• Perfect (The "H"): You see 1/3 color, 1/3 white bobbin, 1/3 color.


Maria adjusts the tension knob on the fly.

• Sensory Check: When pulling thread through the needle manually (with the presser foot up), it should feel like pulling dental floss through teeth—resistance, but smooth.


Clean Edges Without Heartbreak: Hand-Cutting Felt Patches Close to the Satin Border (Without Snipping Threads)

Once the batch is done, you have a sheet of 9 patches. Now comes the "make or break" quality step: Trimming.

Tools Matter: Do not use standard kitchen scissors. Use Duckbill Scissors (Appliqué Scissors) or precise Double-Curved Embroidery Scissors.

The Cutting Technique:

1. Hold the scissors stationary and rotate the patch, not the scissors.
2. Aim to leave about 1mm to 2mm of felt beyond the satin stitch.
3. Risk Zone: Cutting too close creates a risk of snipping the bobbin thread, which will cause the entire border to unravel. Better to leave a tiny rim of felt than destroy the patch.

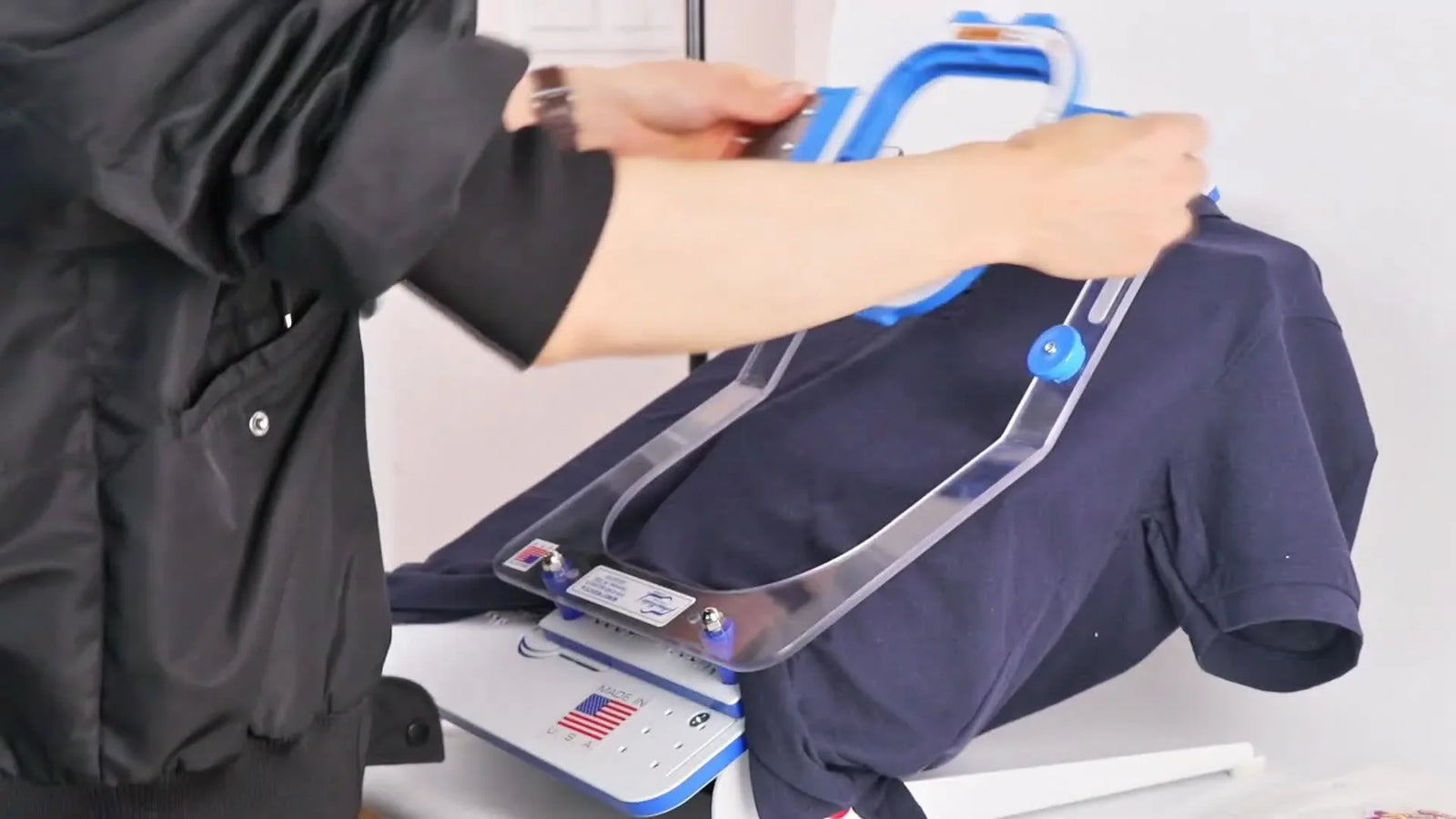

Fast, Repeatable Garment Hooping: Using a HoopMaster Station + Magnetic Hoop So Shirts Don’t Creep

Now we transition from manufacturing to assembly. This is where most beginners fail: Hooping a finished T-shirt is physically difficult.

Maria uses a HoopMaster station combined with a 5.5-inch Magnetic Hoop.

The "Hoop Burn" Problem: Traditional friction hoops (inner/outer rings) require you to stretch the t-shirt fabric to lock it. This damages the fibers, leaving a permanent ring ("hoop burn").

The Magnetic Solution: A hoopmaster station aligns the shirt perfectly every time. You slide the shirt on, place the magnetic top ring, and snap—it captures the fabric without forcing or stretching it.

Why search for a magnetic hooping station?

• Ergonomics: Saves your wrists from repetitive strain injury (RSI).
• Quality: No hoop burn marks on delicate cotton.
• Speed: Reduces hooping time from 60 seconds to 10 seconds per shirt.

Warning: Magnetic Safety
Professional magnetic hoops (like Mighty Hoops or Sew Tech Magnetics) use industrial rare-earth magnets. They have crushing force.
* Pinch Hazard: Keep fingers away from the clamping zone. They will snap together instantly.
* Medical: Operators with pacemakers should consult their doctor before using strong magnetic devices.

The Attachment Sequence That Makes It Look Pro: Outline Stitch → Spray Adhesive → Tack-Down Stitch

The goal is to attach the patch so it looks integral to the shirt, not like a sticker.

Step 1: The Parking Spot (Placement Stitch) Run a simple "running stitch" outline directly on the T-shirt. This visual guide tells you exactly where the patch goes.

Step 2: The Bond (Spray Adhesive) Lightly spray the back of your felt patch with temporary adhesive.

• Tip: Do this inside a cardboard box to keep sticky residue off your machine and floor.


Step 3: Placement Stick the patch inside the stitched outline box. The adhesive holds it fast so it doesn't drift when the hoop moves.

Step 4: The Anchor (Tack-Down Stitch) Run the final zigzag or satin stitch that bites through the patch edge and into the shirt. This is the permanent structural hold.

For users dealing with high volumes, switching to magnetic embroidery hoops is essential here. The magnets hold the thick sandwich (Shirt + Stabilizer + Patch) securely without popping open, which is a common failure with standard plastic hoops.

Setup Checklist (The Attachment Phase):

• Stabilizer: Cut-away stabilizer is placed under the T-shirt (inside the shirt).
• Alignment: Shirt is loaded on the station straight; side seams fall naturally.
• Hoop Check: Magnetic hoop is fully snapped shut; no fabric bunching at the edges.
• Adhesive: Patch has a tacky (not soaking wet) coating of spray adhesive.

The Finishing Move Customers Feel: Removing the Temporary Outline Thread for a Clean Look

The final step separates the amateurs from the pros. Take your snips or a seam ripper and remove the initial "Parking Spot" outline thread you stitched in Step 1.

If you leave this thread, it looks like a mistake. Removing it leaves only the clean patch, making the garment look high-end and intentional.

Troubleshooting the Stuff That Wastes the Most Time: Shifting Patches, Wavy Borders, and Tension Surprises

Even with the best tools, things go wrong. Use this diagnostic table to fix issues fast.

The Decision Tree I Use in Shops: When to Patch, What Stabilizer Strategy to Choose, and When to Upgrade Tools

Beginners often ask: "Should I do this for every shirt?" No. Use this logic flow to decide.

Decision Tree (Production Logic):

1. Is the design dense (high stitch count) and the fabric thin (T-shirt/Performance Knit)?
   • YES: Use the Patch Method (prevents puckering & scratching).
   • NO: Direct embroidery is likely fine.
2. Is this a one-off custom job or a 50-piece order?
   • 50+ Pieces: Batch patches first. It ensures consistency.
   • One-off: Direct embroidery saves setup time.
3. Is hooping causing physical pain or quality issues (hoop burn)?
   • YES: It is time to invest in tools. Look for a hoopmaster station or similar fixture.

The Upgrade Path That Actually Makes Sense: Speed, Comfort, and Consistency (Without Hard Selling)

This workflow demonstrates that embroidery success is 20% machine and 80% process/tooling. If you find yourself hitting a ceiling, identify the bottleneck before buying gear.

• Bottleneck: Hooping Slowness & Hoop Marks
  If you spend more time hooping than stitching, or if you are damaging shirts with plastic rings, the industry solution is Magnetic Hoops. They are compatible with most machines (including single-needles) and solve the grip issue instantly.
• Bottleneck: Throughput (Turning away orders)
  If you can't stitch fast enough to meet deadlines, moving from a single-needle to a 15 needle embroidery machine (like the SEWTECH architecture shown) allows you to batch jobs, pre-load colors, and run at higher sustained speeds.
• Bottleneck: Small Placement Accuracy
  For chest logos or patches, a specialized size like the mighty hoop 5.5 creates the perfect tension field for small areas without wasting stabilizer or fabric.

Operation Checklist (End-to-End Summary)

• Prep: Load Sash Frame with Stubborn Cutaway (Bottom) + Felt (Top). Ensure "Drum Skin" tension.
• Batch: Run the 3x3 array file (9 patches). Watch tension (Look for the "H" on the back).
• Process: Remove sheet, trim patches cleanly with duckbill scissors (1-2mm allowance).
• Garment: Hoop T-shirt using Magnetic Hoop + Station. Ensure vertical alignment.
• Attach: Run Placement Stitch -> Spray Patch -> Stick Patch -> Run Tack-down Stitch.
• Finish: Remove placement stitches. Inspect back for comfort. Fold and ship.


FAQ

• Q: On a SEWTECH multi-needle embroidery machine using a Sash Frame, what is the correct layering order for stabilizer and felt to prevent shifting and wavy patch edges?
  A: Keep cut-away stabilizer on the bottom and polyester felt on top, bonded with a light mist of temporary spray adhesive.
  • Place: Lay medium-weight cut-away stabilizer as the bottom “skeleton,” then place polyester felt on top.
  • Bond: Mist temporary spray adhesive (e.g., 505-style) to keep layers from creeping during stitching.
  • Clamp: Seat the aluminum locking bars deeply into the sash frame grooves before starting.
  • Success check: The hooped surface looks ripple-free and feels “drum skin” taut (springy bounce back when pressed).
  • If it still fails: Re-hoop and confirm excess felt edges are not snagging on the machine arm (clearance check).
• Q: How do I do the “Drum Skin” tension check on a SEWTECH Sash Frame before running a 3×3 patch array?
  A: Use a fast visual + tactile + tap test before pressing Start so the felt is tight without distortion.
  • Inspect: Look at eye-level for corner ripples or waves.
  • Press: Run a palm across the felt; it should feel taut and springy, not spongy.
  • Tap: Tap the hooped area; listen for a dull thump (not a hollow rustle).
  • Success check: No visible rippling and immediate bounce-back when you push down lightly.
  • If it still fails: Re-seat the aluminum clamping bars deeper in the grooves and recheck tension before stitching.
• Q: On a SEWTECH multi-needle embroidery machine, how do I use the “H-test” to set thread tension when stitching satin borders on felt patches?
  A: Pause after the first patch, flip the frame, and adjust until the satin column shows the balanced “H” look on the back.
  • Pause: Stop after the first patch in the batch and turn the frame over.
  • Evaluate: Check the satin border backside for the ratio—too loose shows no white bobbin; too tight pulls white to the top.
  • Adjust: Turn the tension knob in small moves, then re-check after a short run.
  • Success check: The backside shows roughly 1/3 top color, 1/3 white bobbin, 1/3 top color (“H” balance).
  • If it still fails: Rethread and make sure thread is properly seated in the tension path before chasing tension settings.
• Q: What needle size should I use for stitching dense felt patches on a SEWTECH multi-needle embroidery machine, and what should I change if the needle keeps breaking?
  A: Start with a fresh 75/11 sharp needle for felt, then slow down and step up needle size/material if breaks continue.
  • Replace: Install a fresh 75/11 sharp point needle before the run.
  • Reduce: Drop speed to the 600–700 SPM range if you are new or seeing thread friction/breaks.
  • Upgrade: If breaks persist, switch to a fresh #80/12 titanium needle.
  • Success check: The machine runs a full patch without audible “popping” strikes and without needle deflection/breakage.
  • If it still fails: Re-check that the felt is clamped securely and not shifting, which can increase needle stress.
• Q: What causes birdnesting (thread clumps) when stitching felt patches on a SEWTECH embroidery machine, and what is the fastest fix?
  A: Birdnesting is most often from top tension being too loose or the thread not seated in the tension discs—rethread and “floss” it in.
  • Stop: Halt immediately to prevent a larger jam.
  • Rethread: Completely rethread the top path.
  • Seat: Floss the thread into the tension discs so it fully drops between them.
  • Adjust: Tighten the tension knob slightly, then test again.
  • Success check: Stitches form cleanly without looping on the underside and without thread clumping around the needle area.
  • If it still fails: Re-run the H-test after the first patch to confirm tension balance before continuing the batch.
• Q: How do I stop a plastic embroidery hoop from popping open when attaching a felt patch to a T-shirt with a thick fabric sandwich (shirt + stabilizer + patch)?
  A: Reduce hoop stress and increase holding power—thick stacks often need a magnetic hoop setup rather than standard plastic rings.
  • Verify: Make sure the patch sits inside the placement outline (not riding on the line), so the tack-down stitch doesn’t “lift” the stack.
  • Secure: Use temporary spray adhesive on the patch back so it doesn’t drift and create uneven bulk.
  • Upgrade: If the hoop still pops, switch to a magnetic hoop system designed to hold thicker assemblies.
  • Success check: The hoop stays fully closed through the tack-down stitch with no edge gapping or fabric bunching.
  • If it still fails: Reduce vibration by slowing the run speed and confirm the stabilizer is properly placed under the shirt.
• Q: What are the key safety rules when locking aluminum sash frame bars and using rare-earth magnetic embroidery hoops in a production workflow?
  A: Treat both as pinch/crush hazards—keep fingers out of clamp zones and confirm everything is fully locked before running at speed.
  • Position: When pressing sash frame bars into the track, keep fingers vertically above the bar—never underneath or beside it.
  • Confirm: Verify the sash frame is locked securely before pressing Start (a loose frame at high SPM can become a projectile).
  • Protect: Keep fingers away from the magnetic hoop clamping zone; magnets can snap together instantly.
  • Medical: Operators with pacemakers should consult a doctor before using strong magnetic devices.
  • Success check: The frame/hoop closes smoothly, sits flush with no wobble, and cannot be lifted open by light hand pressure.
  • If it still fails: Stop and re-seat/re-close the frame or hoop—do not “run it anyway” to see if it holds.
