No-Software Name Keychains on the Brother Luminaire XP3: My Design Center Tricks for Clean Vinyl Stitch-Outs (Without the “Nasty Knot”)

If you have ever stared at your Brother Luminaire XP3 screen thinking, “I just want a clean, professional keychain… why does this feel like a complex digitizing project?”—take a breath. You are not alone in this frustration. The good news is that this project is absolutely doable inside the machine, without touching a computer.

In this "White Paper" style guide, we will walk through a workflow that leverages the XP3's internal logic. You will design the name, build a structural tab holder from a simple shape, auto-generate a custom outline, and stitch an "in-the-hoop" style keychain on marine vinyl. We will finish it with snaps and hardware, ensuring professional durability.

Most importantly, we will tackle the "unspoken" skills: managing thread tension on vinyl to avoid the dreaded "birds nest" on the back, and selecting the right tools to prevent hoop burn.

Calm the Panic: What This Brother Luminaire XP3 Keychain Workflow Actually Does (and Why It Works)

To master this, you need to understand the architecture of the project. This is not just "pushing buttons"; it is an engineering sequence.

This project consists of two distinct phases happening in a strict order:

1. On-screen Design Construction: Utilizing the Embroidery Interface + My Design Center to merge text with a temporary tab shape, then generating an auto-outline.
2. Controlled Vinyl Management: A specific physical workflow where the front layer is "floated" on hooped stabilizer, and the backing vinyl is taped on during the process.

The temporary rectangle “tab holder” is the quiet hero of this operation. It forces the machine's outline tool to create a border that includes a usable tab area—ensuring your finished piece has enough structural integrity to accept key fob hardware after trimming.

Machine Compatibility Note: While this guide focuses on the Brother Luminaire XP3, the logic applies to similar high-end interfaces like the Baby Lock Solaris. If your machine lacks on-screen digitizing (like a basic Brother SE600), you would need to create this file in external software. However, the physical handling of the vinyl described here remains the universal standard for quality results.

The “Hidden” Prep Before You Touch My Design Center: Vinyl, Stabilizer, and Thread Choices That Prevent Rework

Marine vinyl is the industry standard for keychains because it does not fray and holds a crisp edge. However, unlike woven cotton, marine vinyl is unforgiving.

The Physics of Vinyl Embroidery:

• Zero Recovery: Once a needle punches a hole, that hole is permanent. You cannot "steam it out."
• Compression Sensitivity: Vinyl creates high friction against the presser foot and hoop. It creates "Hoop Burn"—permanent rings where the plastic layers were crushed by the frame.
• Perforation Risk: If your stitches are too dense (short stitch length), you will essentially create a "stamp" and cut your shape out of the vinyl rather than stitching it.

Because of these factors, the video’s method—hooping the stabilizer and floating the vinyl—is the safest approach for a standard plastic hoop. If you are still dialing in your handling technique, the phrase hooping for embroidery machine should immediately make you think: “The stabilizer provides the tension; the vinyl just rides along.”

The Golden Ratio for Vinyl Keychains:

• Stabilizer: Use a Medium Weight Cutaway (2.5 - 3.0 oz). Do not use Tearaway. Tearaway creates sharp edges inside the keychain that can eventually puncture the vinyl from the inside out as it bends in your pocket.
• Needle: 75/11 Sharp or Topstitch. Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
• Thread: 40wt Polyester is standard. Rayon is too weak for keychains that get tossed in purses.

Warning: Project Safety Alert. Keep your fingers well away from the needle area when trimming jump threads or repositioning vinyl. Marine vinyl is stiff; if it lifts and hits the presser foot, it can shatter a needle. Always stop the machine completely before placing your hands inside the frame.

Prep Checklist (Do this once, prevent failure)

• Cut Materials: Cut two pieces of marine vinyl slightly larger than the finished design area (one for front, one for back).
• Hoop Strategy: Hoop cutaway stabilizer drum-tight in a 5x7 hoop. (You should be able to flick it and hear a drum-like sound).
• Consumables: Locate your Appliqué Scissors (duckbill or curved) and Painter's Tape or embroidery-specific tape.
• Thread Plan: Choose top thread for the name. Crucial: Wind a bobbin that matches your final outline color to ensure the back looks professional.
• Hardware: Have Size 20 KamSnaps and a key ring/lobster clasp ready.


Dial In Text on the Brother Luminaire XP3 Screen: Font Category 02, Font 24, and Spacing That Looks Intentional

Start in Embroidery Mode. This is where the aesthetic value is created.

1. Select Font Category No. 02.
2. Choose Font Style No. 24 (a clean, readable sans-serif works best for small items).
3. Type the desired name (e.g., “Mimi”).

The "Kerning" Secret: The difference between a "homemade" craft and a "professional" product often lies in the spacing. Default machine spacing is often too wide for a small keychain.

• Locate the Spacing Tool (often looked like "ABC" with arrows).
• Tighten the kerning by tapping until the letters sit visually close but do not touch.
• Sensory Check: Look at the negative space between letters. It should look balanced, not like separate islands.


Rotate and Commit to the 5x7 Hoop Layout: One Small Layout Move That Prevents a Crooked Keychain

Once the text is set, go to the Edit tab and rotate the name 90° to the right.

Why this matters: Most 5x7 hoops attach to the embroidery arm on one side. By rotating the design to run parallel to the hoop's long axis (vertical in the frame), you minimize the "bounce" of the embroidery arm. Less vibration means cleaner registration on straight lines.

If you plan to make multiples (e.g., a batch of 10 for a craft fair), this vertical orientation allows you to fit 2 or 3 names in one hooping if you arrange them carefully later. For now, center it.

Build the Tab Placement Holder in My Design Center: The 2.25" x 0.30" Rectangle (and the Leading-Zero Trap)

Now we switch to "Engineering Mode" in My Design Center. We need to create a temporary object that defines the tab shape.

1. Tap Add.
2. Select My Design Center.
3. Tap Stamp/Shape and select the Square.
4. Resize precisely using the numeric keypad:
   • Height: 2.25 inches
   • Width: 0.30 inches

The User Interface Trap: Here is the "gotcha" that confuses beginners: The machine requires a leading zero for decimals. You must type 0.3, not just .3. If the machine beeps or refuses the number, this is likely why.

Set the Tab Line Property to Single Run: Why a Zigzag Here Creates Bulk You Don’t Want

When the rectangle shape loads, the machine defaults to a Satin or Zigzag stitch. You must change this immediately.

1. Select the rectangle.
2. Open Line Property.
3. Select the Single Run stitch (straight line).
4. Select the Bucket Tool (Flood Fill) and tap the rectangle outline.
5. Visual Check: The line should turn Green, indicating it is now a single run stitch.

Why Single Run? This rectangle is a phantom structure. Its only job is to tell the outline tool where to go. If you leave it as a satin stitch, it will stitch a dense bar of thread under your vinyl, creating a lump that makes the snap hardware impossible to close. We want this line to be virtually invisible in the final calculation.

Position the Rectangle Inside the First Letter “M”: The Connection Point That Keeps the Tab From Tearing Off

Return to the embroidery layout screen. The rectangle will look small; use the Zoom tool.

Use the Edit/Move arrows to slide the rectangle upward toward the top of the name (which is now rotated).

The Structural Integrity Rule:

• Place the bottom of the rectangle INSIDE the loop/curve of the first letter.
• Do not just touch the edge. overlap it by at least 3-4mm.

This overlap creates a continuous "bridge." When the machine generates the outline, it will trace around the combined shape of the letter and the rectangle. If they do not overlap, you will get two separate outlines, and the tab will fall off when you cut it.

Generate a Custom Outline with the Flower Icon: The 0.104" Distance That Balances Looks vs. Hardware Fit

Now, we fuse the design.

1. Group the text and the rectangle (Select -> Group). The selection box should encompass both.
2. Tap the Flower Icon (The Appliqué/Outline Tool).
3. Set Distance to 0.104 inches.

The "Sweet Spot" Data: Why 0.104"?

• < 0.080": Too tight. You will likely cut the threads when trimming the vinyl.
• > 0.150": Too wide. The tab becomes too fat to slide onto standard 1-inch hardware.
• 0.104" is the experienced maker's safe zone.

You will see a black outline appear around the merged shape. It should look like one continuous bubble.

If you are a professional user dealing with bulk orders, terms like floating embroidery hoop become relevant here. Because we are floating the material (not clamping it), having a forgiving margin of error like 0.104" is essential to compensate for any micro-shifting of the vinyl.

Save this outline to the machine's memory stamp list.

Bring the Saved Outline Back and Switch to Triple Stitch: The Clean Edge Look Comes from Run Pitch 0.100"

Now we refine the cosmetics.

1. Tap Add and return to My Design Center.
2. The outline you just generated is saved in the Stamp/Shape area (usually the first item in the custom category). Select it.

Configure the Final Look:

• Line Property: Change to Triple Stitch (often called Bean Stitch). This is bold and decorative.
• Color: Change the color to something distinct (e.g., Red). This forces the machine to stop before stitching this step, giving you time to tape the back vinyl.
• Stitch Length (Run Pitch): Increase to 0.100 inches.

Expert Insight: Standard run pitch (0.080") poses a risk of "perforating" the vinyl, essentially acting like a tear-off coupon line. Increasing to 0.100" puts more space between needle penetrations, maintaining the strength of the material.

Select the Bucket Tool and tap the outline. It should turn Pink (or your chosen color). Save this as an embroidery file.

Delete the Temporary Tab Holder and Center the Final Design: The Clean File Habit That Prevents Accidental Stitching

Return to the main Embroidery Screen.

1. Delete the original Tab Placement Holder (the green rectangle). It has served its purpose.
2. Group the remaining elements (The Name + The New Pink Outline).
3. Center the entire design in the hoop.

Final Size Check: The design should be roughly 5.17" x 1.68". If it is significantly larger, check if you accidentally dragged the size handles.

Setup Checklist (Pre-Stitch Verification)

• Ghost Removed: The temporary rectangle has been deleted.
• Stitch Type: Final outline is a Triple Stitch (Run Pitch 0.100").
• Stop Command: The outline is a different color than the text, ensuring a "Force Stop."
• Overlap: The tab outline flows smoothly into the name; no bottlenecks.
• Bobbin: The bobbin thread matches the final outline thread color.


Hoop Cutaway Stabilizer, Float Marine Vinyl, and Let the Stabilizer Carry the Stress

Do not hoop the vinyl.

1. Hoop only the Cutaway Stabilizer. Ensure it is very different—tight and smooth.
2. Lightly spray the back of your marine vinyl with temporary adhesive spray (like ODIF 505) OR use painter's tape on the perimeter.
3. Place the vinyl in the center of the hoop.

Technique: Floating This method is standard practice in a hooping station for machine embroidery environment because it eliminates "Hoop Burn." By floating, the vinyl incurs zero stress until the stitches lock it down.

The Professional Upgrade (Level 2): If you find yourself making 50+ of these, or if you struggle with the physical force required to hoop standard frames, consider upgrading to a embroidery magnetic hoop. Manufacturers like SEWTECH produce high-quality magnetic frames that clamp instantly without the "screw-tightening" friction, completely eliminating hoop burn and saving your wrists from repetitive strain.

Tape the Backing Vinyl on the Hoop-and-Press Pad: A Clean Way to Add the Second Layer Without Shifting

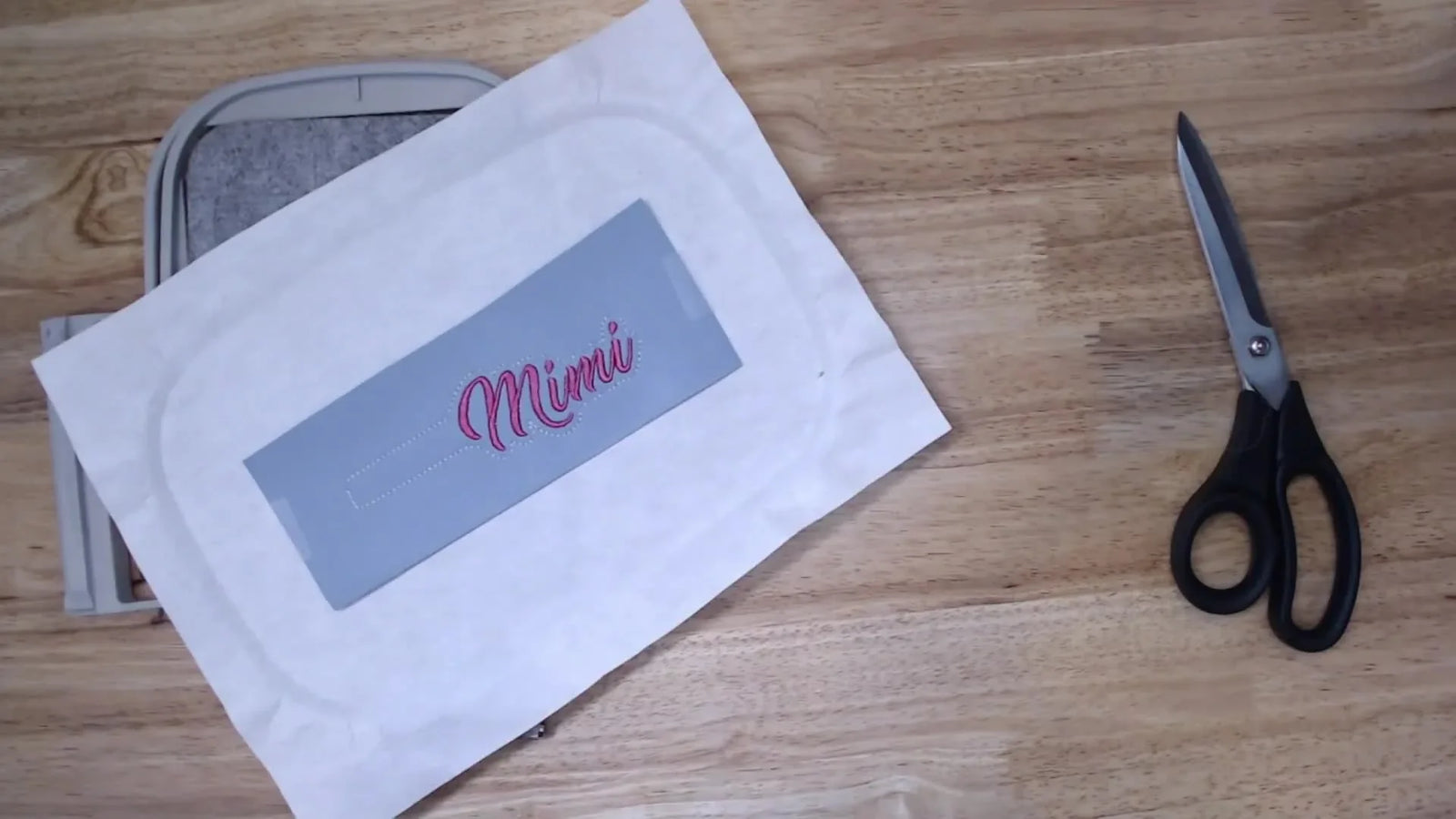

1. Stitch the Name: Run the first color (the text).
2. The Stop: The machine will stop because of the color change we programmed.
3. Remove the Hoop: Take the hoop off the machine—do not remove the fabric from the hoop.
4. Flip: Turn the hoop over.
5. Apply Backing: Place the second piece of vinyl (Right Side Facing Out) over the back of the stitching.
6. Secure: Use painter's tape on all four corners. Press firmly. If the tape lifts, your vinyl will curl and catch on the bobbin case.

Hardware Note: The KamSnaps used in the example are Size 20.

The Bobbin Pull-Up Trick: Stop the “Nasty Little Knot” Before It Starts

This is the mark of a master. The back of your keychain should look as good as the front.

When you return the hoop to the machine to stitch the final outline:

1. Do not press Start yet.
2. Hold the top thread tail with your left hand.
3. Press the Needle Down button, then Needle Up.
4. Pull the top thread gently. A loop of bobbin thread will pop up through the hole.
5. Pull that bobbin loop out so both tails are on top of the vinyl.
6. Now stitch.

This prevents the "bird's nest" or knotted clump on the back. It is a critical skill in hooping for embroidery machine best practices, defining the difference between "homemade" and "handmade."

Trim, Snap, and Hardware: Finishing Standards That Make It Look Store-Bought

Once the Triple Stitch outline is done:

1. Remove everything from the hoop.
2. Detailed Trimming: Use curved scissors. Cut 1/8" to 1/16" away from the stitch line. Do not cut the threads.
3. Punch a hole in the tab center using an awl.
4. Install the KamSnaps (Cap on smooth side, stud/socket on inside).
5. Fold over the hardware ring and snap closed.


Troubleshooting the Scary Stuff: Symptoms → Causes → Fixes

Vinyl is expensive. Let’s stop you from wasting it.

A Quick Decision Tree: Stabilizer + Hooping Choices for Vinyl Keychains

Use this logic flow to determine your setup based on your volume goals.

START: What is your production goal?

• Path A: I make 1-5 keychains for personal gifts.
  • Method: Standard 5x7 Hoops + Floating Method.
  • Advantage: Low cost, uses existing tools.
  • Risk: High manual effort to tape/secure.
• Path B: I make 50+ keychains for an Etsy shop.
  • Method: brother 5x7 magnetic hoop (e.g., SEWTECH).
  • Advantage: Speed. You can "slap" the magnets down on vinyl in seconds. Zero hoop burn means zero wasted product.
  • Risk: Initial tool investment.
• Path C: I stitch on a single needle without a screen (e.g., Brother PE800).
  • Method: You must digitize on a PC.
  • Advantage: Precision control.
  • Note: You can significantly improve your workflow by adding a brother luminaire magnetic hoop style frame even to smaller machines to mimic the speed of pros.

Warning: Magnet Safety & Electronics. High-quality magnetic hoops use strong Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise fingers. Handle with intent.
2. Medical Devices: Keep at least 6 inches away from pacemakers.
3. Machine Safety: Do not rest magnets on the LCD screen or near the computerized brain of your machine.

The Smart Upgrade Path: Faster Hooping, Cleaner Vinyl, and Real Production Efficiency

For the hobbyist, the floating method described above is perfect. It is safe, effective, and free.

However, if you find that your bottleneck is handling time—fighting with tape, smoothing out bubbles, or massaging cramps in your hands from tightening screws—that is the trigger to look at tools.

• Level 1 Upgrade: Better Stabilizers (Pre-cut sheets) and sharp needles.
• Level 2 Upgrade: Magnetic Hoops (like SEWTECH). These allow you to clamp difficult materials like vinyl, leather, and velvet without marking them, and they are significantly faster for batching.
• Level 3 Upgrade: If you are consistently running orders of 20+ items, the single-needle focus becomes a liability. Moving to a SEWTECH Multi-Needle Machine allows you to stage the next hoop while the current one runs, doubling your profit per hour.

Operation Checklist (The "Last 60 Seconds" Pre-Flight)

• Flatness: Vinyl is floating flat on drum-tight stabilizer; no ripples.
• Tape Check: Backing vinyl is taped securely; tape is NOT in the needle path.
• Thread Match: Bobbin thread color matches the top outline thread.
• Needle Clearance: You have visually confirmed the needle will not hit the snap or hardware (install hardware after stitching!).
• Tails: You are ready to perform the "Bobbin Pull-Up" maneuver.

Follow this logic, respect the material constraints of vinyl, and you will produce keychains that look engineered, not just "crafted."

FAQ

• Q: What stabilizer, needle, and thread settings work best for Brother Luminaire XP3 marine vinyl keychains to prevent rework?
  A: Use medium weight cutaway stabilizer with a 75/11 sharp (or topstitch) needle and 40wt polyester thread as the reliable baseline for marine vinyl keychains.
  • Use a Medium Weight Cutaway (2.5–3.0 oz) and avoid tearaway for keychains.
  • Install a 75/11 Sharp (or Topstitch) needle; avoid ballpoint needles on vinyl.
  • Wind a bobbin that matches the final outline color to keep the back looking professional.
  • Success check: The vinyl stitches look crisp without “chewed” holes, and the back outline color looks intentionally matched.
  • If it still fails… Re-check the thread path and consider floating the vinyl instead of clamping it in a standard hoop.
• Q: How can Brother Luminaire XP3 users prevent hoop burn on marine vinyl when making in-the-hoop keychains?
  A: Do not clamp marine vinyl in a standard hoop—hoop only cutaway stabilizer and float the vinyl on top.
  • Hoop the cutaway stabilizer drum-tight (tight and smooth).
  • Lightly secure the vinyl with temporary adhesive spray or tape around the perimeter.
  • Stitch the design so the stitches, not hoop pressure, hold the vinyl in place.
  • Success check: No permanent ring marks appear on the vinyl after stitching and removal.
  • If it still fails… Reduce handling pressure and consider a magnetic hoop if frequent hooping is causing marks or wrist strain.
• Q: Why does Brother Luminaire XP3 My Design Center reject “.3” when resizing the tab holder rectangle to 0.30 inches wide?
  A: Brother Luminaire XP3 requires a leading zero for decimals—enter 0.3 (not .3) when typing the rectangle width.
  • Open the numeric keypad for resizing and type 0.3 for the width.
  • Set the rectangle to 2.25" height and 0.30" width exactly as planned.
  • Re-enter the value if the machine beeps or refuses the input.
  • Success check: The size value is accepted and the rectangle updates on-screen without an error beep.
  • If it still fails… Confirm the machine is in the correct numeric input field (width vs. height) and try again.
• Q: How do Brother Luminaire XP3 keychains end up with a bulky tab area, and how do you fix the rectangle stitch type in My Design Center?
  A: Change the tab holder rectangle to Single Run immediately—leaving it as satin/zigzag creates unwanted bulk under the vinyl tab.
  • Select the rectangle and open Line Property.
  • Choose Single Run and use the bucket tool to apply it to the rectangle outline.
  • Keep the rectangle as a temporary “phantom structure” only for outline generation.
  • Success check: The rectangle line displays as the single-run color (green in this workflow) and the tab area feels flat after stitching.
  • If it still fails… Delete the rectangle and rebuild it, then verify Line Property before proceeding.
• Q: Why does a Brother Luminaire XP3 vinyl keychain tab tear off after trimming, and how much overlap is required between the rectangle and the first letter?
  A: The tab tears off when the rectangle does not overlap into the first letter—overlap the rectangle 3–4 mm inside the first letter’s loop/curve.
  • Zoom in and move the rectangle upward toward the top of the rotated name.
  • Ensure the bottom of the rectangle sits inside the first letter (not just touching the edge).
  • Regenerate the outline so the machine traces one continuous merged shape.
  • Success check: The generated outline looks like one continuous bubble (not two separate outlines).
  • If it still fails… Increase the overlap area slightly and re-run the outline generation.
• Q: What Brother Luminaire XP3 outline distance and triple-stitch run pitch prevent vinyl keychains from being hard to trim or perforating like a tear-off coupon?
  A: Set the outline Distance to 0.104" and set the Triple Stitch Run Pitch to 0.100" to balance trimming safety and vinyl strength.
  • Group the text + rectangle and generate the outline with Distance = 0.104".
  • For the final outline, switch to Triple Stitch (Bean Stitch) and increase Run Pitch to 0.100".
  • Use a different color for the outline to force a stop before the final pass.
  • Success check: The vinyl trims cleanly 1/8"–1/16" from the stitch line without thread cuts, and the edge does not “zip” into a tear.
  • If it still fails… Reconfirm the run pitch was saved correctly and avoid making the outline distance too tight (<0.080") or too wide (>0.150").
• Q: How do Brother Luminaire XP3 users stop bird’s nests on the back when restarting to stitch the final outline on vinyl keychains?
  A: Use the bobbin pull-up method before pressing Start so both thread tails are on top at the first stitch of the outline.
  • Hold the top thread tail, then press Needle Down and Needle Up.
  • Pull the top thread until the bobbin loop pops up; bring both tails to the top surface.
  • Start stitching the final outline only after the tails are controlled.
  • Success check: The back of the keychain starts cleanly with no knotted clump at the outline start point.
  • If it still fails… Re-check upper thread path and tension settings, and always control thread tails at the start.
• Q: What safety steps should Brother Luminaire XP3 users follow when trimming jump threads or handling magnetic hoops for vinyl keychains?
  A: Stop the machine fully before placing hands near the needle, and treat magnetic hoops as pinch-hazard tools with strong magnets.
  • Stop the machine completely before trimming or repositioning vinyl; keep fingers away from the needle area.
  • Avoid letting stiff vinyl lift into the presser foot area, since it can deflect and break a needle.
  • Handle magnetic hoops deliberately to prevent pinched fingers; keep magnets away from pacemakers and avoid resting magnets on the machine’s screen/electronics.
  • Success check: No hands enter the needle zone while the machine can move, and magnets are installed without sudden snapping onto fingers.
  • If it still fails… Slow the workflow down, remove power if needed during handling, and follow the machine manual and magnet safety guidance.
