The "Hidden" Engineering of PE Design 11: A Master Class in Connectivity, Fills, and Fonts for Brother Luminaire Users

If you own a Brother Luminaire or Solaris and use PE Design 11, you live in a paradox. You possess one of the most capable fabrication systems on the market, yet your daily workflow often feels fragile. You battle Wi-Fi signals that vanish, fonts that look perfect on screen but shred your thread on the machine, and fills that behave unpredictably.

Embroidery is not just art; it is a discipline of precision engineering. As an industry veteran, I tell my students: the machine doesn’t care about your intentions; it only obeys your physics. A "bad stitch" is rarely bad luck—it is almost always a conflict between digital instructions and physical reality (fabric, stabilizer, hoop tension).

This guide deconstructs Terry Maffitt’s expert workflow, reinforced with the safety margins and sensory checks used in professional embroidery houses. We will move you from "hoping it works" to "knowing it will work."

1. Calm the Panic: The Physics of Wireless Connectivity

Wireless transfer is a production accelerator—until it fails. When PE Design 11 cannot see your Luminaire, do not click randomly. In 90% of cases, this is not a software bug; it is a network architecture issue.

The "Same Lane" Rule

Data packets cannot jump across segregated networks.

• The Check: Your PC and your Embroidery Machine must be on the exact same frequency band.
• The Trap: Modern routers often have a 2.4GHz band and a 5GHz band. If your PC is on "Home-5G" and your Luminaire is on "Home-2.4G," they are effectively in different buildings. Terry specifically notes selecting the "1.8" (or specific 2.4GHz) network if your router splits them.

The Antivirus Gatekeeper

• The Symptom: You click "Add Machine," the machine sees the router, but the software spins endlessly.
• The Fix: Temporarily snooze your firewall/antivirus for 5 minutes during the initial pairing.
• Sensory Check: Watch the signal strength icon on the machine’s LCD. It isn’t just an icon; it’s a reliability gauge. If it drops below 2 bars, you will experience packet loss (corrupted designs). Move the machine or install a Wi-Fi extender.


Warning: If you disable antivirus to bridge the connection, set a timer to re-enable it immediately. In my studio, we use a physical "Red Tag" on the monitor as a visual reminder that security is down.

Prep Checklist: The Network Handshake

• IP Address verification: Check the network info on both devices. The first three sets of numbers (e.g., 192.168.1.xxx) must match.
• Signal Strength: Ensure the machine is within linear sight of the router if possible, or shows full bars.
• Antivirus Status: Disabled only for the handshake moment if connection fails.
• Hidden Consumables: Keep a USB drive nearby. Wi-Fi is great, but a physical backup ensures you never miss a deadline during an internet outage.

2. The No-Drama Import: Retrieving .PES Files

A major advantage of the Luminaire ecosystem is bi-directional flow. You can pull designs from the machine to edit in the software.

The Workflow:

1. Open PE Design 11 → Import Tab.
2. From Dropdown → Select Network Sewing Machine.
3. Visual Verification: You should see a grid of .pes files hosted on the machine’s internal memory.




Expert Context: This is specific to Wi-Fi enabled models (Luminaire/Solaris). Older models (Dream Machine/Destiny) lack this specific wireless fetch protocol.

3. The Silent Transfer Trap: Validating Data Integrity

Here is where beginners create "ghost errors." You send a design from PC to Machine. You look at the machine screen. Nothing happens. You send it again. And again.

The Reality: The machine does not beep or flash when it receives data passively. The Anchor: Your confirmation comes from the PC Software, not the sewing machine.

The "Wait for the Pop-up" Discipline

Do not touch the machine until PE Design 11 displays the message: "Finished outputting data."

• Why it matters: If you try to open a file on the machine while the data is still streaming, you risk file corruption.
• Sensory Check: Listen for the Windows "notification chime" (if enabled) or watch the progress bar. It should vanish instantly, replaced by the success dialog.

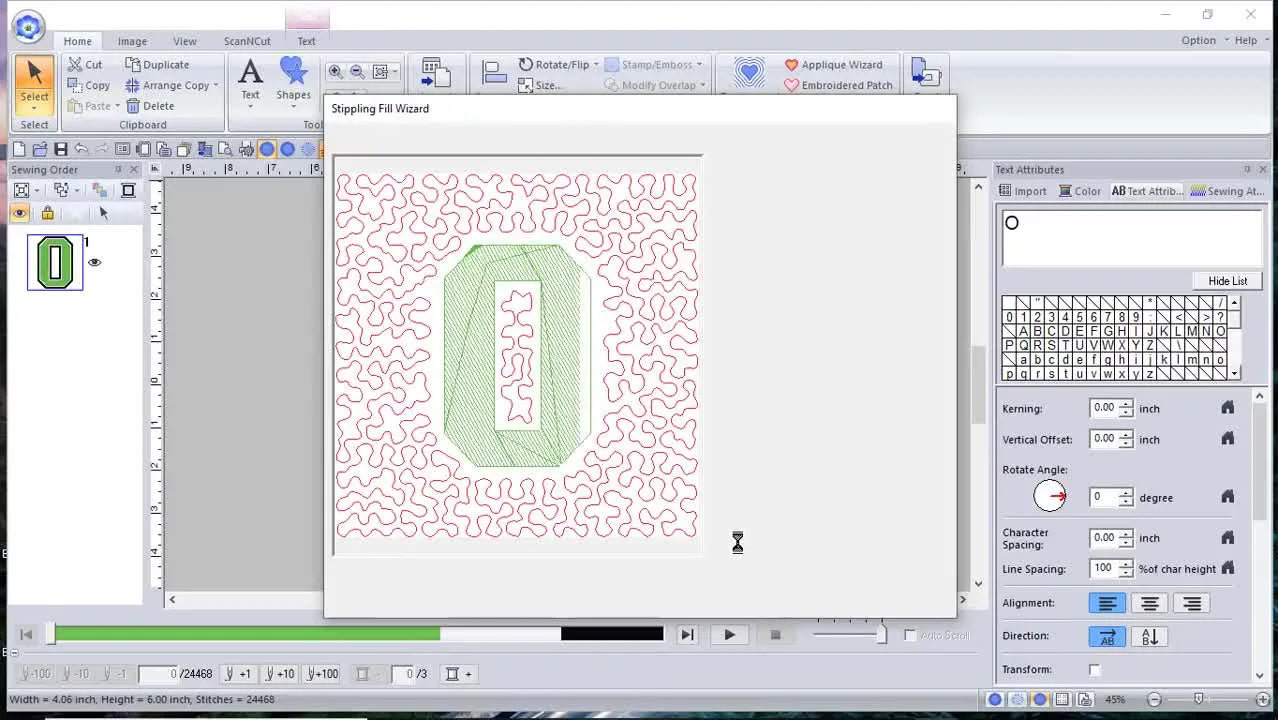

4. Engineering Perfect Backgrounds: The Echo Fill

Background fills are structural. They stabilize the fabric around your focal point. Terry demonstrates using the Background Fill Wizard to create an Echo Fill, but the "Secret Sauce" is the cleanup.

The Problem with Auto-Generation

Software mathematics are perfect; fabric is organic. Auto-generated fills often create tiny, chopped-up stitch segments (vector noise) near the borders of your design.

• The Risk: These tiny stitches create "bird nests" (thread tangles) underneath the throat plate because the needle penetrates the same spot too rapidly.

The Fix: Manual Vector Cleanup

1. Generate the Echo Fill (Running Stitch).
2. Zoom In (400%+): Look for independent lines shorter than 2mm.
3. Select & Delete: Remove these stray vectors.




Commercial Insight: Clean fills distinguish "homemade" from "professional." A messy edge telegraphs low quality to your customer, even if the center design is perfect.

5. Decision Tree: On-Machine vs. In-Software

The Luminaire has powerful on-board editing ("My Design Center"), but it has limits. Use this logic gate to decide where to work.

If you are doing production runs, standardization is key. This is where terms like hooping for embroidery machine become critical—software precision is useless if your physical hooping technique varies from shirt to shirt.

6. Texturing with Net Fills: The "Sweet Spot" Parameters

A standardized Net Fill often looks flat and sterile. Terry tweaks the physics of the fill to make it drape better.

The Golden Ratio for Net Fills:

• Spacing: Increase to 0.20 inch (approx. 5mm).
• Angle: Rotate to 45 degrees.


Why these numbers work (The Physics)

• Spacing: A 0.20" grid is open enough to let the fabric "breathe." Denser grids (0.10") act like cardiopulmonary resuscitation on the fabric—they crush the loft and create stiffness.
• Angle: Fabric is woven at 90 degrees (warp and weft). Stitching a net at 90 degrees aligns exactly with the thread grain, which can cause the fill to "sink" and disappear. Rotating to 45 degrees (bias) ensures the thread sits on top of the fabric grains, providing better visibility and texture.

7. The Typography Danger Zone: TrueType Fonts

Fonts are the number one cause of broken needles and ruined garments. A font designed for a laser printer does not know it needs to accommodate a 0.4mm thick thread.

The Protocol:

1. Download & Unzip: Establish a clean folder hierarchy.
2. Verify Format: Use .TTF (TrueType). Terry notes inconsistent results with OPENTYPE (.OTF).
3. Install: Right-click → "Install for all users."
4. The Reboot: You must restart PE Design 11 for the font to load.


The "Hooping Station" Reality Check

When testing fonts, you cannot just stitch once. You usually need to test 3-4 size variations. This creates massive physical fatigue. This is where a hooping station for machine embroidery transforms from a luxury to a necessity. It ensures that every test scrap is held at the exact same tension, so your variables are controlled.

Setup Checklist: Font Hygiene

1. Is it TTF? Confirm file extension.
2. Is it Installed? Check Windows Fonts folder.
3. Is Software Restarted?
4. The Safety Test: Do not stitch on the final garment yet.

8. The 5-7mm Safety Rule: Satin vs. Programmable Fill

This is the single most important technical takeaway for preventing returns and damage.

The Physics of Snagging: A Satin stitch is a floating thread. If it floats longer than 7mm, it becomes a hook. It will catch on jewelry, zippers, or washing machine agitators.

The Rule:

• < 5mm: Safe for Satin.
• 5mm - 7mm: The "Danger Zone." Proceed only if using heavy top-thread tension.
• > 7mm: MANDATORY CONVERSION to Programmable Fill.


How to Execute:

1. Use the Measure Tool in PE Design.
2. Check the widest column of your letter.
3. If it exceeds 7mm, change the stitch type from "Satin" to "Fill" or "Programmable Fill."

When you move to Programmable Fill, you enter the world of density management.

• Terry's Baseline: Density 114 lines/inch, Pull Comp 0.01 inch.


Troubleshooting Density: If you change density from 114 to 350, you are essentially telling the machine to stitch a brick. The fabric will buckle.

• Sensory Check: A proper fill should feel flexible, like a patch. If it feels like distinct cardboard, your density is too high.

9. Troubleshooting Guide: Structured Diagnostics

When things go wrong, stop. Follow this hierarchy from "Physical" to "Digital."

10. The Hardware Bottleneck: When Software Isn't Enough

You can dial in your PE Design 11 settings to perfection—Net Fill at 0.20", clean vectors, perfect density—but if your physical hold on the fabric fails, the design fails.

The Hidden Variable: Hoop Burns and Shifting Traditional screw-tightened hoops rely on friction. They distort the fabric fibers (Hoop Burn) and require significant hand strength.

• The Upgrade Step 1: If you struggle with wrist pain or fabric marking, look for magnetic embroidery frames. These use vertical magnetic force rather than friction, eliminating hoop burn and simplifying the "re-hooping" process during bulk font testing.
• The Upgrade Step 2: For Brother users specifically, searching for a magnetic hoops for brother luminaire or a dime snap hoop for brother luminaire will lead you to tools that allow you to hoop thick items (towels, jackets) that are nearly impossible to clamp with standard plastic hoops.

The Commercial Ceiling: If you find yourself spending more time changing thread colors and re-hooping than actually stitching, you have outgrown the single-needle workflow.

• The Indicator: Are you refusing orders because "it takes too long"?
• The Solution: This is the trigger point for a Multi-Needle Machine (like the SEWTECH series). The jump from 1 needle to 10+ needles isn't just about speed; it's about walking away while the machine works.

Warning (Magnet Safety): High-quality magnetic hoops use industrial Neodymium magnets. They snap together with enough force to pinch fingers severely. Never place them near cardiac pacemakers. Slide them apart; do not pry them.

Operation Checklist: The "Flight Check"

1. Network: Confirm PC and Machine IP match (first 3 octets).
2. Import: Verify file integrity by loading a thumbnail first.
3. Background: Clean stray vectors < 2mm to prevent nesting.
4. Fonts: Measure width. If > 7mm, convert to Fill.
5. Stabilization: Match stabilizer to stitch density (Heavy fill = Cutaway).
6. Hooping: Fabric is "drum tight" (resonant sound when tapped). If using magnetic hoops, ensure magnets are fully seated.
7. Needle: Insert a fresh needle for every major project (8 hours of stitching).

Mastering PE Design 11 is about controlling variables. By following these engineered steps and respecting the physics of your thread and hoop, you turn "fingers crossed" into "guaranteed results."

FAQ

• Q: How do I fix Brother PE-Design 11 not finding a Brother Luminaire or Brother Solaris over Wi-Fi during “Add Machine”?
  A: Put the PC and the Brother Luminaire/Solaris on the exact same Wi-Fi band and complete the first pairing with security software temporarily paused.
  • Select the same router lane: connect both devices to the same SSID/band (for split routers, keep both on 2.4GHz if that is what the machine is using).
  • Verify IP alignment: confirm the first three octets match on both devices (example: 192.168.1.xxx).
  • Temporarily snooze firewall/antivirus only for the initial handshake, then re-enable immediately.
  • Success check: the Brother Luminaire/Solaris shows stable Wi-Fi bars and PE-Design 11 completes pairing without endless spinning.
  • If it still fails: move the machine closer to the router or add a Wi-Fi extender if the LCD signal drops below 2 bars.
• Q: How do I import .PES designs from a Brother Luminaire or Brother Solaris into Brother PE-Design 11 using “Network Sewing Machine”?
  A: Use PE-Design 11 Import → “From: Network Sewing Machine” and confirm the design grid appears.
  • Open PE-Design 11 and go to the Import tab.
  • Choose “Network Sewing Machine” in the “From” dropdown.
  • Select the machine and wait for the thumbnail grid to populate.
  • Success check: a visible grid/list of .PES files hosted on the machine memory appears in PE-Design 11.
  • If it still fails: confirm the Brother Luminaire/Solaris is a Wi-Fi enabled model and re-check the same-band/IP steps before retrying.
• Q: Why does a Brother Luminaire or Brother Solaris look like it received nothing after Brother PE-Design 11 sends a design over Wi-Fi?
  A: Don’t resend immediately—wait for PE-Design 11 to confirm the transfer is finished because the machine may not alert you during passive receive.
  • Send the design once and do not touch the machine while data is streaming.
  • Watch PE-Design 11 for the completion message “Finished outputting data.”
  • Avoid opening the file on the machine until PE-Design 11 confirms completion to reduce corruption risk.
  • Success check: PE-Design 11 shows the finished output dialog and the design then appears on the Brother Luminaire/Solaris.
  • If it still fails: verify Wi-Fi strength (low bars can cause packet loss) and use a USB drive as a reliable backup transfer method.
• Q: How do I stop thread nesting (bird nests) caused by tiny stray stitches after using Brother PE-Design 11 Background Fill Wizard Echo Fill?
  A: Delete micro-vectors before stitching—auto-generated echo fills can leave short segments that trigger rapid repeat penetrations and nesting.
  • Generate the Echo Fill (Running Stitch) first.
  • Zoom to 400%+ and scan the border areas for chopped, independent stitch lines shorter than 2 mm.
  • Select and delete those stray vectors, then recheck the edge path.
  • Success check: at high zoom, the border area shows clean continuous paths without isolated “crumb” lines.
  • If it still fails: reduce complexity by regenerating the fill and repeating the cleanup pass before stitching on the final fabric.
• Q: When should Brother PE-Design 11 convert satin stitch text to Programmable Fill to prevent snagging on a Brother Luminaire or Brother Solaris embroidery?
  A: Measure the widest satin column—if it exceeds 7 mm, conversion to Fill/Programmable Fill is mandatory to reduce long floating threads.
  • Use the Measure Tool in PE-Design 11 on the widest part of the letter/column.
  • Keep satin under 5 mm when possible; treat 5–7 mm as a caution zone; convert anything over 7 mm to Fill/Programmable Fill.
  • Start Programmable Fill with Terry’s baseline settings (Density 114 lines/inch, Pull Comp 0.01 inch) and adjust only as needed.
  • Success check: the stitched area feels flexible (patch-like), not stiff like cardboard, and threads do not form long exposed “hooks.”
  • If it still fails: re-measure the true widest area and reduce overly aggressive density changes that can buckle fabric.
• Q: How do I fix “missing TrueType fonts” in Brother PE-Design 11 after installing .TTF fonts for Brother Luminaire/Solaris embroidery lettering?
  A: Install the .TTF correctly and fully restart PE-Design 11 because the font list can be cached.
  • Confirm the font file is .TTF (TrueType) before installing (results may be inconsistent with .OTF in this workflow).
  • Right-click the .TTF and choose “Install for all users.”
  • Close PE-Design 11 completely and reopen it to force a fresh font load.
  • Success check: the newly installed font appears in PE-Design 11’s font list after the restart.
  • If it still fails: verify the font appears in the Windows Fonts folder and reinstall, then restart PE-Design 11 again.
• Q: How do I choose between technique changes, magnetic embroidery hoops, or upgrading to a multi-needle machine when Brother Luminaire/Solaris projects keep suffering hoop burn, shifting, or slow production?
  A: Use a step-up path: optimize process first, then improve fabric holding with magnetic hoops, then consider a multi-needle machine if re-hooping and color changes are the real bottleneck.
  • Level 1 (technique): standardize your workflow—clean stray vectors, follow the “wait for the pop-up” transfer discipline, and match stabilizer to stitch load (heavy fill often needs cutaway).
  • Level 2 (tool): switch from screw-tight hoops to magnetic embroidery hoops/frames when hoop burn, fabric marking, or hand fatigue makes consistent tension hard to repeat.
  • Level 3 (capacity): move to a multi-needle machine when most time is spent changing thread colors and re-hooping instead of stitching (especially when you start declining orders due to time).
  • Success check: fewer re-hoops, fewer marked fabrics, and predictable results across multiple items without “fingers crossed” runs.
  • If it still fails: isolate whether the failures are physical (hooping/stabilization) or digital (density/stray vectors/transfer integrity) and address that layer first.
