In this deep-dive tutorial, we are going to bypass the "hobbyist guessing game." We will extract the core lessons from a typical PE-Design 11 workflow—specifically building a Rabbit motif for an Easter egg—and layer it with 20 years of production-floor reality. You will learn not just which buttons to click, but the physics of how that digital file interacts with your needle, thread, and hoop.

Phase 1: The Architecture (Programmable Stitch Creator)

1. Enter the Logic Lab

Most beginners make the mistake of trying to draw fills directly in the main layout window. That is impossible. You need to enter the backend of the software.

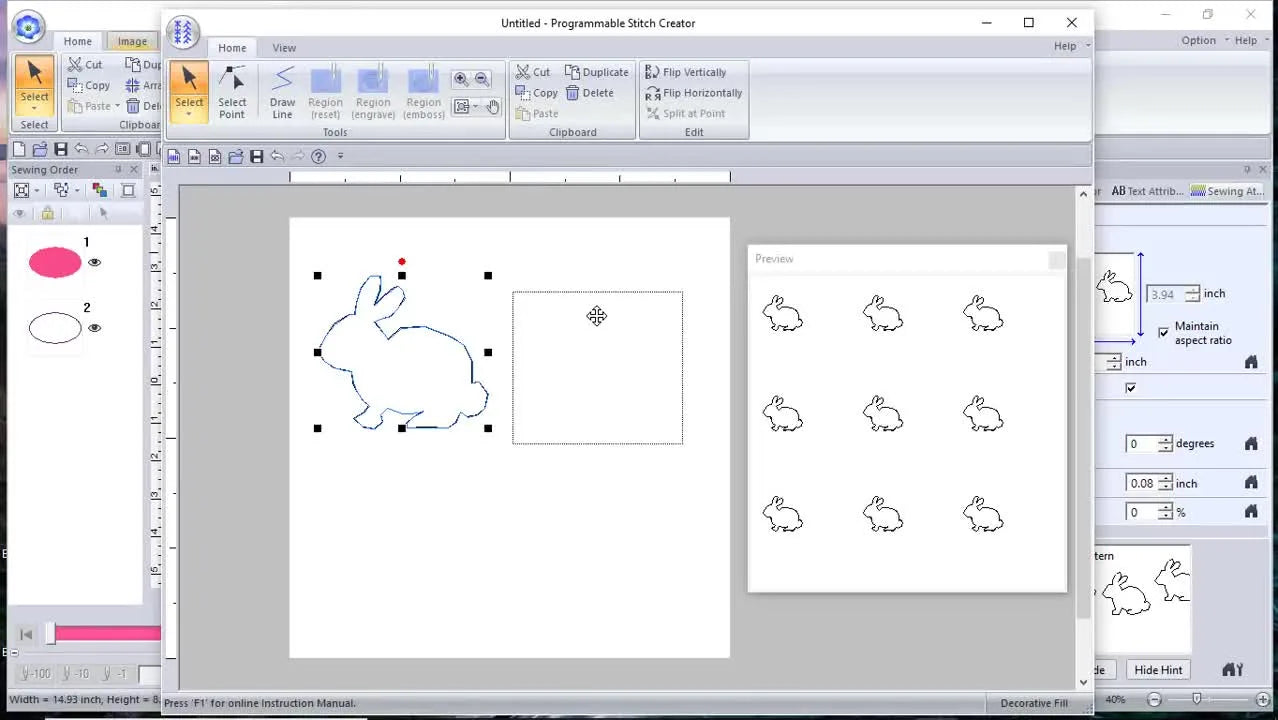

Go to Option > Programmable Stitch Creator. When the splash screen asks, choose New Decorative Fill Pattern. Think of this mode not as "drawing," but as creating a "stamp" that the software will later repeat thousands of times.

2. Grid Management: The "Lego vs. Clay" Problem

On the View tab, set your workspace axes to 100 mm x 100 mm (3.94" x 3.94").

Here is the first trap: Snap to Grid. When Snapping is ON, your mouse cursor acts like a Lego brick—it only locks to specific intersections. If you try to trace an organic shape (like a rabbit, a flower, or a face) with Snapping on, you will create a jagged, blocky nightmare. In the physical world, these sharp "digital" corners force the machine to make abrupt XY-axis stops, increasing vibration and thread breakage.

The Fix: You must toggle Snap to Grid OFF for organic shapes. You want your nodes to flow like clay, not stack like bricks.

3. Import and Prep Your Template

Select Template Open and bring in your reference image (in this case, a rabbit JPG).

• Pro Tip: If your image is too bright, you won’t see your vector lines. Use the software's "Image Tune" or opacity sliders to dim the background image to about 50%. This creates contrast for your eyes.


Phase 2: The Art of "Thread-Friendly" Tracing

4. Digitizing The Silhouette (Draw Line Tool)

Select the Draw Line tool. To the novice eye, this looks like tracing. To the expert eye, this is path management.

• Left-Click: Places a point.
• Double-Click: Closes the shape.

The Golden Rule of Nodes: Beginners starve their curves. They put one node at the top of an ear and one at the bottom, resulting in a flat, lifeless line.

• The Fix: Add more points on tight curves (ears, tails, paws).
• The Physics: Smooth curves allow the machine's pantograph to glide. Sharp, jagged curves force the embroidery arm to jerk, which creates "shaking" in the stitch-out and impacts registration.


5. Surgical Refinement (Select Point Tool)

Switch to the Select Point tool. Your nodes will appear as small squares.

• Drag to smooth out a line.
• Right-click to delete a node (sparingly).

Warning: Be careful with "Node Deletion." While cleaning up is good, over-smoothing can result in a blob. If a detail (like a rabbit's foot) is smaller than 2mm, the machine may skip it or create a "thread knot." Ensure all defining features are large enough to actually hold a stitch.

PREP CHECKLIST: The "Before You Tile" Scan

• Sanity Check: Did you delete the background image? (You only want the vector).
• Node Check: Are there any sharp angles (less than 30 degrees) that will cause thread nests? Smooth them out.
• Size Check: Is the single motif (the rabbit) at least 15-20mm wide? Anything smaller risks becoming an unrecognizable lump when sewn on plush fabrics.
• Hidden Consumable Check: Do you have your spray adhesive (Tip: 505 Spray) and a fresh sharp needle (Size 75/11) ready for the eventual test?

Phase 3: Building the Tile (The Swallowtail Effect)

6. Duplication and Variance

If you just line up 50 identical rabbits, your embroidery will look like cheap wallpaper. It also creates a "gutter" effect where stitches line up vertically, potentially cutting your fabric.

The Strategy:

1. Duplicate the rabbit to create a cluster.
2. Resize one or two rabbits slightly (make one 90% size, one 110%).
3. Offset anything that looks like a straight line.
4. Stagger the rows.

By staggering the design, you distribute the needle penetrations across the fabric grain, which reduces the risk of the fabric tearing under density.

7. Exporting the "Stamp" (.PAS)

Go to File > Save As. You are saving a .PAS (Pattern) file. Name it "Rabbit 3".

• Note: The software sees the "Default Size" as 100mm. This is just the reference box; it doesn't mean your rabbits are huge.


Phase 4: Application & The "Hooping Crisis"

8. The Layout Stage

Close Programmable Stitch Creator. Open PE-Design 11 Layout & Editing.

1. Draw a Shape (e.g., an Egg/Oval).
2. Set Region Sew Type to Decorative Fill.
3. Browse specifically for your Rabbit 3 pattern.


9. Attributes: The Difference Between success and "Bulletproof"

This is where the battle is won or lost. The default settings are rarely production-ready. Open Sewing Attributes:

• Pattern Size: The video suggests 4.25 inches. This is large, but for decorative fills, bigger is safer. It reduces stitch density.
• Run Pitch: Set to 2.0 mm.
• Random Shift: CRITICAL. Always add a small Random Shift value (e.g., 1-2). This prevents the machine from sewing perfectly straight columns, which avoids the "moiré effect" and prevents the fabric from perforation tearing.


INTERMISSON: The Physics of Dense Fills vs. Your Hoop

You have just created a design with thousands of multi-directional stitches. When you stitch this, the thread tension will try to pull the fabric inward, creating the dreaded "hourglass" distortion.

If you are using a standard plastic hoop on a single-needle machine, you tackle two risks:

1. Hoop Burn: To hold the fabric tight enough, you over-tighten the screw, crushing the fibers (especially on velvet or performance wear).
2. Slippage: The "pop" sound of fabric slipping inward as the heavy fill stitches out.

This is the "Trigger Moment" to evaluate your tooling. If you are fighting the hoop, you cannot win with software settings alone.

Decision Tree: How to Stabilize a Heavy Decorative Fill

Use this logic flow to determine your setup before you press "Start."

Q1: Is the fabric stable (Denim, Canvas, Twill)?

• YES: Use 1 layer of Medium Tearaway. Standard hoop tension is usually sufficient.
• NO (T-shirts, Polos, Knits, Minky): You are in the danger zone.
  • Action: Must use Cutaway Stabilizer (No Tearaway!).
  • Adhesion: Use temporary spray adhesive to bond fabric to stabilizer.
  • Hooping: This leads to Q2.

Q2: Are you seeing "Hoop Burn" or struggling to hoop quickly?

• YES: The friction of standard hoops is damaging your goods.
  • Level 1 Fix: Float the fabric (hoop only stabilizer, stick fabric on top). Risk: Lower registration accuracy.
  • Level 2 Solution: Upgrade to a magnetic embroidery hoop. Magnetic frames use vertical magnetic force rather than friction rings. This eliminates "hoop burn" because the fabric isn't being ground between plastic rings.
  • Professional Context: If you own a large-format machine, a brother luminaire magnetic hoop or the specific magnetic hoops for brother luminaire allows you to clamp thick layers (like a quilt sandwich or a hoodie) instantly without adjusting screws.

Warning: Magnetic Safety
Magnetic embroidery hoops for brother and other brands use industrial N52 magnets. They are incredibly strong.
1. Pinch Hazard: Keep fingers clear of the snapping zone. They can break skin.
2. Medical: Keep away from pacemakers.
3. Digital: Keep away from credit cards and machine screens.

If you are doing production runs (50+ items), the hand-strain of standard hooping is a career-shortener. A hooping station for embroidery machine paired with magnetic frames is the industry standard for preventing repetitive strain injury (RSI) and ensuring every design lands in the exact same spot.

Phase 5: The Simulation & The Stitch

10. The "Stitch Player" Premonition

Run the Stitch Player simulation. Look for Jump Trims. Does the machine trim between every single rabbit ears?

• If YES: You have a problem. Constant trimming slows production by 50% and leaves "bird's nests" on the back.
• The Fix: Go back to Attributes. Can you connect the rabbits? Or, increase the "Jump Stitch Trimming" threshold on your machine settings so it drags the thread (which you trim later manually) rather than cutting every 2mm.


11. The Final "Flight Check" (Operation)

Do not press start and walk away. A heavy fill requires supervision.

Operation Checklist:

• Bobbin Check: Is your bobbin full? A decorative fill eats bobbin thread.
• Speed Limit: Do not run at 1000 SPM. Heavy fills vibrate the fabric. Drop your speed to 600-700 SPM (The "Sweet Spot").
  • Sensory Check: The machine should hum rhythmically, not "clank" or "thud."
• Tension Check: Stitch a test H on scrap. Look at the back. You should see 1/3 white bobbin thread in the center column. If you see top thread loops on the bottom, your top tension is too loose.
• Sound Check: Listen for a sharp "snapping" sound. That means your needle is blunt or hitting an accumulation of thread (nesting). Stop immediately.


Troubleshooting Guide: The "Why is this happening?" Table

Summary: From Design to Production

Creating the "Rabbit" pattern is the easy part. The artistry lies in the production engineering—managing the friction, tension, and stability of the fabric.

1. Trace Cleanly: Use fewer nodes, but place them wisely.
2. Stagger Patterns: Avoid the wallpaper effect.
3. Stabilize Aggressively: Heavy fills demand cutaway backing and drum-tight hooping. Upgrade to magnetic embroidery hoop systems if you encounter burn marks or consistency issues.
4. Slow Down: Quality happens at 600 SPM, not 1000 SPM.

Mastering decorative fills separates the "button pushers" from the "digitizers." It gives you a library of custom textures that you own, letting you turn a simple outline into a high-value embroidered asset.
