PE-Design Next 9.3 Layout & Editing: The Workspace Tweaks and Stitch Attribute Moves That Make Your Files Sew Cleaner

If you’ve owned PE-Design Next for years and still feel like you’re “clicking around hoping it works,” you’re not alone. Most digitizers don't struggle with creativity; they struggle with control.

Embroidery is a physical science. What looks like a clean red line on your screen is actually hundreds of physical thread loops tugging at a piece of fabric. This lesson is about mastering that translation: getting your workspace to behave, drawing shapes that close properly, and dialing in stitch attributes (density, direction, underlay) so your machine creates a masterpiece, not a bird's nest.

Don’t Panic When the Red Resize Box Vanishes—It’s Not Locked, It’s Just “Inactive”

The first mini-crisis every beginner faces: you click outside the red resizing box, it disappears, and you think you’ve “flattened” the image and can’t resize it anymore. You haven't broken anything.

Here is the tactile fix:

1. The Trigger: You click white space, and the box vanishes.
2. The Action: Right-click anywhere on the background page.
3. The Command: Left-click “Modify Image.”
4. The Result: The red resizing bounding box reappears.

Two veteran notes that save headaches:

• Recover, Don't Restart: Never delete and re-import just to resize. Use this method to preserve your work.
• The "Why": The software assumes you are done editing the source image and want to start placing stitches. "Modify Image" tells the software, "Wait, I'm still prepping the canvas."


Cockpit Management: Dock, Pin, and Tab Your Windows

A messy screen hides mistakes. If your "Sewing Order" window is floating over your design, you will eventually select the wrong object. Marilyn demonstrates a "Cockpit" approach: dock what you need, pin it, and use tabs.

The Setup Routine:

1. Right-click the header of a floating window (e.g., Sewing Attributes).
2. Uncheck “Floating.” It will snap to the side.
3. Click the pin icon (thumbtack) to lock it in place.
4. Use the Tabs at the bottom of the detailed pane to switch between Sewing Attributes, Color, and Import.

Why this matters: When you edit attributes, you need a "Three-Point Visual Check":

1. See the Object on the canvas.
2. See the Blue Highlight in the Sewing Order.
3. See the Attribute Value change.

If a floating window covers the canvas, you lose this feedback loop.

Drawing Shapes: The Rhythm of the Closed Straight Line Tool

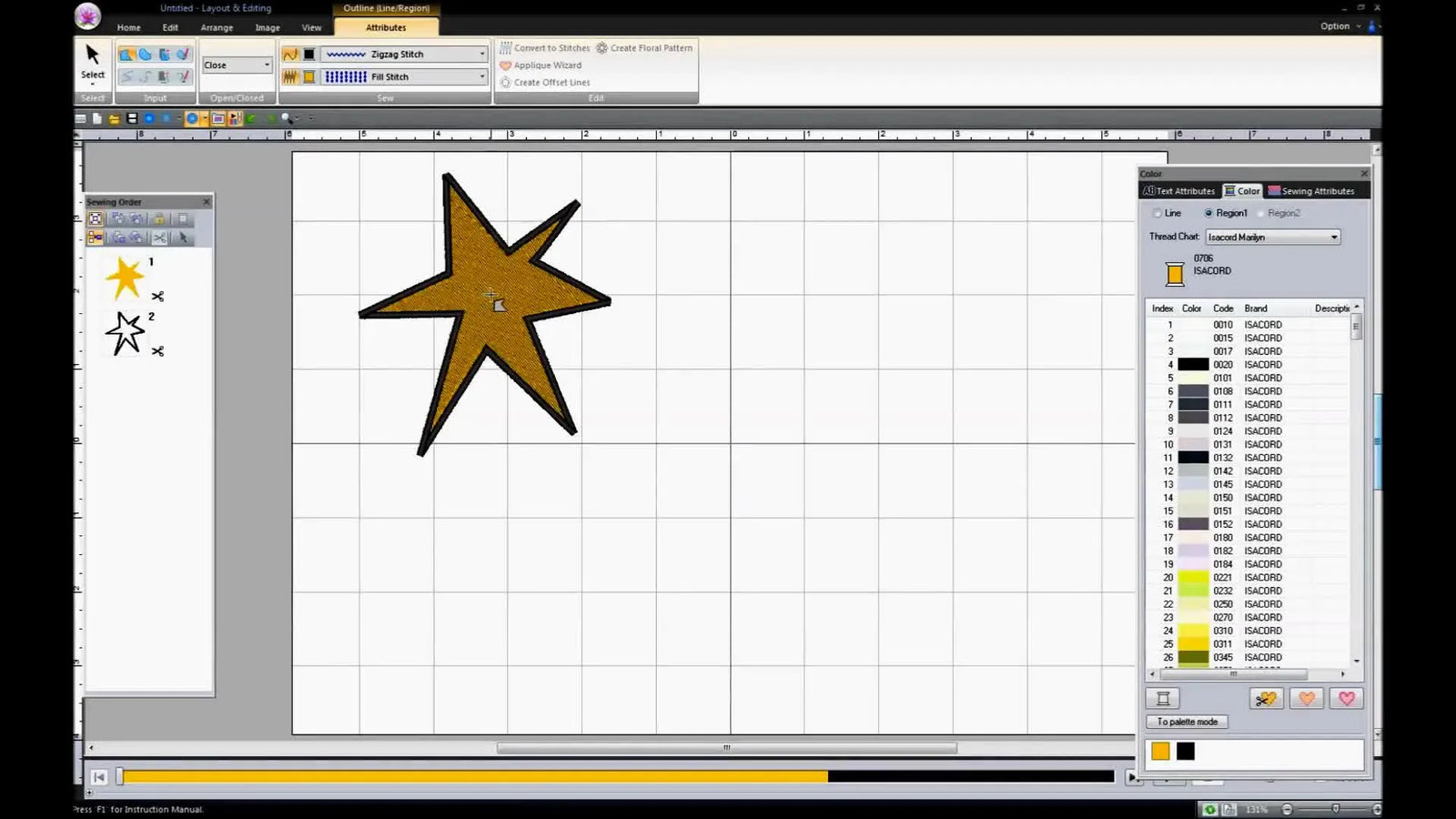

Now, let's create a star shape using the Line and Region tools. This requires a specific rhythm to avoid open gaps or "double borders."

The Protocol:

1. Home Tab > Line and Region > Closed Straight Line Tool.
2. Pre-Flight Check: Look at the top attribute bar.
   • Ensure Top Line Stitch is highlighted (Zigzag).
   • Ensure Region Fill is enabled (Fill Stitch).
3. The Rhythm: Place your points. Click... Click... Click. (Marilyn emphasizes: Left-click only for straight lines).
4. The Critical Step: Stop short. Leave a small visible gap between your last point and your first point.
5. The Closure: Double Left-Click. The software will snap the final line shut perfectly.

Note: If you try to manually click exactly on the starting dot, you often overshoot or undershoot. Let the software do the math with the double-click.

Warning: Machine Safety First. When testing these files later, never put your hands near the needle bar while the machine is running. 1,000 stitches per minute means the needle moves faster than your reflex. Keep fingers outside the hoop area.

Prep Checklist: Before You Edit Stitch Types

• Workspace: Sewing Order and Attributes windows are docked and pinned.
• Tool Selection: Top Line (Zigzag) and Region Fill are both active before you draw.
• Closure: You used the "Double-Click" method to close the shape, ensuring a sealed perimeter.
• Visual Check: You see a shape with a distinct border color and a distinct fill color.

The "Silent Killer": Edit the Right Object First

Beginners often crank up density, see no change, and panic. 99% of the time, the wrong object is highlighted.

The Golden Rule: You must select the specific element in the Sewing Order window (e.g., the black border icon) before you touch the Sewing Attributes. If you select the whole group, the software doesn't know if you want to change the border density or the inside fill density.

Tuning the Border: Width vs. Density

Highlight the Border Stitching in the Sewing Order. Now, let's adjust the tactile feel of that satin/zigzag edge.

1. Zigzag Width (The Look):
   • Beginner Sweet Spot: 3.0mm - 4.0mm.
   • Action: Click the arrows. Watch the line get thicker.
   • Risk: Anything under 1.5mm may get buried in the fabric nap (especially towels).
2. Density (The Feel):
   • Beginner Sweet Spot: 4.5 - 5.0 lines/mm.
   • Action: Adjust density.
   • Physics: Higher numbers (in some versions) or lower "spacing" values make the stitch tighter. A tighter stitch covers better but makes the patch stiff ("bulletproof"). Use the Undo arrow to compare.

The Foundation: Turn On "Under Sewing" (Underlay)

Marilyn calls this out as the cure for puckering. She is correct. Under sewing is like the rebar in a concrete driveway—it stabilizes the fabric before the heavy "top" stitches land.

The Fix:

1. Highlight Fill Stitches in Sewing Order.
2. Check the box “Under sewing.”
3. Sensory Check: You should see a grid or loose running stitch appear under your main color in the simulation.


The Reality Check: Software underlay is critical, but it cannot fix bad hooping. If your fabric is "drum-tight" but creates a "hoop burn" (white ring) on the fabric, or if you can't tighten a thick hoodie enough, the issue is mechanical. Many production shops solve this by switching to machine embroidery hoops that use strong magnets. They clamp textured fabrics firmly without the friction burn of traditional screw-hoops, giving the Under Sewing a stable platform to grip.

Density Strategy: 114 vs. 121

Marilyn discusses changing the fill density numeric value.

• Default (approx 114): Standard coverage. Good for cotton tees.
• High Density (approx 121): Thicker coverage. Good for pique polos or textured items where background peaks through.

How to adjust:

1. Highlight Fill Stitches.
2. Navigate to Density in Attributes.
3. Bump it up to 121.

Trade-off: 121 covers better but adds pull. Stitches pull the fabric toward the center. If you use high density, your stabilization (backing) must be stronger. Do not use 121 on thin knits without strong Cutaway stabilizer.

Light & Texture: rotating the Stitch Direction

The specific angle of thread reflects light differently. Changing the direction can turn a "flat" object into a dynamic one.

Visceral Control:

1. Find the Direction Arrow Icon in attributes.
2. Click and drag the needle like a compass dial.
3. Watch the screen: The stitch lines rotate.


Color & Thread Simulation

Use the Color Tab to audition thread brands and combos. This is a "low-cost" experiment compared to cutting thread and re-threading a needle.

1. Select Fill -> Click a Red.
2. Select Border -> Click a Gold.
3. Does it pop? If not, Undo.


Programmable Fills: The Texture Trap

Marilyn shows how to swap a standard Fill for a Programmable Fill (patterned texture).

The Workflow:

1. Highlight Fill Stitch.
2. Change Stitch Type to Programmable Fill.
3. Open the Folder Icon (Library).
4. Select a diamond or wave pattern.




Key Insight: Textured fills look amazing but often have higher stitch counts and stress the fabric in multiple directions.

• The Risk: Heavy textures cause "flagging" (fabric bouncing up and down).
• The Solution: If you love textured backgrounds, ensure your hooping is rock solid. This is another scenario where users search for terms like how to use magnetic embroidery hoop to learn how to keep equal tension across a textured design without distorting the weave.

Warning: Magnet Safety. If you upgrade to magnetic hoops for better fabric grip, be aware: they are powerful pinching hazards. Keep them away from pacemakers and never leave them on the floor where they can snap together.

Changing Stitch Types (Motif/Run)

Just as you changed the fill, you can change the border to a "Motif" (decorative chain).

1. Select Border.
2. Change Zigzag to Motif.
3. Browse the library.


Advice: Keep borders simple on small text. Motifs work best on large, open shapes.

Landing Zone: Center Your Design

Never guess where the needle will start. Standardize your workflow by centering everything.

1. Select All (Ctrl+A or Select tool).
2. Arrange Tab > Move to Center.
3. Visual Check: The design snaps to the grid crosshairs.




This step aligns your digital zero point with your machine's physical center. Whether you use a standard hoop or a specific hoop for brother embroidery machine, centering ensures you don't hit the plastic frame during a stitch-out.

Setup Checklist: The "Pre-Flight" Confirmation

• Selection Integrity: You confirmed edits by highlighting only the Border or only the Fill.
• Foundation: Under Sewing is ON (especially for fills larger than 1 inch).
• Density Safety: Density is set to default (114) for standard fabrics, or slightly higher (121) only if backing is sufficient.
• Placement: Design is technically Centered via the Arrange menu.
• Consumables: Use a fresh needle (75/11 Ballpoint for knits, 75/11 Sharp for wovens).

The Time Machine: Stitch Simulator

Marilyn finishes with the most important digital step: The Simulator. This is your chance to see the future.

1. Open Stitch Simulator.
2. Set Speed to Medium.
3. Watch the Order:
   • Do you see the Underlay first? (Good).
   • Do you see the Fill second? (Good).
   • Do you see the Border last? (Essential—borders cover raw edges).


Fabric-to-Stabilizer Decision Tree

Your file is ready. Now you must support it physically. Use this logic tree to prevent creating a beautiful file that puckers on the machine.

• Is the fabric Stretchy? (T-Shirt, Hoodie, Polo)
  • YES: You MUST use Cutaway Stabilizer. Tearaway will allow stitches to pull in over time.
  • Hooping Tip: Do not stretch the shirt. Lay it natural.
• Is the fabric Stable? (Denim, Canvas, Towel)
  • YES: You can use Tearaway Stabilizer.
  • Texture Tip: If it's a towel, add a Water Soluble Topping so stitches don't sink.
• Is the item "Un-hoopable"? (Bag pockets, small collars)
  • YES: You are entering the "Frustration Zone." Standard hoops may pop off.
  • Tool Upgrade: Consider a magnetic embroidery frame. It allows you to float the item over the bottom magnet and snap the top magnet on, securing awkward items in seconds.

The Production Reality Check

If you follow this guide, your files will be professional. But if you are still getting uneven results, look at your hardware workflow.

1. The Pain: "Hoop Burn" (shiny fabric rings).
   • The Cause: Friction from standard inner hoops forcing fabric fibers apart.
   • The Fix: Magnetic hoops clamp flat, eliminating friction burn.
2. The Pain: "Slanted Logos."
   • The Cause: Manual hooping error.
   • The Fix: A hoopmaster hooping station ensures the logo lands in the exact same spot on Shirt #1 and Shirt #50.

Operation Checklist: The Final "Go"

• Simulator Pass: Verified Underlay -> Fill -> Border order.
• Stabilizer Match: Cutaway for knits, Tearaway for wovens.
• Hoop Tension: Fabric is taut (like a drum skin) but not stretched or distorted.
• Thread Path: Bobbin is clean, and top thread is seated in tension disks.

Conclusion

Control is not about knowing every button in PE-Design Next; it's about knowing which 10 buttons actually matter. By controlling your workspace (docking), your structure (underlay/density), and your physical setup (stabilizer/hoops), you move from "guessing" to "producing."

Master these basics, and you won't just be clicking around—you'll be stitching with confidence.

FAQ

• Q: In Brother PE-Design Next, how do I bring back the red resize bounding box after clicking on white space?
  A: Use “Modify Image”—the red resize box is inactive, not permanently locked.
  • Right-click on the background page (white space).
  • Left-click Modify Image to re-enter image prep mode.
  • Avoid deleting and re-importing the image just to resize.
  • Success check: the red bounding box reappears and the image can be resized by dragging corners.
  • If it still fails: click the image once, then repeat Right-click background → Modify Image.
• Q: In Brother PE-Design Next, how do I dock and pin the Sewing Order and Sewing Attributes windows so they stop floating over the design?
  A: Turn off “Floating” and pin the pane so the workspace stays consistent while editing objects.
  • Right-click the header of the floating window (for example, Sewing Attributes).
  • Uncheck Floating so the window snaps to the side dock.
  • Click the pin (thumbtack) icon to keep it open.
  • Success check: the canvas stays visible while the docked panel remains fixed, and you can switch tabs (Attributes/Color/Import) without covering the design.
  • If it still fails: re-check the window header menu and confirm Floating is not enabled.
• Q: In Brother PE-Design Next Closed Straight Line Tool, how do I close a shape cleanly without gaps or double borders?
  A: Stop short and double-click to let PE-Design Next snap the last segment closed automatically.
  • Go to Home → Line and Region → Closed Straight Line Tool.
  • Confirm the top bar shows Top Line Stitch (Zigzag) and Region Fill enabled before drawing.
  • Click points for straight segments, then leave a small visible gap before the start point.
  • Double left-click to close the shape.
  • Success check: the perimeter seals into one clean closed outline and the fill previews as a contained region (no open edge).
  • If it still fails: undo, redraw using only left-clicks for points, and avoid manually clicking exactly on the first node.
• Q: In Brother PE-Design Next, why does changing Density not change the design, and how do I edit the correct border or fill object first?
  A: Select the specific element in the Sewing Order first—density changes won’t apply if the wrong object is highlighted.
  • Click the exact Border icon or Fill Stitches entry in the Sewing Order window (not the whole group).
  • Adjust Density (or width) only after the correct element is highlighted.
  • Use Undo to compare before/after quickly.
  • Success check: the selected element stays highlighted in Sewing Order and the attribute change is visible in the preview/simulation for that same element.
  • If it still fails: re-select the border vs. fill explicitly and confirm the attribute panel is showing settings for the highlighted object.
• Q: In Brother PE-Design Next Fill Stitches, how do I turn on Under sewing (underlay) to reduce puckering, and what is the visual proof it is enabled?
  A: Enable Under sewing for the fill object so a stabilizing layer stitches before the top fill.
  • Highlight Fill Stitches in the Sewing Order.
  • Check Under sewing in the attributes.
  • Re-run the preview/simulator to confirm the stitch sequence.
  • Success check: the simulation shows a grid/loose running stitch layer underneath the main fill color before the fill stitches appear.
  • If it still fails: confirm you selected Fill Stitches (not the border), and remember underlay cannot compensate for poor hooping tension.
• Q: In machine embroidery testing, what needle-area safety rule should be followed when running a stitch-out at around 1,000 stitches per minute?
  A: Keep hands completely outside the hoop/needle-bar area while the machine is running—needle speed is faster than reflex.
  • Stop the machine before adjusting fabric, thread, or hoop position.
  • Keep fingers away from the needle bar and moving parts during stitch-out.
  • Use the simulator/preview first to reduce on-machine surprises.
  • Success check: all adjustments happen only when the machine is fully stopped, with no hands entering the hoop zone during motion.
  • If it still fails: pause the job and restart only after confirming a safe working position and clear workspace.
• Q: For hoop burn on sensitive fabric or unstable hooping on thick hoodies, what is the step-up troubleshooting path from technique to magnetic hoops to a multi-needle production upgrade?
  A: Start with setup corrections, then upgrade the clamping method, then consider production hardware if consistency is still not achievable.
  • Level 1 (Technique): match stabilizer to fabric (Cutaway for knits, Tearaway for stable wovens), avoid stretching fabric while hooping, and confirm the thread path and a clean bobbin area before running.
  • Level 2 (Tool): switch from screw-hoops to magnetic embroidery hoops/frames to clamp evenly and reduce friction-related hoop burn on textured or thick items.
  • Level 3 (Capacity): if results are still uneven across repeated jobs, evaluate a multi-needle workflow upgrade (for example, a SEWTECH multi-needle embroidery machine) for faster, more consistent production.
  • Success check: fabric sits taut without shiny rings, the stitch-out stays aligned (no slanted logo), and repeat pieces match placement and tension.
  • If it still fails: re-check hooping method and stabilizer strength first, then verify the design order in simulator (Underlay → Fill → Border) before changing hardware.
