Pearl 2-Head Commercial Embroidery Machine Demo: The Calm, Repeatable Workflow for Clean T-Shirt Runs (Dahao Controller + 15 Needles)

Mastering the Rhythm: A Production Mindset for Commercial Embroidery

The sound of a commercial multi-head machine running at full speed—that rhythmic, mechanical thrumming—can be music to your ears or the soundtrack to a panic attack. When you have two heads running simultaneously at 1,000 stitches per minute (SPM), you are producing fast, but you are also arguably just one mistake away from ruining two garments instantly.

Take a breath. The Pearl 2-head demo analyzed here is showing you a stable, repeatable production rhythm, not a high-stress gamble. The secret isn't simpler designs; it's process control.

In this guide, I will deconstruct the video’s workflow into a shop-floor manual. We will move beyond basic buttons and focus on the "sensory" details—how the machine should sound, how the fabric should feel, and how to stabilize tricky substrates like Jersey knit so you don't get the dreaded "bulletproof vest" effect on a T-shirt.

Run Your Machine Like a Production Line (Not a Science Experiment)

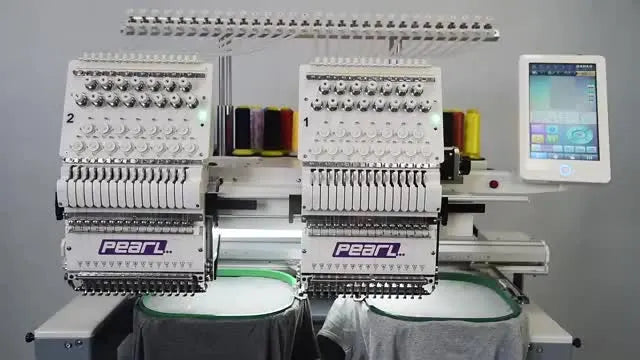

The video opens with a Pearl 2-head machine loaded with identical grey T-shirts. This is the core advantage of multi-head embroidery: scalability. However, scaling requires consistency.

If you are transitioning from a single-needle home machine to a commercial beast, here is your biggest mindset shift: Your "setup quality" creates the result; the machine just executes it.

On a single-head machine, you might tweak the hoop or pull the fabric slightly after loading to fix a wrinkle. Do not do this on multi-head runs. Multi-head machines don't forgive inconsistency—they multiply it. If Head #1 is hooped tighter than Head #2, the registration (alignment of colors) will differ between the two, and you will produce one good shirt and one reject.

Sensory Check: When the machine starts, close your eyes for three seconds. You should hear a unified, synchronized rhythm. If you hear a "syncopated" beat—where one head sounds sharper or louder than the other—stop immediately. That is the sound of a thread path issue or a dull needle.

Make the Controller Your Co-Pilot: The "Check or Wreck" Protocol

In the first minute, the Dahao touchscreen displays the file details. The demo loads flower.DSB, revealing a massive 24,844 stitch count and a 4-color sequence.

Operator Insight: 24,000 stitches is heavy for a T-shirt. For context, a typical left-chest logo is 5,000 to 8,000 stitches. This design is dense. If you don't respect the physics of this stitch count, the shirt will pucker.

Don’t treat the screen as a formality. Use it to perform a "sanity check" before you commit:

1. Stitch Count (24,844): This tells you the run time will be long (approx. 25-30 minutes at 800 SPM). It also screams "Use Heavy Cutaway Stabilizer."
2. Color Sequence: Verify against your cones. A mismatch here usually results in green faces or red skies.
3. Scale (100%): Never resize dense designs more than 10-15% on the machine screen. It messes with the density calculation.

If you are running a complex 15 needle embroidery machine, the risk of assigning the wrong needle number to a color slot increases. Use this screen to verify that "Color 1 (Yellow)" is actually mapped to the needle holding yellow thread.

Prep Checklist (The "Pre-Flight" Routine)

• File Match: Does the screen filename match your work order?
• Needle Inspection: Run your fingernail down the needle tips. If you feel a "catch" or burr, replace the needle. A burred needle will shred Jersey knit.
• Bobbin Status: Check the bobbin area for lint. Blow it out. Pop in a fresh bobbin (or ensure you have enough for 24k stitches).
• Oil Check: If your machine’s manual dictates a drop of oil on the rotary hook every 4 hours, do it now.
• Speed Limit: For this dense design on knit, set the max speed to 700-800 SPM. Running at 1000+ SPM on stretchy fabric increases the risk of thread breaks and friction burns.

Warning: Mechanical Hazard. Keep fingers, tweezers, and snips away from the needle bar and presser feet while the machine is powered. Commercial machines can jump to a start point unexpectedly. Always engage the "Stop" or "Lockout" button before threading needles.

The "Hidden" Prep: Hooping Physics and Stabilizer Logic

The demo uses grey T-shirts perfectly hooped in green plastic tubular hoops. You can see white stabilizer underneath. This isn't just paper; it is the foundation of your quality.

Jersey knit is fluid. It moves. As the needle punches 24,000 holes into it, the fabric tries to escape. Your job is to lock it down using two forces: Hoop Tension and Stabilizer Structure.

Stabilizer Decision Tree: T-Shirts (Jersey Knit)

Use this logic flow to avoid the "wavy" embroidery look:

1. What is the fabric?

• Thin/Stretchy (Performance Wear/Tees): You MUST use Cutaway stabilizer. Tearaway is forbidden here; it will disintegrate under 24k stitches.
• Thick/Stable (Polo Pique/Sweatshirt): Cutaway is still preferred for quality, but heavy Tearaway might survive smaller designs.

2. How heavy is the design?

• High Density (Like flower.DSB): Use a 2.5oz - 3.0oz Cutaway. If you only have light backing, float a second layer underneath.
• Low Density (Open outline): Standard 2.0oz Cutaway is fine.

3. Is there "Hoop Burn"?

• Yes (Ring marks remain after steaming): You are clamping too tight or leaving the hoop on too long. This is the triggers point to upgrade your tools.

Hooping Technique: The goal is "Taut, not Stretched."

• The Test: Pull the fabric gently in the hoop. It should feel like a trampoline—firm rebound.
• The Error: If you pull it and the vertical ribs of the knit distort into waves, you have over-stretched it. When you un-hoop, the fabric will relax, and your embroidery will pucker.

If you constantly struggle with hoop burn on delicate knits, or if hooping creates wrist pain, this is when professionals switch to magnetic embroidery hoops. These frames use magnetic force rather than mechanical friction to hold the fabric. They clamp instantly without the "twist and friction" motion that causes burn marks, making them a massive quality of life upgrade for T-shirt production.

Warning: Magnetic Hazard. Magnetic hoops use powerful industrial magnets. Keep them away from pacemakers, insulin pumps, and credit cards. Watch your fingers—they snap together with enough force to cause a painful blood blister (pinch hazard).

The Fix You Can Repeat: The "Flagging" Audit

At 00:57, the machine begins the yellow tatami fill. This is your critical observation window. Watch the fabric between the needle and the hoop edge.

Sensory Check:

• Visual: Is the fabric bouncing up and down with the needle? This is called "Flagging." It makes birdsnests.
• Auditory: A healthy sew-out sounds like a rhythmic, dull thudding. A sharp "slap" sound usually means the fabric is flagging against the needle plate.

The Fix: If you see flagging, stop. You need to re-hoop tighter or add a layer of stabilizer. Do not hope it gets better; it won't.

Many operators find that standard plastic hoops lose grip on slippery synthetics over time. Upgrading to high-quality aftermarket embroidery machine hoops (such as double-height hoops or magnetic frames) often provides the extra grip needed for unstable fabrics without requiring Herculean hand strength.

Setup Checklist (The first 30 seconds of stitching)

• Start Anchor: Ensure the thread tails are caught underneath or trimmed after the first few stitches (unless your machine has auto-trimmers catching them).
• Flagging Check: Fabric is not bouncing more than 1-2mm.
• Hoop Stability: The hoop arms should be locked solid—no wiggling.
• Sound Check: Rhythm is consistent. No clicking or grinding.

Read the Tension Like a Mechanic

The video pans over the upper tension knobs (01:26). Tension on multi-head machines is a relationship between the Top Thread (Knob), the Check Spring (The little wire), and the Bobbin.

The "Floss" Test: If you pull the thread through the needle manually (with the presser foot down/engaged), you should feel consistent resistance, similar to pulling dental floss between your teeth.

• Too Loose: Thread creates loops on top of the design.
• Too Tight: You see white bobbin thread showing on top, or the fabric puckers inward.

Expert Tip: If Head 1 looks perfect and Head 2 looks loopy, do not touch the tension knobs yet. Check the thread path first. 90% of "tension" problems are actually the thread slipping out of a pretension guide or lint stuck in the tension discs.

Color Change Discipline

At 03:06, the machine trims and switches to orange. Do not walk away to get coffee during color changes. This is when the machine is most vulnerable.

Watch for:

1. The Wiper: Does it successfully pull the old thread up?
2. The Grab: Does the velvet foot or picker catch the new thread?
3. The Start: Does the new color start cleanly, or do you hear the "thump-thump-thump" of a birdsnest forming underneath?

If you are running a production shop, efficiency is key. While the machine runs, use that time to prep the next run. This is where having a dedicated hooping station for machine embroidery pays for itself—you can accurately hoop the next set of shirts while the current set stitches, ensuring zero downtime between runs.

Use the Screen as a Radar

The moving crosshair on the Dahao screen (04:24) is your "Radar."

• Why watch it? If you look at the screen and the crosshair is moving to the outer edge, but your machine needle is still in the middle of the shirt... Emergency Stop. You have lost position (steps), likely due to a hoop collision or belt slip.

This real-time feedback loop allows you to catch catastrophic failures (like stitching the design off the edge of the hoop) before they destroy the hoop or the machine.

The "Why" Behind Smooth Stitching

The close-ups show the presser foot compressing the fabric just milliseconds before the needle strikes.

Physics of Quality:

• Presser Foot: Holds the sandwich together.
• Backing: Provides the rigidity the fabric lacks.
• Hoop: Provides the tension.

If any one of these fails, the design fails.

• If the backing is too light -> Introduction of waves.
• If the hoop is loose -> Introduction of puckering.
• If the presser foot is too high -> Introduction of skipped stitches.

Don't Ignore the "Boring" Hardware

The video briefly shows the thread stand. In a real shop, this is a dusty, static-filled danger zone.

Hidden Consumables:

• Compressed Air / Brush: Keep the thread guides clean.
• Silicone Spray: If thread is snapping constantly due to friction/heat, a tiny bit of silicone spray on the thread spool (not the machine components!) can act as a lubricant.
• Needles: Keep sizes 75/11 and 80/12 on hand. 75/11 is the "Goldilocks" size for standard T-shirts.

Efficiency isn't just machine speed; it's throughput. If loading a shirt takes you 5 minutes because you are eyeball-measuring every chest logo, you are losing money. Professional shops rely on standardized hooping stations. These tools ensure that "Left Chest" is in the exact same spot on Shirt #1 and Shirt #500, eliminating the need to measure every single garment.

Texture and Shading

At 07:45, the dark maroon shading provides depth. Notice the density is lighter here.

• Rule of Thumb: If you stack heavy density on top of heavy density, you create a "bulletproof patch" that will feel uncomfortable to wear.
• Digitizing Tip: When covering a large area on a T-shirt, ask your digitizer for "Lite density" or "Trapunto" effects to keep the drape soft.

The Finish Line: Quality Control

The laser crosshair verifies the final position. But the job isn't done until the cleanup is finished.

Operation Checklist (Post-Run)

• Thread Trimming: Snip jump stitches flush with the fabric.
• Backing Removal: Trim Cutaway stabilizer with round-tip scissors. Leave about 1/2 inch of backing around the design. Do not cut flush to the stitch! It will eventually separate.
• Steam: Using a hand steamer (or a hover press) relaxes the hoop ring marks and settles the thread into the jersey knit.
• Underside Inspection: The "Bobbin strip." You should see a white strip of bobbin thread taking up the middle 1/3 of the satin column width. If the back is solid top-thread color, your top tension is too loose.

Quick Troubleshooting: Symptom → Fix

The Upgrade Path: Moving from Hobby to Profit

The demonstration proves that 2 heads are better than one, but only if your workflow supports them. Here is a commercial roadmap to guide your growth:

Level 1: Stability Upgrade (The Consumable Fix)

• Problem: Puckering and wavy designs.
• Solution: Switch to correct 3.0oz Cutaway stabilizers and use size 75/11 ballpoint needles for knits.

Level 2: Efficiency Upgrade (The Tool Fix)

• Problem: Hooping takes too long, is crooked, or hurts your wrists (Hoop Burn).
• Solution: Invest in hoop master embroidery hooping station systems for consistency, or switch to Magnetic Hoops to speed up loading and save delicate fabrics.

Level 3: Capacity Upgrade (The Machine Fix)

• Problem: You are turning down orders because you can't stitch fast enough.
• Solution: It is time to scale. Moving to a dedicated multi-needle system is the only way to break the bottleneck. At SEWTECH, we provide the machines and the ecosystem (hoops, stabilizers, threads) to make that transition seamless, offering commercial durability without the intimidating learning curve of industrial giants.

Master the rhythm, respect the physics of the fabric, and let the machine do the heavy lifting. That is how you turn embroidery into a business.

FAQ

• Q: What is the safest pre-flight checklist for a Dahao touchscreen commercial multi-head embroidery machine before running a 24,844-stitch design on Jersey knit T-shirts?
  A: Do a 60-second pre-flight check (needle, bobbin, lint, oil, speed) before you press start—this prevents most “instant rejects.”
  • Inspect: Feel needle tips for burrs; replace any needle that “catches” a fingernail.
  • Clean: Remove lint in the bobbin area; load a fresh bobbin (or confirm it can finish a long run).
  • Oil: Add oil to the rotary hook if the machine manual calls for it on a time schedule.
  • Set: Limit speed to about 700–800 SPM for dense stitching on knit to reduce breaks and friction burn.
  • Success check: Startup sound is a unified, synchronized rhythm across heads (no sharp “one-head louder” beat).
  • If it still fails: Stop and re-check the full thread path on the problem head before touching tension knobs.
• Q: How do I hoop Jersey knit T-shirts in tubular hoops to prevent puckering and “bulletproof vest” stiffness on high-stitch-count commercial embroidery designs?
  A: Hoop “taut, not stretched,” and pair the hoop tension with heavy cutaway stabilizer for dense designs.
  • Choose: Use cutaway stabilizer on thin/stretchy tees; for a very dense design, use about 2.5–3.0 oz cutaway (float a second layer if needed).
  • Hoop: Tighten until the fabric feels like a trampoline, then stop—do not distort the knit ribs into waves.
  • Avoid: Do not “pull and tweak” after loading on multi-head runs; inconsistency between heads creates mismatched registration.
  • Success check: After unhooping, the area around the embroidery stays flat instead of relaxing into ripples.
  • If it still fails: Add another cutaway layer or reduce speed; re-evaluate whether the design density is simply too heavy for the garment feel you want.
• Q: How can I diagnose and fix fabric flagging on a commercial multi-head embroidery machine during the first 30 seconds of a tatami fill on T-shirts?
  A: Stop immediately when flagging appears; re-hoop or add stabilizer—flagging does not “work itself out.”
  • Watch: Look between the needle and hoop edge during the first fill stitches for fabric bouncing.
  • Listen: Identify a sharp “slap” sound (flagging) versus a dull rhythmic thud (healthy sew-out).
  • Fix: Re-hoop for better hold and/or add another stabilizer layer underneath.
  • Success check: Fabric bounce stays under about 1–2 mm and the machine sound becomes consistently dull and rhythmic.
  • If it still fails: Replace worn/slippery plastic hoops or upgrade to higher-grip hoop options (often magnetic frames) for unstable fabrics.
• Q: What is the fastest way to troubleshoot birdnesting (nesting under the needle plate) on a commercial multi-head embroidery machine when the machine makes a grinding noise?
  A: Rethread completely first—most birdnesting comes from the top thread having effectively zero tension due to misthreading.
  • Stop: Hit stop immediately to prevent a bigger jam and potential damage.
  • Rethread: Remove the top thread and rethread from cone to needle, ensuring the thread seats into the tension discs.
  • Check: Confirm the first stitches anchor properly and thread tails are controlled/trimmed.
  • Success check: Stitching restarts without a “thump-thump-thump” knot forming underneath and the underside shows a normal bobbin strip rather than a tangled wad.
  • If it still fails: Inspect for lint in tension discs/check spring area and verify the thread path is identical on both heads.
• Q: How do I verify correct top tension and bobbin balance on a commercial embroidery machine using the “bobbin strip” underside inspection?
  A: Use the underside “bobbin strip” as the final judge; adjust only after confirming the thread path is correct.
  • Inspect: Flip the garment and look at satin columns—bobbin thread should form a visible strip in the middle portion, not disappear.
  • Interpret: If the back is solid top-thread color, the top tension is too loose (often misthreaded rather than a knob problem).
  • Compare: If Head #1 is good and Head #2 is loopy, check Head #2 thread path before touching tension knobs.
  • Success check: Underside shows a consistent bobbin strip and the top side has no loops and minimal bobbin show-through.
  • If it still fails: Clean lint from the tension area and re-test with the same file at a moderate speed.
• Q: What mechanical safety steps should operators follow when threading needles or working near the needle bar and presser feet on a commercial embroidery machine?
  A: Treat the needle bar zone as live machinery—lock out motion before hands go in.
  • Engage: Use the machine’s Stop/Lockout function before threading, trimming near needles, or clearing thread.
  • Keep clear: Keep fingers, tweezers, and snips away from the needle bar/presser feet when the machine is powered.
  • Assume movement: Expect the machine to jump to a start point unexpectedly, especially around start points and color changes.
  • Success check: Operator hands never enter the needle area unless motion is disabled and the machine is confirmed stopped.
  • If it still fails: Standardize a shop rule—no in-needle-area work unless the stop/lockout step is verbally confirmed.
• Q: What magnetic hoop safety rules should embroidery shops follow when using industrial magnetic embroidery hoops for T-shirts to reduce hoop burn?
  A: Magnetic hoops are fast and reduce abrasion, but they require strict pinch- and medical-device safety habits.
  • Protect: Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Control: Keep fingers out of the closing path—magnets can snap together hard enough to cause blood blisters.
  • Load smart: Place the hoop parts down flat and bring them together deliberately (no “drop and let it slam”).
  • Success check: Fabric is clamped evenly without ring burn from over-tightening, and operators can load without hand strain.
  • If it still fails: Re-check hoop size/fit and handling technique; if clamping is uneven, switch to a frame better matched to the garment thickness.
