Perfect Placement Without Measuring: Master the Brother Dream Machine 2 (XV8550D) Camera Scan for Names, Logos, and Clean Results

If you’ve ever tried to add a name to a finished embroidery piece and felt your stomach drop—because one crooked word can ruin an otherwise beautiful project—you’re not alone. Placement is the precise moment where art meets anxiety. Even confident stitchers hesitate here because once the needle penetrates, there is no "undo" button.

The good news: the Brother The Dream Machine 2 (XV8550D) offers a technological safety net. By scanning the actual fabric inside your hoop, it allows you to position lettering directly onto a high-resolution image of your project. This guide will walk you through the process, not just pushing buttons, but mastering the physics and feel of professional placement.

Placement Panic Is Real: Why “Just Eyeballing It” Fails

When you add text to an existing design (like a delicate floral motif), your eyes play tricks on you. You are fighting "Parallax Error"—the visual distortion caused by looking at the needle from an angle rather than straight down. Additionally, you are battling three conflicting reference points: the hoop’s plastic boundary, the quilt block’s true center, and the fabric’s subtle grain distortion.

In the demo, the objective is straightforward: add the name “Becky” to a pre-stitched floral/hummingbird design on light blue cotton/quilt-weight fabric using the standard 9.5" x 14" hoop. The camera scan is the shortcut that turns this from a high-stakes gamble into a predictable process.

One reality check before we begin: While this guide focuses on the Dream Machine 2, the principles of stabilization and tension apply whether you are using a $500 machine or a $15,000 industrial rig.

The “Hidden” Prep: Hoop Tension, Stabilizer, and the "Clean Scan"

Before you touch the screen, you must stabilize your canvas. The camera can show you what is inside stroke the hoop—but it cannot fix fabric that is loose, over-stretched, or poorly stabilized. If your foundation is weak, the perfect digital placement will still result in a distorted physical embroidery.

Essential Tool Kit

• Machine: Brother The Dream Machine 2 (XV8550D)
• Hoop: Standard 9.5x14 embroidery hoop (included)
• Foot: Embroidery Presser Foot W+ (ensure the "W+" symbol is visible)
• Consumables: Floriani embroidery thread, proper stabilizer (see decision tree below), and a fresh 75/11 Embroidery Needle.
• Hidden Essentials: Temporary spray adhesive (like 505) or a fabric glue pen for floating items, and a lint roller.

The Sensory Hooping Check (The "Drum" Test)

Novices often under-tighten hoops due to fear of breaking them. Here is the sensory standard for a secure hoop:

• Tactile: The fabric should feel taut and smooth, with zero ripples near the inner ring.
• Auditory: If you gently tap the fabric, it should make a dull thump-thump sound, similar to a drum skin.
• Visual: The grain of the fabric must remain square. If your vertical woven threads look like parentheses ( ), you have pulled too made tight and distorted the fabric ("Trampolining").

Why "Hoop Burn" Happens: Traditional plastic hoops rely on friction and extreme pressure to hold fabric. This often crushes the fibers, leaving a shiny ring known as "hoop burn." If you are working on delicate velvets or need to hoop faster for production, many professionals switch to a magnetic embroidery hoop. These use vertical magnetic force rather than friction, securing the fabric without crushing the fibers, which is essential for high-end garment work.

Warning: Project Safety Alert.
Keep fingers, long hair, jewelry, and loose sleeves away from the needle area. Do not attempt to adjust the fabric while the hoop is moving during the scan. A moving embroidery unit has enough torque to break a finger or shatter a hoop if obstructed.

Prep Checklist (Pre-Flight Sequence)

• Check Needle: Is it fresh? A burred needle causes thread shreds.
• Check Bobbin: Is the bobbin thread showing? Ensure no lint is trapped in the race.
• Clear the Deck: Remove scissors, pins, or scrap fabric from the hoop area. The camera sees everything.
• Lint Roll: Run a lint roller over the fabric. Stray threads look like "cracks" to the scanner.
• Verify Foot: Ensure the "W+" foot is attached securely. A loose foot can wobble and distort scan calibration.


Clean Lettering Starts on the Screen: Typography and Sizing

In the interface, select your font carefully. The demo chooses a clean serif style (Times New Roman-esque), which is excellent for readability.

1. Input “B” in uppercase.
2. Switch tabs to lowercase to type “ecky”.
3. Press Set to finalize the object.

Expert Note on Font Physics:

• Thin Serifs: Risky on terry cloth or fleece; the texture will swallow the thin columns.
• Bold Block: Better for textured fabrics but requires solid stabilization to prevent pulling.

If you are personalizing for customers, treat your font choice like a contract. Always verify spelling before pressing Set. It is much cheaper to fix a typo on a screen than to pick out stitches with a seam ripper.

The Camera Scan Moment: Getting a Real-World View

Press the Camera Icon above the design workspace. This initiates the scanning sequence.

What to Expect (Sensory Anchor):

• Movement: The hoop will move aggressively to the corners of its limits. This is normal.
• Sound: You will hear the stepper motors whining as they position the frame.
• Visual: The screen will display a "Recognizing" bar as it stitches multiple snapshots together.

This feature shines when navigating physical obstacles. For example, if you are embroidering a name above a shirt pocket, the scan reveals exactly where the pocket seam lies so you don't accidental stitch the pocket shut.

Understanding Limits: Many users ask, "Can I scan a bigger area?" You are limited by the physical hoop size. If you are researching brother embroidery hoops sizes, remember that the camera can only see what fits inside the attachable frame. For larger projects, you must use precise "re-hooping" techniques or split designs, but the scan area is always finite.

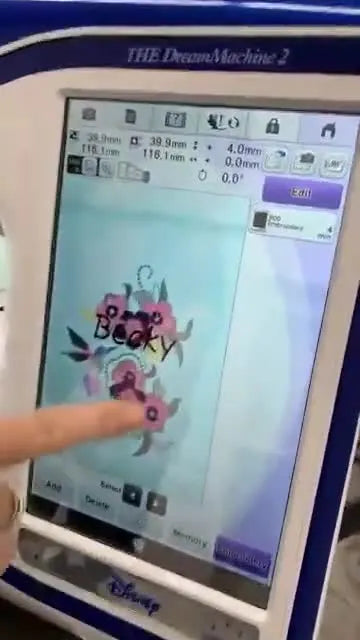

On-Screen Placement Ritual: The "Drag and Drop"

Once the scan renders, you will see your fabric's grain, texture, and the existing embroidery on screen. The text "Becky" is an overlay.

The 3-Step Adjustment:

1. Resize: Scale the text down if it crowds the hummingbird. Rule of thumb: Leave at least 15mm-20mm of negative space between designs to avoid visual clutter.
2. Rotate: Use the rotation wheel (start with 1-degree increments) to align the text baseline with the vine's curve.
3. Position: Drag the text with your finger or stylus.

The "Stability" Factor: If you find yourself constantly fighting to get the fabric straight in the hoop so the scan looks good, your issue isn't the camera—it's your hooping station. A dedicated hooping station for machine embroidery ensures that every shirt or quilt block is loaded squarely, meaning you spend less time rotating text on screen and more time stitching.

Stitch It With Confidence: Execution and Monitoring

With placement finalized:

1. Press OK.
2. Lower the presser foot (Button usually lights up Green).
3. Press Start.

The "First 100 Stitches" Rule: Do not walk away. Watch the first 100 stitches. This is when 90% of disasters happen (thread nests, fabric bunching).

• Sound Check: A smooth chuh-chuh-chuh rhythm is healthy. A sharp tick-tick-tick suggests the needle is hitting a burr or the hoop edge.
• Visual Check: The top thread should lay flat. If you see loops, your top tension is too loose. If the bobbin thread pulls to the top, your top tension is too tight.

For those scaling up to small business production: "Can I do multiple patches?" Yes. However, effective batching requires strategic hooping for embroidery machine workflows where you plan spacing for cutting and edging before you scan.

Operation Checklist (The "During Stitching" Watch)

• Hand Safety: Hands are visible and clear of the moving carriage.
• Cable Management: Ensure the hoop doesn't snag the power cord or mouse cable.
• Fabric Watch: Is the fabric "flagging" (bouncing up and down)? If yes, pause and add a layer of water-soluble topping or press down gently with a stylus (keep fingers away!).
• Sound Audit: Listen for the "birdnesting" sound—a grinding noise that means thread is tangling in the bobbin case.


Stabilizer Decision Tree: The Physics of "Puckering"

The video shows Floriani stabilizers, but selecting the right one is a science. Stabilizer is the foundation of your house; if it is weak, the embroidery will collapse (pucker).

Use this logic flow to choose the right backing for standard lettering:

Decision Tree: Fabric Type $\to$ Stabilizer Solution

1. Is the fabric stretchy (T-shirt, Jersey, Spandex)?
   • YES: Cutaway Stabilizer. (Must remove stretch). Optional: Fuse it with temporary spray.
   • NO: Go to #2.
2. Is the fabric textured/fluffy (Towel, Fleece, Velvet)?
   • YES: Tearaway/Cutaway Combo + Water Soluble Topper. (Topper prevents stitches sinking).
   • NO: Go to #3.
3. Is the fabric stable woven (Quilt Cotton, Denim, Canvas)?
   • YES: Tearaway Stabilizer. (Clean removal). Pro Tip: Use two layers of medium weight rather than one layer of heavy.

If you struggle with "hoop marks" on delicate fabrics when using firm stabilizers, consider a magnetic hoop for brother dream machine. Because it clamps without friction, it reduces the burn marks that are common when trying to secure thick stabilizers in standard plastic hoops.

Warning: Magnet Safety Protocol.
High-quality magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together instantly, causing blood blisters or crushed fingers. Handle with deliberate care.
* Electronics: Keep them 6+ inches away from pacemakers, credit cards, and computerized machine screens.

"It Looked Perfect on Screen… Then Shifted": Troubleshooting Guide

The scan was perfect, but the stitch-out is crooked. Why? Usually, it is physics, not software.

Ergonomics & Efficiency: Saving Your Wrists

If you do one project a month, standard hoops are fine. If you are doing 50 shirts for a family reunion, standard hoops will hurt your wrists and slow you down.

• The Problem: Repetitive motion injury and "hooping fatigue" lead to crooked placement.
• Level 1 Fix: Use a machine embroidery hooping station to hold the outer ring static while you press the inner ring.
• Level 2 Fix: Upgrade to a brother magnetic hoop (or generic equivalent). This eliminates the need to unscrew and re-screw the ring. You simply place the fabric and snap the magnets on.

For businesses encountering a production ceiling, this is the pivot point where you assess if you need a multi-needle machine (like the SEWTECH series) which allows you to hoop the next garment while the current one is stitching.

The Bundle & Software: Managing Expectations

The video details a bundle including BES4 Dream Edition software.

• Software Role: This creates the design files (.pes). It allows for custom fonts and merging designs on your PC before transferring to the machine.
• Compatibility: While the machine is excellent, verified software compatibility is key. If purchasing separately, always check if your current PC operating system supports the dongle/drivers.


Machine Health: The Sound of Success

Veronica notes the machine is quiet. A healthy embroidery machine should hum, not rattle.

• Maintenance: Clean the bobbin area every 3–4 bobbins. Lint accumulation changes tension, which ruins lettering clarity.
• Needle Life: Change your needle every 8 hours of stitching time or after any "crunch" sound. A $1 needle protects a $50 garment.


Can You Batch Produce?

Using the large hoop for multiple patches is possible but risky for beginners.

• Risk: If the thread breaks on patch #3 and shifts the fabric, patches #1 and #2 are likely ruined too.
• Mitigation: Use a very strong adhesive stabilizer (Sticky back) to ensure absolutely zero movement across the large field.

Setup Checklist (Batching)

• Clearance: Ensure the hoop arms won't hit the wall or other machines during the wide travel required for a large hoop.
• Bobbin: Start with a full bobbin. Running out mid-batch often creates alignment errors upon restart.
• Color Batching: Arrange files to minimize color changes (stitch all Color 1, then all Color 2).


The Reveal: Validating the Result

The final result shows "Becky" aligned perfectly. This validates the workflow: Hoop Tight $\to$ Scan Clean $\to$ Place Logic $\to$ Monitor Stitch.

The "Scan" feature gives you the confidence to press Start, but your preparation (stabilizer and tension) ensures the machine can deliver what the camera promised.

The Upgrade Path: From Hobby to Production

If you find yourself loving the result but hating the process (too slow, too hard on hands), follow this logical upgrade path:

1. Optimization: Buy better stabilizer and dedicated embroidery scissors.
2. Workflow: Invest in a how to use magnetic embroidery hoop setup to speed up hoop changes and save your wrists.
3. Scale: If you are consistently running orders of 20+ items, the "stop-change thread-start" cycle of a single-needle machine will eat your profits. This is when multi-needle machines (which hold 10-15 colors at once) become a necessary business tool.


Quick Recap: The 8-Step Success Routine

1. Hoop: Drum-tight with correct stabilizer (Cutaway for knits, Tearaway for wovens).
2. Type: Enter text, verifying spelling carefully.
3. Scan: Press the Camera icon and stand back.
4. Edit: Resize to leave negative space; Rotate to follow design flow.
5. Check: Visually confirm placement against the background image.
6. Setup: Lower foot, check green light.
7. Monitor: Watch the first 100 stitches for loops or nests.
8. Finish: Remove hoop, trim jump stitches, remove stabilizer.


Final Thought

The Brother Dream Machine 2's camera is a brilliant assistant, but you are the pilot. It can see where the fabric is, but only you can make sure the fabric stays there. Master your hooping technique, choose the right consumables, and utilize tools like magnetic frames to protect your body and your fabric. That is the secret to professional results, every single time.

FAQ

• Q: How do I get a clean camera scan on the Brother Dream Machine 2 (XV8550D) before placing lettering?
  A: A clean scan on the Brother Dream Machine 2 (XV8550D) starts with stable hooping and a debris-free surface, not screen adjustments.
  • Hoop fabric drum-tight and square the grain before tightening the hoop screw.
  • Lint-roll the fabric and remove stray threads, pins, scissors, and scraps from the hoop area.
  • Verify the Embroidery Presser Foot W+ is attached securely before scanning.
  • Success check: the scan image shows clear fabric texture and existing stitches without “random crack-like lines” caused by lint/threads.
  • If it still fails: re-hoop to remove ripples/over-stretching and re-scan—camera placement cannot compensate for loose or distorted fabric.
• Q: What is the correct hoop tightness standard (“drum test”) for the Brother Dream Machine 2 (XV8550D) to prevent puckering and placement shift?
  A: The correct hooping standard is “drum-skin” tight—taut and smooth, not over-stretched.
  • Tap the hooped fabric and listen for a dull “thump-thump” like a drum.
  • Feel for zero ripples near the inner ring and keep the fabric surface smooth.
  • Watch the fabric grain: avoid “parentheses” distortion that indicates over-tightening/trampolining.
  • Success check: fabric stays flat with no ripples and the weave remains square when viewed in the hoop.
  • If it still fails: change stabilizer strategy (often stronger backing is needed) before blaming the camera placement.
• Q: How do I stop birdnesting (thread clumps underneath) when stitching lettering on the Brother Dream Machine 2 (XV8550D)?
  A: The fastest fix is to rethread the Brother Dream Machine 2 (XV8550D) with the presser foot UP so the top thread seats in the tension disks.
  • Raise the presser foot, completely rethread the top path, and ensure the thread is correctly guided.
  • Check the bobbin area for lint in the race and clean it before restarting.
  • Start again and watch the first 100 stitches instead of walking away.
  • Success check: the machine sound becomes a smooth, even rhythm and the underside no longer forms a clumped nest.
  • If it still fails: replace the needle (a burred needle can shred thread) and recheck top tension behavior (loops vs bobbin showing).
• Q: How do I fix puckering around letters on quilt cotton or other stable woven fabric on the Brother Dream Machine 2 (XV8550D)?
  A: Puckering on stable woven fabric usually means the hoop is too loose or the stabilizer is too weak—tighten hooping and use the correct tearaway setup.
  • Re-hoop to drum-tight and avoid pulling the fabric after tightening the screw.
  • Use tearaway stabilizer for stable wovens; consider two layers of medium weight instead of one heavy layer.
  • Monitor the first 100 stitches and stop early if the fabric starts drawing in.
  • Success check: the fabric stays flat around the lettering with no rippled “ring” forming as stitches build.
  • If it still fails: move up to a stronger stabilization approach (cutaway is often used when movement persists) and reassess hooping technique before resizing fonts.
• Q: What stabilizer should I use for lettering on the Brother Dream Machine 2 (XV8550D) for T-shirts, towels/fleece, and quilt cotton?
  A: Use the fabric-type decision rule: cutaway for stretch, combo + topper for texture, tearaway for stable wovens.
  • Choose cutaway stabilizer for stretchy knits (T-shirt, jersey, spandex) to remove stretch; optionally fuse with temporary spray.
  • Choose a tearaway/cutaway combo plus a water-soluble topper for textured/fluffy fabrics (towel, fleece, velvet) to prevent sink-in.
  • Choose tearaway stabilizer for stable woven fabrics (quilt cotton, denim, canvas); two medium layers can be a safe starting point.
  • Success check: lettering columns stay crisp without sinking (textured fabrics) and the fabric does not pucker after removal (wovens/knits).
  • If it still fails: reduce thin serif fonts on high texture and strengthen stabilization before changing placement settings.
• Q: What safety rules should I follow during the Brother Dream Machine 2 (XV8550D) camera scan and start sequence?
  A: Keep hands and anything loose away from the moving embroidery unit—do not adjust fabric while the Brother Dream Machine 2 (XV8550D) hoop is moving.
  • Move fingers, hair, jewelry, and loose sleeves clear before pressing the camera scan icon or Start.
  • Clear the hoop travel area so the moving frame cannot hit tools, cords, or fabric piles.
  • Lower the presser foot correctly before starting and stay present for the first 100 stitches.
  • Success check: the hoop travels corner-to-corner without obstruction and the stitch-out begins without sudden impacts or “tick-tick” collision sounds.
  • If it still fails: stop immediately, remove the obstruction, and re-run the scan—never “hold” fabric in place while the carriage moves.
• Q: What are the magnet pinch and electronics safety rules when using a magnetic embroidery hoop for the Brother Dream Machine 2 (XV8550D)?
  A: Treat magnetic hoops as industrial clamps—control the snap and keep strong magnets away from sensitive items.
  • Place magnets deliberately; do not let magnets slam together (pinch hazard and blood blisters are common).
  • Keep magnets at least 6 inches away from pacemakers, credit cards, and computerized screens.
  • Store magnetic components so they cannot jump together unexpectedly.
  • Success check: magnets seat smoothly without sudden snapping, and fabric is held firmly without crushing/shiny hoop burn.
  • If it still fails: slow down the handling process and reposition with two-handed control—rushing magnet placement is the usual cause of injury and misalignment.
• Q: When embroidery hooping on the Brother Dream Machine 2 (XV8550D) feels slow or causes hoop marks and wrist fatigue, what is the step-by-step upgrade path?
  A: Use a three-level approach: technique first, then workflow tools, then production-capacity upgrades if volume demands it.
  • Level 1 (technique): improve stabilizer choice and hoop to drum-tight to reduce shifting and rework.
  • Level 2 (tooling): use a hooping station to keep items square and consider a magnetic hoop to reduce hoop burn and speed hoop changes.
  • Level 3 (capacity): if frequent batches make single-needle thread changes the bottleneck, consider a multi-needle machine for production efficiency.
  • Success check: placement takes fewer retries, hoop changes feel easier on wrists, and the first-100-stitches monitoring shows fewer nests/shifts.
  • If it still fails: document the exact failure point (hooping, scan, first stitches, or mid-run shift) and address that step specifically instead of changing multiple variables at once.
