Pfaff Creative Icon 2 Embroidery Unit Unboxing: The Red Travel Clip That Can Scare You (and How to Set Up the Hoops Safely)

Unbox Without Fear: The Master Class on Setting Up Your Pfaff Creative Icon 2

You just opened the box of your Pfaff Creative Icon 2 embroidery unit. It’s gleaming, it’s sophisticated, and frankly, it’s intimidating. If your brain is screaming, “Don’t break the expensive part,” you are already thinking like a pro.

I have spent twenty years on the factory floor and in design studios, and I have watched more high-end embroidery modules get stressed—or outright damaged—by one avoidable mistake than I care to count: powering up with the travel lock still engaged. It happens to veterans, and it happens to beginners.

This guide is not just a recap of an unboxing video. It is a preventative maintenance protocol. We are going to rebuild the standard unboxing sequence into a clean, repeatable routine that ensures calibration accuracy, protects your investment, and introduces you to the professional workflow that separates hobbyists from masters.

Keep the Pfaff Creative Icon 2 packaging foam—because it’s not “trash,” it’s structural protection

In the world of precision engineering, packaging is a component, not waste. Judy’s first point in her demonstration is the one most beginners underestimate: the foam inside this kit isn’t generic packing filler. It is a custom-molded exoskeleton designed to support the embroidery unit’s stepper motors and belt drives during transport.

The Floor-Level Protocol

Your best move is also the safest move: Lay the box flat on the floor.

Open it there, instead of trying to lift the bag and foam straight up like a suitcase on a table. When you unbox on the floor, you eliminate gravity-assist accidents. You reduce twisting torque on the chassis, accidental drops, and the kind of “one corner took the hit” impact that can knock the Y-axis arm out of alignment by a fraction of a millimeter—which is all it takes to ruin a design later.

The embroidery unit comes pre-packed in a travel bag, and the foam is integral to that system. Judy emphasizes keeping the foam so you can put the protective luggage around the outside of the protective foam again later. If you ever move houses, take the machine to a class, or send it in for service, this foam is your insurance policy.

Warning: Physical Safety Protocol
The embroidery unit is deceptive; it is heavy (dense) and awkward to hold.
* Do NOT lift it by the moving arm (the part that slides back and forth). This is the most common cause of calibration failure.
* Do NOT “catch it” with your fingers under the carriage edge.
* Do NOT use long-blade scissors or a knife near the bag fabric where you could slip and slice the material (or yourself). Cut tape slowly, keeping blades pointed away from your body.

Prep Checklist (Do this BEFORE you pull anything apart)

1. Clear the Zone: Create a 5x5 foot floor-level unboxing area.
2. Verify Orientation: Lay the box flat. Ensure the "This Side Up" arrows are actually up.
3. Preserve the Shell: Open the box and remove the shaped foam pieces intact. Do not break them.
4. Matched Set Check: Confirm the travel bag and foam stay together as a unit.
5. Safe Lift Planning: Plan your lift. Bend at the knees, keep the unit close to your core to reduce leverage on your lower back, and avoid twisting your spine while holding the weight.


Inventory the four Pfaff Creative Icon 2 embroidery hoops—especially the Grand Dream Hoop (360 x 260mm)

Once the bag is out, the inventory process begins. This is where new owners usually experience a mix of thrill (“Look at all the hoops!”) and anxiety (“Which one do I use, and why are there so many?”).

Let’s break down the lineup included with the Icon 2, translated into practical usage:

1. The 360 x 200mm Hoop (approx. 10 inches wide):
   • Use Case: Large jacket backs, home decor pillows, and long text runs. This is your standard "workhorse" for big projects.
2. The Grand Dream Hoop (360 x 260mm):
   • Use Case: Oversized masterworks, quilt blocks, and full-front sweatshirt designs.
3. The 120 x 120mm Hoop (approx. 5x5 inches):
   • Use Case: Left-chest locos, baby onesies, monogramming cuffs. This offers the best fabric stability for small items.
4. The 260 x 200mm Hoop:
   • Use Case: A versatile mid-range hoop perfect for tote bags or medium-sized garment designs.


The Grand Dream Hoop is the headline item here. Judy explains it is a double-sided / split hoop. This allows you to hoop once, stitch one side of a massive design, then rotate the hoop 180 degrees, reinsert it, and stitch the other side. The machine software calculates the split. Historically, this was an expensive add-on purchase; on the Icon 2, it is standard equipment.

The Physics of Large Hoops

From a production mindset, big hoops are both a blessing and a trap.

• The Blessing: Fewer re-hoopings and massive design potential.
• The Trap (The "Drum Skin" Effect): The larger the surface area, the harder it is to keep the fabric tension consistent in the center. A 360mm hoop has more "slack potential" than a 120mm hoop. If you are running a large hoop embroidery machine, you must treat hooping as an engineering step.
  • Tactile Check: When hooped, the fabric should feel taut like a drum skin, but not stretched out of shape. If you tap it, it should sound firm, not tubby.

Find the “missing” hoop clips in the styrofoam cutout—before they hit the trash

Judy calls out a classic unboxing fail that helps fill the trash cans of sewing rooms everywhere: accessories tucked into foam pockets are thrown away with the packaging.

She shows a small square cutout in the top styrofoam layer. Inside that recess is a bag of 16 hoop clips, tucked in tightly.

Why These Clips Matter

These aren't just spare plastic. In machine embroidery, "flagging" occurs when the fabric bounces up and down with the needle. This causes skipped stitches and bird nesting. These clips snap onto the edge of the hoop to secure the stabilizer and fabric, adding extra grip where the hoop screws might not reach.

• The Rule: If you are embroidering anything heavier than cotton broadcloth, use the clips.

Pro Tip: Start a new habit today. Every time you open a new accessory box, do a 60-second inventory sweep with a flashlight if necessary. Touch every recess of the styrofoam before you toss it.

Unstrap the embroidery unit inside the travel bag without fighting the Velcro straps

Inside the bag, Judy points out two black Velcro straps holding the unit in place. She undoes them, then does a small move that saves a lot of frustration: she tucks the loose straps between the zipper and the foam wall.

Why does this matter?

1. Scratch Prevention: Hard Velcro hooks can scratch the high-gloss finish of your machine arm.
2. Drop Prevention: If a strap flops back over the unit while you are lifting it, it can snag, causing you to lose your grip or jerk the unit abruptly.

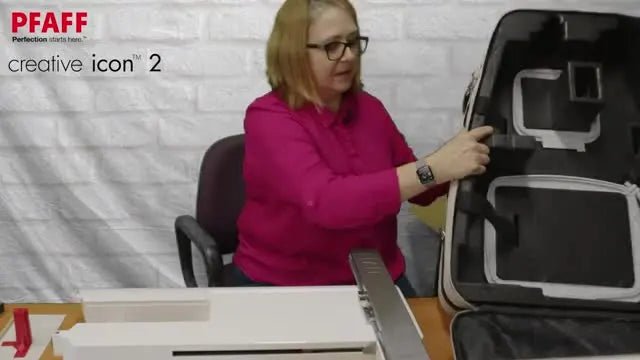

She also shows the bag’s internal organization: there are dedicated spots for the smaller hoops, and the large hoops fit in the separate inside pocket. If you are building a clean workflow, this bag layout matters. A consistent storage system reduces the chance you’ll stack hoops on top of the module arm (which is the fastest way to bend the pantograph).

The no-drama startup: remove the red travel lock clip under the Pfaff Creative Icon 2 embroidery unit

This is the Critical Control Point of the entire process. If you remember nothing else from this guide, remember this step.

Flip the embroidery unit over carefully to access the underside. In the center, you will find the red travel locking clip.

The Removal Protocol

Judy’s method is simple, but let's add the sensory details to ensure you do it right:

1. Locate: Find the red mechanism in the center of the chassis underside.
2. Actuate: Pinch the two side tabs inward toward each other. You should feel a spring resistance.
3. Extract: Pull the clip straight out. It should come out with zero force if the tabs are pinched correctly.




What Is This Clip?

This is a mechanical lock that physically binds the X and Y drive belts and gears. It prevents the embroidery arm from sliding around during shipping.

• The Consequence: If you turn the machine on with this clip instituted, the stepper motors will attempt to "home" (find their starting position). They will apply torque against a solid plastic lock. This results in a grinding noise, motor strain, and potentially a stripped belt.

Setup Checklist (Your "Pre-Flight" Sanity Check)

1. Lock State: Confirm the red travel locking clip is removed.
2. Safe Storage: Place the red clip immediately into the travel bag's designated pocket. Do NOT put it on your sewing table where it will get lost.
3. Foam Reset: Re-seat the foam in the bag so it maintains its shape.
4. Hoop Clearance: Ensure hoops are stored in their pockets, not resting on the module arm.
5. Debris Check: Final scan of the styrofoam for any remaining clips or feet.

Why that red travel clip causes scary noise: calibration force meets a locked arm

Judy describes the symptom; let’s understand the mechanics so you don’t panic.

When you flip the power switch, your Pfaff Creative Icon 2 performs a "Handshake" with its components. The embroidery unit is commanded to move to its varying limits (X-0, Y-0 coordinates) to establish where the needle is relative to the hoop.

The noise is the sound of Calibration Force vs. Mechanical Lock.

• Normal Sound: A rhythmic, robotic hum or low-pitched "zeep-zeep."
• Danger Sound: A loud, jarring "GRIND" or a rapid-fire "THUNK-THUNK-THUNK."

This is "sensory feedback." In a healthy setup, startup motion is smooth. If you hear the grind, it is the machine screaming that it cannot move.

Warning: Emergency Stop Protocol
If the machine makes a loud, abnormal grinding sound on startup, or if the arm acts stuck:
1. Power OFF immediately. Do not wait for it to stop.
2. Do NOT force the arm by hand.
3. Remove the unit and flip it over.
4. Check the red clip. 99% of the time, this is the culprit.

Quick troubleshooting: funky startup noise or arm won’t move on the Pfaff Creative Icon 2 embroidery unit

In a commercial shop, we use a "Tiered Troubleshooting" approach to save time and money. We strictly follow the path of Least Invasive → Most Invasive.

Symptom: Machine makes a funky noise upon startup, or the arm won’t move.

Tier 1 Check (User Error - 90% Probability):

• Action: Power off. Check underside of the unit.
• Look For: The Red Travel Lock Clip.
• Fix: Pinch and remove.

Tier 2 Check (Connection Error - 9% Probability):

• Action: Power off. Unplug the embroidery unit from the machine body.
• Look For: Dust or lint in the connection port.
• Fix: Blow out the port (canned air) and reconnect firmly until you hear/feel the latch engage.

Tier 3 Check (Mechanical Failure - 1% Probability):

• Action: You have engaged Tiers 1 and 2, and the noise persists.
• Fix: Call your dealer. Do not open the casing yourself.

If you’re the type who likes a label system, put the red clip in a small zip bag and label it "TRAVEL LOCK - KEEP" and store it in the travel bag pocket—so it’s always with the unit, but never “mysteriously missing.”

A practical hoop decision tree: pick the right hoop size first, then-stabilize like you mean it

The video focuses on unboxing, but unboxing is useless if you don't know how to load the weapon. The next real-world question is always: “Which hoop do I use?”

Do not use the "biggest hoop because I can" strategy. Using a 360mm hoop for a 50mm design wastes stabilizer and reduces fabric tension.

Decision Tree (Design Size → Hoop Choice)

1. Is your design HUGE? (Larger than 260 x 200mm?)
   • Yes → Grand Dream Hoop (360 x 260mm). Note: Requires precise splitting in software.
   • No → Go to Step 2.
2. Is your design LARGE? (Larger than 120mm, fits in 260mm?)
   • Yes → 260 x 200mm hoop. Note: The daily driver for most adult garments.
   • No → Go to Step 3.
3. Is your design SMALL/DETAIL FOCUSED? (Monograms, pockets?)
   • Yes → 120 x 120mm hoop. Note: Highest stability, lowest distortion.
   • No → Use the 360 x 200mm hoop if you need extra room for layout manipulation.

The Missing Link: The Stabilizer Variable

Hoop choice is only 50% of the equation. The other 50% is the Stabilizer Sandwich.

• Stretchy Fabric (Polyester, Knits): You MUST use Cutaway stabilizer. Tearaway will eventually blow out, and your design will distort.
• Woven Fabric (Cotton, Denim): Tearaway stabilizer is standard.
• Napped Fabric (Towels, Velvet): You need a Water Soluble Topping on top (to keep stitches from sinking) and a stabilizer on the bottom.

If you are setting up a repeatable workflow for embroidery machine hoops, build a small physical library: stitch one sample per fabric type you commonly use, write the stabilizer settings on the back with a permanent marker, and keep them on a relentless ring for reference.

When hooping feels slow or leaves marks: a realistic upgrade path

Unboxing videos show the "Happy Path." They do not show the frustration of hooping a thick towel, the pain in your wrists after hooping 50 corporate polos, or the heartbreak of "Hoop Burn" (those shiny ring marks) on a delicate velvet pillow.

Here is a commercial-grade perspective on when to upgrade your tools.

The Pain Point Diagnosis

• The Struggle: You are wrestling to close the hoop screw.
• The Damage: The inner ring keeps popping out, or the fabric slips.
• The Burn: You unhoop the item, and the crushed fibers never bounce back.

The Modern Solution: Magnetic Frames

If you encounter these issues, the industry standard solution is to move toward Magnetic Hoops. Unlike screw-tightened hoops, magnetic embroidery hoops use powerful magnets to sandwich the fabric.

1. Speed: No unscrewing. Just pull apart, place fabric, snap together. This cuts hooping time by 50%.
2. Safety: No "hoop burn." Because there is no friction-lock inner ring rubbing the fabric, delicate fibers like velvet or silk are not crushed.
3. Hold: For thick items (backpacks, leather), magnets adjust automatically to the thickness, whereas plastic hoops often snap or fail to close.

Warning: Magnetic Field Safety
Magnetic frames use industrial-strength neodymium magnets.
* Pacemakers: Keep these hoops at least 6 inches away from pacemakers or ICDs.
* Pinch Hazard: These magnets snap together with force. Keep fingers clear of the mating surfaces to avoid painful blood blisters.
* Electronics: Do not place them directly on laptops or phones.

If you’re exploring a pfaff magnetic embroidery hoop, treat it like a compatibility project: confirm your specific machine model (Creative Icon 2) and the arm attachment width before purchasing. Companies like SEWTECH offer compatible magnetic frames that bring industrial efficiency to home machines.

A stable machine embroidery hooping station can also be paired with these hoops to ensure your design is perfectly straight every single time, removing the "eyeball it" error factor.

The “Hidden Consumables” Inventory (Don't Start Without These)

The box gives you the hardware, but you need the "software" (consumables) to run. Beginners often fail because they lack these three cheap items:

1. Embroidery Needles: The needle on the machine is a starter. Buy a pack of Size 75/11 Embroidery Needles (Red Tip usually) and Ballpoint Needles for knits to avoid cutting holes in T-shirts.
2. Temporary Spray Adhesive (e.g., 505 Spray): Used to lightly tack fabric to stabilizer without hooping the fabric itself (floating method). Essential for un-hoopable items.
3. Bobbin Thread: Your machine uses specific weight bobbin thread (usually 60wt or 90wt). Stock up on pre-wounds or a large cone; you will run out faster than you think.

The “hoops-first” organization habit that saves hours over a year

Judy’s bag tour hints at something bigger: Organization is a Quality Control technique.

When hoops, clips, and the travel lock clip live in predictable places, you stop doing the two most expensive things in embroidery:

1. Search Time: Hunting for that one clip while the machine sits idle.
2. Panic Errors: Rushing startup and forgetting the travel lock.

If you’re running any embroidery machine pfaff setup for real output (gifts, club gear, or a side hustle), build a “Start-of-Job” routine:

• Step 1: Hoop selection and Stabilizer prep.
• Step 2: Clips and accessories staged on the table.
• Step 3: Travel lock confirmed removed.
• Step 4: Only then do you power on and load the design.

Start this habit now, while the box is fresh.

Operation Checklist (Ready for the First Stitch)

1. Tool Match: Design size confirmed against hoop size (rule of thumb: leave 20% margin).
2. Hardware Check: Hoop clips are located and ready for use on the Grand Dream Hoop.
3. Freedom of Movement: Verify visually that the embroidery unit arm has no obstructions and the travel lock is OUT.
4. Archive: Store the red travel clip in the bag pocket immediately.
5. Environment: The machine has clearance on all sides for the hoop to travel fully without hitting a wall or coffee mug.

If you’re excited to explore what Pfaff includes across the lineup of pfaff embroidery machines, this unboxing routine remains the universal standard: Protect the module, inventory the accessories, and respect the mechanics.

Welcome to the guild. Your machine is ready. Now go make something beautiful.

FAQ

• Q: What should be checked first when a Pfaff Creative Icon 2 embroidery unit makes a loud grinding noise or the embroidery arm will not move on startup?
  A: Power off immediately and remove the red travel locking clip from the underside of the Pfaff Creative Icon 2 embroidery unit before doing anything else.
  • Action: Switch the machine OFF right away; do not let it “fight” the lock.
  • Action: Remove the embroidery unit, flip it over, pinch the two side tabs on the red clip, and pull the clip straight out.
  • Success check: The next power-on sounds like a smooth, rhythmic hum (not GRIND/THUNK), and the arm can home freely.
  • If it still fails: Power off, unplug/replug the embroidery unit and check for lint/dust in the connection port; if noise persists, contact the dealer (do not open the casing).
• Q: How do you safely remove the red travel lock clip under the Pfaff Creative Icon 2 embroidery unit without forcing anything?
  A: Pinch the two side tabs inward and pull the red travel lock clip straight out—no force should be needed.
  • Action: Place the unit on a stable surface, underside up, and locate the red clip in the center.
  • Action: Pinch both tabs toward each other, then pull straight out (do not twist).
  • Success check: The clip releases smoothly and the embroidery arm moves normally during the next startup calibration.
  • If it still fails: Re-pinch the tabs more firmly and keep the pull straight; if it feels stuck, stop and recheck you are pressing both tabs evenly.
• Q: Where are the Pfaff Creative Icon 2 hoop clips during unboxing, and how do you avoid throwing them away with the foam?
  A: The Pfaff Creative Icon 2 hoop clips are often tucked into a small square cutout in the top styrofoam layer, so do a deliberate foam-pocket sweep before discarding packaging.
  • Action: Inspect every foam recess (use a flashlight if needed) before any foam goes to trash.
  • Action: Find the small square cutout and remove the bag of hoop clips; store them with the hoops immediately.
  • Success check: You can account for the clips before cleanup, and no “missing accessory” surprise happens later.
  • If it still fails: Re-check the foam layers and the travel bag pockets before assuming the clips were not included.
• Q: How tight should fabric be in a Pfaff Creative Icon 2 360 mm hoop to prevent slack in the center (the “drum skin” problem)?
  A: Hoop fabric so it feels taut like a drum skin but not stretched out of shape, especially in large Pfaff Creative Icon 2 hoops.
  • Action: After hooping, tap the fabric surface and feel for even firmness across the center area.
  • Action: Re-hoop if the center feels “tubby,” ripples, or can be pushed down easily.
  • Success check: The fabric feels uniformly firm and sounds/feels tight when tapped, with no visible distortion of the garment.
  • If it still fails: Drop to a smaller hoop size for small designs, and add hoop clips to reduce fabric/stabilizer movement at the edges.
• Q: Which Pfaff Creative Icon 2 hoop size should be used first for small monograms versus oversized designs, and what is the practical decision rule?
  A: Match the Pfaff Creative Icon 2 hoop to the design size—use the smallest hoop that comfortably fits the design instead of defaulting to the largest hoop.
  • Action: Choose 120 × 120 mm for small/detail work (monograms, pockets), 260 × 200 mm for most medium garment designs, and 360 × 260 mm Grand Dream Hoop for oversized designs that require splitting.
  • Action: Avoid using a 360 mm hoop for a tiny design to reduce stabilizer waste and improve tension control.
  • Success check: The design fits with comfortable margin and the hooped fabric stays firm without center slack.
  • If it still fails: Re-check the design dimensions in software and switch hoop sizes before changing thread tension or other advanced settings.
• Q: What stabilizer should be used with a Pfaff Creative Icon 2 for stretchy knits versus woven cotton, and how do you know the stabilizer choice is working?
  A: Use cutaway stabilizer for stretchy fabrics and tearaway stabilizer for woven fabrics; add water-soluble topping for towels/velvet to prevent stitch sinking.
  • Action: For polyester/knits, choose cutaway; for cotton/denim, choose tearaway; for towels/velvet, place water-soluble topping on top plus stabilizer underneath.
  • Action: Stitch a small test sample and keep notes for repeatability (a safe starting point is building a fabric/stabilizer sample library).
  • Success check: Stitches stay on top cleanly without sinking (towels/velvet), and the design does not distort or “blow out” after unhooping.
  • If it still fails: Upgrade stabilization (stronger cutaway or better topping coverage) before blaming the machine or design file.
• Q: What are the must-have consumables to start stitching on a Pfaff Creative Icon 2 right after unboxing, and what is the fastest readiness check?
  A: Do not start the first embroidery job on a Pfaff Creative Icon 2 without embroidery needles, correct bobbin thread, and temporary spray adhesive for controlled fabric/stabilizer handling.
  • Action: Stock Size 75/11 embroidery needles and ballpoint needles for knits to reduce fabric damage.
  • Action: Confirm you have appropriate bobbin thread on hand (pre-wounds or cone) so the first project does not stop mid-run.
  • Action: Keep temporary spray adhesive available for floating when hooping the fabric directly is difficult.
  • Success check: The machine can run a full test design without pausing for “missing basics” (needle/bobbin) or fabric shifting due to poor handling.
  • If it still fails: Pause and standardize a start-of-job checklist (needle type, bobbin supply, stabilizer method) before troubleshooting deeper issues.
