The Precision Protocol: Mastering Alignment on the Pfaff Creative Icon (And Surviving Bulk Production)

When you’re staring at a pocket, a logo, and a hoop that’s not quite square, the stress is palpable. You know the texture of that fear: the tightness in your chest because you realize "close enough" on the screen often means "crooked" on the finished garment.

The good news is that the Pfaff Creative Icon has a built-in "Reset Button" for this exact scenario. It’s called Precise Positioning. It allows you to align your design to the fabric's reality, rather than forcing the fabric to match the hoop's fantasy.

In this white-paper style guide, we will deconstruct the exact 4-step workflow to rescue a crooked hooping job using the Icon’s needle-drop verification. We will then pivot to high-efficiency sewing techniques—specifically for mask making and long fabric ties—using the Narrow Edge Foot and IDT system.

Whether you are a home hobbyist or a small business owner scaling up, this guide provides the "shop floor" secrets to repeatable quality.

The “I Hooped Crooked” Panic—And Why It Happens to Experts

If you bought a high-end machine like the Creative Icon but haven’t dared to embroider on a real garment yet, you are not alone. This is what we call "Hooping Paralysis."

Here provides the calm truth: Perfect hooping is a myth. Seams, pockets, and bulky plackets make it physically impossible to clamp fabric perfectly square every time without distorting the grain.

Traditional hoops rely on friction and inner-ring pressure. If you pull too hard to straighten the grain, you stretch the fibers. When you unhoop, the fabric relaxes, and your straight embroidery suddenly puckers. This is why professionals often bypass standard hoops for strictly mechanical jobs and look toward pfaff magnetic embroidery hoop systems (or compatible magnetic frames). Magnetic hoops clamp straight down without practically "dragging" the fabric, preserving the grain interaction.

However, until you upgrade your tooling, you must master the software solution: Precise Positioning.

The “Hidden” Prep: Physics, Landmarks, and Safety

Before you touch the screen, you must perform the physical prep that prevents 90% of failures.

1. Pick Landmarks That Don't Lie

In our demo setup (a simulated shirt pocket), you need two reference points.

• The Anchor: Usually the top-left corner of the pocket.
• The Pivot: The top-right corner.
• The Rule: Choose points that are crisp. A vague fold line is not a landmark; a stitched corner is.

2. The drum-skin Fallacy

Novices are taught to hoop fabric "tight like a drum." Stop doing this.

• Sensory Check: Tap the hooped fabric. It should not sound like a high-pitched snare drum (too tight). It should sound like a dull thud, firm but with no distortion of the weave.
• Visual Check: Look at the grid lines of the weave. Are they bowing? If yes, re-hoop.

If you are doing placement-sensitive work on delicate fabrics, the friction of standard hoops often leaves "hoop burn" (white crease marks). This is a primary trigger for upgrading to magnetic embroidery hoops, which hold fabric with magnetic force rather than friction, eliminating burn marks.

Warning: Mechanical Safety
Before performing any needle-drop checks, ensure your hands are clear of the needle bar and presser foot. When the machine moves to a check position, it travels fast. Keep fingers at least 4 inches away from the strike zone.

Prep Checklist (The "Pre-Flight" Inspection)

• Needle Check: Is your needle fresh? Run your fingernail down the tip; if it catches, replace it. A burred needle deflects and ruins alignment.
• Hoop Clearance: Is the garment bulk rolled and clipped? Use Wonder Clips to secure excess fabric so it doesn't drag against the machine arm.
• Landmark ID: Mark your two points on the fabric with a water-soluble pen or chalk if the pocket corners aren't sharp enough.
• Consumables: Ensure you have enough bobbin thread. Running out mid-alignment is a workflow killer.


Hoop Selection: Why Bigger is Safer for Placement

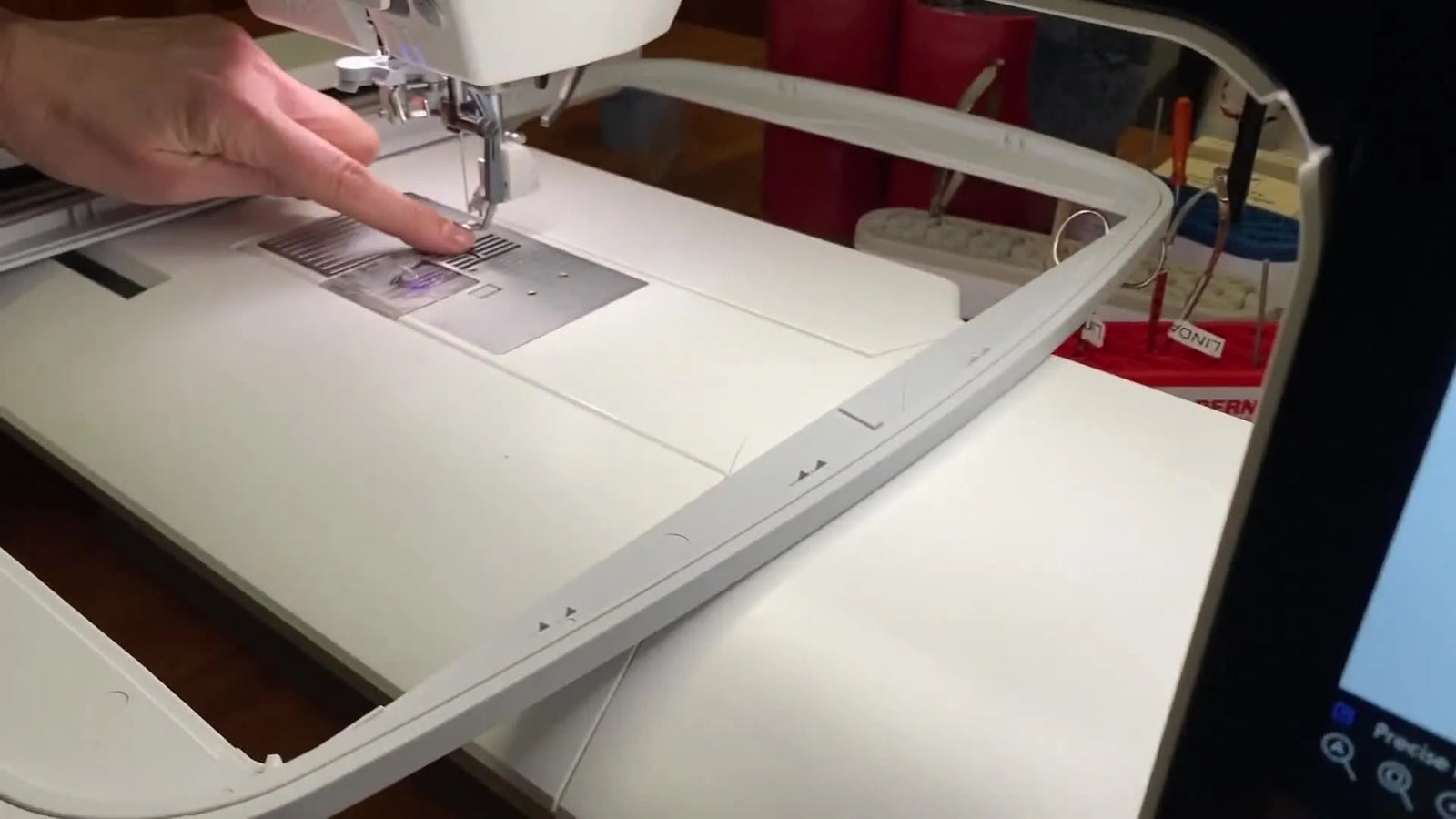

In the workflow, the Creative Supreme Hoop (360 x 260) is selected.

The Strategy: Always select a hoop significantly larger than your design for placement work.

• Why: If you use a hoop that barely fits the design, you have zero margin for error. If you hoop slightly crooked, the design might rotate out of the allowable stitch area. A larger hoop gives you "rotation room."

As you build your toolkit, you will find that a collection of various embroidery machine hoops is necessary. Don't just buy different sizes; buy different types (border frames, magnetic frames, cap frames) to match the physics of the job.

The 4-Step Precise Positioning Wizard

Navigate to the Precise Positioning menu at the bottom of the Icon’s screen. This tool works by matching specific points on your digital design to specific physical points on your hooped fabric.

Step 1: Lock the Digital Anchor (Zoom is Non-Negotiable)

You must tell the machine where on the design you want to align.

1. Drag the green crosshair on the screen to your first reference point (e.g., the bottom-left corner of a name tag).
2. The Professional Move: You typically must zoom in to 100% or more.
3. Visual Anchor: At standard zoom, the crosshair covers 3mm of space. At 100% zoom, you can place it between specific stitches. Precision requires magnification.


Step 2: The Needle-Drop Verification (The "Moment of Truth")

This is where software meets reality. You will verify that the digital point you selected in Step 1 aligns with the physical fabric.

1. Use the jog arrows to move the hoop until the needle is over the fabric landmark (the pocket corner).
2. Hand Wheel Check: Do not trust your eye from a distance. Manually turn the hand wheel (or use the needle down button) to lower the needle tip until it kissess the fabric.
3. Target: The needle tip should be exactly inside the corner divot of the pocket. If it's 1mm off, your design will be 1mm off.


Step 3: Set the Digital Pivot Point

Now, tell the machine the second point on your design to align.

1. Move the crosshair on the screen to the opposite side of the design (e.g., bottom-right corner).
2. Zoom Again: Never skip the zoom. Ensure this point is on the same horizontal plane as your first point if you want the text straight.


Step 4: Rotate to Match Reality

The machine now holds Point A (Step 2) in place and rotates the entire design around it to match Point B.

1. Use the jog arrows to move the hoop until the needle aligns with the second fabric landmark (the other pocket corner).
2. Watch the screen: The machine automatically calculates the angle (e.g., 23.84 degrees).
3. The Result: Your design is now perfectly parallel to the crooked pocket.

Setup Checklist (Alignment verification)

• Zoom Verified: Did you zoom in for both digital point selections?
• Physical Contact: Did the needle tip physically touch the fabric during validation?
• Clearance: Check the hoop path one last time. Did the rotation push the design near the plastic edge of the hoop?
• Stabilizer: Is your stabilizer (backing) floating or hooped? If floating, ensure the spray adhesive is holding firm.


Mask Making & Stabilizer Science: Managing Fabric Behavior

The video transitions to mask making, using Batik fabric and Heat n Stay fusible stabilizer.

The Physics of Weave

Why Batik? Batik is a high-thread-count, tightly woven cotton.

• The Benefit: It holds structural shape better than standard quilting cotton.
• The Drawback: Tighter weaves are harder for needles to penetrate. Use a Microtex or Sharps needle (Size 75/11 or 80/12) rather than a Universal needle to prevent "thumping" sounds.

Stabilizer as a Filter/Structure

If you lack flannel for rigidity, fusible stabilizers like Heat n Stay add body.

• Application: Fuse to the wrong side of the outer layer.
• Sensory Check: The fused fabric should feel like lightweight canvas. If it feels like cardboard, you have used a stabilizer that is too heavy (e.g., a heavy cutaway instead of a tearaway or light fusible).


The Nose Bridge Production: Material Risk

Inserting a pipe cleaner into a channel is a common hack, but it carries a hidden risk: Rust.

• The Test: Before making 50 masks, throw your pipe cleaner in a glass of warm, soapy water overnight. If the water turns orange or the wire snaps, do not usage it.
• Alternative: Use coated floral wire or aluminum nose strips designed for washing.


High-Speed Tie Production: The Narrow Edge Foot

Sewing yards of fabric ties illustrates a classic production bottleneck. The solution involves three variables: Foot, Feed, and Needle Position.

The Setup

1. Narrow Edge Foot: This foot has a metal blade (flange) in the center.
2. Review Guide: fold your 2.5-inch strip in half. Place the fold against the metal blade.
3. Needle Position 1.5 (Right): You cannot leave the needle in the center (0.0), or you will hit the metal blade. Move it to 1.5mm to the Right.

This setup creates a mechanical guide. You don't "steer" the fabric; you simply keep the fold pressing against the blade.

Warning: Magnetic Field Safety
If you upgrade to a Magnetic Hoop system for production speed, be aware these magnets are industrial strength.
* Pinch Hazard: They can snap together with enough force to bruise skin or break fingers.
* Medical Risk: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from computerized machine screens and credit cards.

Decision Tree: Fabric Support Strategy

How do you choose the right support for your project? Follow this logic path.

• Scenario A: Structured 3D Item (Mask/Bag)
  • Need: Shape retention.
  • Solution: Fusible Woven Interfacing (Heat n Stay).
  • Why: Bonds to fibers, preventing stretch in all directions.
• Scenario B: Stretchy Knit (T-Shirt/Jersey)
  • Need: Prevent embroidery destruction.
  • Solution: Cutaway Stabilizer + Ballpoint Needle.
  • Why: Knits move; tearaway will shatter and ruin the design.
• Scenario C: High-Nap Fabric (Towel/Velvet)
  • Need: Prevent stitches from sinking.
  • Solution: Water Soluble Topping (Solvy) + Tearaway Backing.
  • Why: Topping keeps stitches on top (loft); backing supports the needle penetrations.


The IDT Advantage (Integrated Dual Feed)

On the Pfaff Creative Icon, the IDT system engages a small walking foot behind the standard foot.

• The Physics: It feeds the top layer of fabric at the exact same rate as the bottom feed dogs feed the bottom layer.
• The Result: No "shifting." On a 40-inch strap, without IDT, the top layer often stretches, ending up longer than the bottom. With IDT, they end flush.


Production Workflow: Scaling from 1 to 50

If you are moving from hobby to "batch production" (e.g., team uniforms or bulk masks), your bottleneck is no longer stitch speed—it is handling time.

To Speed Up:

1. Batch Actions: Cut all strips. Then press all strips. Then sew all strips. Do not do one complete item at a time.
2. Clip Management: Use Wonder Clips, but remove them fluidly as they approach the foot. Do not stop the machine to remove a clip.
3. Hooping Efficiency: This is where professionals invest. A hoop master embroidery hooping station or similar hooping stations standardize the placement. You set the jig once, and every shirt is hooped in the exact same spot. This eliminates the need for Precise Positioning on every single shirt, saving 3–5 minutes per garment.

Operation Checklist (The "Rhythm" Check)

• Needle Position: Verified at 1.5 Right (Cleared the foot blade).
• IDT: Engaged (You should hear a rhythmic thump-thump of the specialized feed).
• Speed: Set machine to 60-70% max speed. Higher speed often causes strip feeding errors that take longer to fix than the time saved finding the pedal floor.
• Clip Bucket: Place a small bin directly to the right of your machine head to drop clips into without looking.

Troubleshooting: From Symptom to Solution

The Next Level: Automation

Mastering Precise Positioning on the Pfaff Creative Icon gives you the confidence to tackle any alignment challenge. However, as your volume grows, rely less on software fixes and more on hardware consistency.

• Level 1 (Technique): Use the methods in this guide.
• Level 2 (Tooling): Upgrade to Magnetic Hoops for faster, mark-free clamping.
• Level 3 (Scaling): If you are changing threads 15 times a shirt, consider a Multi-Needle machine.

The goal isn't just a finished product; it's a workflow that doesn't hurt your hands or your patience.

FAQ

• Q: How do I fix crooked logo placement on a Pfaff Creative Icon when the fabric was hooped slightly off-square?
  A: Use Precise Positioning with a two-point (Anchor + Pivot) needle-drop verification to rotate the design to match the garment reality.
  • Mark two crisp landmarks on the garment (often the top-left pocket corner as Anchor and top-right as Pivot).
  • In Precise Positioning, set Point A on-screen (zoom to 100%+), then jog the hoop and lower the needle tip to physically “kiss” the Anchor point.
  • Set Point B on-screen (zoom again), then jog to the Pivot landmark to let the machine calculate the rotation angle.
  • Success check: the needle tip lands exactly in both landmark corners during verification, and the on-screen angle updates without pushing the design near the hoop edge.
  • If it still fails, re-hoop with less fabric distortion and choose clearer landmarks (stitched corners beat fold lines).
• Q: What are the safest needle-drop habits to prevent finger injuries during Pfaff Creative Icon Precise Positioning checks?
  A: Keep hands out of the strike zone before any check move, because the Pfaff Creative Icon can travel quickly to verification positions.
  • Move fingers at least 4 inches away from the needle bar/presser foot area before jogging or confirming a check.
  • Lower the needle using the hand wheel or needle-down so the tip touches the fabric in a controlled way.
  • Clip/roll excess garment bulk so it cannot drag and pull your hand toward the needle area.
  • Success check: the hoop can move through the check positions with zero hand contact near the needle path.
  • If it still fails, pause and re-stage the garment (more clipping/rolling) before repeating any verification step.
• Q: How tight should fabric be hooped on a Pfaff Creative Icon to avoid puckering and grain distortion (the “drum-skin” problem)?
  A: Hoop “firm but not distorted,” not drum-tight, to avoid stretching the grain that relaxes after unhooping.
  • Tap the hooped fabric and aim for a dull thud instead of a high-pitched snare sound.
  • Visually inspect the weave grid and re-hoop if the weave lines are bowing.
  • Tighten only enough to hold stable with backing; avoid over-cranking the hoop screw.
  • Success check: the fabric surface stays flat and the weave remains straight (no rippling or bowed grain).
  • If it still fails, reduce clamping force and consider floating the fabric with adhesive spray for less friction stress.
• Q: Why does a Pfaff Creative Icon design look straight on-screen but stitch crooked on a shirt pocket, and what is the fastest fix?
  A: The fabric grain was distorted during clamping; correct it by using Precise Positioning Step 4 rotation (then prevent it by reducing hoop distortion).
  • Re-run Precise Positioning using two physical pocket-corner landmarks and needle-drop verification for both points.
  • Avoid “pulling to square” while hooping; let the pocket be crooked and rotate the design instead.
  • Keep the garment bulk rolled and clipped so it cannot tug the hoop during setup.
  • Success check: the design baseline becomes parallel to the pocket edge after the rotation is calculated.
  • If it still fails, re-hoop with less stretch and use a larger hoop to leave rotation room.
• Q: How do I prevent hoop burn (shiny/white hoop rings) when hooping garments for embroidery, and when should I switch to magnetic hoops?
  A: Reduce friction and over-tightening first; if hoop burn keeps happening, magnetic hoops are a common next step because they clamp down without heavy friction.
  • Loosen the hoop screw slightly and stop chasing “drum-tight” tension.
  • Use steam to help recover fibers after hooping marks appear.
  • For delicate fabrics, float the fabric with adhesive spray so the hoop pressure is not grinding the surface.
  • Success check: after unhooping, the fabric shows minimal to no white crease ring under normal light.
  • If it still fails, switch to a magnetic hoop approach for mark-free holding on sensitive materials.
• Q: What magnetic safety rules should I follow when using magnetic embroidery hoops for production work?
  A: Treat magnetic hoops as industrial-strength magnets and prevent pinch injuries and interference risks.
  • Separate and re-seat magnets deliberately—do not let magnets snap together near fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Keep magnets away from computerized screens and items like credit cards.
  • Success check: magnets are installed without any snapping impact, and hands never enter the closing gap.
  • If it still fails, slow the handling process and use a consistent placement routine to avoid rushed pinches.
• Q: How can a small embroidery business reduce handling time on the Pfaff Creative Icon when scaling from 1 item to 50 items?
  A: Use a tiered plan: optimize technique first, then standardize hooping, then consider hardware upgrades if volume keeps rising.
  • Level 1 (Technique): batch actions (cut all, press all, sew all) and stage clips/tools so you do not stop to manage them.
  • Level 2 (Tooling): use a hooping station to standardize placement so each garment lands in the same spot without repeating alignment steps.
  • Level 3 (Scaling): if thread changes and handling dominate the day, consider moving up to a multi-needle workflow for throughput.
  • Success check: per-garment setup time drops consistently (you spend less time aligning/handling than stitching).
  • If it still fails, time each step (hooping, aligning, trimming, thread changes) to identify the true bottleneck before buying upgrades.
