Quilt a Fat Quarter in the Hoop on a Baby Lock Solaris 2: The Magnetic Frame Workflow That Cuts Stitch Time from 50 to 19 Minutes

If you have ever stared at a quilting fill on your Solaris screen and thought, “Fifty minutes… for one single fat quarter?!”—you are not alone. That moment of disbelief is a common friction point for beginners. The good news is that the Baby Lock Solaris 2 makes in-the-hoop quilting surprisingly practical, but only if you combine two specific strategies: intelligent on-screen density editing and a specialized hooping workflow that doesn't fight against the thickness of your quilt sandwich.

In this "Master Class" guide, we will turn a simple fat quarter into a professional-grade quilted fabric suitable for zippered pouches or tote bags. We will bypass the "free-motion fear" entirely and use data-driven adjustments to cut your stitch time by over 60%.

Calm the Panic First: Baby Lock Solaris 2 + a Large Magnetic Frame Can Quilt a Fat Quarter Cleanly

When your goal is “quilted yardage” rather than a tiny centered motif, beginners often hit two major roadblocks that kill the project before it starts:

1. The "Red Box" Rejection: The design is rejected by the machine as “too big for the hoop” because of safety margin errors.
2. The Time Explosion: The stitch time exceeds 45-50 minutes because the default density is set for embroidery, not quilting.

This method avoids both. We will confirm the Solaris is set to the correct hoop size (10-5/8" x 16"), build a boundary that respects the "Hard Stop" safety lines, and—crucially—scale the stipple fill up to 200%. This alters the physics of the stitch path, allowing the machine to maximize its momentum.

Furthermore, we must address the physical reality of quilting: fabric thickness. Using a standard screw-tight hoop on batting often leads to "hoop burn" or uneven tension where the inner ring pops out. This is why a magnetic frame for embroidery machine is considered a genuine quality-of-life upgrade here. It allows you to lift the top magnet, slide your next sandwich in, and keep production moving without cramping your hands.

The “Hidden” Prep Pros Do Before Touching the Screen: Fabric, Batting, Thread, and a Reality Check

The video demonstrates the core layers (fat quarter + batting + fat quarter), but as an instructor, I need to highlight the invisible steps that ensure success. The machine can only stitch what you stabilize.

What you’re building (The Quilt Sandwich)

• Bottom: Fat quarter fabric (face down).
• Middle: Batting (Fusible fleece or warm-and-natural). Pro Tip: Use a light mist of temporary spray adhesive (like Odif 505) between layers to prevent "creeping" during high-speed stitching.
• Top: Fat quarter fabric (face up).

That thickness is exactly why magnetic frames shine: they clamp vertically. They do not require you to force an inner ring inside an outer ring, which distorts the grain of the fabric.

Warning: Mechanical Safety Hazard. Keep fingers, hair, lanyard geometry, and loose sleeves away from the needle area when stitching starts. Quilting fills run continuously in multi-directional paths. A moment of distraction can turn into a needle strike. Stop the machine completely before reaching under the foot to trim a thread.

The "Hidden Consumables" You Need

• Needle: Switch to a Topstitch 90/14. The larger eye protects the thread from friction against the batting.
• Bobbin: Ensure you have a full bobbin. Running out mid-stipple is a nightmare to patch invisibly.

Prep Checklist (Do this *before* you digitize)

• [ ] Press seams flat: Iron both fat quarters. You do not want to "quilt a wrinkle" into permanence.
• [ ] Oversize the batting: Cut batting 1 inch larger than the fabric on all sides to ensure the foot doesn't catch on a raw edge.
• [ ] Contrast check: Choose a thread color that sits well on the fabric. High contrast highlights mistakes; low contrast blends texture.
• [ ] Production planning: If you are producing multiple panels, set up a "staging area." This is where magnetic hooping station logic applies—consistency in how you lay the fabric determines if your grainlines stay straight.


The Non-Negotiable Setup: Verify the Solaris Frame Size (10-5/8" x 16") Before You Draw Anything

On the Baby Lock Solaris 2, the machine needs to "know" which hoop is installed to enforce the stitchable area. If this setting is wrong, your design will be clipped.

In the workflow, you must open settings and verify:

• Frame Size: 10-5/8" x 16"
• Max Embroidery Speed: The default is often 1050 spm. Expert Advice: For your first quilt sandwich, lower this to 600-700 spm. Thick layers create drag; slowing down reduces flag (bouncing fabric) and skipped stitches.
• Embroidery Foot Height: Set to 0.08" (2.0mm) initially to clear the batting, then lower it if the thread loops.


Setup Checklist (Pre-Flight Verification)

• [ ] Physical Hoop Match: Ensure the screen setting (10-5/8" x 16") matches the physical hoop you are holding.
• [ ] Safety Lines: Confirm you can see the heavy black safety lines on the grid background.
• [ ] Sound Check: Thread the machine and listen for the "click" of the thread taking up lever. No click = no tension.

Build the Boundary Box in IQ-Style Editing: Stay Inside the Black Lines or You’ll Get “Too Big” Later

This is the number one source of user error in IQ Designer. The machine has a hard physical limit represented by the black box.

Select a square/box shape and enlarge it using the directional sizing arrows. The rule is binary: Green is go, crossing Black is stop.

• Visual Logic: Grow the red boundary box as large as possible without touching the black safety lines.
• Target Size: Approximately 14.71" x 9.70".

If you cross the black lines, the Solaris may let you keep editing, but it will throw a fatal error when you try to sew.

Pro Tip: The "Safety Margin"

Don't flirt with disaster. Leave a 2mm gap between your red line and the black safety line. This tiny buffer accounts for slight fabric expansion and prevents the "Design too large" error code that forces a total restart.

Kill the Outline Stitch: Use Line Property = None (OFF) So It Quilts, Not “Frames”

A quilting panel is defined by texture, not boundaries. If you leave the outline stitch on, the machine will sew a heavy satin or triple straight stitch around your rectangle, making it look like a patch.

The Action Steps:

1. Open Line Property (the pencil icon).
2. Select None / OFF (usually a null symbol or 'no thread' icon).
3. Select the Bucket Tool.
4. Sensory Check: Tap the exterior outline line. You should see the line turn gray/invisible or disappear, confirming it will exclude stitching.


The 50-Minute Trap: Apply the Rose Stipple Fill, Then Scale It to 200% to Drop to 19 Minutes

This is the core efficiency hack. A standard stipple is calculated for aesthetics, often very tight. For quilting, this is unnecessary and dangerously dense.

The Observation:

• Select the Rose Stipple fill.
• Check Time: The estimated time is likely 50+ minutes. This is unacceptable for a simple background.

The Fix:

1. Enter the Size/Scale menu for the fill properties.
2. Increase Fill Pattern Size to 200% (or the maximum allowed).
3. Check Time: The estimate should drop to approximately 19 minutes.


Why this works (The Physics)

"Stippling" is a continuous path. By doubling size (200%), you quadruple the area covered by a single "rose" motif. The needle has to travel significantly less distance to cover the same 14x9" rectangle. You are moving from "dense embroidery" to "loft-preserving quilting."

Expert Note on Synergies

When you optimize your file to stitch in 19 minutes, your bottleneck shifts. The stitch time is fast, so hooping becomes the new slow step. This is where magnetic embroidery hoops pair with software settings. If you can re-hoop in 10 seconds versus 2 minutes, your hourly production rate doubles.

Hoop the Quilt Sandwich in a Large Magnetic Frame: Clamp Evenly Without Distorting the Layers

Now we move from the digital to the physical. Hooping a quilt sandwich in a traditional hoop requires significant hand strength and often results in "Hoop Burn" (crushed fibers) or "Pop-Out" (where the inner ring fails to hold the thick batting).

The Magnetic Workflow:

1. Place the bottom frame on a flat surface.
2. Lay your sandwich (Fabric-Batting-Fabric) flat. Smooth it out with your hands—feel for any lumps.
3. Place the top magnetic rim over the fabric.
4. Sensory Anchor: Listen for the solid SNAP of the magnets engaging. The fabric should feel taut like a drum skin, but not stretched like a rubber band.


The "Zero-Drag" Advantage

A magnetic embroidery frame holds the fabric with vertical pressure rather than friction. This allows the quilt sandwich to "float" slightly, reducing the drag on the machine's pantograph arm. This equals better registration and fewer motor overload errors.

Warning: Magnetic Field Hazard. These frames use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut instantly.
* Medical Safety: Keep away from pacemakers and implanted devices.
* Electronics: Do not place phones or credit cards directly on the magnets.

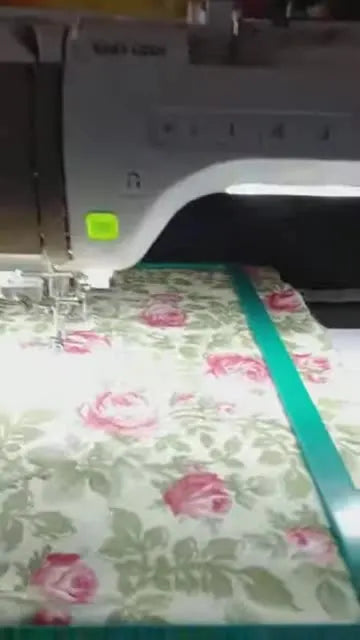

Start Stitching on the Solaris 2: What You Should See, Hear, and Expect During the Run

Press the green Start button. Do not walk away yet. The first 60 seconds are critical.

Sensory Monitoring (The "Pilot" Check)

• Sight: Watch the fabric in front of the foot. Is it "plowing" (bunching up)? If so, pause and raise the presser foot height slightly.
• Sound: You want a rhythmic thump-thump-thump. A grinding noise means the hop is hitting the frame. A sharp snap usually means a shredded thread.
• Touch: Gently touch the frame (away from the needle) to ensure it isn't vibrating loose.


Operation Checklist (Mid-Run)

• [ ] Bobbin Monitor: Keep an eye on the low-bobbin indicator.
• [ ] Slack Check: Ensure the quilt sandwich isn't getting caught under the needle plate or on the machine arm.
• [ ] Speed Management: If the machine sounds "unhappy" (laboring), drop speed to 600 SPM.

Production environments often use magnetic hoops for embroidery machines specifically because they lay flatter on the machine bed, reducing the acoustic noise and vibration during these long fill runs.

The Border Surprise Near the Frame Edge: Plan for It So It Doesn’t Ruin Your Cutting Layout

After the 19-minute run, you will notice an unstitched margin between your quilting and the frame edge.

• The Fact: The machine cannot sew effectively within 0.5" to 1" of the frame edge due to presser foot clearance.
• The Reality: You will have a "raw" border.


How to manage the margin

Don't view this as a defect; view it as Seam Allowance. When cutting this panel for a tote bag or pouch, you will likely trim this edge off or hide it in the seam. Plan your cutting layout inside the quilted area, not at the raw edge of the fabric.

The Fastest Part of the Whole Workflow: Lift the Top Magnetic Ring, Slide the Next Sandwich In, Repeat

This is the moment of ROI (Return on Investment).

1. Lift the tab of the top magnetic frame.
2. Slide the quilted piece out.
3. Slide the next sandwich in.
4. Snap down.

Total time: 10-15 seconds. Compared to loosening a screw, repositioning, and tightening, you have just saved 3 minutes of frustration.

In a batch production scenario (e.g., making 50 Christmas stockings), this magnetic hoop workflow is the difference between a fun afternoon and a repetitive stress injury.

Troubleshooting the Two Problems That Waste the Most Time

When things go wrong, use this logic tree to fix them quickly.

Upgrade Path Without the Hype: When to Upgrade Your Tools

You can quilt on a Solaris 2 with standard tools. However, as your volume increases, your "Time Cost" becomes more expensive than the equipment. Here is the decision logic I use when consulting for small businesses.

The Decision Tree: Hobby vs. Enterprise

• Scenario A: "I quilt 1-2 panels a month for gifts."
  • Verdict: Stick with your standard hoop. Focus on the 200% scaling trick.
• Scenario B: "I'm making 20 tote bags for a craft fair."
  • Verdict: The bottleneck is Hooping Time. Upgrade to a Magnetic Hoop to save 5 minutes per bag and save your wrists.
• Scenario C: "I need to produce 50+ items a week to be profitable."
  • Verdict: The bottleneck is Machine Availability. You need to keep your Solaris for custom work and offload the quilting to a dedicated workhorse. Consider a SEWTECH Multi-Needle Machine. These machines offer higher speeds, automatic color changes (if needed), and robust magnetic framing options designed for volume.

Many Baby Lock owners specifically search for babylock magnetic embroidery hoops as their first "Tier 1" upgrade because it unlocks the production potential of the machine they already own.

Final Reality Check: What You’ll Have When You’re Done

At the end of this process, you will have a perfectly flat, evenly tensioned quilted panel ready for construction. You did not fight the machine, you did not break a needle, and you did not wait an hour for a background fill.

The Solaris 2 provides the digital power (IQ Designer), but the efficiency comes from two human decisions: scaling the design for physics, and choosing the right framing tool for the fabric.

If you are ready to stop wrestling with screws and start flowing through projects, magnetic hoops for babylock embroidery machines are the industry standard for a reason: they respect your time and your fabric.

FAQ

• Q: Why does the Baby Lock Solaris 2 show “design too big for hoop” when quilting a fat quarter in the 10-5/8" x 16" frame?
  A: The boundary box is crossing the black safety lines, so the Baby Lock Solaris 2 rejects the design at sew-out.
  • Reopen IQ Designer and select the red boundary rectangle.
  • Nudge the boundary smaller until it sits fully inside the black lines, then leave a small buffer (about 2 mm).
  • Recheck the target boundary size (around 14.71" x 9.70") without touching the black box.
  • Success check: The boundary stays green/valid and the machine allows you to proceed to stitching without a “too big” rejection.
  • If it still fails… verify the Solaris 2 screen frame setting matches the physical 10-5/8" x 16" frame you installed.
• Q: How do I cut Baby Lock Solaris 2 quilting stitch time from 50+ minutes to about 19 minutes when using Rose Stipple fill?
  A: Scale the Rose Stipple fill pattern size to 200% so the Baby Lock Solaris 2 travels less stitch path for the same area.
  • Apply the Rose Stipple fill to the rectangle first and check the time estimate (often 50+ minutes at default).
  • Open the fill Size/Scale controls and increase the fill pattern size to 200% (or the maximum allowed).
  • Confirm the new time estimate before pressing Set.
  • Success check: The on-screen estimate drops dramatically (commonly to ~19 minutes for a ~14.71" x 9.70" panel).
  • If it still fails… confirm you changed the fill pattern size (not the overall design size) and re-check the estimate again before sewing.
• Q: What Baby Lock Solaris 2 settings should be verified before in-the-hoop quilting a thick quilt sandwich in the 10-5/8" x 16" frame?
  A: Verify frame size, slow the speed for thickness, and set a safe presser-foot height so the quilt sandwich feeds without drag.
  • Set Frame Size to 10-5/8" x 16" on the Solaris 2 screen to match the hoop in your hands.
  • Lower Max Embroidery Speed to a safe starting point of 600–700 spm for thick layers.
  • Set Embroidery Foot Height to 0.08" (2.0 mm) initially, then adjust if you see looping.
  • Success check: The heavy black safety lines are visible on the grid and the machine stitches without grinding, flagging, or immediate thread issues.
  • If it still fails… stop and re-thread, then re-check the physical hoop match and the foot height clearance over the batting.
• Q: What is the correct quilt sandwich prep for Baby Lock Solaris 2 in-the-hoop quilting, and which “hidden consumables” prevent skipped stitches?
  A: Use a stable fabric-batting-fabric sandwich with a Topstitch 90/14 needle and a full bobbin to prevent flagging and mid-run failures.
  • Press both fat quarters flat before hooping so you don’t stitch wrinkles permanently.
  • Cut batting about 1 inch larger than the fabric on all sides to avoid edge catches.
  • Bond layers lightly with temporary spray adhesive (a light mist between layers) to reduce creeping at speed.
  • Success check: The sandwich stays flat during the first minute of stitching with no bouncing/flagging and no skipped stitches.
  • If it still fails… slow the Solaris 2 down and install a fresh Topstitch 90/14 needle, then re-check that the bobbin is full before restarting.
• Q: How do I know a magnetic embroidery frame is clamping a thick quilt sandwich correctly for Baby Lock Solaris 2 quilting without distortion?
  A: Clamp the quilt sandwich with even vertical pressure so it is taut but not stretched, which helps prevent hoop burn and pop-outs.
  • Lay the bottom frame on a flat surface and smooth the fabric-batting-fabric stack by hand.
  • Place the top magnetic rim down evenly—do not “roll” it on at an angle.
  • Listen and feel for a firm snap as the magnets engage all the way around.
  • Success check: The surface feels drum-tight (taut) without visible grain distortion or ripples, and the layers do not shift when you lightly tap the frame.
  • If it still fails… remove and re-clamp with the sandwich flatter, and check for batting lumps that are preventing full contact.
• Q: What safety steps should be followed on the Baby Lock Solaris 2 during long quilting fills to avoid needle strikes and accidents?
  A: Keep hands and anything loose away from the needle area, and stop the Baby Lock Solaris 2 completely before reaching under the presser foot.
  • Keep fingers, hair, lanyards, and loose sleeves clear when stitching starts and during continuous multi-direction quilting paths.
  • Monitor the first 60 seconds closely before walking away.
  • Stop the machine fully before trimming threads or touching anything near the needle.
  • Success check: The run sounds like a steady rhythmic thump-thump (not grinding or snapping) and you never need to “grab” fabric near the foot to keep it moving.
  • If it still fails… pause immediately, reduce speed, and re-check foot clearance and fabric drag before resuming.
• Q: What magnetic embroidery frame safety rules should be followed when using strong neodymium magnets for hooping quilt sandwiches?
  A: Treat the magnetic embroidery frame as a pinch and medical-device hazard—control the snap and keep it away from sensitive devices.
  • Keep fingers out of the mating surfaces; the frame can snap shut instantly.
  • Keep the magnetic frame away from pacemakers or implanted medical devices.
  • Avoid placing phones, credit cards, or magnet-sensitive electronics directly on the magnets.
  • Success check: The top ring seats cleanly without finger pinches, and you can lift the tab intentionally (not accidentally) to remove the top ring.
  • If it still fails… slow down the clamping motion, place the frame on a stable flat table, and re-seat the top ring evenly instead of letting it “jump” into place.
• Q: For Baby Lock Solaris 2 in-the-hoop quilting production, when should the workflow change from software tweaks to a magnetic hoop upgrade or a SEWTECH multi-needle machine?
  A: Use a tiered decision: fix stitch time first, then fix hooping time, and only then consider adding a dedicated production machine.
  • Level 1 (Technique): If quilting takes 50+ minutes, scale the stipple fill to 200% and verify frame safety margins to prevent restarts.
  • Level 2 (Tool): If stitch time is fast but re-hooping is slow or painful, switch to a magnetic hooping workflow to reduce hooping time per panel.
  • Level 3 (Capacity): If volume demands keep the Solaris 2 tied up and you need 50+ items per week, consider offloading repetitive runs to a SEWTECH multi-needle machine while keeping the Solaris for custom work.
  • Success check: The bottleneck moves in a predictable way (first stitch-time drops, then hooping becomes the main delay, then machine availability becomes the limit).
  • If it still fails… track where time is actually being lost (editing, hooping, restarts, or runtime) and address the biggest delay first before buying anything.
