Mastering the In-The-Hoop (ITH) Quilted Glasses Case: A Precise Guide to Layer Control

If you have ever started an In-The-Hoop (ITH) project and felt that sudden spike of panic—layers sliding, batting creeping, the presser foot getting stuck on a bulky seam—you are not alone. That anxiety comes from the "Variable Sandwich Effect": you are asking your machine to stitch through materials that all behave differently. Stabilizer is rigid; batting compresses; cotton fabric wants to shift; and adhesive can either save you or gum up your needle.

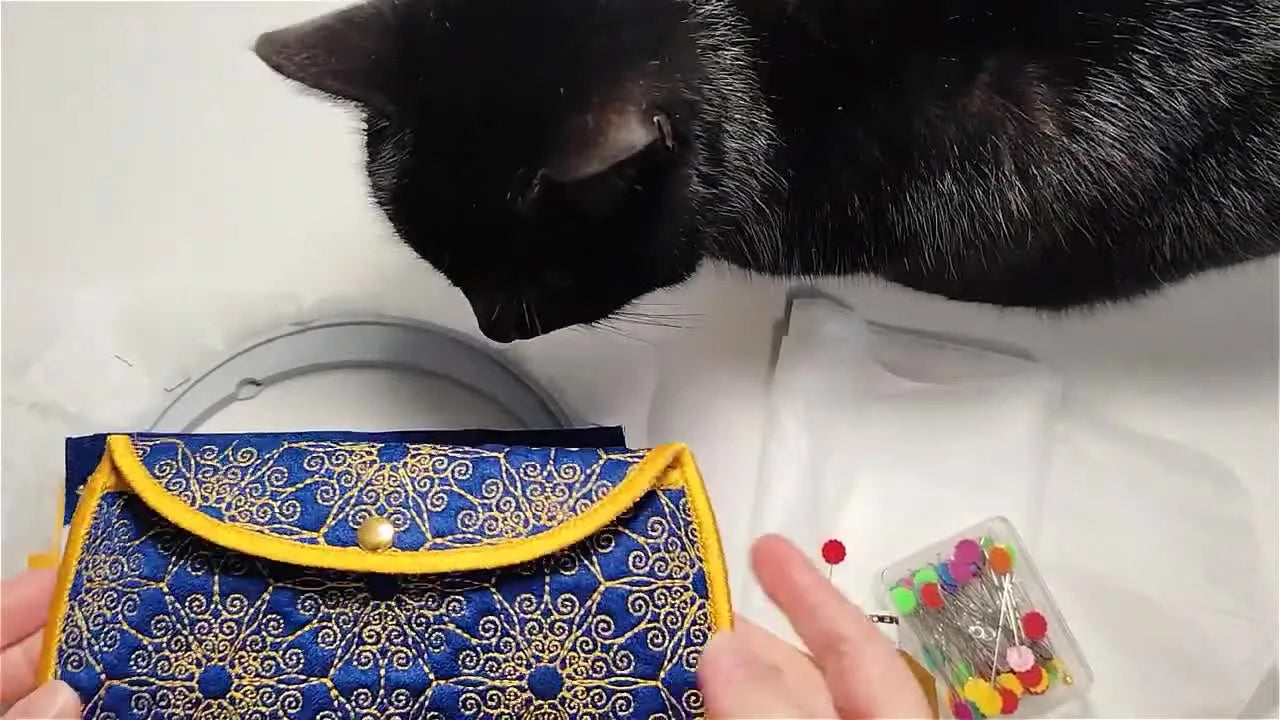

The Bernina ITH Quilted Ornamental Glasses Case featured here is the perfect "lab" to master these variables. It rewards calm, repeatable habits over speed.

The construction logic is split into two distinct mechanical stages:

1. The Back Panel: Built on tear-away or cut-away stabilizer (Structural foundation).
2. The Front Pocket: Built on wash-away stabilizer (Clean edge finishing).

By the end of this guide, you will not just have a glasses case; you will have a master-class understanding of layer management that applies to every future ITH project.

Don’t Panic: It’s Just Physics (and You Can Control It)

The fear of ITH projects usually stems from the "blind" nature of the work—once the hoop is on the machine, you feel like you lose control. But the design software has already given you a roadmap: Placement → Tack-down → Quilting → Assembly.

Your primary job is not to be an artist; it is to be a Quality Control Engineer. Your goal is to keep every layer flat, secured under tension, and trimmed at the exact right moment.

The Pro's Secret: If you are struggling with "hoop burn" (the permanent ring left on fabric) or if your thick quilt sandwiches keep popping out of standard plastic hoops, this is where a magnetic embroidery hoop changes the game. Unlike screw-tightened hoops that rely on friction and brute force, magnetic hoops use vertical clamping force. This allows you to secure thick batting and multiple fabric layers without distorting the weave or leaving those dreaded white stress marks on dark fabrics.

Phase 1: The "Hidden" Prep (Material Science & Tooling)

Success in embroidery happens 80% at the prep station and only 20% at the machine. The video highlights materials, but we need to verify why we are using them to ensure your safety and success.

1. The Stabilizer Strategy

This project requires two different stabilizer behaviors. Do not mix them up, or your project will fail.

• Back Piece: Uses Tear-Away or Cut-Away.
  • Why? The back panel needs permanent structure because it will be quilted. Cut-away is the "safe" choice for longevity; it won't disintegrate over time. Tear-away is acceptable if the fabric is very stiff (like denim or canvas).
• Front Pocket: Uses Wash-Away (Water-Soluble).
  • Why? The top edge of the pocket is a free-standing satin stitch. If you use tear-away here, you will see fuzzy white paper fibers forever. Wash-away dissolves completely, leaving a perfect "store-bought" finished edge.

2. The Needle & Thread Formula

• Needle: Universal 75/11 or 80/12. Alternatively, a Topstitch 80/12 is excellent for the metallic/gold thread shown in the sample, as it has a larger eye to prevent shredding.
• Thread: 40-weight Polyester or Rayon for the top.
• Bobbin: You need two types.
  • Standard white bobbin fill for construction.
  • Color-matched bobbin (matching your top thread) for the satin edges. This is non-negotiable for professional results.

3. Essential Tool Kit

• Curved Embroidery Scissors (Double-Curved): Essential for trimming batting inside the hoop without slicing the stabilizer.
• Temporary Adhesive Spray: (e.g., Odif 505 or Takter 650).
• Masking Tape / Painter's Tape: For securing corners.
• Batting: Warm & Natural or Fusible Fleece.


Warning: Taping Safety
Never place tape where the needle will stitch. If the needle punches through masking tape, it carries adhesive gum down into the bobbin case and hook assembly. This causes "bird nesting" and timing issues. Always tape outside the stitch path.

4. Hoop Selection Criteria

Standard plastic hoops work, but they present a "Hooping Gap" risk. When you tighten the screw, the inner ring often twists, causing the fabric to ripple.

• The Fix: If using standard hoops, use the "Finger-Tight Plus One" rule. Tighten the screw until the fabric is taut (sounds like a drum when tapped), then use a screwdriver to give it one final half-turn.
• The Upgrade: Many users searching for terms like embroidery hoops magnetic are looking to eliminate this twisting entirely. Magnetic hoops clamp straight down, maintaining perfect grain alignment, which is critical for the geometric quilting pattern in this design.

Part 1: The Back Panel (Building the Foundation)

We start with the back panel. This is your "warm-up" to get used to the trimming workflow.

Step 1: Hooping and Placement

Hoop one layer of Tear-Away (or Cut-Away) stabilizer. Ensure it is drum-tight.

• Machine Speed: Set your machine to 600 SPM (Stitches Per Minute). Do not run ITH projects at max speed; you need precision, not velocity.
• Action: Run Color Stop 1: Placement stitch.
• Visual Check: You should see a single running stitch outline on the stabilizer.


Step 2: The Batting Anchor

Detailed trimming here is what prevents a lumpy final product.

• Action: Place your batting/fleece over the placement line. It should overlap the line by at least 1 inch on all sides. Secure with a light mist of spray adhesive or tape the corners.
• Run: Color Stop 2: Tack-down stitch.
• The Trimming Technique: Remove the hoop from the machine (keep the project in the hoop!). Place it on a flat surface. Using your curved scissors, trim the batting as close to the stitching as possible—2mm or less. Lift the batting slightly with your non-dominant hand to create tension for a cleaner cut.


Step 3: Quilting the Outer Shell

• Action: Place your outer fabric (Blue) over the batting. Smooth it out from the center toward the edges to remove air pockets. Tape or pin the edges well outside the sew field.
• Run: Color Stop 3: Quilting stitch.
• Sensory Check: Listen to the machine. A rhythmic "thump-thump" is normal as it penetrates layers. A harsh "cracking" sound means your needle is dull or the layers are flagging (bouncing).




Step 4: Lining and Completion

• Action: Place your Lining Fabric (Yellow) on top of the quilting (Right Side Up). Secure effectively.
• Run: Color Stop 4: Liner Tack-down.
• Finish Part 1: Remove from hoop. Tear away (or cut) the stabilizer. Set this finished panel aside.




Prep Checklist: Part 1 Completion

• Batting is trimmed close; no lumps at the edge.
• Stabilizer is removed from the back.
• The panel lies flat, not curled (a sign of tight hooping).

Part 2: The Front Pocket (The High-Stakes Zone)

This section determines the visual quality of your case. We switch to Wash-Away Stabilizer. This builds the pocket that holds the glasses.

Step 1: The Invisible Foundation

• Setup: Switch to Wash-Away Stabilizer in the hoop.
• Action: Repeat the exact process from Part 1: Run Placement → Place Batting → Tack-down → Trim Batting.
• Note: Be extra gentle with wash-away stabilizer; it stretches more easily than cut-away. If you push too hard while trimming, you will distort the outlines.


Step 2: The Sandwich and The Spray

The video demonstrates using Takter 650 spray.

• Action: Place the Blue outer fabric. Run Color Stop 3: Quilting.
• Action: Place the Yellow lining fabric. Run Color Stop 4: Liner Tack-down.
• Troubleshooting: If your fabric shifts here, the pocket will be crooked. This is where a hooping station for embroidery can be invaluable. A hooping station allows you to use both hands to smooth the fabric while the hoop is held stationary, ensuring perfectly square placement before you even lock the magnet or tighten the screw.


Step 3: The Surgical Trim (Crucial Step)

This is the most common failure point for beginners. Read carefully.

• Action: You must now trim the fabric layers to create the pocket opening.
• Front: Trim the Blue fabric along the straight top edge line. Trim close (1-2mm).
• Back: Flip the hoop. Trim the Yellow lining fabric along the same line.
• DO NOT trim the other three sides yet! Only the pocket opening.

Step 4: The Satin Bridge

• Critical Setup: Change your bobbin. Put in the bobbin that matches your top thread color.
• Run: Color Stop 5: Pocket Edge Satin Stitch.
• The Result: The machine will stitch a dense column of satin stitches over that raw edge. Since you used wash-away stabilizer, this edge will be soft and clean once dissolved.




Warning: Magnet Safety
If you decide to upgrade your workflow with strong magnetic hoops or are using magnetic snaps for the case closure, be aware of safety. Keep high-power magnets away from pacemakers, ICDs, and mechanical watches. Always slide magnets apart; never let them snap together, as they can pinch skin severely.

The Final Assembly: Joining the Sandwich

Now we combine Part 1 (The Back) and Part 2 (The Front/Pocket) into the final object.

Step 1: Attaching the Back Panel

• Action: Take the finished Part 1 panel. Place it directly on top of the hooped Part 2.
• Alignment: Align the bottom curves. Secure the top corners with tape.
• Run: Color Stop 6: Assembly Tack-down.
• Physics Check: This step involves the maximum thickness. If your machine sounds like it is straining, slow the speed down to 400 SPM.


Step 2: The Final Trim

• Action: Remove the hoop (do not unhoop). Trim the excess fabric from the outside of the case shape.
• Precision: Trim to about 2-3mm from the tack-down line. If you leave too much bulk, the final satin stitch won't cover it. If you trim too close, the fabric might fray out.

Step 3: The Final Edge

• Check: Ensure your matching bobbin is still full enough.
• Run: Color Stop 7: Final Satin Edge.
• Observation: Watch the needle. If it starts to "chew" into one spot, pause immediately. This usually means the bulk is caught on the foot. Raise the presser foot height (if your machine allows) or gently guide the fabric (keep fingers away from the needle!).


Operation Checklist: Final Stitch

• Bobbin matches top thread.
• Speed reduced to <600 SPM for heavy layers.
• No tape is trapped under the final satin path.

Why Fabric Shifts (and How to Stop It)

The video touches on a universal truth: Fabric moves. When a needle penetrates fabric 600 times a minute, it pushes the fabric forward (flagging).

The Solution Hierarchy:

1. Chemical: Temporary Spray adhesive (the video's choice). Good for light shifting.
2. Mechanical: Pins. Risky, as you might hit them with the needle.
3. Structural: Magnetic Clamping.
   If you find yourself constantly fighting "the shift," consider a magnetic hooping station. This tool holds the bottom hoop and stabilizer static while you apply the top hoop (or magnets). It prevents that last-second slip that happens right as you tighten the screw on a traditional hoop.

Finishing: The Dissolve

• Action: Unhoop the project.
• Trim: Cut the visible wash-away stabilizer as close to the satin stitch as possible.
• Dissolve: Do not drown the case. Use a wet Q-tip or a damp clean cloth to run along the edge. This "melts" the remaining stabilizer stabilizer away without soaking the batting, which takes forever to dry.




Decision Tree: Customizing Your Workflow

Use this logic flow to make the right material choices for your specific machine and environment.

A) Dealing with Stabilizer Choice:

• IF stitching the Back Panel (Structural) → Use Cut-Away (Best) or Tear-Away (Okay).
• IF stitching the Front Pocket Edge → Use Wash-Away (Mandatory for clean edges).

B) Dealing with Hoop Drift / Fabric Slippage:

• IF using a standard hoop → Use spray adhesive + perimeter pins.
• IF using a bernina magnetic embroidery hoop (or compatible) → Use magnets placed close to the stitch field (but safe from the needle head). The vertical pressure usually eliminates the need for pins.

C) Dealing with Production Volume:

• IF making 1-2 gifts → Standard setup is fine.
• IF making 20+ for a craft fair → Upgrade to Magnetic Hoops. The reduction in wrist strain and re-hooping time will pay for the hoop in one afternoon.

The Upgrade Path: From Hobby to Production

This glasses case is a "Gateway Project." It teaches you that machine embroidery isn't just about putting a logo on a shirt; it's about construction.

However, as you move from "making one meant for Mom" to "making 50 for a local boutique," your bottlenecks will change.

1. The Wrist Bottleneck: Constant screwing and unscrewing of hoops leads to fatigue. This is the #1 reason professionals switch to magnetic systems. If you own a Brother machine, looking into a brother 5x7 magnetic hoop is the logical ergonomic step.
2. The Thread Change Bottleneck: This project requires thread changes (Placement vs. Quilting vs. Satin). On a single-needle machine, this is downtime. This is where SEWTECH Multi-Needle Machines enter the conversation. A multi-needle machine holds all your colors (plus your layout structure threads) simultaneously. You press "Start," and the machine handles the swaps, cutting your production time by 30-40% per unit.

Quick Recap: The "Golden Order" of Operations

To ensure you don’t skip a beat, here is the condensed run-sheet:

Part 1: The Back

1. Hoop Stabilizer (Tear/Cut).
2. Stitch Placement → Add Batting → Stitch Tack → Trim Batting.
3. Add Outer Fabric → Stitch Quilting.
4. Add Lining → Stitch Tack.
5. Remove & Clean.

Part 2: The Front Pocket

1. Hoop Stabilizer (Wash-Away).
2. Stitch Placement → Add Batting → Stitch Tack → Trim Batting.
3. Add Outer Fabric → Stitch Quilting.
4. Add Lining → Stitch Tack.
5. Stop: Trim Top Edge Only.
6. Bobbin Swap: Match Color.
7. Stitch Pocket Satin Edge.
8. Assembly: Place Back Panel on Top.
9. Stitch Assembly Tack → Trim Outer Perimeter.
10. Stitch Final Satin Edge.

By following this disciplined layering approach, you solve the puzzle of ITH embroidery. It’s not magic; it’s just smart prep, sharp scissors, and the right tools holding it all together. Happy stitching!

FAQ

• Q: How do I prevent hoop burn rings on dark fabric when stitching a Bernina In-The-Hoop (ITH) quilted glasses case?
  A: Use gentler clamping and avoid over-torquing the hoop so the fabric is held flat without crushing the weave.
  • Switch: Use a magnetic embroidery hoop for thick batting stacks to clamp straight down instead of twisting with a screw.
  • Adjust: If using a standard plastic hoop, follow the “Finger-Tight Plus One” rule (taut first, then a final half-turn with a screwdriver).
  • Slow: Run ITH construction at about 600 SPM so the layers don’t “fight” the hoop under speed.
  • Success check: No white stress ring appears after unhooping, and the panel lies flat instead of curling.
  • If it still fails: Re-hoop with fresh stabilizer drum-tight and reduce bulk at edges by trimming batting to 2 mm or less at tack-down lines.
• Q: What stabilizer should be used for the Bernina ITH quilted glasses case back panel vs. the front pocket satin edge?
  A: Use tear-away or cut-away for the back panel structure, and use wash-away stabilizer for the front pocket edge so the satin stitch finishes clean.
  • Choose: Back panel = cut-away (safest for longevity) or tear-away (okay when fabric is very stiff).
  • Require: Front pocket = wash-away (water-soluble) to avoid permanent fuzzy white fibers at the satin edge.
  • Handle: Trim gently on wash-away because it may stretch more easily than cut-away.
  • Success check: The pocket opening satin edge looks “store-bought” with no visible stabilizer fuzz.
  • If it still fails: Confirm wash-away was used for the pocket edge and dissolve remaining stabilizer with a damp cloth or wet Q-tip instead of soaking the whole project.
• Q: How do I stop bird nesting in the bobbin area caused by stitching through masking tape during an ITH project on a Bernina embroidery machine?
  A: Keep all tape completely outside the stitch path so the needle never punches adhesive into the hook area.
  • Move: Reposition masking/painter’s tape to corners and edges well outside the sew field before stitching.
  • Avoid: Never stitch through tape—adhesive can gum up the bobbin case and hook assembly and trigger nesting.
  • Restart: If nesting starts, stop immediately and remove any tape that could be in the needle path before continuing.
  • Success check: Stitches form cleanly with no thread “ball” building under the hoop after the next color stop.
  • If it still fails: Reduce shifting with temporary spray adhesive (light mist) instead of adding tape near the design.
• Q: Why does the fabric shift or the pocket end up crooked during the Bernina ITH glasses case quilting steps, and how do I prevent hoop drift?
  A: Lock the layers before stitching and stabilize the hooping process so the fabric cannot slip at the moment of clamping.
  • Apply: Use temporary adhesive spray to lightly tack batting and fabric layers before tack-down and quilting stitches.
  • Smooth: Press fabric from the center outward to remove air pockets before running the quilting stitch.
  • Support: Use a hooping station for embroidery so both hands can square the fabric while the hoop stays stationary.
  • Success check: The quilting lines stay centered and the pocket top edge trims straight without skew.
  • If it still fails: Upgrade to magnetic clamping to reduce twisting and last-second slippage common with screw-tightened hoops.
• Q: What is the correct bobbin setup for clean satin edges on the Bernina ITH glasses case pocket opening and final border?
  A: Use a color-matched bobbin for satin edges; standard white bobbin fill is fine for construction steps.
  • Load: Stitch construction with standard white bobbin fill, then swap to a bobbin that matches the top thread color before satin edges.
  • Verify: Keep enough matching bobbin thread available before the final satin edge to avoid running out mid-border.
  • Run: Stitch the pocket edge satin stitch only after trimming the pocket opening edge (top edge only).
  • Success check: The satin edge looks solid from both sides without white bobbin “show-through.”
  • If it still fails: Recheck that the bobbin was swapped before Color Stop 5 and confirm the pocket opening was trimmed 1–2 mm from the line before satin stitching.
• Q: What needle should be used for a Bernina ITH quilted glasses case with metallic/gold thread, and how do I reduce thread shredding?
  A: Start with a Universal 75/11 or 80/12, and use a Topstitch 80/12 when metallic thread needs a larger eye.
  • Swap: Change to a Topstitch 80/12 if metallic/gold thread frays or snaps.
  • Replace: Put in a fresh needle if the machine begins sounding harsh or “cracking” through layers.
  • Slow: Keep ITH speed around 600 SPM (and slow further on maximum thickness areas) for cleaner penetration.
  • Success check: The stitchout runs with a steady “thump-thump” through layers, not a sharp cracking sound, and the thread does not fuzz at the needle.
  • If it still fails: Reduce bulk by trimming batting to 2 mm or less at tack-down lines and check that layers are taped/pinned only outside the sew field.
• Q: When sewing the thick assembly step of a Bernina ITH quilted glasses case, how do I prevent the presser foot from catching and the needle from chewing one spot?
  A: Slow down and manage bulk so the foot clears the thick seam without dragging the layers.
  • Reduce: Lower speed to about 400 SPM during the assembly tack-down when thickness is at maximum.
  • Trim: After tack-down, trim the outer perimeter to about 2–3 mm from the line so the final satin stitch can cover without excess bulk.
  • Watch: Pause immediately if the needle starts chewing one spot; the bulk is likely caught on the foot.
  • Success check: The final satin edge stitches evenly around the perimeter with no stalls and no repeated punctures in one area.
  • If it still fails: Raise presser foot height if the machine allows, or gently guide the fabric while keeping fingers clear of the needle area.
• Q: What magnet safety rules should be followed when using strong magnetic embroidery hoops or magnetic snaps during a Bernina ITH glasses case project?
  A: Treat strong magnets like power tools—keep them controlled, spaced, and away from medical devices and mechanical watches.
  • Keep away: Maintain distance from pacemakers, ICDs, and mechanical watches.
  • Separate safely: Slide magnets apart instead of letting magnets snap together.
  • Protect hands: Keep fingers out of pinch points when placing or removing magnets.
  • Success check: Magnets seat smoothly without snapping, and no pinching occurs during hooping/unhooping.
  • If it still fails: Use fewer magnets at a time and reposition calmly—rushing magnet placement is when injuries happen.
