Calm the Panic: What “Bad Tension” Looks Like on a Rainbow 12-Needle Head (and Why It Matters)

On a Rainbow 12-needle commercial machine, tension drift isn't subtle. It shows up as "fox tailing" (jagged edges), looping on top, or the bobbin thread pulling through to the front (making your black text look speckled with white dots).

Here’s the business reality: Tension issues don’t just ruin one sample. They waste expensive embroidery thread, consume yards of stabilizer, and kill your profit margins with downtime. If you are moving from a hobby single-needle to a production powerhouse, you need a repeatable method, not a "turn a knob and pray" approach.

A controlled test strip gives you two big wins:

1. Isolation: You check each needle channel independently. Needle #1 might be perfect, while Needle #6 is loose.
2. Baseline: You create a physical reference card for your shop. When the machine behaves oddly next month, you have a "Target Condition" to compare against.


Build the Satin-Bar Tension Test File in EmCAD (5mm × 20mm) Without Overthinking It

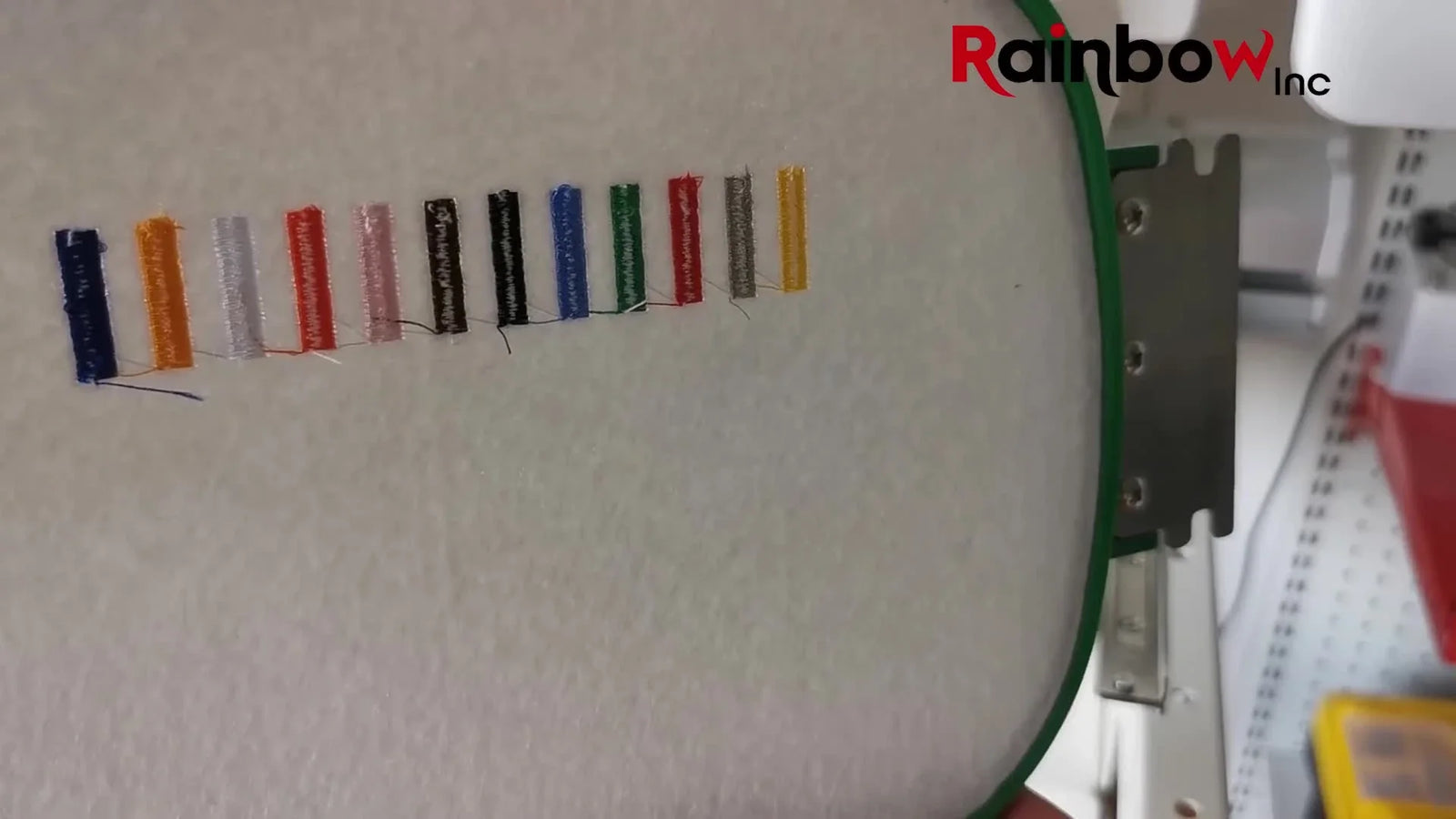

The method is simple: one satin column per needle, stitched on stable material so the fabric doesn't become a variable.

In EmCAD (or your preferred digitizing software), you will create a single vertical bar, then duplicate it.

The "Scientific" Digitizing Steps in EmCAD:

1. Draw: Create a vertical line.
2. Convert: Apply a Satin Stitch (not a Tatami fill). Satin stitches have long floats that reveal tension mechanics clearly.
3. Size: Set the bar to 5mm width × 20mm height.
   • Why 5mm? Anything narrower than 3mm hides the bobbin column. You need width to see the "H" pattern on the back.
4. Density: Set density to roughly 0.40mm to 0.45mm. This is the standard "sweet spot" for polyester 40wt thread.
5. Duplicate: Copy/paste to create 12 bars (one for each needle).
6. Colorize: Assign a unique color to each bar (Needle 1 = Color 1, Needle 2 = Color 2, etc.).
7. Export: Save as a .DST file.


Why this pattern works (The Physics): A satin stitch pulls from both sides equally. If the tension is wrong, the thread will pull too far to one side. A Tatami fill or a complex logo hides these mechanics. We use the satin bar because it is "unforgiving"—it tells the truth instantly.

Pro tip from the shop floor: Keep the spacing between bars consistent (at least 10mm apart). If they are too close, the trim tails from one bar might get trapped under the next, muddying your diagnostic reading.

The “Hidden” Prep Before You Stitch: Thread, Bobbin, Backing, and One Quick Sanity Check

Before you run the test, lock down the variables you can control. You cannot diagnose a machine issue if your supplies are failing.

1. The Stabilizer (Backing): Do not test on a scrap of flimsy t-shirt fabric. Use two layers of medium-weight Cutaway stabilizer or a stiff white felt.

• Why? We are testing the machine's tension, not the fabric's stretch. If the fabric puckers, the tension reading is invalid.

2. The Thread: Ensure you are using standard 40wt Polyester Embroidery Thread.

• Sensory Check: Pull a few feet of thread off the cone. It should not be twisted or "kinky." If it curls up on itself like a pig's tail, it will cause false tension snaps.

3. The Bobbin: Use a standard 60wt White Bobbin Thread.

• Visual Check: Look at your bobbin case. Is there lint packed under the tension spring (the little metal flap)? Slide a business card under the spring to clear out any dust bunnies before you start.

If you are setting up a production workflow, this is also where your hooping method matters. If you are constantly fighting alignment and rehooping, you are introducing human error. You’ll eventually want a consistent hooping station for machine embroidery setup so the test strip is about tension—not about shifting material.

Hidden Consumables you might need:

• Fresh Needles (Size 75/11 Ballpoint for knits, or Sharp for woven/felt).
• Non-permanent marker (to write needle numbers on the felt).
• Tweezers (for grabbing thread tails).

Warning: Keep hands clear! When a multi-needle machine like the Rainbow enters "Ready" status, the head can jump to the start position instantly. Keep fingers, tweezers, and scissors away from the needle bar area. A 1000 SPM needle puncture is a serious hospital-grade injury.

Prep Checklist (Do this strictly):

• Thread Check: Top threads are seated in the tension disks (floss them in!).
• Bobbin Check: Bobbin case is clean; thread mimics the "6" shape when inserted.
• Material Check: Using stable Felt or 2x Cutaway (no stretching allowed).
• Needle Check: Needles are straight and not burred (run a fingernail down the tip).
• File Check: The DST file fits inside your selected hoop boundaries.


Load the DST by USB and Set the Rainbow Control Panel the Same Way Every Time

Consistency is the enemy of anxiety. Follow the exact same loading procedure every time.

1. Transfer: Copy the DST file (e.g., “Tension_Calib.dst”) to a clean USB drive.
2. Input: Insert USB into the Rainbow panel. Select "Disk Input."
3. Memory: Save it to a memory slot (e.g., Slot 22).
4. Color Assign: Map your needles 1 through 12.
   • Note: Ensure the screen colors vaguely match your thread cones so you don't get confused later.
5. Hoop Select: Choose the preset that matches your physical hoop (e.g., Hoop C / Green tubular).


Why hoop preset selection matters (The Safety Margin): On commercial machines, the hoop preset defines the "Kill Zone." If you tell the machine you are using a giant jacket back hoop, but you actually clipped on a small 4x4 hoop, the machine will happily slam the needle bar into the plastic frame. This ruins the reciprocating lever, breaks the needle, and requires a technician to fix.

Setup Checklist (The "Takeoff" Procedure):

• File Loaded: Design is in memory.
• Sequence: Colors 1-12 match the design bars.
• Hoop Match: Physical hoop matches the screen preset (Hoop C).
• Speed: Set speed to a "Safe Zone" (600-700 SPM) for the test.
• Path Clear: No cables or fabric bunching behind the hoop arm.

Hooping and Tracing on a Tubular Hoop: The Small “Centering” Habit That Prevents Hoop Strikes

The video demonstrates centering using the pantograph keys. This is critical.

The Protocol:

1. Hoop It: Secure your double-layer backing or felt into the tubular hoop. Tap it like a drum—it should sound tight.
2. Align: Use the arrow keys to move the hoop so the center of the fabric is under the active needle.
3. Trace: Press the Trace/Frame button. Watch the red laser (or needle pointer) travel the perimeter.
4. Verify: Does the pointer come too close to the plastic ring? You want at least a finger-width of clearance.


Expert insight (The "Hoop Burn" Factor): Traditional tubular hoops rely on friction. To hold slick performance wear tight enough for embroidery, you have to crank the screw tight. This often creates "Hoop Burn"—a permanent ring mark that ruins the garment. If you are struggling with this, or if your wrists hurt from forcing hoops together, professional shops switch to magnetic embroidery hoops. These use powerful magnets to clamp the fabric without the friction ring, eliminating burn marks and making re-hooping 3x faster during production runs.

Read the Back Like a Pro: The 1/3 Bobbin Rule and the “H” Pattern on Satin Bars

Stop looking at the front. The truth is on the back. After the machine stops, remove the hoop and flip it over.

The "Rule of Thirds" (The 1/3 Rule): Imagine the back of the satin column is divided into three vertical strips.

• Left 1/3: Top Color Thread.
• Center 1/3: White Bobbin Thread.
• Right 1/3: Top Color Thread.

It should look like a white stripe sandwiched between two colored stripes—essentially the letter "H".

Interpreting the Data:

• The "Skinny" Bobbin: If the white line is a razor-thin thread (or invisible), the Top Tension is TOO LOOSE. The top thread is dominating the tug-of-war.
• The "Fat" Bobbin: If the white line is huge (covering 2/3 or more of the width), the Top Tension is TOO TIGHT. It is pulling the bobbin thread up too aggressively.
• The "Looping" Bobbin: If you see loops of top thread on the back, the top tension is WAY TOO LOOSE (or the thread hopped out of the tension disk).




Sensory Check: Run your fingernail over the back of the column. It should feel smooth. If it feels rough or "knotty," your tension balance is fighting itself.

Turn the Right Knob on the Right Needle: Upper Tension Adjustment on the Rainbow Head + Thread Stand

You have identified that Needle #5 is "Too Loose" (Skinny Bobbin). Now, let's fix it.

There are two knobs per needle path on the Rainbow head:

1. The Top Knob (Pre-tension): On the thread tree. This aligns the thread.
2. The Bottom Knob (Rotary Tension): On the head. This does 80% of the work.

How to Adjust (The "Clock Face" Method): Do not spin the knob wildly. Use the "Clock Face" visualization.

• To Tighten: Turn Clockwise (Right). Imagine turning a clock hand from 12:00 to 12:15 (a quarter turn).
• To Loosen: Turn Counter-Clockwise (Left).

The Workflow:

• If Needle #5 has a skinny bobbin (Too Loose) -> Tighten the main knob on Needle #5 by "15 minutes" (1/4 turn).
• If Needle #6 has a fat bobbin (Too Tight) -> Loosen the main knob on Needle #6 by "15 minutes."




Verify: Rerun the test next to the first one. Compare. Did the white column get wider or narrower? Repeat until you hit the 1/3 sweet spot.

Pro Tip: If you have to turn the knob more than 3 full rotations and nothing changes, verify that the thread is actually inside the tension disks. Sometimes it floats on top of them. Floss it in!

When the White Bobbin Band Is Too Wide: What to Change (and What Not to Touch Yet)

In the video, the operator notes that if the white bobbin thread is wider than 1/3, the instinct is often to tighten the bobbin case. Don't.

Always adjust the Top Tension First.

• Scenario: White bobbin is wide.
• Action: Loosen the Top Tension knob (Turn Left).
• Why: Turning a screw on the bobbin case changes the physics for all 12 needles. Adjusting the top knob only affects one. Isolate your variables.

Only when you have loosened the top knob significantly and the bobbin is still too wide should you consider the bobbin case.

The Bobbin Case Screw Is a Global Lever: Use It Only After You Hit Max/Min on Upper Knobs

Think of the bobbin case screw as the "Master Volume." You only touch it if the individual channel faders can't get loud enough.

The "Drop Test" (Sensory Calibration): Before grabbing a screwdriver, do the Drop Test.

1. Remove the bobbin case with the bobbin inside.
2. Hold the thread tail. Let the case hang.
3. Jerk your wrist slightly (like a Yo-Yo).
4. Result: The case should drop 1-2 inches and stop.
   • If it doesn't drop: Tension is too tight.
   • If it hits the floor: Tension is too loose.

Adjusting the Screw:

1. Locate the larger flat-head screw on the side of the case.
2. Mark the original position with a Sharpie (Safety net!).
3. Turn in tiny increments—think "5 minutes" on a clock face. It is extremely sensitive.
   • Right = Tighten.
   • Left = Loosen.


Warning: Magnetic Safety! When working with bobbin cases or small screws, be careful if you have a magnetic hoop nearby. The magnets in these frames are industrial strength (often casing-crushing power). They will rip a screwdriver or bobbin case right out of your hand. Keep magnetic hoops stored flat and away from pacemakers, credit cards, and your tool zone.

Quick Decision Tree: Is This a Thread/Needle Issue, an Upper Tension Issue, or a Bobbin Baseline Issue?

Use this logic flow to stop guessing. Start at the top.

1. Is the issue happening on ALL 12 needles?

• YES: It's a Global Issue. Check the Bobbin Case Tension (Drop Test) or check if the backing is too thin.
• NO: Go to step 2.

2. Is the issue perfectly consistent on ONE needle?

• YES: It's a localized path issue. Check the Upper Tension Knobs for that needle. Check for lint in that specific potential disk.
• NO: Go to step 3.

3. Does the issue change randomly (good, then bad, then good)?

• YES: It's a feed issue. Your thread might be catching on the cone, twisting, or the adhesive from your stabilizer is gumming up the needle eye. Change the needle and check the thread path.

4. Is the standard hoop leaving marks or failing to hold the fabric?

• YES: This is not a tension issue; it's a holding issue. Consider upgrading to hoops for embroidery machines that use magnetic force to equalize pressure, rather than friction rings that distort the fabric fibers.

Operation Rhythm That Saves Time: Retest, Compare, and Log the Needle Numbers

You tuned it. It looks good. Now, seal the deal.

The "Before and After" Log: Keep your test fabrics. Write the date and the machine settings on them.

• "Needle 5: Tightened 1/2 turn."
• "Needle 8: Loosened 1/4 turn."

In a commercial shop, this log is your shield against "Tension Drift."

Operation Checklist (The Maintenance Loop):

• Visual Scan: After every bobbin change, glance at the back of your production run.
• 1/3 Rule: Confirm the "H" pattern survives on real garments (adjust slightly for hats vs. flats).
• Clean: Blow out the bobbin hook assembly with compressed air daily.
• Lubricate: One drop of oil on the rotary hook every morning (or as per manual).

The Upgrade Path (When You’re Done Fighting the Same Problems): Faster Hooping, Cleaner Results, Better ROI

Once you master tension, you will hit new bottlenecks. Here is how to scale intelligently.

1. If you are losing time to "Hooping Fatigue":
   If 50% of your production time is spent wrestling with plastic frames and aligning garments, standard hooping for embroidery machine methods are your bottleneck. A Magnetic Hooping Station (compatible with SEWTECH frames) can reduce alignment time by 40% and save your wrists.
2. If consistency is your enemy:
   If you find that delicate fabrics (like performance polos) are puckering despite perfect tension, the issue is often the hoop distortion. Using an embroidery hooping system with magnetic retention allows the fabric to lay naturally flat, allowing your perfect tension settings to shine without fighting fabric stretch.
3. If you need more volume:
   Eventually, a single 12-needle head isn't enough. When your "H-Test" is perfect but you still can't meet deadlines, it's time to add capacity. SEWTECH’s multi-needle ecosystem is designed to let you replicate these exact settings across multiple heads, doubling your profit per hour.

Master the variables you can control—Tension, Hooping, and Thread—and the machine becomes a reliable employee, not a source of frustration.

FAQ

• Q: How do I set up a reliable thread tension test on a SEWTECH Rainbow 12-needle embroidery machine using a 5mm × 20mm satin bar DST?
  A: Use a simple satin-bar “H-Test” on stable material so the Rainbow head tension is the only variable.
  • Digitize one satin column at 5mm × 20mm, density about 0.40–0.45mm, then duplicate to 12 bars and export as DST.
  • Stitch on white felt or 2 layers of medium cutaway stabilizer (avoid stretchy T-shirt scraps).
  • Space bars at least 10mm apart to prevent trim tails from contaminating the next column.
  • Success check: each bar stitches cleanly, and the back is readable (not distorted by puckering or fabric stretch).
  • If it still fails: re-check the file fits the selected hoop boundary and re-do the thread seating (“floss” thread into tension discs).
• Q: What is the correct “Rule of Thirds” tension reading on the back of satin stitches for a SEWTECH Rainbow 12-needle tension test?
  A: The correct result is an “H” look on the back: 1/3 top thread + 1/3 bobbin + 1/3 top thread.
  • Flip the hooped sample and judge the back, not the front.
  • Identify “skinny bobbin” (white line too thin/invisible) vs. “fat bobbin” (white too wide) vs. loops.
  • Success check: the white bobbin band sits roughly in the center and is about one-third of the satin width, and the back feels smooth under a fingernail.
  • If it still fails: confirm the material is stable (felt or 2× cutaway) so the reading isn’t being skewed by stretch.
• Q: How do I adjust upper thread tension on a SEWTECH Rainbow 12-needle head when one needle shows looping or a “skinny bobbin” on the H-Test?
  A: Adjust only that needle’s main rotary tension knob in small “clock-face” moves—don’t chase multiple knobs at once.
  • Tighten clockwise by about 1/4 turn (12:00 to 12:15) if the bobbin line is too skinny or top thread loops on the back.
  • Loosen counter-clockwise by about 1/4 turn if the bobbin line is too wide.
  • Re-stitch the test next to the first sample so the change is easy to compare.
  • Success check: the bobbin band moves toward the 1/3 target and the column back becomes smoother (less knotty).
  • If it still fails: verify the thread is actually inside the tension discs (it can ride on top—re-thread and “floss it in”).
• Q: When the white bobbin band is too wide on a SEWTECH Rainbow 12-needle satin bar test, should I tighten the bobbin case screw?
  A: Don’t touch the bobbin case screw first—correct wide bobbin showing by loosening the upper tension for that needle.
  • Loosen that needle’s main upper tension knob (counter-clockwise) in small increments and re-test.
  • Treat bobbin-case adjustment as a last resort because it affects all 12 needles (a global baseline).
  • Success check: after upper adjustment, the white band narrows toward about 1/3 and stops dominating the back.
  • If it still fails: perform the bobbin “Drop Test” before making any screw changes, and mark the original screw position.
• Q: How do I do the bobbin case “Drop Test” on a commercial embroidery bobbin case before adjusting bobbin tension on a SEWTECH Rainbow 12-needle machine?
  A: Use the Drop Test to confirm bobbin baseline before any screwdriver work.
  • Remove the bobbin case with bobbin installed and hold it by the thread tail.
  • Jerk your wrist slightly like a yo-yo and observe the movement.
  • Adjust only in tiny increments (about “5 minutes” on a clock face) and mark the starting screw position first.
  • Success check: the case drops about 1–2 inches and stops (not frozen tight, not falling freely).
  • If it still fails: return to upper-tension diagnosis first if the problem is only on one needle, since bobbin changes are global.
• Q: What are the most common “false tension problems” to eliminate before tension tuning on a SEWTECH Rainbow 12-needle embroidery head?
  A: Lock down consumables and cleanliness first, because bad thread path, lint, or a damaged needle can mimic tension failure.
  • Clean lint under the bobbin-case tension spring (slide a business card under the spring to clear debris).
  • Confirm thread quality by pulling several feet off the cone; avoid twisted/kinky “pig-tail” thread behavior.
  • Replace needles if bent or burred (use the fingernail check) and choose the appropriate point style for the material.
  • Success check: thread feeds smoothly without random snags, and the test stitches stop snapping/looping unpredictably.
  • If it still fails: isolate whether the issue is global (all needles) or localized (one needle) before adjusting more settings.
• Q: What safety steps prevent hoop strikes and hand injuries when running Trace/Frame and “Ready” on a SEWTECH Rainbow 12-needle embroidery machine?
  A: Always match the hoop preset and keep hands out of the needle-bar zone—multi-needle heads can jump instantly in Ready.
  • Select the correct hoop preset for the physical hoop before stitching (wrong preset can cause a hoop strike).
  • Use Trace/Frame and ensure a finger-width clearance between pointer path and hoop ring.
  • Keep fingers, tweezers, and scissors away from the needle area whenever the machine is in Ready status.
  • Success check: the traced perimeter clears the hoop safely and the head never contacts plastic or clamps.
  • If it still fails: stop immediately and re-check hoop selection and centering before restarting.
• Q: How do I decide between technique changes, magnetic embroidery hoops, or a SEWTECH multi-needle capacity upgrade when tension and hooping problems keep slowing production?
  A: Escalate in levels: fix technique first, upgrade holding next, then add capacity only when quality is stable but volume is the limit.
  • Level 1 (technique): run the satin-bar H-Test, adjust only the responsible needle path, and log needle-by-needle changes.
  • Level 2 (tooling): consider magnetic embroidery hoops when friction hoops cause hoop burn, fabric distortion, or slow re-hooping.
  • Level 3 (capacity): consider adding SEWTECH multi-needle capacity when tension is repeatable but deadlines still can’t be met.
  • Success check: tension stays stable across runs and hooping time drops without new puckering or ring marks.
  • If it still fails: revisit the decision tree—global issues point to bobbin baseline/backing, single-needle issues point to that needle’s thread path and upper tension.
