Ribbon Embroidery That Stays Straight: A Fail-Safe Hooping + Topper Method on the Baby Lock Radiance

The Ultimate Guide to Perfect Ribbon Embroidery: From "Slippery Mess" to "Boutique Quality"

If you have ever tried embroidering a name or date onto a ribbon, you are likely familiar with the two specific heartbreaks of this craft: the "Sliding Snake" (where the ribbon shifts and the text goes crooked) or the "Sinking Stitch" (where the thread disappears into the texture of grosgrain, looking fuzzy and amateur).

The good news is that ribbon is one of the highest-margin, most giftable "add-ons" you can offer in an embroidery business. The bad news? It is a narrow, slippery, unforgiving substrate that amplifies every tiny error. A 1mm misalignment on a bath towel is invisible; a 1mm misalignment on a 1.5-inch sash is a disaster.

This guide takes a common method—using the Baby Lock Radiance—and upgrades it with 20 years of shop-floor experience. We are moving beyond "hoping it works" to a scientifically repeatable process.

Don’t Panic: Ribbon Embroidery Isn’t Hard—It’s Just Unforgiving on Alignment

Ribbon intimidates beginners because there is no room for error. But if we change your mental model, the fear disappears.

Here is the cognitive shift you need to make:

• Stop trying to "hoop the ribbon." You cannot securely clamp a 1-inch strip of satin in a standard hoop. It will slip.
• Start thinking about "building a stage." You are hooping a sticky stabilizer to create a stable, temporary floor. You then mount the ribbon to that floor.

By separating the hooping process from the ribbon-mounting process, we eliminate 90% of the mechanical variables that cause crooked text.

The “Hidden” Prep Pros Do First: Needle Choice, Stabilizer Logic, and Thread That Looks Good on Both Sides

Before you even look at your machine, we must gather the "Hidden Consumables"—the items that don't come in the box but are essential for success.

1. The Needle: Precision over Power

Ribbon is densely woven. A standard universal needle often "pushes" the fibers apart rather than piercing them, causing unsightly pulls or puckering.

• The Pro Choice: Use a 75/11 Sharp or Microtex needle.
• The Sensory Check: When the needle penetrates, it should sound like a crisp snap, not a dull thud. If you hear a thud, your needle is too dull or too thick.

2. Stabilizer: The "Sticky" Foundation

We use Sticky Wash-Away Stabilizer.

• Why Sticky? It eliminates the need for spray adhesives (which can gum up your needle) or pins (which leave permanent holes in satin).
• Why Wash-Away? Tear-away stabilizer leaves fuzzy white paper remnants on the back of the ribbon. Since ribbon is often viewed from both sides (like on a bouquet or sash), wash-away ensures the back looks as clean as the front.

3. The Topper: The "Grosgrain Rule"

If you are stitching on Grosgrain (the ribbon with the ridges that look like potato chips), a water-soluble topper is mandatory, not optional. Without it, your needle will deflect into the "valleys" of the ribbon ridges, making your font look jagged. The topper creates a smooth suspension bridge for the thread to sit on.

4. Bobbin Thread: The 360-Degree View

Unlike a sweatshirt, the back of a ribbon is often visible.

• The Fix: Wind a bobbin with the exact same thread color you are using for the top. This makes the backside look intentional and high-end.

Prep Checklist (The "Do Not Skipp" List):

• Needle: New 75/11 Sharp or Microtex installed.
• Stabilizer: Sticky Wash-Away (paper side intact).
• Topper: Water-soluble film (cut into strips width of ribbon).
• Marking Tool: Air-erase pen or Chaco liner (test on scrap!).
• Bobbin: Wound with matching top thread color.
• Environment: Fans/AC turned away so light ribbon doesn't blow around.


The Sticky Wash-Away Hoop Method: Seat It Tight Without Warping the Hoop

Hooping sticky stabilizer requires a specific touch because the paper backing adds stiffness.

What to do

1. Loosen the Screw: Open your hoop tension screw 3-4 turns looser than you would for cotton fabric.
2. Paper Up: Place the stabilizer with the shiny/grid paper side facing UP.
3. The "Countersink" Move: Do not just push the inner hoop down. Place your thumbs on the inner ring and your fingers on the outer ring. Squeeze them together evenly. You want to hear a solid click or thunk as it seats.
4. Tension Check: Tighten the screw. Tap the stabilizer. It should sound like a drum skin—tight and resonant.

What you should see (checkpoint)

• The stabilizer is taut, not sagging in the corners.
• The inner hoop effectively "floats" slightly lower than the outer hoop rim (on most standard hoops).

Expected outcome

You have created a rigid platform. If this is loose, the ribbon will "flag" (bounce up and down) causing bird-nesting.

Warning: Pinch Point Hazard. When countersinking hoops, keep the meat of your palm clear of the junction between the inner and outer rings. A slip here can cause a nasty blood blister.

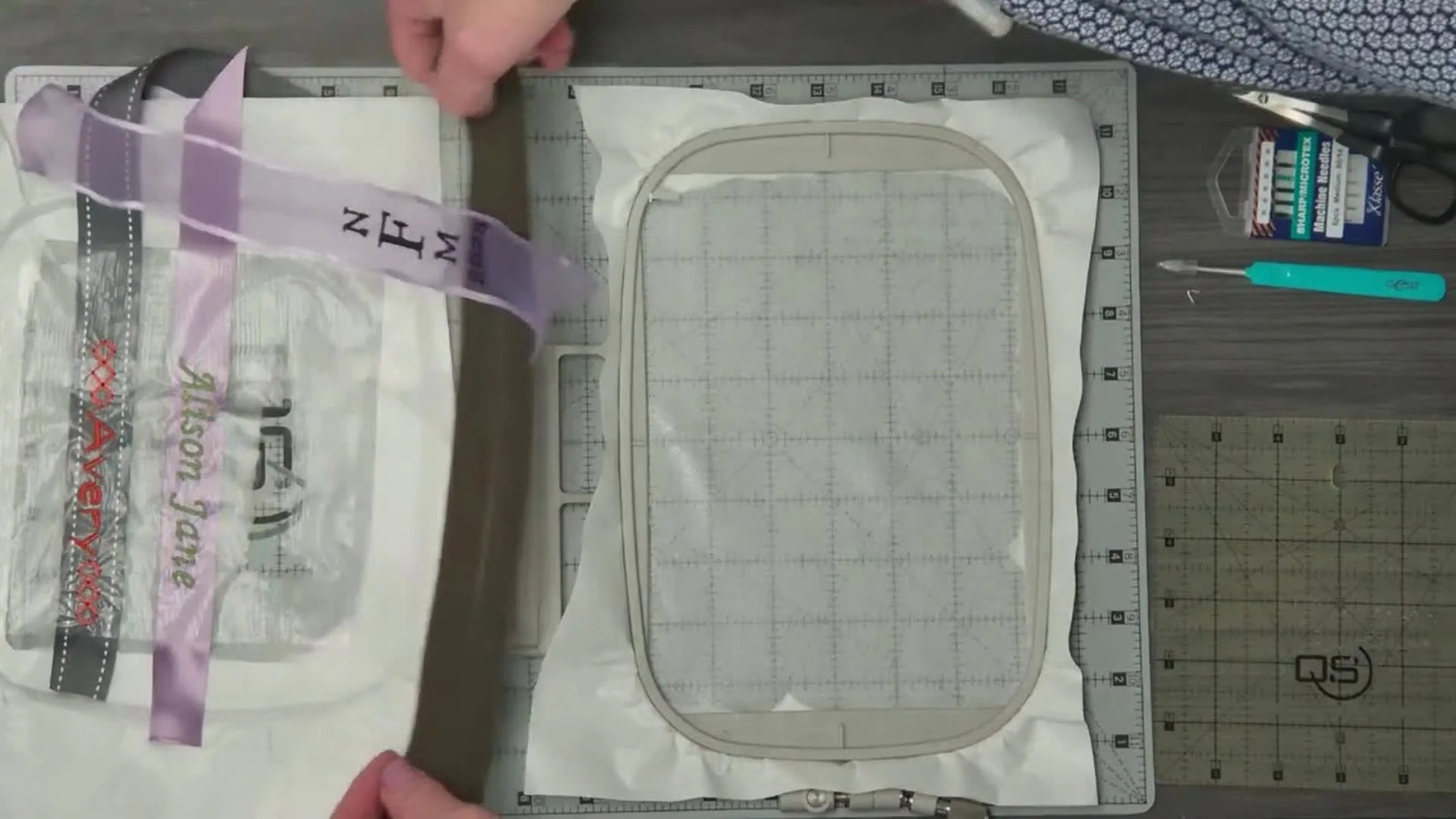

The Cutting Mat Grid Trick: Straight Ribbon Starts Before You Ever Touch the Machine

This is the "fail-safe" alignment move. Do not trust your eyes; they will lie to you. Trust the grid.

Most hoops have raised markers (Reva calls them "nubbins") on the N, S, E, and W points of the inner ring. These are your absolute truth.

What to do

1. Lay your hooped stabilizer on a transparency grid or a self-healing cutting mat.
2. Align the hoop's "nubbins" perfectly with a major grid line on the mat.
3. Tape the hoop down to the mat with painter's tape if it wobbles.

Why this works (Physics in Plain English)

By locking the hoop to the grid, you transfer the mathematical straightness of the mat to your hoop. You are no longer "eyeballing" it.

If you find yourself constantly struggling to hold the hoop still while aligning items, you might look into a specialized hooping station for embroidery. These devices hold the outer hoop rigid, acting like a "third hand" so you can focus entirely on alignment logic.

Mark the Ribbon Center Line (Yes, Even If You Have a Camera)

Technology (cameras/lasers) is great for verifying alignment, but physical marking is best for creating it.

What to do

1. Fold your ribbon gently to find the center (do not crease it hard on satin).
2. Using a ruler and your Chaco liner or air-erase pen, draw a distinct vertical line down the center of the stitch area.
3. Crucial: Make the line longer than the design height.

Checkpoint

• Can you see the line from 2 feet away? If you have to squint, mark it darker.

Expected outcome

You now have a "target line" that visualizes exactly where the center of those letters will land.

Expose the Adhesive Without Cutting the Mesh: Score, Peel, Stick

This is the skill that separates novices from pros: removing the paper without destroying the structural integrity of the mesh below.

What to do

1. Take a scoring tool (like the OESD loop tool or a straight pin).
2. Gently scratch an "X" in the center of the hoop.
3. Sensory Cue: You want to feel the tool glide. If it catches or drags, you are pushing too hard and cutting the mesh.
4. Peel the paper back towards the edges of the hoop to reveal the adhesive.

Checkpoint

• The mesh underneath should appear intact, cloudy, and white. If you see a hole or a slice, start over. A cut stabilizer offers zero support and will rip mid-stitch.

Expected outcome

A perfect, sticky window ready to grip your ribbon.

Warning: Never use a razor blade or rotary cutter for this. The risk of slicing the mesh is near 100%. Use a pin or a designated scoring tool.

Mount the Ribbon Straight on the Sticky Stabilizer (This Is Where Most People Lose It)

This is the moment of truth. You are combining the ribbon with the hoop.

What to do

1. Ensure your hoop allows the markings on the cutting mat to show through (or align the hoop markers to the grid again).
2. Hover the ribbon above the adhesive.
3. Align the Ribbon's Center Mark with the Mat's Grid Line that runs through the center of the hoop.
4. The "Landing": Press the center down first, then smooth outward to the edges.
5. The Bond: Rub the ribbon firmly with your fingernail or a smooth tool. You need to generate a little friction heat to active the pressure-sensitive adhesive.

Checkpoint

• Look at the grid. Is the ribbon parallel to the vertical lines?
• Lift the hoop and look from the side. Is the ribbon lying perfectly flat against the mesh? Air bubbles = distortion.

Expected outcome

The ribbon is now technically "hooped," but without the crush damage of a hoop ring.

High-volume shops often utilize hooping stations to standardize this step, ensuring that every ribbon lands in the exact same coordinate, reducing the need to adjust the machine screen later.

Add Wash-Away Topper: The Anti-Shaggy Layer for Grosgrain and Coarse Weaves

Never stitch directly onto textured ribbon. The thread will sink, and you will be disappointed.

What to do

1. Cut a strip of water-soluble topping (like Solvy) slightly wider than the ribbon.
2. Place it gently over the embroidery area.
3. Pro Tip: Since the ribbon is covering the sticky stabilizer, the topper won't stick. Use a tiny dab of water on the very corner of the topper (outside the stitch area) to tack it down to the ribbon, or use a piece of painter's tape on the edges.

Checkpoint

• The topper should be taut, not wrinkly. Wrinkles in the topper can get caught by the foot and drag the design.

Expected outcome

You have created a "glass-smooth" surface for the needle to punch through.

On-Screen Lettering Setup on the Baby Lock Radiance: Size It for the Ribbon, Then Rotate 90°

Now we move to the machine interface. The physical world is ready; let's prep the digital world.

What to do

1. Font Selection: Choose a Block or Simple Serif font. Avoid script fonts with tiny loops on ribbon < 1 inch, as the loops often close up. Reva uses Font 304.
2. Sizing: Scale the design to fit inside the ribbon edges with at least 3-4mm safety margin on top and bottom. Set size to 25mm (approx 1 inch) for a 1.5-inch ribbon.
3. Rotation: Rotate the text 90 degrees.

Checkpoint

• Check the "Descenders" (letters like g, j, p, y). Do they go off the edge of the ribbon preview?
• Ensure the design is centered in the hoop coordinates on screen.

Expected outcome

A design that physically fits the substrate.

For those managing multiple machines, an embroidery hooping system helps ensure that the physical center matches the digital center every time, reducing the need to jog keys on the screen.

Camera Scan Placement (IQ Positioning): Line Up the Text to Your Mark Like a Pro

If your machine has a camera (like the Baby Lock Radiance or Brother Luminaire), use it. It cheats the system in your favor.

What to do

1. Activate the Camera Scan / IQ Positioning.
2. The screen will display a live image of your hooped ribbon.
3. Use the stylus or finger to drag your text until the center of the text aligns perfectly with the Chaco line you drew earlier.

Checkpoint

• Zoom in tight. Is the crosshair of the design exactly on your blue chalk line?
• Check the rotation. If you hooped slightly crooked, rotate the design 1 degree to match the ribbon's actual path.

Expected outcome

Absolute precision. The machine will stitch exactly where the camera shows.

Stitching Settings That Keep You Sane: Monochrome Mode and a Calm First Run

Ribbon offers low resistance, which means machines can sometimes run too fast, causing vibration that shakes the ribbon loose.

What to do

1. Speed Control: Lower your max speed to 600 SPM (Stitches Per Minute). Speed kills quality on narrow items.
2. Monochrome Mode: Engage this button. It tells the machine "don't stop for color changes." You want one continuous flow.
3. The Launch: Press start, but hover your finger over the stop button.

What you’re listening and looking for (shop-floor habits)

• Sound: Listen for a rhythmic thump-thump. If you hear a slap-slap, the ribbon is lifting up with the needle (flagging). Stop and press it down again.
• Visual: Watch the borders. Is the satin stitch catching the edge of the ribbon? If so, stop immediately.

Operation Checklist (Pre-Flight):

• Speed: Reduced to 600-700 SPM.
• Path: Nothing obstructing the hoop movement (ribbon tails tucked away).
• Adhesion: Ribbon pressed down one last time.
• Topper: Secure and flat.
• Monochrome: Active.


Fast, Clean Finishing: Tear Away Topper, Then “Perforate” the Edge with an Aqua Touch Marker

Do not dunk the whole ribbon in water. You will lose the crisp sizing (stiffness) of the factory ribbon, making it floppy.

What to do

1. The Big Tear: Rip away the large chunks of topper quickly.
2. The Micro-Detail: Take an RNK Aqua Touch marker (or a Q-tip dipped in water). Run it exactly along the edge of the letters.
3. The Dissolve: The water perforates the film instantly. You can now peel the tiny bits inside letters (like 'o' and 'a') away cleanly.
4. The Back: Peel the sticky stabilizer off the back. Since it's wash-away, any tiny residue will eventually dissolve, but usually, it peels clean.

Checkpoint

• No shiny plastic film remains.
• Ribbon retains its stiffness.

Expected outcome

A retail-ready ribbon that looks crisp, not washed-out.

Troubleshooting Ribbon Embroidery: Symptoms → Causes → Fixes

Use this diagnostic table when things go wrong.

The Stabilizer Decision Tree: Pick the Right Support

Start: What type of ribbon is this?

• A) Satin (Smooth/Shiny)
  • Standard: Sticky Wash-Away Stabilizer.
  • High Contrast Color: Sticky Wash-Away + Matching Bobbin.
• B) Grosgrain (Ridged/Textured)
  • Mandatory: Sticky Wash-Away Stabilizer + Solvy Topper (top).
  • Why: The topper is the only thing stopping the thread from sinking into the ridges.
• C) Velvet / Velour
  • Careful: Sticky Wash-Away (do not press too hard or you crush the pile) + Solvy Topper (to keep stitches floating).

The Upgrade Path When You’re Doing This for Gifts—or for Money

If you are embroidering three ribbons for Christmas, the sticky stabilizer method is perfect. However, if you land a contract for 50 wedding sashes or 100 corporate lanyards, the "sticky peel" method becomes a production bottleneck.

Here is how to assess if you need to upgrade your tools:

1. The Trigger: You are spending more time peeling paper and cleaning adhesive off your hoop than you are stitching.
2. The Criteria: Are you doing runs of 20+ items? Is "Hoop Burn" on delicate satin causing you to throw away inventory?
3. The Options:
   • Level 1 (Consumables): Stick with the method above but buy stabilizer in bulk rolls.
   • Level 2 (Tooling): Switch to magnetic embroidery hoops. These allow you to clamp the ribbon and stabilizer instantly without using adhesive. The magnets hold tight enough to prevent shifting but leave zero hoop burn on delicate satin.
   • Level 3 (Capacity): If you are constantly changing thread colors for different bridesmaids, a single-needle machine is slowing you down. A multi-needle machine (like the SEWTECH models) allows you to set up 10+ colors and run continuously, drastically increasing your profit per hour.

Warning: Magnetic Field Safety. Magnetic hoops use industrial-grade magnets (Neodymium). They are incredibly strong.
* Do not place them near pacemakers or ICDs.
* Do not let your fingers get caught between the magnets; they snap together with enough force to bruise or break skin.

The Last 60 Seconds of Advice I’d Give in a Workshop

Embroidering on ribbon is not about "hope"—it is about physics. You are taking a flimsy material and giving it temporary structure using stabilizer and toppings.

• Invest in the Prep: 80% of the work happens before you push "Start."
• Trust the Topper: It is the secret ingredient for professional text clarity.
• Watch the Speed: Slow down. The machine can handle 1000 SPM; the ribbon usually cannot.

Gather your scraps, wind a matching bobbin, and go make something beautiful.

Setup Checklist (The "Go/No-Go" Final Check):

• Stabilizer paper removed; adhesive is tacky.
• Ribbon is aligned to grid and pressed firmly.
• Center line falls exactly in the center of the hoop.
• Topper is applied and smooth.
• Correct needle (Sharp) is verified.
• Hands are clear of the needle zone. GO.

FAQ

• Q: What supplies are required for ribbon lettering on a Baby Lock Radiance to avoid crooked text and fuzzy stitches?
  A: Use a 75/11 Sharp (Microtex) needle, sticky wash-away stabilizer, water-soluble topper for grosgrain, and a matching bobbin thread color as the baseline.
  • Install: Put in a new 75/11 Sharp or Microtex needle before the run.
  • Prepare: Hoop sticky wash-away stabilizer (paper side up) and score/peel the paper to expose adhesive.
  • Add: Place water-soluble topper over the stitch area (mandatory on grosgrain).
  • Match: Wind the bobbin with the same thread color used on top for a clean back side.
  • Success check: Needle penetration sounds like a crisp “snap,” and the ribbon surface stays flat without thread sinking into texture.
  • If it still fails: Switch to a simpler block font and re-check topper smoothness and ribbon adhesion.
• Q: How do I hoop sticky wash-away stabilizer for ribbon embroidery without warping a standard embroidery hoop?
  A: Loosen the hoop more than usual, seat the inner ring evenly with a “countersink” squeeze, then tighten until the stabilizer is drum-tight.
  • Loosen: Back off the tension screw 3–4 turns looser than for cotton fabric.
  • Place: Insert stabilizer with the shiny/grid paper side facing up.
  • Seat: Squeeze inner and outer rings together evenly until a solid click/thunk seats the hoop.
  • Tighten: Turn the screw until the stabilizer is taut.
  • Success check: Tap the hooped stabilizer; it should sound tight and resonant like a drum skin (no sagging corners).
  • If it still fails: Re-hoop and focus on even seating—uneven seating often causes “flagging” and bird-nesting during stitching.
• Q: How do I keep ribbon straight on sticky stabilizer using the cutting mat grid method so Baby Lock Radiance lettering does not stitch crooked?
  A: Align the hoop’s N/S/E/W markers to a cutting-mat grid first, then land the ribbon centerline onto the same grid line and press from the center outward.
  • Align: Place the hooped stabilizer on a transparency grid or self-healing cutting mat and line up the hoop markers with a major grid line.
  • Mark: Draw a visible center line on the ribbon that is longer than the design height.
  • Land: Hover ribbon, align the ribbon center mark to the mat’s center grid line, then press the center first and smooth outward.
  • Bond: Rub firmly to activate the pressure-sensitive adhesive.
  • Success check: Ribbon edges run parallel to the grid lines, and a side-view shows no bubbles or lift between ribbon and mesh.
  • If it still fails: Stop and re-press the ribbon; poor adhesion is a common reason the ribbon shifts mid-stitch.
• Q: How do I peel the paper from sticky wash-away stabilizer without cutting the mesh and ruining ribbon support?
  A: Score a gentle “X” with a pin or scoring tool and peel slowly; do not use a razor blade or rotary cutter.
  • Scratch: Use a pin/loop tool to lightly score an “X” in the center—aim for a smooth glide, not a grab.
  • Peel: Pull paper back toward the hoop edges to open a sticky window.
  • Inspect: Check that the mesh looks intact, cloudy, and white (no slices).
  • Success check: Adhesive is exposed evenly, and the stabilizer mesh shows no cut lines or holes.
  • If it still fails: Start over with a new piece—cut stabilizer can rip mid-stitch and cause distortion or nesting.
• Q: Why do stitches look fuzzy or “sink” into grosgrain ribbon when stitching lettering on a Baby Lock Radiance?
  A: On grosgrain, skipping water-soluble topper usually causes the needle to deflect into the ridges, making lettering look jagged and sunken.
  • Add: Place a water-soluble topper strip over the embroidery area before stitching.
  • Secure: Keep topper taut; tack a corner with a tiny dab of water outside the stitch area or tape the edges.
  • Choose: Use a block/simple serif font rather than tiny-loop scripts on narrow ribbon.
  • Success check: Satin columns sit on top of the ribbon texture instead of disappearing into the grooves.
  • If it still fails: Re-check topper wrinkles—wrinkled topper can drag under the foot and distort the stitch-out.
• Q: What Baby Lock Radiance settings help prevent ribbon “flagging,” shifting, and bird-nesting during ribbon embroidery?
  A: Slow the machine down and run a calm first pass—600 SPM with Monochrome Mode is a safe workflow for narrow ribbon.
  • Reduce: Set maximum speed to about 600 SPM for stability.
  • Enable: Turn on Monochrome Mode to avoid unnecessary stops for color changes.
  • Watch: Keep ribbon tails clear so nothing snags hoop travel.
  • Listen: Stop if the sound changes from rhythmic “thump-thump” to “slap-slap” (ribbon lifting/flagging).
  • Success check: Ribbon stays flat throughout stitching and the underside shows no thread “nest” forming.
  • If it still fails: Re-press the ribbon to the adhesive and verify the stabilizer is drum-tight in the hoop.
• Q: What are the most important finger-safety steps when seating an embroidery hoop and when using magnetic embroidery hoops?
  A: Keep hands out of pinch zones—standard hoops can pinch during countersinking, and magnetic hoops can snap together hard enough to bruise or break skin.
  • Avoid: Keep the “meat” of the palm clear of the inner/outer hoop junction when seating the hoop.
  • Control: Lower the inner ring evenly instead of forcing one side down.
  • Separate: Handle magnetic hoop pieces one at a time and keep fingers away from mating edges.
  • Follow: Keep magnetic hoops away from pacemakers or ICDs.
  • Success check: No fingers are near closing points when the hoop seats, and hoop parts come together under controlled hand pressure (not a sudden snap).
  • If it still fails: Pause and reset hand position—rushing hoop handling is the most common cause of pinched skin.
• Q: When should a ribbon-embroidery business upgrade from sticky wash-away stabilizer to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade when sticky prep becomes the bottleneck—use a tiered approach based on volume, damage risk, and time spent peeling/cleaning.
  • Trigger: Notice more time spent peeling paper and cleaning adhesive than stitching.
  • Criteria: Confirm runs of 20+ items or frequent hoop-burn waste on delicate satin.
  • Option (Level 1): Buy stabilizer in bulk rolls and standardize the grid-and-centerline workflow.
  • Option (Level 2): Use magnetic embroidery hoops to clamp ribbon/stabilizer quickly and reduce hoop-burn risk (generally a productivity step-up).
  • Option (Level 3): Move to a multi-needle platform like SEWTECH when frequent color changes on single-needle machines slow production.
  • Success check: Setup time per ribbon drops and alignment rework on the machine screen becomes rare.
  • If it still fails: Audit where time is actually going (alignment vs. peeling vs. thread changes) before changing tools or machines.
