Ricoma Magnetic Hoop Setup That Won’t Break Needles: Bracket Spacing, Hoop Codes, and the 3-Trace Safety Ritual

If you have ever stood in front of a Ricoma pantograph swinging a heavy plastic frame at 800 stitches per minute and thought, “If that presser foot hits the plastic, I’m looking at a $500 repair bill,” you are not being dramatic—you are being experienced. Magnetic hoops are the "gold standard" for speed, but they are unforgiving physics engines. One millimeter of bracket drift or a lazy trace can result in a shattered needle bar or a cracked frame.

This guide rebuilds the workflow from the source video into a repeatable, station-style protocol. We will move beyond "guessing" and into "measuring," ensuring that your transition to magnetic hoops increases your profit margins, not your blood pressure.

Why the 14-Inch Bracket Spacing on Magnetic Hoops Saves You From Constant Re-Setup

The video begins with a critical foundational fact: nearly all commercial magnetic hoop systems utilize a standardized bracket distance—approximately 14 inches (approx. 355mm).

Why does this specific number matter to your bottom line? Because in a production environment, time spent unscrewing and re-screwing brackets is lost revenue. Once you install your bracket arms and square them to this 14-inch standard, you create a "master lane." You can swap from a 5.5-inch hoop to a 10x10-inch hoop without reaching for your Allen keys.

In professional shops, we categorize setups in two ways:

• Hobby Mode: Re-aligning brackets for every single project (High friction, high error rate).
• Production Mode: Establishing a "Zero Point" where brackets stay fixed, and only the hoop sizes change.

If you are currently building a magnetic hooping station, treat this 14-inch spacing as your baseline. It is the "highway" where your highest-volume hoops will live, eliminating the need for constant re-calibration.

The “Hidden” Prep Before You Touch the Ricoma Pantograph (Measure Like You Mean It)

The most dangerous assumption in machine embroidery is trusting the screen over the ruler. The software preview is an approximation; the physical hoop is a hard reality.

Before you even touch the control panel, you must physically measure your "Safe Zone." Magnetic hoops have a visible inner window, but they also have a thick plastic or metal perimeter. The presser foot needs clearance outside the design area but inside that perimeter.

The "0.5-Inch Rule" for Safety

When working with large frames (like the 13x16 inch), the video—and industry consensus—dictates a 0.5-inch (12mm) safety margin. This means your design element must stop 0.5 inches before it reaches the inner edge of the hoop.

Hidden Consumables Checklist: To do this right, you need more than the machine. Keep these nearby:

• Flexible Sewing Ruler: To measure the physical inner diameter.
• Fabric Pen/Chalk: To mark the true center of your garment.
• Masking Tape: To mark "No Fly Zones" on your brackets if necessary.

Warning: Pinch Point Hazard. Keep fingers, scissors, and loose tools clear of the pantograph arm and needle area during any trace or frame movement. A pantograph moves with high torque; a sudden start command can pinch skin or trap loose clothing instantly.

Prep Checklist (Do not proceed until checked)

• Project Match: Confirmed the project type (bag, towel, jacket) matches the hoop's grip strength.
• Physical Measurement: Measured the usable inner hoop area with a tape measure, ignoring software numbers.
• Clearance Buffer: Subtracted 0.5 inches from all sides to create a "Safety Buffer."
• Obstruction Check: Removed cap drivers or hat hoops; pantograph table is clear.
• Tool Staging: 2.5mm or 3mm Allen key (hex key) is visibly placed on the workstation, not in a drawer.


Installing Ricoma Mounting Brackets Without Pantograph Drift (The “Machine ON” Trick)

This is the single most common reason for "crooked" embroidery on multi-needle machines: installing brackets on a "cold" machine.

When the machine is powered off, the stepper motors are disengaged. The pantograph arm is "limp." If you push a bracket against it, the arm moves, destroying your center point.

The Professional Protocol: "Torque Lock" Turn the machine ON before installing brackets. When the machine is live, the X/Y motors are engaged. You should hear the machine hum, and if you gently push the pantograph, it should feel rigid and resist movement. This "Torque Lock" allows you to push the brackets firmly against the arm to square them without the arm drifting away from you.

The "Push-Square-Tighten" Technique

1. Engage: Ensure machine is ON and motors are holding the pantograph steady.
2. Position: Loosely mount the brackets on the drive rail.
3. Square Up: Push the brackets inward (toward the center of the machine) so the bracket shoulder presses flat against the pantograph arm.
4. Tactile Check: Run your finger along the seam where the bracket meets the arm. It should feel completely flush—no gaps.
5. Progressive Tightening: Tighten the left screw 50%, then the right screw 50%, then lock them down. Never fully tighten one side before the other, as this causes the bracket to torque/twist out of square.


Setup Checklist (Do not proceed until checked)

• Motor State: Machine is ON; pantograph resists hand pressure.
• Flush Check: Brackets are pushed inward; no light is visible between bracket and arm.
• Torque Sequence: Screws tightened in a "Left-Right-Left" pattern, not all at once.
• Stability Test: Grab the installed bracket and give a firm shake. The entire machine should move, not the bracket.

Ricoma “Design Set” Hoop Selection: Rotate With “F” (Don’t Accidentally Mirror Your Design)

Once the hardware is secure, we move to the digital brain. On the Ricoma panel:

1. Navigate to Design Set.
2. Identify the Rotate “F” button (usually on the left side of the submenu).
3. Visual Check: Ensure the "F" icon rotates the way you expect (e.g., 180 degrees for caps/shirts loaded upside down).

CRITICAL ERROR: Do not confuse "Rotate" with "Mirror" (often an "F" flipping horizontally). Mirroring renders text unreadable. Only upgrade to using Mirror if you are intentionally stitching the reverse side of a transparent fabric or a specific appliqué technique.

For those strictly setting up a workflow for a mighty hoop for ricoma, standardizing this step—always using the same Rotate button sequence—builds muscle memory that prevents ruined garments.

Warning: Magnetic Field Safety. High-end magnetic hoops use Neodymium magnets. They possess extreme seeking force.
* Pinch Hazard: They can snap together faster than you can react, crushing fingers.
* Medical Device: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Keep phones and credit cards away from the hoop border.

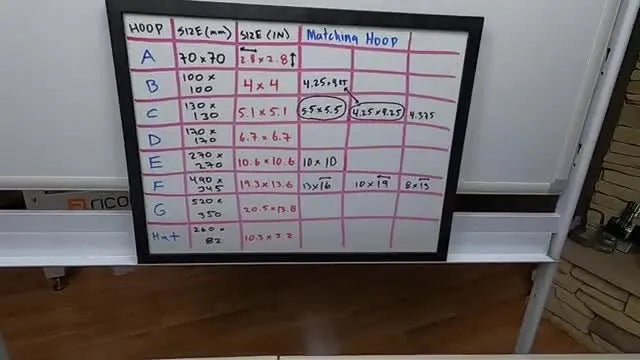

The Ricoma Hoop Code Mapping That Actually Works in Real Life (Hoop C, E, and F)

The machine's computer does not natively know you bought a magnetic hoop. You must speak its language by mapping your physical hoop to the closest "stock" hoop letter. The source video provides this field-tested translation table:

Note: The 8x13 and Sleeve hoops map to Hoop F because of their LENGTH. Even if they are narrow, the machine needs the Y-axis travel clearance of the largest hoop settings.

Implementing correct mighty hoops for ricoma codes ensures the machine's "Electronic Soft Limits" don't stop the machine mid-stitch, erroneously thinking it hit a wall.

The "Gatekeeper" Rule

Do not select a hoop code until you confirm your Design Size fits the Physical Hoop. If your design is 190mm wide, and you put it on a 5.5-inch hoop (approx 135mm usable), selecting "Hoop F" in the software might trick the machine into running, but physics will break your needle when it hits the frame. Software permission does not equal physical reality.

The Fail-Proof 3-Trace Safety Check on a Ricoma (Visual, Presser Foot, Audio)

Amateurs trace once. Professionals trace three times. This protocol catches 99% of crashes before they happen.

Trace 1: The "Parallax Check" (Visual)

Run a standard trace. Stand directly in front of the needle, then lean slightly to the side.

• Goal: Ensure the needle bar acts as a pointer that stays comfortably inside the magnetic frame.
• Watch For: The needle getting within 5mm of the edge.


Trace 2: The "Z-Axis Check" (Tactile/Physical)

This is the step most people skip. Manually lower the presser foot so it is in the "down" position (or lowest point of the stroke). Run the trace again carefully.

• Goal: The needle might clear the frame, but the presser foot is wider and lower. You need to verify the foot doesn't clip the edge of the hoop, especially on thick magnetic frames.


Trace 3: The "Ghost Hunter" (Auditory)

Run the trace one last time and close your eyes.

• Goal: Listen.
• Good Sound: Smooth whir-hum-stop, whir-hum-stop.
• Bad Sound: A sharp click, a scraping sound, or a thud.
• Why: A "click" often means your pantograph arm or hoop bracket is lightly grazing a rivet or a screw head on the machine body that you couldn't see.

If you are standardizing production with magnetic embroidery hoops, this 3-Step Trace is your insurance policy.

Picking the Right Magnetic Hoop for Bags, Towels, Sleeves, and Jacket Backs

Context is everything. The video highlights specific hoops for specific "Money Makers."

• The 5.5 Inch: The "Left Chest King." Ideal for polos and stiff visor beanies.
• The 10x10 Inch: The "Bag Builder." Perfect for tote bags where you need grip strength.
• The 8x13 Inch: The "Towel Titan." Long enough for names, narrow enough to save stabilizer.
• The Sleeve Hoop (4.25 x 13): The "Profit Specialist." Use this for pant legs and sleeves. Note: Requires Hoop F setting.
• The 13x16 / 10x19: The "Billboard." Jacket backs.










The Sleeve Hoop Geometry Lesson

The video makes a crucial point about the sleeve hoop. It is narrow (4.25"), but because it is long (13"), you must tell the machine it is a huge hoop (Hoop F). If you are searching for a sleeve hoop solution, remember: Width dictates what fits inside; Length dictates the travel. Prioritize clearance.

The “Why” Behind These Steps: Hooping Physics & Profit

Why go through all this trouble?

1. Hooping Physics (Grip vs. Slip): Magnetic hoops provide "vertical clamping force." Unlike a traditional screw hoop that creates tension by distorting the fabric (friction), magnetic hoops rely on the magnet's pull.
   • Implication: You must use the correct stabilizer. For stretchy performance wear, the magnet holds the fabric down, but the stabilizer keeps it from stretching. Use a high-quality cutaway stabilizer from a trusted brand like SEWTECH to prevent outlines from misaligning.
2. Sensory Feedback Loop: Your ears process rhythm faster than your eyes process motion. Understanding the "sound" of a good trace saves you from looking at the needle constantly.
3. Scalability: When you standardize on 14-inch brackets, you stop playing "mechanic" and start playing "operator."

Troubleshooting Ricoma Magnetic Hoop Setup: Symptoms → Causes → Fixes

A Simple Decision Tree: Hoop Size + Stabilizer selection

Do not just guess. Follow this logic path to choose the right setup.

Start Here:

1. Is the item tubular and narrow (Sleeve/Pant Leg)?
   • YES: Use Sleeve Hoop (4.25x13). Map to: Hoop F. Stabilizer: Cutaway (heavy).
   • NO: Go to step 2.
2. Is the design height/width greater than 9 inches?
   • YES: Use 13x16 or 10x19. Map to: Hoop F. Stabilizer: Cutaway or Tearaway (depending on fabric). Enforce 0.5" clearance.
   • NO: Go to step 3.
3. Is it a standard medium job (Tote bag, Onesie, Towel)?
   • YES: Use 10x10. Map to: Hoop E. Stabilizer: Tearaway for towels; Cutaway for knits.
   • NO: Go to step 4.
4. Is it a Left Chest Logo (under 4 inches)?
   • YES: Use 5.5 Inch. Map to: Hoop C. Stabilizer: Action Back (Cutaway).

The Upgrade Path: Speed Without Sloppiness

Once you master this workflow, you will hit new bottlenecks. Here is how to upgrade logically:

Level 1: The "Hoop Burn" Bottleneck

If you are spending 5 minutes steaming "hoop rings" out of delicate polo shirts, your clamping method is costing you labor money.

• The Upgrade: Standardize your magnetic embroidery hoop station. The flat clamping mechanism eliminates fabric burn, saving post-production time.

Level 2: The "Production" Bottleneck

If you can hoop perfectly but the machine is too slow for your order volume (e.g., stopping to change threads for every logo), the limitation is the hardware.

• The Upgrade: This is the trigger to move to a SEWTECH multi-needle system (10-needle or higher). Combined with the magnetic hoops you already own, you can queue stitches and run continuous production.

Level 3: The "Specialty" Bottleneck

If you are turning down jacket backs because your 8x13 is too small:

• The Upgrade: Invest in the mighty hoop 8x13 or larger (13x16) sizes. Since you've already set your brackets to 14 inches, these larger hoops will snap right into your existing workflow.

Operation Checklist (Final "Pre-Flight" Check)

• Math Check: Measured design and hoop interior; confirmed 0.5" safety buffer exists.
• Hardware Check: Brackets installed with "Torque Lock" (Machine ON); screws tight and squared.
• Software Check: Design Rotated (not Mirrored); correct Hoop Code (C, E, or F) selected.
• Safety Check Trace 1: Visual confirmation of needle path.
• Safety Check Trace 2: Presser Foot Down confirmation of foot clearance.
• Safety Check Trace 3: Audio check for subtle clicking or scraping.
• Operator Check: Hands and tools clear of the danger zone before pressing Start.


If you build your station around these habits, you stop "hoping it clears" and start knowing it clears. That confidence is the difference between a hobbyist who dreads the sound of a needle break and a professional who runs at 1000 stitches per minute with peace of mind.

FAQ

• Q: Which consumables and tools should be staged before installing Ricoma magnetic hoop brackets on a pantograph?
  A: Stage measuring and marking tools first, because screen previews are not a safe substitute for physical clearance checks.
  • Gather: Flexible sewing ruler, fabric pen/chalk, masking tape, and the correct Allen key (2.5mm or 3mm) on the workstation.
  • Measure: The physical usable inner hoop window (ignore software dimensions), then plan a safety buffer before any trace.
  • Mark: Center lines and any “no-fly zones” so bracket positions are repeatable.
  • Success check: All tools are visible and reachable without stepping away; the inner hoop opening has been physically measured and noted.
  • If it still fails: Re-check that the pantograph table is clear (remove cap drivers/hat hoops) before proceeding.
• Q: How do you prevent Ricoma pantograph drift when installing magnetic hoop mounting brackets (the “Machine ON” method)?
  A: Turn the Ricoma machine ON before tightening brackets so the X/Y motors hold the pantograph rigid (“Torque Lock”).
  • Power on: Confirm the machine is humming and the pantograph resists gentle hand pressure.
  • Push-square: Push brackets inward so the bracket shoulder sits flush against the pantograph arm before tightening.
  • Tighten: Use progressive tightening (left 50%, right 50%, then lock down) to avoid twisting out of square.
  • Success check: No light/gap is visible between bracket and arm, and a firm shake moves the machine—not the bracket.
  • If it still fails: Loosen and re-seat the brackets with the machine still ON, then repeat the flush and torque sequence.
• Q: What is the 0.5-inch safety margin rule for large Ricoma magnetic hoops, and how does it prevent presser foot frame strikes?
  A: Keep the design at least 0.5 inch (12mm) inside the inner edge of the magnetic hoop to maintain real clearance for the presser foot and frame perimeter.
  • Measure: Use a ruler to confirm the true inner opening of the physical hoop (not the software preview).
  • Subtract: Create a 0.5-inch “do-not-stitch” buffer from all sides before committing to the design size.
  • Trace: Verify clearance with the presser foot lowered (not just needle clearance).
  • Success check: During trace with presser foot down, the foot never approaches the hoop edge closely and does not contact the frame.
  • If it still fails: Reduce design size or switch to a larger hoop code/physical hoop so the design fits with the buffer.
• Q: How do you stop Ricoma embroidery from stitching backward or upside down when using the Design Set “F” rotate button?
  A: Use Rotate in Ricoma Design Set (the “F” rotate control) and avoid Mirror unless intentionally needed, because Mirror can reverse text.
  • Set: Enter Design Set and apply the Rotate “F” action in the direction required for the garment orientation.
  • Verify: Confirm the on-screen orientation keeps text readable (Rotate turns; Mirror flips).
  • Standardize: Use the same rotate sequence every time to prevent accidental mirror habits.
  • Success check: Text reads correctly on-screen before stitching and matches the intended garment loading direction.
  • If it still fails: Stop the job and re-check that Mirror was not selected; reset to the correct Rotate orientation.
• Q: What Ricoma hoop code should be selected for common magnetic hoop sizes (Hoop C, Hoop E, Hoop F mapping)?
  A: Match the physical magnetic hoop to the closest Ricoma stock hoop code so the machine’s electronic soft limits match real travel.
  • Select Hoop C: For 5.5-inch (130mm round) jobs like left chest logos and small items.
  • Select Hoop E: For 10 x 10 inch (270mm x 270mm) jobs like tote bags and medium designs.
  • Select Hoop F: For 13 x 16 inch, sleeve hoop (4.25 x 13), and also 8 x 13 because length requires the larger travel clearance.
  • Success check: The machine traces without “Frame Limit” interruptions and the pantograph travel stays within physical hoop clearance.
  • If it still fails: Apply the “Gatekeeper” rule—confirm the design physically fits the hoop; software allowance does not prevent a frame strike.
• Q: How do you prevent Ricoma presser foot collisions with magnetic hoops using a fail-proof 3-trace safety check?
  A: Run three traces—visual, presser-foot-down, and audio—because many crashes are caused by foot clearance or hidden grazing you cannot see.
  • Trace 1 (Visual): Stand in front of the needle and confirm the path stays comfortably inside the frame (watch the edge distance).
  • Trace 2 (Z-axis): Lower the presser foot and trace again to confirm the foot does not clip thick magnetic hoop borders.
  • Trace 3 (Audio): Trace once more and listen for clicks/scrapes/thuds that indicate grazing on hardware.
  • Success check: The trace sound is smooth (whir-hum-stop) with no clicking, scraping, or impacts.
  • If it still fails: Hit E-Stop if contact is suspected, then re-check bracket squareness and design-to-hoop clearance before restarting.
• Q: When should a shop upgrade from technique fixes to magnetic hoops or a SEWTECH multi-needle machine for Ricoma-style production workflow bottlenecks?
  A: Upgrade in layers: first fix setup habits, then use magnetic hoops to cut rework like hoop burn, then move to a multi-needle system when speed/thread-change limits cap output.
  • Level 1 (Technique): Standardize 14-inch bracket spacing, measure the usable hoop area, and run the 3-trace routine to prevent crashes and resets.
  • Level 2 (Tool): Switch to magnetic hoops if hoop burn and post-production steaming are consuming labor time.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle system when order volume is limited by frequent thread changes or overall machine throughput.
  • Success check: Setup time and rework time drop measurably (fewer re-hoops, fewer trace failures, fewer marked garments).
  • If it still fails: Identify the bottleneck by symptom (hoop burn vs. frame limit errors vs. slow output) and address the next layer rather than changing multiple variables at once.
