The Physics of Safety: Why Brackets & Power Matter

Magnetic hoops (like the popular Mighty Hoops or SEWTECH magnetic frames) are not "plug-and-play" in the consumer sense. They are precision industrial attachments. The majority of crashes occur not because the hoop is bad, but because the bracket installation lacked tension.

The "Power ON" Rule

Most novices install brackets with the machine powered down. This is a critical error. When a multi-needle machine is OFF, the stepper motors controlling the pantograph (the X/Y movement arm) are disengaged. As you push the heavy brackets onto the arm, the arm naturally drifts backward or twists slightly. You tighten the screws, locking the brackets into this crooked position.

The Solution: Always install brackets with the machine ON. The stepper motors will hold the pantograph in a rigid, "locked" position (High Torque Mode), ensuring your brackets are squared 90° to the needle plates.

Warning: Pinch Hazard. Keep hands, loose sleeves, and tools clear of the moving pantograph when the machine is powered on. Do not place your fingers between the hoop arms and the machine body.

Bracket Spacing: The 14-Inch Standard vs. The "Wide" Setup

Before tightening a single screw, you must understand spacing properties. In the video, the presenter displays multiple hoops that all utilize the same bracket width.

• Standard Spacing (Approx. 14 inches / 355mm): This fits the vast majority of commercial heads, including the ricoma em 1010 embroidery machine and larger 15-needle models. It covers small logos, chest pieces, bags, and towels.
• Wide Spacing (Approx. 19.5 inches / 495mm): Required for "Jumbo" magnetic frames and sash frames.

The Tactile Check: When sliding the hoop onto the brackets, it should feel like a "firm handshake."

• Too Loose: The hoop rattles. This causes registration loss (gaps between outlines and fill).
• Too Tight: You have to wrestle the hoop on. This puts lateral stress on the pantograph bearings.
• Just Right: The hoop slides on with smooth resistance and clicks audibly into place.


The "Pre-Flight" Ritual: Hidden Consumables & Checks

Before you pick up an Allen key, perform this standardized prep routine. This checklist separates the professionals from the gamblers.

Phase 1: Prep Checklist (Do NOT Skip)

• Identify Your Machine Type: Whether you are setting up a ricoma mt 1501 embroidery machine or a TC series, confirm your control panel model (e.g., 7S, 8S) as menu structures vary slightly.
• Clear the Deck: Remove any cap drivers or tubular drivers.
• Tool Check: Ensure you have a high-quality Metric, T-Handle Hex Key (usually 2.5mm or 3mm). Note: Worn, rounded keys lead to stripped screws.
• Measure Twice: physicaly measure your specific hoop's sewing field.
• The 1/2-Inch Buffer: Plan your design so there is 0.5" (12mm) of empty space between the needle and the plastic edge of the hoop on all sides.
• Consumables Prep: Have your screwdriver, oil pen, and a spare needle ready. (Changing a needle with a magnetic hoop loaded is difficult due to magnetic pull).

If you are processing high volumes (50+ items), consider investing in a magnetic hooping station. This tool standardizes the placement of the magnetic flaps, ensuring that every shirt is hooped at the exact same tension and angle, reducing operator fatigue.

Bracket Installation: The "Torque Sequence"

The video demonstrates the correct fastening method, but we will add the "mechanic's touch" to it.

1. Slide brackets onto the pantograph arms.
2. Mount the hoop into the brackets before tightening screws. This helps self-align the brackets to the hoop's width.
3. Square the Hoop: Visually confirm the hoop is parallel to the machine body.
4. The "Star Pattern" Tightening:
   • Lightly snag the left screw.
   • Lightly snag the right screw.
   • Go back to the left: Tighten until you feel resistance.
   • Go back to the right: Tighten until you feel resistance.
   • Final Torque: Give each screw a final quarter-turn. Do not overtighten to the point of stripping threads.




The Control Panel: Avoiding the Mirror Trap

On the Ricoma panel (and similar commercial interfaces), navigation is key. The video highlights a common UI trap in the Design Set menu.

• The Right Column (Danger Zone): These icons are for manipulating the design (Mirror X, Mirror Y, Rotate). Novices often stick settings here thinking they are selecting a hoop. This results in logos sewing backward or upside down.
• The Hoop Select Icon (Safe Zone): usually symbolized by a flower inside a square. This is where you map the physical hoop to the digital limiters.

If you are learning hooping for embroidery machine software logic, memorize this: Transformations (Rotate/Mirror) change the art; Hoop Selection changes the boundaries.

The Rosetta Stone: Mapping Hoop Letters (C, E, F)

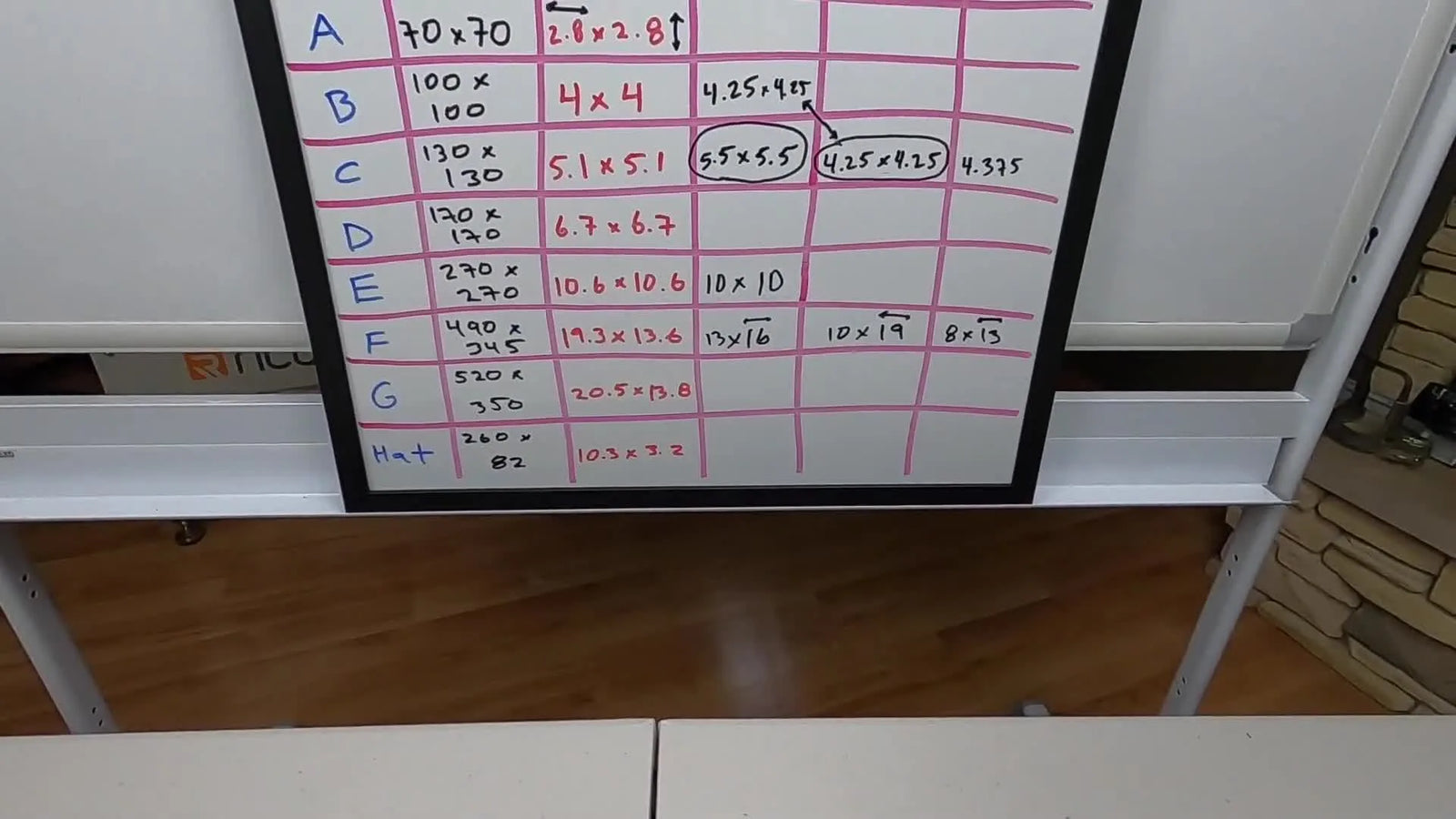

Ricoma machines use an alphabetical system (A-H) to define Sewing Fields. Magnetic hoops do not have "sensors"; you must manually tell the machine which "Safety Box" to apply.

Based on the video's data and industry standards for Ricoma:

Note: For the 8x13 hoop, while the width fits E, the height often requires F. Always choose the letter that creates a boundary larger than your physical hoop, but rely on your Trace to ensure you don't hit the frame.

If you are using a ricoma mighty hoop starter kit, print a small label with this chart and tape it to the side of your machine control panel.

The Centering Moment: What "OK" Actually Does

When you select the Hoop Letter and press OK, the machine performs a "Center Seek."

The visual check:

1. The pantograph moves.
2. The needle bar should stop exactly in the geometric center of the magnetic frame.
3. If it is off-center: Do NOT adjust the hoop brackets yet. The machine's "Global Center" might be offset. Use the manual arrow keys to center the needle, then press "Set Design Center" (or equivalent on your model).

The 3-Trace Safety Ritual: The Only Fail-Proof Method

The video correctly identifies "Tracing" as the non-negotiable step. However, a single trace is insufficient for magnetic hoops due to their thick side walls. You must perform the 3-Trace Ritual.

Trace 1: The Orbital Check (Visual)

Press the "Trace" button (usually a border icon). Watch the needle (without stitching).

• Goal: confirm the design stays within the hoop's inner dimensions.
• Fail Condition: If the needle moves within 0.5" of the edge, STOP. Resize the design or upscale the hoop.


Trace 2: The Clearance Check (Vertical)

Lower the presser foot manually (using the knob or button behind the head) so it is in the "Down" position. Run the trace again.

• Why? The presser foot is wider than the needle. It is the most common part to strike the hoop clamp.
• Goal: Ensure the foot clears the magnetic flaps and brackets.


Trace 3: The Sensory Check (Auditory)

Run the trace one last time with your eyes closed (or focused solely on the pantograph).

• Goal: Listen. You want to hear the smooth whine of the motors.
• Fail Condition: Any rhythmic "thumping," shaking, or vibration means the pantograph is fighting resistance (likely a bracket hitting the machine arm).

Warning: Magnetic Safety. Powerful magnetic hoops (like the mighty hoop 8x13) contain neodymium magnets. They can pinch skin severely and may interfere with pacemakers. Keep them at least 6 inches away from sensitive medical electronics.

Strategic Decision Tree: Fabric, Hoop, and Stabilizer

Hoop selection is not just about size; it is about holding power. Use this decision tree to select the right tool for the job.

Step 1: Is the item Tubluar or Flat?

• Tubular (T-shirts, hoodies): You must use the tubular arms. Ensure your table is dropped.
• Flat (Patches, disconnected fabric): You can use the sash table for extra support.

Step 2: Is the material thick/slippery (Carhartt, Leather, Canvas)?

• Yes: Magnetic hoops are superior here. They clamp without "burn" (friction marks). Use one layer of Cutaway Stabilizer.
• No (Thin Performance Wear): Magnetic hoops can sometimes let thin fabric slip. Use Fusible (Iron-on) Stabilizer or spray adhesive to bond the fabric to the backing before hooping.

Step 3: Edge Clearance?

• Tight (<1 inch from seam): Use the mighty hoops for ricoma designed for sleeves (4.25" x 13").
• Open: Use the smallest standard square that fits the design (e.g., Use 5.5" for a 3" logo, not the 10x10").








Risk Management: The 1/2 Inch Rule

The video explicitly advises a 1/2 inch (12mm) safety margin. The physics of embroidery involve "Push and Pull." A design might look centered on screen, but as stitches accumulate, the fabric can shift or "flag" (bounce). That 1/2 inch buffer is your insurance policy against the presser foot wandering into the hard plastic frame during a dense satin stitch fill.

Troubleshooting: The Diagnostic Flowchart

When things go wrong, do not panic. Follow this Low-Cost to High-Cost diagnosis path.

Symptom: "The Hoop is Vibrating/Shaking during stitching."

1. Stop immediately.
2. Check: Did you install brackets with Power OFF? (Most likely).
3. Fix: Remove hoop, power cycle machine, re-square brackets with power ON.

Symptom: "My Logo Sewed Upside Down."

1. Check: Did you press the "F" or "R" icons in the right column of the Design Set?
2. Fix: Reset design orientation to 0 degrees. Physically rotate the hoop/garment, or use the "Rotate" function correctly—but double-check via Trace.

Symptom: "The Needle Hit the Hoop Edge."

1. Check: Did you rely on the "Hoop Letter" boundary on screen without doing a physical trace?
2. Fix: Always trust the Trace 2 (Presser Foot Down) method over the screen visual.

Symptom: "Hoop Burn" (Ring marks on fabric).

1. Diagnosis: You are likely using traditional tubular hoops on delicate polyester.
2. Upgrade Path: This is the primary trigger to switch to magnetic frames.

The Commercial Upgrade Path: When to Buy What

As a business owner, you need to solve pain points, not just buy toys. Here is the logical progression for upgrading your shop's capabilities involving SEWTECH solutions:

• Pain Point: "My wrists hurt from clipping hoops all day."
  • Solution: Upgrade to Magnetic Hoops. The ergonomic savings alone reduce workers' comp risk.
• Pain Point: "I can't hoop straight/logos are crooked."
  • Solution: Invest in a Magnetic Hooping Station. This hardware forces consistency across thousands of shirts.
• Pain Point: "I'm rejecting too many thin shirts due to puckering."
  • Solution: Upgrade consumables. Switch to SEWTECH variable-weight Cutaway stabilizers and use temporary adhesive spray.
• Pain Point: "One head isn't enough; I'm turning away orders."
  • Solution: This is the trigger for scale. Move to a SEWTECH Multi-Needle System where you can run the same magnetic hoops across multiple heads simultaneously.

Final Phase: Operation Checklist

Keep this list near your start button.

Phase 2: Setup Checklist

• Machine Power is ON.
• Brackets felt "solid" when installed.
• Hoop snapped in with a clean "Click."
• Control Panel: Correct Hoop Letter Selected (C, E, or F).
• Design Orientation: Checked (Top is Top).

Phase 3: Run Checklist

• Trace 1 (Visual Boundary) - PASS.
• Trace 2 (Presser Foot Clearance) - PASS.
• Trace 3 (Auditory/Vibration Check) - PASS.
• Bobbin Thread: Checked level.
• START.

By following this protocol, you transform the variable chaos of embroidery into a predictable, scalable science. Magnetic hoops are powerful tools—respect their geometry, and they will build your business.
