Ricoma MT-1501 Patch Production, the Fast Way: Duplicate Designs on the Touchscreen and Run 6 Patches per Hoop (Without Re-Digitizing)

Patch orders don’t kill embroidery businesses—slow setup does. If you’ve ever stared at a 25–300 piece patch order and thought, “I’m going to be hooping all day,” this workflow is not just a tutorial—it is your antidote.

In the industry, we call this "The Multiplier Effect." You aren't just stitching a logo; you are orchestrating a production run. The difference between a hobbyist and a professional isn't the machine—it's the process.

In this guide, we break down a real-world patch order on a ricoma mt 1501 embroidery machine. We will move beyond the basic manual to the tactile, sensory details that ensure safety and profit.

Calm the Panic: What the Ricoma MT-1501 “Array” Workflow Really Solves (and What It Doesn’t)

When you are under a deadline, your brain screams, "Complicate it!" You might be tempted to duplicate the design in software, meticulously measuring gaps on your monitor. Fight that urge. This is where Cognitive Load Theory applies: reduce the mental math so you can focus on the physical execution.

The Ricoma touchscreen array function is your force multiplier. It solves the math problem by allowing you to load one DST file and tell the machine, "I want three columns and two rows."

However, machines are literal. The array function will perfectly replicate your mistakes if you aren't careful. It does not solve:

1. Physics: It won't fix a loose hoop.
2. Chemistry: It won't choose the right stabilizer for you.
3. Geometry: It won't stop the needle bar from smashing into the frame if you ignore the trace.

This workflow is about turning chaos into a grid. It transforms "patches are tedious" into "patches are predictable."

The “Hidden” Prep Pros Do Before Touching the Screen: Stabilizer, Scissors, and a No-Drama Work Surface

Amateurs start at the screen; professionals start at the prep table. The success of your patch run is determined by the "sandwich"—the combination of stabilizer and thread tension—before a single stitch is formed.

The Physics of Two Layers

Why two sheets of Cutaway? When you stitch a patch directly onto stabilizer (no fabric base), the stabilizer is the fabric.

• The "Why": A typical patch has a high stitch count (often 8,000–15,000 stitches). A single layer of stabilizer will perforate and collapse under that density, leading to "puckering" or registration loss (where the border doesn't line up with the fill).
• The Material: Use SEWTECH High-Density Cutaway Stabilizer (2.5oz or 3.0oz). It provides the structural integrity needed for the needle to "bite" without shredding the foundation.

Magnetic Hoop Handling: The "Snap" Strategy

Magnetic hoops are incredible for speed, but they demand respect. They use industrial-grade magnets that do not care if your finger is in the way.

Warning: Magnetic Safety Hazard
Pinch Hazard: These magnets snap shut with over 10 lbs of force. Handle the top frame by the sides*, never place fingers underneath the rim.
* Pacemakers: Maintain a safe distance (usually 6 inches) if you have medical implants sensitive to magnetic fields.

Prep Checklist: The Pilot's Walkaround

• Stabilizer: Cut two sheets of cutaway, sized 2 inches wider than your hoop on all sides.
• Hoop Verification: Confirm you have the 13 x 16 in frame ready.
• Consumables:
  • Spray Adhesive (Optional): A light mist of temporary adhesive can prevent the two layers of stabilizer from shifting.
  • Sharp Scissors: Keep them right next to the machine for the "jump stitch" trimming.
• Data Hygiene: ensure your DST file is on the root directory of your USB.

Hooping Two Layers of Cutaway in a 13x16 Magnetic Hoop (Taut, Flat, and Repeatable)

This is the most critical physical skill. Bad hooping causes "flagging"—where the material bounces up and down with the needle—resulting in birdnests and thread breaks.

The Tactile Technique

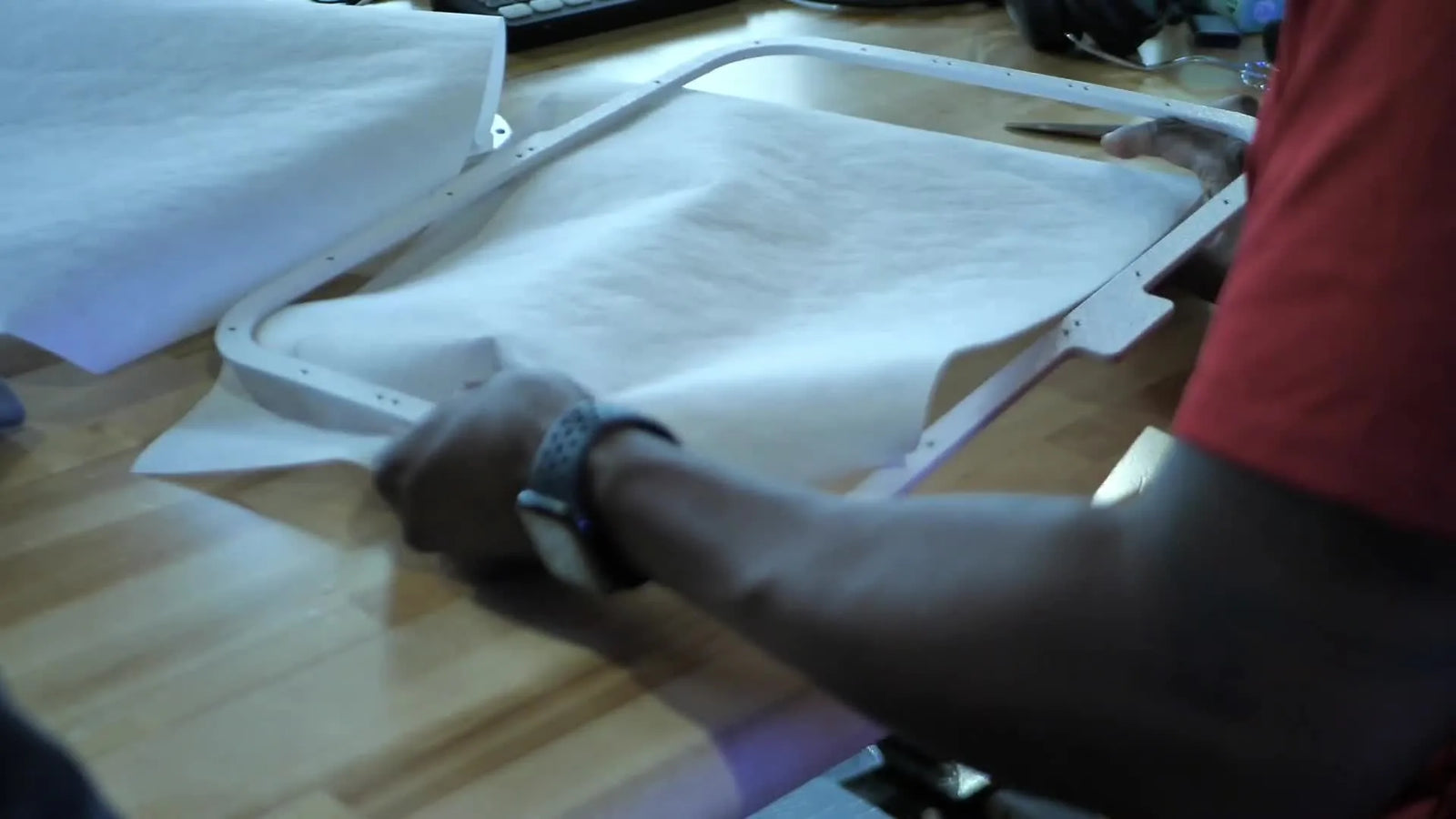

1. Orientation: Lay the bottom bracket flat. Look for the "U" shape or distinct notches that indicate the top.
2. The Stack: Place your two layers of cutaway. Smooth them out with your palms from the center outward.
3. The Snap: hold the top magnetic hoop embroidery frame directly over the bottom. Align the corners visually. Let it snap down.

Sensory Check: The "Drum" Test

• Touch: Run your fingers across the stabilizer. It should feel taut, with zero ripples.
• Sound: Tap it lightly. It should make a dull, rhythmic thump sound, like a taut drum skin. If it sounds floppy or papery, re-hoop.

If you are fighting this step—if your wrists hurt or you can't get the stabilizer tight—this is a Trigger for a tool upgrade.

• The Pain: Standard tubular hoops require significant hand strength and adjustment screws.
• The Solution: SEWTECH Magnetic Hoops self-adjust to thickness, eliminating the "screw-tightening" fatigue and ensuring perfect tension instantly.

Warning: Physical Clearance
Always visualize Needle 1. In a multi-needle setup, the head is wide. If you hoop too close to the edge without checking, the far-left needle bar case can strike the hoop mechanism.

Mounting the Hoop on the Ricoma MT-1501 Arms Without the “Hoop Jump” Surprise

We have seen disasters where a hoop flies off at 800 stitches per minute (SPM). This usually happens because the operator heard a "click" but didn't verify the "lock."

The "Wiggle" Test

1. Slide: Guide the hoop brackets under the pantograph clips.
2. Align: Feel the locating pins seat into the holes.
3. Lock: Flip the locking levers down.
4. Confirm (Critical): Grab the front layout of the hoop and give it a gentle but firm horizontal shake. The entire machine should move slightly, not just the hoop. If the hoop clicks or slides, it is not locked.

When performing hooping for embroidery machine tasks, this 2-second wiggle test saves hours of repair time.

Loading a DST from USB on Ricoma: The One Lock Icon That Stops Everyone

Ricoma's interface has a specific quirk: safety logic. It locks the file system while in "Embroidery Status" to prevent you from corrupting a running job.

The Sequence

1. Unlock: Look for the "Embroidery Status" icon (often a flower or needle icon). Tap it to unlock. The icon should change state (e.g., greyed out or open).
2. Inject: Insert USB.
3. Navigate: Go to File > Storage.
4. Transfer: Select your file (e.g., "Dodgers2") and copy it to the machine memory (the icon usually shows a USB stick interacting with a calm screen).
5. Load: Open the file from machine memory.

Hidden Consumable: USB Ports wear out. Use a short USB extension cable (dongle) left permanently in the machine. You plug your drive into the cheap cable, not the expensive machine motherboard.

The Money Screen: Programming a 3x2 Array on the Ricoma Touch Panel (and Why Spacing Looks “Broken” at First)

This is where you make your money. The goal is density without danger.

The Algorithm

1. Enter Layout: Go to the Design Set/Edit menu.
2. Matrix Input:
   • X (Columns): 3
   • Y (Rows): 2
   • Visual check: You will see a blob. The designs are stacked. This is normal.
3. Spacing Calibration:
   • Initial input: 125.0 mm.
   • Refinement: Drop to 115.0 mm.

Why 115.0 mm? This is the "Sweet Spot" for standard 3–4 inch patches in a larger hoop. It leaves enough gap for scissors but maximizes the hoop area.

Compatibility Note

If you are researching mighty hoops for ricoma or similar magnetic systems, ensure your array fits the internal dimensions of the magnetic area, not the outer bracket. Magnets take up 1-2cm of internal edge space.

Setup Checklist: The "Go/No-Go" Gauge

• Array: Set to 3 x 2.
• Spacing: Designs are distinct, not overlapping (Check screen preview).
• Boundary: The entire grid visually sits comfortably inside the hoop frame on the screen.
• Cut Path: There is at least 10-15mm between patches for your scissors later.

Color Sequencing on Ricoma: Match the Run Sheet, Not Your Memory

Embroidery relies on "Needle Mapping." The machine does not know "Blue"; it knows "Needle 4."

The Protocol

Do not guess. Have your printed Run Sheet or PDF open.

• Step 1 (White): Assign to Needle 1 (or whichever has White).
• Step 2 (Gray): Needle 10.
• Step 3 (Black): Needle 2.
• ...and so on.

Pro Tip: If you are building a business, standardize your needle bars.

• Needle 1: Always White.
• Needle 2: Always Black.
• Needle 15: Always Red.

This "Shop Standard" reduces setup time by 30%. High-quality magnetic embroidery hoops secure the fabric, but color discipline secures the design logic.

The Trace Ritual: Use Needle 1 to Prove You Won’t Strike the Hoop

Tracing is your insurance policy. It runs the pantograph around the extreme outer edges of your entire 6-patch array.

Visual Anchoring

1. Press Trace.
2. Eyes on Needle 1: Watch the presser foot. It is your pointer.
3. The Gap: You need to see daylight between the presser foot and the grey magnetic inner frame.
   • Safe: > 5mm gap.
   • Risk: < 2mm gap.
   • Danger: Touching or overlapping.

If it looks too close, STOP. Go back to the Array screen and reduce the spacing from 115.0 to 110.0, or reduce the array to 2x2. Never "hope" it fits.

Decision Tree: Spacing vs. Safety

• Is the trace clear by 10mm? -> Proceed.
• Is the trace clear by 2mm? -> Slow down trace speed to double-check.
• Does it hit the frame? -> Action: Reduce X/Y Spacing OR switch to a larger hoop.

Running the Job Like a Shop Owner: “Set It and Forget It” (But Don’t Get Lazy)

You are ready to stitch. But first, let's talk about Speed (SPM).

• Expert Mode: 1000 SPM.
• Beginner Sweet Spot: 650 - 750 SPM.
• Why? Patches on stabilizer are stable, but high speed creates heat and friction. 700 SPM is the balance between production speed and thread safety.

Managing Thread Breaks

Thread breaks are not failures; they are data points.

• Sound Check: If the machine sounds like it's "chopping" wood, your speed is too high or your needle is dull.
• Tension Feel: When re-threading, pull the thread through the needle eye. It should feel like pulling dental floss through tight teeth—resistance, but smooth. If it snaps, it's too tight. If it falls through, it's too loose.

Operation Checklist: The "In-Flight" Monitor

• Watch Layer 1: Observe the underlay stitching of the first patch. If it's loose, stop and adjust tension immediately.
• Auditory Monitor: Listen for the rhythmic thump-thump. A clicking or grinding noise requires an immediate E-Stop.
• Prep Next Batch: While the machine is running (eph 1.5 hours), go hoop the next set of stabilizer.

Tearaway vs Cutaway for Patches: The Comment Question Everyone Asks

The viewer question was simple: "Why not tearaway?" The answer lies in Structural Engineering.

Detailed Decision Matrix

Recommendation: For standard patch blanks, always use SEWTECH Cutaway.

“How Do Big Companies Cut 300–500 Patches?” The Real Answer (and the Practical One)

The bottleneck shifts. First, it was hooping. Now, it is cutting. Manual cutting with scissors is fine for 10 patches. For 500, it is a nightmare.

The Evolution of Cutting

1. Level 1 (Manual): Detailed appliqué scissors (duckbill).
2. Level 2 (Hot Knife): For polyester threads/fabric, a hot knife seals the edge while cutting. Great for simple shapes.
3. Level 3 (Laser): Camera-guided lasers detect the embroidery and cut instantly.
4. Level 4 (Pre-Cut Blanks): Buying pre-cut twill shapes and stitching a border over the edge.

Don't let the lack of a laser stop you. Charge for the hand-cutting time in your quote.

Pricing When You Upgrade Equipment: Don’t Race to the Bottom—Sell Speed and Reliability

A common fallacy: "Now that I have a fast machine and magnetic hoops, I can charge less." False. You invested capital to be faster. That speed is a premium service.

• Reliability: You can now guarantee a delivery date because your workflow is predictable.
• Volume: You can accept the 300-piece order you previously declined.

Commercial Pivot: If you find yourself turning away work because you can't keep up, look at your bottlenecks:

1. Hooping too slow? -> hoop master station + Magnetic Hoops.
2. Stitching too slow? -> Upgrade from single-needle to the SEWTECH High-Speed Multi-Needle ecosystem.

The Upgrade Path That Actually Matches Reality: Hoop Faster, Run More, Hurt Less

If you implemented this workflow, you likely felt the difference. But if you are still struggling with physical fatigue or setup inconsistencies, it is time to diagnose the root cause.

The Pain-Point Diagnosis

• Symptom: "My hands hurt from tightening screws." / "I leave hoop burn circles on my fabric."
  • Prescription: Upgrade to SEWTECH Magnetic Frames. They clamp automatically without friction/twisting.
• Symptom: "My chest logos are crooked." / "I spend 5 minutes aligning one shirt."
  • Prescription: Invest in a magnetic hooping station. This acts as a jig, ensuring every placement is identical.


Final Reality Check

Look at your finished output.

• Are the borders consistent?
• Is the shape flat (not cupped)?
• Did you break zero needles?

If yes, you have graduated from "hoping it works" to "knowing it works."

Your Next Action:

1. Order a roll of high-density cutaway.
2. Run a test array of 3x2 on your machine today.
3. Evaluate your hooping time. If it's over 2 minutes per hoop, consider the magnetic upgrade.

Welcome to production.

FAQ

• Q: How do I prevent puckering and registration drift when stitching patches directly on stabilizer on a Ricoma MT-1501?
  A: Use two layers of high-density cutaway stabilizer because the stabilizer becomes the “fabric” for dense patch stitch counts.
  • Cut two cutaway sheets at least 2 inches wider than the 13×16 hoop on all sides.
  • Smooth both layers from the center outward before closing the hoop to avoid trapped ripples.
  • Add a light mist of temporary spray adhesive (optional) to stop the two layers from shifting during stitching.
  • Success check: the hooped stabilizer stays flat and does not “cup” or distort as the satin border builds.
  • If it still fails: re-hoop tighter (flagging causes drift) and slow down toward the 650–750 SPM range to reduce stress and heat.
• Q: How do I know a 13×16 magnetic embroidery hoop is hooped tight enough for a Ricoma MT-1501 patch run?
  A: Pass the tactile “drum test” before mounting the hoop on the machine.
  • Lay the bottom frame flat and stack two cutaway layers, then smooth with palms from center outward.
  • Align the top frame over the bottom and let it snap down cleanly—do not force it at an angle.
  • Run fingers across the surface to feel for ripples and soft spots.
  • Success check: tapping the stabilizer makes a dull, rhythmic thump like a taut drum skin (not floppy or papery).
  • If it still fails: re-hoop and focus on corner alignment; uneven closure is a common cause of flagging, birdnests, and thread breaks.
• Q: How do I stop a Ricoma MT-1501 hoop from “jumping” or flying off during high-speed stitching?
  A: Do the 2-second “wiggle test” after locking the hoop onto the Ricoma MT-1501 arms.
  • Slide the hoop brackets under the pantograph clips and seat the locating pins into the holes.
  • Flip the locking levers fully down—don’t rely on hearing a click.
  • Grab the front of the hoop and shake gently side-to-side to confirm it is truly locked.
  • Success check: the entire machine moves slightly, not just the hoop; there should be no clicking, sliding, or play.
  • If it still fails: stop immediately and remount the hoop—running “a little loose” can cause damage at 650–1000 SPM.
• Q: Why can’t a USB file be loaded on a Ricoma MT-1501 when the screen shows the Embroidery Status lock?
  A: Exit/unlock Embroidery Status first, because the Ricoma MT-1501 locks file access to protect an active job.
  • Tap the Embroidery Status icon to unlock (the icon state should change).
  • Insert the USB only after the system is unlocked.
  • Copy the DST from USB into machine memory, then load it from machine memory.
  • Success check: the file list becomes accessible and the DST can be selected/copied without being blocked.
  • If it still fails: use a short USB extension cable left in the machine to reduce wear on the machine’s USB port.
• Q: What is a safe spacing workflow for programming a 3×2 array for 3–4 inch patches on a Ricoma MT-1501 touch panel?
  A: Start with 125.0 mm spacing, then refine toward 115.0 mm only after confirming the preview and cut clearance.
  • Set the matrix to X=3 columns and Y=2 rows, expecting the initial preview to look stacked/“blobbed” at first.
  • Reduce spacing gradually (example refinement: 125.0 mm → 115.0 mm) until designs separate without wasting hoop area.
  • Maintain 10–15 mm between patches for scissors access later.
  • Success check: the on-screen grid is fully inside the hoop boundary and no patch overlaps another in the preview.
  • If it still fails: reduce the array (e.g., 2×2) or use a larger hoop instead of forcing a tight fit.
• Q: How do I prevent a needle bar strike on a magnetic hoop when tracing a 3×2 patch array on a Ricoma MT-1501?
  A: Always run Trace using Needle 1 as the visual pointer and confirm clear daylight from the inner frame before stitching.
  • Press Trace and watch the presser foot path around the extreme outer edges of the entire array.
  • Confirm visible clearance between the presser foot and the magnetic inner frame.
  • Treat clearances as: safe > 5 mm, risk < 2 mm, danger if touching/overlapping.
  • Success check: the trace path completes without coming “too close” to the hoop, especially near corners.
  • If it still fails: stop and reduce spacing (e.g., 115.0 → 110.0) or reduce the array size—never “hope it fits.”
• Q: What are the key magnetic hoop safety rules when using industrial-strength magnetic embroidery hoops for patch production?
  A: Treat magnetic hoops like a pinch hazard and keep fingers and medical implants safe.
  • Hold the top magnetic frame by the sides and keep fingers out from under the rim during closure.
  • Let the frame snap shut under control; do not hover hands beneath the closing area.
  • Keep magnetic hoops at a safe distance (commonly 6 inches) if you have pacemakers or magnet-sensitive implants.
  • Success check: the hoop closes with a clean, controlled snap without any hand repositioning near the pinch zone.
  • If it still fails: slow down your hooping motion and reset the alignment—rushing magnetic closure is when most injuries happen.
• Q: If patch orders feel unprofitable because hooping takes too long, what is the best upgrade path from manual process to magnetic hoops to a multi-needle embroidery machine?
  A: Diagnose the bottleneck first, then upgrade in levels: technique → tooling → production capacity.
  • Level 1 (Technique): standardize a repeatable prep/hooping routine (two cutaway layers, drum test, wiggle test, trace ritual).
  • Level 2 (Tooling): switch to magnetic hoops/frames if screw-tightening fatigue, inconsistent tension, or hoop burn is slowing setup.
  • Level 3 (Capacity): move to a high-speed multi-needle machine if stitching time—not setup—becomes the limiting factor.
  • Success check: hooping time drops under 2 minutes per hoop and output stays consistent (flat patches, consistent borders, fewer breaks).
  • If it still fails: track where time is lost (hooping vs. thread breaks vs. cutting) and address that specific step before buying more speed.
