Ricoma Patch Production That Actually Scales: Felt Blanks + Aquatop Floating for Clean, Sellable Edges

If you have ever promised a customer, “Sure, I can do 50 custom patches by Friday,” and then found yourself at 2:00 AM picking out Fray Check and cursing crooked borders, you are not alone. Making patches is an embroidery discipline that punishes the smallest heavy-handedness. It requires a mindset shift: Patches are about engineering, not just sewing.

The good news? The "Batch and Float" method outlined in this Ricoma tutorial is the industry standard for specific reasons. It isolates the messy part (cutting) from the precision part (finishing).

As a Master Embroiderer, I am going to walk you through this workflow. We won't just look at what buttons to press; we will look at how to feel the machine, hear the tension, and set up your shop so you aren't fighting physics with every stitch.

The Patch Panic Is Real—Here’s the Calm Plan for a Ricoma Multi-Needle Patch Workflow

Why do patches fail? Usually, it’s Variable Stack-up. If your hooping is 2mm off, your stabilizer is 10% too loose, and your needle acts slightly dull, those errors stack up to create a disastrous border that doesn't align with the text.

This workflow separates the process into two controllable phases:

1. Phase 1: The Structure (Batching Blanks). This is where we create the "cookie" (the felt base). Precision here is about 80%.
2. Phase 2: The Finish (Floating). This is where we decorate the "cookie." Precision here must be 100%.

For users of a ricoma mt 1501 embroidery machine or similar multi-needle workhorses, this separation is vital because it leverages the machine's ability to hold perfect registration while you handle the manual labor of cutting.

The “Hidden” Prep Pros Do First: Felt + Cutaway + Spray (Without Stretching or Hoop Burn)

Before you touch the screen, let’s talk chemistry and physics. The video recommends a specific “sandwich”: Felt, Cutaway Stabilizer, and Temporary Adhesive Spray.

Why Felt? Felt is non-woven. It has no grain line to distort. For beginners, felt is your safety net because it does not fray.

The Spray Tactile Test: Novices often soak the backing in spray adhesive. This gums up your needle and causes thread breaks later.

• The Rule: Spray from 10-12 inches away.
• The Sensory Check: Touch the backing with your knuckle. It should feel tacky like a Post-it note, not wet or gummy like duct tape.

Speed Settings (The Sweet Spot): While your machine can run at 1000 stitches per minute (SPM), patches demand accuracy over speed.

• Expert Recommendation: Cap your machine at 600-700 SPM for patches. The slower speed reduces vibration and ensures the border satin stitches land exactly where they should.

The "Hoop Burn" Problem: You will be hooping felt tightly. Traditional plastic hoops rely on friction and brute force, which can leave permanent crushed rings ("hoop burn") on materials. This is a major trigger for production fatigue. If you are doing a run of 50+ patches, the constant unscrewing and tightening will wreck your wrists.

• Level 1 Fix: Use a scrap piece of backing between the hoop ring and the fabric to cushion it.
• Level 2 Tool Upgrade: Professional shops switch to SEWTECH magnetic embroidery hoops. Magnets apply vertical pressure rather than friction torque. This eliminates hoop burn instantly and creates a distinct "snap" sound that confirms your material is secured without distortion.

Warning: Mechanical Safety. When using spray adhesive, never spray near the machine. The mist settles on the rotary hook and sensors, creating a sticky magnet for lint that will eventually seize the motor. Spray in a box or a separate room.

Prep Checklist (end of Prep)

• Material: Stiff craft felt selected (avoid soft acrylic "floppy" felt).
• Stabilizer: Medium-weight Cutaway (2.5oz or 3.0oz). Tear-away is not recommended as it lacks patch stability.
• Adhesive: Light mist applied to stabilizer only, confirmed "tacky not wet."
• Needle: Start with a fresh 75/11 Sharp needle (Ballpoint needles can deflect on dense felt).
• Hidden Consumable: Have specialized "Duckbill" or double-curved appliqué scissors ready.


Hooping Felt on a Ricoma: Get “Tight and Flat,” Not “Cranked and Warped”

Hooping requires "Goldilocks" tension. In Phase 1, you are hooping the felt and cutaway together.

The Sensory Check: The Drum Skin Once hooped, tap the felt with your finger.

• Correct: A dull, rhythmic thump-thump. It feels firm but has a tiny bit of give.
• Too Loose: The fabric ripples when you run your hand over it. This allows the fabric to "flag" (bounce up and down) with the needle, causing bird nests.
• Too Tight: The inner ring is distorted into an oval shape. This damages the hoop screws.

If you are new to hooping for embroidery machine, avoid the temptation to pull on the fabric after the hoop is tightened. This pre-stretches the felt. When you un-hoop later, the felt will shrink back, and your perfect circle patch will turn into an oval.

The Ricoma Array/Repeat Trick: 2×2 Patches with Spacing 100 So Designs Don’t Stack

Production efficiency comes from the "Array" function. You want to stitch as many dielines (outlines) as possible in one hoop to save time.

The Math of Spacing: The most common panic moment for a beginner is setting the "X Quantity" to 4 and seeing a mess on the screen. The machine defaults spacing to 0mm, meaning it stacks all 4 designs on top of each other.

• The Fix: You must manually input spacing (e.g., 10mm or 100 units depending on machine scale).
• Visual Check: Look at the screen. Is there a clear gap between the circles? If they touch, your machine will stitch them that way, and you won't be able to cut them apart.

Stop Command Logic: Ensure your machine is set to stop after the initial dieline color. If the machine just keeps sewing, it will start the decorative stitch before you have cut the patch out.

Comment-to-shop translation (common confusion)

• “I see 4 circles on screen but the machine stops after one.”
  • Diagnosis: Your machine might be interpreting the array as separate jobs. Check your "Color Change Mode." It should be set to automatic flow, but with a forced stop (Frame Out) programmed in the digitization.
• “Why stitch the dielines first?”
  • Reason: You are creating a physical guide. You cannot eyeball a perfect circle with scissors better than the machine can stitch one.


Cutting Felt Blanks Cleanly: Follow the Stitch Line, Don’t Nick It

This is the manual labor part. You remove the hoop, take the fabric out, and slide your scissors through the felt.

The "Gliding" Technique: Do not chop. Do not hack.

1. Use sharp appliqué scissors.
2. Rest the lower blade against the stabilizer/felt sandwich.
3. Turn the fabric, not the scissors. Your cutting hand should stay relatively still while your other hand rotates the felt.

The Safety Zone: Cut about 1-2mm outside the stitched line.

• Fatal Error: If you cut the thread of the dieline, the felt will lose its structural reference point. If you cut too far away, tufts of felt will poke out from your final satin border (the dreaded "fuzzy edge").

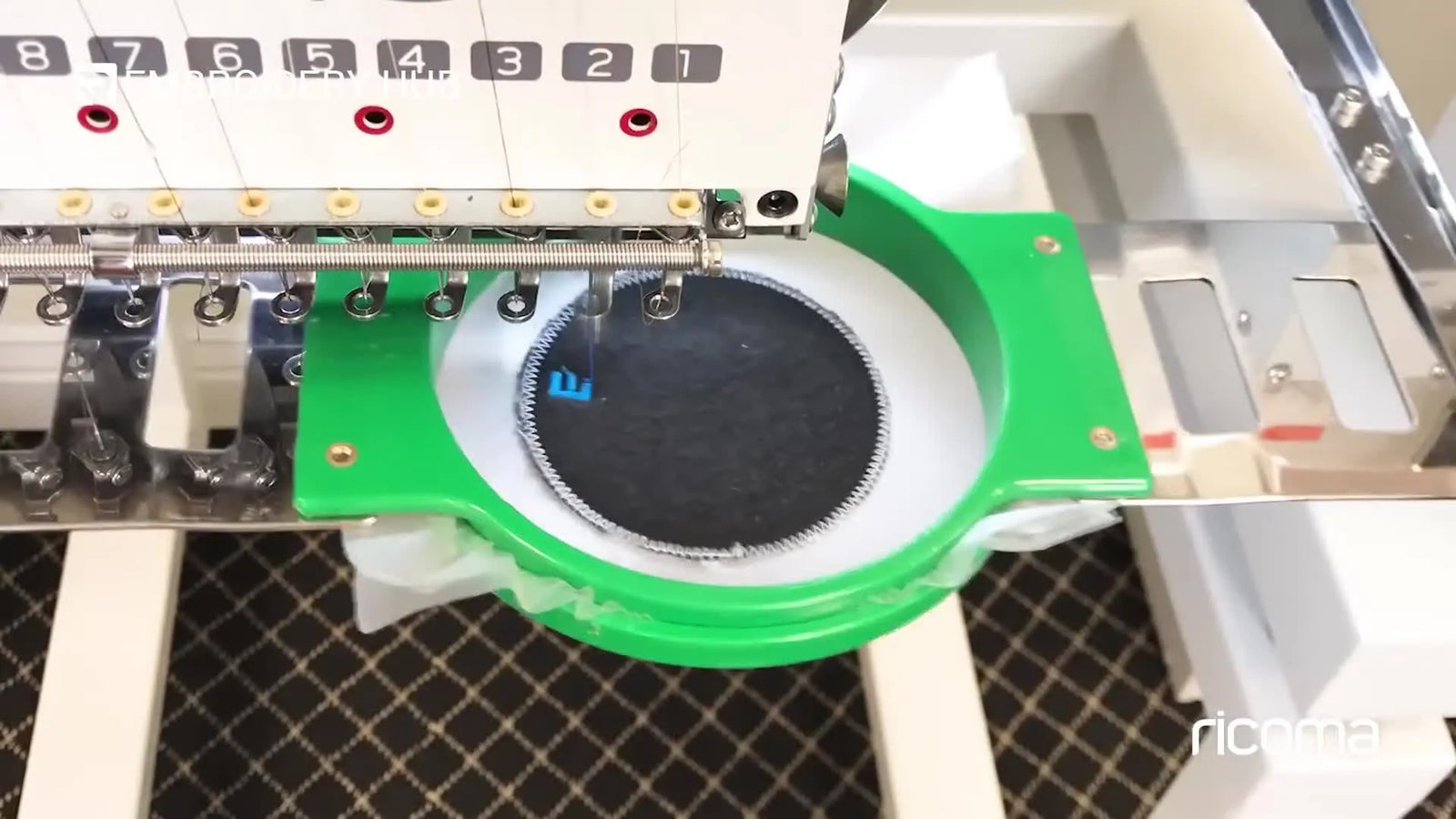

The Floating Setup That Makes Patches Look “Store-Bought”: Two Sheets of Aquatop + Automatic Manual

Now we enter Phase 2: "Floating." You are no longer hooping the felt. You are hooping Water-Soluble Stabilizer (WSS) and placing the felt on top.

The Physics of WSS: Water-soluble stabilizer is fragile. It is essentially dried glue. A dense satin border can perforate it like a postage stamp, causing the patch to fly off mid-stitch.

The "Double-Up" Rule:

• Standard WSS (Aquatop/Solvy): Use Two Layers. Lay them perpendicular to each other (cross-grain) for maximum strength.
• Heavy WSS (Badgemaster/Ultra Solvy): One layer might suffice, but two is always safer for high-stitch-count borders.

Machine Mode: Automatic Manual You must tell the machine to pause. Set the machine to stop after the Placement Stitch. This stitches a circle onto the WSS to show you exactly where to put your felt "cookie."

Why two sheets often behave better (expert shop logic)

Imagine the needle penetrating the stabilizer 4000 times for a border. Friction creates heat. Heat weakens plastic.

• Sensory Warning: If you hear a loud POP or a tearing sound like paper ripping, hit the emergency stop immediately. Your stabilizer has failed.
• Prevention: The second layer acts as a heat shield and structural backup.


The Placement Moment: Frame Offset + Light Spray + Perfect Dieline Alignment

This is the moment of truth.

1. Frame Offset: Hit the button to move the pantograph (hoop arm) out toward you. Do not try to place the felt while your hands are under the needles.
2. Adhesive: Spray the back of the felt patch, not the stabilizer.
3. Alignment: Matches the stitched line on the WSS with the edge of your felt patch.

The "Center-Out" Press: Place the center of the patch down first, then smooth firmly outward to the edges. This prevents air bubbles.

• Commercial Insight: If alignment is your nightmare, this is where a magnetic hooping station aids significantly in Phase 1 prep, but for Phase 2 floating, steady hands are key. If you are struggling with "floating" alignment, your spray adhesive might be too weak.

Warning: Magnet Safety. If you upgrade to magnetic hoops for this process to save time, be aware they possess industrial crushing force. Keep them away from pacemakers, and never let your finger get caught between the magnets. It will cause injury.

Pro tip for “crooked text” on premade templates

If your text looks slanted, it is rarely the machine's fault; it is the placement. The margin for error on a 3-inch patch is near zero.

• Check: Before hitting start on the final design, do a "Trace". Watch the needle (or laser pointer) travel around the edge of your felt. If the laser falls off the edge of the felt, adjust your placement now.

Patch File Reality Check: It Must Be Digitized Like a Patch (Not Like a Shirt Design)

You cannot take a standard left-chest logo and just "sew it on felt."

• Density: Patch borders require high density (0.36mm - 0.40mm spacing) to cover the raw edge of the felt.
• Underlay: A patch file needs an "Edge Run" underlay to lock the felt edges down before the satin stitch covers them.

If you are outsourcing, clarify: "This is for a patch on felt. Please add a cutting line and a high-density border."

“Why Not Just Stitch Everything on Hooped Felt and Cut It Out?”—The Edge Answer

This is the most common newbie question. "Why all this floating and cutting?"

The Difference:

• The "All-in-One" Method: You stitch on felt, then cut it out.
  • Result: You will see the felt edge. It looks "fuzzy" and homemade. You risk cutting the thread knots.
• The "Float" Method (This Tutorial): The needle wraps the thread around the edge of the felt and locks into the WSS.
  • Result: When you wash away the WSS, the edge is 100% thread. It mimics a Merrowed edge (the thick braided edge seen on boy scout badges). It looks professional and retail-ready.

Finishing the Patch: Pop It Out for a Clean Finish, Then Choose How It Attaches

Once the design is done:

1. Remove the hoop.
2. Tear the WSS away gently.
3. Use a Q-tip with water (or a wet sponge) to dissolve the remaining "whiskers" of stabilizer on the edge.

Application Options:

• Sew-On: Leave as is.
• Iron-On: You must apply a heat-seal backing (like Heat n Bond) to the back of the felt before the final cut, or after stitching.
• Velcro: Sew hook-side Velcro to the back.

Stabilizer & Fabric Decision Tree: Felt vs. Twill, Aquatop vs. Heavier

Use this logic flow to determine your setup.

Start: What is your patch durability requirement?

• Option A: Economy/Speed (Events, Giveaways, Hats)
  • Material: Polyester Felt.
  • Why: Cheap, doesn't fray, easy to cut.
• Option B: Premium/Uniforms (Police, Military, Workwear)
  • Material: Poly-Twill.
  • Why: High sheen, incredibly durable, traditional woven look. Note: Requires heat-sealing edges to prevent fraying.

Next: Stabilizer Strategy (Phase 2 Floating)

• If design is text-heavy > 5000 stitches:
  • Action: Use 2 layers of Heavy WSS.
• If design is simple shape < 2000 stitches:
  • Action: Use 2 layers of Standard Aquatop.

Setup Checklist (end of Setup)

• Design: File loaded with correct "Stop" commands programmed.
• Array: Spacing set to >= 10mm (or 100 units).
• Trace: Run a contour trace to ensure patch fits in the hoop.
• WSS: Two layers of water-soluble stabilizer hooped "Drum Tight."
• Bobbin: Check your bobbin! Do not start a patch run with a low bobbin. Changing a bobbin mid-patch often causes alignment shits.

Troubleshooting the Stuff That Wastes the Most Time

When things go wrong, do not change settings randomly. Follow this "Low Cost to High Cost" diagnosis path.

The Upgrade Path When Patches Become a Product Line

If you are just making patches for your local club, the standard hoops provided with your machine are sufficient.

However, if you are scaling to production runs (50-100+ units), your bottleneck is no longer the sewing speed—it is the setup time.

• The Pain: Wrists hurting from tightening screws; burns on fabric; misalignment from fatigue.
• The Solution: This is where magnetic embroidery hoops become an investment, not a luxury. They allow you to hoop dense felt in 5 seconds flat with zero screw adjustment.
• The Scale: If you find your single-head machine cannot keep up with orders, the ricoma embroidery machines multi-needle ecosystem (or similar SEWTECH-supported hardware) allows you to network machines, doubling your output without doubling your labor.

Operation Checklist (end of Operation)

• Phase 1: Stitch Dielines on Felt/Cutaway.
• Cut: Remove and cut cleanly (gliding scissors).
• Phase 2: Hoop WSS (double layer).
• Place: Stitch placement guide -> Spray Felt -> Align to guide.
• Verify: Run a Trace/Contour check.
• Sew: Run the final patch at controlled speed (600 SPM).
• Cleanup: Remove WSS with water immediately for a clean edge.

By separating the "Structure" from the "Finish," you eliminate 90% of the variables that cause ugly patches. Trust the process, respect the chemistry of your stabilizers, and keep your edges sharp. Happy stitching.

FAQ

• Q: On a Ricoma MT-1501 multi-needle embroidery machine, what temporary adhesive spray technique prevents needle gumming and thread breaks during patch production?
  A: Use only a light mist and confirm “tacky, not wet” before stitching.
  • Spray from 10–12 inches away onto the stabilizer (not near the machine).
  • Touch-test with a knuckle: it should feel like a Post-it note, not gummy like duct tape.
  • Keep spraying away from the embroidery machine so mist does not settle on the rotary hook and sensors.
  • Success check: the needle stays clean-looking (no sticky buildup) and the machine runs without shredding/breaking.
  • If it still fails… clean the needle with alcohol or replace it with a fresh 75/11 Sharp needle and reduce spray amount.
• Q: For hooping felt + cutaway in Phase 1 on a Ricoma multi-needle embroidery machine, how tight should the hoop be to avoid warping, bird nests, and “hoop burn”?
  A: Aim for “tight and flat,” not cranked—use the drum-skin test and avoid stretching after tightening.
  • Tap the hooped felt: target a dull, firm “thump-thump” with a tiny bit of give.
  • Stop tightening if the inner ring distorts into an oval shape (that’s too tight and can damage screws).
  • Do not pull the felt after tightening; pre-stretching can make circles turn into ovals after unhooping.
  • Success check: the felt surface looks flat (no ripples) and does not bounce/flag under the needle.
  • If it still fails… add a scrap backing strip between hoop ring and felt to cushion pressure and reduce hoop marks.
• Q: On a Ricoma embroidery machine using the Array/Repeat function for 2×2 patches, why do designs stack on top of each other, and how do you set safe spacing?
  A: Designs stack because the default spacing can be 0—manually enter spacing so circles do not touch.
  • Set X/Y spacing deliberately (for example, 10 mm or “100 units,” depending on the machine’s scale).
  • Visually confirm a clear gap between circles on the screen before starting.
  • Program or select a stop after the dieline color so the machine does not continue into the decorative steps before cutting.
  • Success check: the preview shows separated outlines with visible space, and the machine stops after the dieline as intended.
  • If it still fails… check the machine’s Color Change Mode settings if the array behaves like separate jobs.
• Q: In Phase 2 floating patches on a Ricoma multi-needle machine, why use two layers of Aquatop (water-soluble stabilizer), and how do you stop stabilizer tearing mid-border?
  A: Use two layers because dense borders can perforate WSS—doubling adds strength and reduces failure.
  • Hoop two sheets of standard WSS, laid perpendicular (crossed) for better strength.
  • Slow the machine if needed; high speed plus dense borders increases heat and tearing risk.
  • Listen for a loud “POP” or paper-rip sound and hit emergency stop immediately if it happens.
  • Success check: the WSS stays intact through the satin border with no tearing or loosening around the stitch path.
  • If it still fails… reduce speed further (a safe move is down toward 500 SPM) and review the file for excessive density.
• Q: On a Ricoma patch “float method,” how do you align the felt blank to the placement stitch to prevent crooked text and off-center borders?
  A: Use Frame Offset, spray the back of the felt, align to the placement stitch, and run a trace before the final sew-out.
  • Press Frame Offset to bring the hoop arm out where hands are safe and placement is easier.
  • Spray the back of the felt patch (not the hooped WSS) and place center-first, then press outward.
  • Match the felt edge to the stitched placement circle on the WSS.
  • Success check: a Trace/Contour run keeps the needle/laser path fully on the felt edge with no “falling off.”
  • If it still fails… increase placement control (stronger, but still light, adhesive hold) and re-check alignment before pressing Start.
• Q: When cutting felt patch blanks after stitching dielines, how far outside the stitch line should you cut to avoid fuzzy edges or cutting the dieline thread?
  A: Cut about 1–2 mm outside the dieline and “glide” the scissors while turning the fabric, not the blades.
  • Use sharp duckbill or double-curved appliqué scissors (avoid chopping motions).
  • Rest the lower blade against the felt/stabilizer sandwich and rotate the felt with the other hand.
  • Keep the dieline thread intact; nicking it removes your reference and risks edge issues later.
  • Success check: the cut edge is even with no tufts beyond the future satin border and no broken dieline stitches.
  • If it still fails… slow down and re-check scissor sharpness; dull blades force hacking and cause uneven margins.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for patch production to reduce hoop burn and wrist fatigue?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical implants.
  • Keep fingers clear when seating the magnetic ring; never let fingers get between magnets.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Use the “snap” seating feel/sound as the confirmation instead of over-handling or forcing alignment.
  • Success check: the material is secured flat without crushed rings (no hoop burn) and hooping is repeatable without excessive wrist strain.
  • If it still fails… step back to a Level 1 cushion method (scrap backing under the hoop ring) and reassess handling technique before reintroducing magnets.
