Rip-Away Appliqué on an SWF Multi-Needle Machine: Glitter Flake That Tears Clean, Presses Permanent, and Sells Fast

If you have ever watched a glitter appliqué job run and thought, “That looks amazing… but I am terrified I’m going to waste half a sheet of expensive vinyl and ruin a perfectly good sweatshirt,” you are not alone. Machine embroidery is an experience-based science, and mixing adhesives, dense satin stitches, and expensive garments often triggers a specific kind of anxiety in new operators.

The good news: the "rip-away" method detailed here is not just a hack; it is one of the cleanest, most production-friendly workflows in the industry. It saves you from pre-cutting letters with scissors (which is slow and inaccurate) and relies on the machine’s precision to do the work for you.

This guide rebuilds the full workflow demonstrated on an SWF multi-needle embroidery machine—from the placement line to the final heat press. However, as an educator, I am going to layer in the sensory details and safety margins that the video might speed past. We will cover how to hoop so the fabric feels like a drum skin, how to choose stabilizer layers that prevent "tunneling," and exactly when to upgrade your tools to stop fighting your equipment.

Don’t Panic: What “Rip-Away Appliqué” Really Means on an SWF Multi-Needle Embroidery Machine

Rip-away appliqué relies on a concept called controlled perforation. You aren't just stitching a border; you are using the needle to punch thousands of tiny holes in a specific line (the satin stitch), allowing the excess vinyl material to tear away cleanly like a perforated notebook page.

In the case study, the host runs this on an SWF multi-needle machine using a large rectangular hoop. The design, “HAWAII 2017,” is approximately 22,000 stitches. This is a substantial design, not a quick 5-minute logo.

The Golden Rule of Appliqué: The placement line (the first stitch) is your absolute truth. If you skip watching this stitch, you are flying blind. It tells you exactly where the material must land. If you eyeball it, you will eventually ruin a garment.

If you are currently researching an swf embroidery machine or similar multi-needle setups for your shop, this workflow is a perfect benchmark. It demonstrates the machine's ability to handle "stop-and-go" production steps without losing registration—a critical feature when you move from hobby crafting to paid orders.

The “Hidden Prep” Pros Do First: Stabilizer Stack, Clean Hands, and Hoop Tension That Won’t Drift

Before you even touch the machine interface, you must win the battle of physics. You are fighting three enemies: Fabric Stretch, Hoop Slippage, and Surface Contamination.

1. The Stabilizer Stack (The Foundation)

The video demonstrates a robust stack:

• 2 Layers of Weblon (Mesh Cutaway): This provides permanent stability. The "Weblon" type is soft against the skin but incredibly strong against the "pull" of the stitches.
• 1 Layer of Tear-away: This sits under the Weblon to add temporary stiffness/crispness, ensuring the needle penetrates cleanly without deflecting.

Expert Insight: Why this combo? A wide satin border (like on these letters) exerts a massive amount of "pull force" that tries to bunch the fabric together (tunneling). The Cutaway resists the stretch, while the Tearaway ensures sharp edge definition.

2. Surface Cleanliness (The Invisible Enemy)

Glitter Flake vinyl has a rough texture that grabs everything. If your hands have natural oils or machine grease, or if your worktable has lint, that glitter will trap it forever.

• Action: Wash and dry hands thoroughly before handling the sheet.
• Sensory Check: The vinyl sheet should feel dry and grit-free. Touch it only by the very edges.

3. Hoop Hold (The "Hoop Burn" Dilemma)

In the video, they use a large rectangular hoop. In a production environment, traditional screw-tighten hoops are the #1 cause of operator fatigue and garment damage ("hoop burn"). If the fabric isn't taut, the satin border will drift off the vinyl edge, resulting in a messy tear.

This is where the industry is shifting toward the magnetic embroidery hoop. Unlike traditional hoops that require forceful wrist torque to tighten, magnetic hoops use strong magnets to clamp the fabric instantly.

• The Benefit: They verify tension automatically. The fabric is held firmly without the friction that causes burn marks on delicate knits.
• The Trigger: If you are spending more than 60 seconds hooping a shirt, or if your wrists hurt after a dozen shirts, this tool upgrade pays for itself in labor savings alone.

Warning: Mechanical Safety
Never place your hands near the needle bar while the machine is running. A multi-needle machine moves at high speeds (approx. 800-1000 stitches per minute). A needle deflection can cause the needle to shatter, sending metal shrapnel flying. Always wait for the "Stop" signal before reaching in.

Prep Checklist (Complete BEFORE hitting Start):

• Backing Verification: Is the stack (2 Cutaway + 1 Tearaway) smooth and wrinkle-free?
• Hoop Tension: Tap the hooped fabric. Does it sound like a dull drum (good) or loose paper (bad)?
• Needle Check: Is the needle fresh? A dull needle won't perforate the vinyl cleanly, leading to ragged tears.
• Consumables Staged: Do you have your spray adhesive (Temporary spray tack) and sharp scissors nearby?


The Placement Line: Your “No-Regrets” Outline That Saves Glitter Sheets

The first operation is the running stitch placement line directly onto the garment. The host suggests using the same color as the final border, or a lighter thread.

Why this matters: This line is your map. On a multi-needle machine, the hoop moves, and the needle creates the boundary.

Sensory & Visual Check:

• Listen: The machine should sound rhythmic and smooth.
• Look: Once the machine stops, lean in. Is the outline closed? Are there any skipped stitches? A skipped stitch here means you won't know where to place your material.


Laying a Full Uncut Glitter Flake Sheet (Yes, Uncut): The Table Trick for Big Designs

Here is where the "Rip-Away" method shines. Instead of pre-cutting intricate letter shapes, you lay down a solid rectangular block of material.

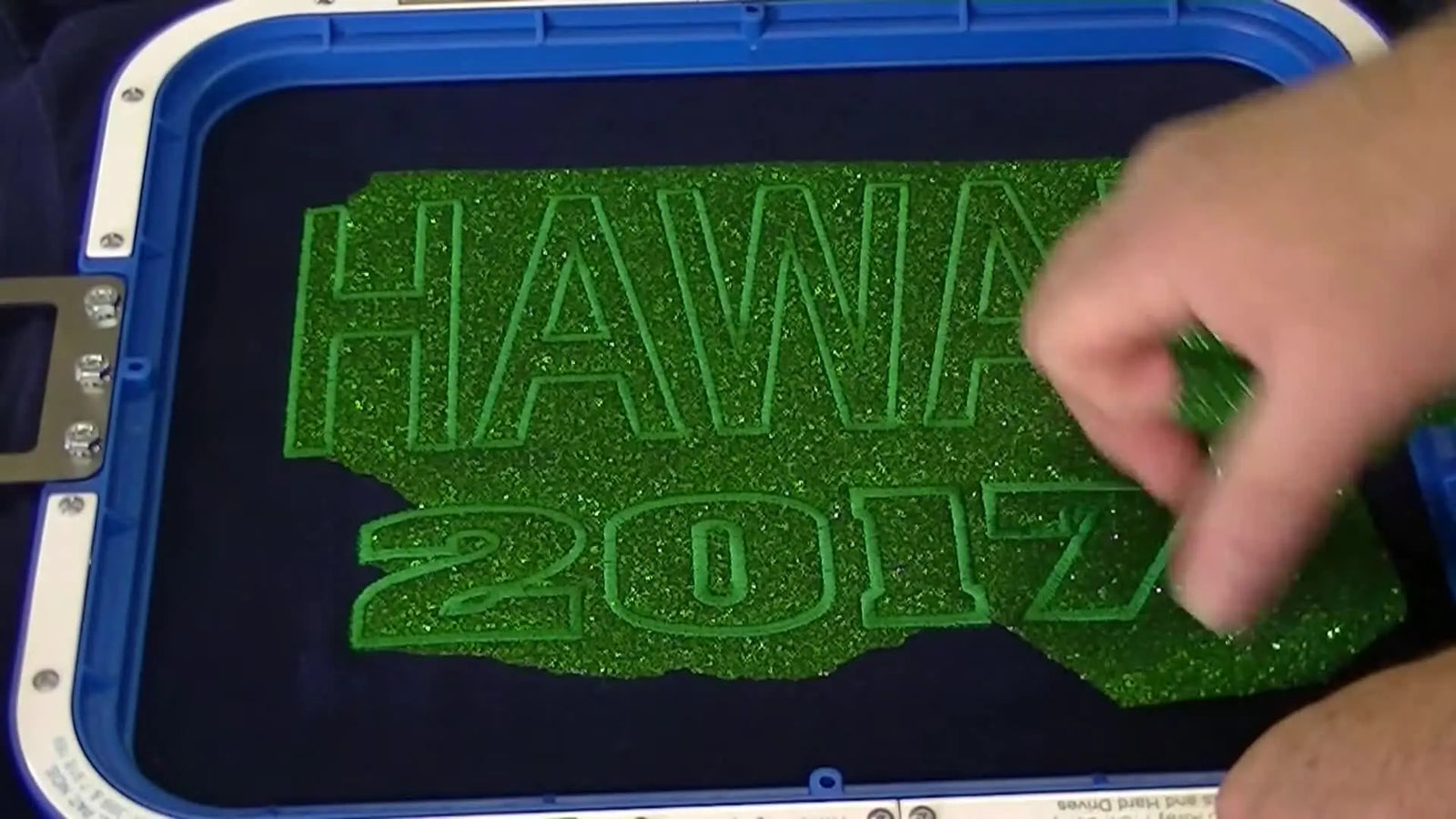

The Constraint: On a large design like “HAWAII 2017,” the clearance between the needle bar and the hoop is tight. Trying to slide a sticky, glittery sheet under the needles is a recipe for misalignment.

The Solution (as shown): Remove the hoop from the machine. Place it on a flat work table.

1. Lightly mist the back of the Glitter Flake sheet with temporary spray adhesive (spray into a trash can, not near the machine!).
2. Align the sheet over the stitched placement line.
3. Smooth it down from the center out.

Tool Upgrade Note: If you find that taking the hoop off and on ruins your registration (alignment), consider a magnetic hooping station. These stations hold the hoop and garment in a fixed position, allowing you to lay appliqué sheets effectively without removing the hoop from a stable base, ensuring perfect alignment every time.

Warning: Magnet Safety
Magnetic hoops and stations use powerful neodymium magnets. They can pinch skin severely and erase credit cards. Crucially, keep them away from pacemakers or medical implants. Always slide the magnets apart; never try to pry them straight up.

Satin Stitch Through Glitter Flake: The Perforation Edge That Makes the Rip-Away Work

Re-attach the hoop. The machine will now stitch the satin border through the vinyl.

Speed Advice for Success: While your machine might be rated for 1000 SPM (Stitches Per Minute), handling thick glitter vinyl requires caution.

• Beginner Sweet Spot: 600 - 700 SPM.
• Why? Slowing down reduces heat buildup on the needle (which can melt the adhesive) and ensures the "perforations" are close together.

The "Perforation" Concept described: The satin stitch is doing two jobs. Visually, it's a border. mechanically, it acts like a stamp cutter. If the density is too low (stitches too far apart), the vinyl won't tear. If it's too high, you risk cutting the shirt fabric. A standard satin density of 0.4mm is usually the industry sweet spot.

Users looking for consistent results on SWF equipment often verify they are using genuine swf hoops or high-quality compatible magnetic frames to prevent the heavy vinyl from dragging the fabric during these high-density stitch runs.

The Rip-Away Moment: Pull Diagonally, Let the Satin Edge Do the Work

The stitching is done. Remove the hoop. Now, the moment of truth.

The Technique: Do not pull the excess vinyl straight up.

1. Grab a corner of the excess material.
2. Pull diagonally and low against the potential tear line.
3. Sensory Check: You should feel a consistent "zipping" sensation. If you feel hard resistance, STOP. Snip that spot with scissors. Forcing a tear where the perforation failed will rip the satin stitches out of the shirt.






Weeding the “Islands” Inside Letters (A, 0, etc.): The Step That Separates Pros From Returns

You have ripped the outside, but the inside holes (like the triangle inside the 'A' or the circle in the '0') are still there. This is called "weeding."

Recommended Tools:

• The Picker: A dentist-style pick tool requires care but is effective.
• Fine-Point Tweezers: Often safer for the fabric. Grab the vinyl island and peel gently.

Reality Check: The comments section of the source video highlights a common question: “Does brand X work like brand Y?” (e.g., Stahls vs. Siser).

• Answer: Do not assume. Different brands have different carrier sheet thicknesses. Always run a "test H" (a single letter H) on a scrap cloth before buying 50 yards of a new brand.


Heat Press Finish on an Insta Heat Press: 320°F for 10–15 Seconds (And Don’t Remove Backing Too Early)

The stitches hold the appliqué mechanically, but the Heat Press bonds it chemically. The adhesive on the back of the Glitter Flake must be activated.

The Recipe (Video Standard):

• Temperature: 320°F (approx. 160°C).
• Time: 10–15 Seconds.
• Pressure: Medium-High (40-60 psi).

Crucial Step: Use a Teflon cover sheet or Kraft paper. Direct heat on glitter can sometimes dull the sparkle or melt the thread.

The "Structure" Tip: The host recommends leaving the stabilizer backing ON the shirt during the press.

• Why? The garment is hot and soft after pressing. If you rip the backing off immediately, you might distort the hot fabric. Let it cool slightly, then remove the backing.








The Stabilizer Decision Tree: Match Fabric + Satin Density So Your Appliqué Stays Flat

The video uses a heavy stack (2 Weblon + 1 Tearaway). How do you decide what you need? Use this logic flow:

Pro Tip: If you find yourself constantly battling fabric slip on slick performance wear, upgrading to swf magnetic hoops specifically designed for your machine arm can eliminate the "hoop burn" ring that is almost impossible to steam out of polyester.

The “Why It Works” (So You Can Avoid the Usual Appliqué Failures)

Understanding the physics protects you from failure. This method works because it converts a cutting problem into a stitching solution.

1. Placement: Eliminates spatial error.
2. Satin Column: Acts as a clamp (holding the edge) AND a knife (perforating the vinyl).
3. Heat: Fuses the layers into a single composite material.

Failure Mode Analysis:

• If the vinyl pulls out of the satin stitch: Your satin column was too narrow (under 3mm).
• If the shirt tears during rip-away: Your specific satin density was too high (cutting the shirt fibers) or your stabilizer was too weak.


Troubleshooting Rip-Away Appliqué on SWF: Symptoms → Likely Cause → Fix

When things go wrong, don't guess. Follow this diagnostic path from lowest cost to highest cost.

1) Symptom: The Rip-Away edge is ragged or "hairy."

• Likely Cause: Needle is dull or burred.
• Quick Fix: Change the needle (Size 75/11 Sharp is recommended for vinyl).
• Prevention: Change needles every 8 production hours.

2) Symptom: White bobbin thread is showing on top (glitter side).

• Likely Cause: Top tension is too tight, dragging the bobbin up.
• Quick Fix: Loosen top tension slightly.
• Sensory Check: The top thread should feel smooth, not "guitar string" tight.

3) Symptom: The final satin border doesn't line up with the Placement Line.

• Likely Cause: The hoop shifted or the fabric "flagged" (bounced) during stitching.
• Quick Fix: Check hoop tightness.
• Prevention: Use a embroidery hoops for swf magnetic system to ensure even, non-slip pressure across the entire frame.

4) Symptom: Vinyl lifts off after washing.

• Likely Cause: Heat press temperature incorrect or pressure too low.
• Quick Fix: Re-press the garment (with cover sheet).
• Prevention: Use a laser thermometer to verify your heat press platen is actually reaching 320°F.


The Upgrade Path That Actually Makes You Faster (Without Changing the Look)

If you are doing this for a hobby, the standard tools are fine. But if you are trying to turn a profit, time is your most expensive consumable. Here is how to scale this workflow responsibly:

1. Level 1: Consumable consistency.
   Stop buying random stabilizers on Amazon. Stick to a specific weight of Cutaway (e.g., 2.5oz) and Tearaway. Consistent ingredients yield consistent cookies.
2. Level 2: The Hooping Upgrade.
   If you are producing 50+ shirts a week, standard hoops are slowing you down. A magnetic frame allows you to hoop a shirt in 10 seconds vs. 45 seconds. It also drastically reduces "rejection rates" caused by hoop burn.
3. Level 3: The Machine Upgrade.
   If you are running a single-needle machine and frustrated by thread changes, or if your current commercial machine lacks the precision for clean satin borders, explore our SEWTECH multi-needle platforms. These machines are built to handle the drag and weight of heavy appliqué sheets without losing registration.

Setup Checklist (The "Take-off" Pilot Check):

• Placement line stitched and visible?
• Vinyl sheet completely covers the placement line with 1-inch margin?
• Sheet secured with spray tack (no bubbling)?
• Correct thread color loaded?

Operation Checklist (The Final Quality Control):

• Did the satin border stitch cleanly without breaking needles?
• Did the excess vinyl rip away with a "crisp" tear?
• Are all inner "islands" weeded?
• Did you heat press at 320°F with a cover sheet?

By following these steps and respecting the physics of the materials, you move from "hoping it works" to "knowing it will work." Happy stitching.

FAQ

• Q: On an SWF multi-needle embroidery machine, what stabilizer stack prevents tunneling on satin-stitch glitter appliqué?
  A: Use 2 layers of mesh cutaway (Weblon-style) plus 1 layer of tear-away when the satin border is wide and dense.
  • Add: Hoop 2 cutaway layers as the permanent base, then place 1 tear-away under them for extra crispness during stitching.
  • Match: Use lighter stacks only when fabric structure allows (for example, heavy hoodies often need less than lightweight T-shirts).
  • Success check: After stitching, the fabric around the satin letters stays flat (no “ridge”/pucker tunnels along the column).
  • If it still fails… Increase stabilization first before changing design density, because weak support is a common cause of tunneling.
• Q: How tight should fabric be hooped on an SWF multi-needle embroidery machine for rip-away glitter vinyl appliqué?
  A: Hoop until the fabric feels taut like a dull drum so the satin border does not drift off the vinyl edge.
  • Tap: Tap the hooped area and listen for a dull drum sound (good) versus a loose paper sound (bad).
  • Check: Confirm the stabilizer stack is smooth and wrinkle-free before starting.
  • Success check: The placement line and satin border stay registered without shifting during the stop-and-go appliqué steps.
  • If it still fails… Inspect hoop slippage and consider upgrading to a magnetic embroidery hoop to reduce drift and hoop burn.
• Q: On an SWF multi-needle embroidery machine, how do operators avoid misalignment when laying an uncut Glitter Flake sheet for rip-away appliqué?
  A: Remove the hoop, place it on a flat table, lightly spray temporary adhesive onto the vinyl backing, then align to the stitched placement line.
  • Spray: Mist adhesive into a trash can (away from the machine), then apply the sheet with a light, even tack.
  • Align: Cover the full placement line with margin, then smooth from the center outward to avoid bubbles.
  • Success check: The vinyl sits flat with no bubbling, and the placement line is fully covered before the satin stitch runs.
  • If it still fails… If taking the hoop on/off is causing registration loss, use a hooping station so the hoop and garment stay fixed during placement.
• Q: What stitch speed and satin density are a safe starting point on an SWF multi-needle embroidery machine for stitching through glitter vinyl in rip-away appliqué?
  A: Slow down to about 600–700 stitches per minute and use a standard satin density around 0.4 mm as a starting point for clean perforation.
  • Reduce: Lower speed to limit needle heat and reduce adhesive melting risk.
  • Verify: Use a fresh sharp needle (the guide recommends 75/11 sharp for vinyl) to keep perforations clean.
  • Success check: During rip-away, the excess vinyl “zips” off smoothly along the satin edge without hard resistance.
  • If it still fails… If tearing is difficult, check for a dull needle first; if fabric is getting cut, the satin may be too dense or the stabilizer too weak.
• Q: How do operators fix ragged or “hairy” rip-away edges on SWF glitter appliqué after the satin stitch finishes?
  A: Change to a fresh needle first, because a dull or burred needle is the most common cause of ragged perforation.
  • Replace: Install a new 75/11 sharp needle for vinyl work (as recommended in the troubleshooting section).
  • Maintain: Swap needles on a regular schedule (the guide suggests every 8 production hours).
  • Success check: The rip-away edge tears cleanly with a consistent feel, without fuzzy vinyl fragments along the satin border.
  • If it still fails… Re-check stitch speed (slow to the recommended range) and confirm the fabric is stabilized well enough to prevent movement during perforation.
• Q: On SWF satin-stitch glitter appliqué, how do operators fix white bobbin thread showing on top of the glitter side?
  A: Loosen the top tension slightly so the bobbin thread stops being pulled to the surface.
  • Adjust: Back off top tension in small increments rather than making a large change.
  • Observe: Watch a short test segment to confirm the balance improves before running the full design.
  • Success check: The top thread coverage looks smooth on the satin border, and the top thread does not feel “guitar-string” tight.
  • If it still fails… Re-check threading path and needle condition; tension issues often worsen when the needle is dull.
• Q: What safety rules should operators follow around the needle bar on an SWF multi-needle embroidery machine during stop-and-go appliqué work?
  A: Never put hands near the needle bar while the machine is running; wait for the stop signal before reaching in.
  • Pause: Confirm the machine is fully stopped before trimming, adjusting vinyl, or touching the hoop area.
  • Respect: Treat high-speed operation (about 800–1000 stitches per minute) as a shatter risk if a needle deflects.
  • Success check: All adjustments are made only when the needle bar is stationary, with no “quick reach-in” habits forming.
  • If it still fails… If frequent intervention is needed, slow the run speed and review hooping/stabilizer so the job runs with fewer stops.
• Q: What magnet safety rules apply when using magnetic embroidery hoops or a magnetic hooping station for SWF appliqué production?
  A: Handle magnets as pinch hazards and keep them away from pacemakers/medical implants and magnetic cards.
  • Slide: Separate magnets by sliding them apart—do not pry straight up.
  • Protect: Keep fingers clear of the closing path to prevent severe pinching.
  • Success check: Magnets seat smoothly without snapping onto skin, and the workstation stays free of cards/electronics near the magnetic field.
  • If it still fails… If magnets feel hard to control, slow down the hooping motion and reorganize the station so the magnets are staged safely before placement.
