Roman Numerals on a Hoodie Without the “Why Is It Crooked?” Panic: Magnetic Hoop Centering, Hooping Station Setup, and the Waistband-Load Trick

The "Anti-Drift" Guide to Embroidering Hoodies: From Setup to Sellable

If you’ve ever stitched a "simple" chest design on a hoodie only to watch it finish 1/4" off-center—or worse, drift diagonally mid-run—you know the specific sinking feeling of ruining a $20 blank. It’s not the machine that failed; it’s the physics of the fabric.

Heavyweight fleece is deceptive. It looks sturdy, but it is effectively a "fluid" material—it stretches, compresses, and twists. To conquer it, you need a workflow that treats the hoodie like an engineering project, not a napkin.

This guide rebuilds the Roman Numeral date workflow (a bestseller for anniversaries and team gear) into a commercial-grade Standard Operating Procedure (SOP). We move beyond "hoping it works" to a system based on friction, physics, and the right tools.

Wilcom Roman Numerals Digitizing: Build the Date Once, Then Swap Numbers Fast

Digitizing for hoodies requires specific "fleece defenses." A standard font file designed for denim or twill will sink into the pile of a hoodie, looking thin and cheap.

The "Fleece Formula" (Expert Settings):

• Underlay: Use a Double Tatami or Edge Run + ZigZag underlay. This creates a "foundation" that pushes the fluff down before the top stitches engage.
• Density: Standard auto-density (approx. 0.40mm) often isn't enough. Tighten it slightly to 0.38mm, but do not go lower than 0.35mm or you risk creating a "bulletproof" patch that puckers.
• Pull Compensation: Hoodies swallow stitches. Increase Pull Comp to 0.35mm - 0.40mm to ensure your columns look as wide on fabric as they do on screen.

Workflow Efficiency: Create a master file in Wilcom with your chosen font. Save this as a "Template." When a client orders a specific date, open the template, swap the numerals, and Save As usually following a Date_Size_Color naming convention. This prevents you from rebuilding settings every time.

Magnetic Hoop Choice for Hoodies: Why the 8x13 Gives You Breathing Room (and Fewer Rehoops)

Standard friction hoops (the plastic inner/outer rings) are the enemy of thick hoodies. To get them tight, you have to force the rings together, which often causes "hoop burn" (crushed fibers) or stretches the knit, leading to oval circles once unhooped.

The Commercial Solution: Professionals switch to magnetic frames for bulky items. The mighty hoop 8x13 is the industry standard for adult hoodies for two reasons:

1. Surface Area: It grips a large rectangle of fabric, stabilizing the surrounding area, not just the stitch zone.
2. Vertical Clamping: It snaps straight down. It does not pull the fabric outward like a friction hoop.

Decision Logic:

• Adult M - 3XL: Use the 8x13 hoop.
• Youth / Ladies S: Use the 8x9 hoop (prevents stretching the smaller neck/shoulder area).

When to Upgrade: If your wrist hurts from tightening screws, or if you are rejecting more than 2 hoodies per batch due to hoop marks, this is your trigger to upgrade to magnetic hoops.

Cut-Away Stabilizer Cutting: Use the Hoop as a Template So Your Backing Fits Every Time

The Golden Rule of Hoodies: Never use Tear-away. A hoodie is a knit; it stretches. Tear-away provides zero structural support after the embroidery is done. You must use Cut-away stabilizer (2.5oz or 3.0oz).

The "Hoop Template" Technique: Don't guess the size. A piece of backing that is too small will cause "tunneling" near the edges.

1. Lay your Cut-away roll on a self-healing mat.
2. Place your hoop on top.
3. Cut along the grid lines, leaving at least 1.5 inches of excess on all sides.

Warning: Physical Safety
Rotary cutters are razor-sharp. Always engage the safety guard immediately after cutting. Never cross your arms while cutting; keep your stabilizing hand well away from the blade’s path.

Hidden Consumable: Keep a can of temporary spray adhesive (e.g., KK100 or 505) nearby. A very light mist on the specific area of the stabilizer can help grip the hoodie fleece and prevent shifting, essentially laminating the two layers together temporarily.

Prep Checklist: Is Your Station Ready?

• File exported with "Fleece" settings (Underlay/Pull Comp checked).
• Cut-away stabilizer (2.5oz+) cut to size (Hoop width + 1.5").
• New Needle Installed: Ballpoint 75/11 (Ballpoint pushes fibers aside; Sharp cuts them).
• Bobbin check: Is it at least 50% full? (Don't risk a run-out on a thick garment).


Centering a Hoodie Chest Design with a T-Square Ruler: Stop Trusting the Fold

Hoodies are mass-produced poorly. The side seams are often twisted, and the pocket is rarely perfectly centered. If you fold a hoodie in half to find the center, your embroidery will likely look crooked when worn.

The "Rule of Seams" Method: Use a T-Square ruler to verify the optical center.

1. Find the shoulder seams (where the hood meets the body).
2. Measure the distance between them (e.g., 20 inches).
3. Mark the halfway point (10 inches).
4. Do the same lower down, near the pocket.
5. Connect these dots.

This method aligns the embroidery to the structure of the garment, ensuring that when the customer wears it, the design hangs straight relative to their neck and shoulders.

Water-Soluble Chalk Center Line: Mark Bold Enough to Trust, Easy Enough to Remove

Don't make tiny dots. Draw a crosshair.

• Vertical Line: The center of the chest (derived from the step above).
• Horizontal Line: The top edge of your design placement.

Sensory Check: Mark firmly. You need to see this white (or blue) line clearly through the hoop window. However, use a ceramic or water-soluble chalk. Avoid wax-based tailors' chalk on hoodies, as getting wax out of fleece pile is a nightmare.

Hoop Master Station Extender Setup: Open the Shoulders So You Can See What You’re Doing

Trying to hoop a hoodie on a flat table is like wrestling an octopus. The bulk fights you. This is why a hoop master embroidery hooping station is standard in commercial shops.

Why Use the Extender? The "Station Extender" (the arms that stick out) slides inside the hoodie.

1. Opens the Chest: It forces the garment flat, removing the ripples that cause puckering.
2. Consistency: By using the grid numbers on the station, every hoodie (S, M, L, XL) will have the exact same vertical placement.

Production Tip: If you don't have a station yet, you can mimic this by using a sturdy piece of cardboard cut to the width of the hoodie body to insert inside, providing a flat tension surface.

Backing on the Brackets: Let the Bottom Magnetic Ring Hold It (No Tape, No Wrestling)

One of the massive advantages of magnetic embroidery hoops combined with a station is the "Floating Backing" technique.

1. Place the magnetic bottom ring into the station fixture.
2. Lay your Cut-away stabilizer over it.
3. Use the magnetic tabs (or the fixture itself) to hold the stabilizer flat.
4. Crucial: Do not tape the backing to the hoodie. Let the backing float on the bottom ring. This prevents the "tufted pillow" effect where the backing and fabric have different tensions.

Warning: Magnetic Safety
Commercial magnetic hoops use Neodymium magnets with 300+ lbs of force.
* PINCH HAZARD: Keep fingers clear of the mating surfaces.
* MEDICAL ALERT: Do not operate if you have a pacemaker. Keep hoops 12 inches away from sensitive electronics.

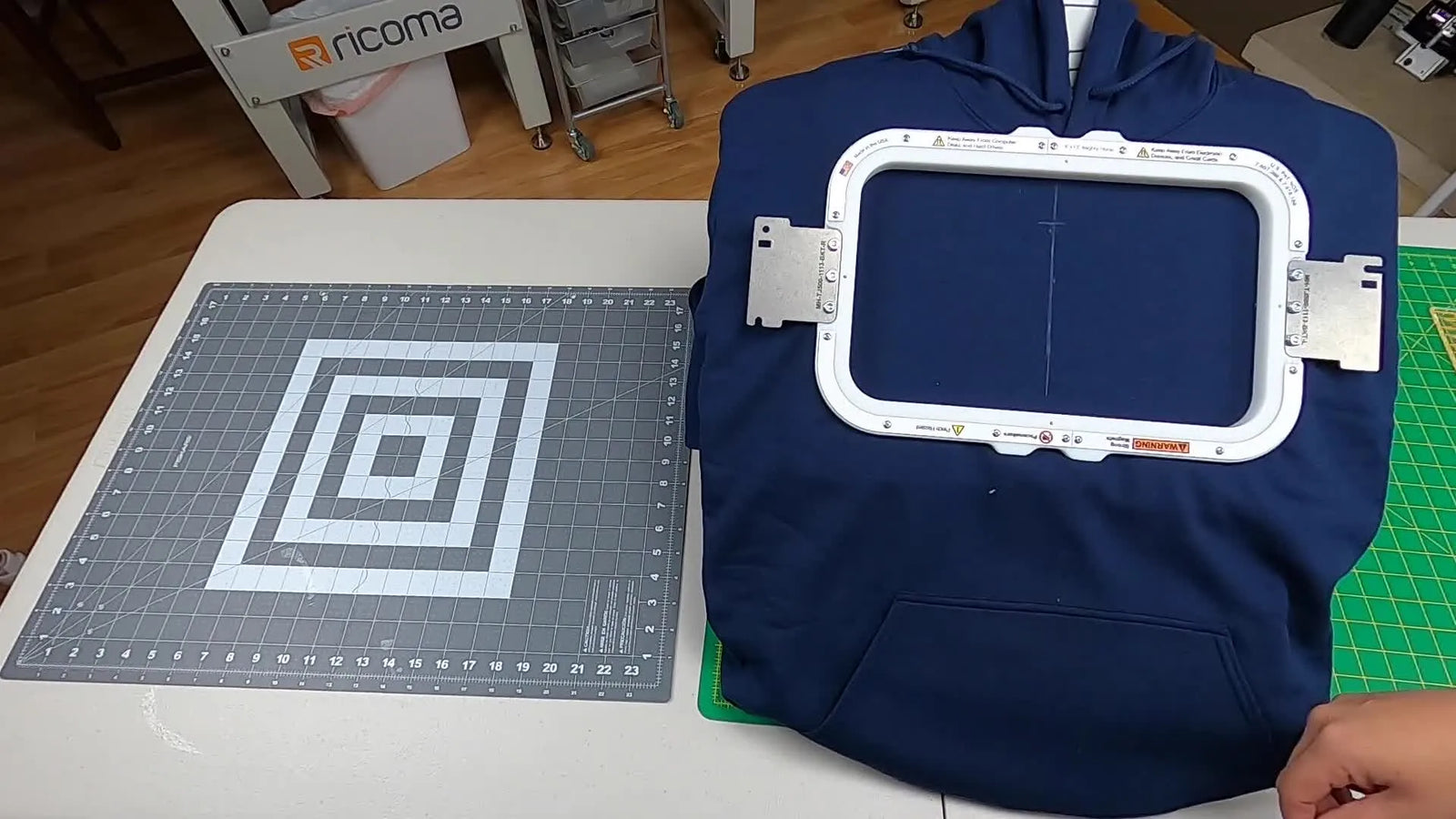

Hooping the Hoodie on the Station: Align the Chalk Line, Pull the Shoulders Straight, Then Let the Magnet Snap

This is the moment of truth.

The Sequence:

1. Slide: Pull the hoodie over the station/extender.
2. Align: Match your chalk crosshair with the notches on the hooping station.
3. Smooth (Tactile Check): Run your hands from the center outward. Feel for wrinkles. The fabric should be taut but not stretched. Think "neutral," not "tight."
4. Snap: Place the top hoop. Align the tabs. Let the magnets engage. SNAP.

The "Tug Test": Once hooped, gently tug the fabric outside the hoop. The fabric inside the hoop should not move. If it slips, your hoop is too loose (if adjustable) or you have trapped a pocket/drawstring under the ring.

The Waistband-Load Trick on a Ricoma Embroidery Machine: Prevent Registration Shift Before It Starts

The #1 Cause of Slanted Designs: Loading a heavy hoodie through the neck hole. This stretches the neck and forces the heavy body of the hoodie to hang off the back of the machine, pulling the hoop downward with gravity.

The Pro Technique:

1. Turn the hoodie upside down.
2. Feed the hoop arm through the WAISTBAND.
3. Slide the bulk of the hoodie toward the back of the machine (the pantograph).
4. Snap the hoop into the driver arms.

This keeps the heavy fabric supported by the table/machine body, rather than dragging on the hoop. This simple habit solves 90% of "random" registration shifts.

Setup Checklist: Pre-Flight

• Hoodie loaded via waistband (neck is loose/unstretched).
• Clearance Check: Put your hand under the hoop. Is there a pocket, drawstring, or sleeve trapped?
• Hoop Arms Locked: Listen for the solid CLICK of the hoop engaging the machine driver.
• Excess fabric folded back and clipped (if necessary) so it doesn't fall into the needle field.


Kids Sweater Method with an 8x9 Hoop: The “2.5 Fingers Down” Placement Shortcut (When Speed Matters)

For smaller garments (Youth XS-L), the 8x13 hoop is too wide. It will hit the sleeve seams. Switch to the 8x9 mighty hoop.

The Manual Placement Standard: While stations are great, knowing manual placement saves you on one-offs.

• Standard Placement: The top of the design should sit 2.5 to 3 inches (approx. 3-4 fingers) down from the bottom of the neck collar seam.
• Visual Logic: On a small garment, if you go lower, the design hits the stomach/pocket. Keep it high to keep it readable.


Stitching Check: Listen for “Struggle Sounds” and Watch for Fabric Drag

Embroidery is auditory.

• Good Sound: A rhythmic, consistent thump-thump-thump.
• Bad Sound: A sharp slap, a grinding noise, or the sound of the machine struggling to penetrate.

Speed Recommendation:

• Beginner Safe Zone: 500 - 600 stitches per minute (SPM).
• Pro Safe Zone: 800 SPM.
• Why? Hoodies are thick. Running a machine at 1000 SPM on fleece increases the chance of thread deflection (breaking needles) and shredding thread. Slow down to speed up (fewer breaks = faster finish).

Operation Checklist: During the Run

• First 100 stitches: Watch for "flagging" (fabric bouncing up and down with the needle). Fix: Hoop isn't tight enough.
• Watch the drawstrings: Ensure they aren't vibrating toward the needle bar.
• Bobbin Monitor: Does the white bobbin thread appear on top? Cause: Top tension too tight or lint in bobbin case.


Finishing the Hoodie: Remove Chalk Lines Cleanly So the Work Looks “Retail,” Not “Workshop”

Current best practice for removing water-soluble marks:

1. Dry Removal First: Attempt to brush it off with a clean toothbrush.
2. Water Mist: Use a spray bottle with distilled water. Mist gently; don't soak.
3. Dab, Don't Rub: Rubbing wet fleece creates pill (fuzz balls). Dab with a clean microfiber cloth.

Trimming: Turn the hoodie inside out. Trim the Cut-away stabilizer, leaving about 0.5 inch around the design. Round the corners of the backing so they don't scratch the wearer's skin.

Off-Center and Registration Problems on Hoodies: Symptom → Cause → Fix (No Guessing)

If things go wrong, stop. Use this table to diagnose the physical cause.

Decision Tree: Hoodie Fabric + Placement Goal → Stabilizer + Hoop Strategy

Step 1: Check Fabric Elasticity

• High Stretch (Performance Fleece): Use Poly-Mesh (No Show Mesh) + Cut-Away.
• Standard Cotton/Poly Fleece: Use standard 2.5oz Cut-Away.

Step 2: Choose Hoop

• Adult Hoodie (Chest): mighty hoop 8x13.
  • Why: Max stability, fits most chest logos.
• Youth / Ladies (Chest): 8x9 mighty hoop.
  • Why: Avoiding armpit seams.
• Left Chest (Pocket Area): 5.5" Magnetic or standard 15cm hoop.
  • Note: Ensure the pocket doesn't slide under the ring.

Step 3: Choose Loading Method

• All Hoodies: Waistband Load.
• Zip-Ups: Unzip and float (if possible) or standard load.


The Upgrade Path That Actually Matters: From “One Hoodie” to “Ten Hoodies a Day”

The workflow above works for a single needle or a multi-needle machine. However, if you are hitting bottlenecks, identify where the pain is to choose the right tool upgrade.

Level 1: The "Pain Free" Upgrade (Magnetic Hoops) If your limitation is physical fatigue or hoop burn, standard hoops are the bottleneck.

• Solution: Magnetic Hoops. They fit both home machines (like Brother/Baby Lock with adapters) and commercial machines (Ricoma, Tajima, SEWTECH). This solves the setup struggle immediately.

Level 2: The "Consistency" Upgrade (Hooping Station) If your limitation is misalignment (crooked logos), your eyes/hands are the bottleneck.

• Solution: Hooping Station. This standardizes placement so Helper A produces the same result as Helper B.

Level 3: The "Profit" Upgrade (SEWTECH Multi-Needle) If your limitation is thread changes (stopping 5 times per hoodie for color swaps) or speed, your single-needle machine is the bottleneck.

• Solution: SEWTECH Multi-Needle Machines. Jumping to 10+ needles allows you to set up the full Roman Numeral date (often 2-3 colors) and run it non-stop. Combined with the mighty hoop for ricoma or SEWTECH compatible magnetics, you create a commercial production line.


Final Reality Check: The Two Habits That Save the Most Hoodies

You can buy all the gear, but physics still applies. If you take nothing else away, follow these two laws of the hoodie:

1. Physics: A hoodie is heavy. If you let it hang freely, gravity will distort your design. Support the garment on a table or table extension during stitching.
2. Chemistry: A hoodie is stretchy. Never use tear-away. Bond the fabric to Cut-away stabilizer, and you create a stable canvas that lasts wash after wash.


FAQ

• Q: Why does a chest design drift or stitch slanted on a Ricoma multi-needle embroidery machine when embroidering a heavy hoodie?
  A: Load the hoodie through the waistband (not the neck) so the garment weight does not pull the hoop off-registration.
  • Turn the hoodie upside down and feed the hoop arm through the waistband.
  • Slide the bulk of the hoodie onto the machine/table so gravity is supported by the machine body, not the hoop.
  • Lock the hoop into the driver arms and confirm a solid click before starting.
  • Success check: the design path stays square (no diagonal creep) and the hoop does not “feel pulled” downward during the first stitches.
  • If it still fails: stop and check for trapped pockets/drawstrings/sleeves under the hoop or insufficient fabric support behind the machine.
• Q: What stabilizer should be used for embroidering hoodies, and why does tear-away backing fail on hoodie fleece?
  A: Use cut-away stabilizer (2.5 oz or 3.0 oz) because hoodie knits keep stretching after stitching and tear-away does not support the design long-term.
  • Cut backing larger than the hoop by at least 1.5 inches on all sides to prevent edge tunneling.
  • Choose Poly-Mesh (No Show Mesh) plus cut-away for high-stretch performance fleece; use standard 2.5 oz cut-away for typical cotton/poly fleece.
  • Apply a very light mist of temporary spray adhesive to bond layers and reduce shifting.
  • Success check: the fabric stays stable near the design edges with no tunneling when the hoop comes off.
  • If it still fails: increase stabilization (often an additional layer on thin knits) and re-check hooping for “neutral” tension (taut, not stretched).
• Q: How can embroidery hoop burn marks be reduced on thick hoodies when using standard friction hoops?
  A: Switch to a magnetic embroidery hoop/frame to clamp vertically without crushing or stretching the fleece like a tight friction hoop.
  • Use a larger hoop size for adult hoodies to stabilize more surrounding fabric; use a smaller hoop on youth/ladies garments to avoid stretching shoulder/neck areas.
  • Hoop with “neutral” tension—smooth the fabric flat but do not pull it outward tight.
  • Avoid over-forcing rings together; if tightening causes pain or frequent rejects, treat that as a real upgrade trigger.
  • Success check: after unhooping, the fleece pile is not visibly crushed in a ring and the garment does not look distorted.
  • If it still fails: review stabilizer size (too small can force distortion) and confirm seams/pocket bulk are not being clamped under the ring.
• Q: How can hoop tightness be judged correctly for hoodie embroidery to prevent fabric slipping and registration shift?
  A: Hoop the hoodie so the fabric is taut but not stretched, then verify with a tug test before stitching.
  • Smooth from the center outward with both hands to remove wrinkles without pulling the knit off-shape.
  • Gently tug fabric outside the hoop; the fabric inside the hoop should not move or creep.
  • Re-check that no pocket edge, drawstring, or sleeve is trapped under the hoop ring.
  • Success check: during the first 100 stitches, there is no flagging (fabric bouncing) and the design does not drift.
  • If it still fails: add light spray adhesive to reduce shifting and slow the machine speed to reduce fabric drag on thick fleece.
• Q: What are the safest settings and needle choice for embroidering hoodies to reduce needle breaks and “struggle sounds” on a multi-needle machine?
  A: Slow down and use a fresh 75/11 ballpoint needle to reduce deflection and fiber damage on thick fleece.
  • Install a new 75/11 ballpoint needle before a hoodie batch (ballpoint pushes fibers aside instead of cutting).
  • Run a safer speed range (often 500–600 SPM for beginners; many pros stay around 800 SPM on hoodies).
  • Listen for sharp slaps/grinding that indicate the machine is struggling; stop immediately and inspect.
  • Success check: the machine sound is steady and rhythmic, with clean penetration and no sudden snapping needle events.
  • If it still fails: check for thick seams in the stitch path and inspect the throat plate area for burrs after a break.
• Q: What magnetic hoop safety rules should be followed when using industrial magnetic embroidery hoops/frames on hoodies?
  A: Treat magnetic hoops as a pinch hazard and keep them away from pacemakers and sensitive electronics.
  • Keep fingers completely clear of mating surfaces when closing the hoop; let the magnet snap straight down.
  • Do not operate magnetic hoops if a pacemaker is present; maintain at least 12 inches from sensitive electronics.
  • Set hoops down on stable surfaces and control the top ring during placement to prevent sudden snap closures.
  • Success check: the hoop closes without finger contact near the clamp line and the fabric remains evenly clamped (no sudden shifts from impact).
  • If it still fails: switch to using a hooping station/fixture to control alignment and reduce hand exposure during closing.
• Q: What is a practical upgrade path for producing 10 hoodies per day with fewer rejects: technique changes vs magnetic hoops vs a SEWTECH multi-needle embroidery machine?
  A: Match the upgrade to the bottleneck: fix setup technique first, then upgrade hooping tools for consistency, then upgrade to a multi-needle machine for throughput.
  • Level 1 (Technique): use waistband loading, cut-away stabilizer, and slower hoodie-appropriate speed to stop drift and breaks.
  • Level 2 (Tool): use magnetic hoops to reduce hoop burn and physical fatigue, and add a hooping station when placement consistency is the main problem.
  • Level 3 (Capacity): move to a SEWTECH multi-needle machine when thread changes and stop-start downtime are limiting daily output.
  • Success check: rejects drop (less re-hooping and fewer off-center hoodies) and run time becomes predictable across batches.
  • If it still fails: identify the dominant failure mode (hoop marks, misalignment, or thread-change downtime) and upgrade only the step causing that symptom.
