Run, Satin, or Fill? Dial In Chroma Luxe Stitch Settings That Actually Sew Clean on a Ricoma MT-1501 Denim Jacket

The Digitizing Field Manual: From "Why Does My Design Look Bad?" to Production-Ready Embroidery

If you have ever stared at a digitizing screen thinking, “Why are there so many stitch types—and why do my ‘simple’ letters still pucker?” you are entering the most common phase of an embroiderer's journey: The Calibration Phase. Embroidery is not just art; it is physics. It is the interaction of tension, fabric grain, and needle penetration.

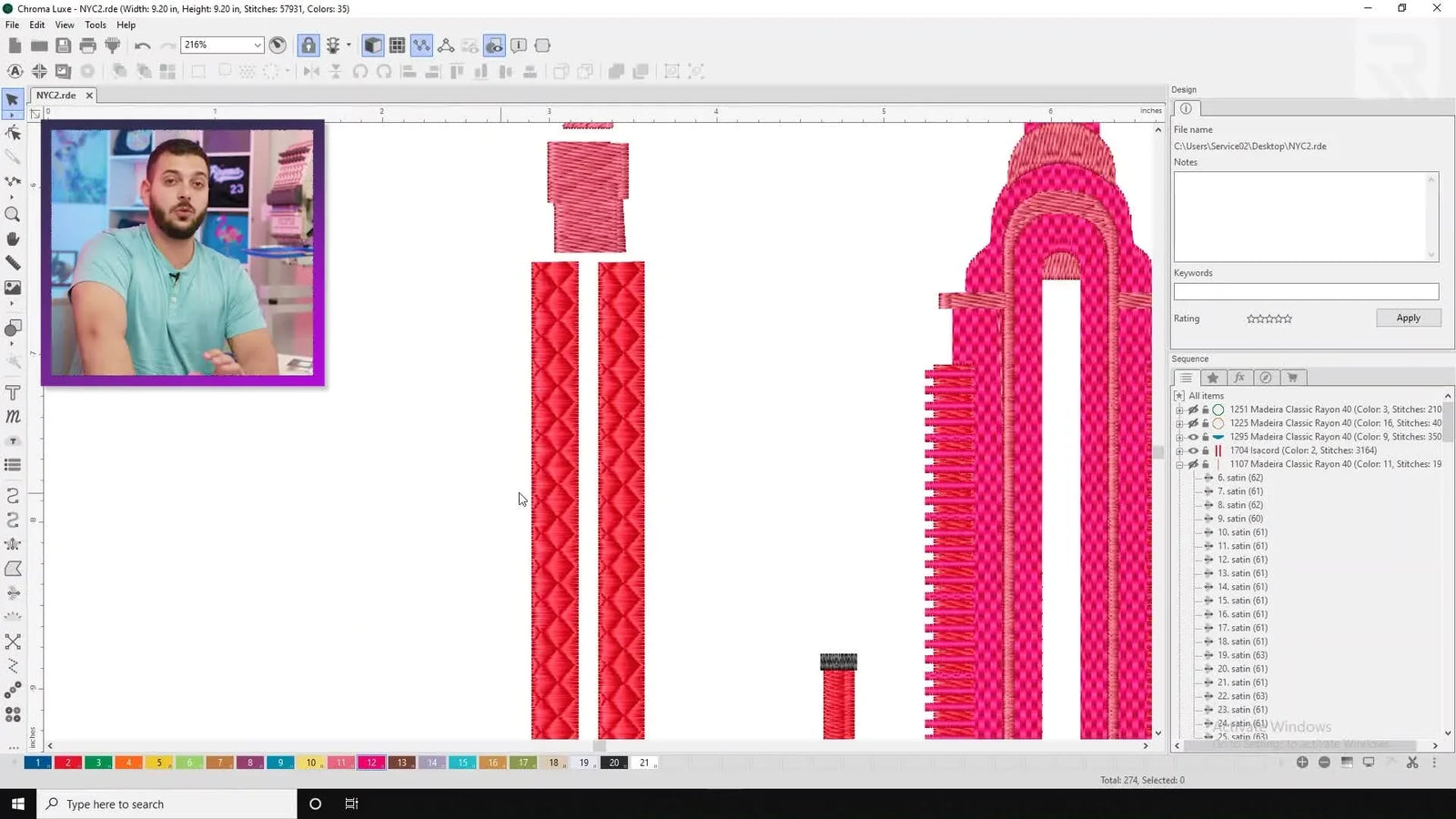

In the reference video, Willy digitizes a complex NYC back-of-jacket design in Chroma Luxe and runs it on a commercial machine. But watching a pro do it is different from doing it yourself.

Below is that workflow rebuilt into a Field Manual. I have stripped away the fluff and added the Sensory Checkpoints, Safety Margins, and Tooling logic you need to transition from "hoping it works" to "knowing it will work."

The 10-Second Calm-Down: Run Stitch vs Satin Stitch vs Fill Stitch (and why your design is failing)

Most beginners fail because they ask the thread to do a job it physically cannot do. Think of stitch types like construction tools. You wouldn't use a hammer to drive a screw.

• Run Stitch (The Pen): A single line of thread.
  • Use for: Small details, underlay, placement lines, and travel paths.
  • Sensory Check: It should look flat and sink slightly into the fabric.
• Satin Stitch (The Marker): A column of zig-zag stitches that creates a raised, shiny bar.
  • Use for: Borders, text, and clean edges.
  • The Hard Limit: Do not exceed 0.5 inch (12.7mm) width. If a satin stitch is wider than this, it becomes a loose loop that will snag on a door handle or fingernail.
• Fill Stitch (The Paintbrush): Rows of stitches that cover large areas (Tatami).
  • Use for: Backgrounds and shapes wider than 0.5 inch.
  • Sensory Check: It should feel like a textured patch of fabric, not a hard bulletproof vest.

Expected Outcome: Before you touch a mouse, print your artwork. Circle the lines (Run), the borders (Satin), and the big blocks (Fill). If you skip this map, you will get lost.

The “Hidden” Prep Before You Touch Chroma Luxe: fabric, stabilizer, and the denim reality check

Willy stitches on a denim jacket. Denim is deceptive. It feels thick, but it is a woven fabric that can shift diagonally (on the bias). If you don't stabilize it firmly, your circle will turn into an oval.

If you are building a workflow around a commercial setup like the ricoma mt 1501 embroidery machine, speed is your enemy during the learning phase. The machine moves fast; mistakes happen faster.

The Physics of Stability

You need to build a "sandwich" that does not move.

• The friction problem: Traditional plastic hoops rely on screw tension. On thick denim, it is hard to tighten the screw enough without hurting your wrists or leaving circular "hoop burn" marks (crushed fibers) that ruin the jacket.
• The solution: This is why pros often switch to magnetic frames. They slap shut, holding thick seams instantly without crushing the fabric grain or requiring wrist torque.

Stabilizer Decision Tree (Save This)

Do not guess. Follow this logic path for jackets:

1. Is the fabric stretchy (Performance wear/Knit) or Woven (Denim)?
   • Stretchy: STOP. You must use Cutaway stabilizer (2.5oz minimum).
   • Woven: Go to step 2.
2. Is the design "Heavy" (High stitch count/Large Fills)?
   • Yes: Use Cutaway (or fused Poly-mesh). Tearaway will disintegrate under 20,000 stitches, causing the design to drift.
   • No (Outline only): Tearaway is acceptable.
3. Is there texture (Corduroy/Rough Denim)?
   • Yes: Add a Water Soluble Topping to keep stitches sitting on top of the nap.

Hidden Consumables Checklist (The stuff nobody tells you to buy)

• Temporary Spray Adhesive (e.g., KK100): To bond the backing to the jacket so it doesn't slide during hooping.
• 75/11 Ballpoint Needles: Sharp needles can cut denim fibers; ballpoints push them aside.
• Sharp Thread Snips: For the appliqué step (dull scissors will cause disaster).
• Lighter/Heat Gun: To quickly clean up fuzz after the sew-out.


The “View Filter” Habit in Chroma Luxe: isolate stitches so you stop guessing

Willy uses View → Filter to hide everything except the stitch type he is working on. This is "Tunnel Vision" on purpose.

If, after a software update, you cannot find the specific right-click menu shown:

1. Go to the Sequence/Object Panel on the right.
2. Manually hide the color blocks you aren't analyzing.

Why do this? because you cannot judge the density of a satin border if a dark fill stitch underneath is distracting your eye. Digitize one layer at a time.

Make Run Stitches Earn Their Keep: standard run, appliqué trace/tack, triple rope, and bean stitch

Run stitches are not just "travel lines." They are the skeleton of your design.

1) Standard Run Stitch (The Skeleton)

Used for underlay or tiny details.

• Standard Length: 2.5mm is the sweet spot. Shorter creates pinholes; longer makes corners look jagged.

2) The Appliqué Sequence (Essential for Patches)

Willy uses appliqué to fill a large circle with fabric instead of thread. This saves 20 minutes of sewing time and creates a cleaner look.

• Step A: Placement Line (Run Stitch). The machine sews an outline to show you where to put the fabric.
• Step B: The STOP Command. You must program a stop (or color change) here to place your patch fabric.
• Step C: Tack-Down (Double Run). The machine sews the fabric down. Willy uses a run that goes around twice for security.
• Step D: TRIM. You cut the excess fabric close to the stitches.

Warning: Mechanical Hazard
When trimming appliqué on the machine, keep your fingers clear of the start/stop button. A slip while trimming can result in stitched fingers. Always remove the hoop if you are unsure, or engage the "E-Stop" lock if your machine has one.

3) Triple Rope Run Stitch (The Rope)

Willy selects Triple Rope for broad visibility.

• Why? A single run stitch disappears into denim grain. A triple run lays three strands side-by-side, making it pop.
• This is critical when using machine embroidery hoops where the fabric tension might open the weave slightly; the triple stitch bridges those gaps.


4) Bean Stitch (The Bold Line)

• Structure: One stitch forward, one back, one forward. Loops the thread on itself.
• Result: A thick, hand-sewn look.
• Sensory Check: Listen to the machine. A bean stitch sounds like a rapid-fire machine gun (thrap-thrap-thrap) because of the backward motion. Slow your speed down (e.g., 600 SPM) to prevent thread breaks.


Satin Stitches That Don’t Snag: the 0.5-inch rule, 0.3 density baseline, and clean 3D puff layering

Satin stitches are the "skin" of your design. The most common complaint is "bulletproof embroidery"—stiff, hard letters.

The Golden Parameters (Safe Start settings)

• Max Width: 0.5 inch (12mm). Any wider, switch to Fill.
• Density: Video suggests 0.3mm.
  • Experts Note: 0.3mm is very dense. For beginners on standard thread, 0.4mm is often safer. It covers well but breaks needles less often.
• Stitch Length: N/A (determined by column width).


Troubleshooting Bulky Corners

If your letters look like blobs at the sharp corners (like the tip of an 'A' or 'M'):

• The Problem: The software is stacking 50 stitches in one tiny point.
• The Fix: Use "Short Stitches" (auto-shortening inside corners) or manually reshape the corner to be blunt rather than sharp.

3D Puff Secrets

Willy layers the "NYC" text.

1. Base Layer: Low density (0.2mm) to squash the foam.
2. Top Layer: High density (0.15mm - 0.2mm) to cut the foam.

• Note: Puff requires a very sharp needle and a heat gun finish to shrink the foam edges.

Gradient Satin Without Birdnesting: the 0.7 density overlay and “Linear Decreasing” blend

Gradients kill machines. Beginners try to blend two dense colors and create a "birdnest"—a massive knot under the throat plate that locks the machine.

The Physics of the Nest: You cannot push a needle through an area that is already 100% solid thread. It will deflect, miss the bobbin hook, and tangle.

The Safe Gradient Formula

• Layer 1 (Base): Standard Satin.
• Layer 2 (Gradient Overlay):
  • Density: 0.7mm (Very loose). You want to see the color below it.
  • Type: Linear Decreasing (Fades out).


By keeping the overlay loose (0.7mm), you avoid the "blanket on blanket" jam.

Warning: Magnetic Hoop Safety
If you upgrade to magnetic embroidery hoops for your jacket backs, treat them like loaded weapons. The magnets are industrial strength.
* Do not let them snap together on your fingers (severe pinch hazard).
* Do not place them near pacemakers.
* Slide the magnets apart; do not try to pry them.

Fill Stitches That Stay Registered: tatami 0.3 density, brick texture, embossing pattern 100, and Maltese gaps

When you fill a large area (like a jacket back), the fabric will shrink inward. This is the "Push/Pull" effect.

1) Tatami Fill (The Standard)

• Density: 0.3mm - 0.4mm.
• Angle: Change the angle (e.g., 45 degrees) so it doesn't align with the denim weave.

2) Brick & Embossed Fills (The Texture)

Willy uses Brick and Embossing Pattern 100 (diamonds) to add visual interest without adding stitch count. Texture hides imperfections better than a flat wall of thread.

[FIG-10] [FIG-11]

3) The "Maltese" Gap Strategy

This is a Pro Move. Willy uses a Maltese fill which creates a pattern with intentional holes/gaps.

• Why? Fewer stitches = Less fabric distortion = Better alignment.
• Business Logic: It also cuts sew time by 30%. On a production run of 50 jackets, saving 10 minutes per jacket = 8 hours of saved labor.

Hooping a Denim Jacket Like You Mean It: alignment, drape control, and why the MT-1501 space matters

Hooping is where you win or lose. A perfectly digitized file will sew crooked if the hoop is crooked.

The Equipment Hierarchy

1. The Table Method: Cheap. Hard to get straight. High failure rate.
2. The Jig: Using a hooping station for machine embroidery guarantees the design is in the same spot on every jacket. If you are doing team uniforms, this is mandatory.
3. The Machine Body: Willy uses an MT-1501. The "open chassis" design allows the heavy jacket to hang freely. On a flatbed home machine, the jacket bunches up, pushing the hoop and ruining registration.


Making the Comparison

When looking for optimal workflow, users often search for terms like hoop master embroidery hooping station to solve alignment issues. While that is a specific brand, the concept of a dedicated station is what matters. Pair a station with magnetic hoops, and you eliminate the wrist strain of forcing plastic rings over thick denim seams.

Press Start—But Watch These Checkpoints: appliqué stops, trimming timing, and clean execution

You are ready to sew. Do not walk away.

The Pre-Flight Checklist

• Bobbin Check: Is it full? Starting a large fill with a low bobbin is a gamble.
• Thread Path: Inspect the upper thread. Is it caught on a cone? Is it flossing through the tension disks correctly?
• Needle Orientation: Is the eye of the needle facing front (or slightly right)? If it's twisted, you will get shredded thread.
• Clearance: Rotate the handwheel or do a "Trace" to ensure the needle won't hit the hoop frame.

During the sew:

• Listen. A rhythmic thump-thump is good. A slapping sound, grinding, or squeaking means STOP immediately.
• Observe. Watch the Apliqué Stops. The machine will stop. Do not hit start until you have placed your fabric.

Troubleshooting the Three Scary Failures: snaggy satins, birdnesting gradients, and drifting registration

The Upgrade Path That Actually Pays Off: faster hooping, fewer rejects, and scaling beyond one jacket

Willy’s demo shows one jacket. But usually, you need to do 10, 20, or 50. This is where your equipment either helps you or hurts you.

Level 1: The Efficiency Upgrade (Magnetic Hoops)

If you are struggling with "hoop burn" or wrist pain from thick jackets, the search for mighty hoop for ricoma or similar magnetic systems is justified.

• Why: They hold denim firmly without crushing it.
• Benefit: 30% faster hooping, zero hoop burn.
• Fit: Available for both home machines (SEWTECH Magnetic Frames) and industrial machines.

Level 2: The Consistency Upgrade (Hooping Station)

If your logos are never straight, you need a station.

• Why: Repeatability.
• Benefit: You stop guessing. Every chest logo is exactly 8 inches down from the shoulder seam.

Level 3: The Scale Upgrade (Multi-Needle)

If you are spending half your day changing thread colors on a single-needle machine, you have outgrown it.

• Why: Production speed.
• Benefit: Machines like the Ricoma MT-1501 or SEWTECH Multi-Needle models allow you to set up 15 colors and walk away.

One final note on compatibility: Accessories like ricoma embroidery hoops are often standardized across commercial machines. Upgrading your hoops is usually the cheapest way to make your current machine feel "Pro."

Final Takeaway

Great embroidery is not magic. It is a recipe.

1. Prep: Backing that matches the fabric.
2. Digitize: Stitch types that respect physical limits (0.5 inch satins, 0.4mm fills).
3. Hoop: Secure tension without distortion (Magnetic).
4. Sew: Watch, listen, and learn from the noise.

Now, go run that test sew-out—on scrap denim, not the client's jacket!

FAQ

• Q: What hidden consumables should be prepared before stitching a denim jacket on a commercial multi-needle embroidery machine like the Ricoma MT-1501?
  A: Prepare the “invisible” consumables first, because most denim failures start with prep—not the digitizing file.
  • Use temporary spray adhesive (e.g., KK100) to bond stabilizer to the jacket so it cannot creep during hooping.
  • Install a 75/11 ballpoint needle to reduce fiber cutting on woven denim.
  • Keep sharp thread snips ready for appliqué trimming; dull scissors cause frayed edges and ugly cut lines.
  • Plan cleanup tools (lighter/heat gun) for fuzz removal after the sew-out, not mid-run.
  • Success check: the backing stays locked to the jacket when you tug the fabric, and the first stitches lay clean without the fabric shifting.
  • If it still fails, switch the stabilizer choice to cutaway for heavy stitch count designs and reduce speed during testing.
• Q: How can Chroma Luxe users quickly choose between Run Stitch, Satin Stitch, and Fill Stitch so satin columns do not snag on jacket-back designs?
  A: Use the 0.5 inch (12mm) satin-width limit as the deciding rule: wider areas must be fill, not satin.
  • Mark artwork first: assign Run for lines/paths, Satin for borders/text, Fill for blocks wider than 0.5 inch.
  • Split wide satin areas into multiple columns or convert them to Fill when the width exceeds 12mm.
  • Start satin density at a safe baseline (0.4mm is often safer than 0.3mm for beginners, generally) and test on scrap.
  • Success check: satin borders look raised and clean but do not form loose loops that catch on a fingernail.
  • If it still fails, check machine tension and reduce corner sharpness or enable short stitches for tight corners.
• Q: How can embroidery machine operators stop birdnesting under the needle plate when digitizing satin gradients (overlay blends) in Chroma Luxe?
  A: Keep the gradient overlay intentionally loose—dense overlays create “blanket-on-blanket” jams that trigger birdnesting.
  • Set Layer 1 as normal satin, then set Layer 2 overlay density to 0.7mm and use a “Linear Decreasing” fade.
  • Reduce overlap areas where two dense satins meet; avoid stacking multiple solid layers in the same region.
  • Slow the machine down during testing (for example, around 600 SPM is used as a caution point for dense or backtracking stitches) to reduce thread break risk.
  • Success check: the underside shows clean, even stitches without a growing knot and the machine sound stays steady (no sudden grinding/slapping).
  • If it still fails, stop immediately, clear the nest, then re-test with less coverage or switch part of the gradient to a fill-based texture instead of layered satin.
• Q: What is the fastest way to troubleshoot white bobbin thread showing on top on a commercial embroidery machine during jacket-back fills and satins?
  A: White bobbin showing on top usually means upper tension is too tight or bobbin tension is too loose—start by easing upper tension.
  • Loosen the upper tension knob about 1/2 turn as a controlled test change.
  • Re-run a small test area (not the full design) to confirm the balance before continuing.
  • Inspect the thread path for snagging on the cone or mis-seating in the tension disks.
  • Success check: the top thread fully covers the bobbin thread, and the stitch line looks smooth rather than “striped.”
  • If it still fails, re-check bobbin setup/tension per the machine manual and confirm the needle is installed in the correct orientation.
• Q: How can embroidery operators prevent registration drift and misaligned outlines on denim jackets when running large back designs on a multi-needle machine?
  A: Registration drift is usually fabric movement plus push/pull distortion—lock the fabric with the right stabilizer and a better grip method.
  • Choose cutaway (or fused poly-mesh) for heavy stitch count designs; avoid tearaway when the design is dense because it can break down and let the design wander.
  • Stabilize denim firmly so bias shift cannot oval a circle; bond backing to fabric using temporary spray adhesive.
  • Upgrade hooping grip when needed: magnetic hoops often hold thick denim/seams without crushing the grain or requiring extreme screw torque.
  • Success check: outlines land back on their intended borders and repeated elements line up without “walking” over the run.
  • If it still fails, reduce speed during the learning phase and re-check hoop alignment method (a hooping station/jig improves repeatability).
• Q: What safety steps should be followed when trimming appliqué on an embroidery machine to avoid stitched fingers?
  A: Treat appliqué trimming as a mechanical hazard—control the start/stop risk before bringing hands near the needle area.
  • Program a STOP command (or color change) at the placement step so the machine halts reliably before fabric placement and trimming.
  • Keep fingers clear of the start/stop button while trimming; remove the hoop if there is any doubt.
  • Use sharp snips so trimming is quick and controlled (less time near the needle zone).
  • Success check: trimming is completed with the machine fully stopped, and the fabric edge is clean and close to the tack-down stitches.
  • If it still fails, engage an E-Stop lock if the machine has one and move trimming to a safer position off the machine.
• Q: What magnetic hoop safety rules should embroidery shops follow when using industrial magnetic embroidery hoops on jacket backs?
  A: Handle industrial magnetic hoops like high-force clamps—the main risks are finger pinch injuries and medical device interference.
  • Slide magnets apart to separate; do not pry them straight up or let them snap together.
  • Keep hands and fingertips out of the closing path when seating the top ring onto the bottom ring.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Success check: the hoop closes with controlled movement (no uncontrolled snap), and the fabric is held firmly without crushed hoop-burn marks.
  • If it still fails, pause and reposition using a two-handed, slide-apart technique; do not “force” alignment while magnets are engaged.
