# The Unforgiving Inch: How to Master Webbing Embroidery with Magnetic Hoops
**Author:** Chief Embroidery Education Officer | **Time to Read:** 8 Minutes

If you’ve ever tried embroidering on 1-inch webbing using a standard plastic hoop, you already know the specific flavor of stress it creates. The design area is impossibly narrow, the inner ring rarely grips the thick strap securely, and one tiny shift turns clean text into a crooked, unsalvageable key fob.

This project is a perfect stress test for modern tools. We are validating the **SA444MK 5x7 magnetic hoop** on a Brother machine to see if it can hold narrow webbing dead-steady while stitching two distinct density profiles: a light text design and a dense graphic.

[FIG-01]

## 1. The Physics of the Hold: Why Standard Hoops Fail on Webbing
Before we touch the machine, we must understand the failure mode. Traditional hoops rely on friction created by wedging fabric between two rings. Webbing is often too thick to wedge properly, or too narrow to be gripped on all sides. This causes "trampolining"—where the material bounces with the needle—or slight lateral shifting.

The SA444MK uses **vertical clamping force**. The 10 included magnets press straight down. This allows us to secure the webbing at the specific points of tension without distorting the material's grain.

The video test compares two stress levels:
1.  **Red Webbing (Low Stress):** A light satin stitch design ("LOVE").
2.  **Blue Webbing (High Stress):** A dense fill design ("420" smiley face).

If you are researching a **magnetic embroidery hoop**, understanding this distinction is vital: magnets provide "grip without distortion," which is the Holy Grail for stiff materials like webbing.

[FIG-02]

## 2. The "Hidden" Prep: The Grid Mat Ritual
**Experience Note:** 90% of crooked embroidery happens before the hoop is even touched.
Webbing has a "memory." It comes off a roll and wants to curve. The video demonstrates the single most effective habit for professionals: **The Grid alignment method.**

You aren’t just placing the webbing; you are forcing it to obey a geometric reference.

**The Physics of Alignment:**
By placing the hoop on a **self-healing cutting mat with a grid**, you create a coordinate system. You align the hoop to the mat’s X-axis, and the webbing to the Y-axis (or vice versa). This eliminates "visual drifting," where your eyes trick you into thinking a diagonal line is straight.

**Consumables & Tools Box (The "Pro" Kit):**
*   **Hoop:** SA444MK 5x7 Magnetic Hoop.
*   **Material:** 1-inch webbing (Polyester or Nylon).
*   **Cutting:** Rotary cutter + Grid Mat (Essential).
*   **Hardware:** Key fob clamp + Rubber-tipped pliers.
*   **Hidden Consumable:** **Size 80/12 or 90/14 Topstitch Needle.** *Expert Tip: Standard 75/11 needles may deflect on thick webbing. Use a thicker, sharp needle to penetrate straight.*

[FIG-03]

### Prep Checklist (Pass/Fail)
*   [ ] **Needle Check:** Is a fresh, heavy-duty needle (Size 80/12+) installed? (Dull needles push webbing sideways).
*   [ ] **Bobbin Check:** Is the bobbin full? (Running out mid-fob is unrecoverable).
*   [ ] **Material Check:** Is the webbing cut 2 inches longer than needed to allow for safe trimming?
*   [ ] **Safety:** Are the unused magnets stacked away from the workspace?

> **Warning:** **High-Velocity Hazard.** Rotary cutters are surgical instruments. Always cut *away* from your body. When changing blades, dispose of the old one immediately—do not leave it on the mat.

## 3. The Hooping Sequence: Taut, Not Stretched

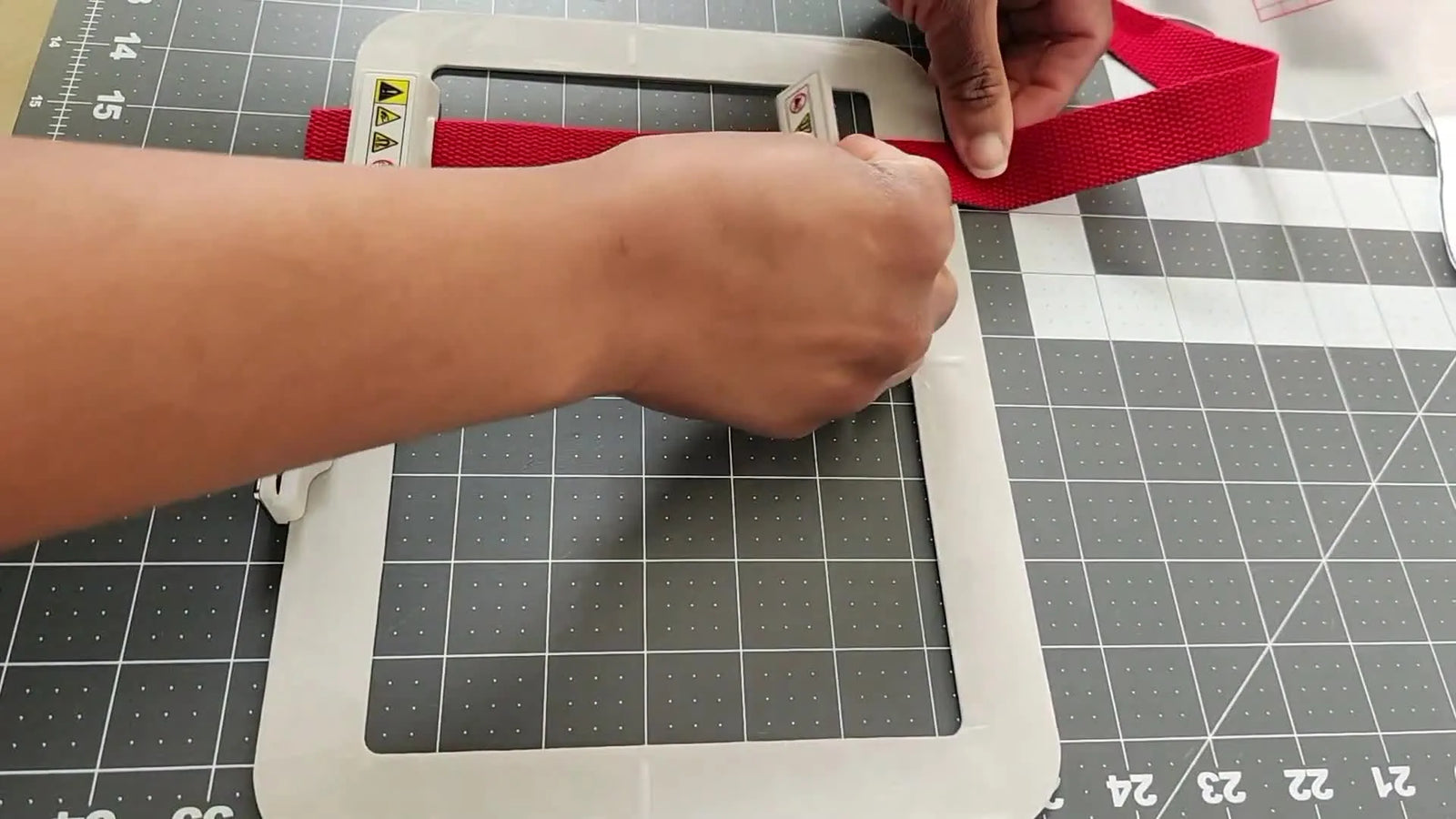

This is the core technique. Follow this sequence exactly to mimic a professional **hooping station for embroidery machine** setup without the extra cost.

[FIG-04]

**The 3-Step Anchor Method:**
1.  **Square the Frame:** Place the empty metal frame on your mat. Align the bottom edge *exactly* with a major grid line.
2.  **Route the Webbing:** Lay the webbing across the frame. Visually lock the top and bottom edges of the webbing to a perpendicular grid line.
3.  **The Magnetic Snap:**
    *   Place the first magnet on the left anchor point. *Listen for the sharp "click"—weak engagement means fabric is bunched.*
    *   Pull the webbing **taut** (remove slack, do not stretch elastic fibers).
    *   Place the right magnet to lock the tension.

**Sensory Check:** Tap the center of the webbing with your finger. It should feel firm, like a guitar string, not a loose hammock. If it bows, re-hoop.

[FIG-05]

### Setup Checklist (Pre-Flight)
*   [ ] **Squareness:** Is the webbing parallel to grid lines along its entire length?
*   [ ] **Clearance:** Are the magnets placed *outside* the stitch area? (Check your machine’s screen to ensure the needle won’t strike a magnet—this will shatter the needle).
*   [ ] **Grip:** Pull gently on the webbing ends. Does it slip? If yes, add more magnets or clean the frame surface.

> **Warning:** **Pinch Hazard.** Magnetic hoops use neodymium magnets. They snap together with enough force to pinch skin bloodily or damage pacemakers. Keep them separated and handle with respect.

## 4. Execution: Stitching on the Brother Machine
Load the frame. The video shows the webbing "floating" (no backing visible). While this works for stiff webbing, we usually recommend a layer of tearaway stabilizer for safety. However, the magnets here act as the stabilizer by providing rigid tension.

[FIG-06]

**The Density Test:**
*   **The Light Design (Red):** Simple satin columns. Low drag.
*   **The Heavy Design (Blue):** Complex fill. High perforation count.

[FIG-07]

[FIG-08]

**Speed Management (The "Sweet Spot"):**
While your machine might go to 800+ SPM (Stitches Per Minute), **slow down.** For narrow items relying on friction grip:
*   **Beginner Safe Zone:** 400 - 500 SPM.
*   **Pro Zone:** 600 SPM.
*   **Why?** High speed creates vibration that can "walk" the webbing out of the magnets. High speed provides no benefit on a 5-minute stitch-out.

**Visual Cue:** Watch the white bobbin thread on the back. It should occupy the center 1/3 of the satin column. If you see top thread looped on the bottom, your tension is too loose for this thick material.

Many users searching for a reliable **brother 5x7 magnetic hoop** are specifically trying to solve the "hoop burn" issue on delicate items, but here we see its utility for raw holding power on rugged straps.

## 5. Why This Works: The Mechanics of Friction
Why did the "420" dense design not pucker the webbing?
1.  **Surface Area:** The long rectangular magnets maximize the contact patch.
2.  **No "Bow Wave":** Standard hoops push material forward as you tighten the screw. Magnets drop straight down, preserving your grid alignment.

**Commercial Upgrade Path: From Hobby to Production**
*   **Level 1 (Technique):** Use the grid mat and high-quality needles (as customized here).
*   **Level 2 (Tooling):** If you struggle with consistency, **magnetic frames for embroidery machine** like the SA444MK are the answer. They reduce "re-hooping fatigue" and wrist strain.
*   **Level 3 (Scale):** If you are receiving orders for 50+ key fobs, a single-needle machine is your bottleneck. Efficient shops move to **SEWTECH Multi-Needle Machines** equipped with industrial magnetic frames to load the next job while the current one stitches.

## 6. Finishing: The Clean Cut & Crimp
Remove the magnets by sliding them sideways (easier than pulling up).

[FIG-10]

**The Trim:**
Use a rotary cutter.
*   **Sensory Anchor:** You want to hear a single, crisp *slicing* sound. A sawing or hacking sound means your blade is dull, leaving frayed "hairy" edges that look unprofessional.

[FIG-11]

**The Crimp:**
Fold the raw edge over (about 1/2 inch) to create a strong loop. Slide the hardware on.
Use **Rubber-Tipped Pliers**.
*   **Visual Check:** Look at the metal hardware after crimping. It should be pristine. Regular pliers will leave "bite marks" or scratches that ruin the perceived value of your product.

[FIG-12]

[FIG-13]

[FIG-14]

[FIG-15]

## 7. Decision Tree: Do You Need Stabilizer?
In the video, no stabilizer was used. Is that safe for you? Use this logic flow to decide.

**START: Analyze your specific Webbing & Design.**

1.  **Is your webbing rigid (stands up on its own)?**
    *   **YES:** Proceed to Q2.
    *   **NO (It's soft/floppy):** Use **Cutaway Stabilizer** floated under the hoop to prevent stretching.

2.  **Is your design a "Heavy Fill" (like a solid block logo)?**
    *   **YES:** Use **Tearaway Stabilizer** (sticky or floated) to add friction and prevent the webbing from "flagging" (bouncing).
    *   **NO (Text/Open linework):** You may proceed **without stabilizer**, relying solely on the magnetic grip (as shown in the video).

*Expert Note:* When in doubt, one sheet of tearaway stabilizer is cheap insurance against a ruined project.

## 8. Troubleshooting: The Logic of Failure
If your results don't match the video, don't guess. Follow this diagnostic path (Low Cost to High Cost).

| Symptom | Mostly Likely Cause | The "One Minute" Fix |
| :--- | :--- | :--- |
| **Webbing Shifts Mid-Stitch** | Greasy frame pads or low magnet count. | Wipe frame/magnets with alcohol. Add 2 more magnets to the stack. |
| **Needle Breakage** | Needle deflection on thick strap. | Switch to **Size 90/14 Jeans/Topstitch** needle. Slow down to 400 SPM. |
| **"Birdnesting" (Thread chaos underneath)** | Not threaded through the tension disks. | Re-thread the top thread completely. Ensure presser foot is UP when threading. |
| **Sloppy Text (Crooked)** | Alignment error during prep. | Use the **Grid Mat** method. Do not eyeball it. |
| **Hoop Burn (marks on strap)** | N/A | Impossible with magnetic hoops. If you see marks, it's dirt/oil on the pads. |

## 9. Final Thoughts: The Upgrade Moment
Embroidery is 80% preparation and 20% stitching. The **magnetic embroidery hoops for brother** ecosystem isn't just about convenience; it's about control.

If you are a casual crafter, the technique shown here (Grid Mat + Magnets) makes key fobs fun again. However, if you find yourself battling with thick materials daily, or if the "click-and-stick" workflow saves you 5 minutes per hoop, consider how many hours that saves a year.

**Ready to optimize?**
Many users begin searching for a **magnetic hoop for brother** when they ruin a customer's garment, but the smart move is to upgrade *before* the failure happens. Whether it’s high-tension thread, reliable backing, or the productivity of a SEWTECH multi-needle beast, the right tool separates the struggle from the success.

### Operation Checklist (Execute during the run)
*   [ ] **The Watch:** Stare at the first 100 stitches. Does the webbing "flag" (lift up) with the needle? If yes, pause and add helper magnets close to the needle (but not too close!).
*   [ ] **The Sound:** Listen for a rhythmic *thump-thump*. A grinding or high-pitched squeal indicates the needle is struggling to penetrate—Stop and change needle.
*   [ ] **The Exit:** When removing the hoop, slide the magnets off carefully. Do not let them snap onto the LCD screen or the machine bed.

Master the prep, trust the magnets, and enjoy the perfect stitch.

FAQ

• Q: What needle size should be used for embroidering 1-inch webbing on a Brother machine with the SA444MK 5x7 magnetic hoop?
  A: Use a fresh Size 80/12 or 90/14 Topstitch needle as a safe starting point, because thick webbing can deflect smaller needles.
  • Install: Replace the needle before the run (dull needles push webbing sideways).
  • Upgrade: If needle deflection or breaks happen, switch to a Size 90/14 Jeans/Topstitch needle and slow the machine down.
  • Pair: Confirm the bobbin is full before starting (running out mid key fob is usually unrecoverable).
  • Success check: Needle penetrates cleanly without a rhythmic “thump-thump” or squeal, and the strap does not drift off-center.
  • If it still fails: Reduce speed to the 400–500 SPM range and re-check magnet placement for stability (keep magnets out of the stitch area).
• Q: How do you align 1-inch webbing straight before stitching on a Brother machine using an SA444MK magnetic embroidery hoop?
  A: Use the grid-mat alignment method to remove “eyeballing” errors and lock the webbing to straight reference lines.
  • Place: Set the empty metal frame on a self-healing grid cutting mat and align the frame edge exactly to a major grid line.
  • Route: Lay the webbing across the frame and align the webbing edges to a perpendicular grid line (force the strap to obey the grid).
  • Clamp: Anchor left magnet first (listen for a sharp click), pull the webbing taut (not stretched), then place the right magnet.
  • Success check: Webbing stays parallel to the grid along the full length and does not “visually drift” when viewed from above.
  • If it still fails: Re-do the prep from the mat (most crooked text starts before hooping), and avoid trying to correct alignment after magnets are snapped down.
• Q: What is the correct “taut, not stretched” hooping method for 1-inch webbing using the SA444MK 5x7 magnetic hoop on a Brother embroidery machine?
  A: Remove slack without stretching fibers by using a left-right anchor sequence and a quick firmness test.
  • Anchor: Place the first magnet at the left anchor point and confirm strong engagement (no bunching under the magnet).
  • Tension: Pull the webbing taut to remove slack (do not over-pull like elastic).
  • Lock: Place the right magnet to hold the tension, then add magnets as needed outside the stitch field.
  • Success check: Tap the center of the webbing—webbing should feel firm like a guitar string, not a loose hammock or bow.
  • If it still fails: Add more magnets, and clean any oil/dirt from the frame contact surfaces to prevent slip.
• Q: How can you prevent webbing from shifting mid-stitch when embroidering dense fill designs on a Brother machine with an SA444MK magnetic hoop?
  A: Clean the frame contact points and increase magnet hold before changing design settings.
  • Wipe: Clean the hoop frame and magnets with alcohol to remove grease that reduces grip.
  • Add: Stack or add two more magnets to increase clamping force (keep magnets outside the stitch area).
  • Slow: Reduce speed—400–500 SPM is a safer zone for narrow items that can “walk” under vibration.
  • Success check: The strap does not creep left/right during the first 100 stitches and stays centered under the needle path.
  • If it still fails: Pause and re-hoop using the grid mat method instead of trying to “pull it back” while still clamped.
• Q: How do you fix birdnesting (thread chaos underneath) when embroidering webbing on a Brother embroidery machine?
  A: Completely re-thread the top thread with the presser foot UP so the thread seats into the tension disks.
  • Raise: Lift the presser foot before threading (this opens the tension system on many machines).
  • Re-thread: Remove the top thread and thread again from spool to needle—do not “patch” the path halfway.
  • Start: Watch the first stitches closely and stop immediately if loops form underneath.
  • Success check: The underside stops forming a wad of thread and stitching resumes with a clean, controlled back side.
  • If it still fails: Re-check bobbin installation and threading path per the Brother manual, then test again at a slower speed.
• Q: When should tearaway or cutaway stabilizer be used for embroidering 1-inch webbing with an SA444MK magnetic embroidery hoop on a Brother machine?
  A: Use stabilizer when the webbing is soft/floppy or the design is heavy fill; skip stabilizer only when rigid webbing and light text designs stay stable under the magnets.
  • Choose Cutaway: Add cutaway stabilizer floated under the hoop if the webbing is soft and may stretch.
  • Choose Tearaway: Add tearaway (sticky or floated) for heavy fill designs to increase friction and reduce “flagging” (bouncing).
  • Default: When unsure, use one sheet of tearaway as low-cost insurance against a ruined stitch-out.
  • Success check: Webbing does not lift with the needle during the first 100 stitches, and stitch formation stays consistent.
  • If it still fails: Add helper magnets closer to (but safely away from) the stitch area, and slow down to reduce vibration.
• Q: What safety precautions are required when using rotary cutters and neodymium magnets with an SA444MK magnetic embroidery hoop for webbing key fobs?
  A: Treat rotary cutters as high-velocity blades and magnetic hoop magnets as pinch hazards—control both before starting production.
  • Cut safely: Always cut away from the body, and dispose of old rotary blades immediately (do not leave them on the mat).
  • Handle magnets: Slide magnets off sideways to remove them; avoid pulling straight up to prevent sudden snaps.
  • Protect equipment: Keep loose magnets away from the machine bed and LCD area so they cannot snap onto the machine.
  • Success check: No pinched fingers, no loose magnets near the needle path, and no rushed trimming that leaves frayed edges.
  • If it still fails: Stop the workflow, clear the workspace, stack unused magnets away from the hoop, and restart with a clean, controlled station.
• Q: When should a shop upgrade from technique changes to SA444MK magnetic hoops, and when does it make sense to move to a SEWTECH multi-needle embroidery machine for webbing key fob orders?
  A: Upgrade in layers: fix prep and alignment first, add magnetic hoops for repeatability and reduced re-hooping, then consider a multi-needle machine when order volume makes single-needle throughput the bottleneck.
  • Level 1 (Technique): Standardize grid-mat alignment, correct needle choice, and slower speeds for narrow webbing.
  • Level 2 (Tooling): Use magnetic hoops when consistency is hard to maintain, re-hooping fatigue is high, or straps keep slipping in standard hoops.
  • Level 3 (Production): Consider a SEWTECH multi-needle machine when producing 50+ key fobs and downtime from re-threading/color changes limits output.
  • Success check: Re-hooping time drops, crooked text incidents decrease, and the first-100-stitch monitoring shows stable, repeatable results.
  • If it still fails: Identify the dominant failure (shift, needle breaks, birdnesting) and correct that root cause before investing further.
