Santa Tweety on a Brother SE1900: The Real Hooping, USB, Tension, and Bobbin Fixes That Keep Your Stitch-Out Clean

If you have ever stared at your Brother SE1900 while it executes a design, silently chanting, “Please don’t shift… please don’t pucker,” you are not alone. Machine embroidery is a discipline where precision engineering meets organic material, and that intersection is often where anxiety lives.

The stitch-out analyzed here—a Santa Tweety design on recycled bedsheet cotton—is a perfect case study. It is not a sanitized studio demo; it is a real-world scenario showcasing the critical moments that define success: the fight for hoop tension, the mid-design bobbin panic, and the finishing details.

As an embroidery educator, I see this not just as a project, but as a series of Physics vs. Friction battles. Let’s deconstruct this process, optimize the variables, and turn your fear of failure into predictable, professional results.

The Foundation: Substrate Preparation and The "First Cut"

The process begins with recycled cotton bedsheet fabric. While often viewed as a cheap practice material, cotton sheeting is actually an unforgiving truth-teller. It has zero loft to hide mistakes, meaning every pucker and tension error will show.

The creator uses a handheld rotary cutter to prepare a square. This is your first quality gate. If your fabric cut is trapezoidal or off-grain before it touches the hoop, you are mathematically guaranteed to fight wrinkles later.

The "Sweet Spot" Sizing Rule: Always cut your fabric and stabilizer at least 2 inches larger than your hoop’s outer frame on all sides.

• Why? You need "leverage handles." When hooping, you must grip the fabric outside the hoop to smooth it. If the fabric barely fits, you are pinching with fingertips, which leads to weak tension and "hoop burn."


The "Hidden" Step: Grainline Alignment

Before hooping, perform the Grain Check:

1. Tactile Test: Pull the fabric horizontally (weft) and vertically (warp). Woven cotton usually has more "give" in one direction (bias).
2. Action: Orient the fabric so the direction with the least stretch runs top-to-bottom in the hoop. This reduces the chance of the embroidery arm’s movement distorting the design.

Prep Checklist (Pre-Flight):

• Fabric cut with 2+ inch safety margin on all sides.
• Stabilizer (Tear-away or Cut-away) cut larger than the hoop frame.
• Fabric ironed flat (even invisible creases turn into puckers under tension).
• Rotary cutter blade retracted immediately after use.

Warning: Physical Safety
Rotary cutters and curved embroidery scissors are surgical-grade sharp. Never leave a rotary cutter blade exposed on your table—it creates a blind hazard under loose fabric. When trimming threads near the needle, keep your fingers outside the presser foot zone to avoid puncture injuries if the machine is accidentally engaged.

The Hooping Struggle: Friction, Screwdrivers, and The Better Way

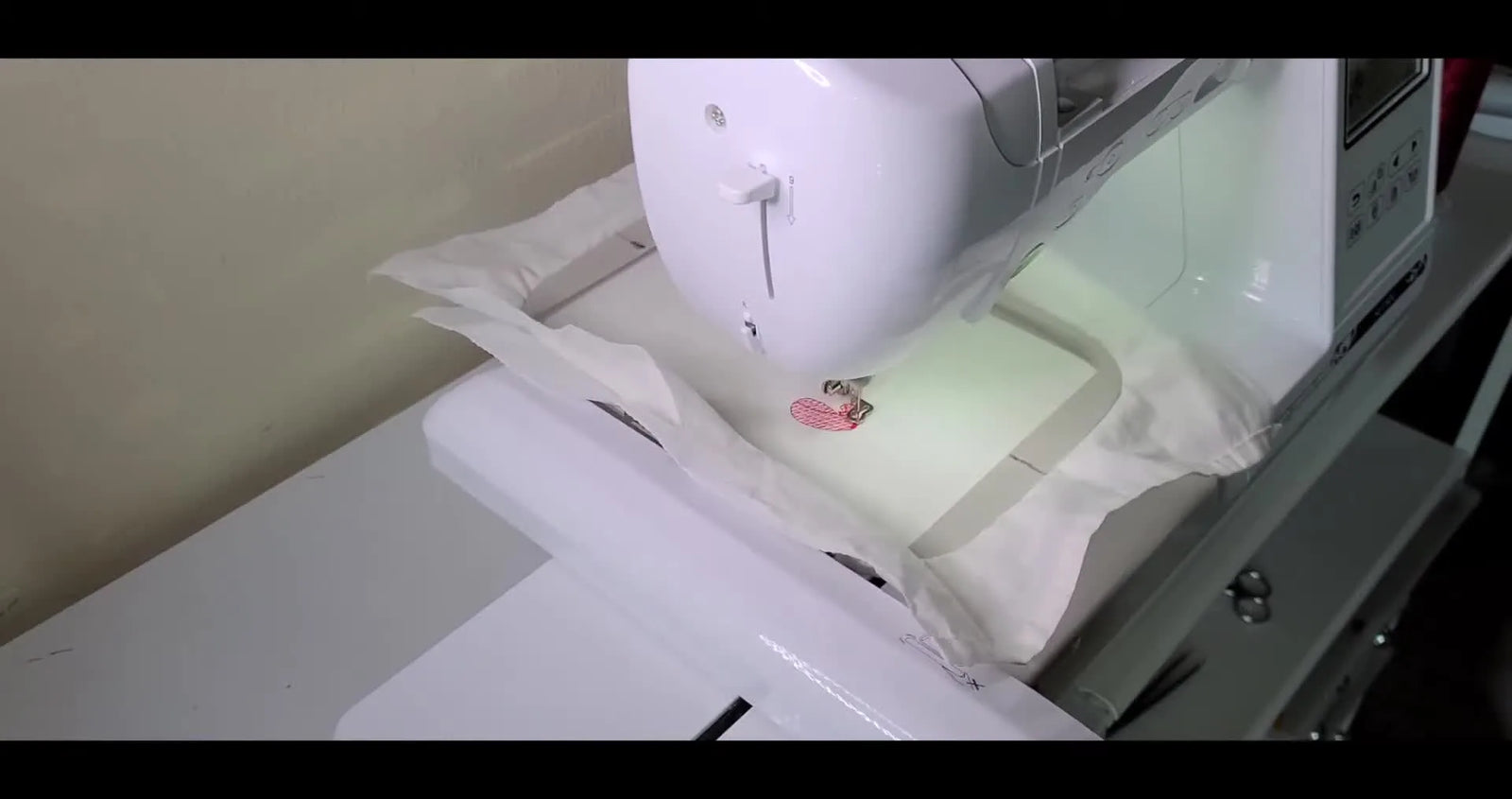

The video demonstrates a common struggle: using a Brother 5x7 hoop for a 4x4 design, showing the user tightening the thumb screw with a screwdriver to secure the fabric.

Let’s be honest: If you are reaching for a screwdriver to tighten your hoop screw, your current system is failing you.

While the screwdriver method adds clamping force, it introduces two risks:

1. Hoop Distortion: It can warp the inner ring into an oval, reducing grip on the sides.
2. Hoop Burn: It crushes fabric fibers, leaving permanent white rings on dark or delicate materials.

If you are currently fighting a standard brother 5x7 hoop like this, you are hitting the physical limits of friction-based clamping.

The Physics of "Drum Tight"

How tight is tight enough?

• Tactile Anchor: Tap the hooped fabric. It should sound like a dull drum—thump, thump.
• Visual Anchor: The fabric grain lines should be straight, not bowed in the center like a smile.

The Professional Solution: The Magnetic Upgrade

This is the moment where "Technique" meets "Tooling." If you plan to do production runs (5+ items) or work with thick seams/delicate fabrics, standard hoops become the bottleneck.

The Upgrade Path: Switching to a magnetic hoop for brother se1900 changes the physics from friction (wedging fabric between plastic rings) to clamping (vertical pressure).

• Scenario: You need to hoop a thick towel or a backpack that keeps popping out of the plastic rings.
• Solution: A magnetic embroidery hoop snaps down vertically. This eliminates the "hoop burn" caused by forcing the inner ring involved, saves your wrists from repetitive strain, and holds fabric immovable during high-speed stitching.
• Business Case: If you charge for your embroidery, the time saved on hooping with magnets often pays for the hoop within two moderate orders.

Warning: Magnetic Force Hazard
Commercial-grade magnetic hoops are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the snap zone. The top ring will slam down instantly if it gets too close.
* Medical Safety: Keep magnets away from pacemakers, insulin pumps, and credit cards.

The "Click" Check: Inserting the Hoop

The creator shows the hoop brackets snapping into the carriage. This is a binary operation—it is either right or wrong.

The Tactile Rule: You should feel a distinct positive "Click" or "Snap."

• If you have to force the hoop lever down, your alignment is off. Stop immediately. Forcing it bends the carriage pins, which leads to designs that don’t line up.
• The Wiggle Test: Once latched, gently wiggle the hoop frame. It should move with the carriage as one solid unit. If there is play, re-seat it.

Digital Hygiene: Managing PES Files

The video proceeds to load the design via USB. Navigating a chaotic USB drive on a small LCD screen is a recipe for frustration.

Workflow Optimization: Organize your USB folders by Hoop Size, not just design name.

• Bad: Root > Christmas > SantaTweety.pes
• Good: Root > 5x7_Hoop > SantaTweety.pes

This prevents the dreaded "Design too large for frame" error message. If you are shopping for a new hoop for brother embroidery machine, remember that your machine’s recognition limit is hard-coded (e.g., the SE1900 maxes at 5x7).

The 2.8 Tension Controversy: Calibration & Common Sense

On the Edit Screen, the creator centers the design and then lowers the tension to 2.8.

Let’s calibrate this for your machine. Factory standard tension for Brother machines is customarily 4.0. Dropping to 2.8 is a significant adjustment. Why would they do this?

• Reason A: They are using thick, high-friction thread (like metallic or thick cotton).
• Reason B: Their bobbin case tension is unusually loose.

The Expert Recommendation for Beginners: Do not blindly copy "2.8". Start at 3.6 to 4.0.

• The "H" Test: Stitch a letter "H". Look at the back. You should see 1/3 top thread, 1/3 bobbin thread (white), and 1/3 top thread.
• If you see mostly white bobbin thread on the back, your top tension is too tight → Lower to 3.5.
• If you see no bobbin thread on the back (or loops on top), your top tension is too loose → Raise to 4.5.


Setup Checklist (The "No-Go" Checks)

• Needle Condition: Run your fingernail down the needle tip. Any snag? Replace it. (A burred needle ruins satin stitches).
• Bobbin Check: Is the bobbin directional? (Use the diagram—usually unwinds counter-clockwise).
• Hoop Clearance: Is there anything behind the machine (wall, coffee mug) that the hoop will hit when it moves to the furthest position?
• Foot Pedal: Disconnected or ignored. (Embroidery uses the Start/Stop button).

Execution: The Start Button & The "Machine Gun" Sound

Embroidery mode does not use the foot pedal. You press Green to Go, Red to Stop.

Auditory Monitoring: Once the machine starts, close your eyes and listen.

• Healthy Sound: A rhythmic chug-chug-chug or smooth hum.
• Danger Sound: A loud CLACK-CLACK or grinding noise.
• Action: If you hear danger, hit the Stop button immediately. Do not "hope it gets better." It won't.

Speed Tip: The SE1900 can stitch up to ~850 stitches per minute (SPM). For dense designs or metallic threads, slow it down to 600 SPM. This reduces friction and thread breakage.

Crisis Management: The Empty Bobbin

Mid-stitch, the machine parses the "Bobbin Thread is Almost Empty" warning. THIS is the moment beginners often ruin a project by shifting the hoop.

The Safe Swap Protocol:

1. ACKNOWLEDGE: Press OK on the screen.
2. CUT: Use the automatic thread cutter (scissors button).
3. REMOVE (Optional but Safety-First): Only remove the hoop if you are 100% confident in your ability to re-latch it gently. If you are clumsy, leave the hoop attached and change the bobbin in place (it's tighter, but safer for alignment).
4. LOAD: Insert new bobbin, verify the S path.
5. RESUME: The machine remembers the exact X/Y coordinate.


Efficiency Tip: If you are doing a production run, pre-wind 5-10 bobbins before you start. Stopping to wind a bobbin in the middle of a job kills your flow state.

Precision Finishing: Trimming Jump Stitches

The creator uses component tweezers and curved scissors to trim jump stitches.

Why Use Components Tweezers? Standard cosmetic tweezers are too blunt. Extended precision tweezers allow you to lift the jump thread away from the fabric before snipping. This creates a vertical gap for your scissors, ensuring you don't accidentally snip the knot or—worse—the fabric itself.

The Post-Mortem: Reading the Backside

The video concludes with an inspection of the back of the design. This is your report card.

What implies success?

• Flatness: The embroidery should not cup or curl.
• Clean Edges: No "birds nests" (tangles) of thread.
• Bobbin Show: Visible white bobbin thread down the center of satin columns.

If you see puckering around the edges of the Santa Tweety, it means your stabilizer choice was insufficient for the stitch density.

Stabilizer Decision Tree

Follow this logic path to choose the correct backing for your next project:

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES → Cut-Away Stabilizer (Mandatory. Tear-away will result in gaps and skewed designs).
   • NO → Go to Step 2.
2. Is the design very dense (Solids, thousands of stitches)?
   • YES → Cut-Away is safer, or use Heavyweight Tear-Away bonded to the fabric with temporary adhesive spray.
   • NO (Light outlines/Redwork) → Tear-Away is acceptable.
3. Does the fabric have pile (Towel, Velvet)?
   • YES → Add Water Soluble Topping (Solvy) on top to prevent stitches from sinking in.

Moving Beyond the Struggle: The Technician's Advice

The creator of the video successfully navigated the project, but the heavy use of the screwdriver and the manual tension adjustments signal a workflow that is harder than it needs to be.

If you find yourself enjoying the result but dreading the setup, it is time to upgrade your infrastructure.

1. The Stabilizer: Move from "whatever I have" to specific weights (2.5oz Cutaway is the industry standard for wearables).
2. The Hoop: A hooping for embroidery machine setup involving magnetic frames eliminates the wrist strain and hoop burn shown in this example.
3. The Machine: If you outgrow the 5x7 field or get tired of changing threads for every color, look toward multi-needle machines (like SEWTECH solutions). These allow you to set up 10-15 colors at once and just hit "Go."

Operation Checklist (During Stitch-Out)

• First 500 Stitches: Watch like a hawk. This is when birds nests happen.
• Sound Check: Listen for rhythmic changes.
• Jump Stitches: Trim them between color changes if your machine doesn't auto-trim.
• Fabric Slack: If you see fabric creating a "wave" in front of the foot, pause and gently tighten (or add painters tape to the edges for emergency stability).

Post-Op Checklist (After Finishing)

• Inspect Back: Check tension balance.
• Trimming: Remove jump stitches before removing stabilizer.
• Tear/Cut: Remove stabilizer gently. If cutting, pull the stabilizer away from the stitches, not the fabric away from the stabilizer.
• Press: Steam iron from the back (protecting the front thread) to reset the fabric grain.

By mastering these checkpoints and understanding the physics of your embroidery hoops for brother machines, you transfer the magic from "luck" to "skill." Happy stitching.

FAQ

• Q: How do I hoop recycled cotton bedsheet fabric on a Brother SE1900 without puckering or hoop burn?
  A: Cut fabric and stabilizer at least 2 inches larger than the hoop frame and hoop to “dull-drum” tension without overtightening the screw.
  • Cut: Add a 2"+ margin beyond the hoop’s outer frame on all sides to create “handles” for smoothing.
  • Align: Do a grain check and place the least-stretch direction top-to-bottom in the hoop before tightening.
  • Hoop: Smooth from the center outward, then tighten only until secure—avoid using a screwdriver as a crutch.
  • Success check: Tap the hooped fabric; it should sound like a dull drum and the grain lines should look straight (not smiling/bowed).
  • If it still fails: Switch to a magnetic embroidery hoop for more even clamping pressure and less fiber crushing.
• Q: Should Brother SE1900 upper thread tension be set to 2.8 for dense embroidery designs?
  A: No—2.8 is a major change; a safe starting point for Brother SE1900 is usually 3.6–4.0, then adjust based on stitch balance.
  • Start: Set tension near the factory norm (often 4.0) unless a specific thread/fabric combination demands change.
  • Test: Stitch a simple “H” and check the back for a balanced mix (top/bobbin/top).
  • Adjust: Lower tension if the back shows mostly bobbin thread; raise tension if bobbin thread disappears or loops show on top.
  • Success check: Satin areas show a centered line of bobbin thread on the back rather than all-white or all-top-thread dominance.
  • If it still fails: Re-check needle condition and bobbin loading direction/path before chasing tension numbers further.
• Q: How can Brother SE1900 users confirm the embroidery hoop is correctly latched to prevent design misalignment?
  A: Seat the hoop until a clear “click/snap” is felt, and never force the latch lever down.
  • Insert: Align the hoop brackets carefully and press in until the latch engages cleanly.
  • Stop: If the lever requires force, remove the hoop and re-seat—forcing can bend alignment pins.
  • Verify: Perform a gentle wiggle test to confirm the hoop moves as one unit with the carriage.
  • Success check: A distinct click is felt and the hoop has no play independent of the carriage.
  • If it still fails: Inspect for obstruction or misalignment at the hoop bracket area and re-attach without twisting.
• Q: How do I change an empty bobbin on a Brother SE1900 mid-design without shifting the hoop?
  A: Acknowledge the warning, cut thread, and resume from the saved X/Y position—avoid removing the hoop unless re-latching is easy and controlled.
  • Acknowledge: Press OK when “Bobbin Thread is Almost Empty” appears.
  • Cut: Use the automatic thread cutter (scissors button) before opening the bobbin area.
  • Replace: Insert a full bobbin and follow the correct threading path exactly as diagrammed.
  • Resume: Restart; the machine should continue from the same coordinate.
  • Success check: The next stitches land precisely in the previous stitch path with no outline offset.
  • If it still fails: Leave the hoop attached during the bobbin swap next time to eliminate re-latching error.
• Q: What stabilizer should be used to prevent puckering on a Brother SE1900 when stitching dense designs on woven cotton?
  A: For dense designs on non-stretch woven cotton, cut-away is safer, or use heavyweight tear-away bonded well to the fabric.
  • Decide: Choose cut-away for dense fills; consider heavyweight tear-away only if it is well supported and bonded.
  • Size: Cut stabilizer larger than the hoop frame so it stays fully captured and supported.
  • Add: If the fabric has pile (like towels/velvet), place water-soluble topping on top to prevent stitch sink.
  • Success check: After stitching, the fabric stays flat (no cupping/curling) and edges do not ripple around the design.
  • If it still fails: Increase stabilizer support (upgrade to cut-away or heavier backing) before changing tension.
• Q: What safety precautions should Brother SE1900 users follow when trimming jump stitches and handling rotary cutters?
  A: Treat cutting tools as surgical sharp—retract rotary blades immediately and keep fingers out of the needle/presser-foot zone during trimming.
  • Retract: Close the rotary cutter blade the moment the cut is finished; never leave it exposed under fabric.
  • Trim: Use precision tweezers to lift jump threads away from fabric before snipping with curved scissors.
  • Protect: Keep fingers outside the presser foot/needle zone, especially if the machine could be accidentally engaged.
  • Success check: Jump stitches are removed without nicked fabric, pulled knots, or frayed satin edges.
  • If it still fails: Slow down and lift the thread higher with tweezers to create a safer cutting gap before snipping.
• Q: When should Brother SE1900 users upgrade from a standard screw hoop to a magnetic embroidery hoop or a multi-needle machine for production efficiency?
  A: Upgrade when hooping becomes the bottleneck—first refine technique, then move to magnetic hooping for repeat work, and consider multi-needle when color changes and field limits cap output.
  • Level 1 (Technique): Stop using a screwdriver to “muscle” the hoop; aim for drum-tight fabric and correct grain alignment.
  • Level 2 (Tool): Use a magnetic embroidery hoop when thick seams/towels keep popping out, hoop burn appears, or wrist strain slows setup.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent thread changes and a 5x7 field repeatedly limit throughput.
  • Success check: Setup time drops, fabric holds securely through stitch-out, and rehooping errors/puckers reduce across multiple items.
  • If it still fails: Audit stabilizer choice and the first-500-stitch monitoring routine before assuming the machine is the root cause.
